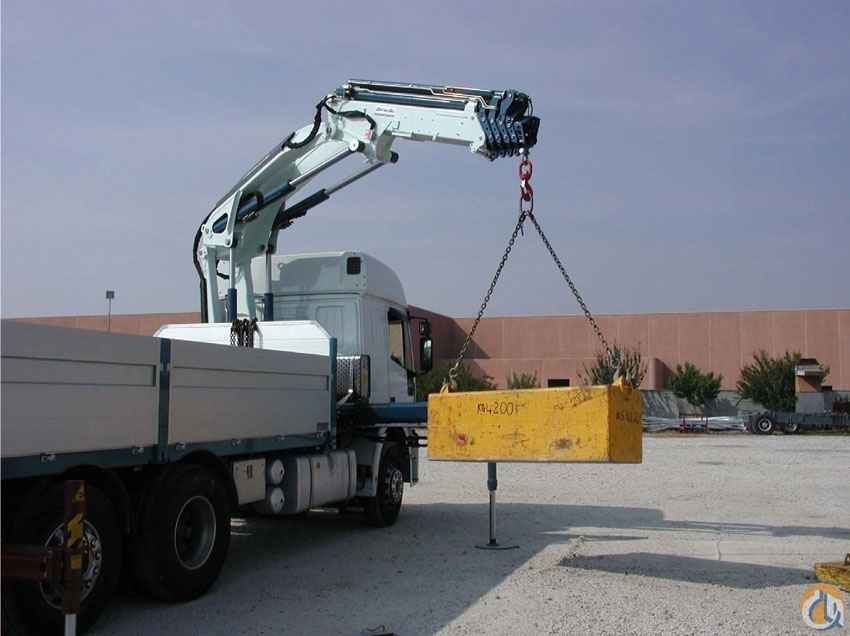

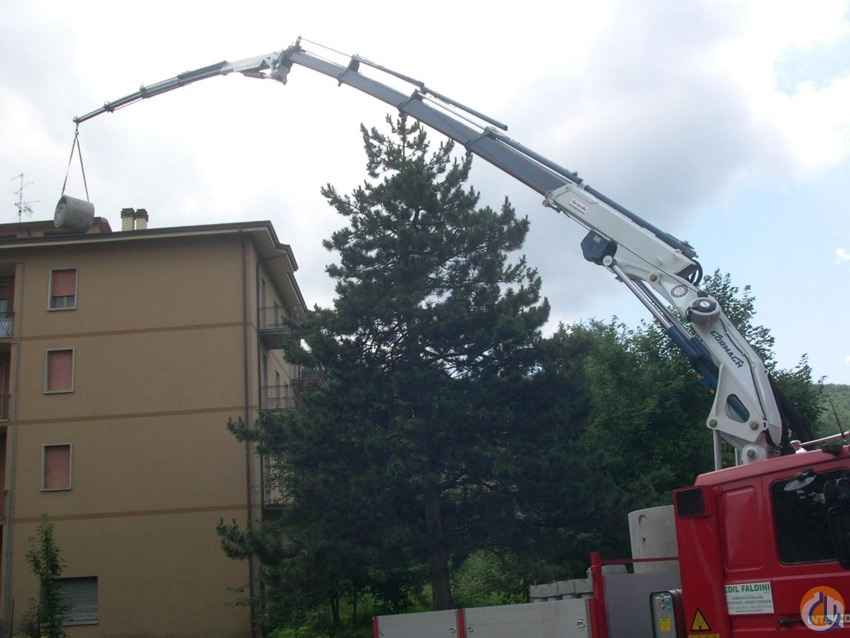

New Cormach 22500E5 ASC Plus knuckle boom crane (unmounted)
Technical Specifications:
Static moment at the turret pin: 22000 (daN/m), 159160 (lbs/ft)
Hyd. boom length: 13700 (mm), 44' 11" (in)
Length: 910 (940) (mm), 2' 12" (3' 1") (in)
Width: 2500 (mm), 8' 2" (in)
Height: 2287 (mm), 7' 6" (in)
Weight (without oil and fitting): 2960 (kg), 6526 (lbs)
Lifting capacity: 8400 (kg), 18519 (lbs)
Boom length with manual extensions: 15840 (mm), 51' 12" (in)
Slew torque: 2600 (daN/m), 18810 (lbs/ft)
Slewing speed: 360 - 40 (° – sec), 360 - 40 (° – sec)
Outriggers extension: 1850 + 1600 (mm), 6' 1" + 5' 3" (in)
Outriggers width: 5830 (mm), 19' 2" (in)
Pump delivery: 45 (lit/min), 11,9
Pressure: 300 (bar), 4270 (Psi)
Oil tank capacity: 140 (lit), 37 (us gal)
