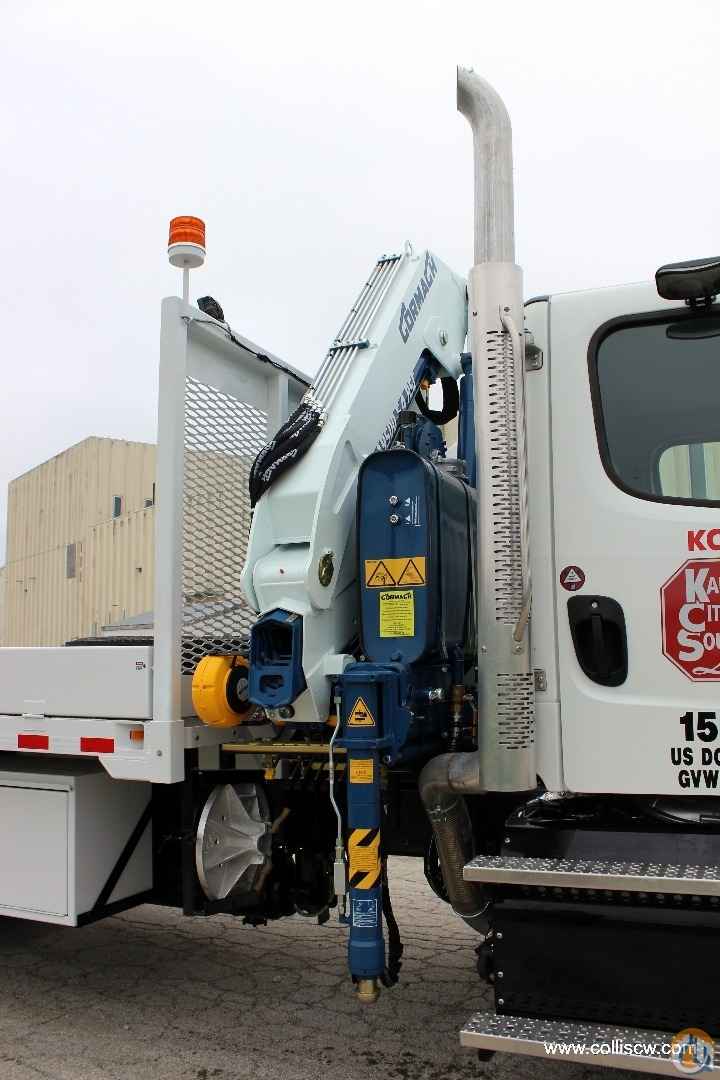

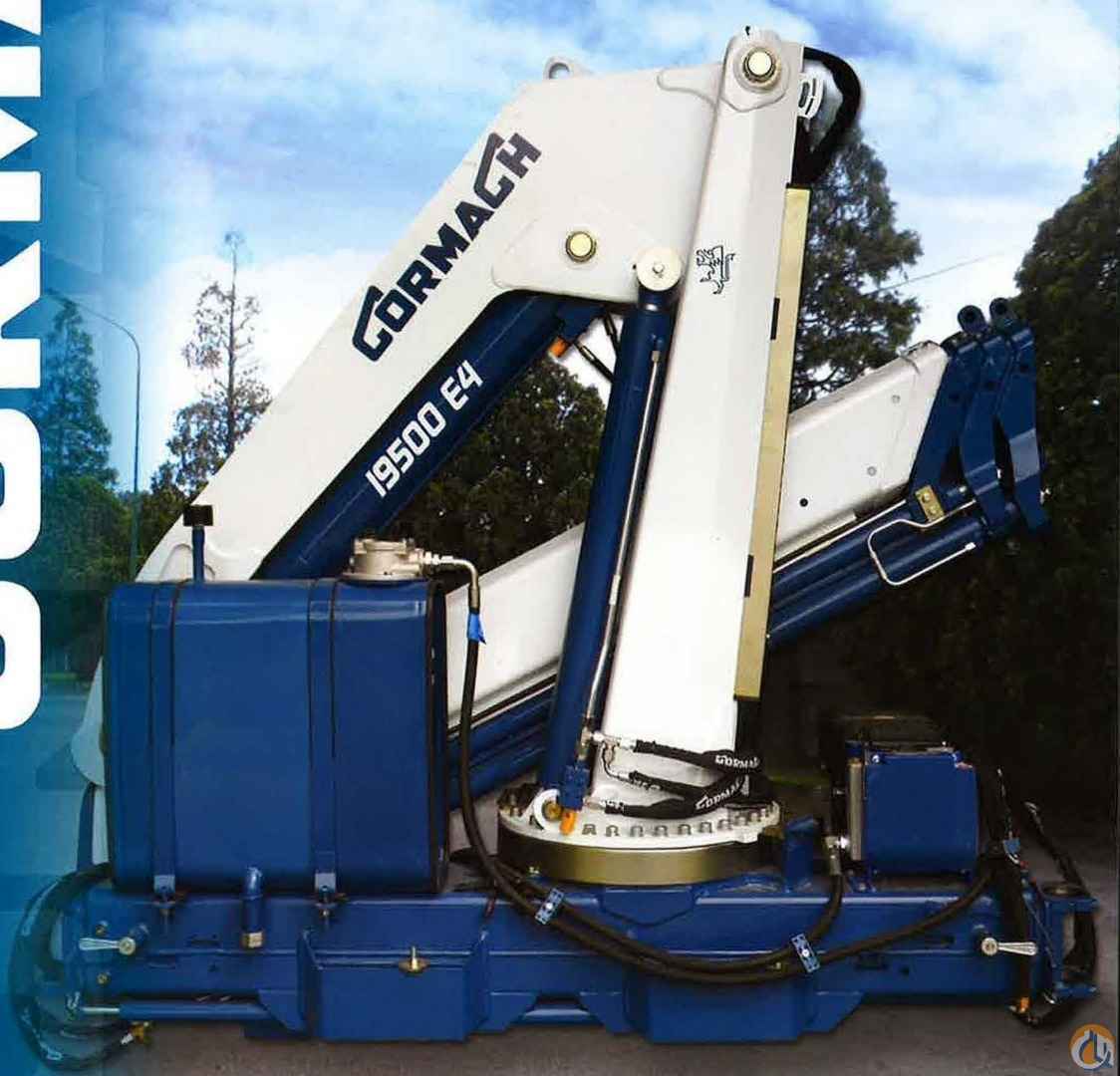

Sold New Cormach 19500E4 ASC Plus knuckle boom crane (unmounted) Crane in Olathe Kansas

Technical specifications

Static moment at the turret pin: 19500 (daN/m), 141044 (lbs/ft)

Hyd. boom length: 12270 (mm), 40'26" (in)

Length: 790 (mm), 2'59" (in)

Width: 2478 (mm), 8'13" (in)

Height: 2309 (mm), 7'58" (in)

Weight (without oil and fitting): 2320 (kg), 5115 (lbs)

Lifting capacity: 3600 (kg), 7937 (lbs)

Slew torque: 1750 (daN/m), 12658(lbs/ft)

Slewing speed: 32 (° – sec), 32 (° – sec)

Outriggers extension: 1610 + 1350 (mm), 5'28" + 4'43" (in)

Outriggers width: 5325 (mm), 17'47" (in)

Pump delivery: 50 (lit/min), 13.21

Pressure: 290 (bar), 4206 (Psi)

Oil tank capacity: 120 (lit), 31.70 (us gal)
