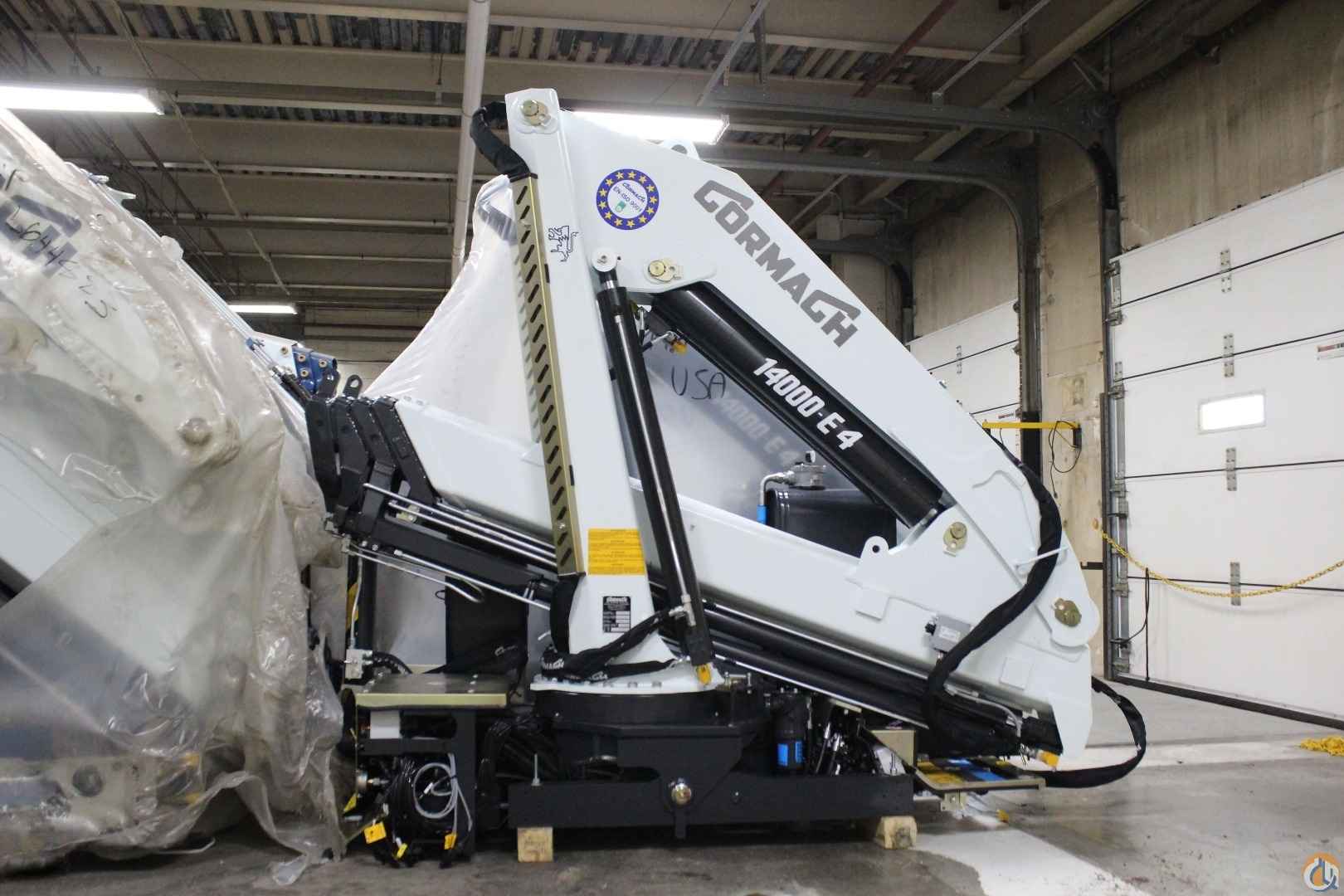

Sold New Cormach 14000E4 knuckle boom crane (unmounted) Crane in Olathe Kansas

Technical specifications

Static moment at the turret pin: 14000 (daN/m), 101281 (lbs/ft)

Hyd. boom length: 11.51 (mm), 37' 9" (in)

Length: 793 (mm), 2' 7" (in)

Width: 2405 (mm), 7' 11" (in)

Height: 2160 (mm), 7' 1" (in)

Weight (without oil and fitting): 1835 (kg), 4046 (lbs)

Lifting capacity: 2630 (kg), 5798 (lbs)

Slew torque: 870 (daN/m), 6293(lbs/ft)

Slewing speed: 360° - 39 (° – sec)

Outriggers extension: 1400 + 1300 (mm), 4' 7" + 4' 3" (in)

Outriggers width: 4850 (mm), 15' 11" (in)

Pump delivery: 25 (lit/min), 6

Pressure: 295 (bar), 4149 (Psi)

Oil tank capacity: 57 (lit), 15 (us gal)
