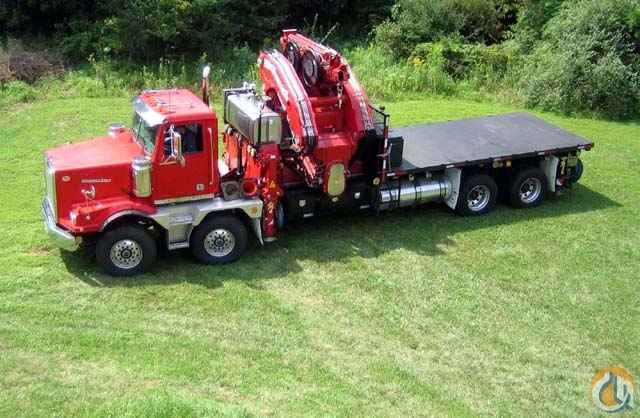

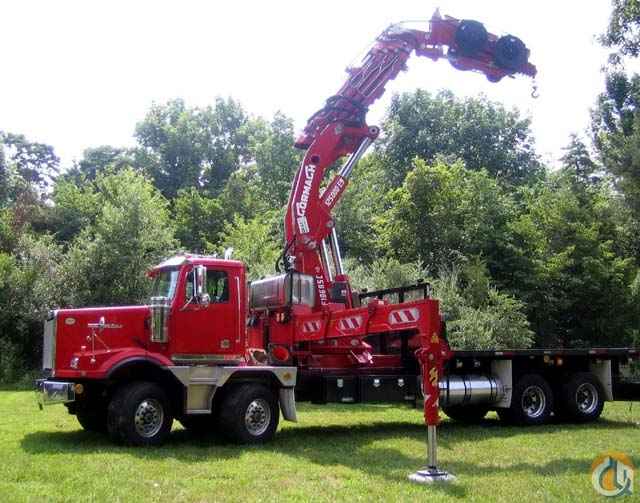

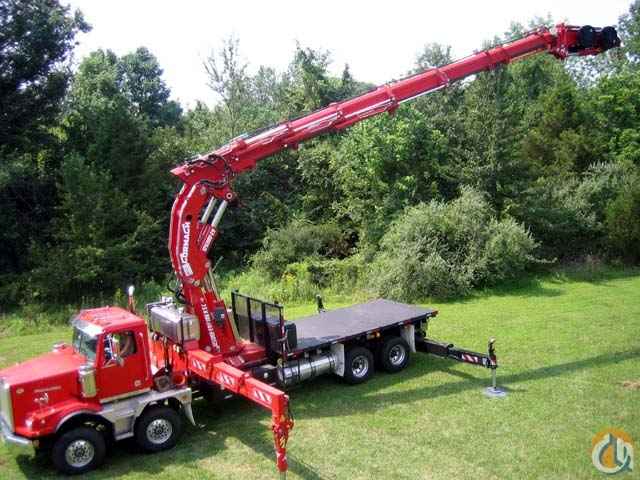

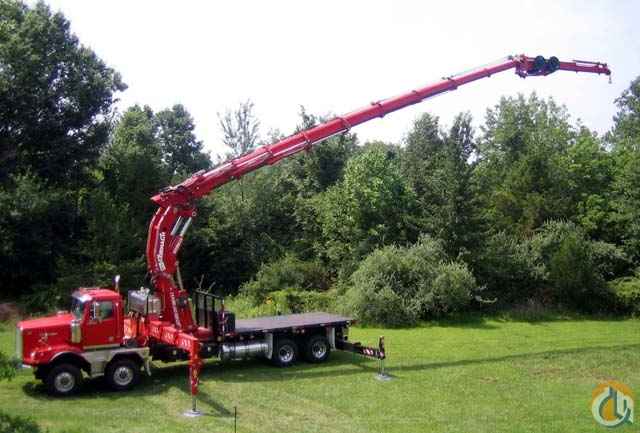

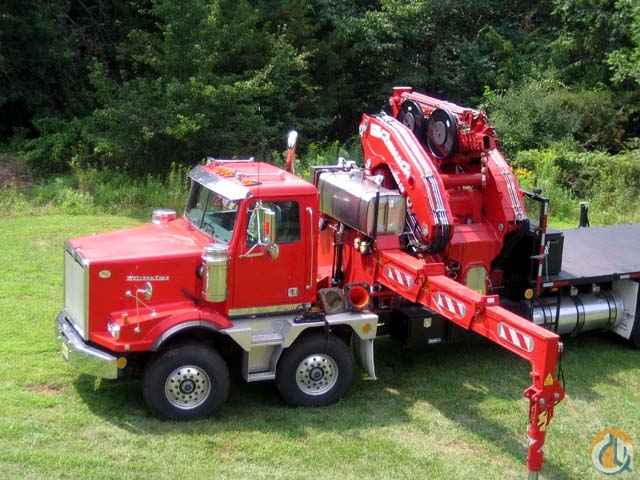

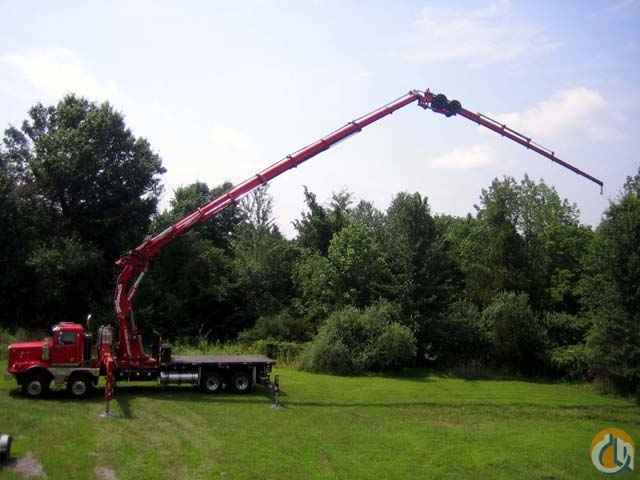

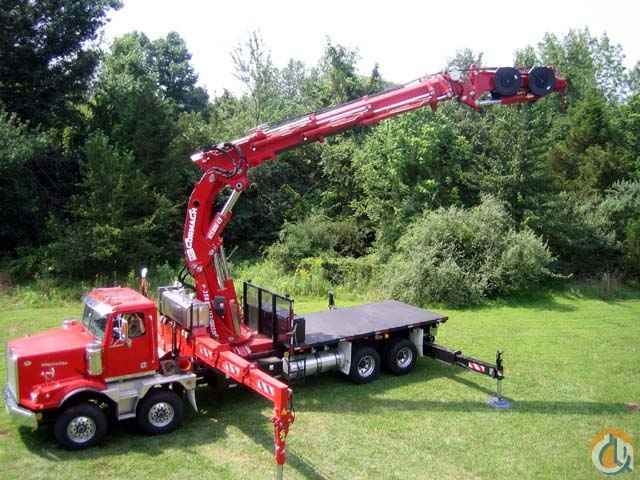

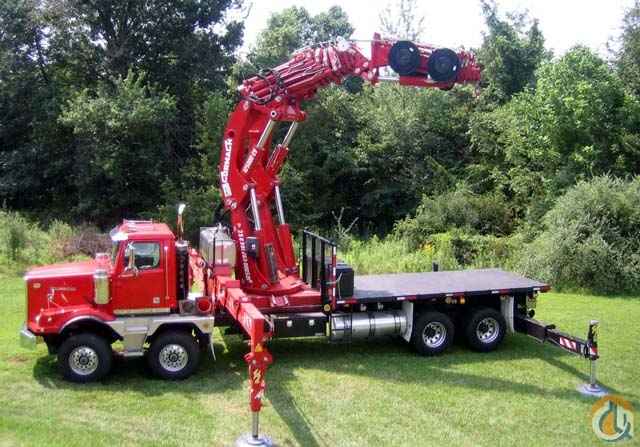

Cormach 125000 E9F186 Mounted Knuckle Boom Crane (Sold)

New…… Used as demonstrator–Original Selling Price $623,500

NOW $365,000 USD

HEAVY LIFT KNUCKLEBOOM TRUCK CHASSIS PACKAGE

2009 Western Star 4900SA Twin-Steer Truck Chassis Twin-Steer with Cormach Model 125,000E9F186 A.S.C. Knuckleboom Crane

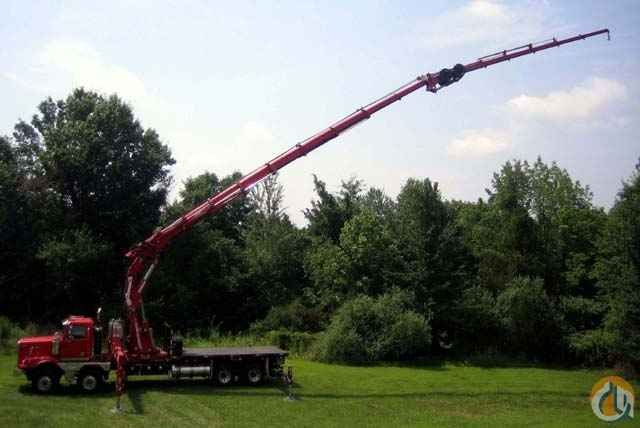

· Main boom with 9 hydraulic extensions

· Completely foldable hydraulic jib with 6 extensions

· Sunfab variable displacement, load sensing, self-compensating piston pump

· Fully proportional Hetronic radio remote control system with Danfoss control valve

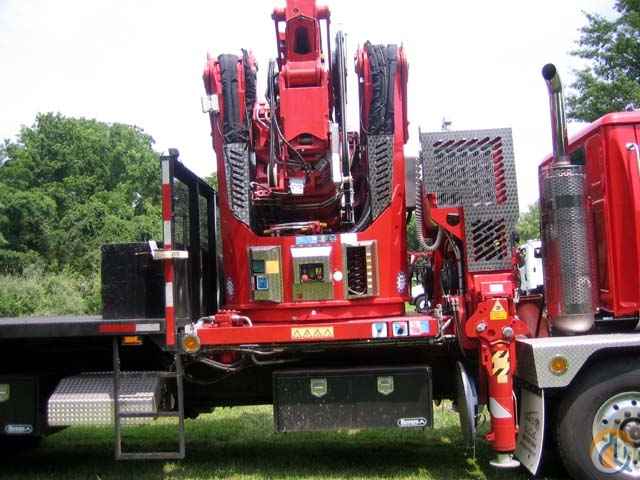

· Main control valves located on the lower kingpost, for emergency use

· Electro-hydraulic overload protection system

· Integrated full sub-frame

· Oil cooler

· Main base-mounted hydraulic outriggers with 33’2” span

· Auxiliary, hydraulic under-frame outriggers with 26’6” span

· Four (4) oversize sand pads and brackets

· 16’ D structural steel flatbed body with 3/16” TPX steel deck; 6 under-body load binders; all L.E.D. lights; mud flaps; rear ICC safety bumper

· (2) 48” and (2) 24” under-body toolboxes

· Safety devices include:

o Pressure valve on hydraulic circuit

o Double lock valve, balanced on leveling cylinder

o Possibility of the exclusion of the electronic leveling

o All operation levers with automatic return to neutral position

o Mercury bubble safety automatic switch for support of electronic leveling

OPTIONAL $5,000.00

Western Star Model 4900SA VlN #5KKMALCK39PAK2190 Twin Steer; DDC 60-14.0L 425 hp diesel engine; Eaton Fuller FR0-I4210C manual transmission; 40,000 lb. twin-steer front axles; 46,000 lb. tandem rear axles; 120 gal. LH aluminum fuel tank; aluminum disc front and rear wheels; A/C; tilt wheel; heated mirrors; AM-FM-CD weather band radio; power windows & door locks; and real wood panels.

Special 84” x 30”self-leveling, rotating work platform with 180 degrees of rotation. Control board equipped with rotation, leveling, and start/stop controls. All movements of the crane controlled from the platform via remote control. Platform approved for two (2) persons (440 lbs.) When in use the platform working area is limited by a load-limiting device, which calculates the area in real time.
