Capacity: 24.00
Condition: Very-good
Location: Telford, Pennsylvania
Boom: 41

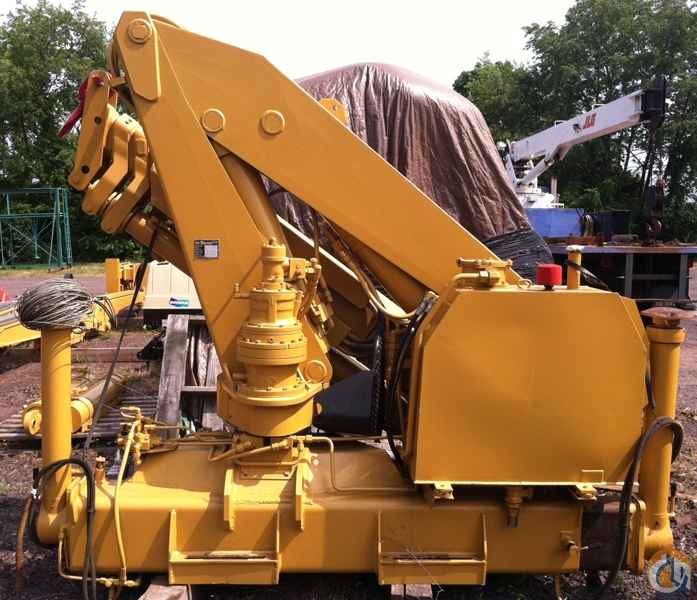

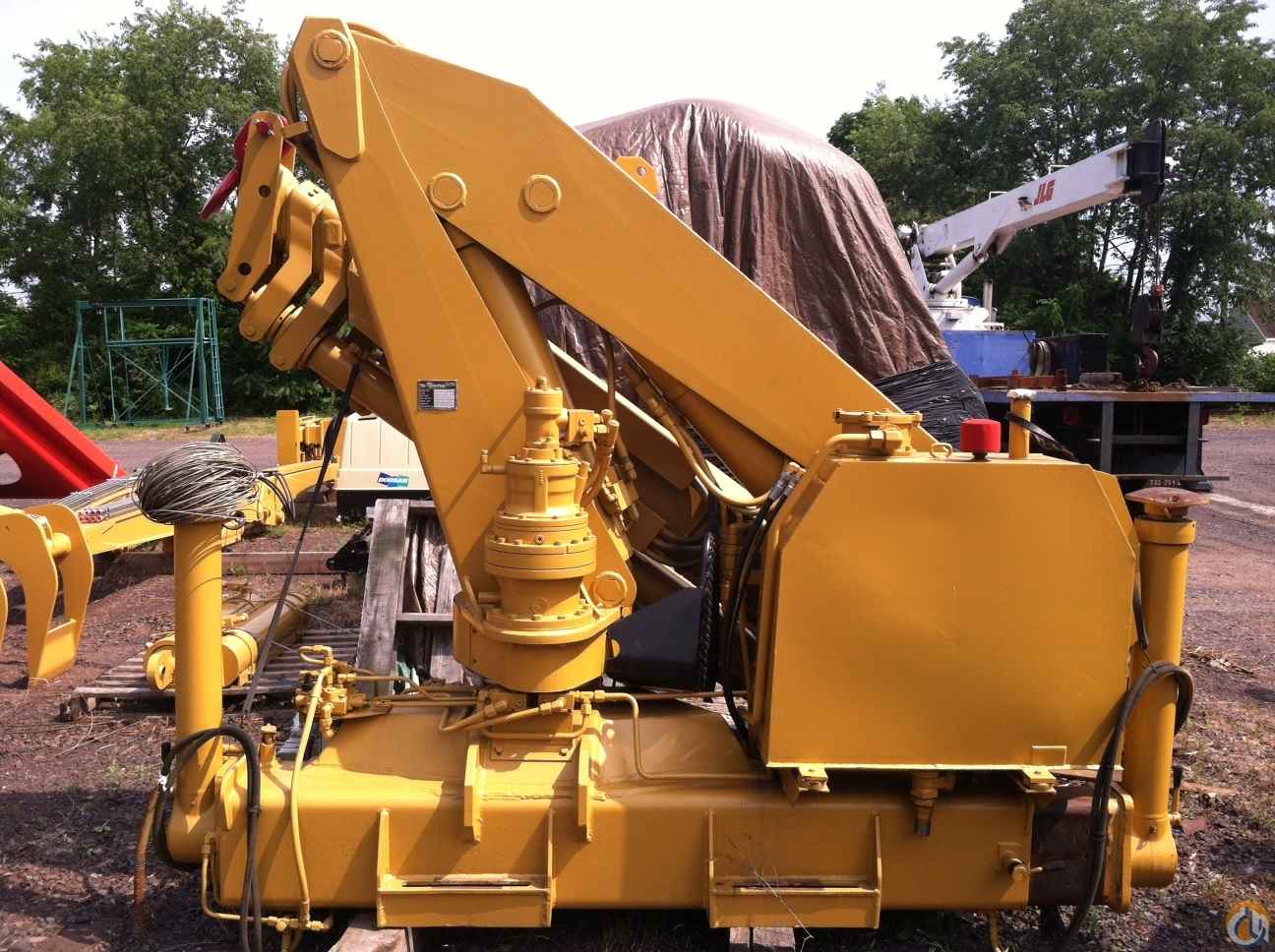

Reconditioned COPMA Model 2330/4 articulated crane figure-four crane with a 168,000 foot pound capacity. Four telescopic hydraulic extensions to fully hydraulic horizontal reach of 41’. Fully foldable boom system. 600 degree non-continuos rotation with hi-torque planetary gear drive motor and turntable bearing. Hydraulic power out and down stabilizers extendable to a width of 16.6’, with double safety valves. Four position stabilizer control device with outlets for optional auxiliary stabilizers. Five-function control valve with dual control operation. Load limiting overload protection device. Load holding safety valves. Thirty gallon oil tank with return line filter. All cylinders double acting with hard chromium piston rods. JIC fittings on all hoses. Complete rotating hook assembly. Mounting hold down bolts. Standard color - International Safety Yellow.
Sales Dept: 215-723-6771
Alt Phone: 215-622-5499
Fax: 215-723-0853
Telford, PA, United States
