BOOM DETAILS

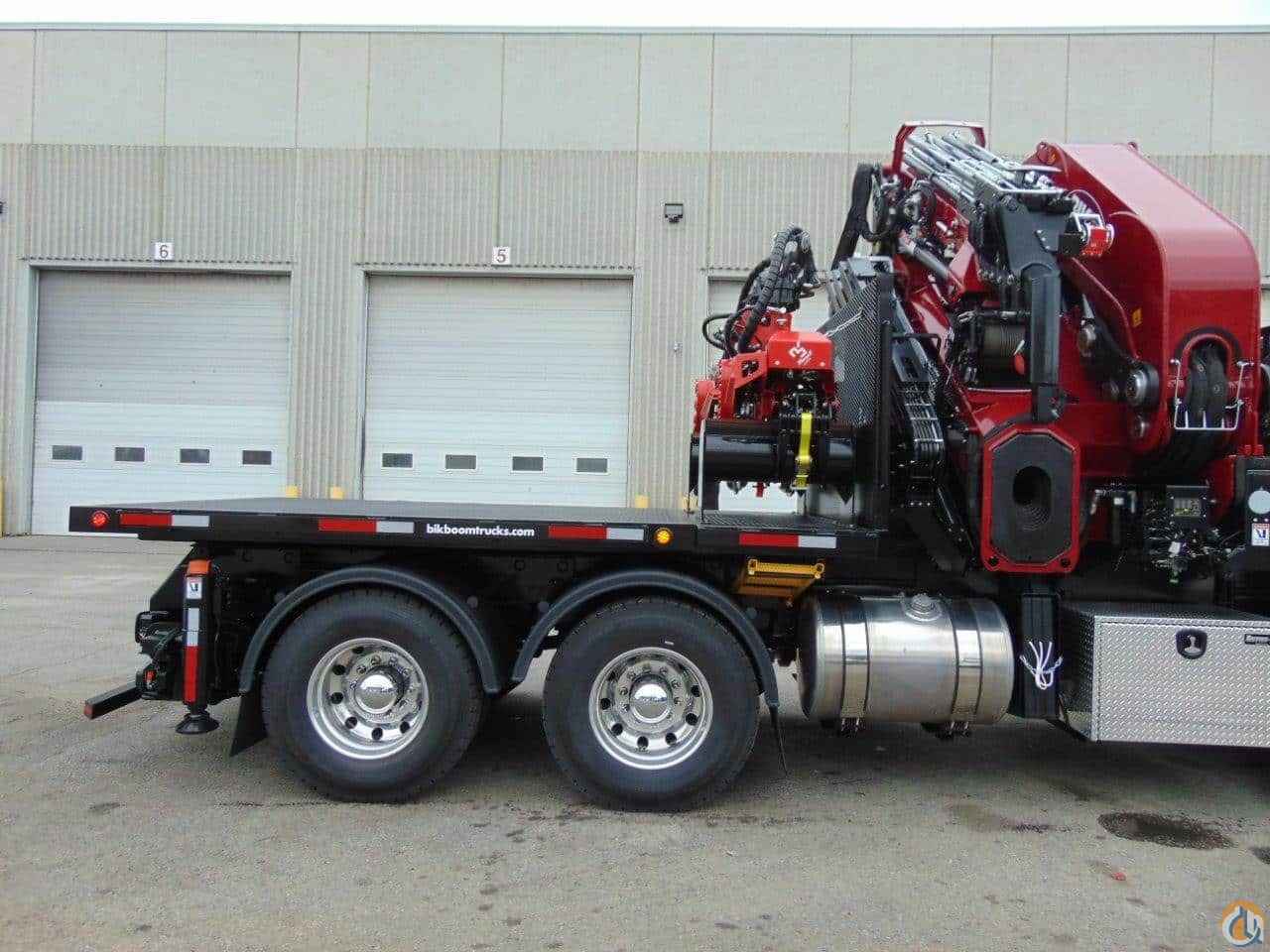

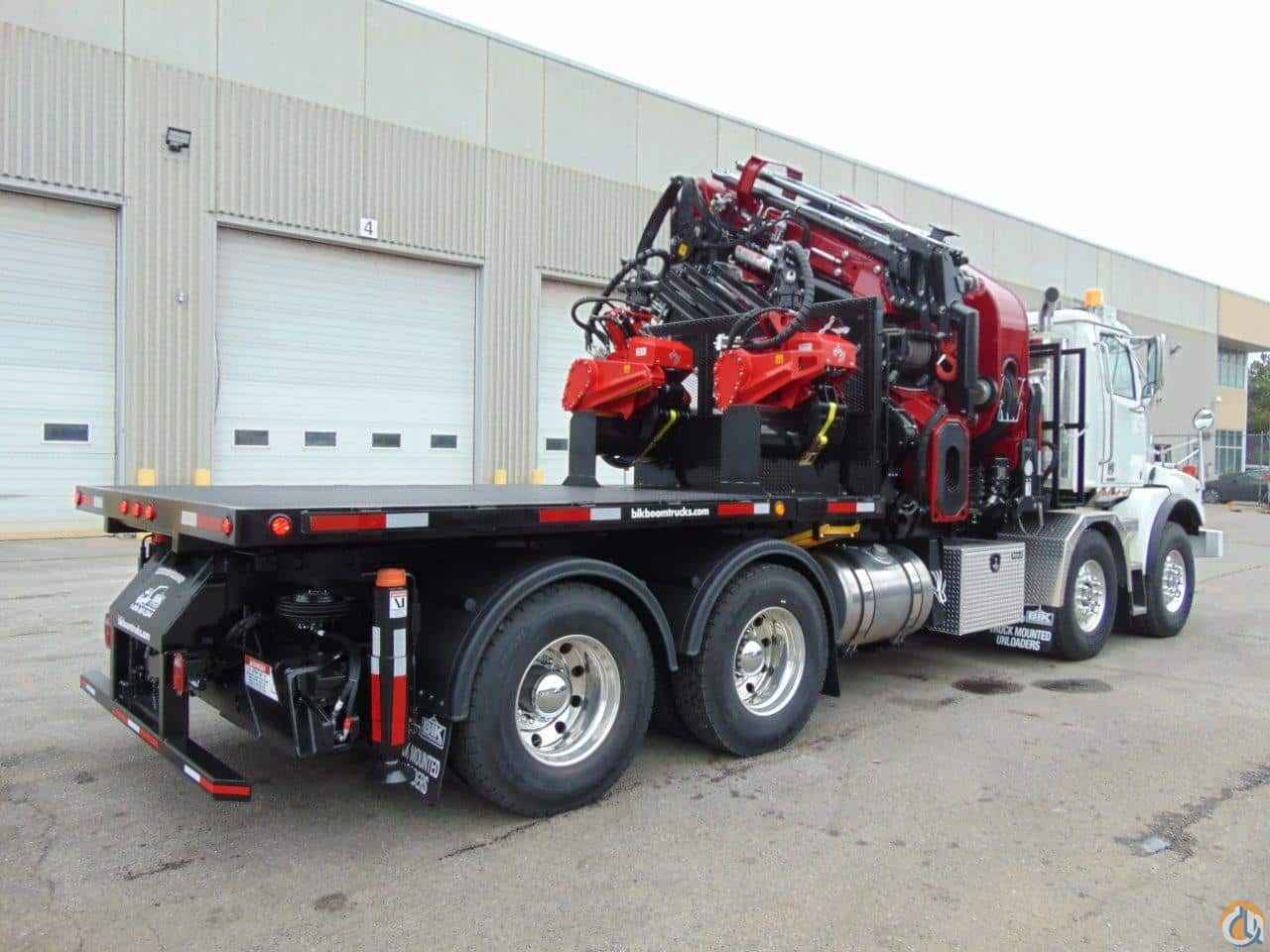

New – BIK Tree-Care Series TC-124-XL – 150 ton/m Knuckle Boom
- 8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extension
- Including (1) Grapple extention in jib
- Boom Capacity of 3,800 lbs @ 124’ Vertical Reach
- Main Boom Horizontal Capacity:
- 46,000 lb @ 16’
- 27,000 lb @ 26’
- 18,200 lb @ 38’
- 12,700 lb @ 50’
- 9,800 lb @ 64’
- Jib Horizontal Capacity:
- 5,350 lb @ 73’
- 4,500 lb @ 85’
- 3,900 lb @ 96’
- 3,200 lb @ 108’
- w/Grapple extn to 112’
- PM connecting rods at First Boom and Knuckle, 15degree negative angle at 1st knuckle, 25 degree negative angle at jib
- Continuous Rotation and Dual Planetary Gear Rotation
- Special Extra High Tensile Steel Structure
- Hydraulic Extra Wide Main outriggers at pedestal – 33’ – 6” span – hydraulic tilting when retracted. Radio controlled
- Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
- Lifting winch on boom plumbed to jib
- DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system
- Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, load chart in FT. & LBS.
- Load Tested & Installed back of cab, with integral sub-frame to meet or exceed all CMVSS Standards
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
TRUCK DETAILS

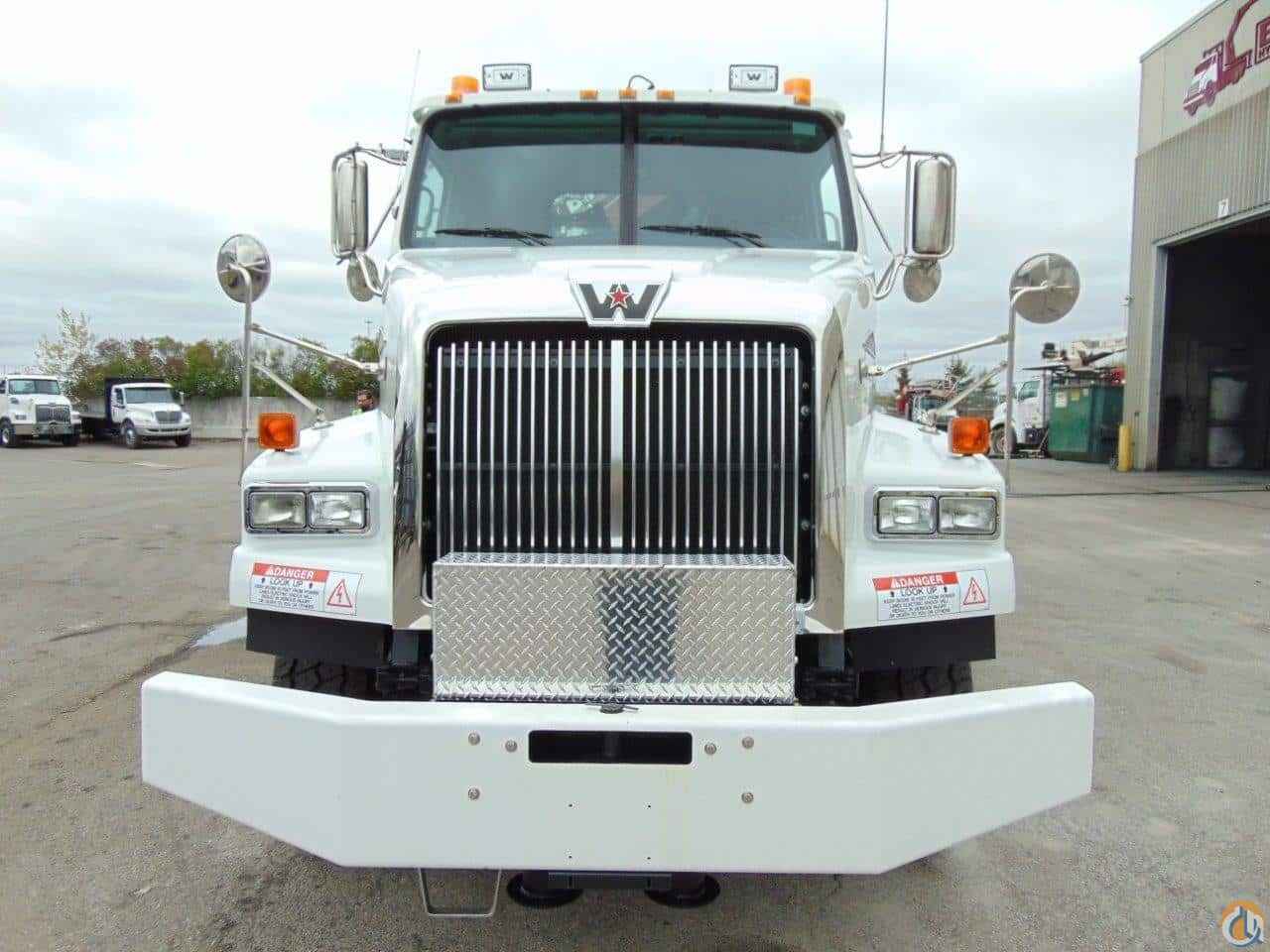

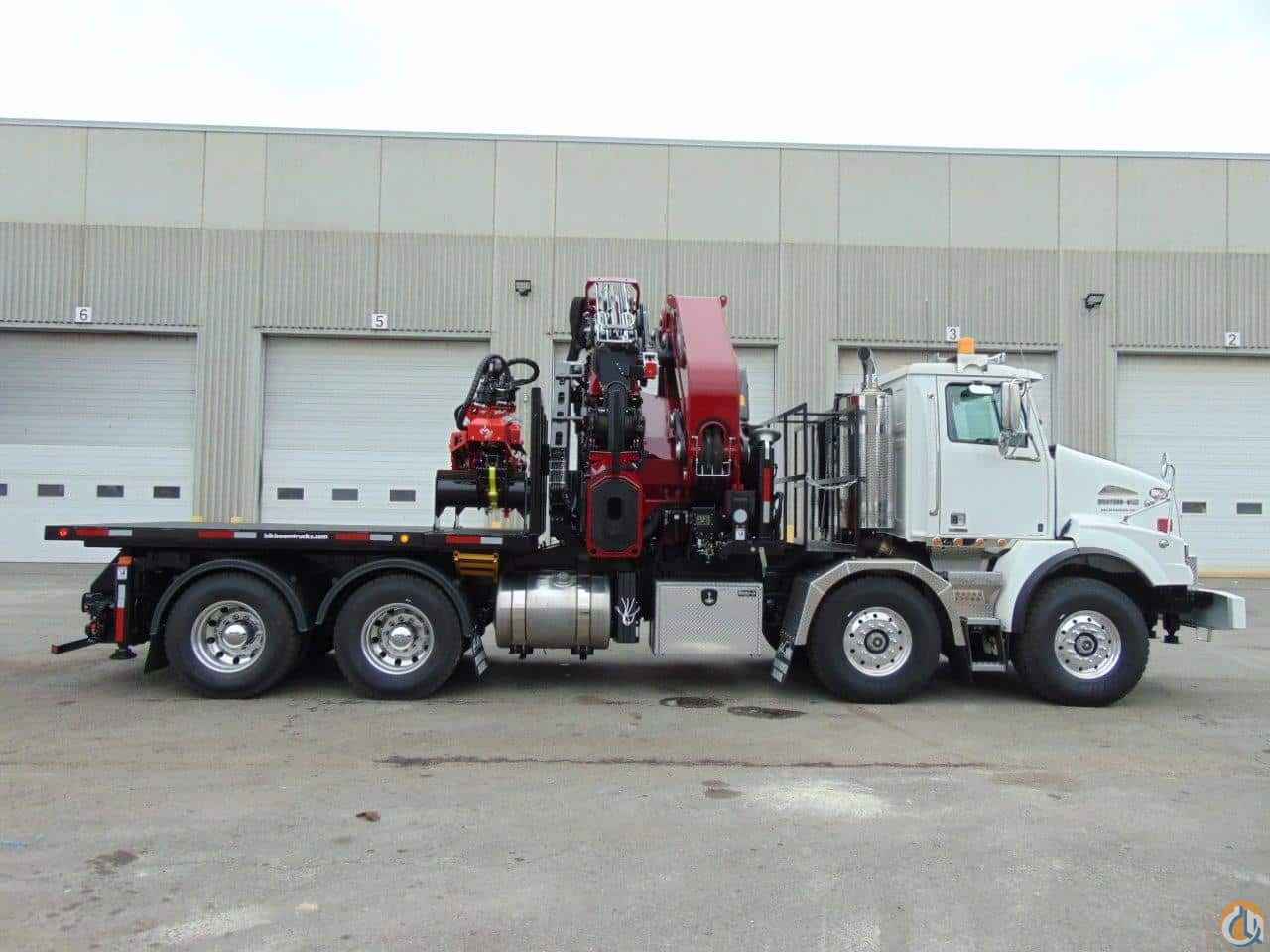

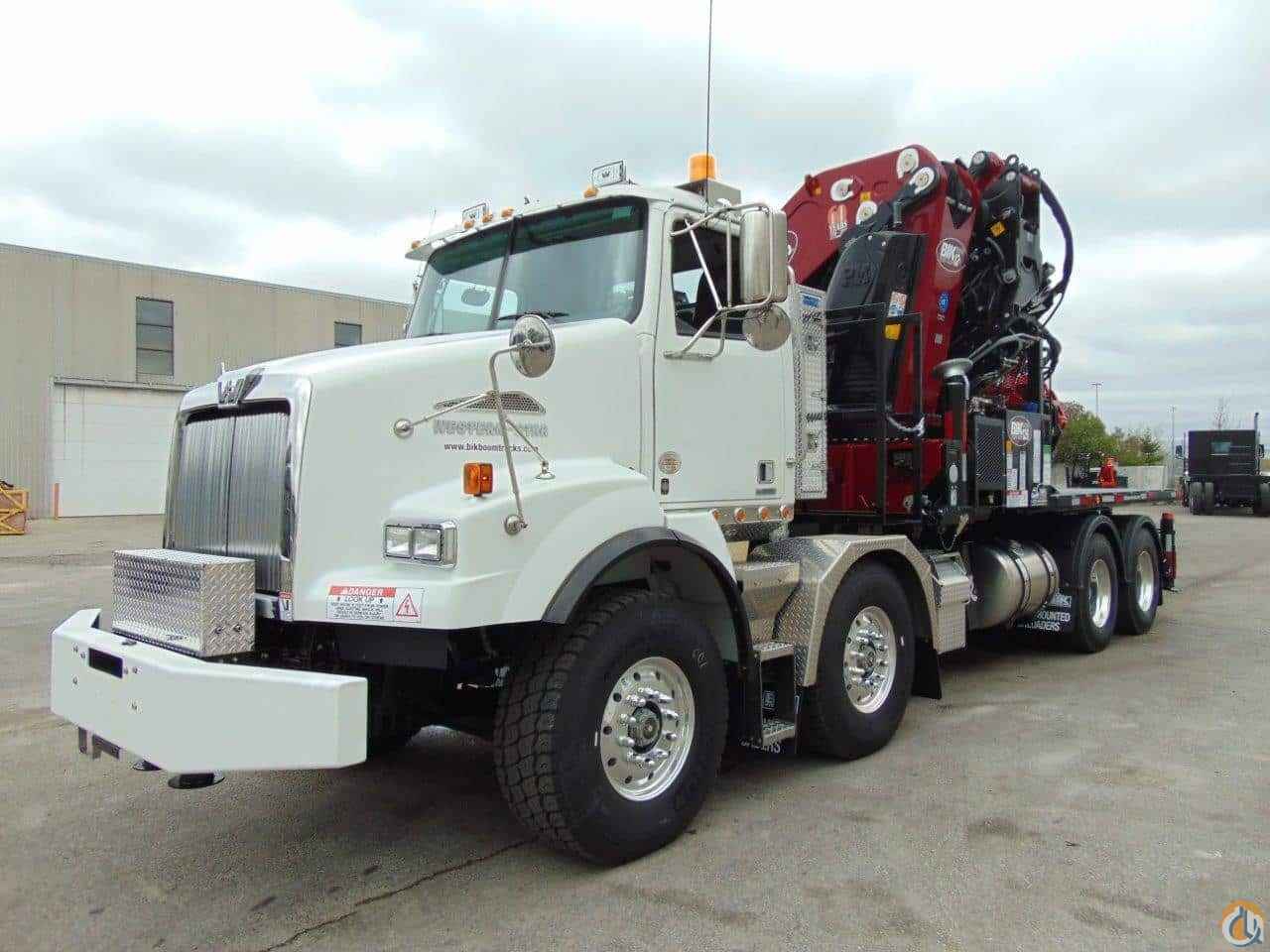

New – Western Star 4800 Sloped Short Nose T/A Steer-T/A Rear – 4 Axle: 92,000 lb GVWR
- DD-13 Diesel – 470 hp with Jake
- Eaton Ultrashift 18spd Automated Trans.
- (2) x 20,000 LB fronts with 425 / 65R22.5 tires, 52,000 LB Rears on Tuftrac Susp.
- Double Frame
- Polished ALCOA Aluminum Wheels front and outer rear
- Dual Chrome single polished Exhaust, Chrome Grille & Bumper
- Dual 80 gallon aluminum fuel tank

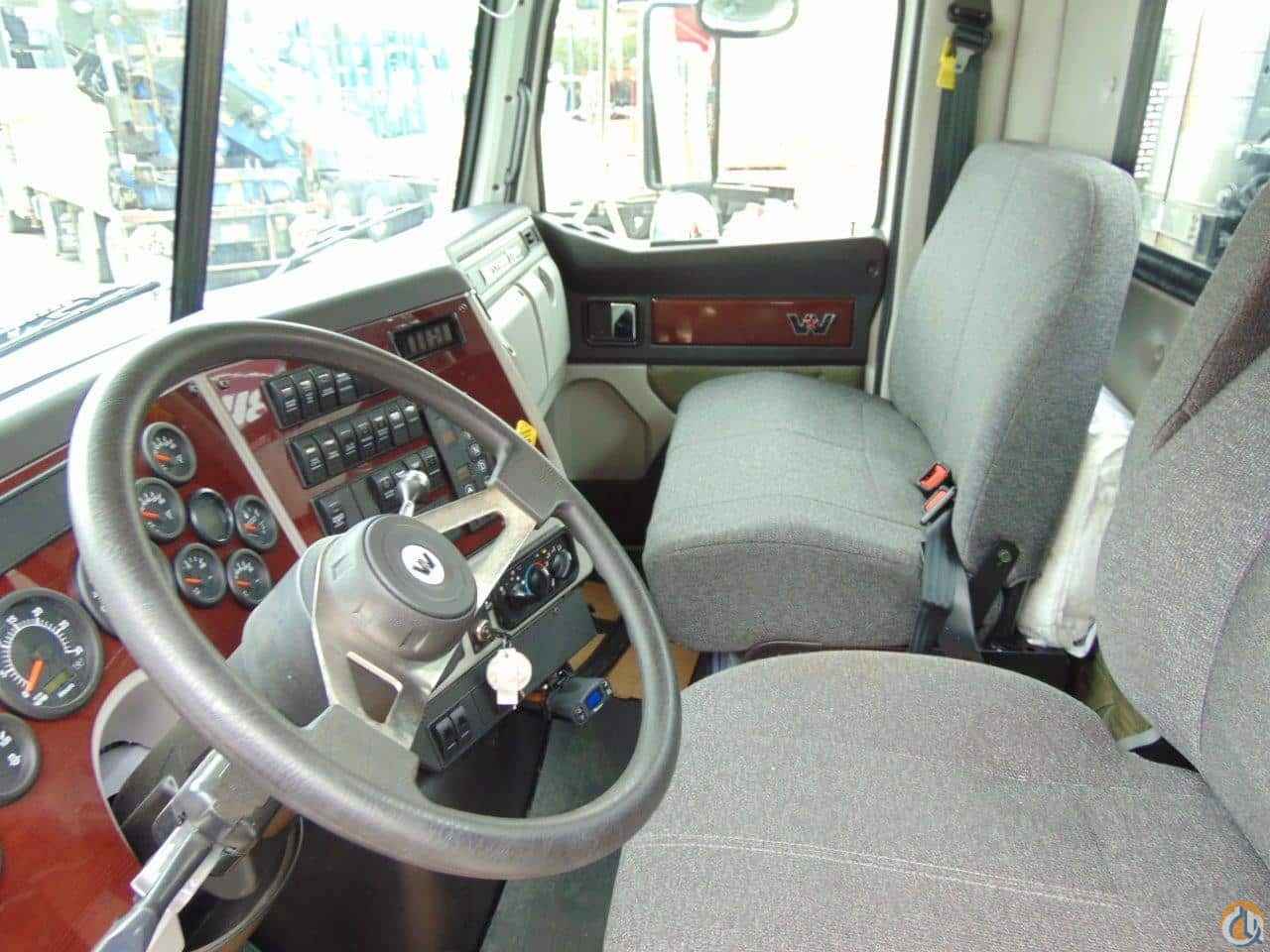

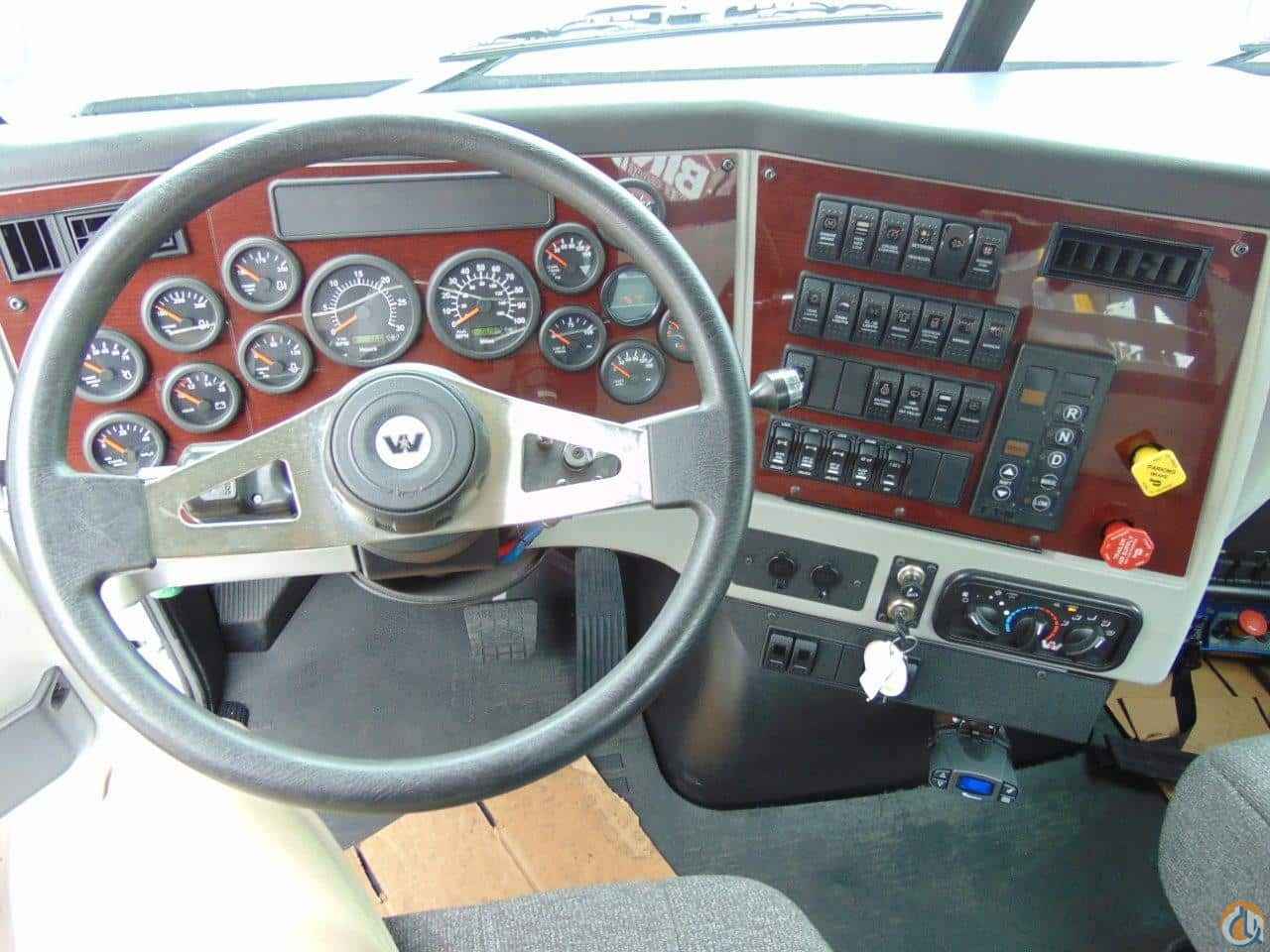

- Loaded with Options including: A/C, Tilt/Telescopic steering, top level Interior, AM/FM/CD, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power window both sides , power mirrors & door locks, Air ride cab, trailer air tow package, truck cab white colour, 5th wheel on at tandems w/ramps, etc…
Also Included:
- (6) pcs – 2” PVC stab pads w/holders
- (2) pcs Alum storage boxed installed
- Custom re-enforced manual extension for grapple
- Mecanil SG-280 Grapple Saw with spare parts kit
- Custom 2’ deck behind boom with grapple saw holder(s)
- 8’ removable carry deck over 5th wheel,
- Spot lights on main boom and on jib
- 2 to 3 day Boom feature/operation familiarization by BIK tech at your location
Other Options Also Available:
- (additional) Mecanil SG 160 Grapple saw with spare parts kit & holder
- (1) Additional Manual pull out boom extension for regular lifting hook (adds 5.5’ more reach)
- (1) Aluminum single man self-levelling basket
- Hook Lift Deck removal system or Dump Body (instead of 5th wheel or flat deck)
