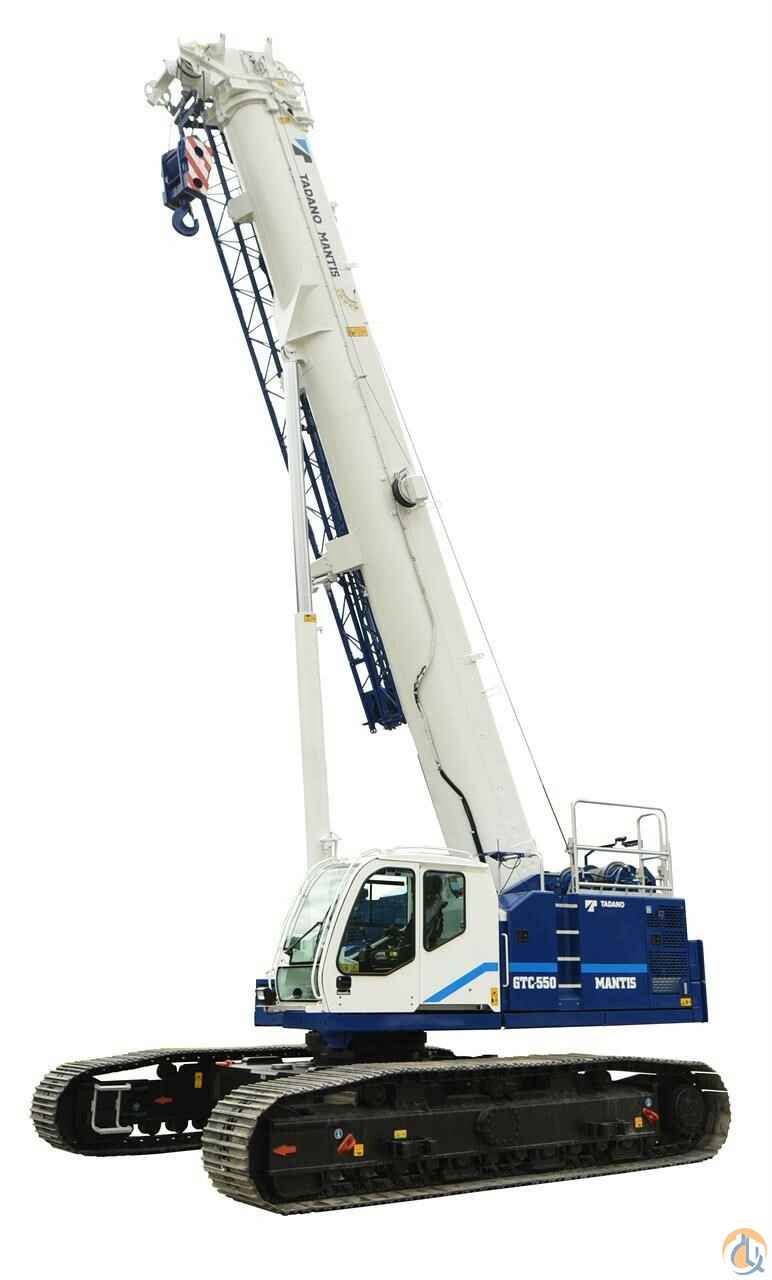

STOCK PHOTO USED
In Stock at Factory
CRANE CAPACITY
55 ton at 8 feet
BOOM
4-section, 36’1” – 113’10”
DIMENSION
Overall Length43’0”
Overall Width (tracks extended)17’1”
Overall Width (tracks retracted)11’5”
Overall Height12’1”
MASS
Gross Vehicle Mass (Standard Equipment Package)103,900 lb
Maximum Counterweight Standard = 17,400 lb
Optional Heavy CWT = 28,200 lb
PERFORMANCE
Travel Speed0.8 mph – 1.8 mph
Gradeability85%
Winch Line Pull (first Layer)13,311 lb
Winch Line Speed (4th layer)347 ft/min
ENGINE
Cummins B6.7 | 260hp @ 2,200RPM
Key Features
55-tons pick-and-carry capacity through 360°.
Two-piece bi-fold (28.9′ / 49.9′) lattice boom extension & offsettable jib for up to 161 ft lifting height
Tadano AML-C LMI system
OPTI-WIDTH™ – OPTIMAL lifting performance at any track WIDTH
Work area limitations with soft stop
Winches with grooved drums, cable followers and 3rd wrap shutdown
Self Erecting Crane
Unladen ground bearing pressure of 9.3 psi
Hydraulic on-the-fly track frame retraction and extension
Hello-Net Telematics
3 remote control work lights
3 video cameras for winch view, rear view, and right side view
Optional Equipment
Crane mounted hydraulic tool circuit with 50′ retractable hose reel
WP-750 work platform mounts to boom tip or 28.9 ft lattice boom extension
Cold weather heater options
Controlled free fall winches
Boom-mounted Anemometer with cab display
Full function Radio remote control package
Automatic lubrication system for slewing ring and boom pin
360 degree house lock
Cab Mounted FOPS
Call for more information
