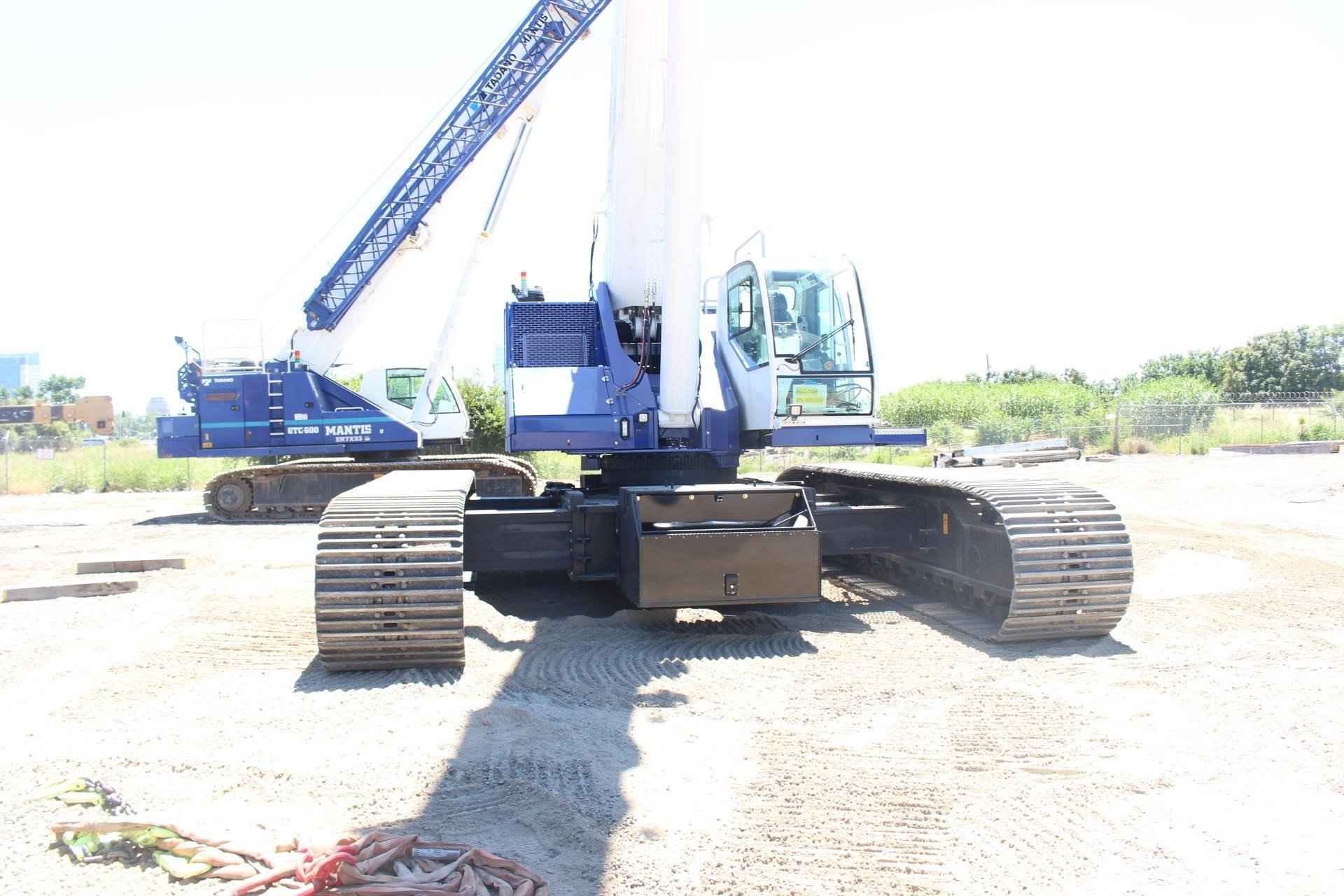

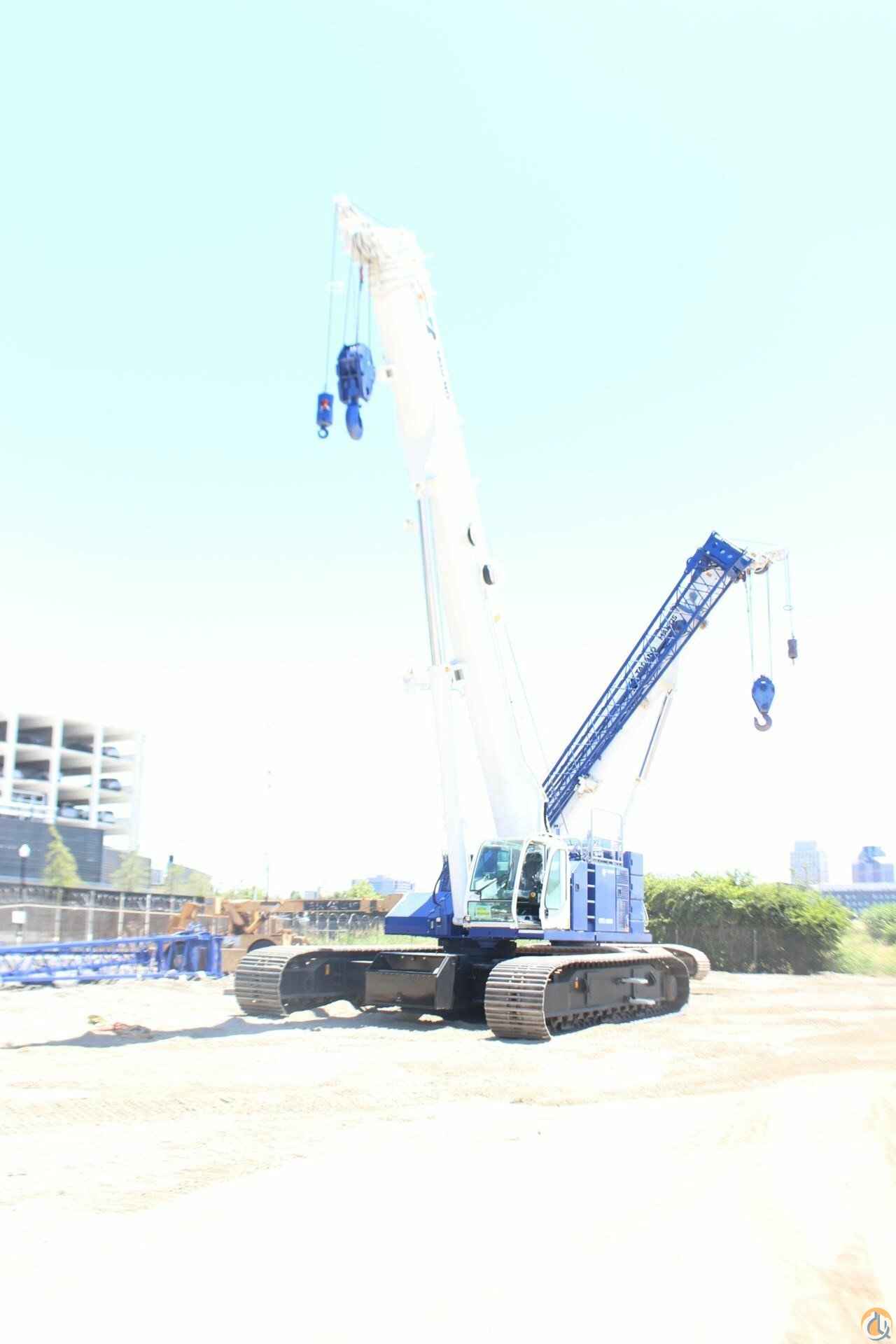

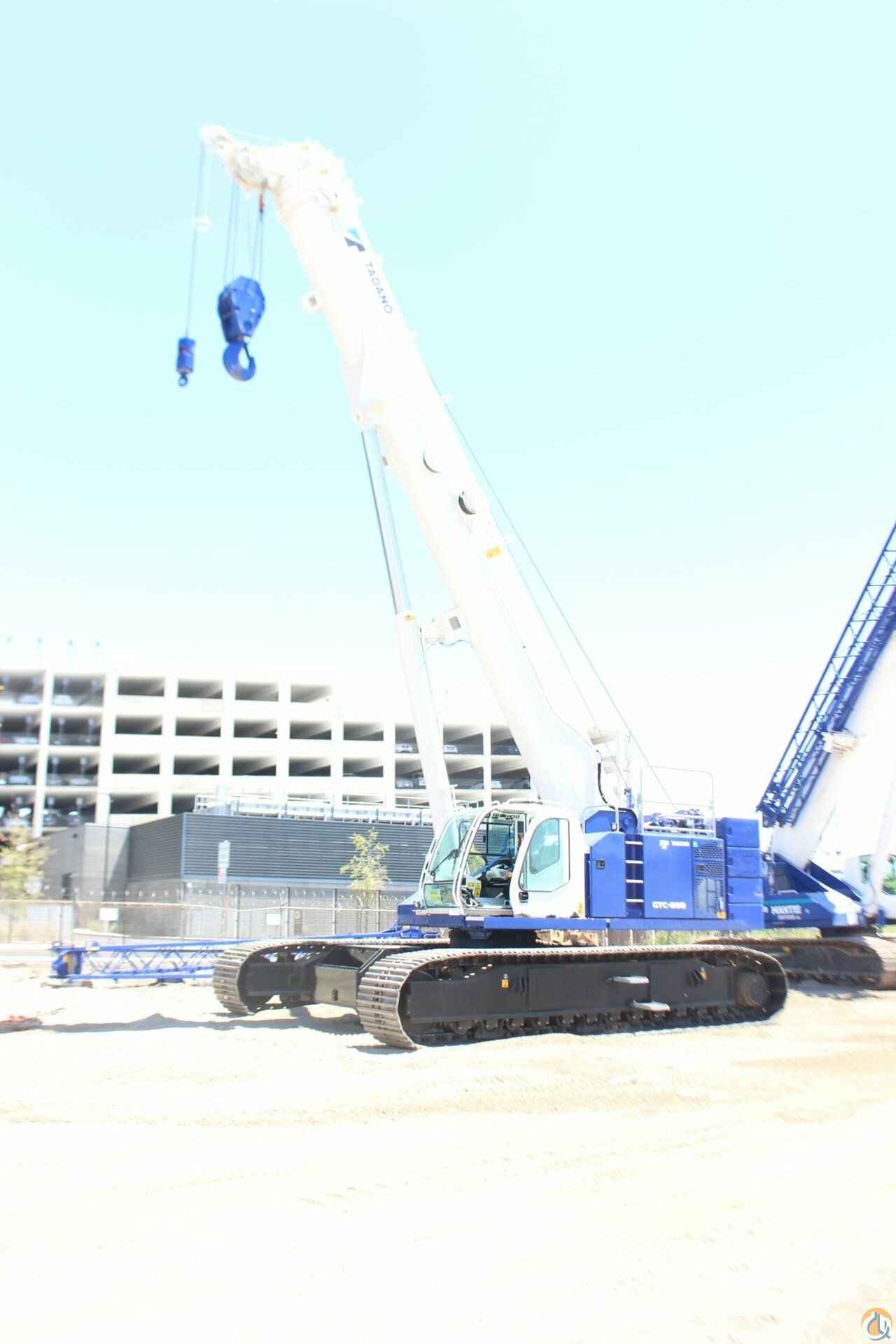

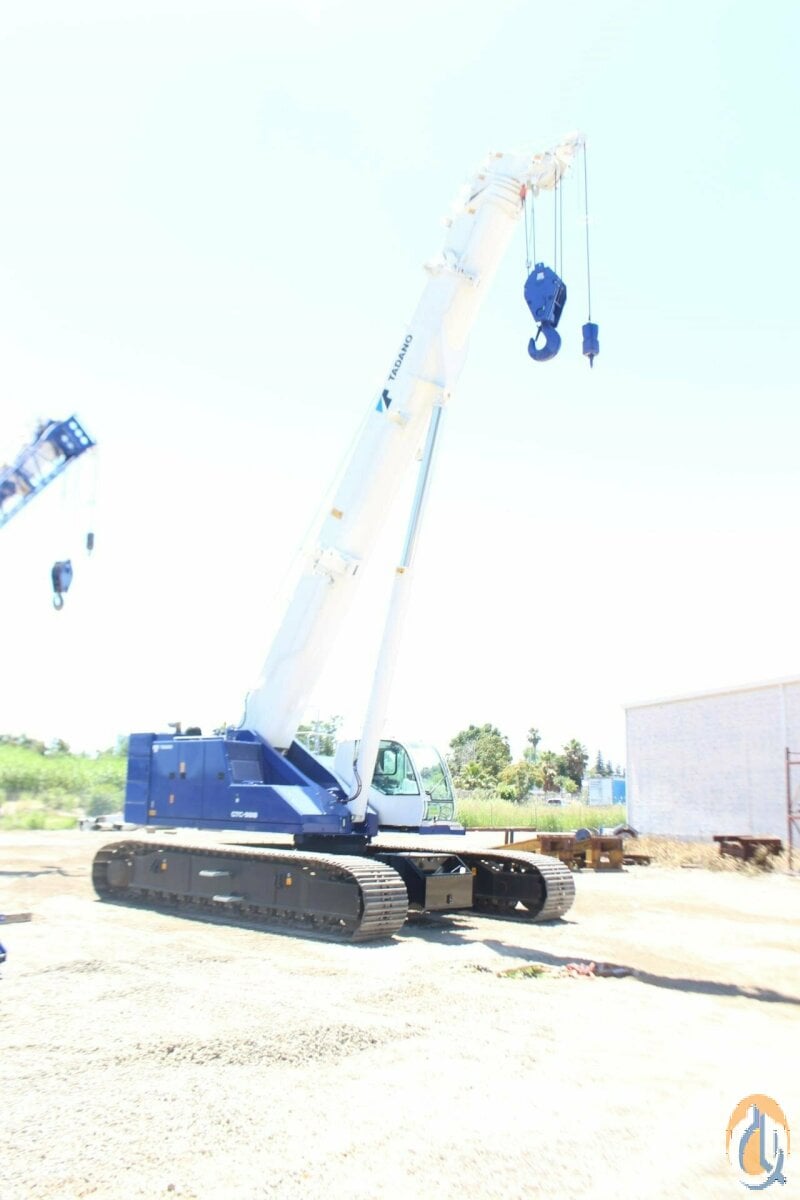

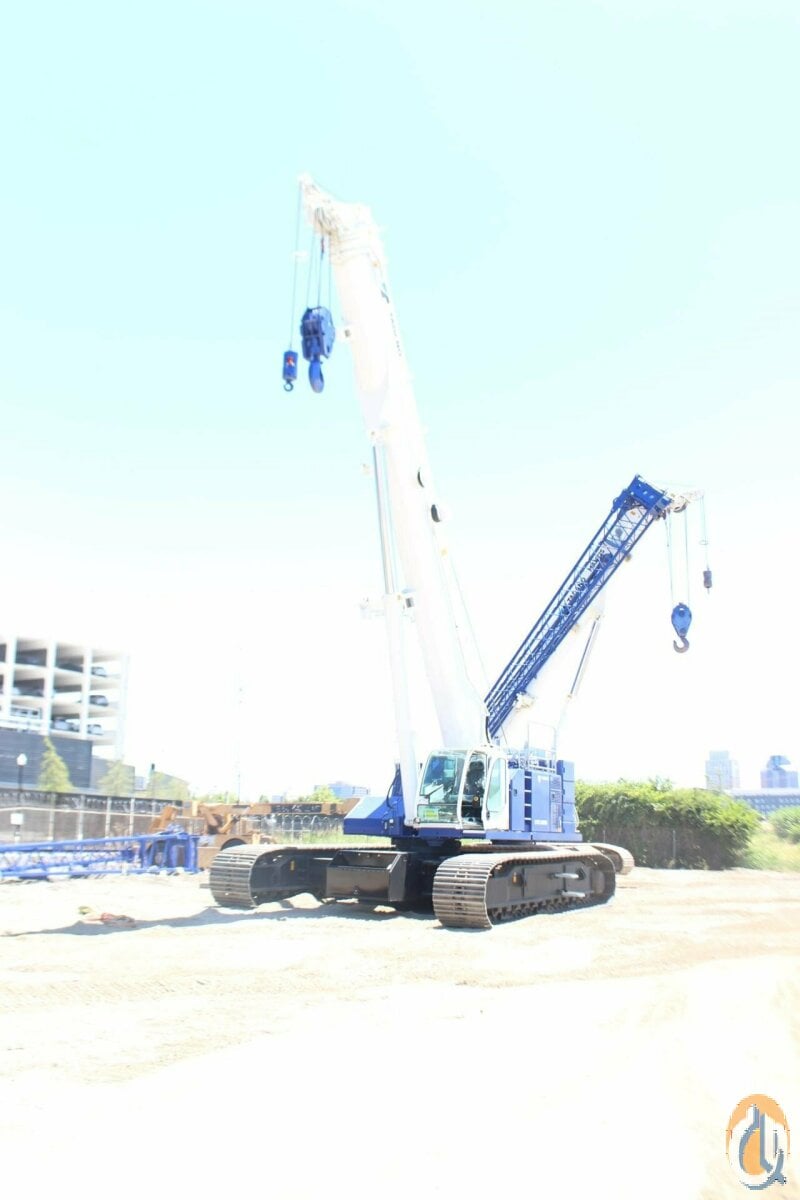

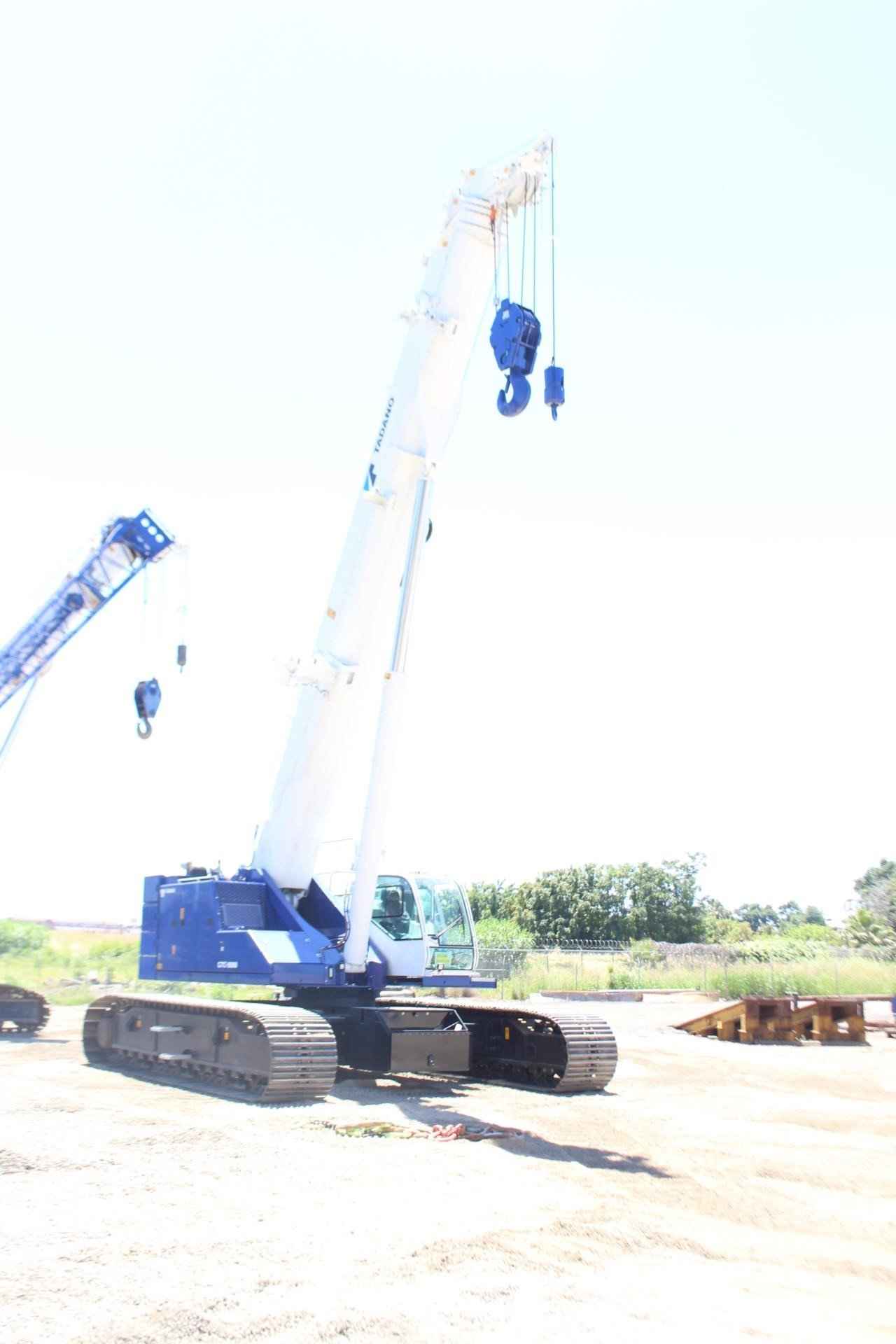

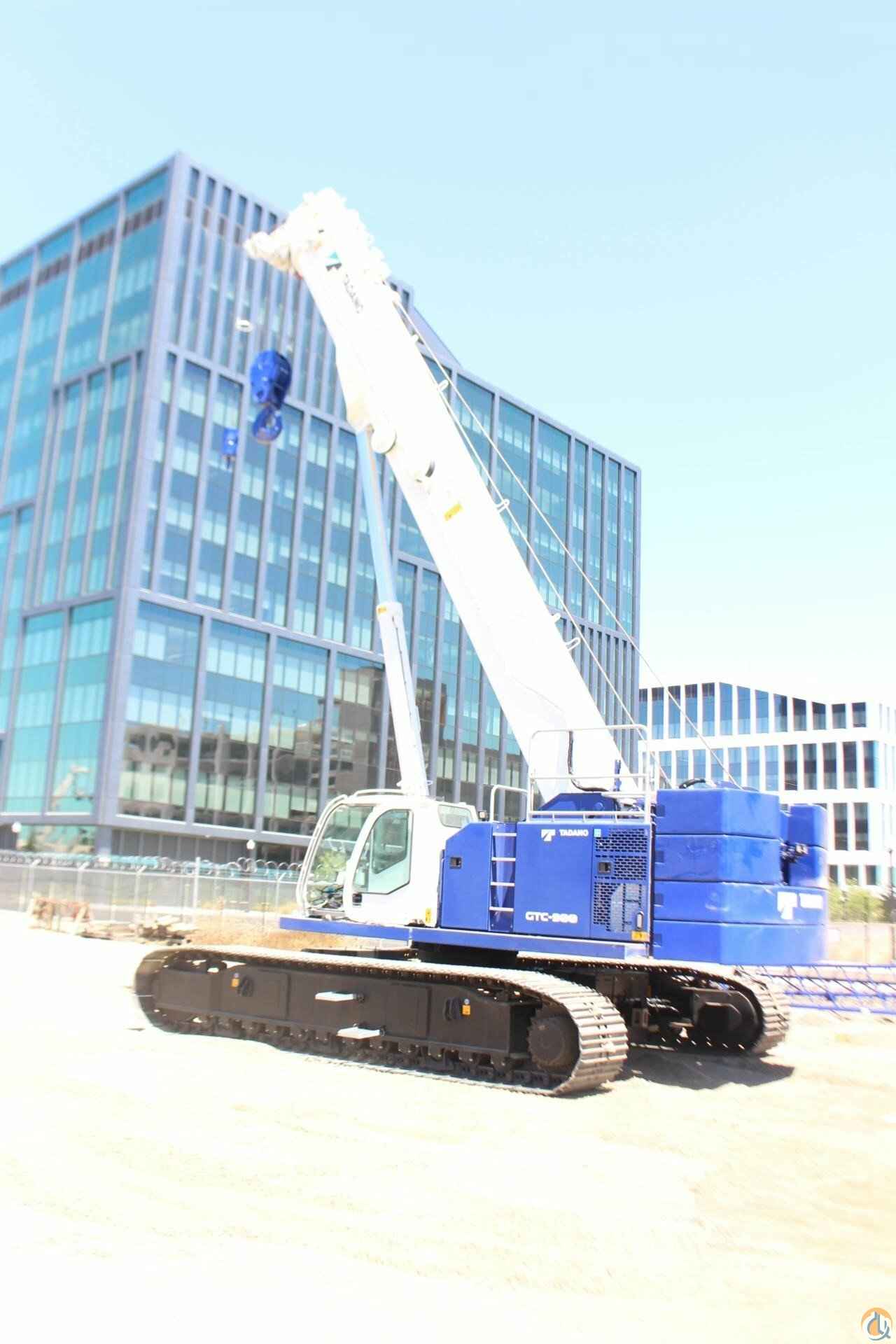

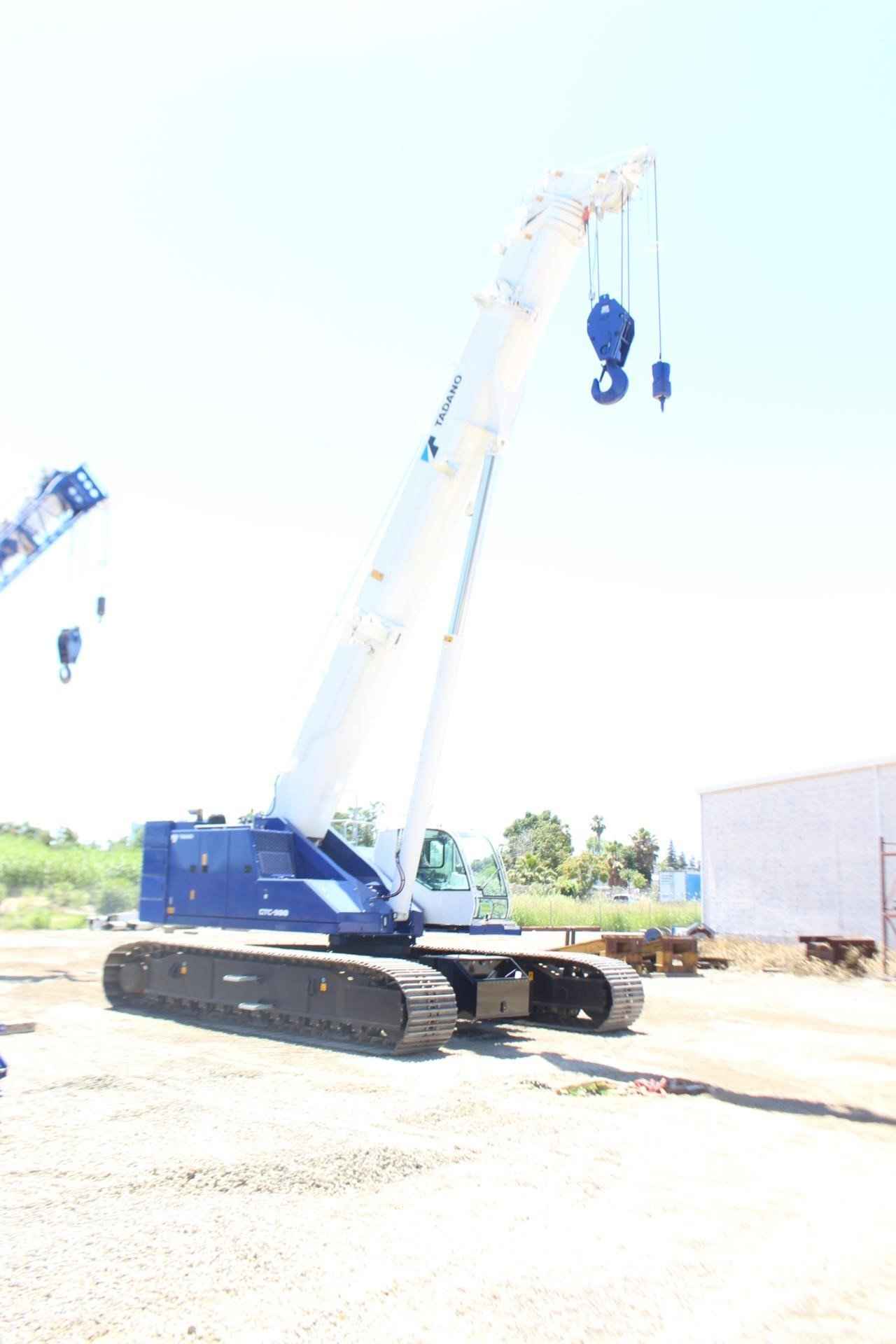

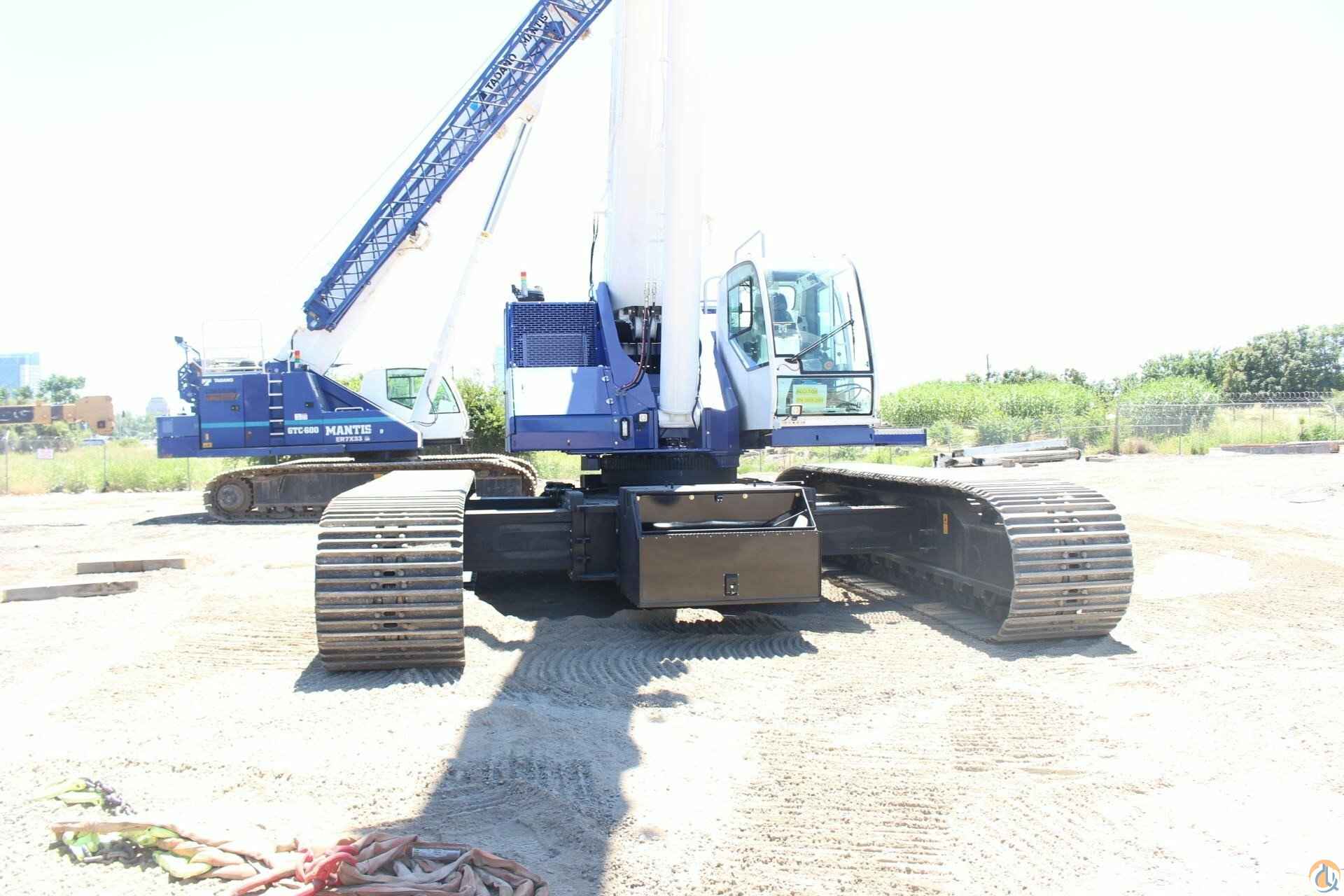

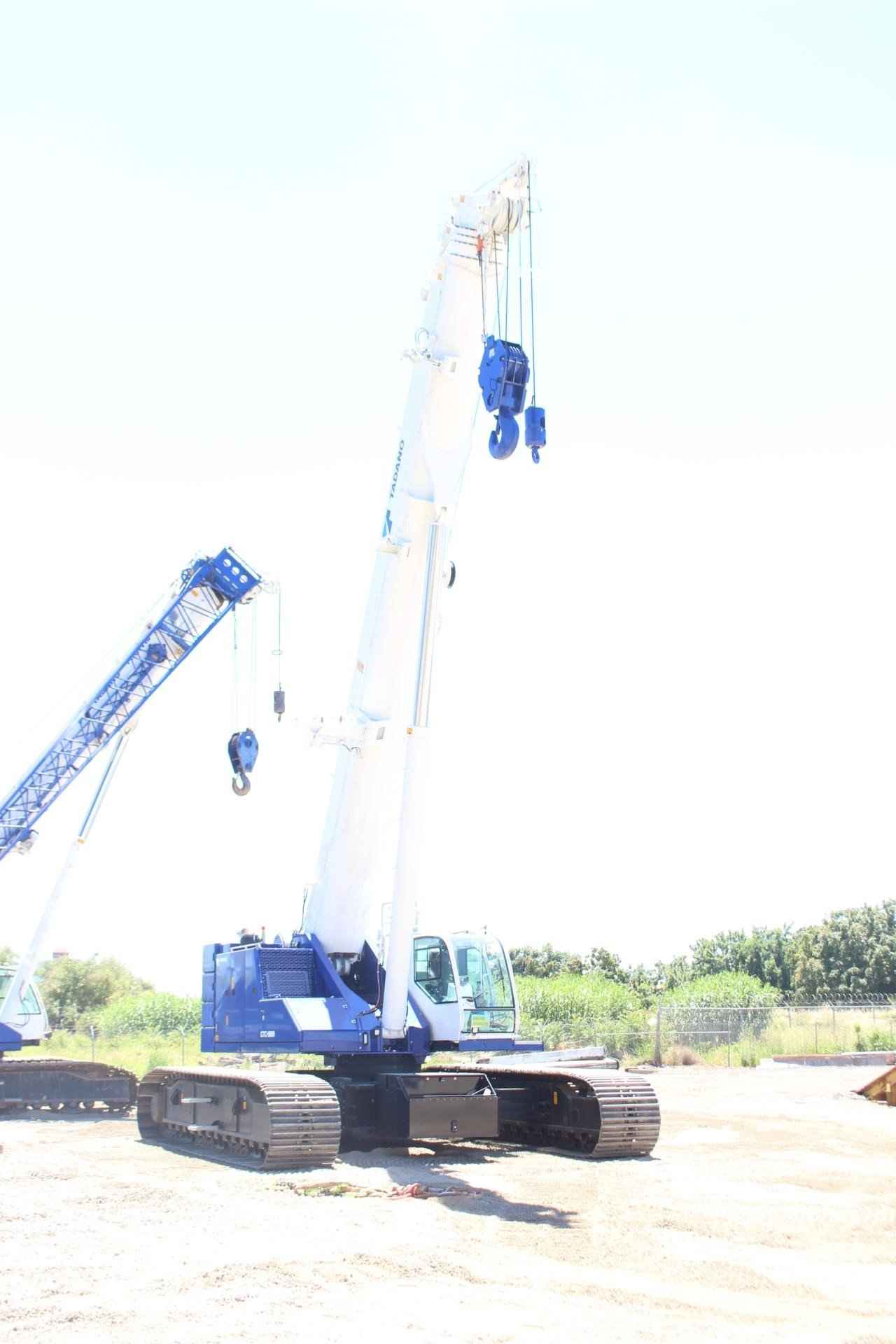

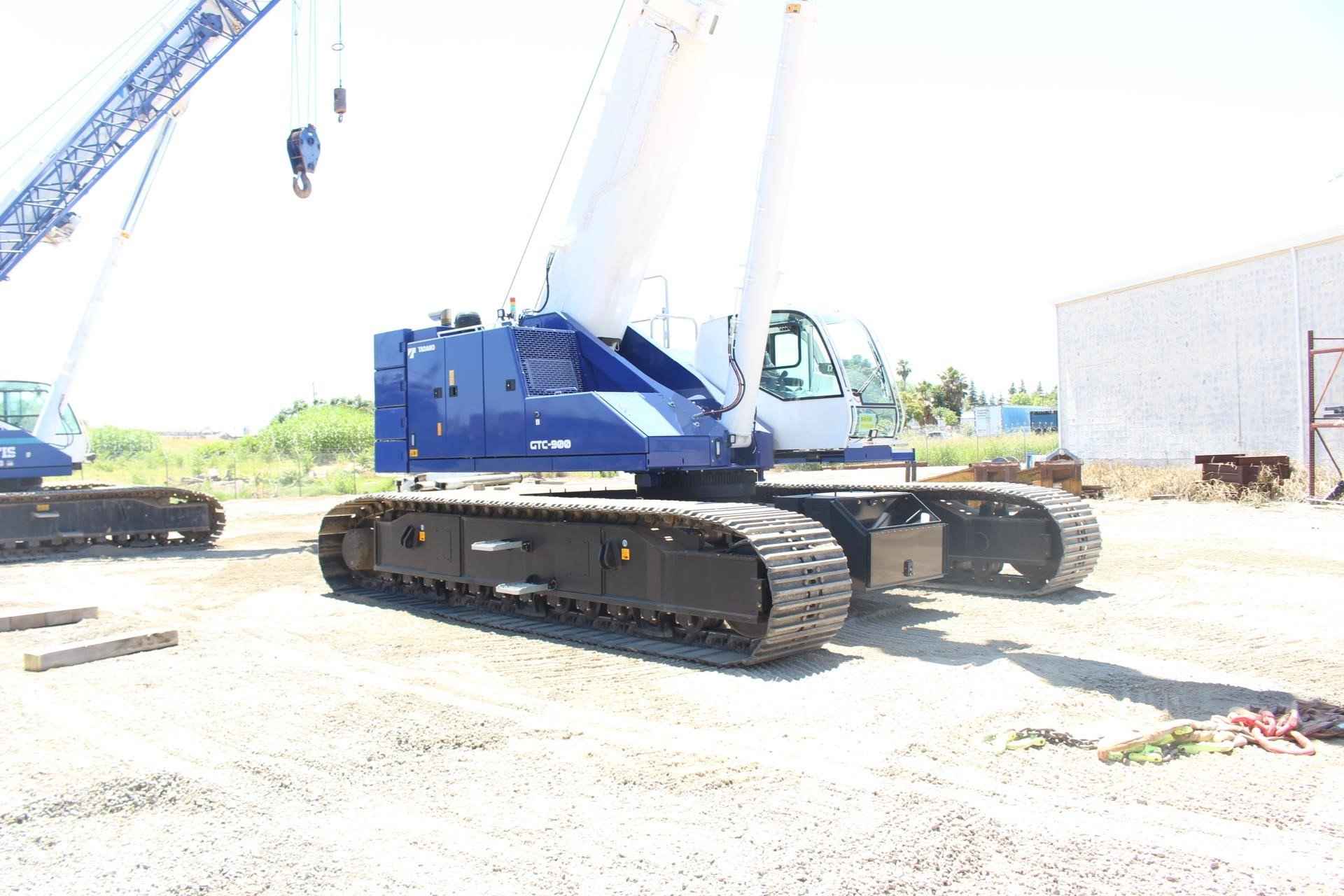

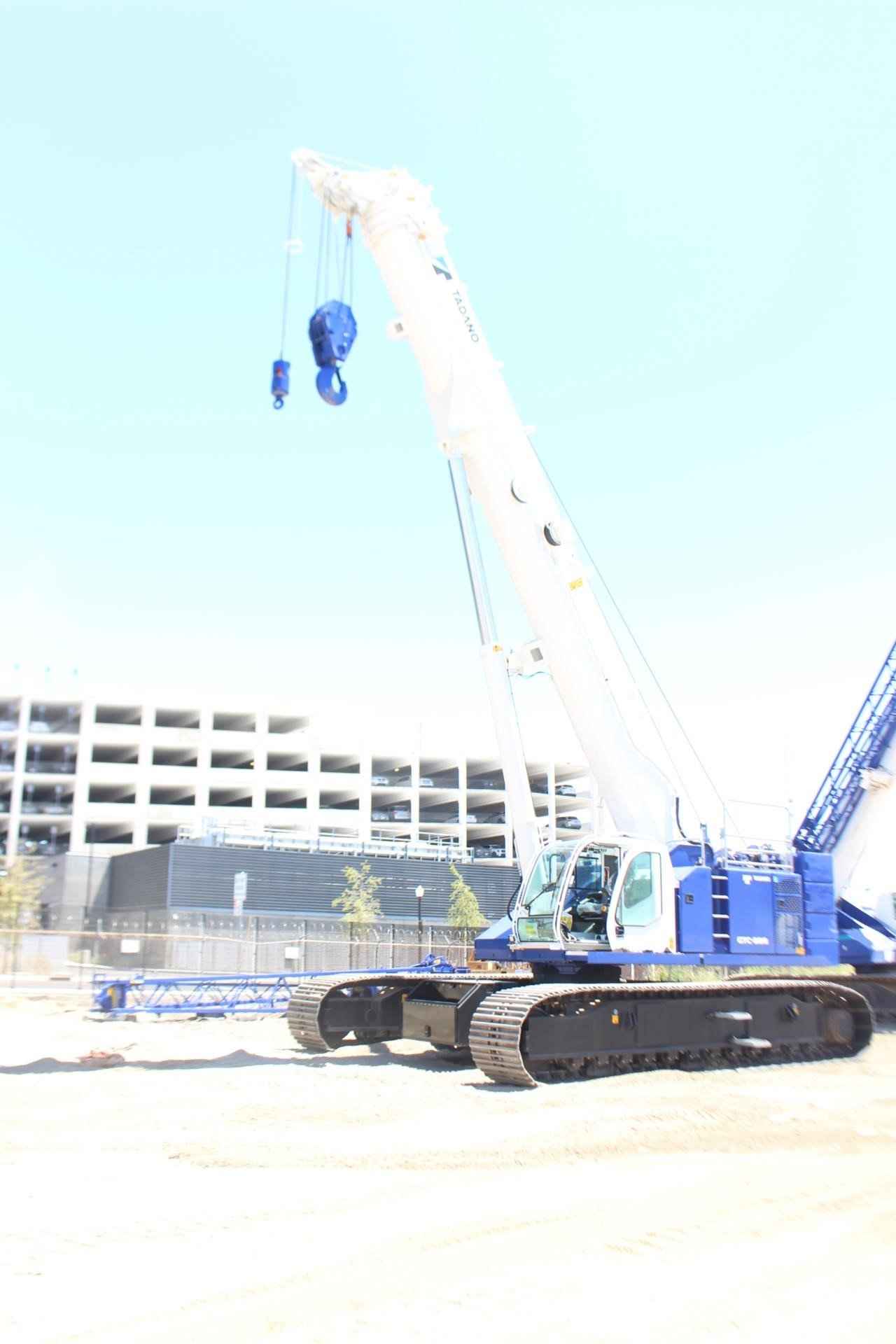

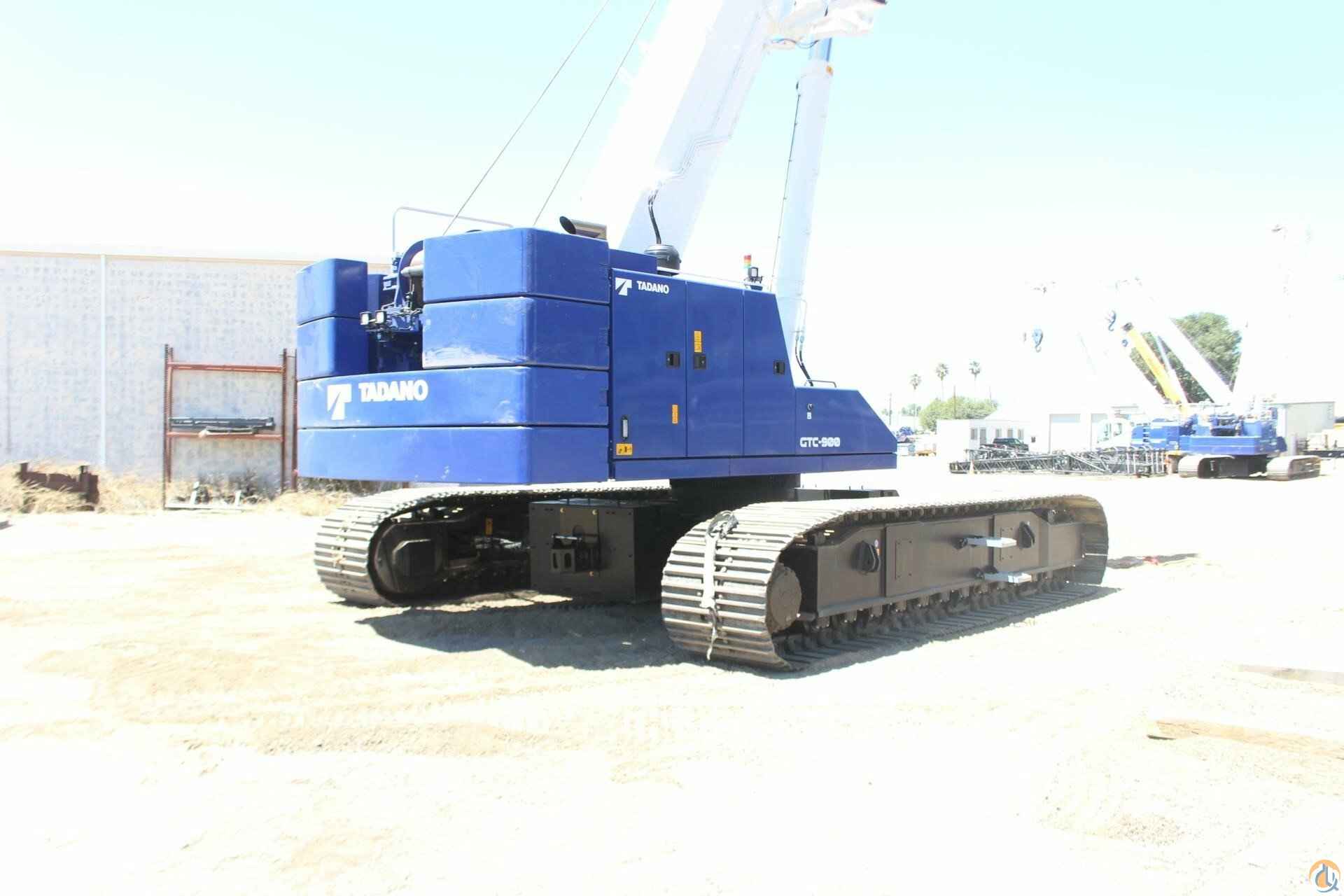

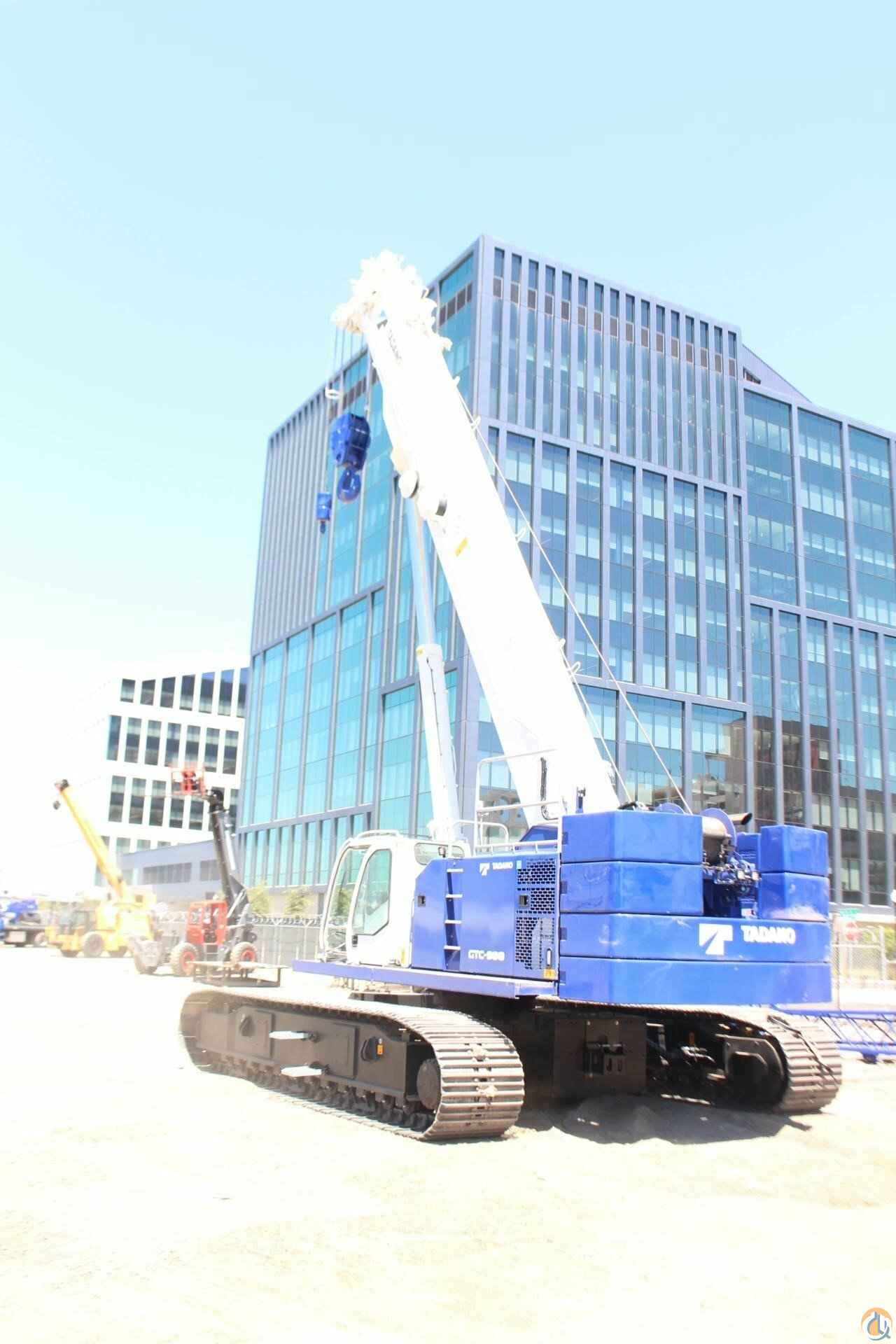

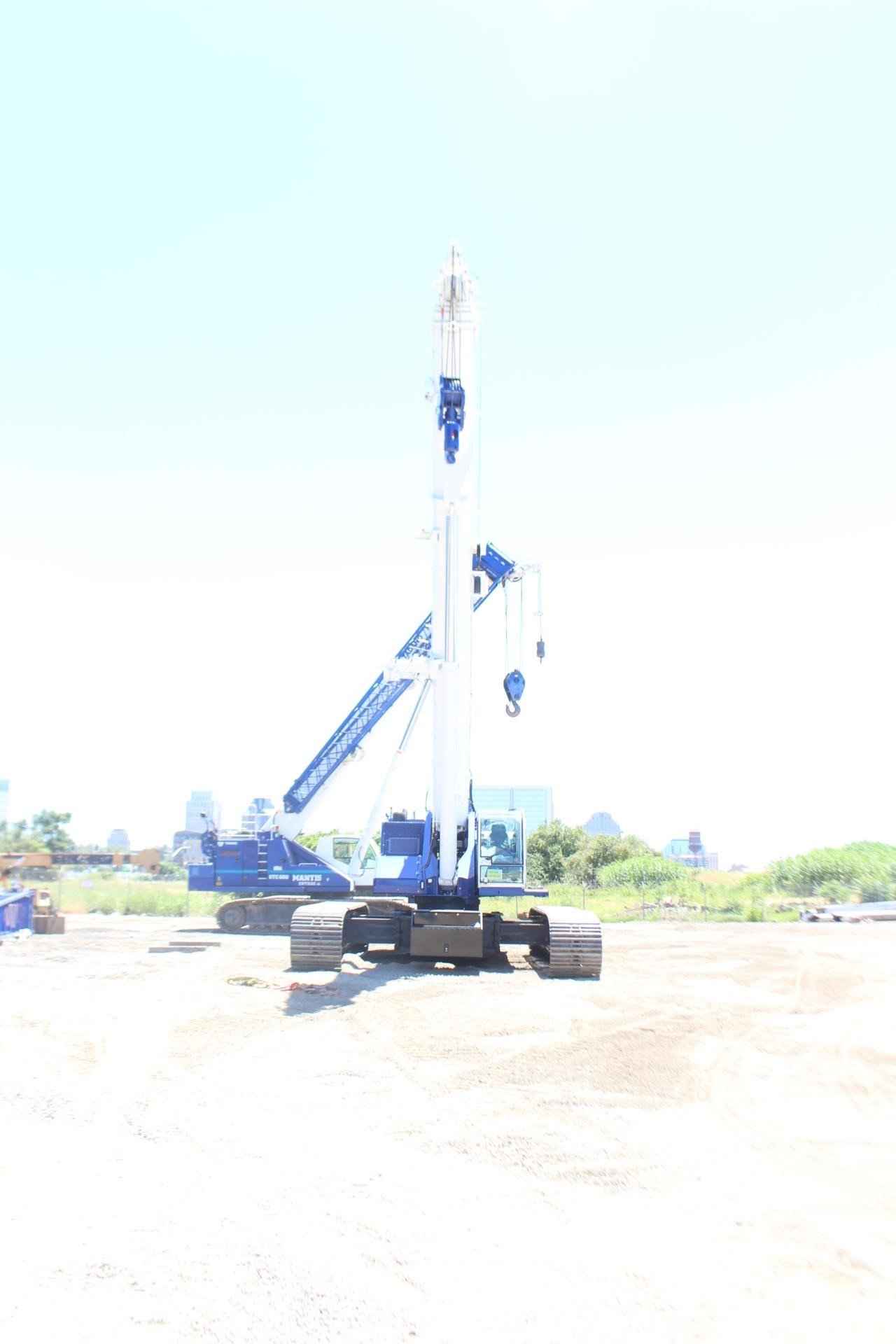

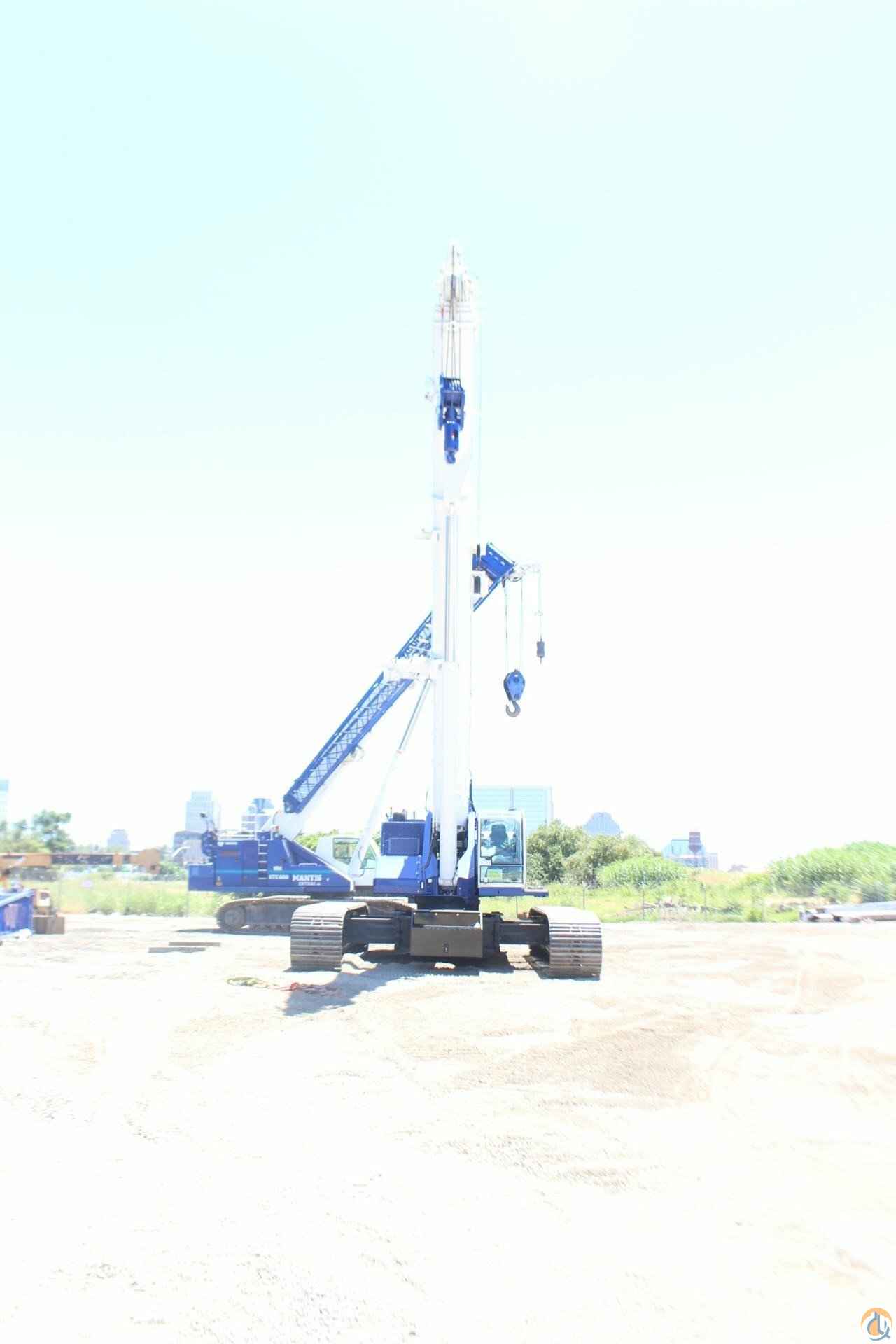

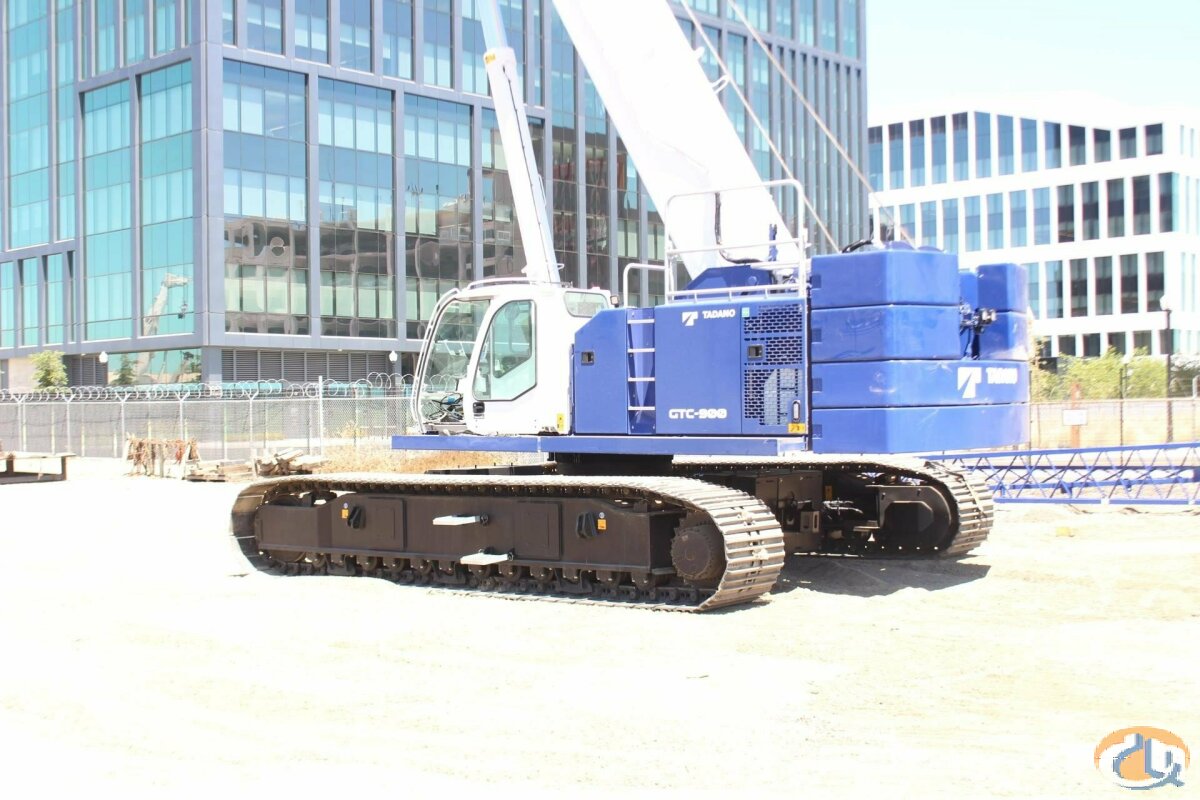

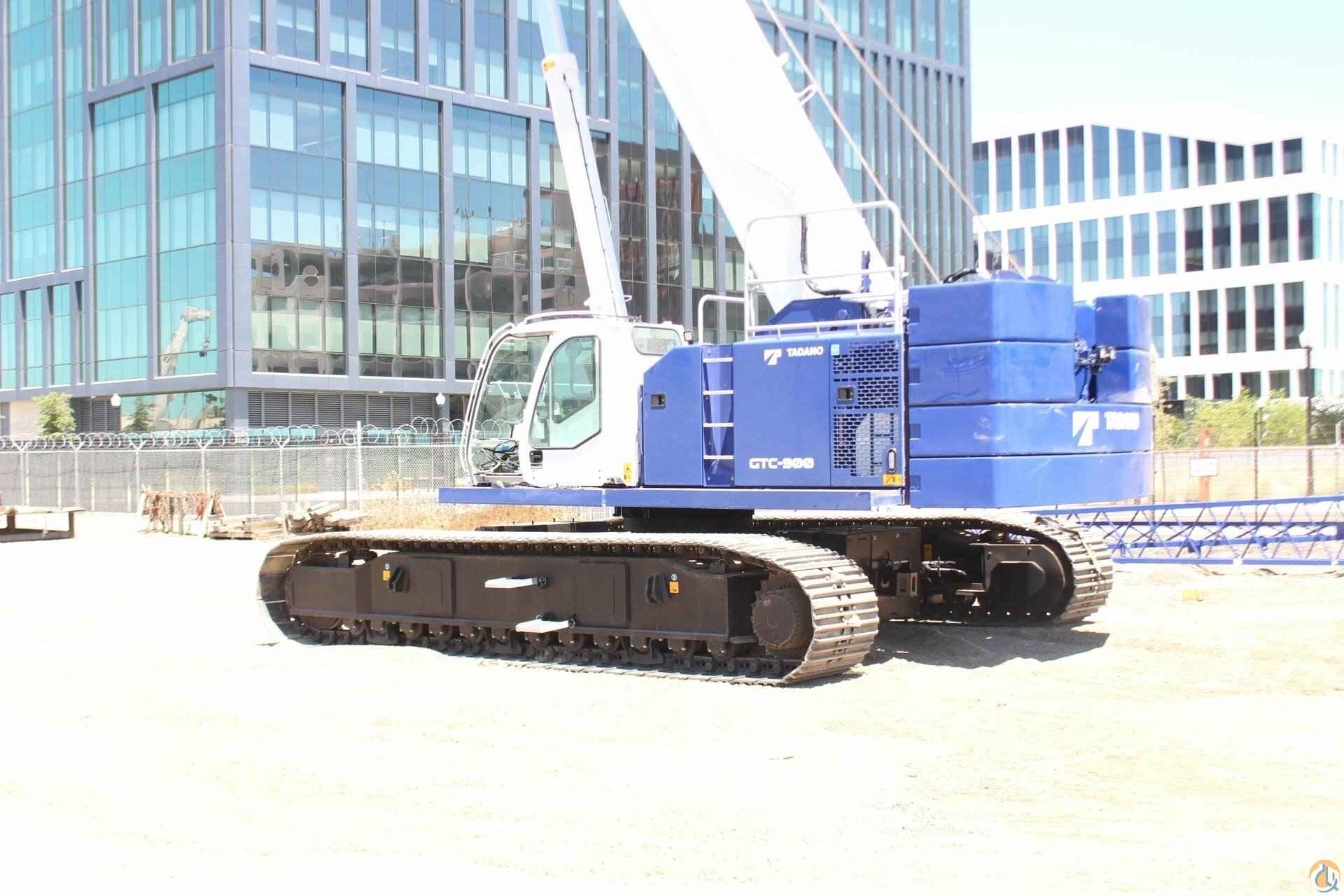

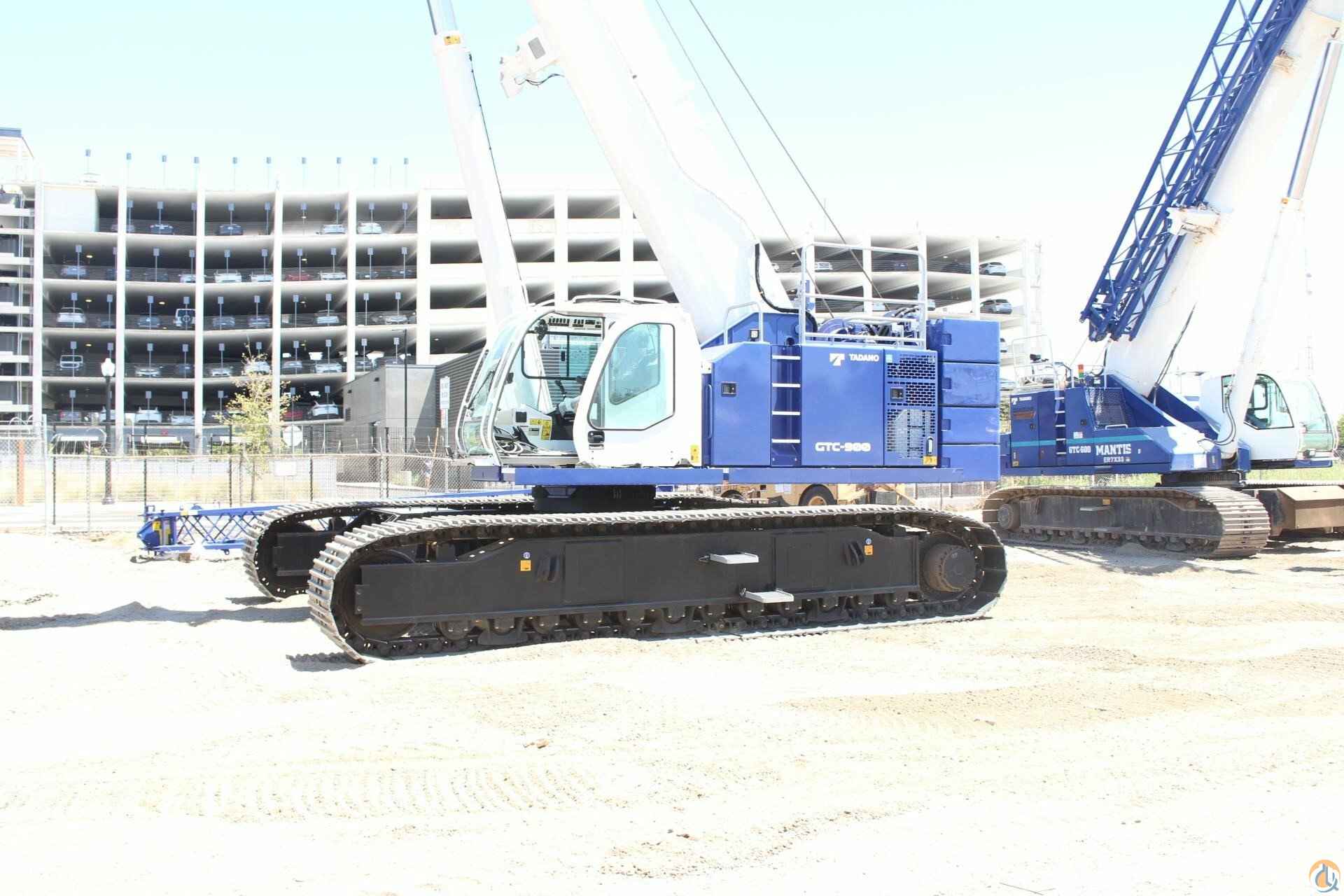

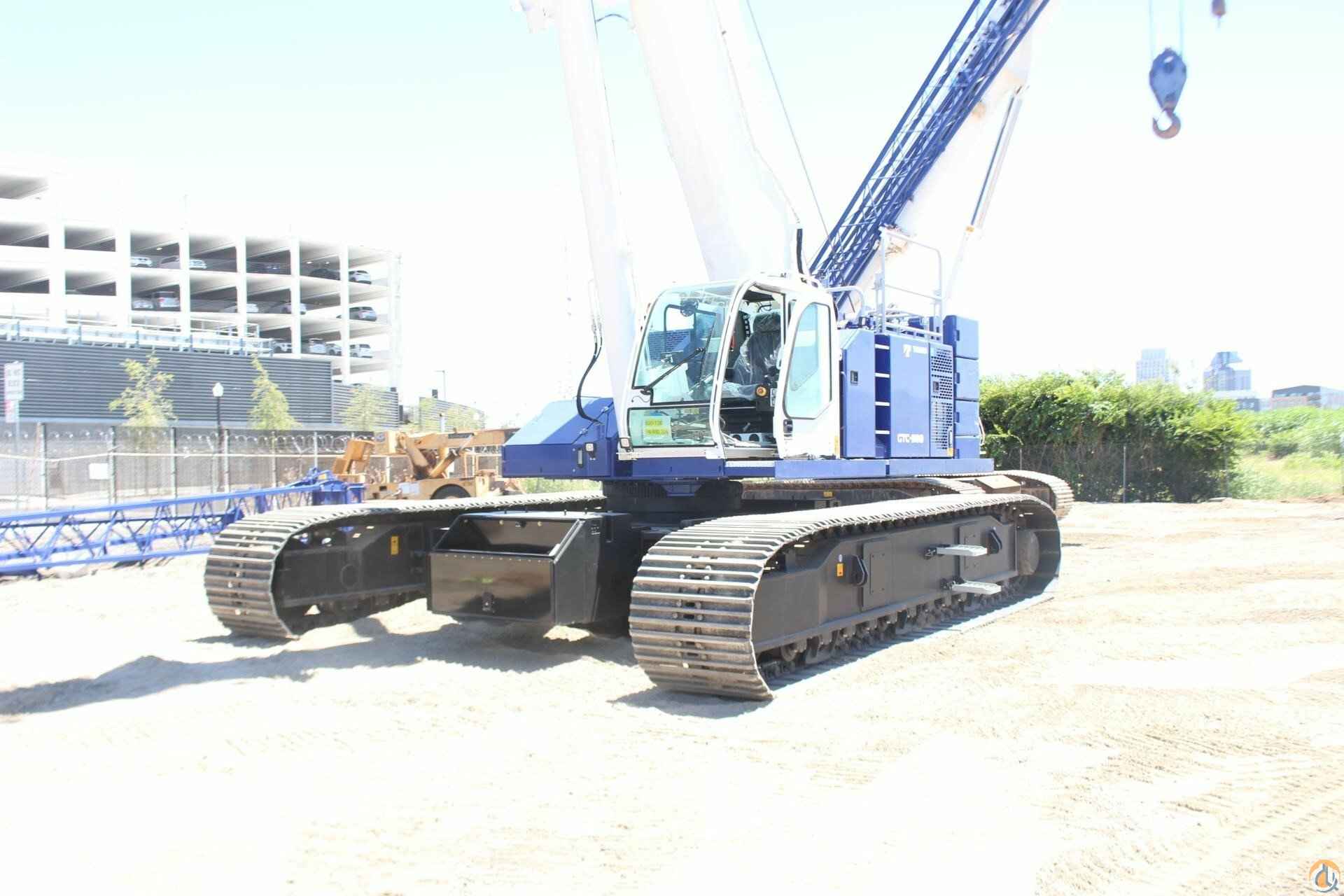

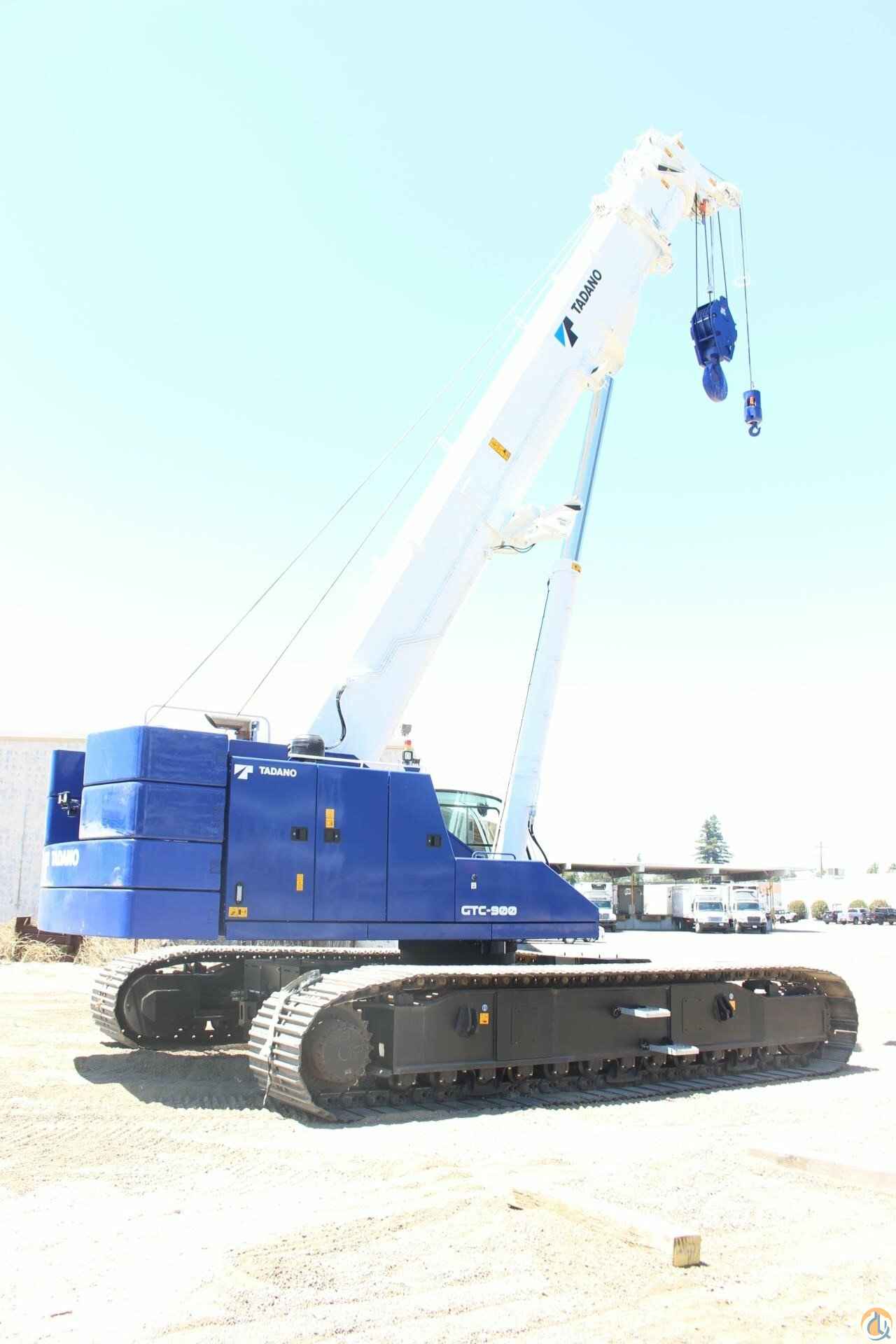

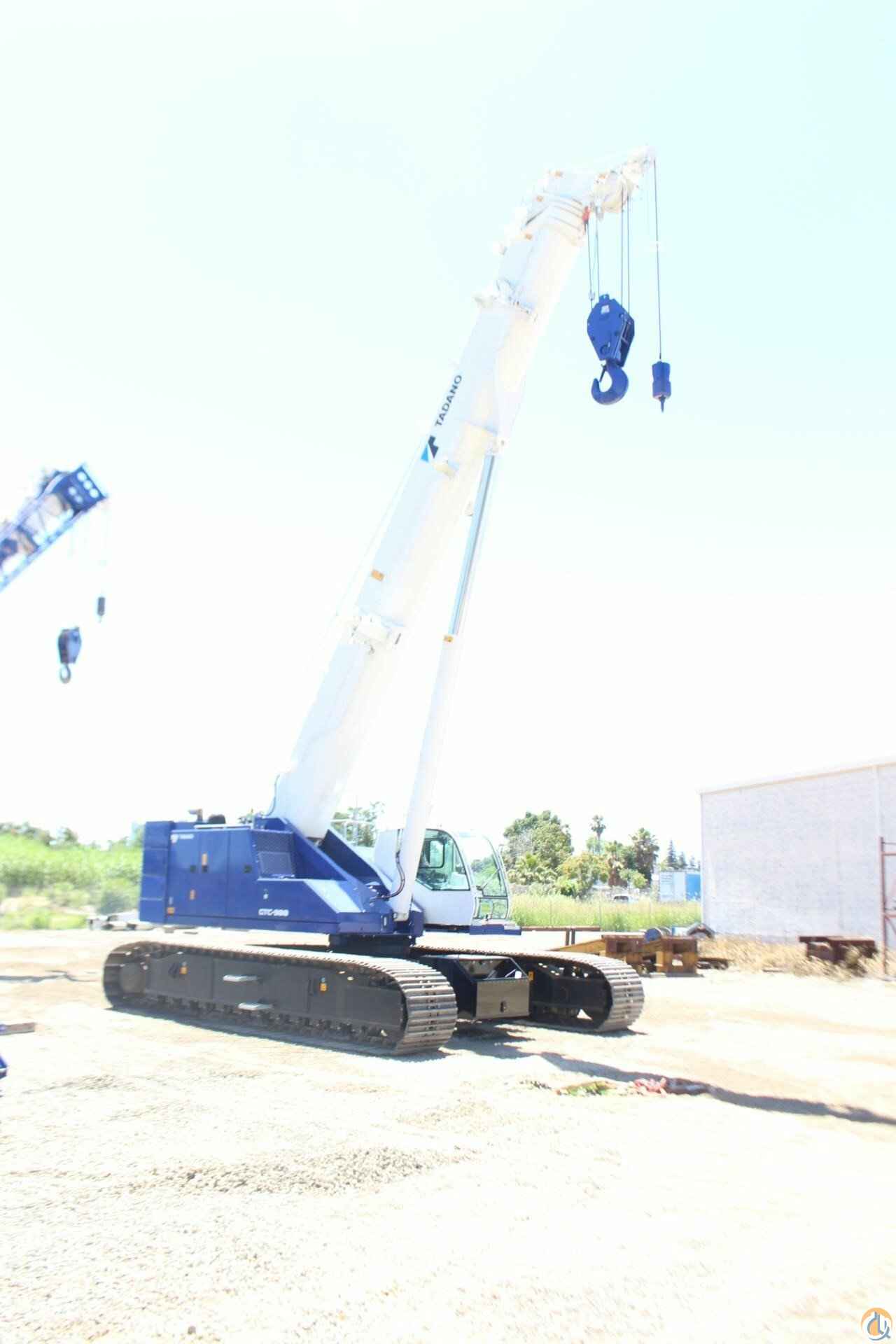

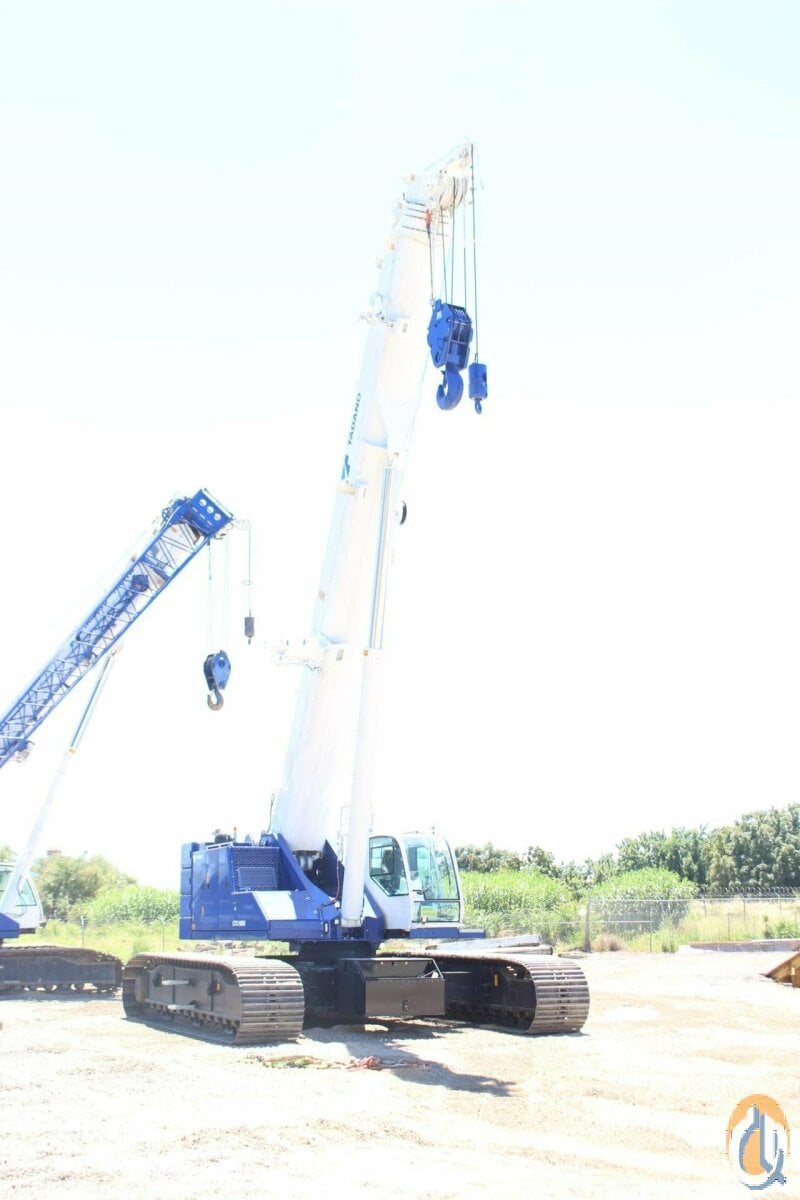

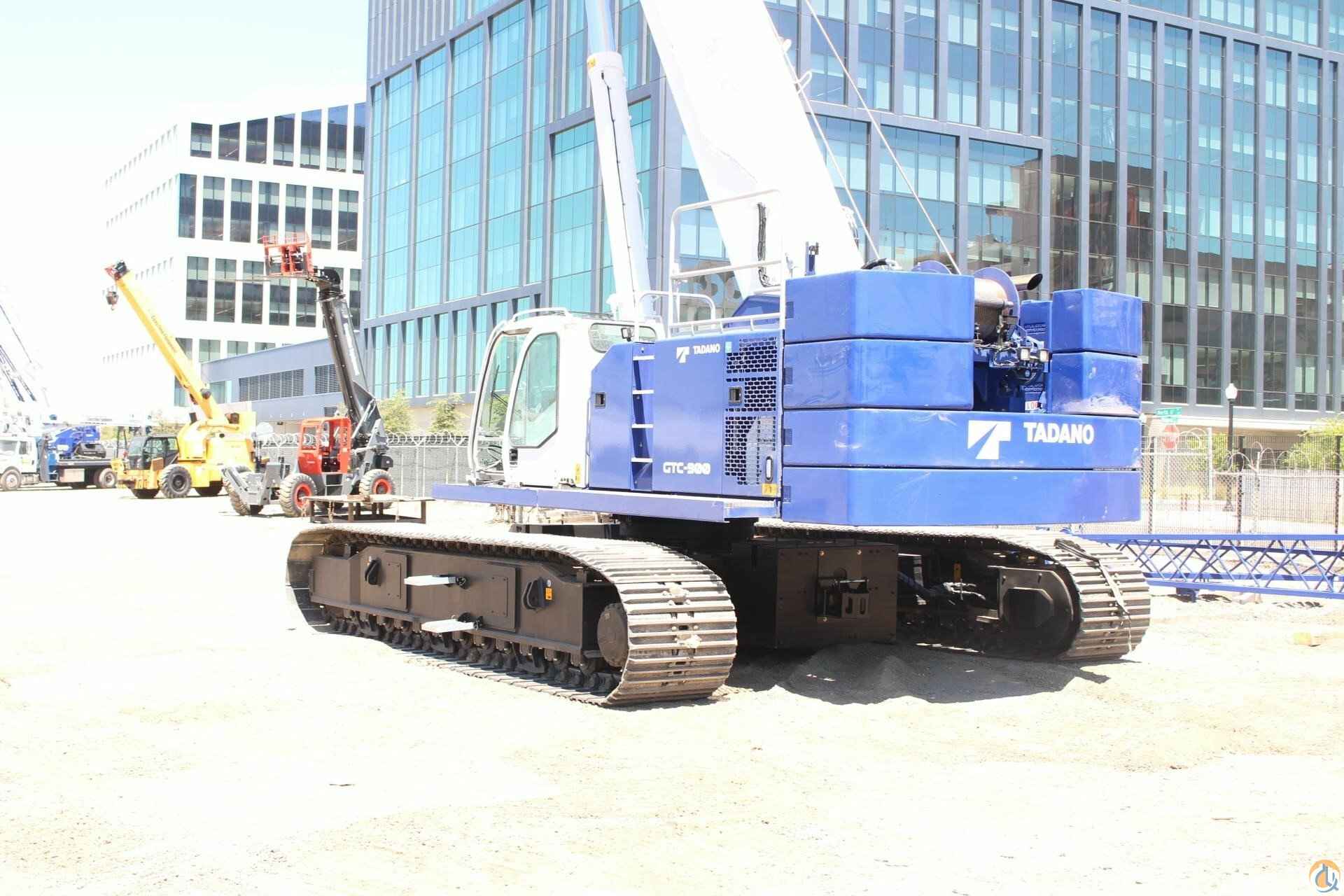

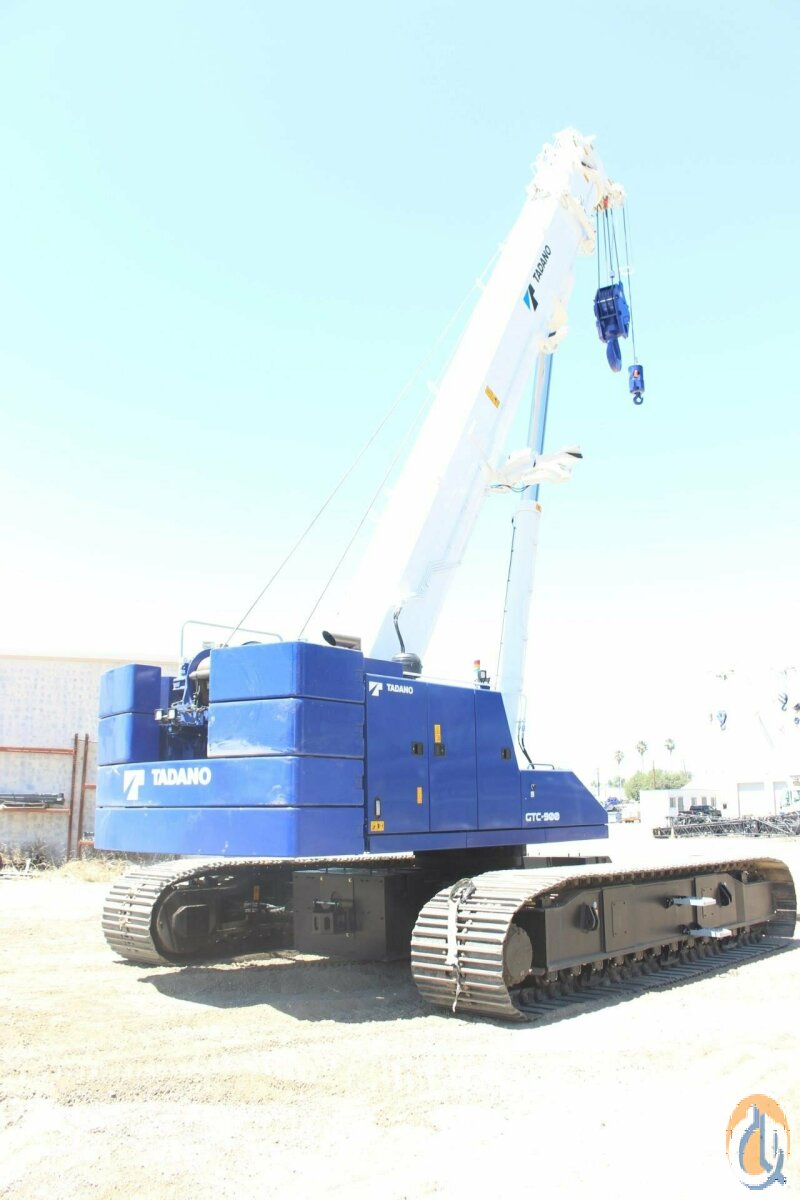

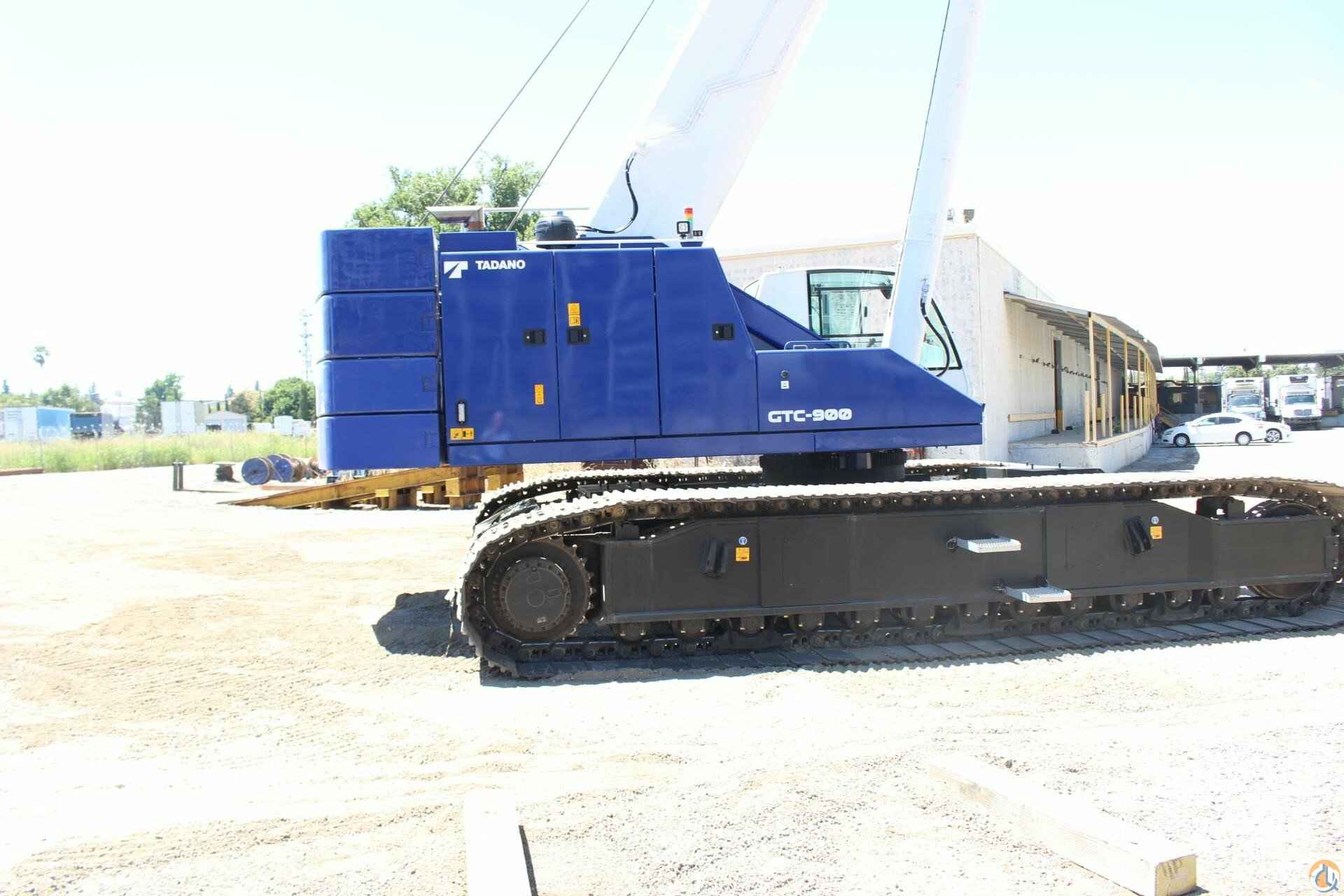

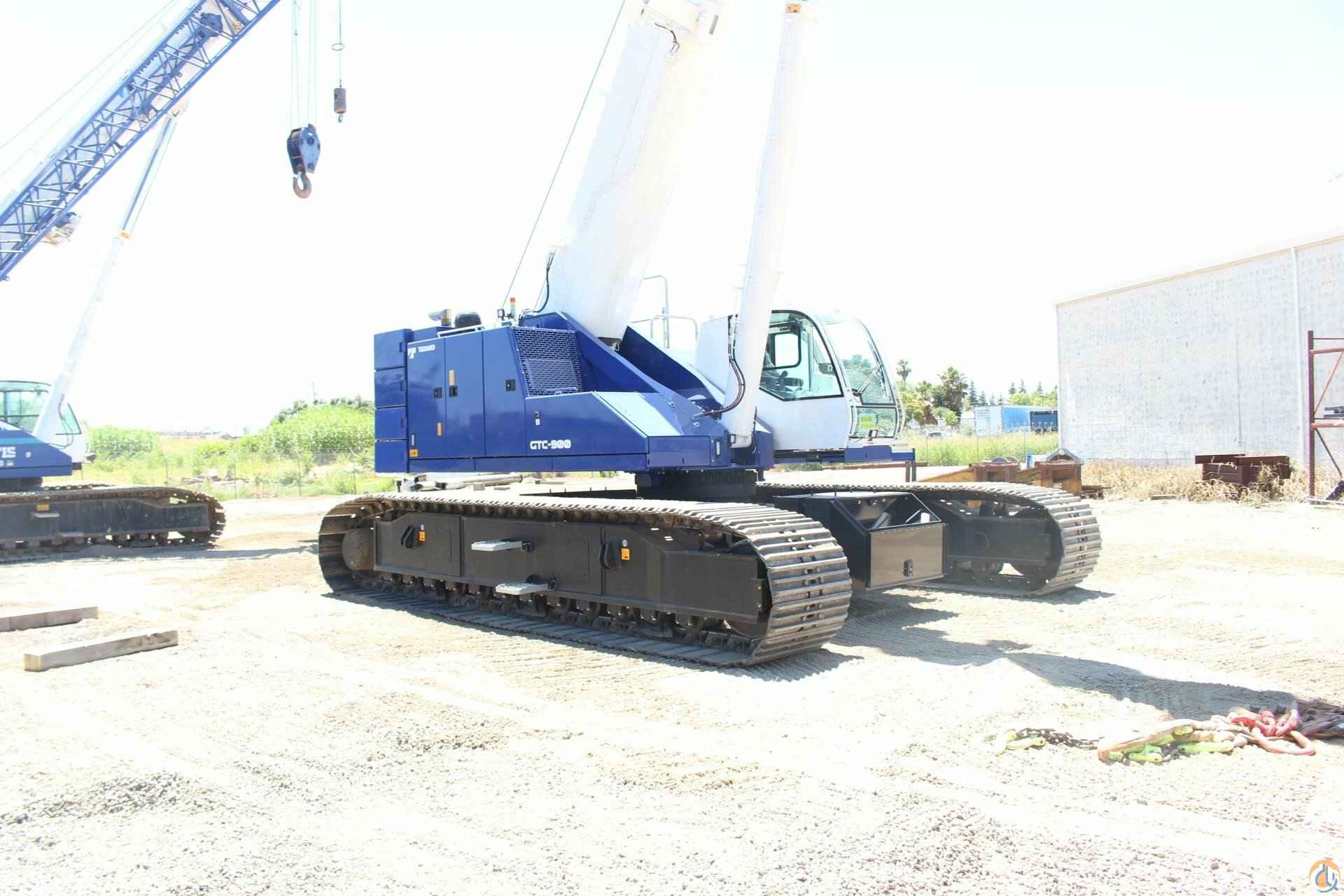

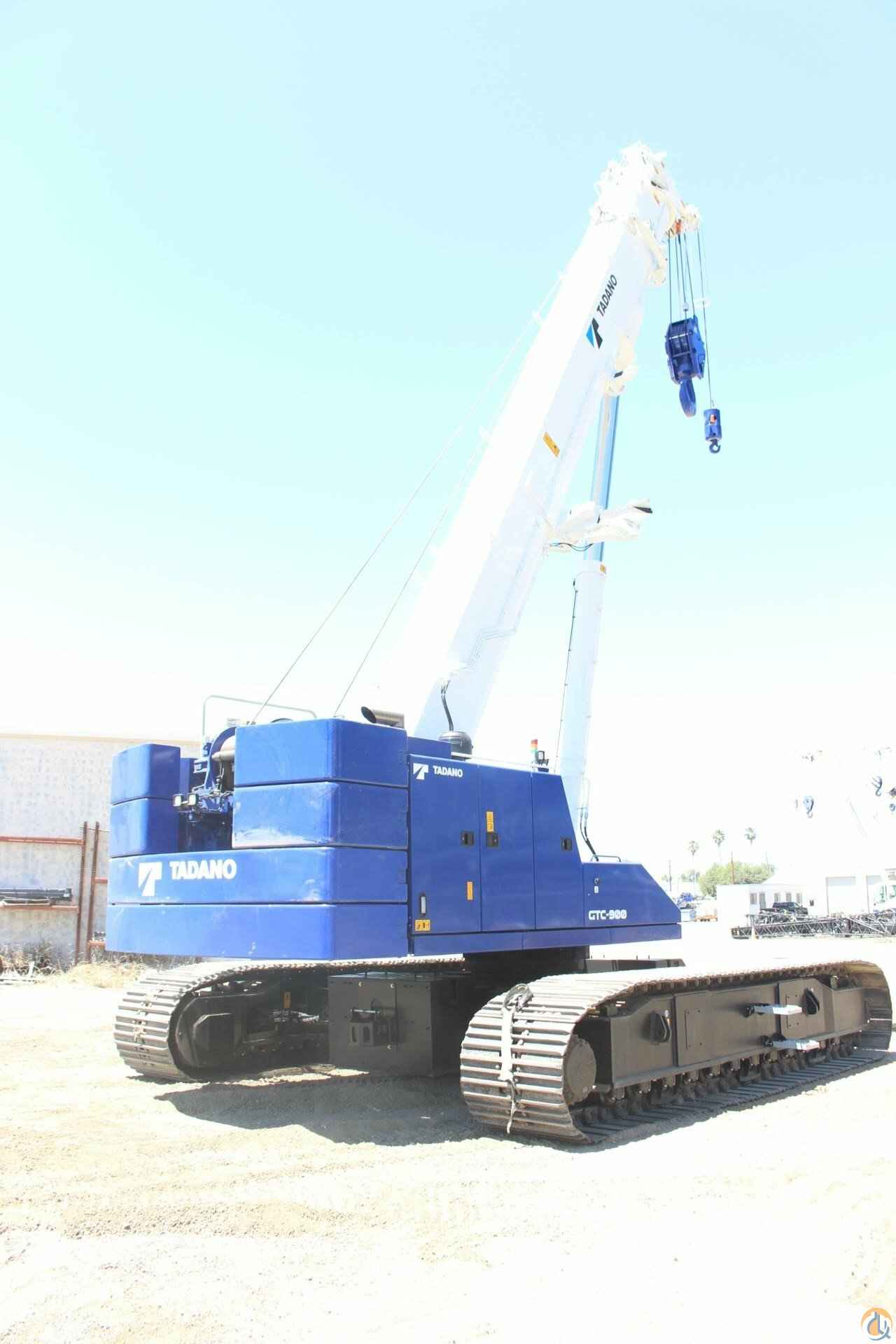

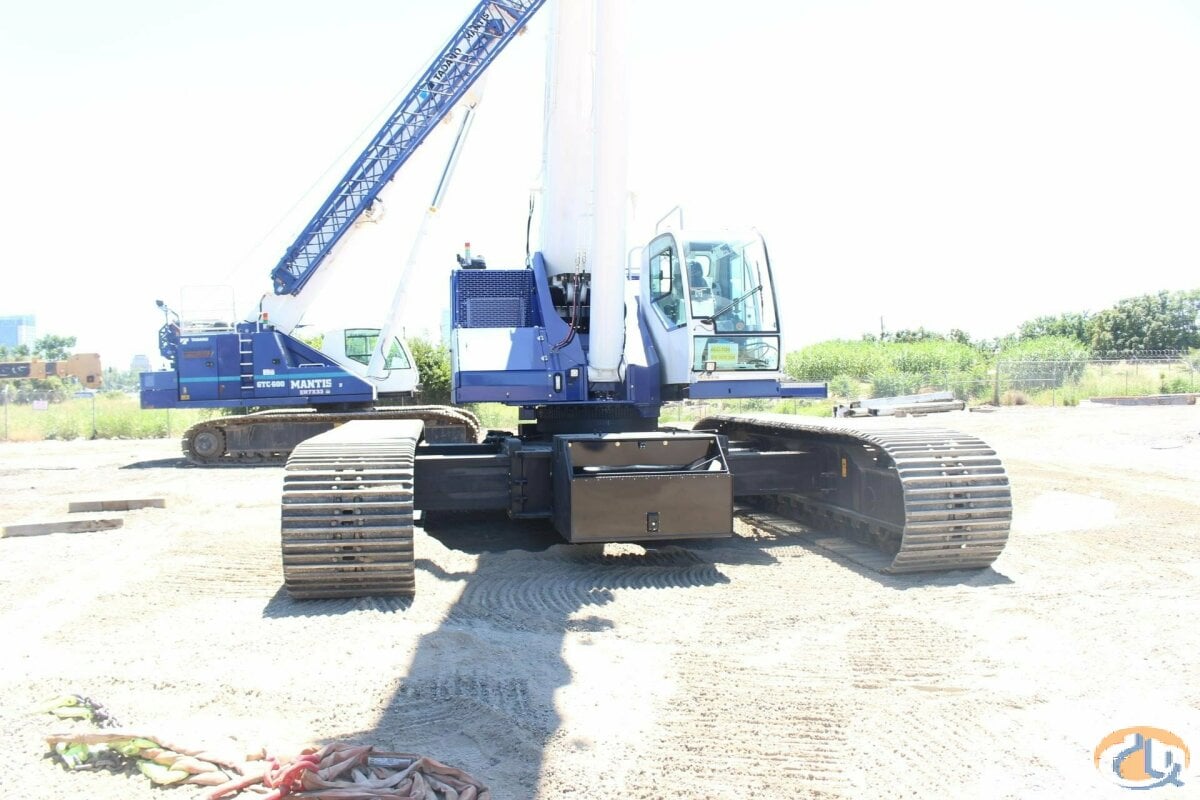

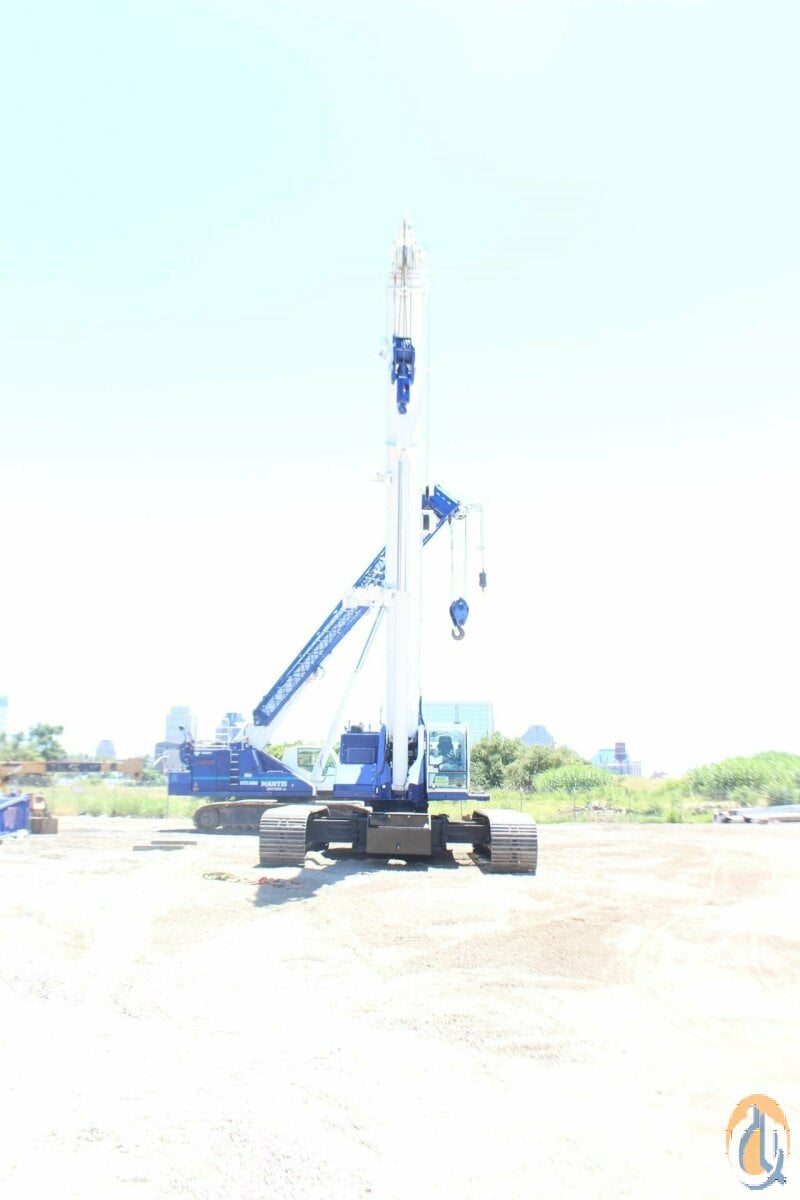

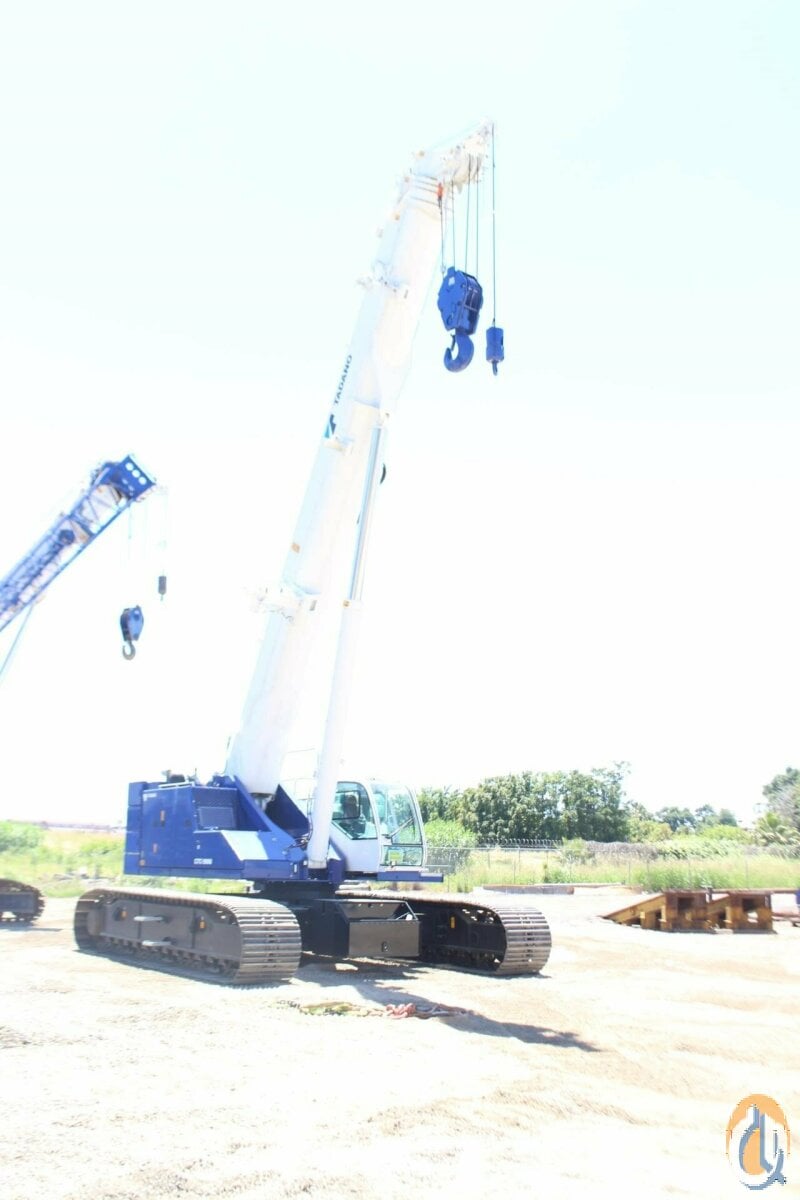

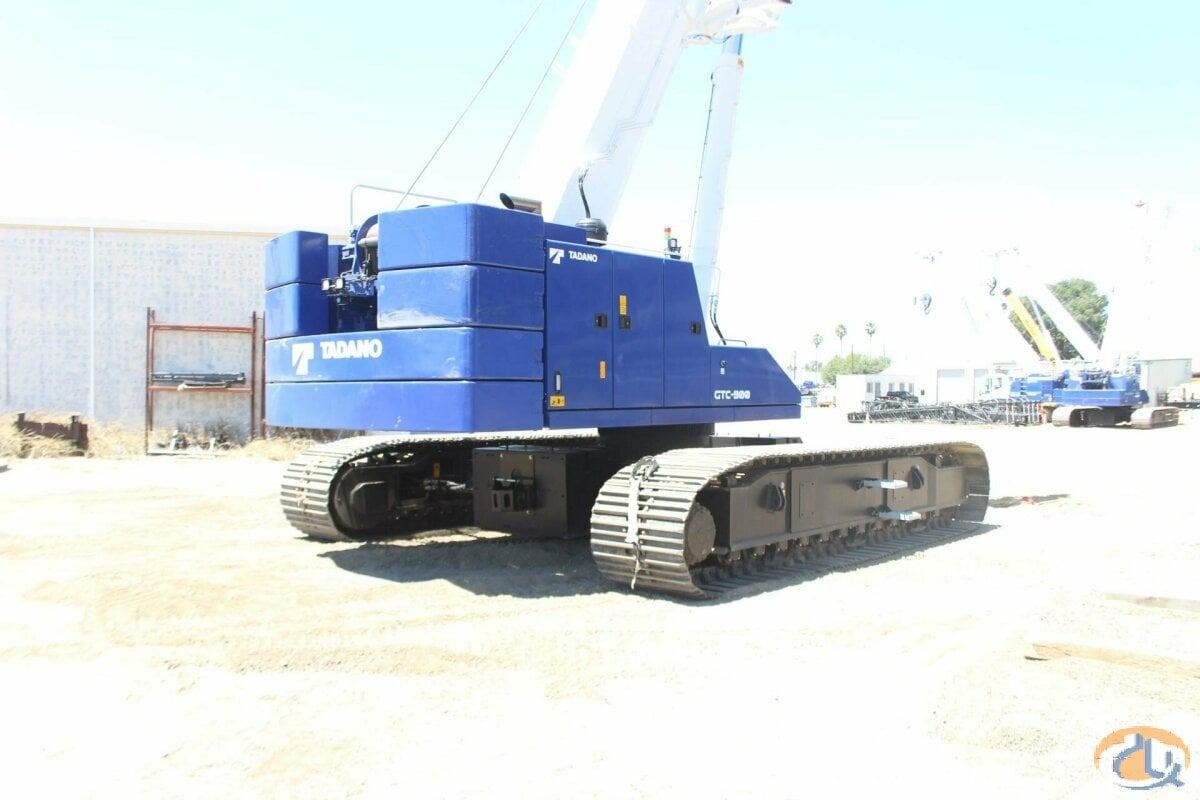

TADANO MANTIS GTC-900
Standard features:
• 90 ton lift capacity
• 5 section 37.7’ – 141.1’ full power telescopic boom
• Cummins QSB6.7 310 HP Tier 4f/EU Stg V Diesel Engine
• Standard Cab with A/C, Heat, Engine Monitoring, tilts to 20 degrees
• Tadano AML-C LMI System with North American (ft.- lbs.) Load Charts, for 0.5°, 1.5°, 2.5°, and 45° slope, and 3 color light bar
• Automatic & Manual Slope Selection Modes
• Cab Mounted Keyed LMI Override Enable Switch
• Tadano HelloNet telematics
• Video Camera Monitor – 3 closed circuit cameras – winch, rear, and right side view
• Work Light Package
• Main Winch with grooved drum, cable follower, drum rotation & 3rd wrap indicator, 695’ of 19mm diameter rotation resistant wire rope
• Auxiliary Winch with grooved drum, cable follower, drum rotation & 3rd wrap indicator, 475’ of 3/4” rotation resistant wire rope
• Auxiliary Boom Head
• Hydraulic Extendable Undercarriage with 3 track width zones & OPTI-WIDTH™
• 35.4 Inch 3-Bar Semigrouser track shoes
• 45,000 lb. rear counterweight with radio control removal system
• 20,000 lb. carbody counterweight
• Storage box mounted to Carbody counterweight
• Crane access walkways and folding upper handrail system
• Hydraulic Oil – ISO VG32 – Mineral Based Oil
• Standard Tadano Mantis Blue/White paint
• 1 Hard copy of Load Charts and Operation Manuals and 1 Electronic Copy of Parts Manual
Additional Options Included:
• 33.1’/58.1’ bi-fold jib offsets 3.5°, 25°, and 45°
• 55T Quick Reeve Hook Block
• 8.8 Ton Headache Ball with swivel hook & safety latch
