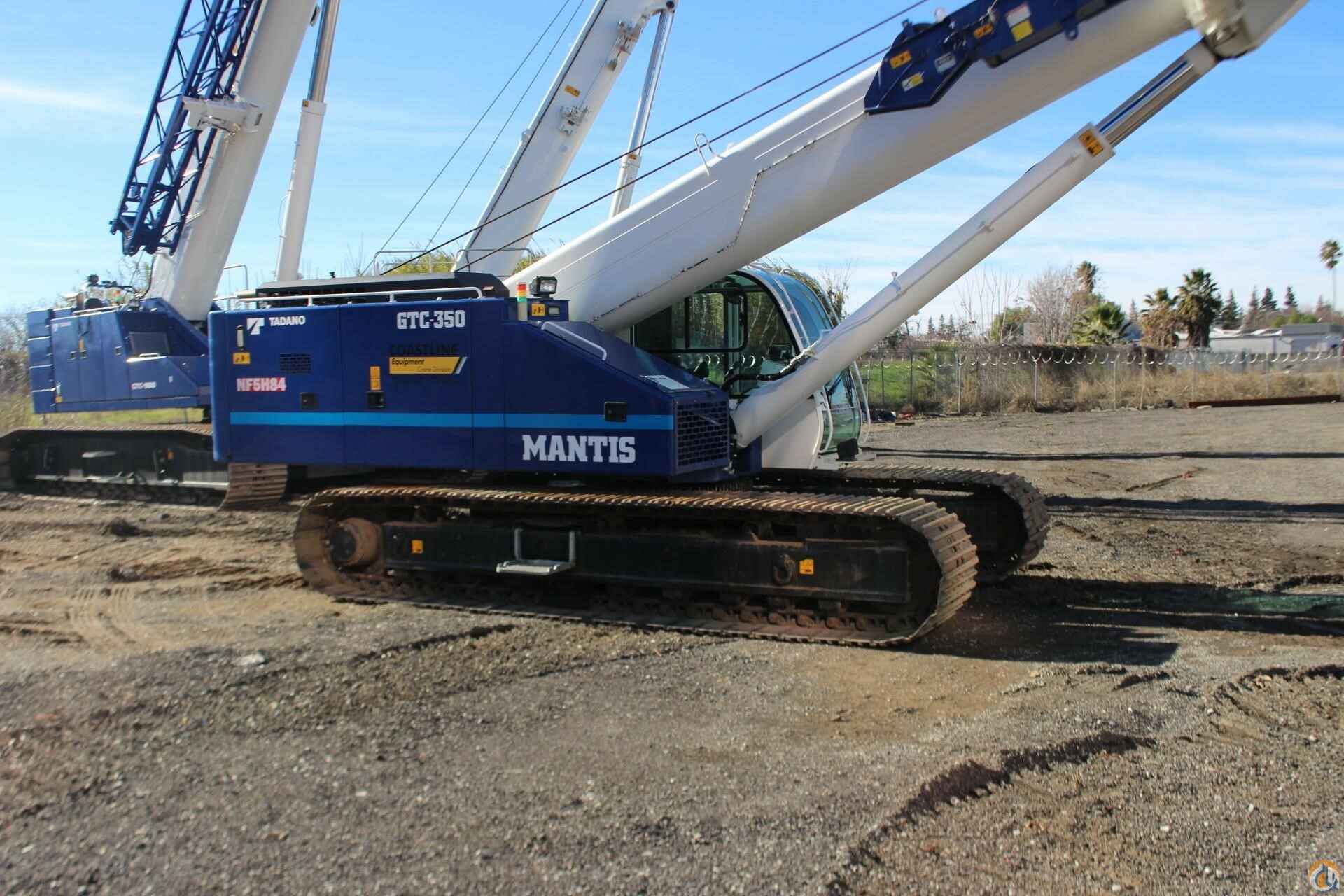

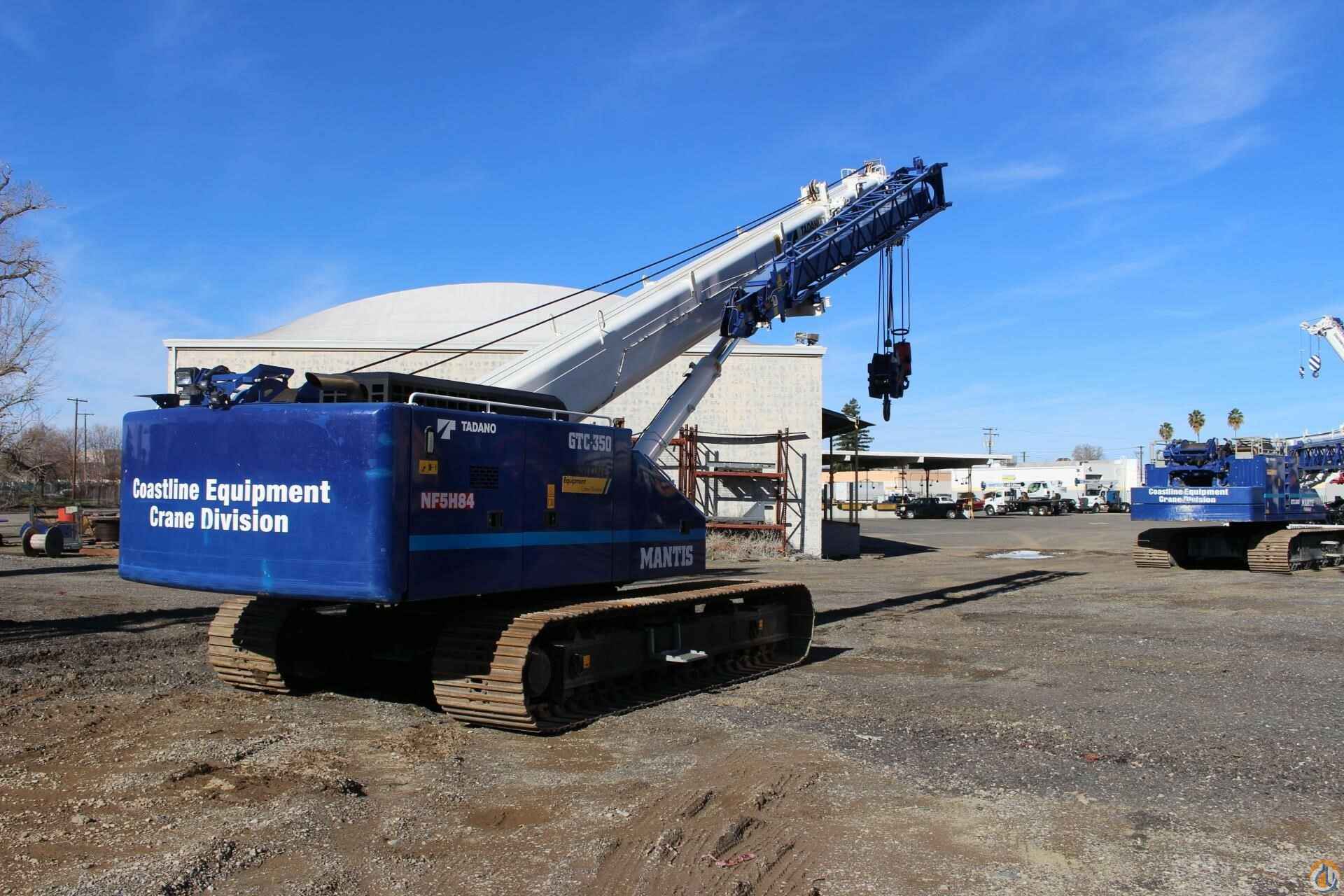

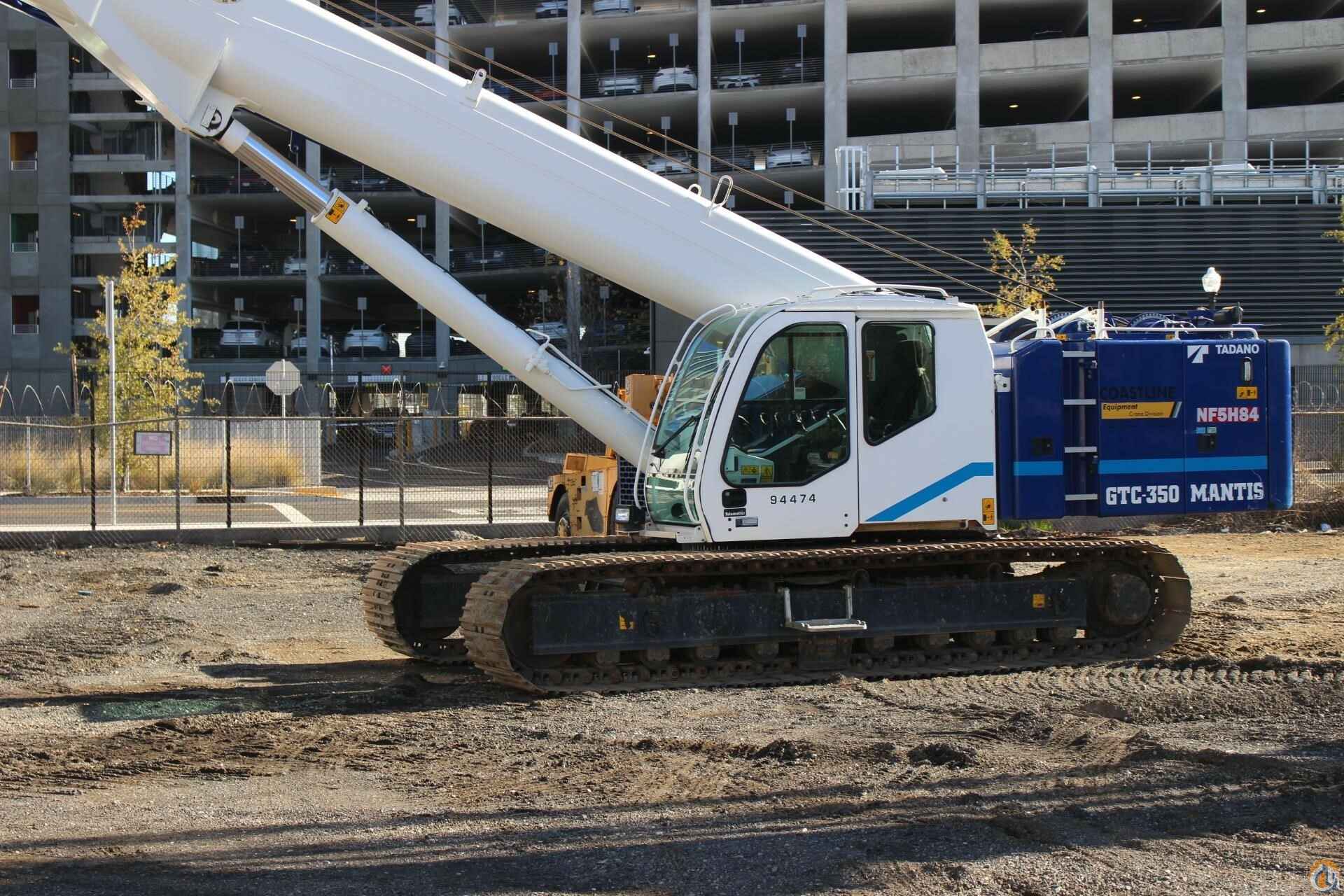

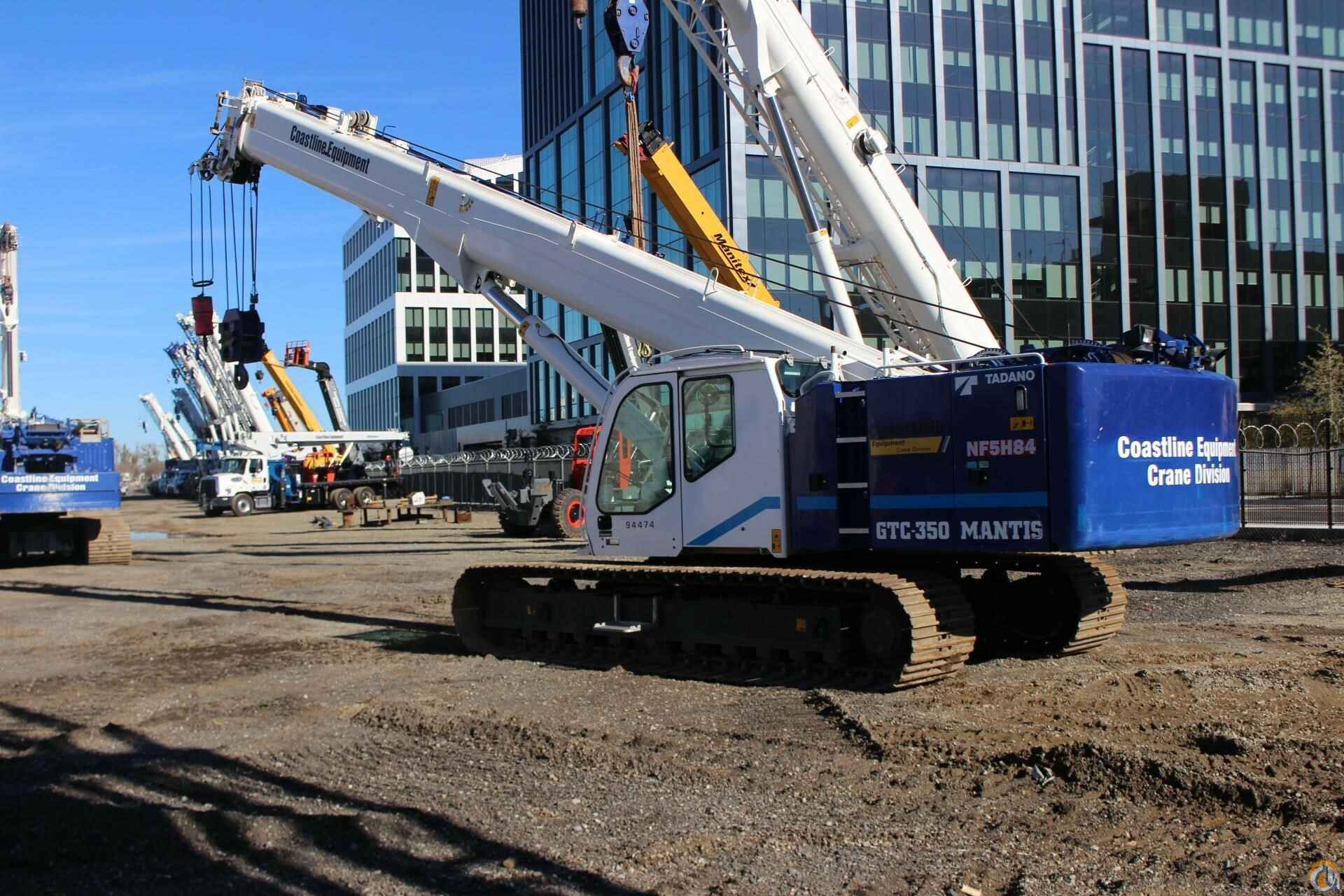

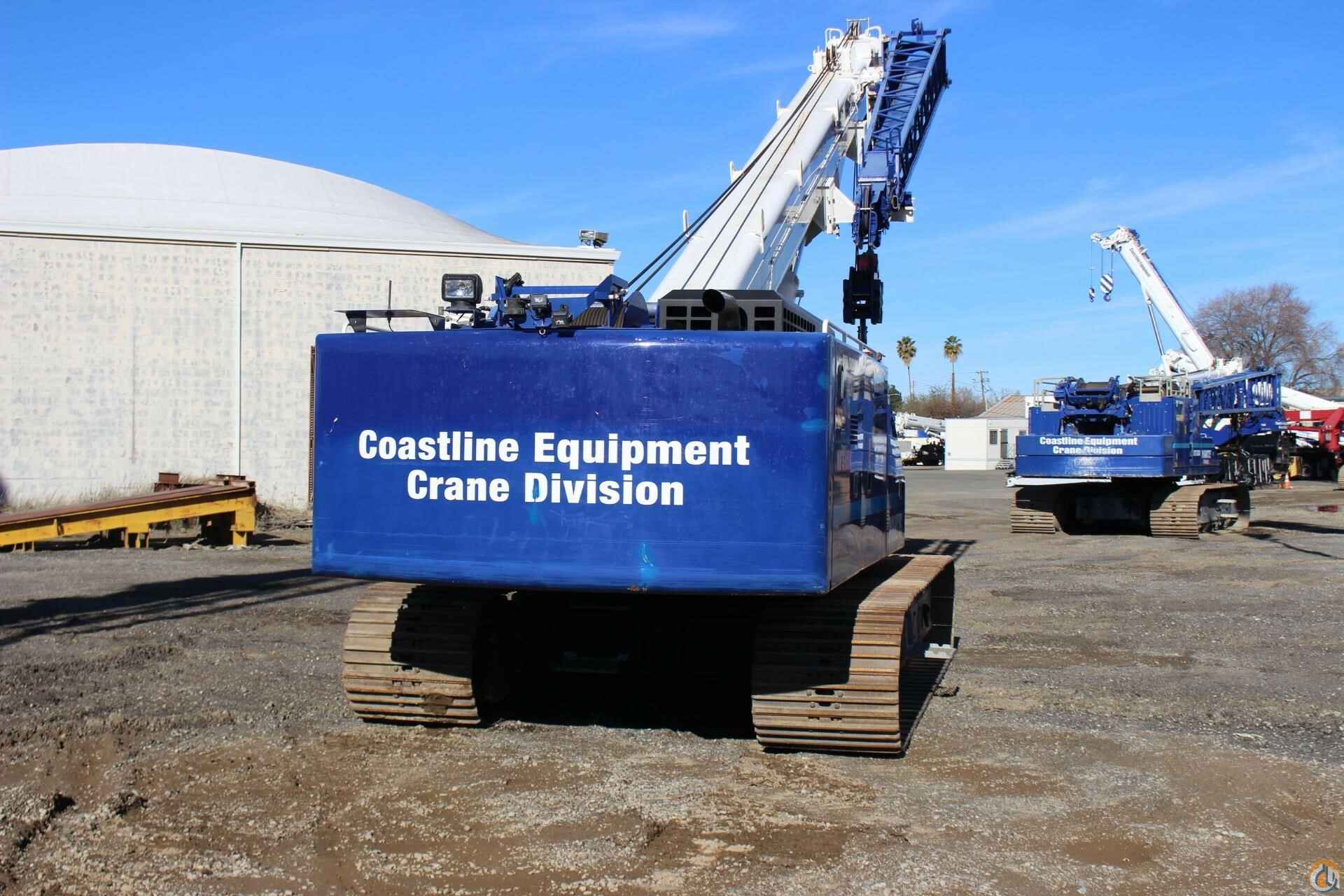

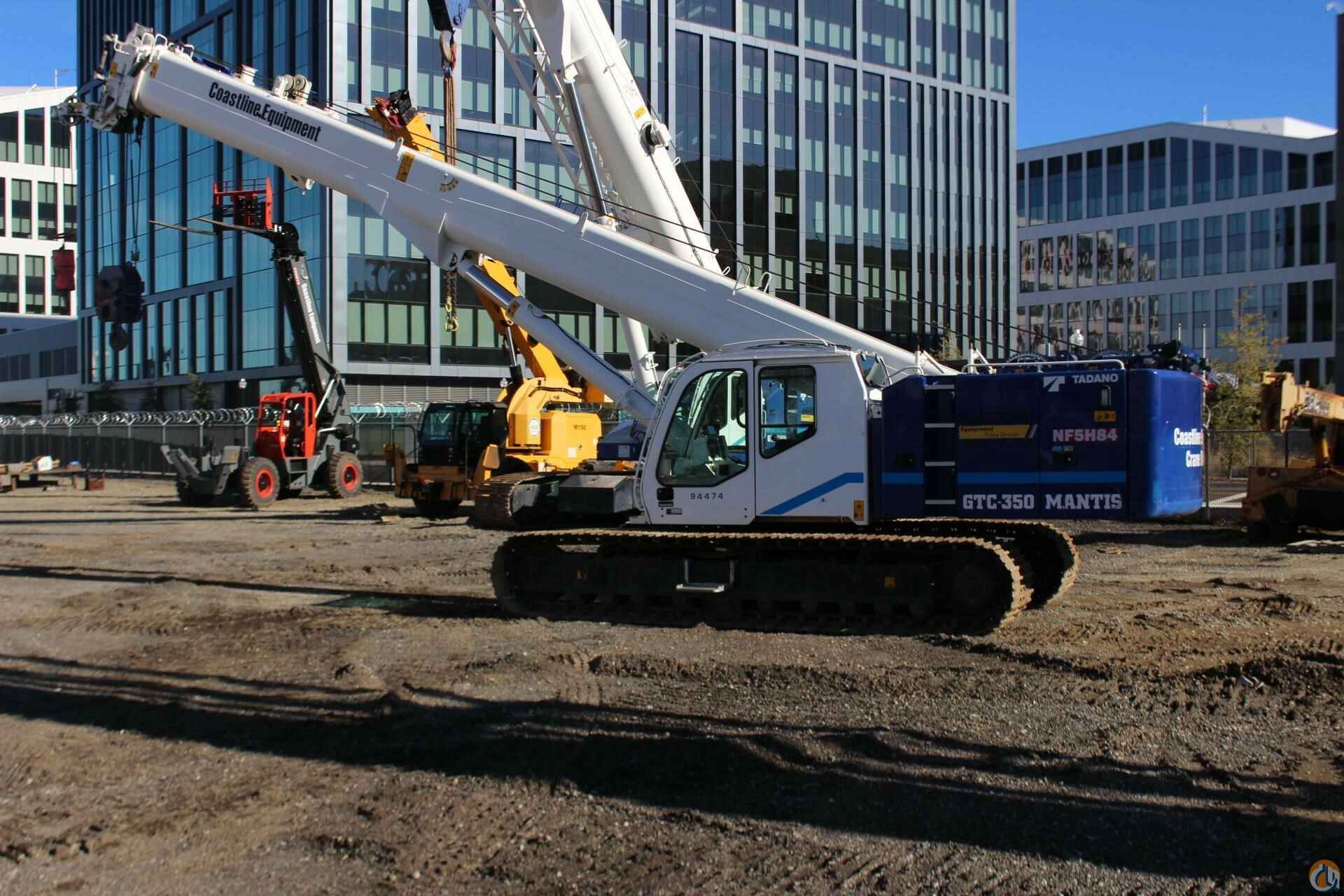

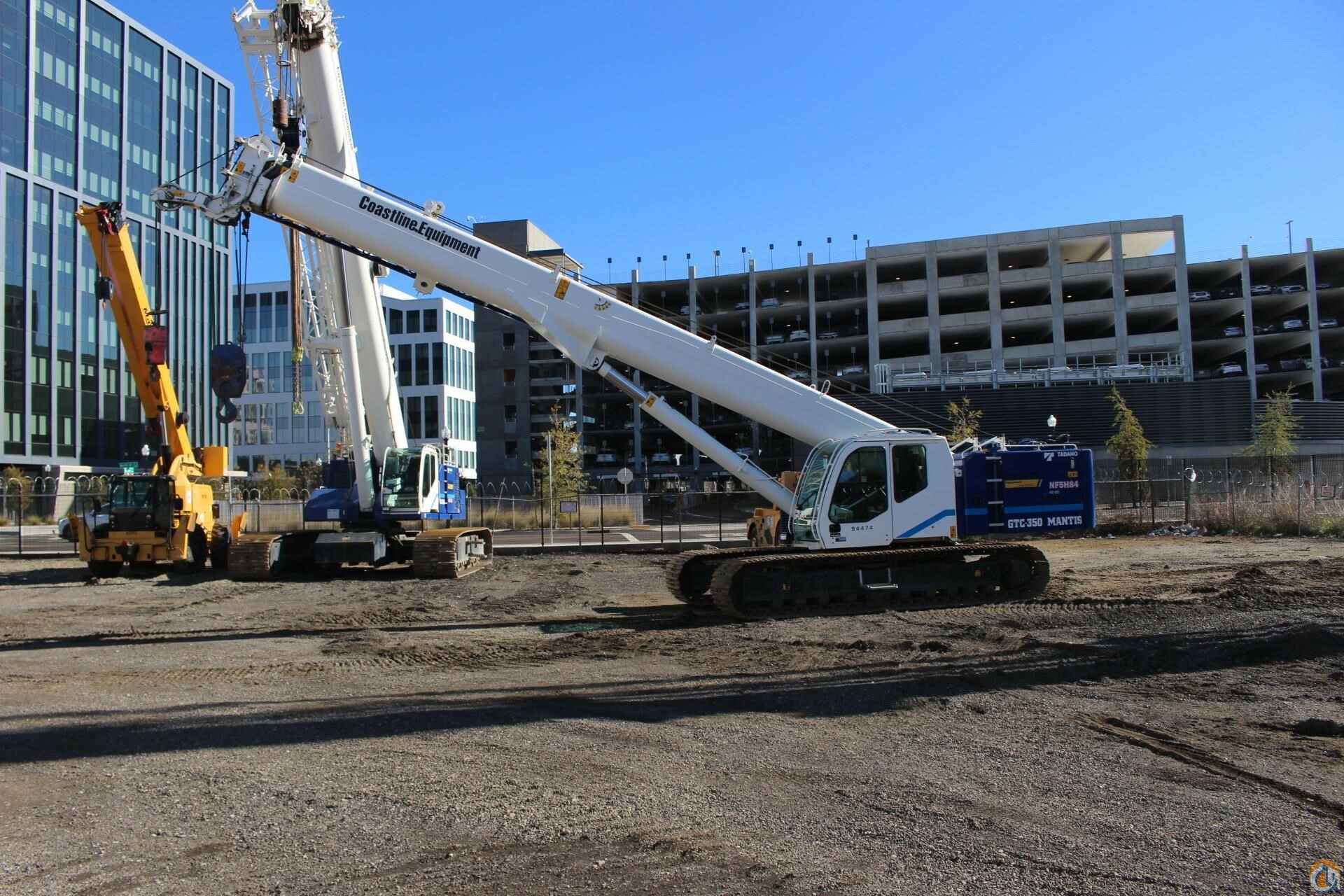

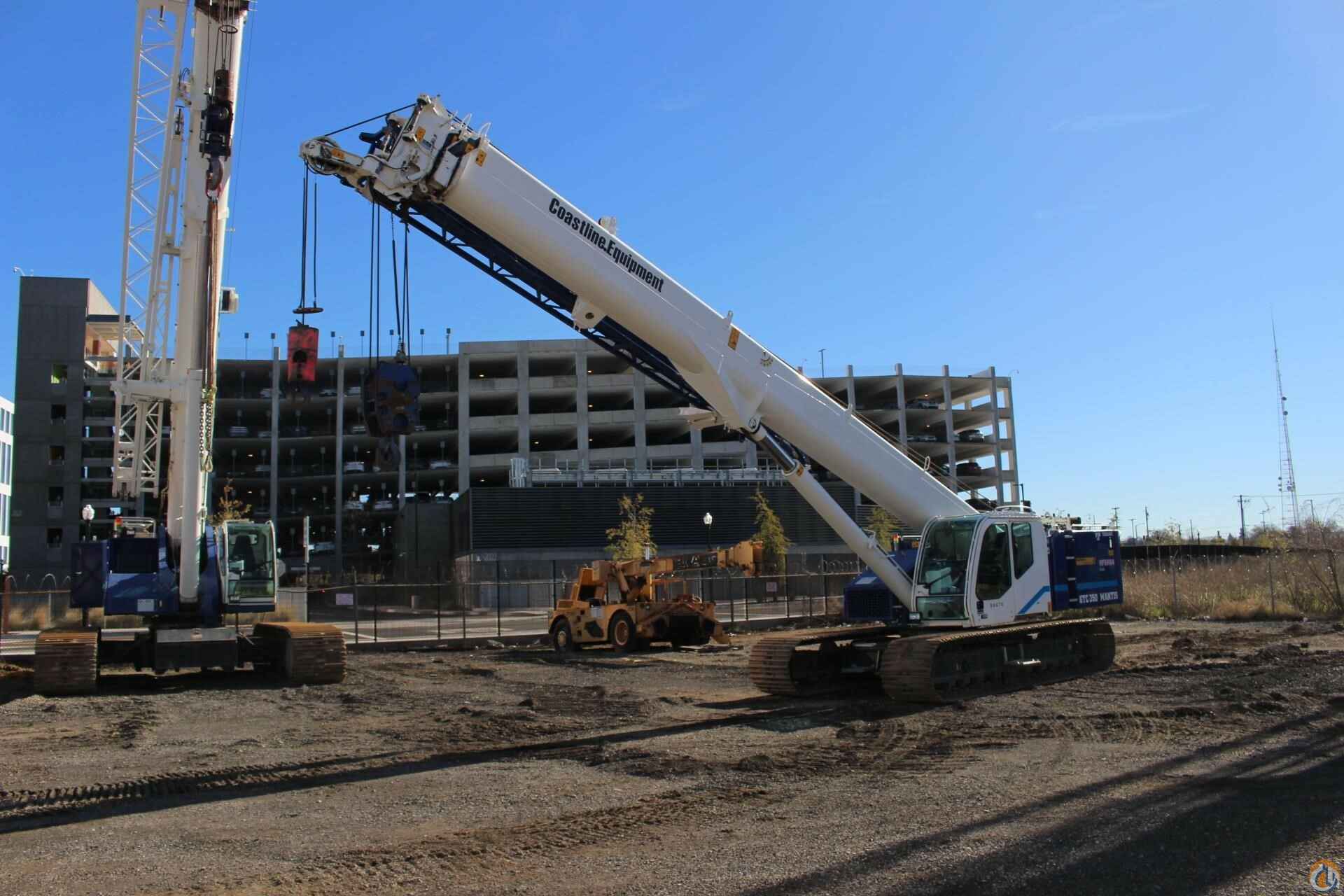

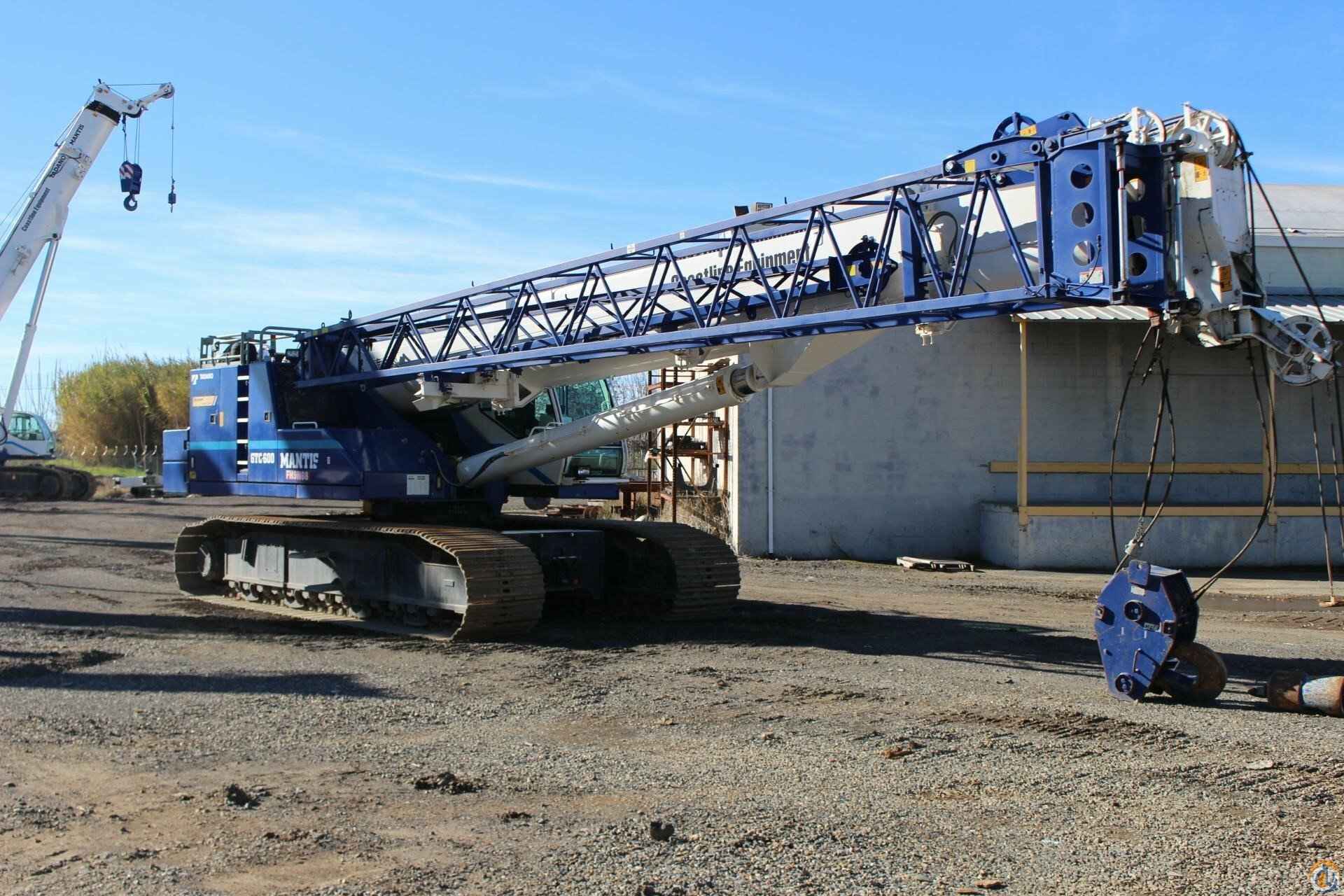

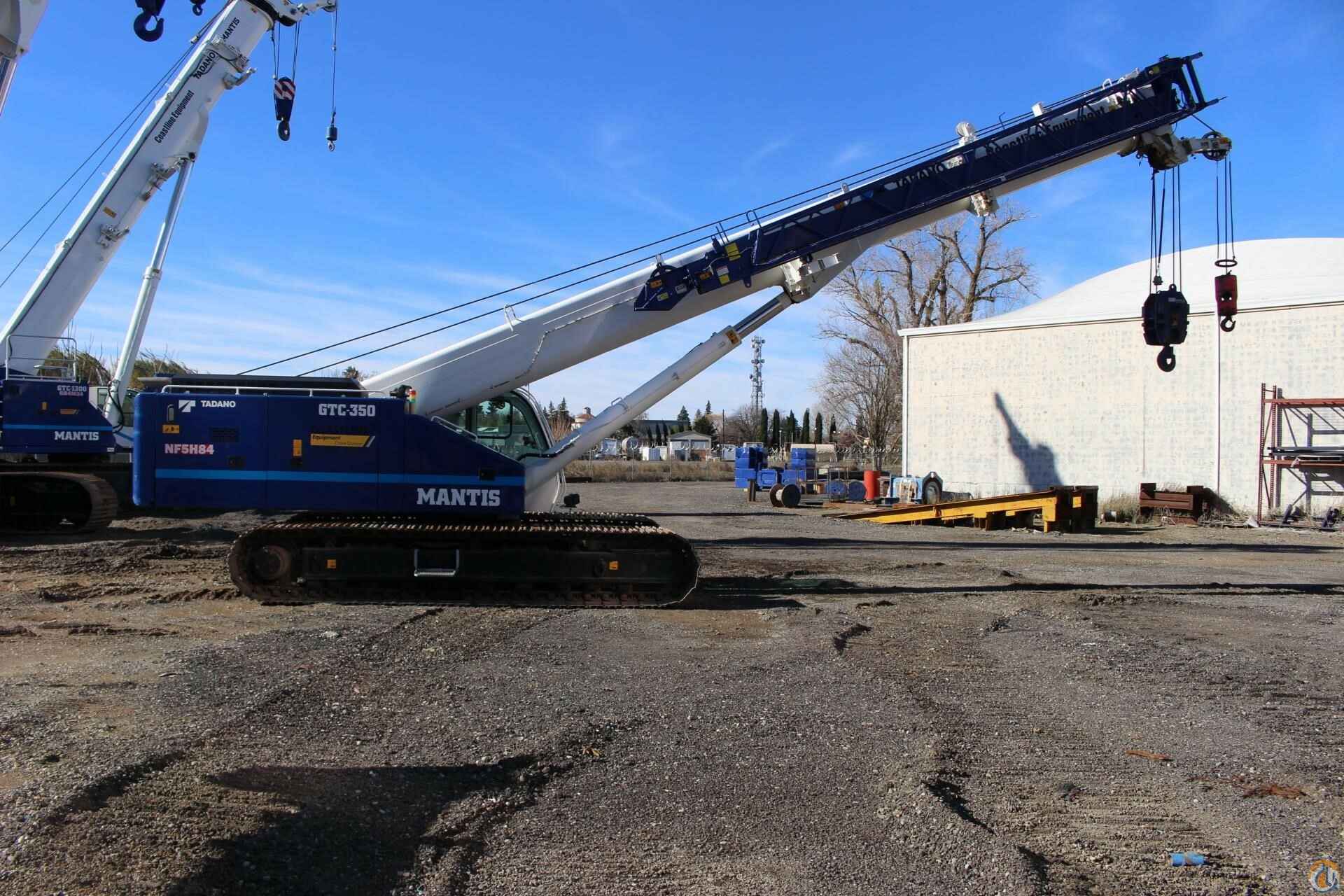

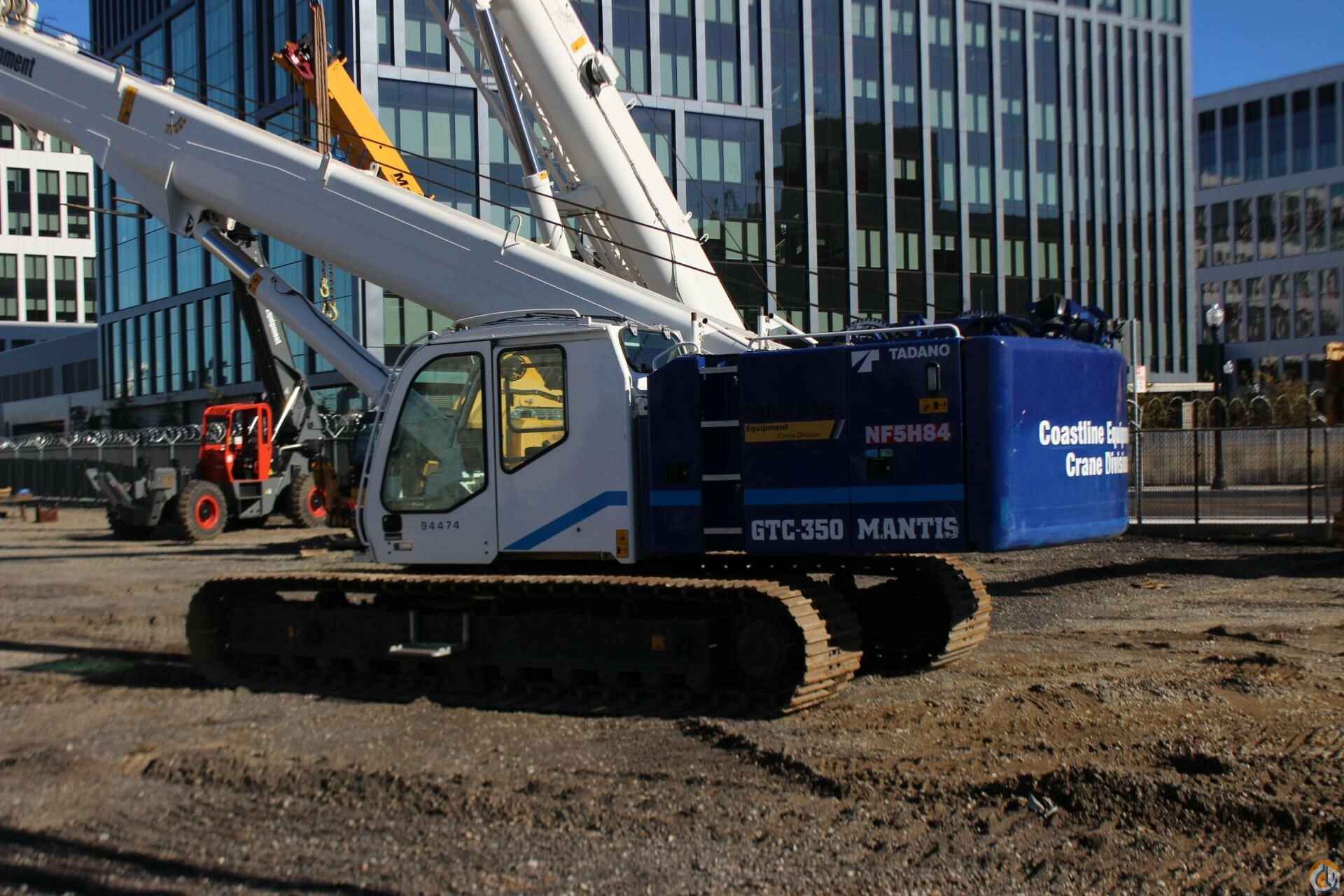

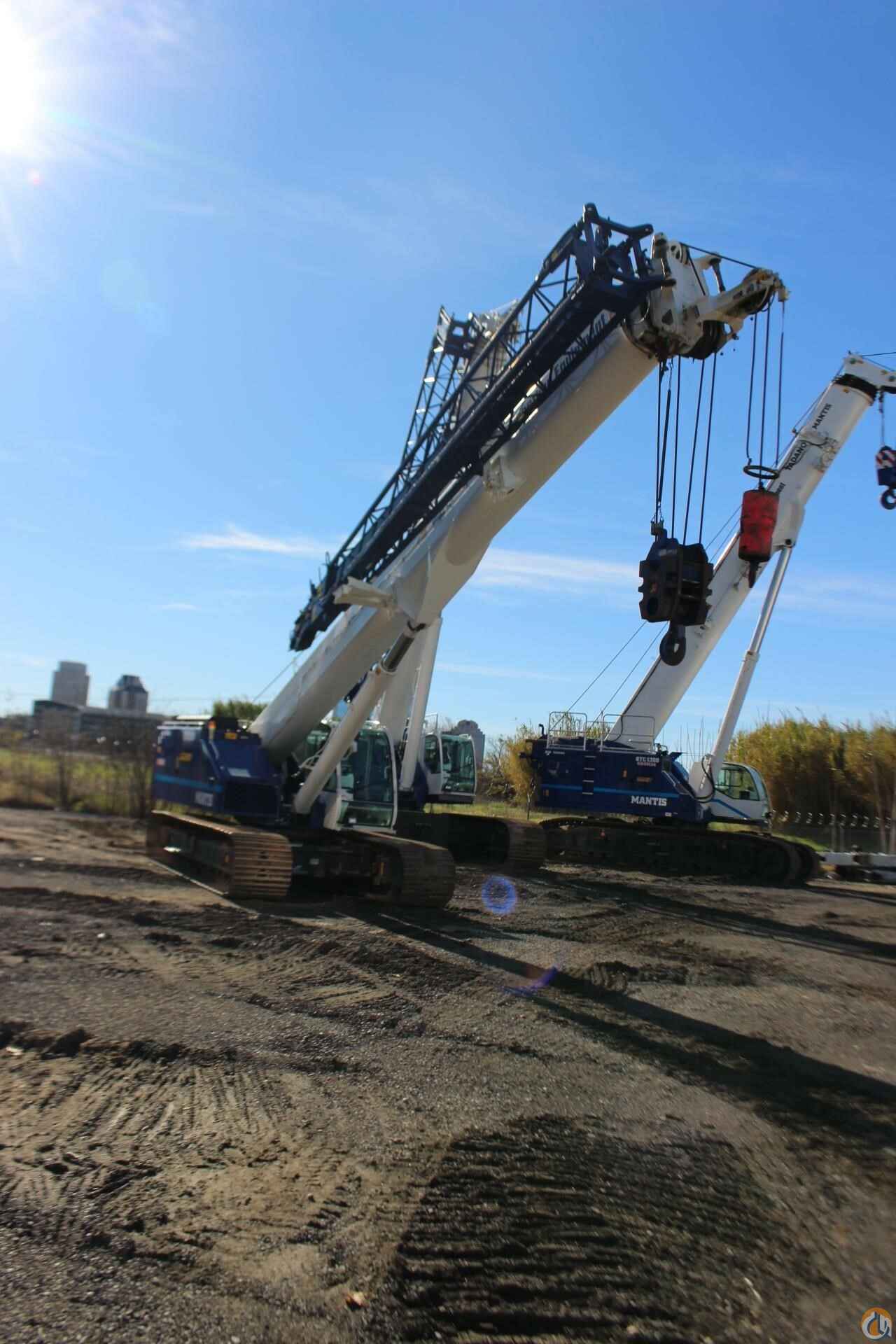

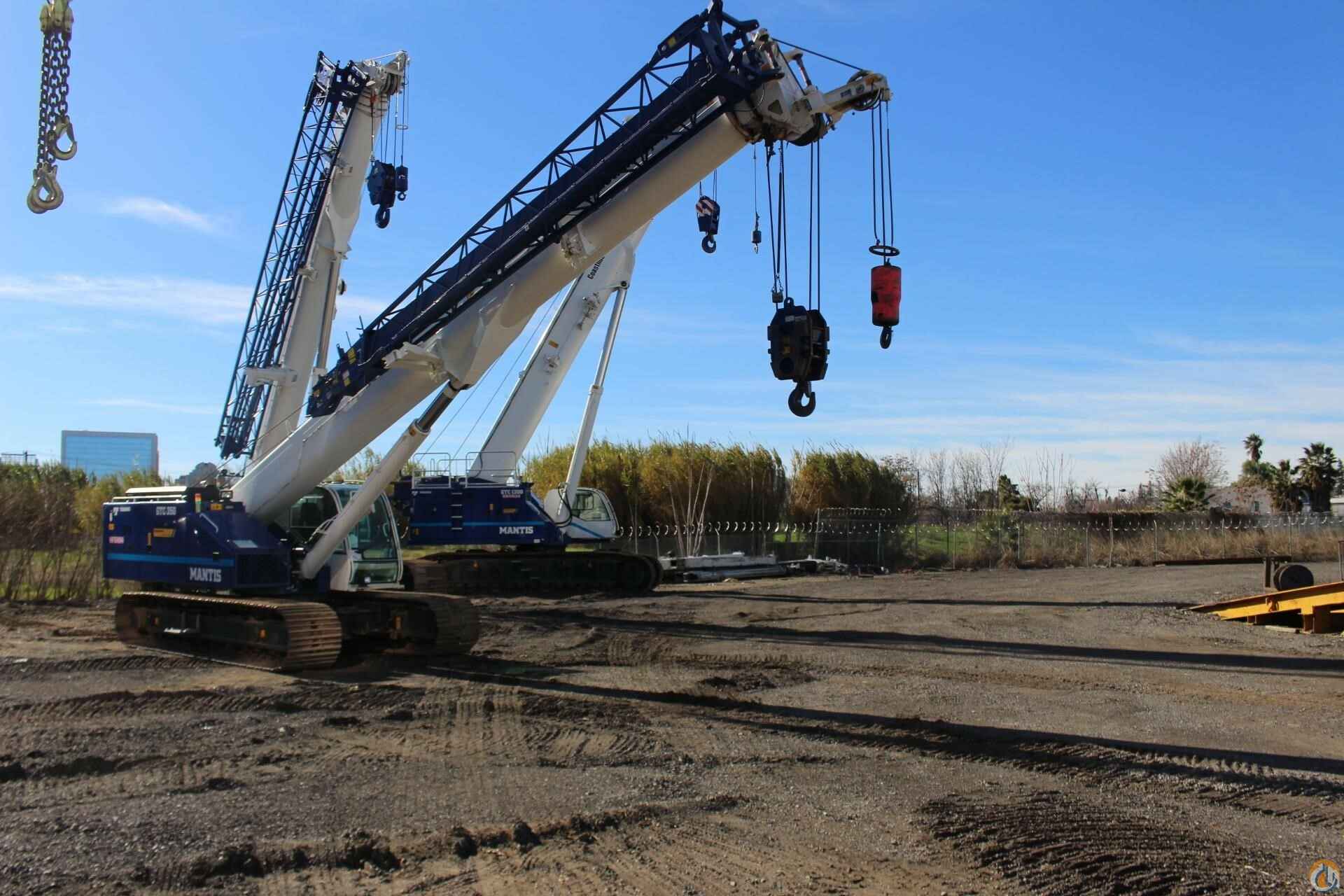

35 Ton Tele-Boom Crawler Crane:
Standard Crane
• 35 Ton lift capacity at 10’ Radius,
• 3 section 35’ 10” – 89’ 3” full power telescopic boom,
• Cummins QSB4.5 173 HP Tier 4F Diesel Engine,
• Standard Cab with A/C, Heat, Engine Monitoring,
• Tadano AML-C LMI System with North American (ft. – lbs.) Load Charts, automatic switching charts for 0.5º, 1.5°, 2.5° and 4°, and 3 color light bar
• TADANO HELLO-Net Telematics
• Video Camera Monitor – 3 closed circuit cameras – winch, rear and right side view
• Work Lights – 3 halogen work lights with remote controls
• Main Winch with grooved drum, cable follower, drum rotation indicator,
500 ft. – 16mm rotation resistant wire rope
• Hydraulic Extendable Undercarriage with OPTI-WIDTH™
• 29.5 Inch, 3-Bar Semi-grouser track shoes
• 12,500 lb. rear counterweight,
• Hydraulic Oil – ISO VG32 – Mineral Based Oil,
• Standard Tadano mantis Blue/White Paint,
• 1 yr/1500 hr warranty (extended warranty available @2% dealer net/per year
Crane Value Package:
• Standard Crane
• Extendable jib – 23’6”/42’ extendable jib offsets at 5°, 25°, and 45°,
• 35 Ton Hook Block,
• 14.4 Ton Headache Ball
Boom Attachments
• Auxiliary Boom Head
Single 14.7” diameter high strength, cast nylon sheave
Hoisting and Rigging
• Auxiliary Winch
Planetary geared single-speed winch with grooved drum, cable follower, drum rotation indicator, 300 ft rotation resistant wire rope
