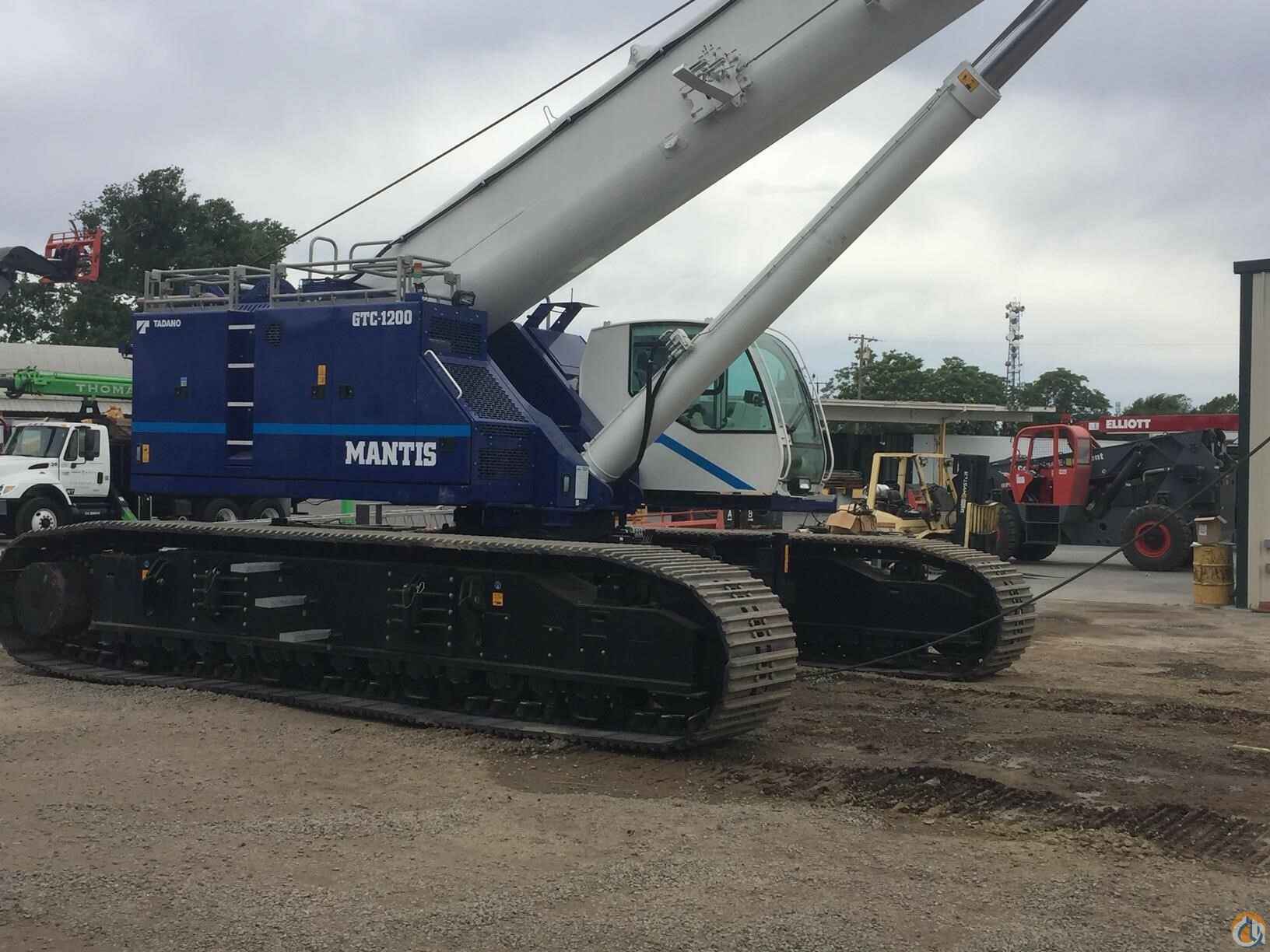

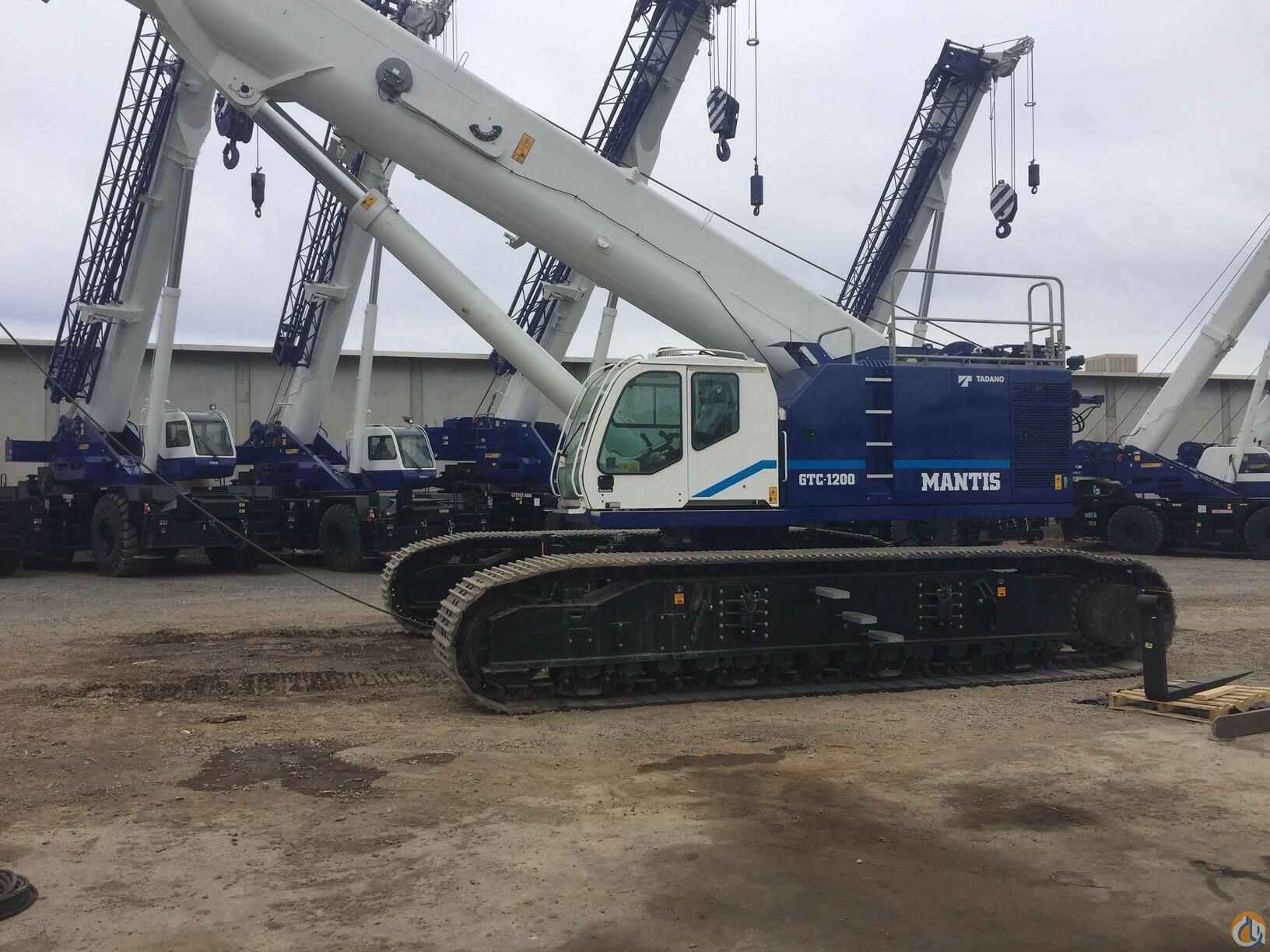

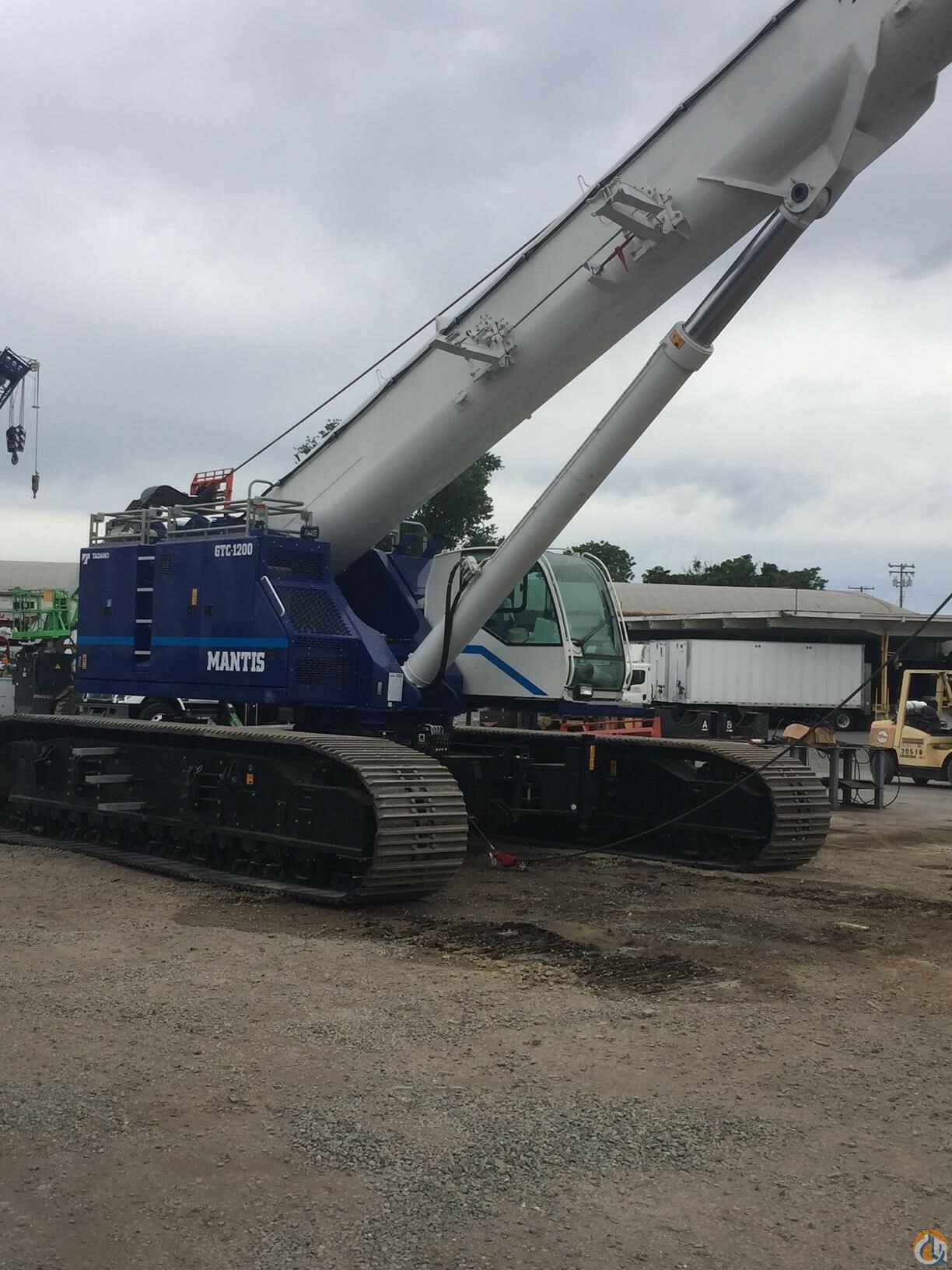

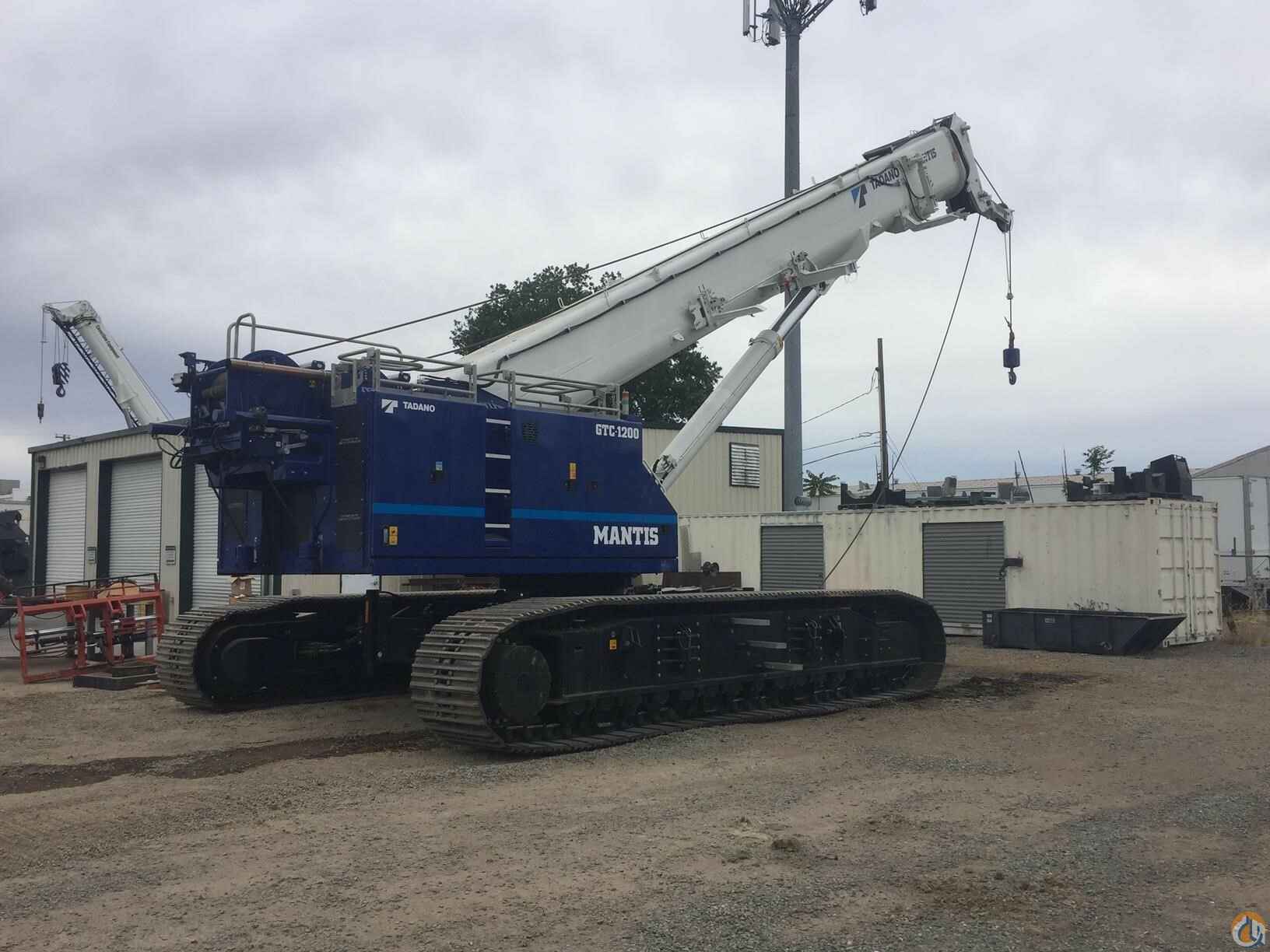

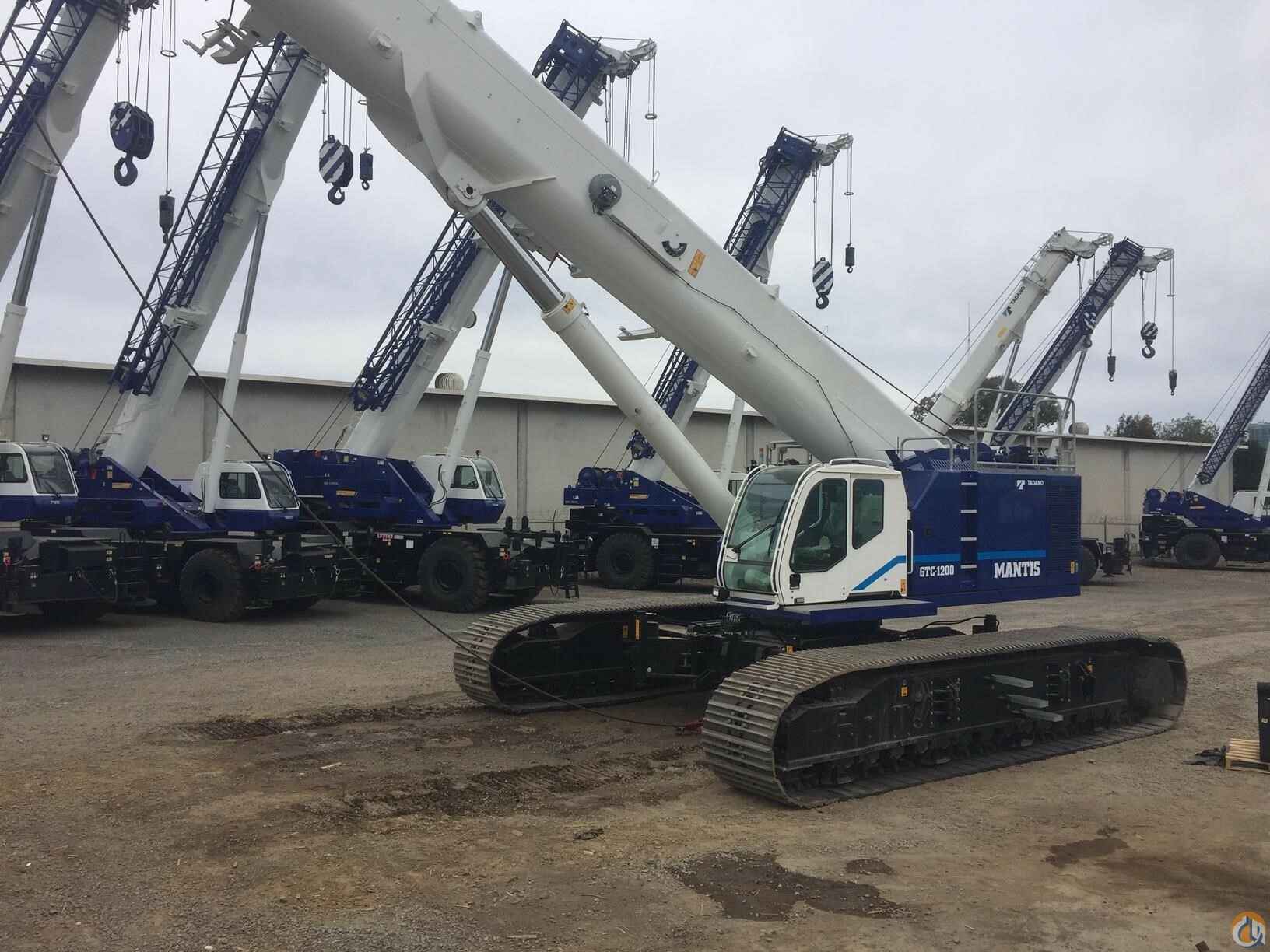

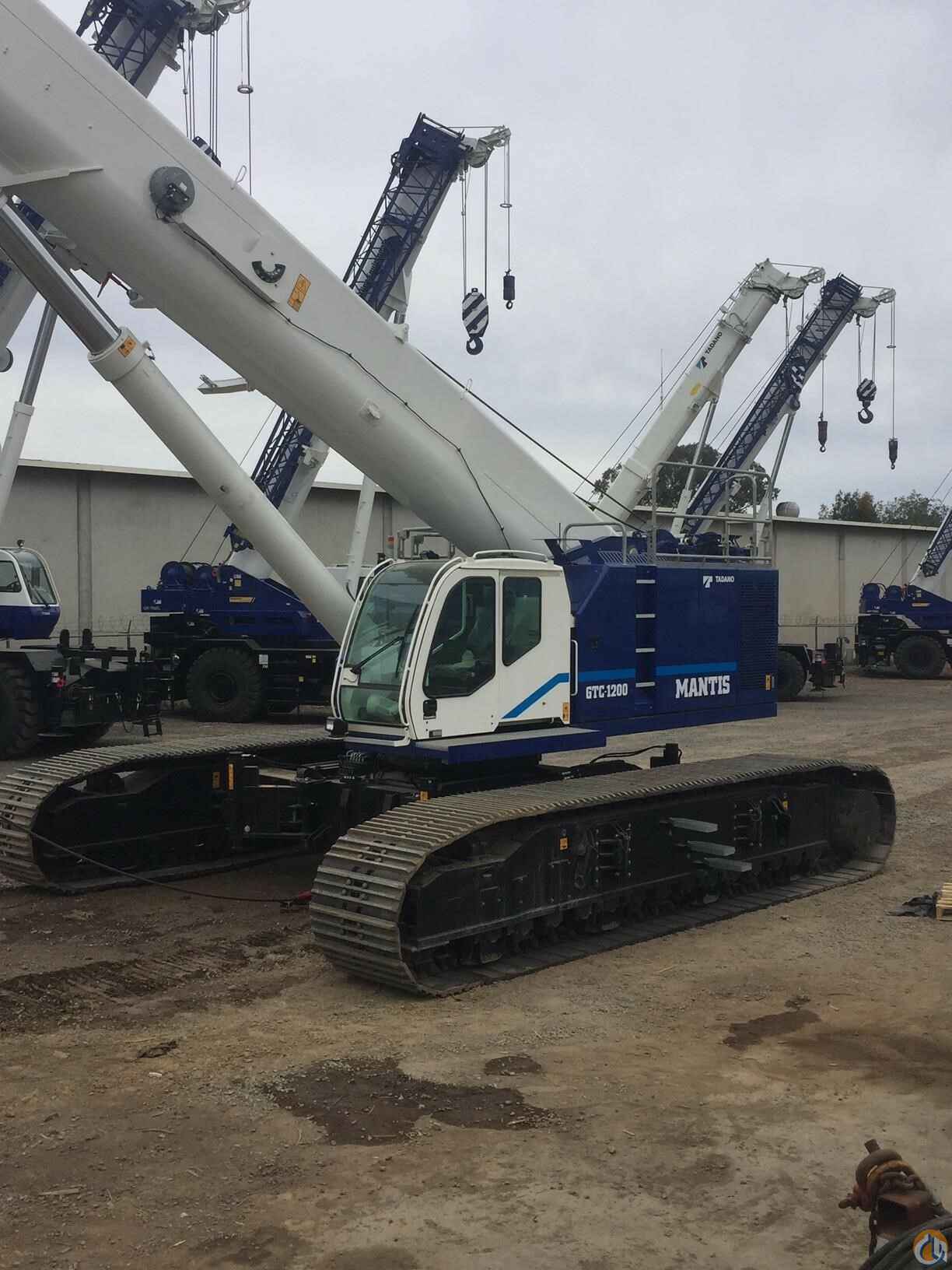

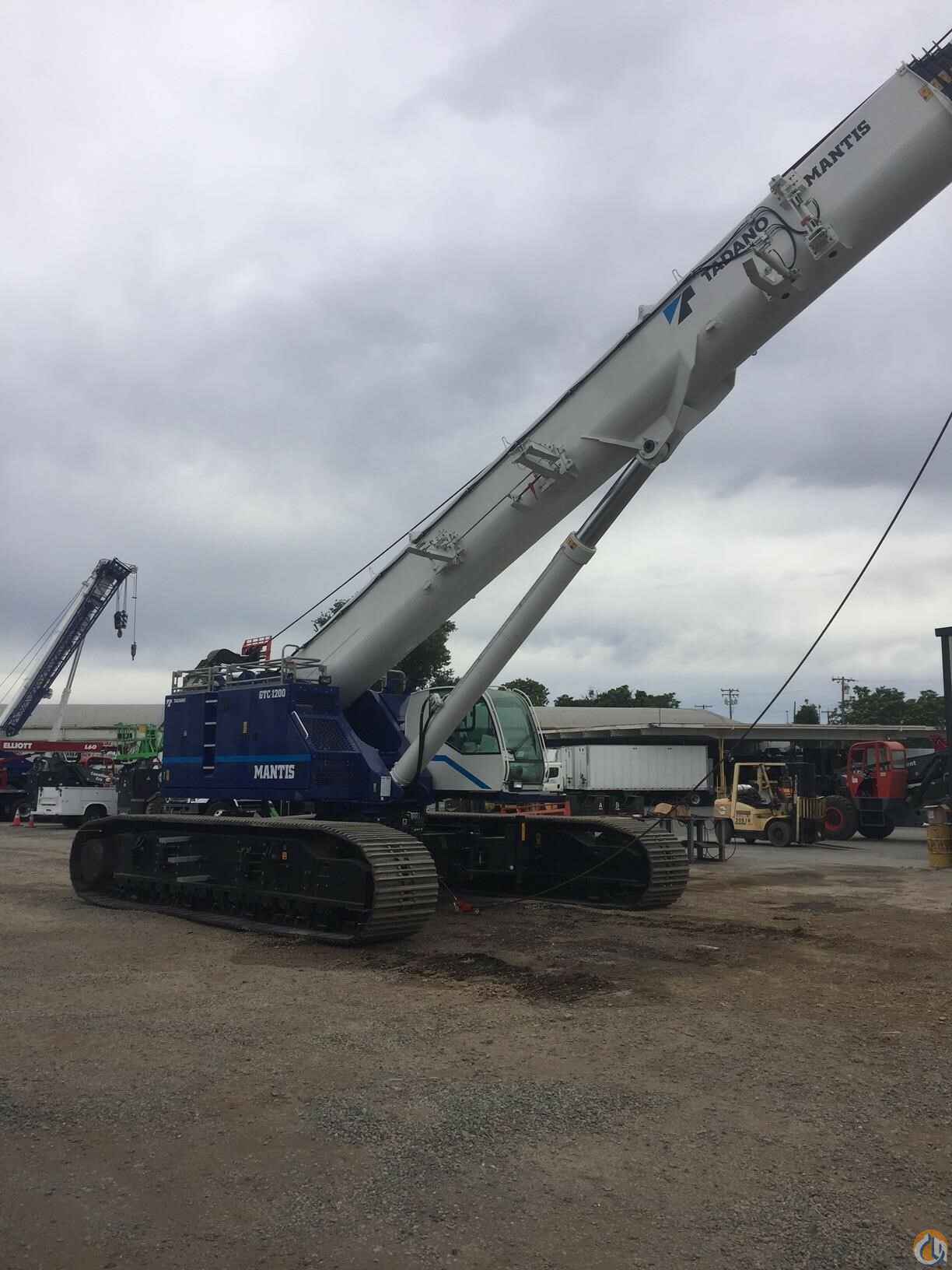

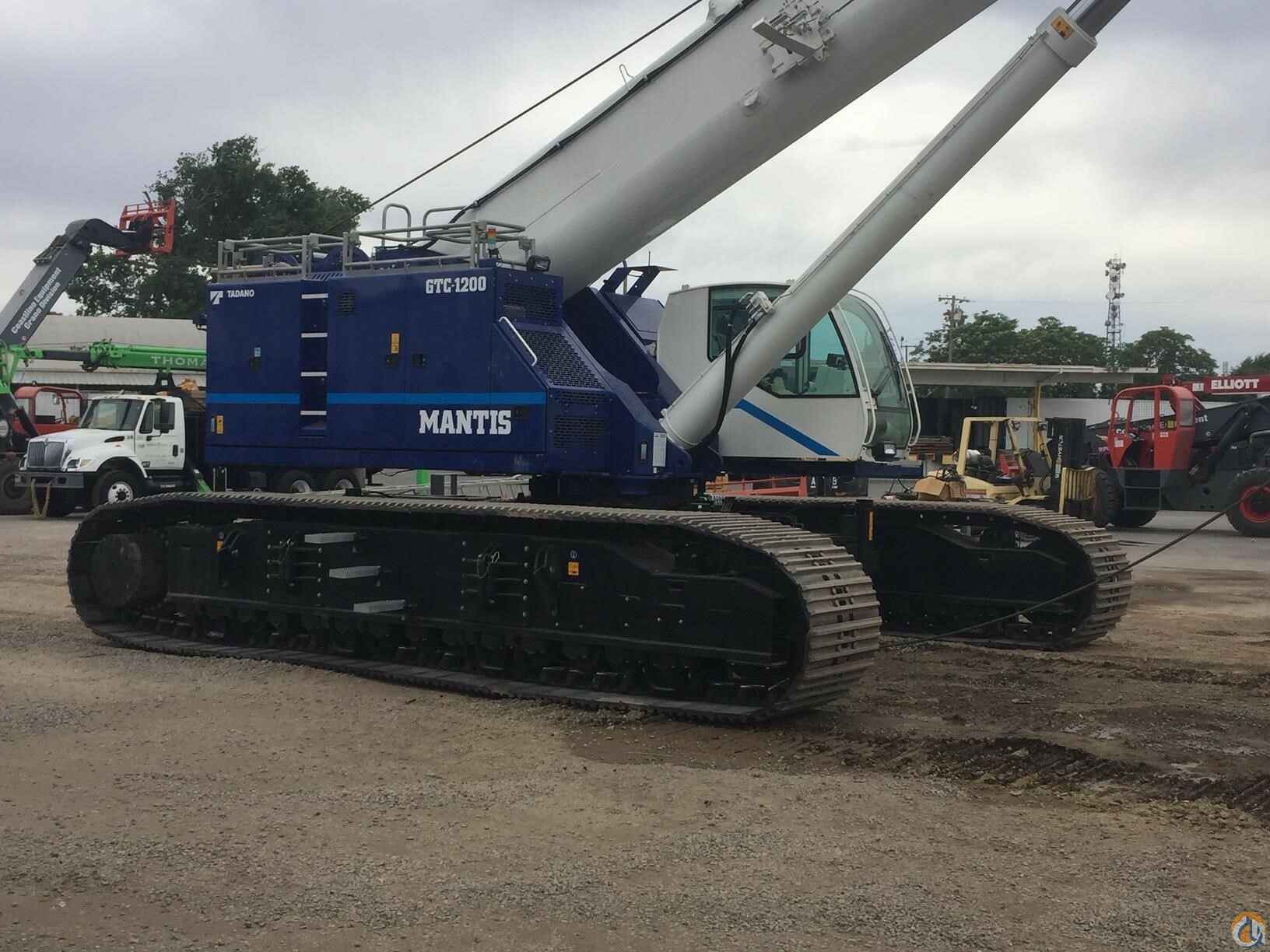

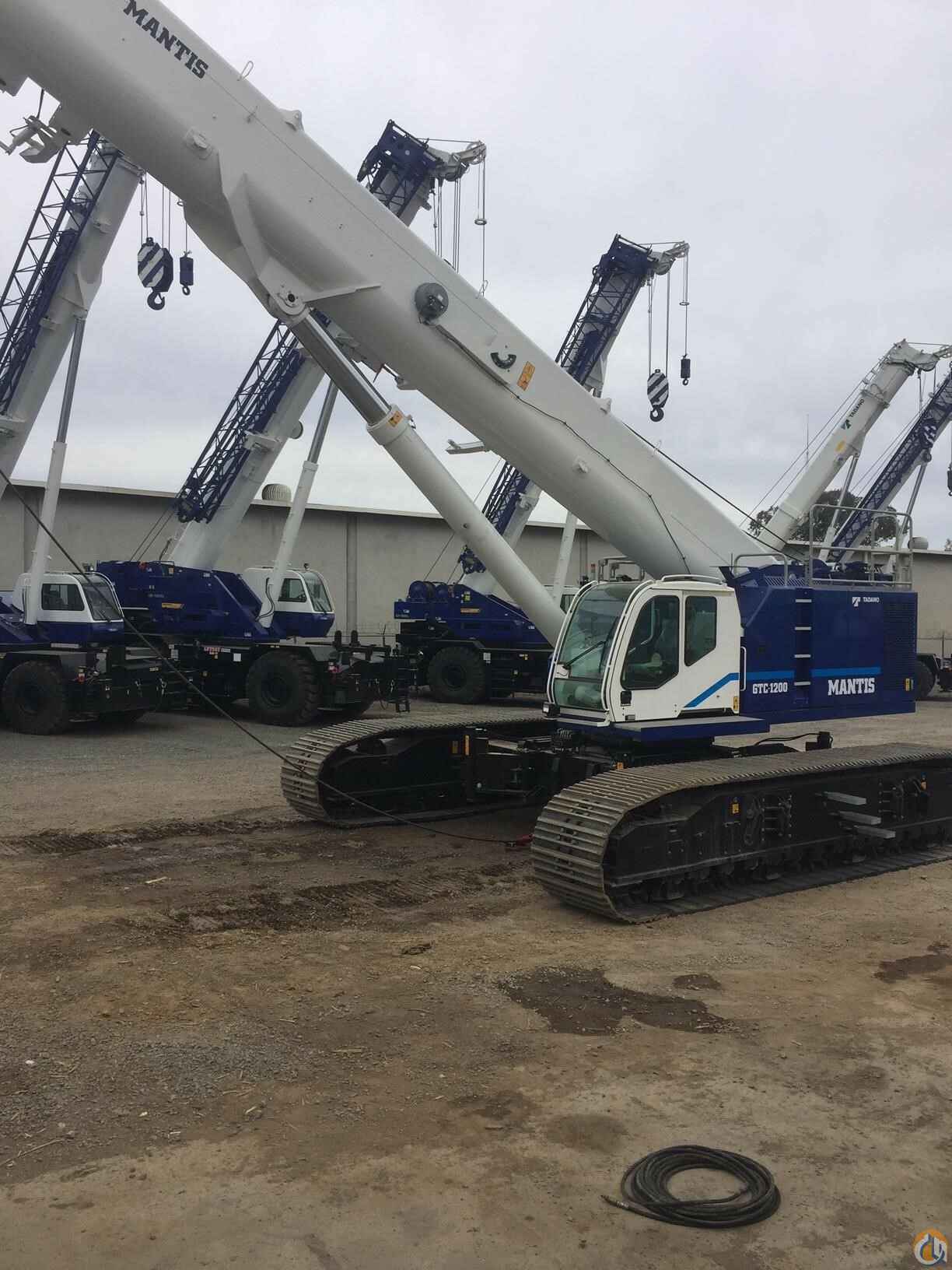

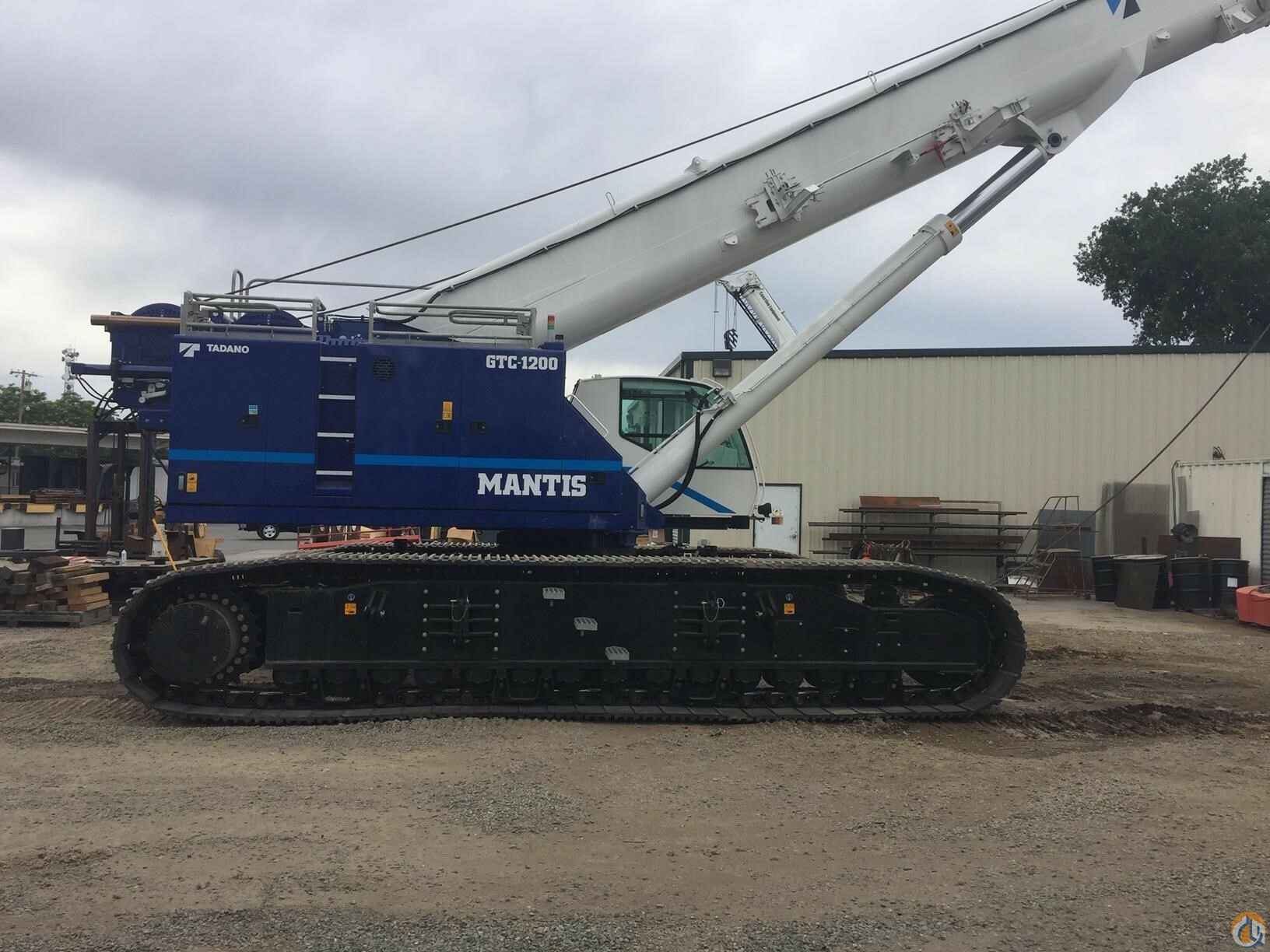

TADANO MANTIS GTC-1200
130 TON CRANE
Standard features:
• 130 ton lift capacity
• 5 section 155’ boom
• Cummins 350 HP QSL9 US EPA Tier 4f Diesel Engine
• Standard Cab with A/C, Heat, Engine Monitoring, 20° tilt configuration
• Tadano AML-C System with North American (ft.- lbs.) Load Charts, and A2B HELLO-NET Telematics System
• Video Camera Monitor – 2 closed circuit cameras – 1 views winches, 1 views rear of crane
• Work Lights – 3 work lights with remote controls
• Main Winch with grooved drum, cable follower, drum rotation indicator, 3rd wrap indicator and 758’ of 7/8” rotation resistant wire rope
• Auxiliary Winch with grooved drum, cable follower, drum rotation indicator, 3rd wrap indicator and 613’ of 7/8” rotation resistant wire rope
• Auxiliary Boom Head
• Hydraulic Extendable Undercarriage
• 35.43 Inch 3-Bar Semigrouser track shoes
• 70,000 lb. rear counterweight
• 20,000 lb. carbody counterweight
• Carbody counterweight storage box
• Crane access walkways and folding aluminum upper handrail system
• Carbody Jacks and rigging mode
• Standard Tadano Mantis Blue/White paint
• Automatic lubrication system for slewing bearing and boom butt pin
• Hydraulic Oil – ISO VG32 – Mineral Based Oil
• 2 printed copies of Operation/Parts/Service Manuals
Additional Options Included:
• 33.5’ to 59.1’ bi-fold jib (includes 12.5’ heavy-lift jib) offsets at 0,20, and 40 degrees.
• 130 Ton Quick Reeve Hook Block
• 6-sheaves with swivel hook and safety latch
• 13.8-ton Headache Ball
• LMI Light Bar – 3 Color Provides external visual indication of load status
