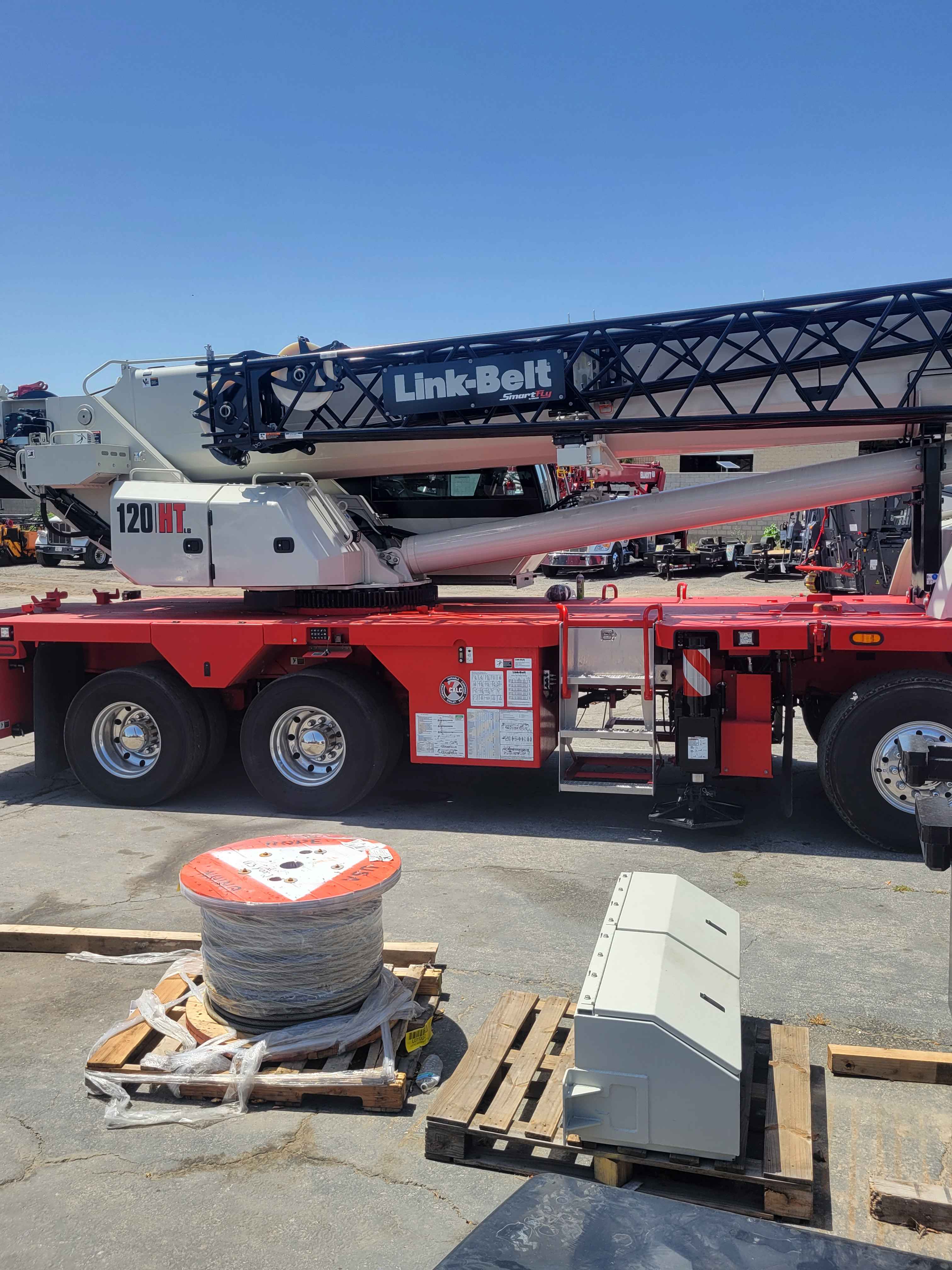

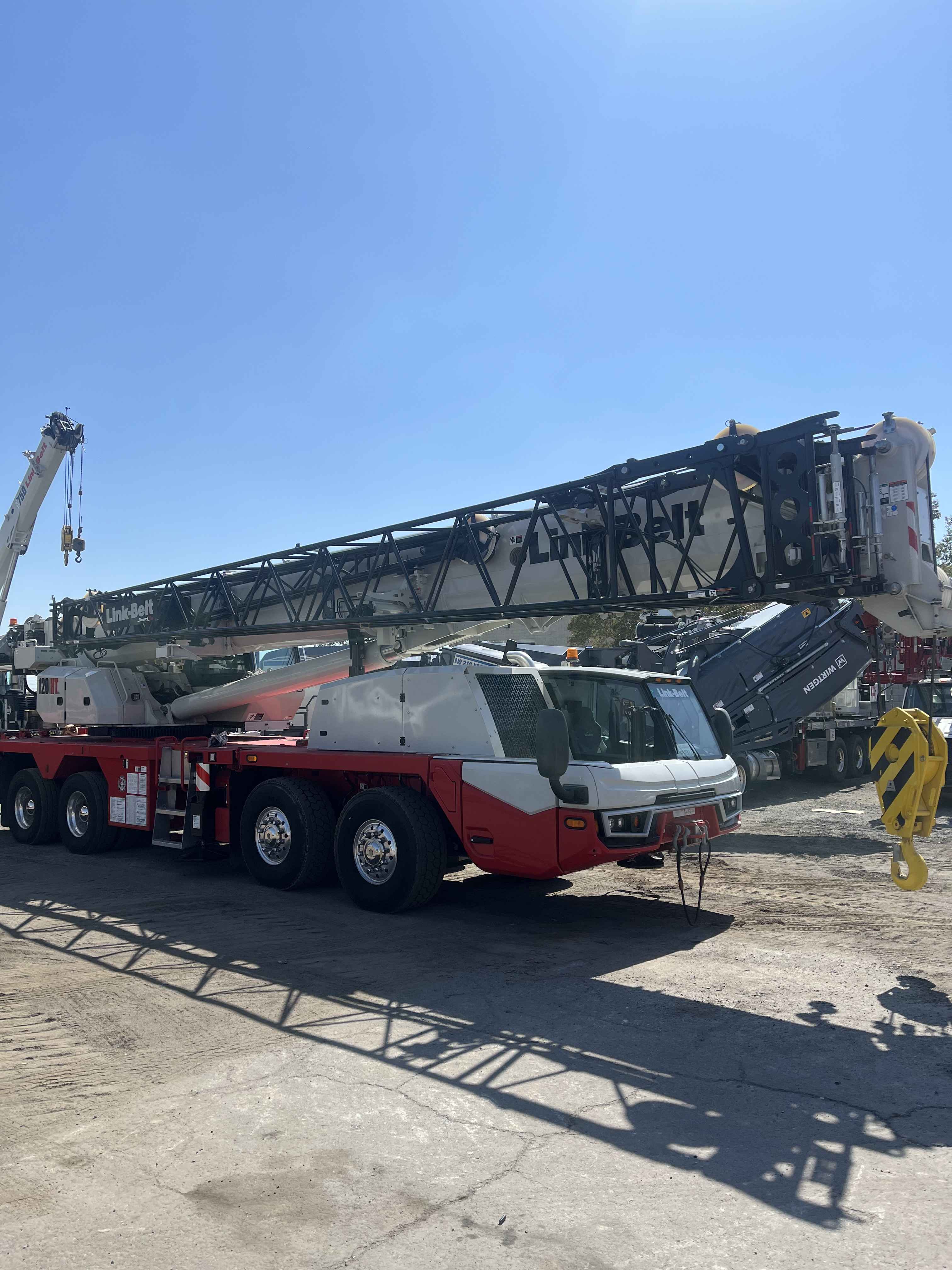

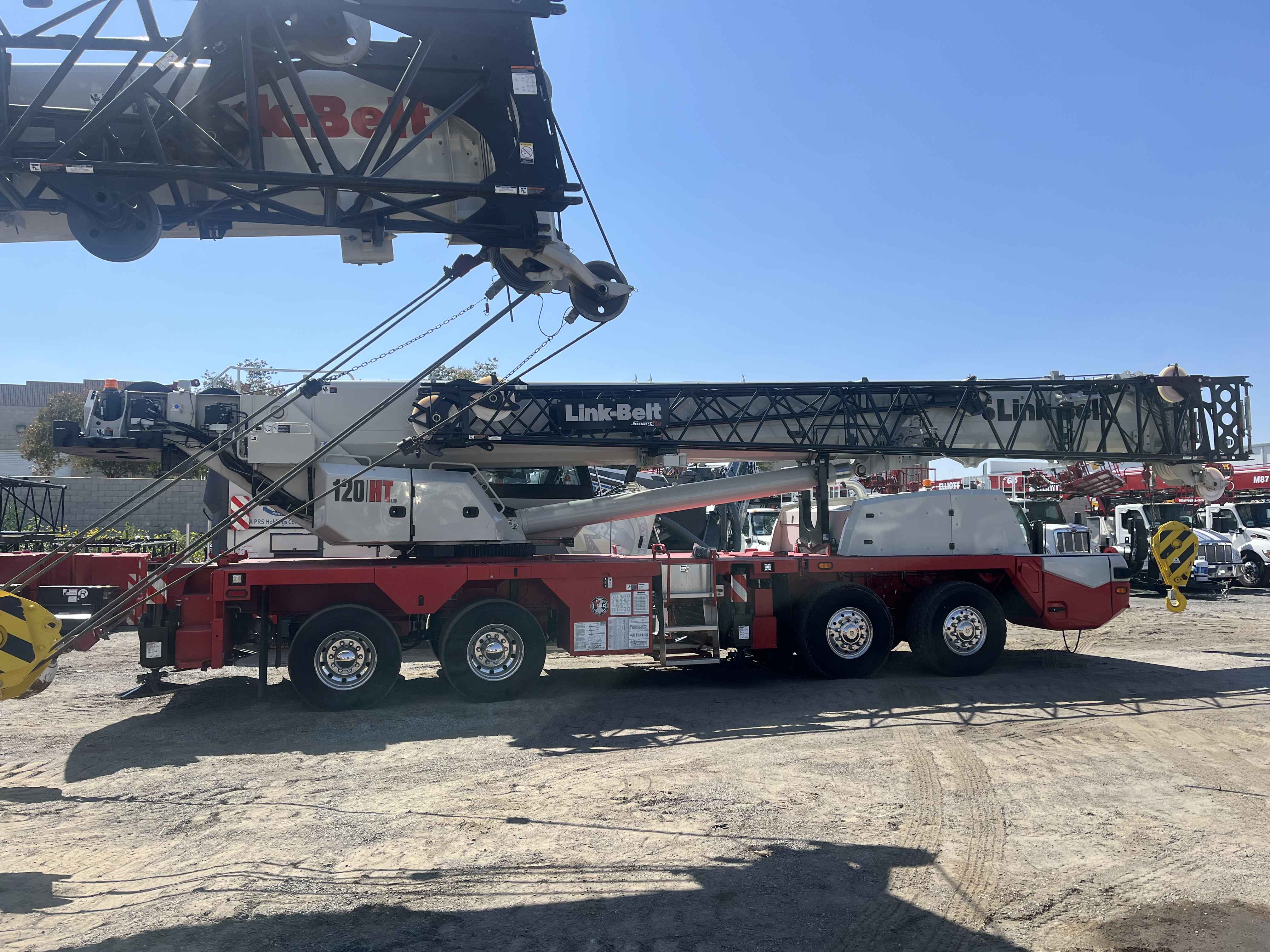

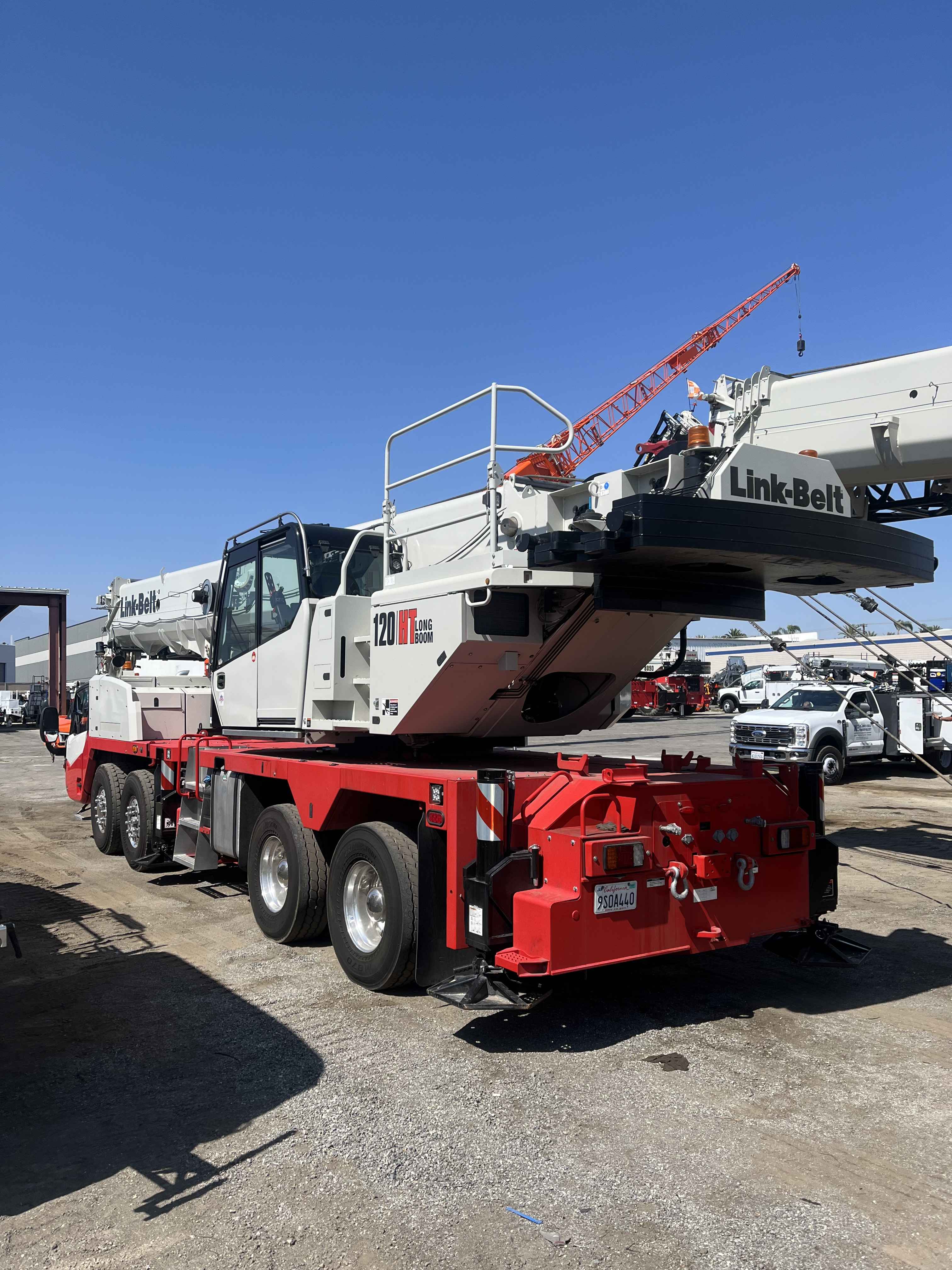

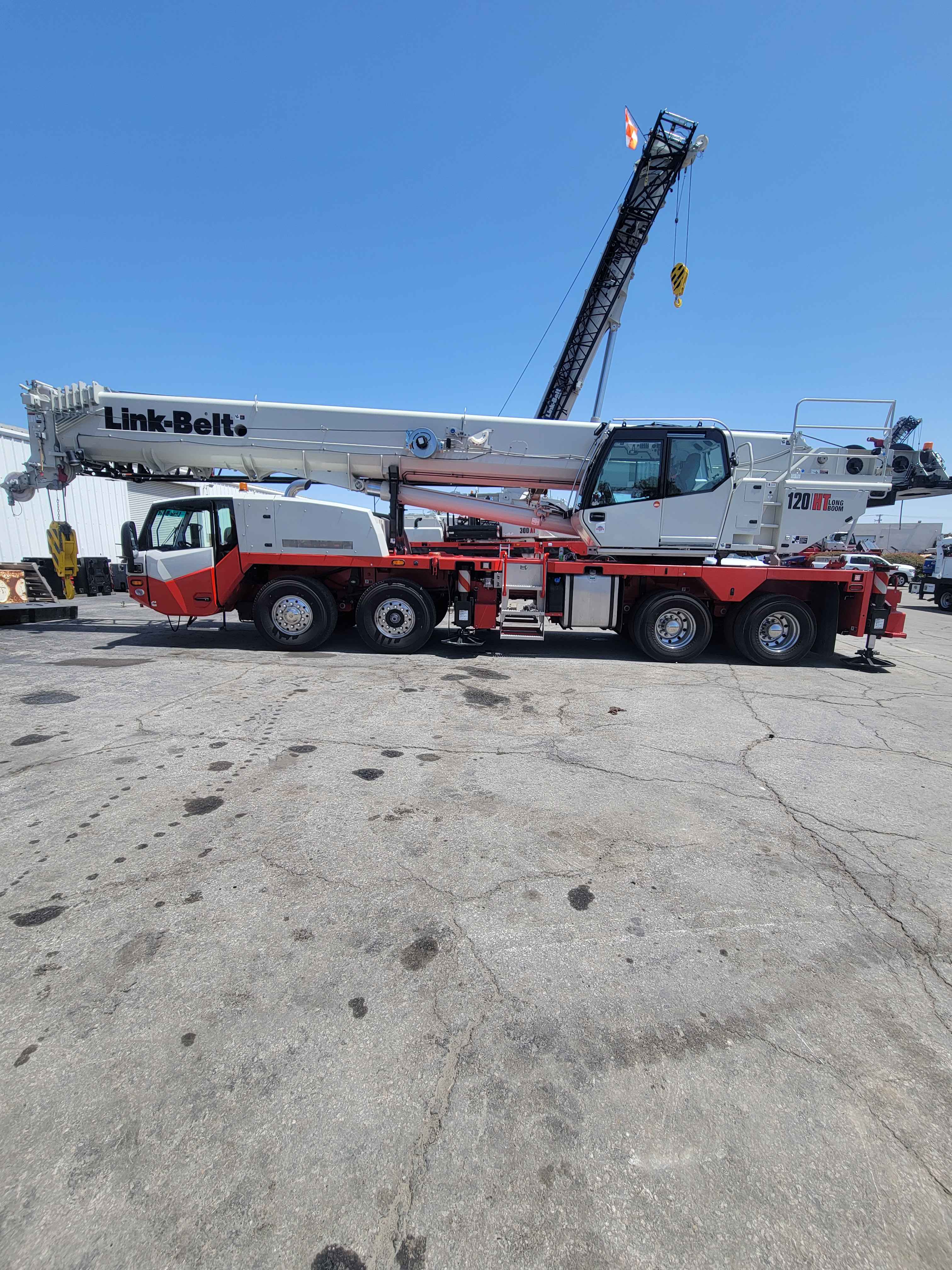

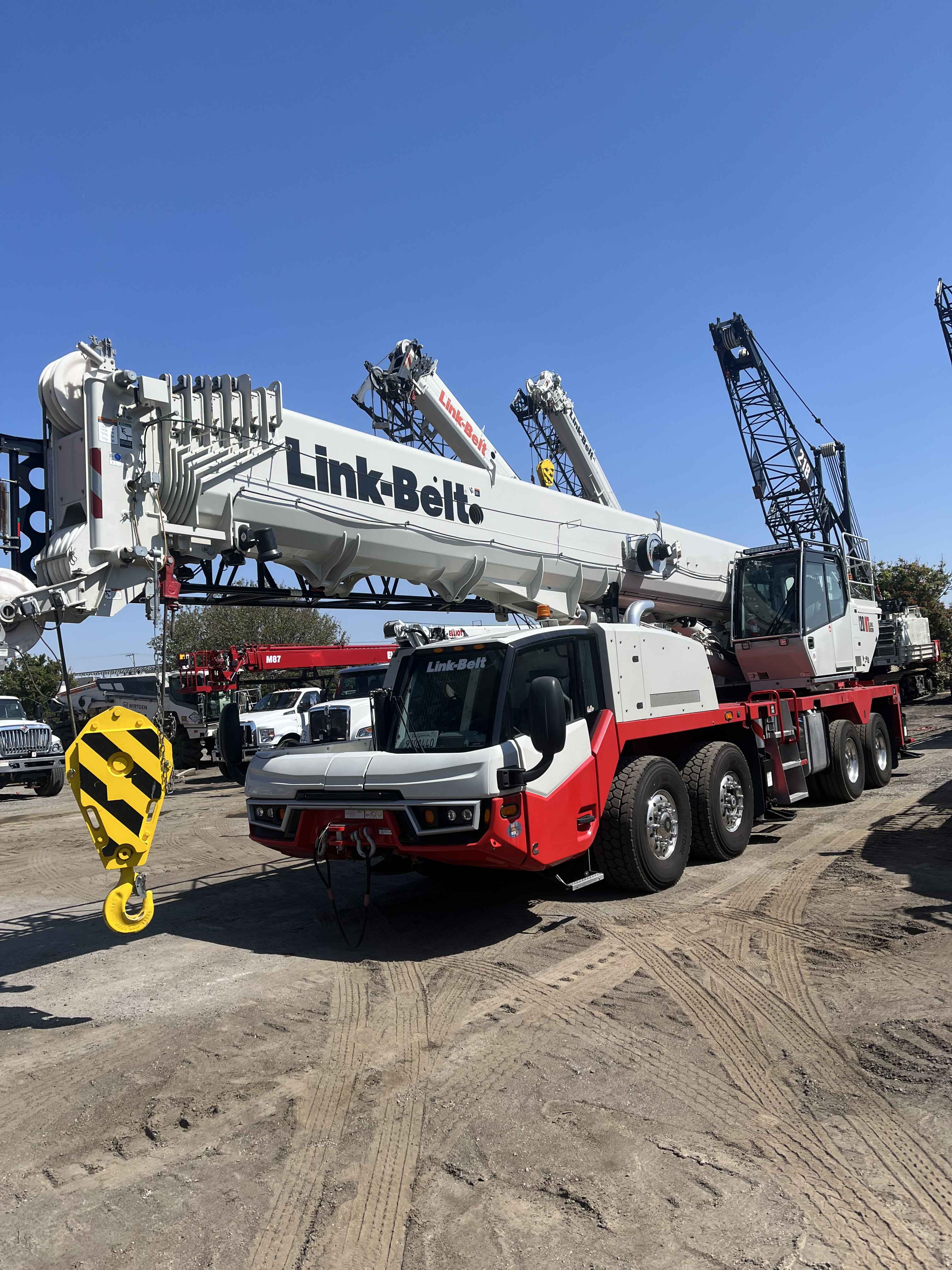

This 2024 Link-Belt HTLB SN U5L4-7391 is the Long Boom version of Link-belt’s 120HT Hydraulic Truck Crane. The 120HTLB features Hendrickson independent suspension with no walking beam. 120HTLB offers the smoothest ride of any truck crane in the industry.

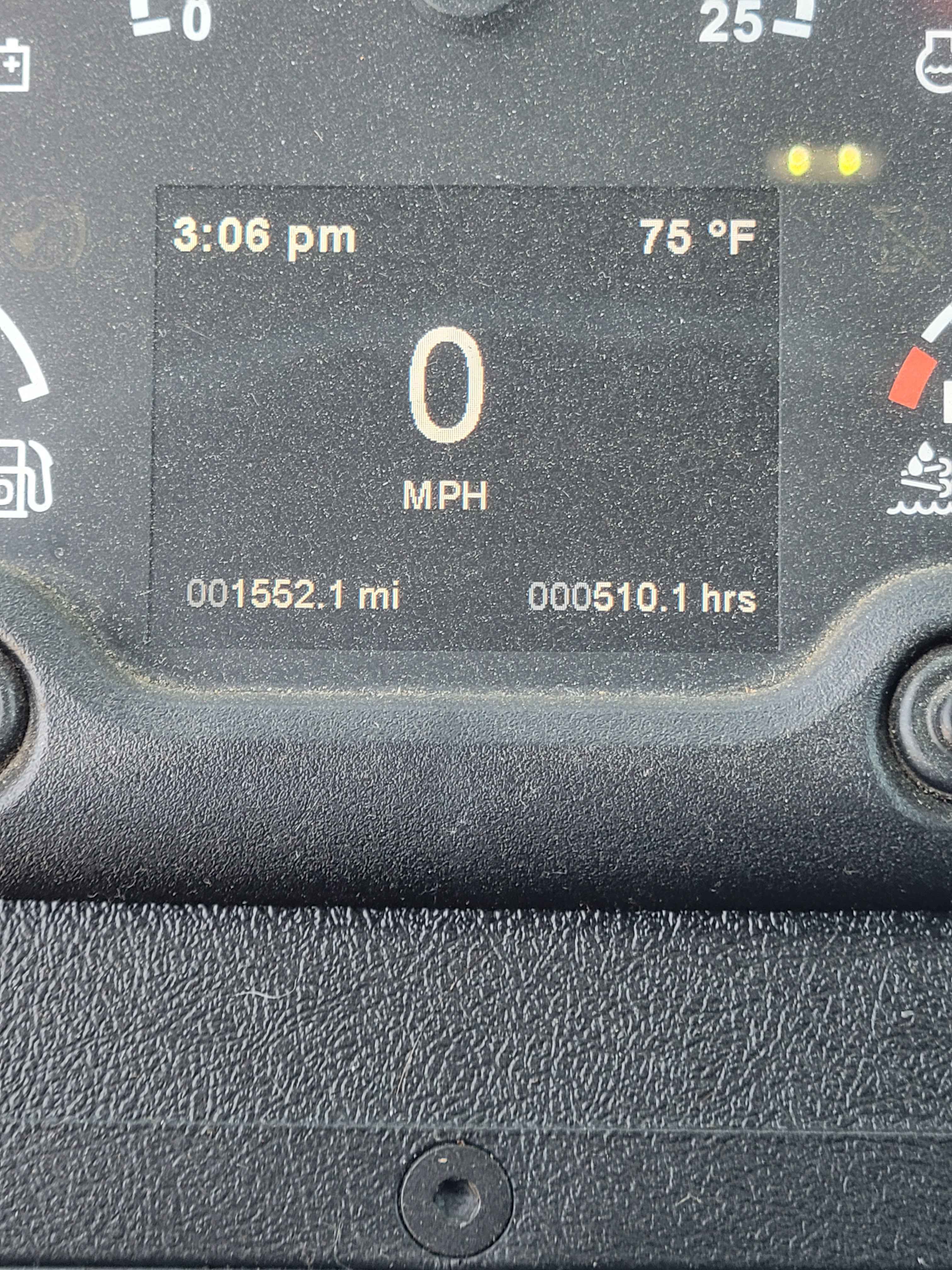

This crane is in near-new condition under 550 hours and under 1,600 miles

KEY FEATURES AND OPTIONS INCLUDED ON THIS 120HTLB:

·        38.3ft-197.1ft seven-section latching boom

·        Link-Belt Smart Fly 35’-58’ two-piece onboard offsettable fly features ease of assembly / disassembly.

·        49,100lbs of modular counterweight

·        (4) 445/65R22.5 Bridgestone tires on aluminum wheels – steer

·        (8) 315/80R22.5 Bridgestone tires on aluminum wheels - drive

·        62 mph maximum highway travel speed

·        111,200lbs GAWR

·        23,622lbs maximum winch line pull / 397 fpm maximum winch line speed

·        Cummins X12 11.9L diesel engine EPA2023 Compliant 7

·        ZF Traxon 12-speed automated manual transmission

·        Industry First Axle and Suspension system featuring Hendrickson

           steer axles with independent suspension and Dana drive axles with

           independent suspension.

·        Cab Operated Rear Axle Lift

·        Air disc brakes for superior braking and minimal upkeep costs.

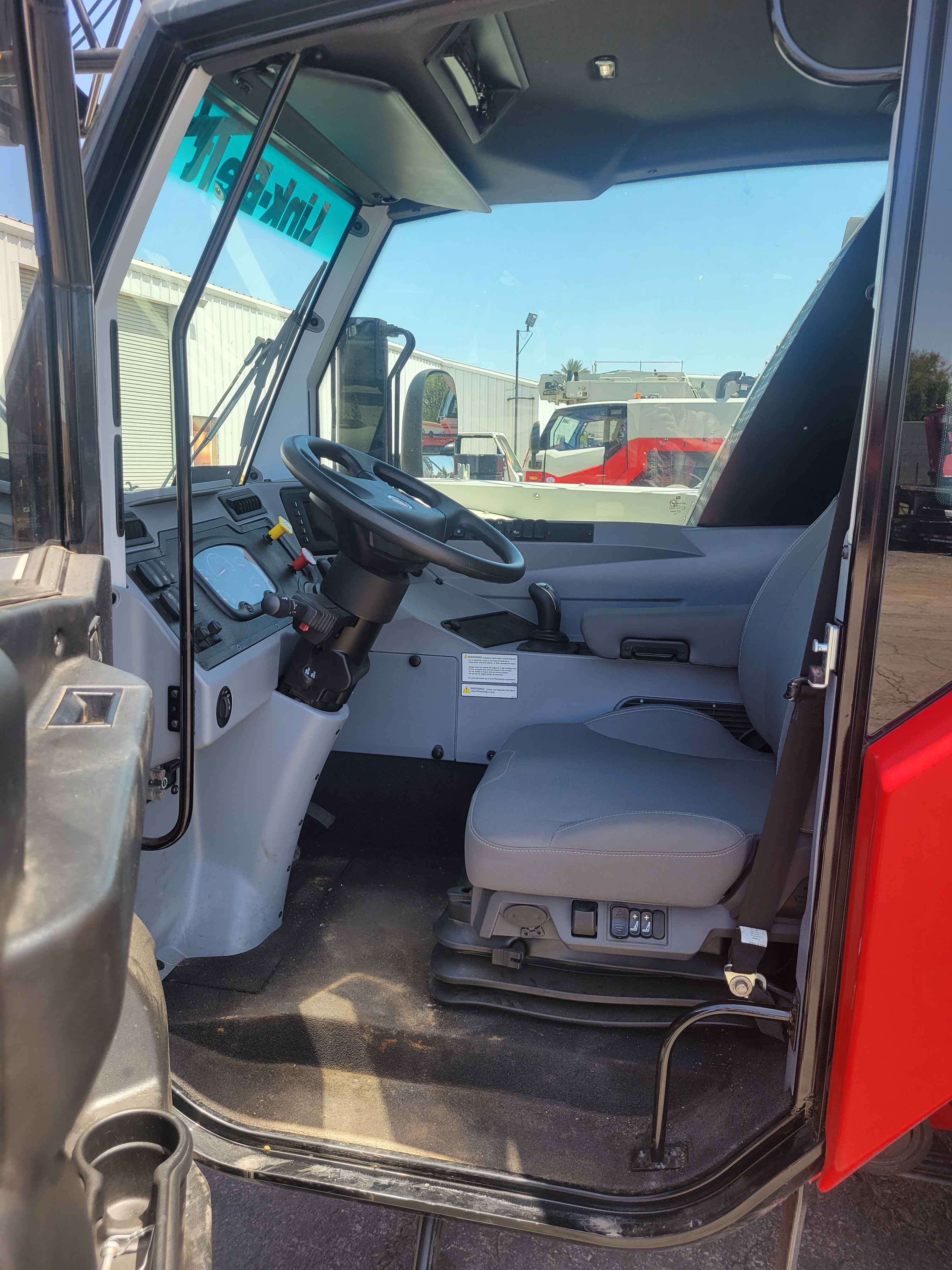

·        Next Generation Spacious Driver’s Cab mounted on air suspension

·        Pulse 2.0  Rated capacity limiter, Telematics, Fine metering & more.

·        V- CALC – 81 possible outrigger position combinations

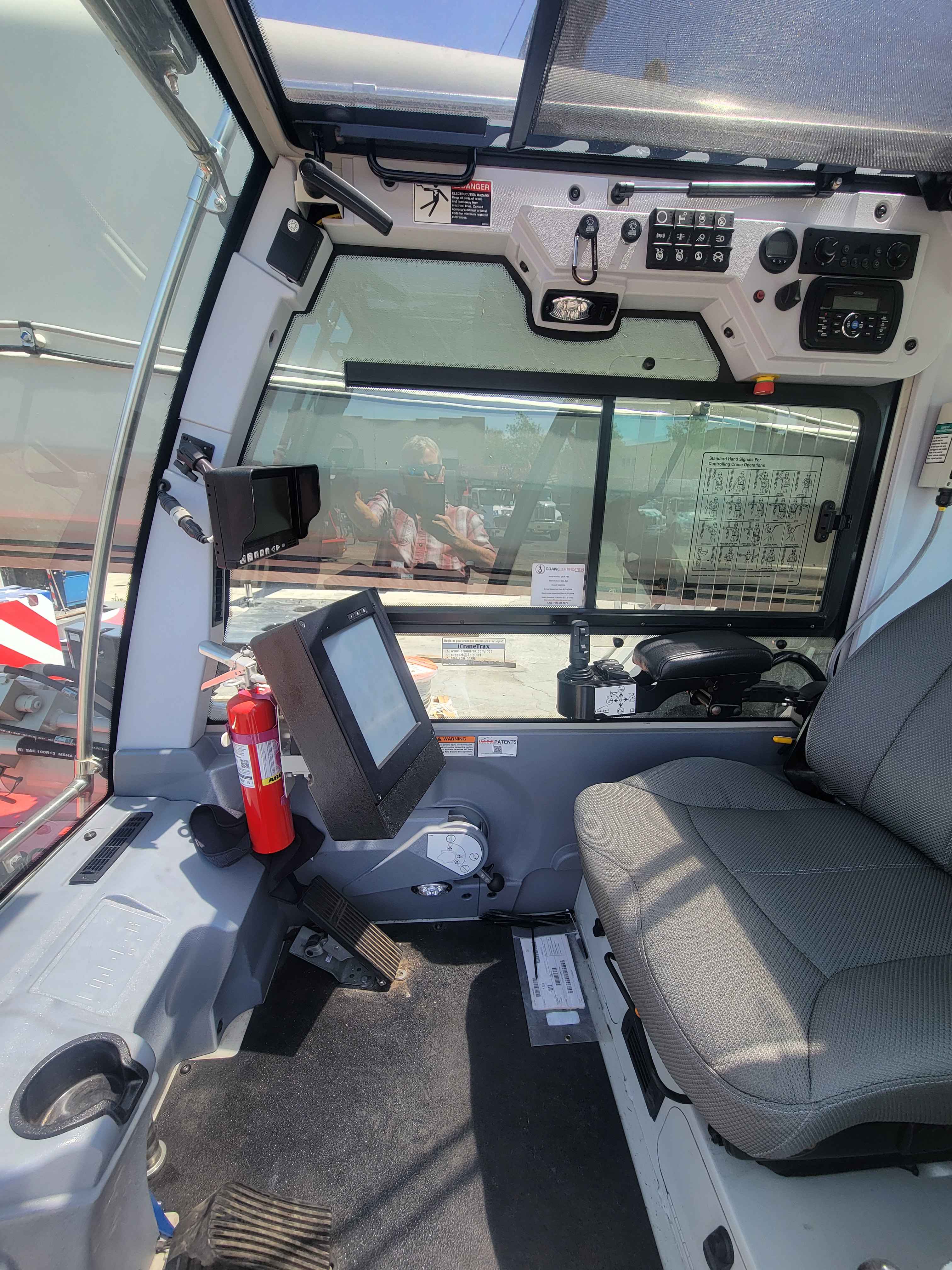

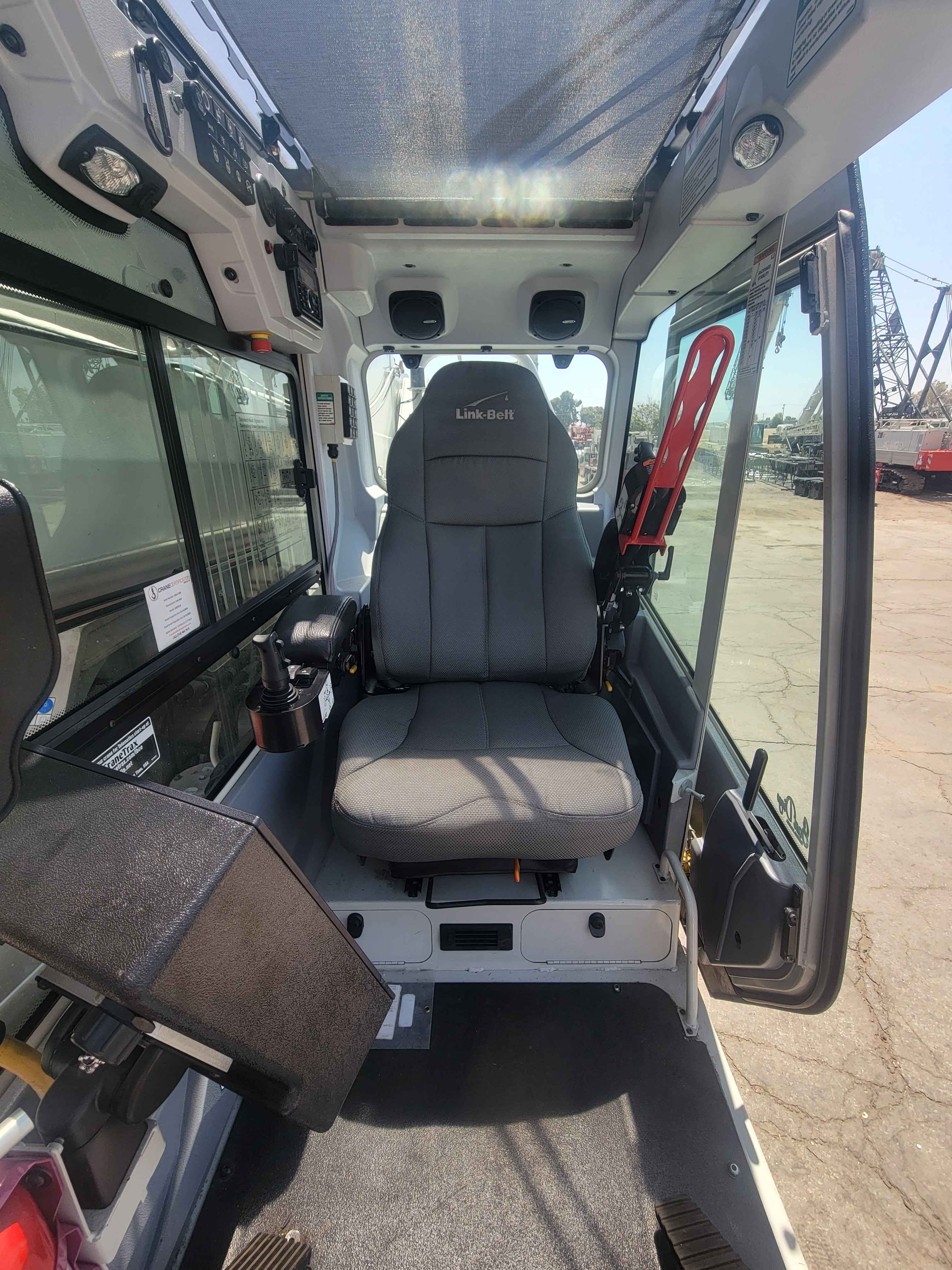

·        20° tilting operator cab, auto-climate control, Bluetooth radio

·        24 volt start and operation

·        Camera view of winches, swing, backup and carrier blind side.

·        Illuminated Compartments and Controls, 3 boom floodlights, and 8

         work lights are on the superstructure for night operation

·        Wireless Rigging & Outrigger Remote for ground-based set-up

·        Central Lubrication System

·        Tire Temperature and Pressure Monitoring System

·        Model 2M two-speed Auxiliary Winch, power up / power down, axial piston motor with automatic brake, electronic drum rotation indicator, disable switch, grooved lagging and 675 ft. of 19mm dia. 18 x 19 rotation resistant Rope.

·        Auxiliary Lifting Sheave

·        60 Ton Three Sheave ROPE Block QUICK REEVE BLOCK

·        Ten-Ton Swivel Hook Ball with Safety Latch

·        Hoist Drum Followers; Main and Aux Winches

·        Oversize Load Sign for Highway Transit
