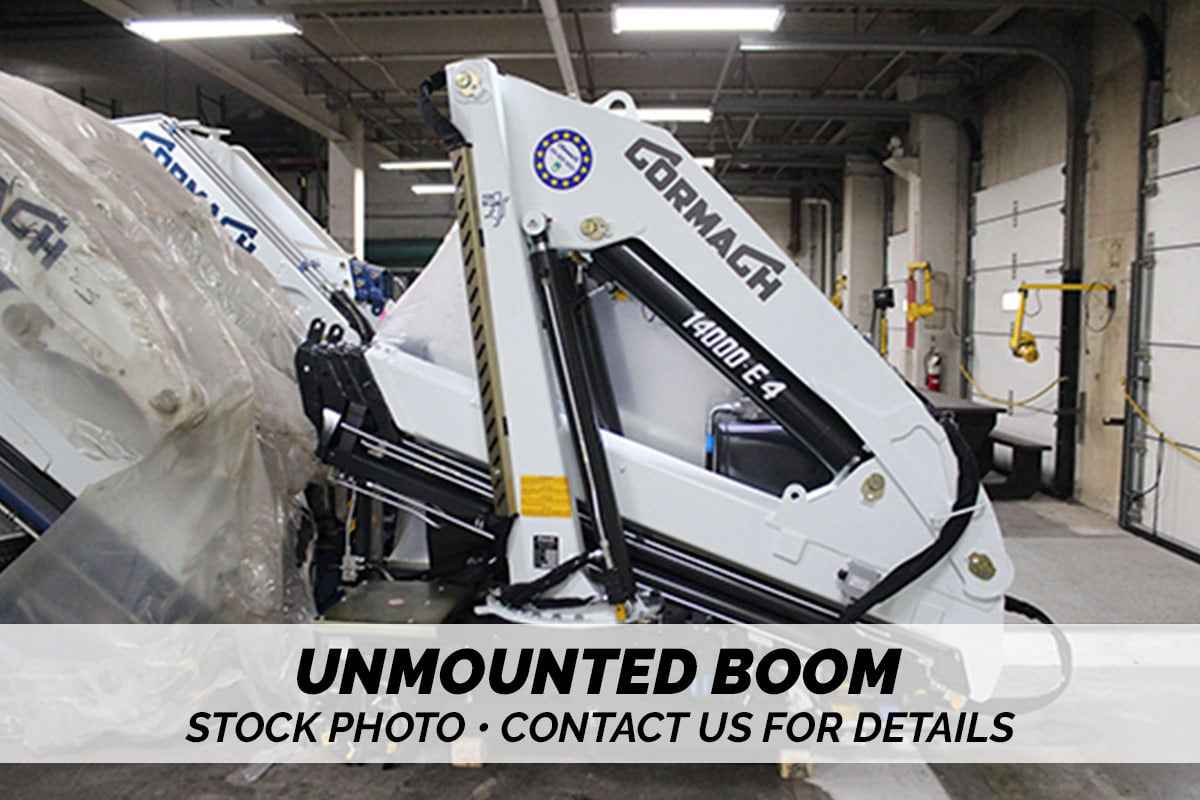

2024 Cormach recGqicbyVcWEClYl Crane Truck for Sale

Features

Technical Specifications:

• Static moment at the turret pin: 14000 (daN/m), 101281 (lbs/ft)
• Hyd. boom length: 11.51 (mm), 37' 9" (in)
• Length: 793 (mm), 2' 7" (in)
• Width: 2405 (mm), 7' 11" (in)
• Height: 2160 (mm), 7' 1" (in)
• Weight (without oil and fitting): 1835 (kg), 4046 (lbs)
• Lifting capacity: 2630 (kg), 5798 (lbs)
• Slew torque: 870 (daN/m), 6293(lbs/ft)
• Slewing speed: 360° - 39 (° – sec)
• Outriggers extension: 1400 + 1300 (mm), 4' 7" + 4' 3" (in)
• Outriggers width: 4850 (mm), 15' 11" (in)
• Pump delivery: 25 (lit/min), 6
• Pressure: 295 (bar), 4149 (Psi)
• Oil tank capacity: 57 (lit), 15 (us gal)
