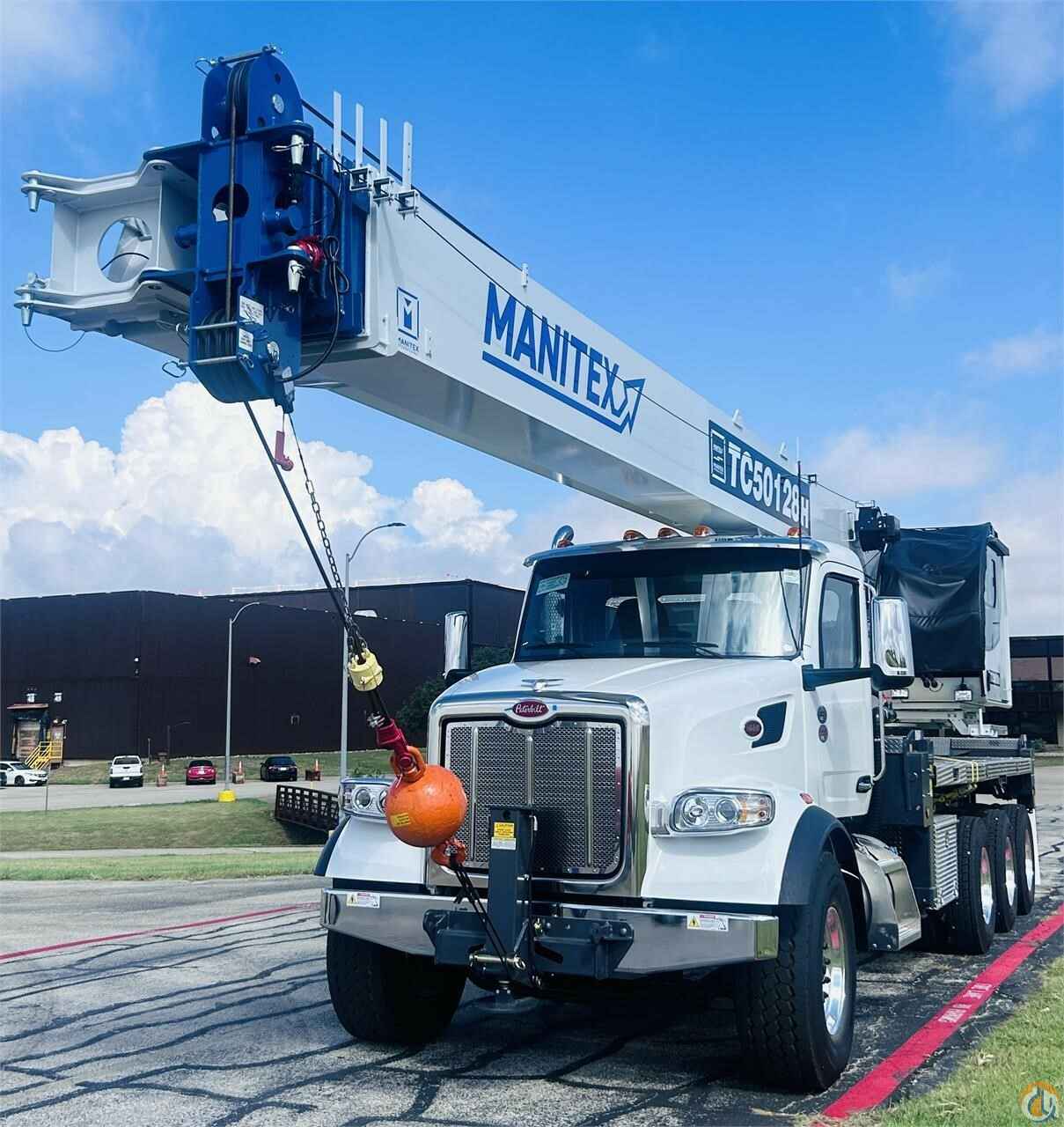

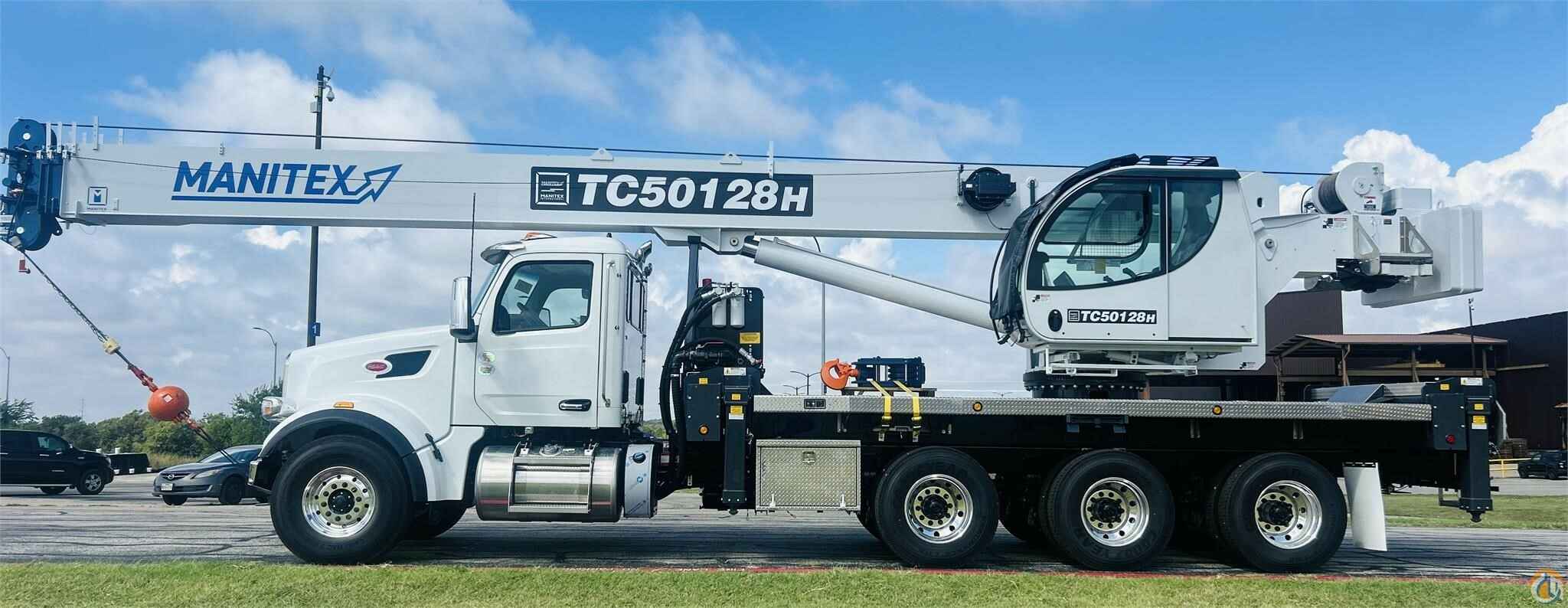

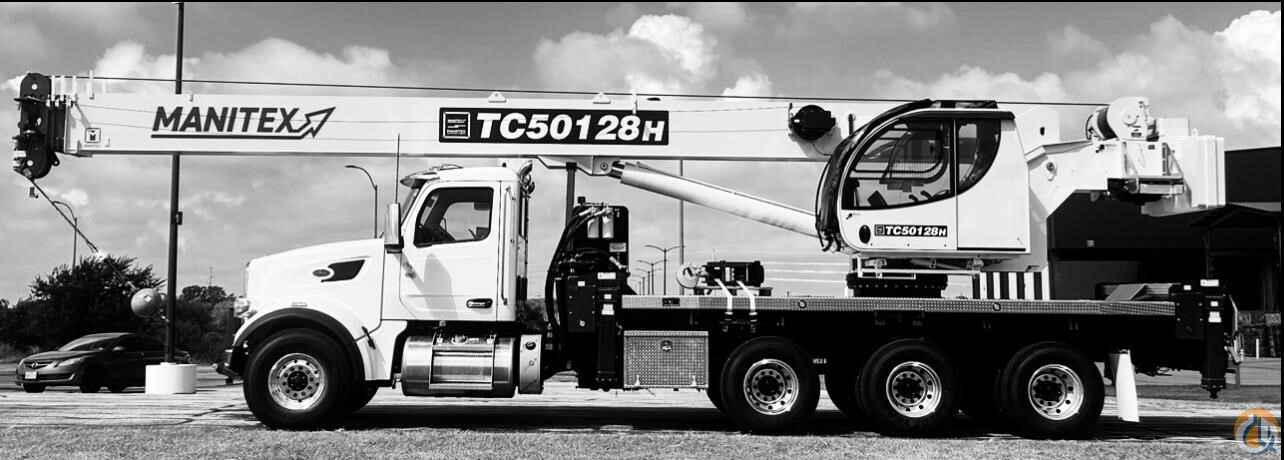

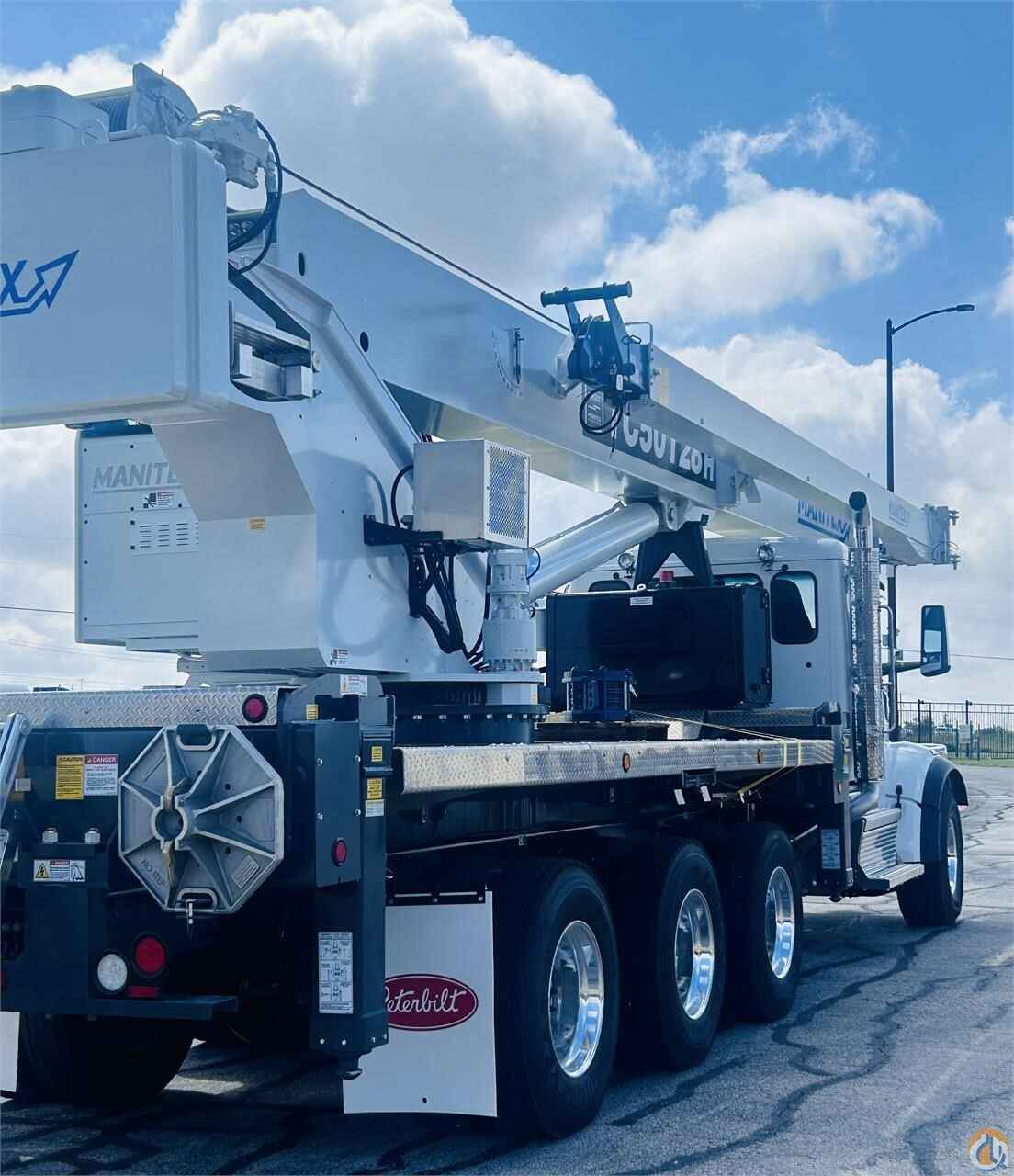

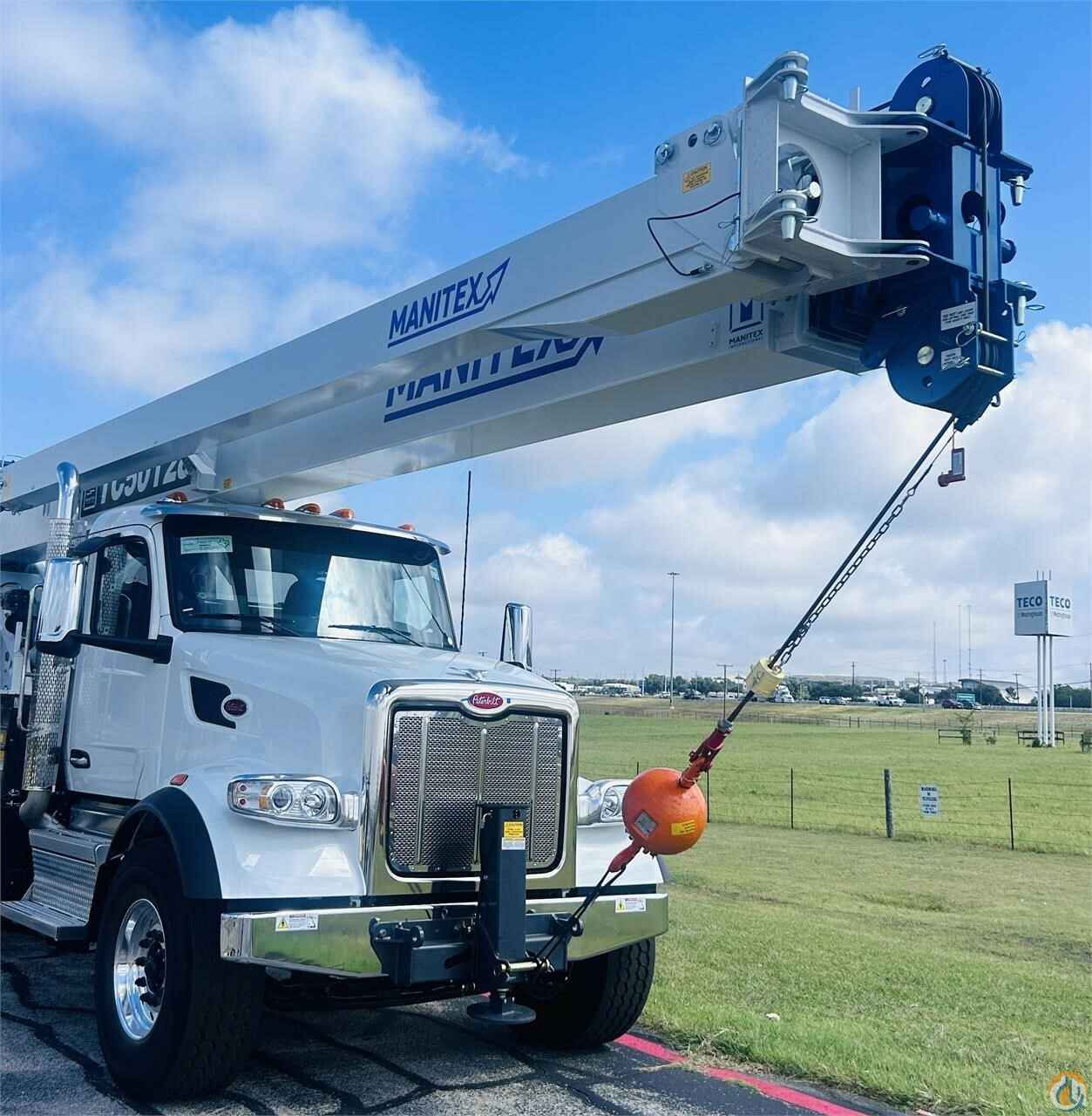

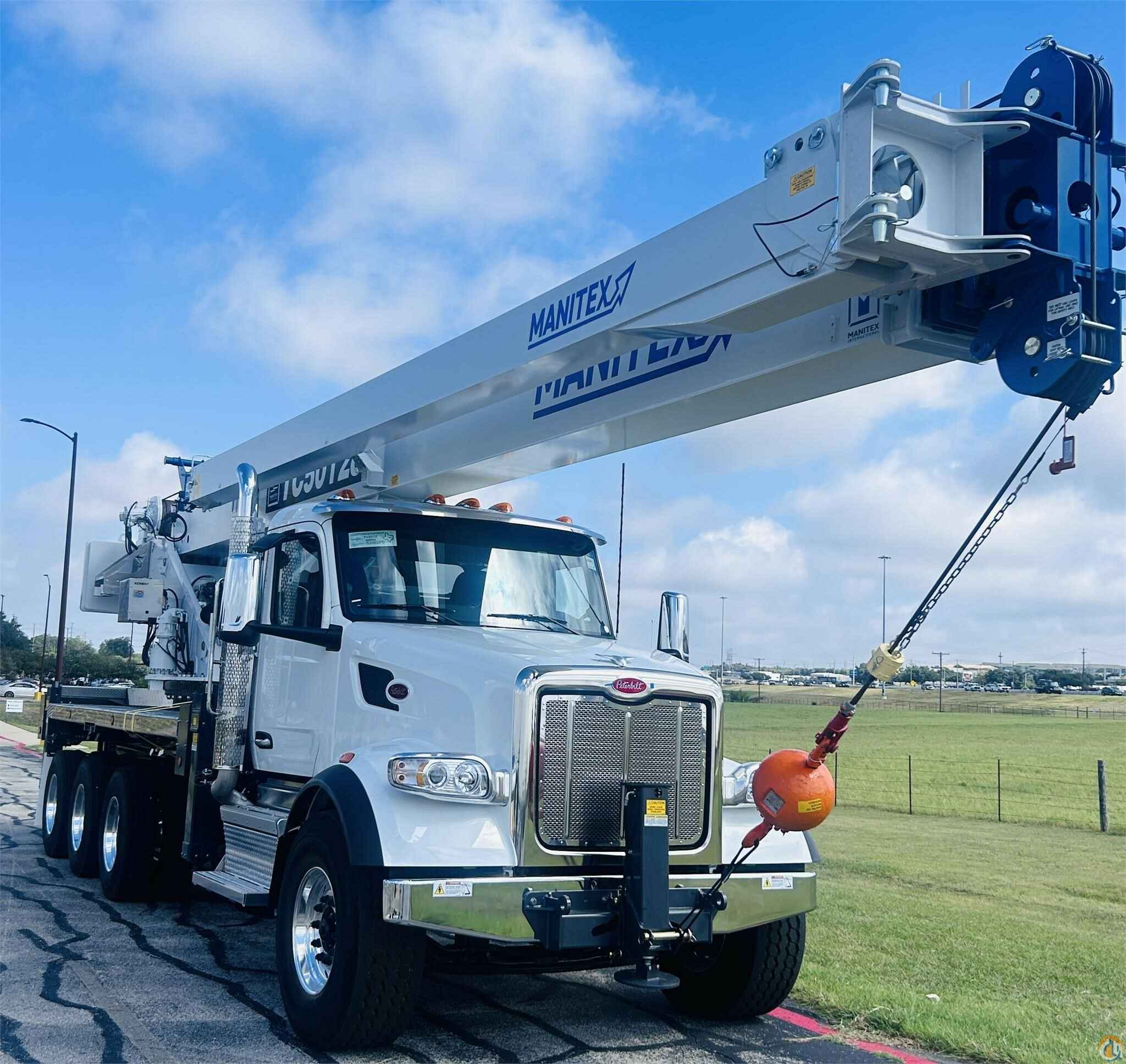

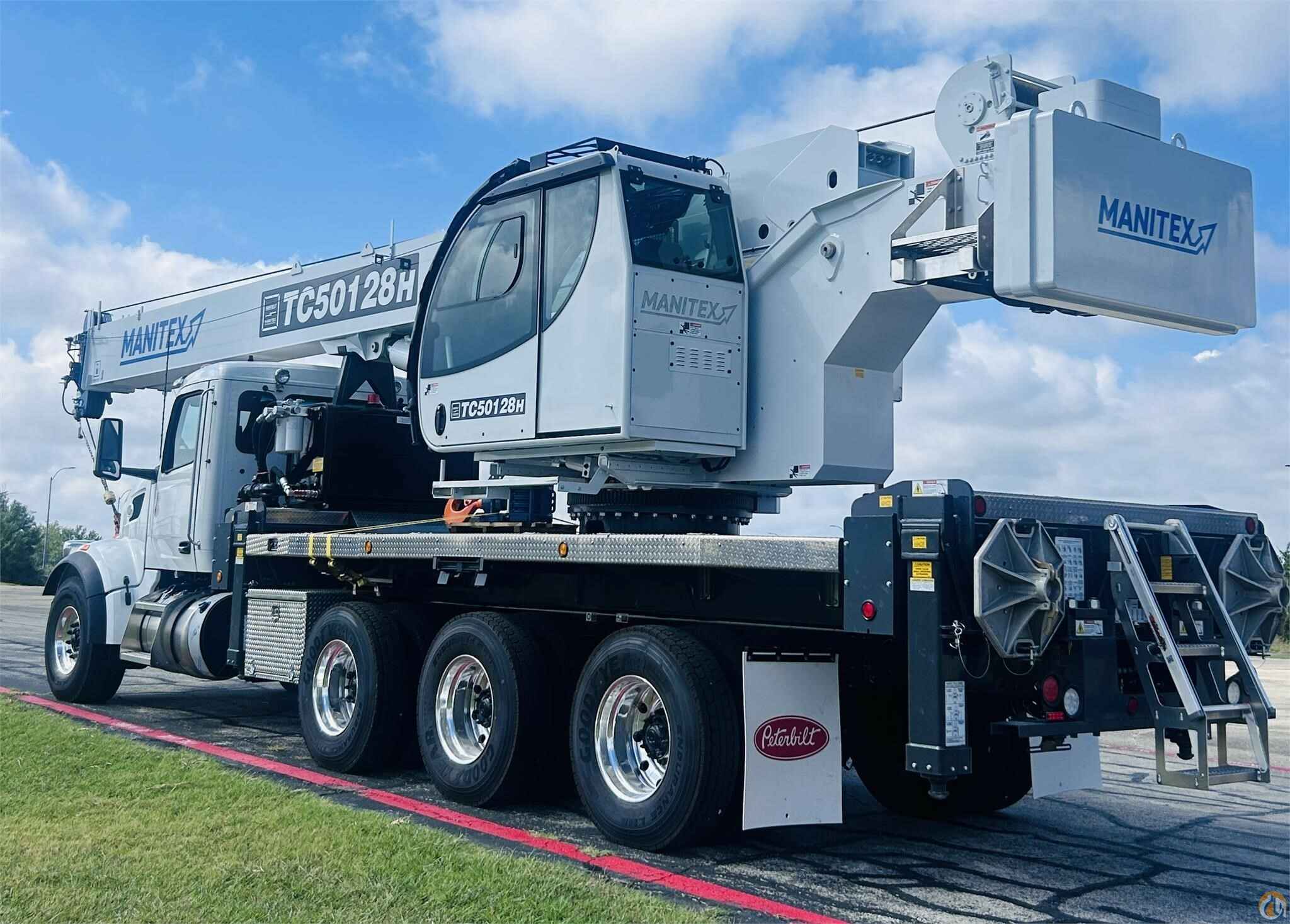

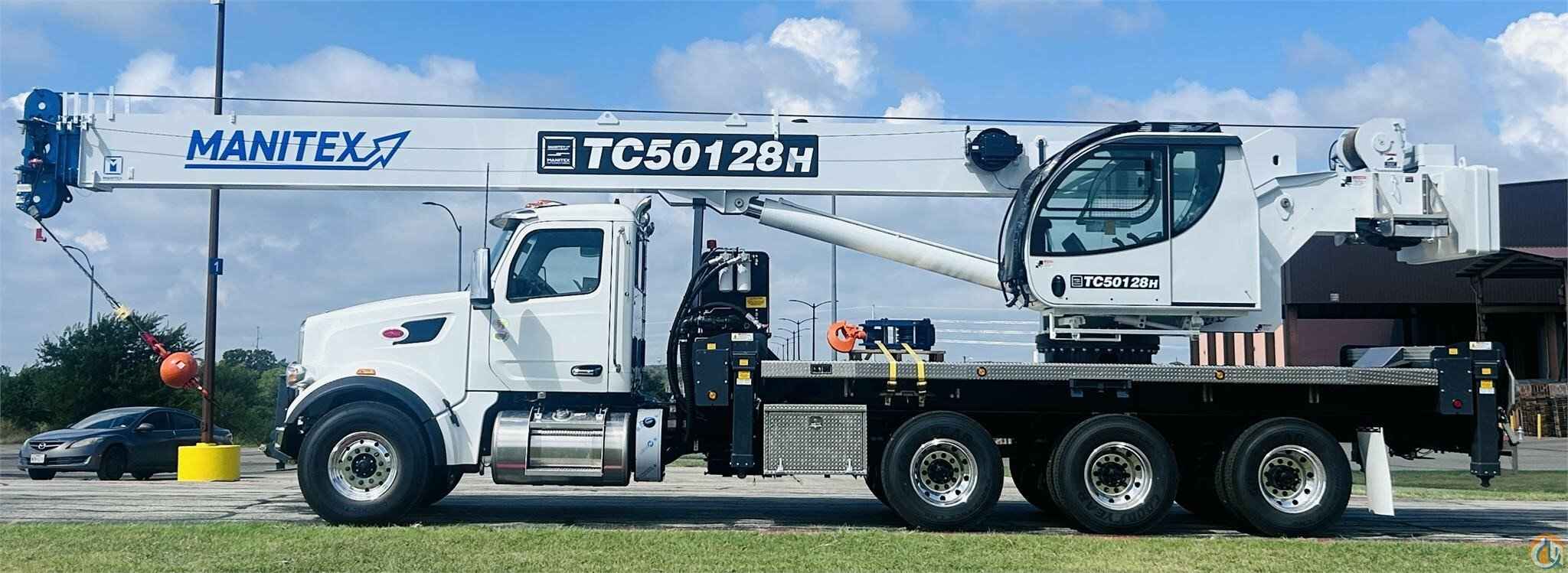

MANITEX 50128SHL
Standard features:
128’ Four Section Telescopic Boom with heavy lift option,7-ton hook and ball, 2-speed Hoist w/Grooved Drum, Roller Tensioner, Piston Motor, 4- load sheave quick reeve boom head, Externally Wired anti-two block w/lockout, Boom hoist cylinder, System pressure gauge, 360° Area of operation, Continuous rotation, Tilting cab, Heater/air conditioner, Upper hatch guard/Windshield cover, Engine Monitoring System, Removeable boom rest, Engine start/stop, Combined Free Swing and non-Free Swing functionality, Hydraulic Rotation drum indicator, Thumb operated electronic throttle, 1-variable displacement pump/1-Gear pump-CCW Rotation-standard, Boom length and angle indicators, Radio remote ready, 400’ 5/8” Dia. Rotation resistant Wire rope, 500’ 5/8” Dia. Rotation Resistant Wire Rope, Audible Outrigger Motion Alarm, 115 gal or 155 gal Hyd Reservoir w/suction strainer & ball valve, Turret, Rotation bearing and Swing system – Mechanical houselock, New Load moment indicator – Full visual/Audio Capacity Alert w/shutoff, ROC Solid outriggers; 4 out and down outriggers, 22’ over-all spread, Features a hand held Radio Operated Controller and includes capacities for immediate 13’4” and retracted 7’2” spreads, Remote winch controls included with hand held radio controller for the outriggers, Outrigger monitoring system-verification only, Front bumper stabilizer – for short lower frame configurations only, 2 retractable ladders/1-Aluminum Easy Access Maintenance Ladder, Diamond plated aluminum decking, Oil cooler, bubble level, Signal horn, Third wrap limit for main winch and auxiliary winch, Electric over hydraulic controls, Operators service/parts manuals, 102” Wide Platform Standard.
Additional Options Included:
• 6400 lb Ctwt Special for HL – Requires Engineering Approval
• Offset Tele Jib-32’ Retracted, 49’ Extended
• Sub Frame-Short – Std with FBS Required
• Front bumper stabilizer
• Standard mount installation
• Braden Winch w/Piston Motors in lieu of Standard
• 35 Ton 3-Sheave Hook Block 1-7 part line
• Hot shift PTO
• Aluminum Tool Box (36” x 24” x 24”) Chassis Mount

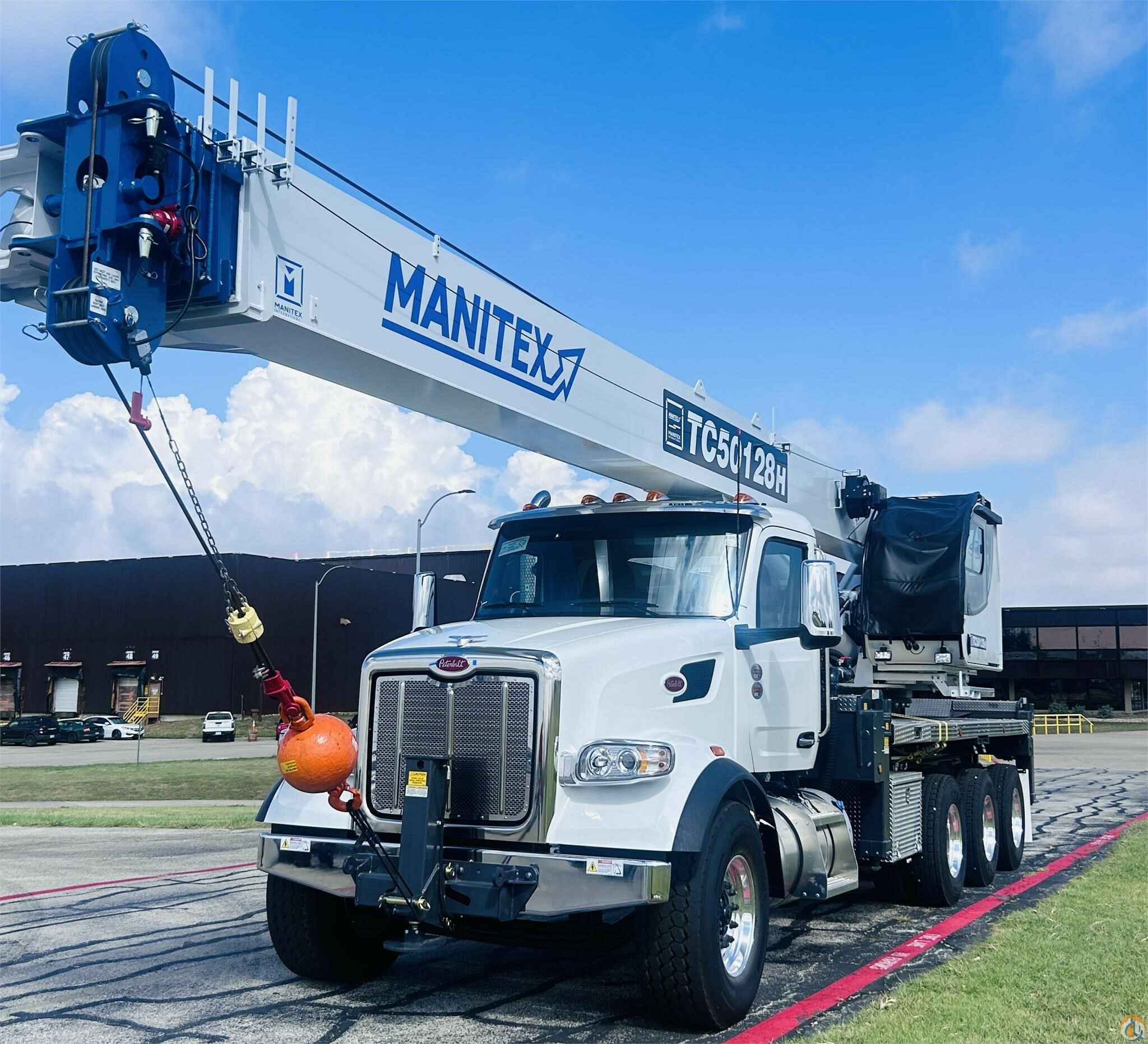

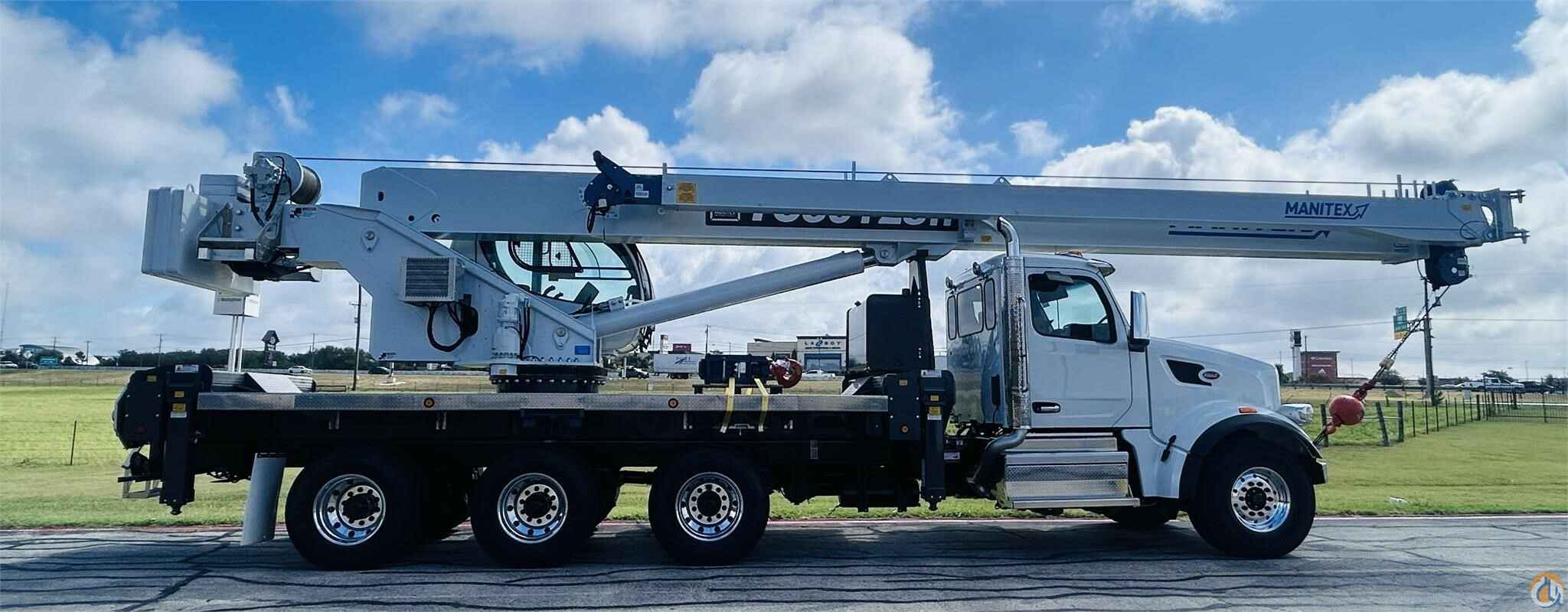

MOUNTED ON 2025 PETERBILT 567
Mounted on a 2025 Peterbilt 567 tractor chassis with a Cummins X15 525@1900, GOV@1900, 1850@91000, diesel engine, automatic, Eaton EXDP-18F118D Automated Transmission, PACCAR FX-20 Steer axle 20,000 lb. front axle, Meritor RZ-XX166 Tri-Drive rear axle, Full set of Alcoa polished wheels, 26” 100 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Gray, ConcertClass AM/FM/WB 3.5,USB port with Bluetooth radio, Air horn mounted under cab, dual heated mirrors, outside stainless steel sun visor, Unit is painted Axalta Two Stage white.
