Standard Equipment:

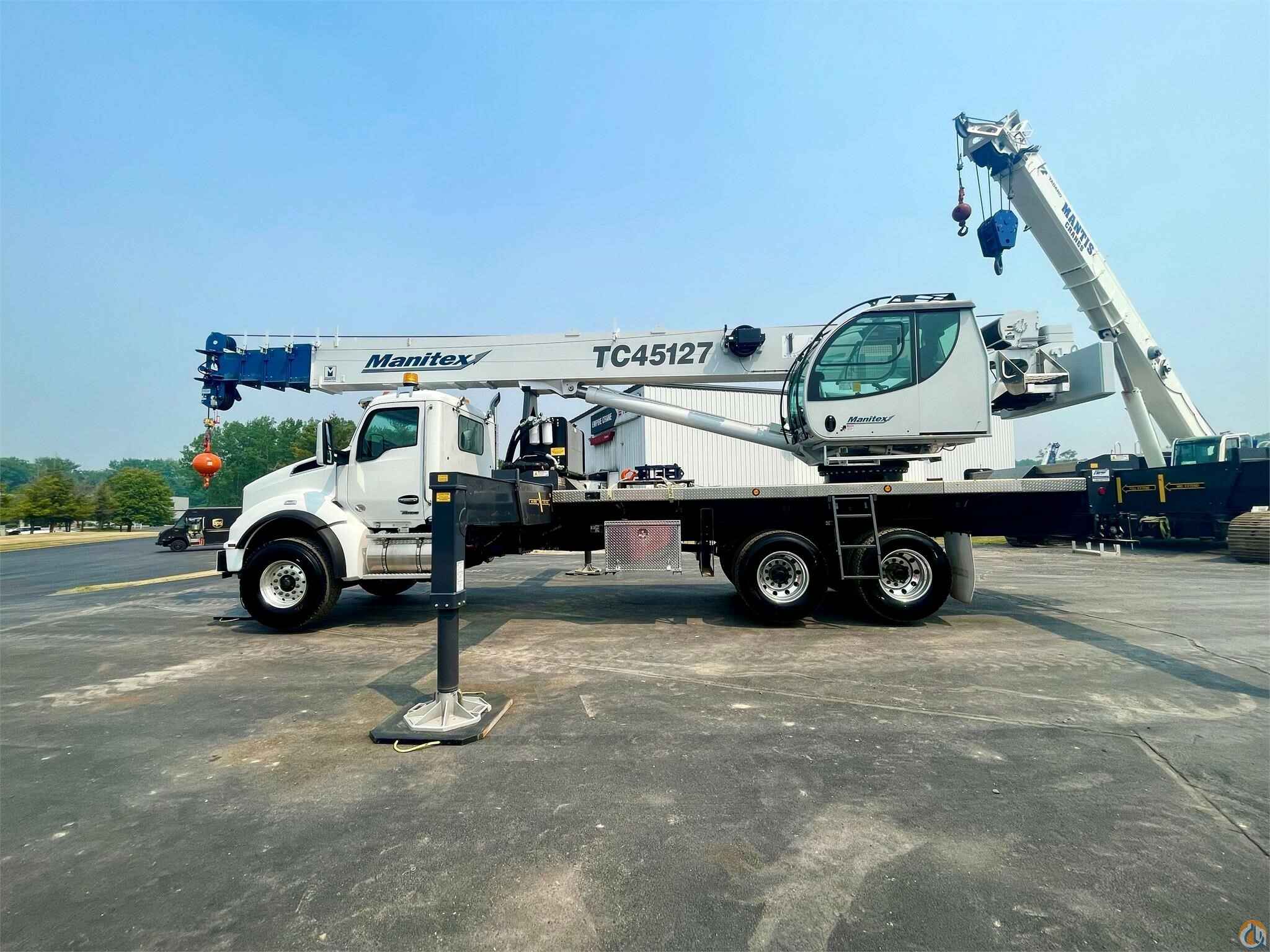

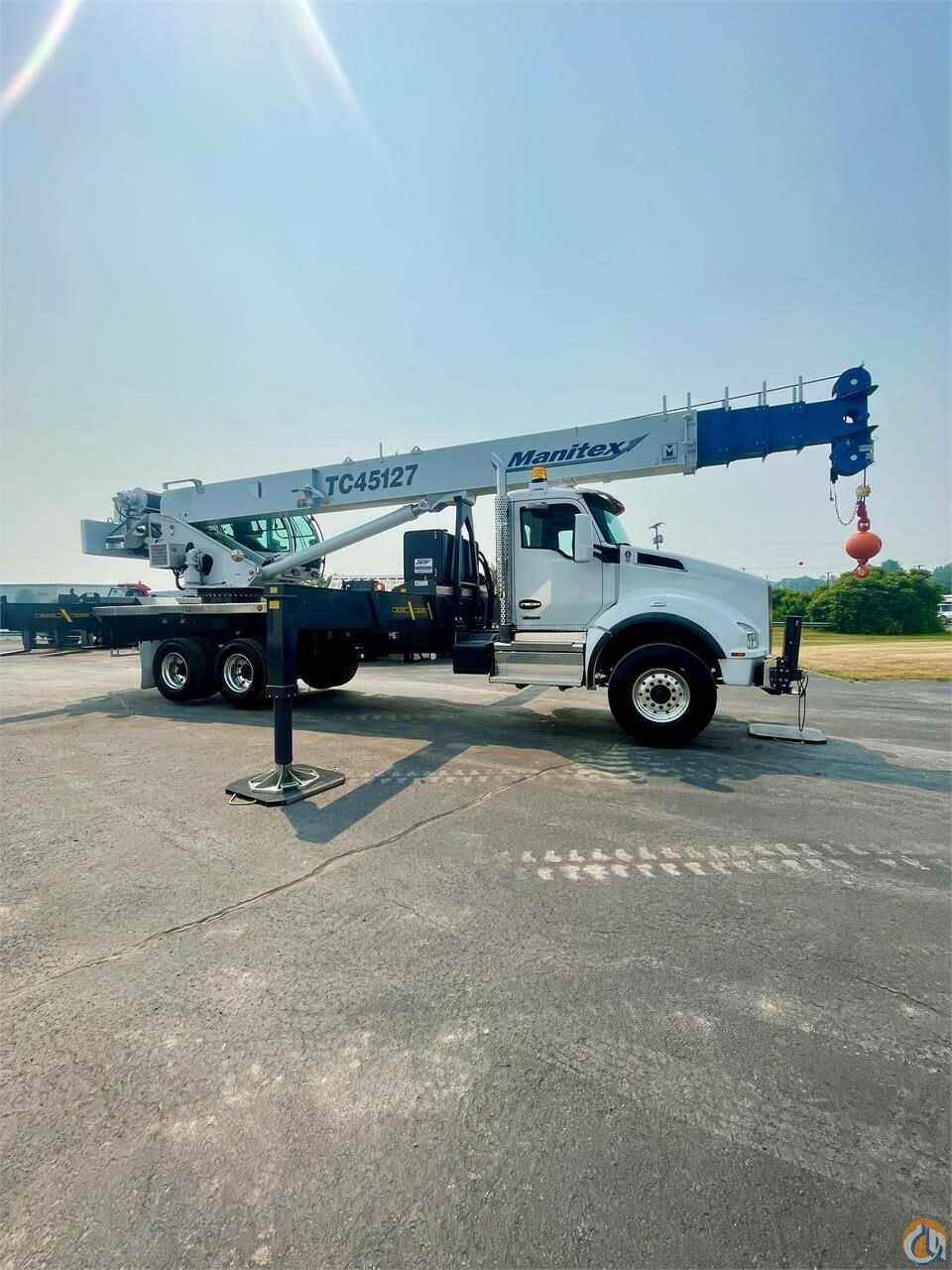

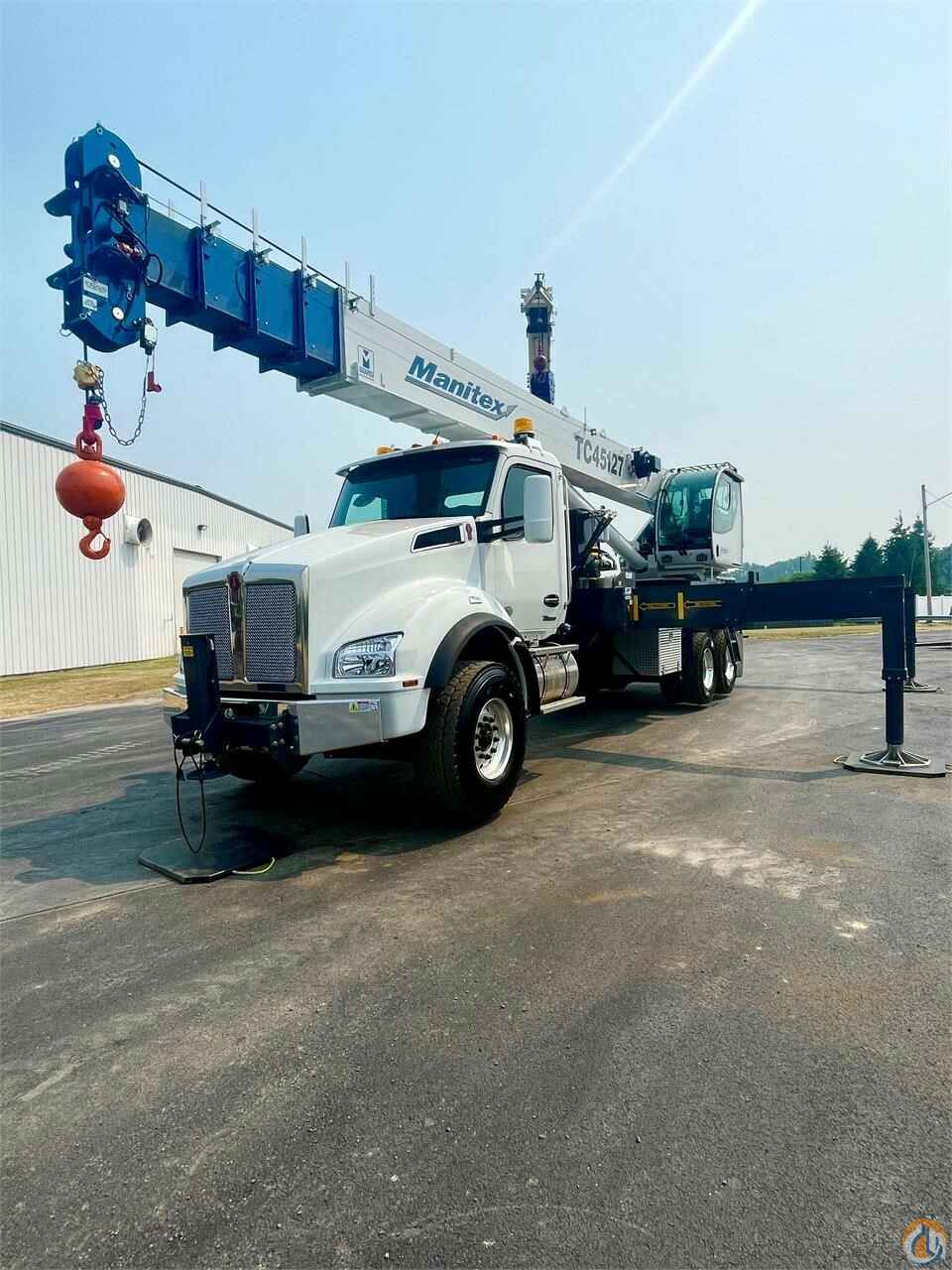

• 5-Section 127; Fully proportional extended telescopic boom
• 7-ton hook & ball
• 2 upper idler and 4 lower-load sheave quick reeve boom head
• Hard-wired anti-two block w/lockout
• Boom hoist cylinder
• Intermediate Subframe with 102” platforms
• 360-degree area of operation
• Continuous Rotation

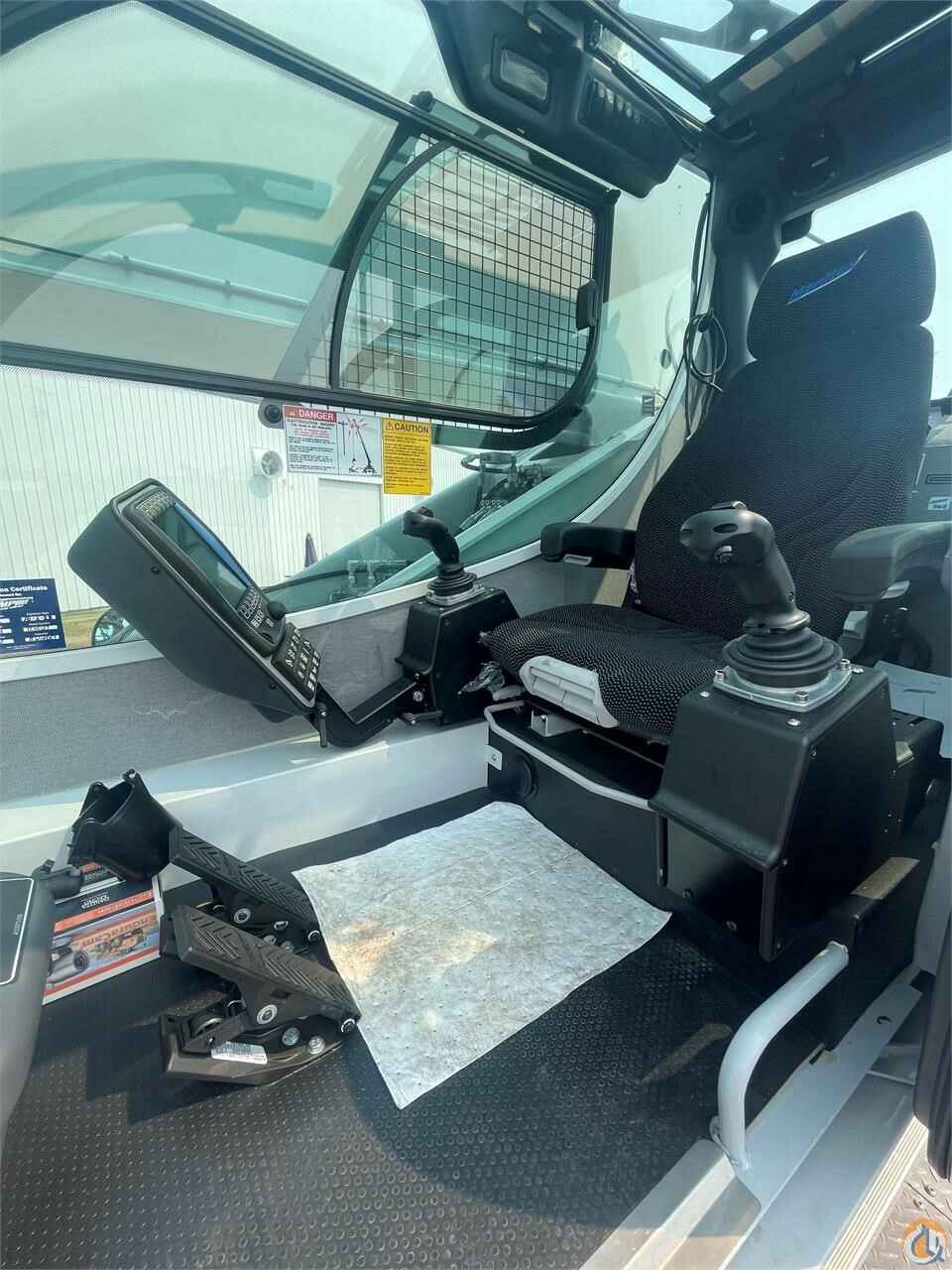

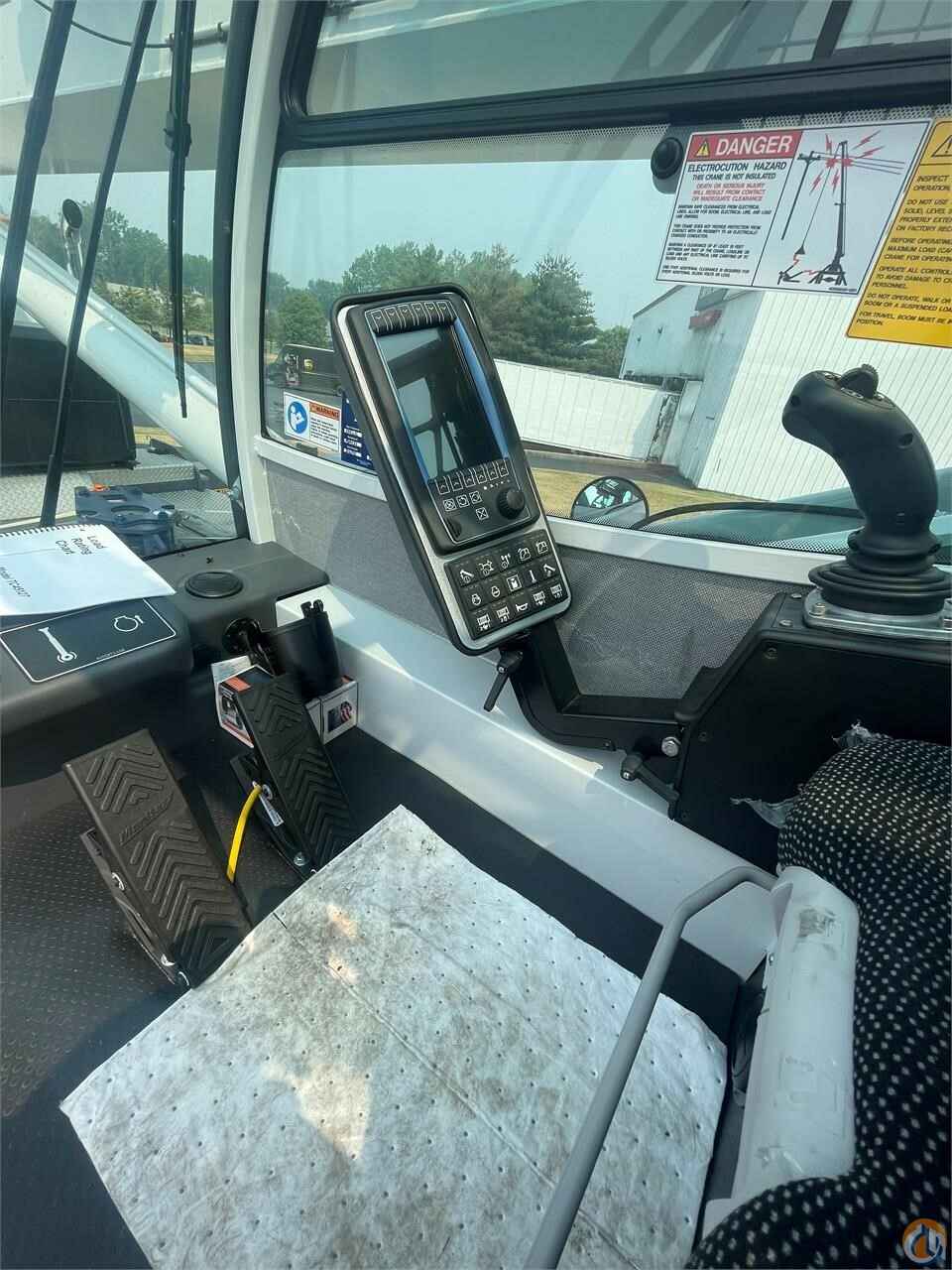

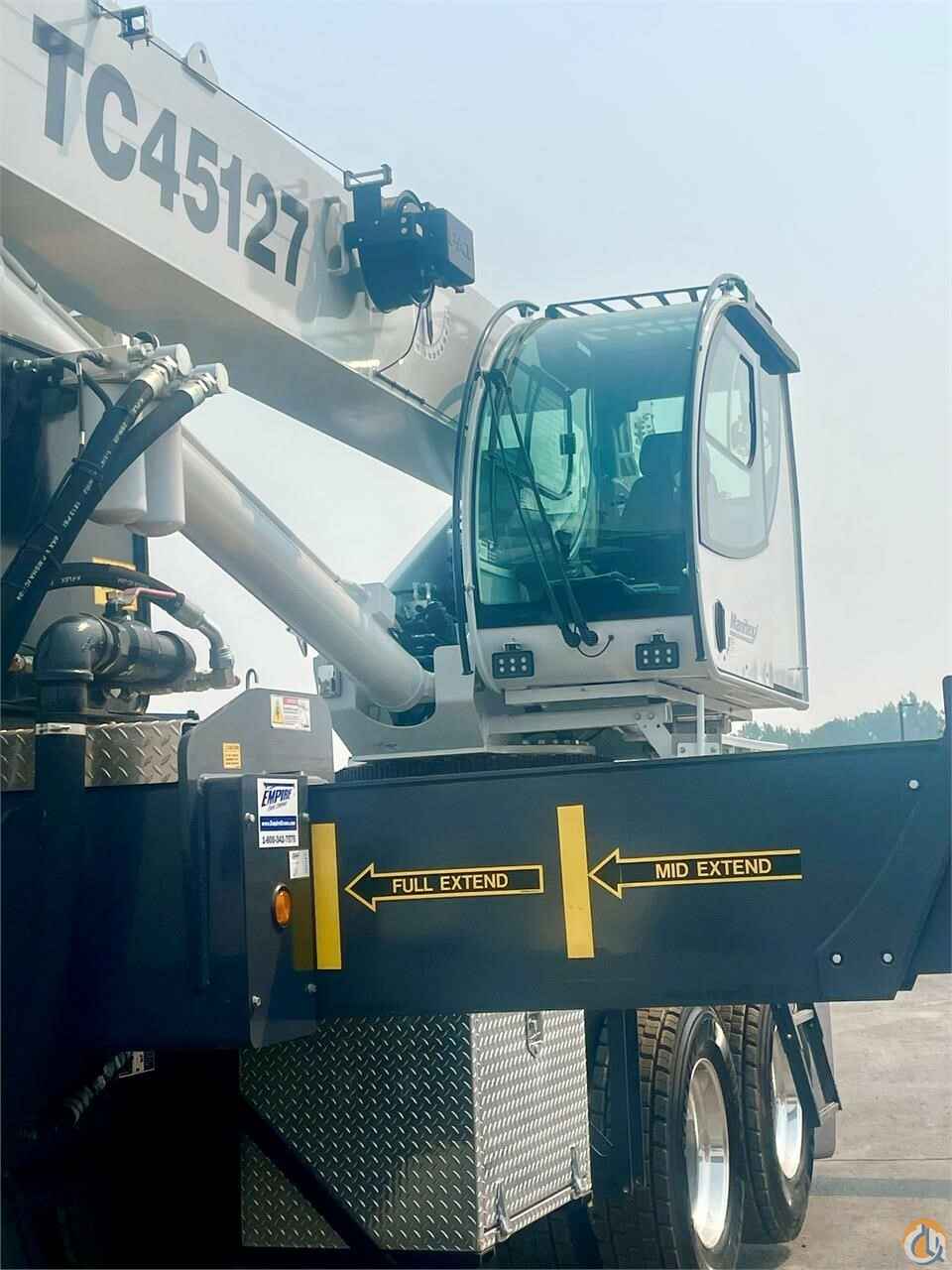

• Full Vision Cab, Integrated Electric Heat, A/C, 20 Degree Tilt Feature
• Removable Boom Rest
• Engine Start/Stop
• Free Swing / No Free Swing Select Feature
• Radio Remote Ready
• Remote Winch Control for Main Winch
• Third Wrap Limit
• Engine Monitoring System
• Thumb Operated Electronic Throttle
• ROC Solid Radio Remote Outrigger Control & Control Valve for Optional FBS
• Standard Counterweight is 2,000 lbs
• Heated Operator Seat
• 2-Speed Hoist, Grooved Drum, H.D.R.I., Rope Tensioner, Piston Motor
• 500’ 5/8” Rotation resistant wire rope
• Audible Outrigger Motion Alarm
• 155 Gallon Reservoir w/ Suction Strainer & Ball Valve
• Outrigger Monitoring System for Verification Only
• Turret, Rotation Bearing & Hi-Torq Swing System
• Load Moment Indicator-Audio/Visual Capacity Alert w/Shutoff

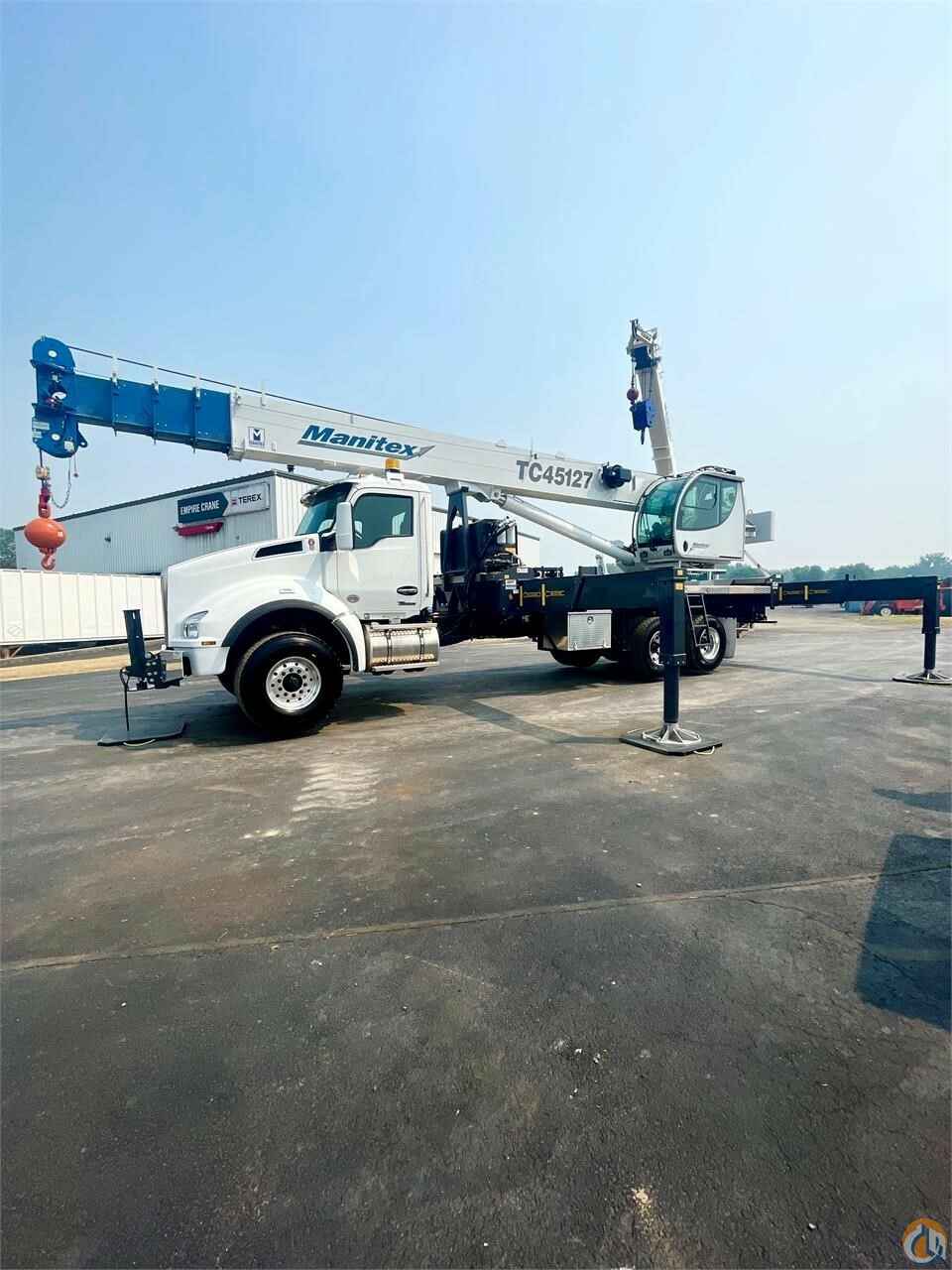

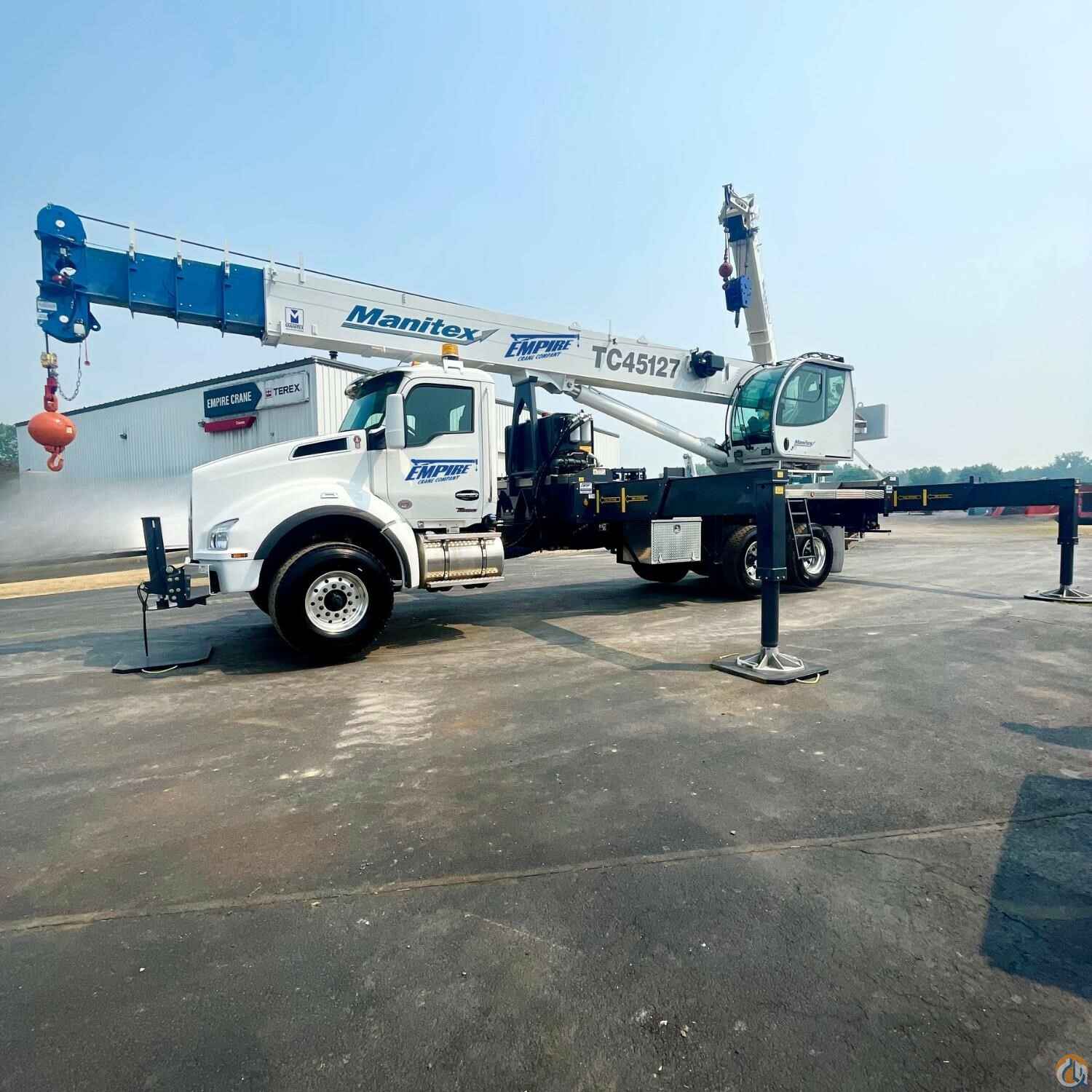

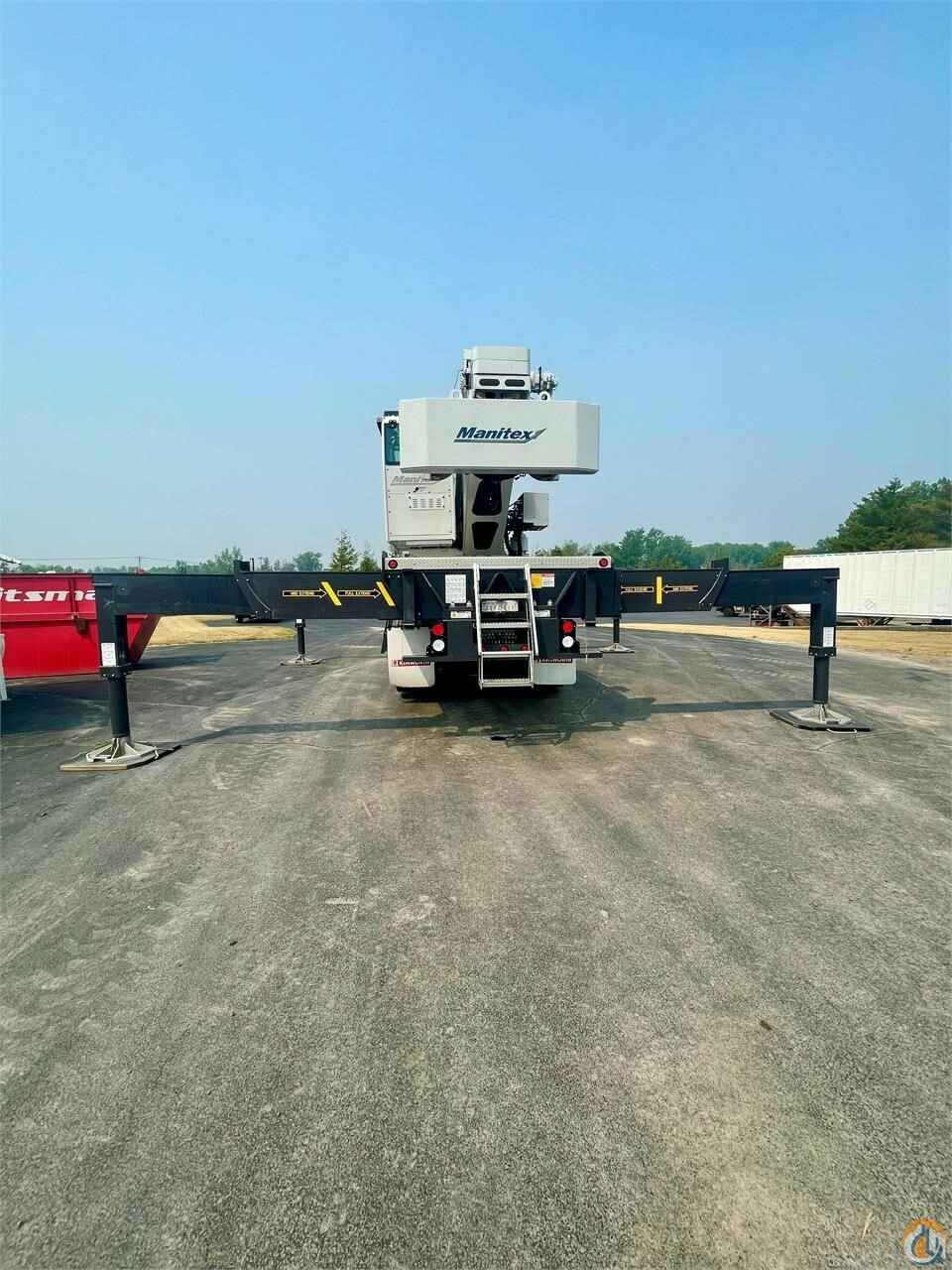

• 4 Out & Down outriggers, 24’ max spread. Capacities for intermediate (17’6”) and retracted (7’3”) spreads
• 2 retractable Ladders / 1-aluminum easy access maintenance ladder
• 1-Variable Displacement Pump / 1-gear pump-ccw rotation-std.
• Aluminum decking
• Oil Cooler
• Dual Axis Electric over Hydraulic Programmable Controls
• 1-In Cab digital bubble level 1-liquid level at rear
• Aluminum Outrigger Floats – 22” Diameter
Optional Equipment Included:
• 127’ Five-Section Telescopic Boom
• Short Sub-Frame (“Shorty”)
• Jib Ready Option
• Heat and AC
• Video Camera (Aux and Main Winch)
• Variable and Gear Pump Group CW
• Crib plates
• Hydraulic Tank 155-gallon top mount
• Wired ATB
• Front Bumper Stabilizer
• Hotshift PTO
• Aluminum Toolbox 36” x 24” x 24”
• 15-ton single sheave block
Call Empire Crane for a quote & more information
