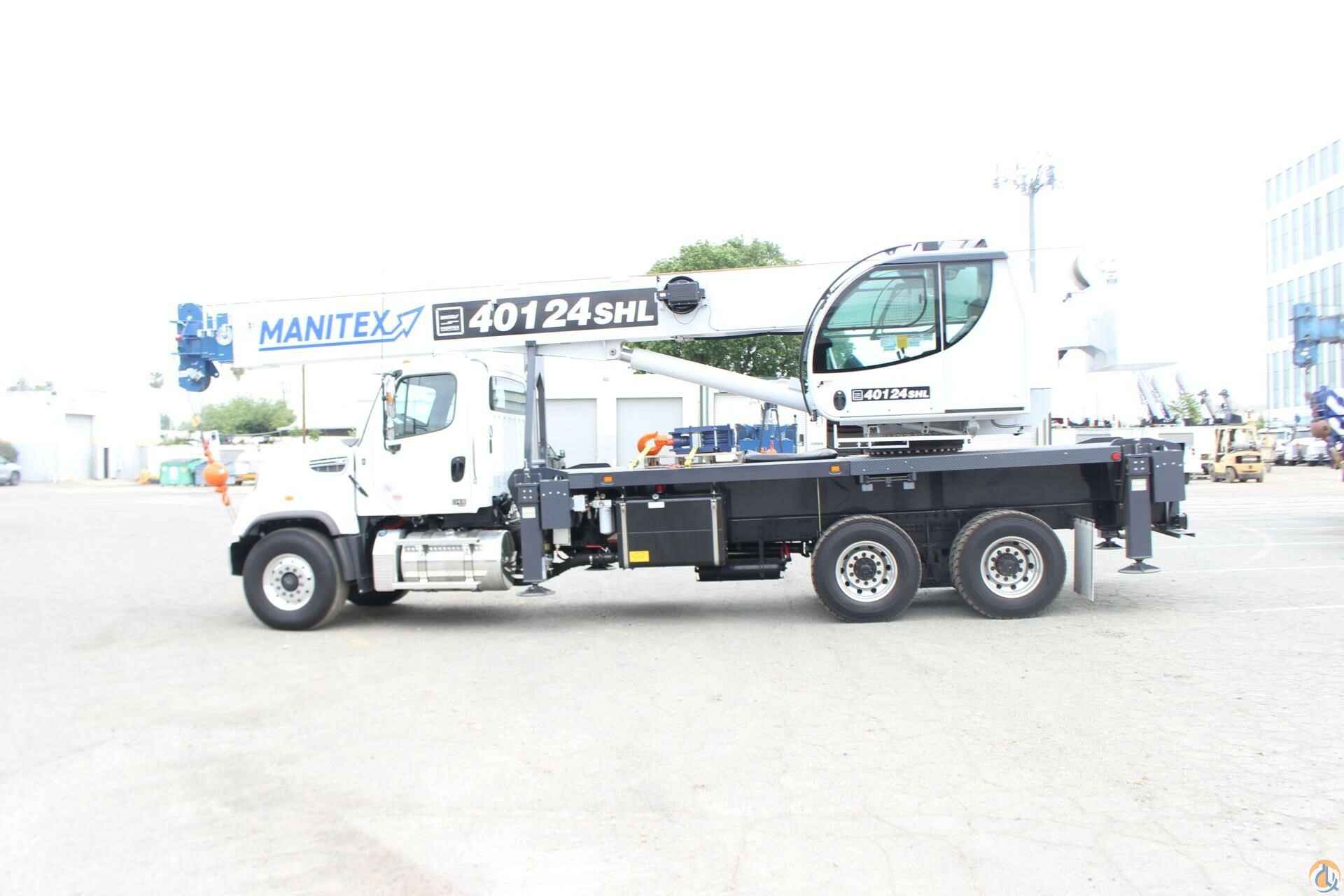

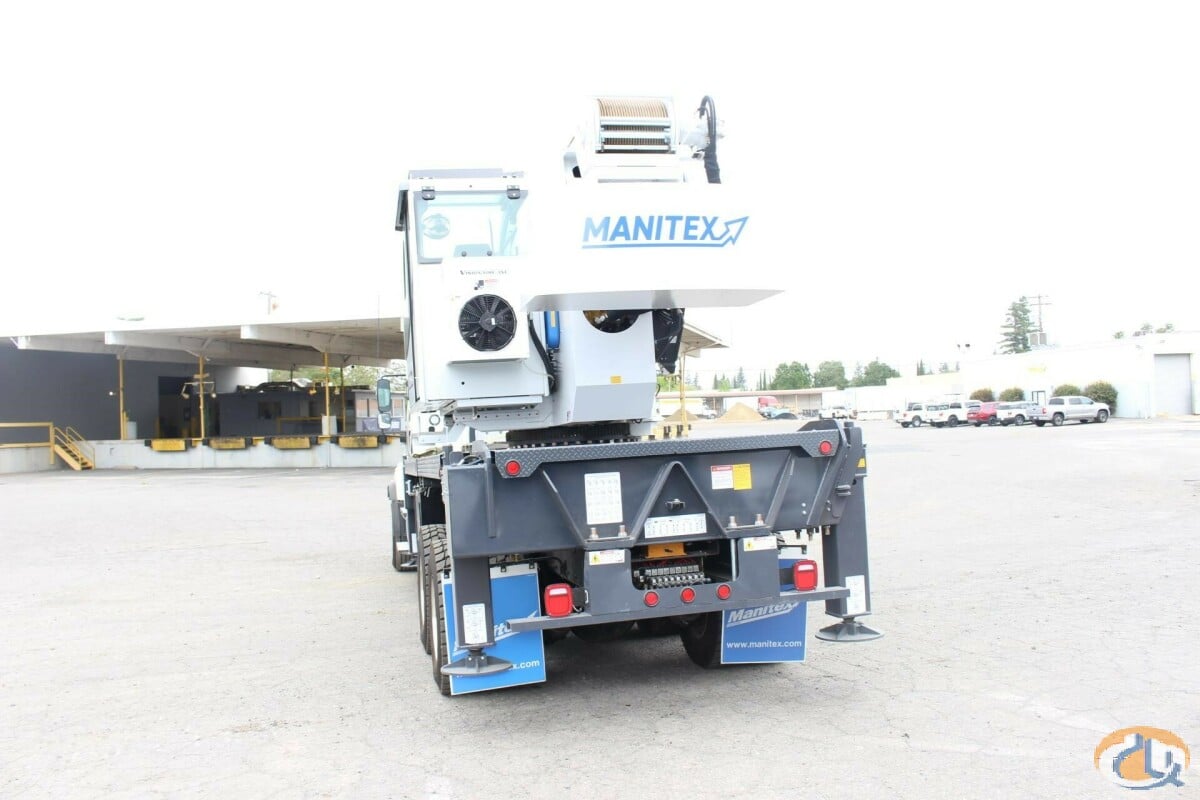

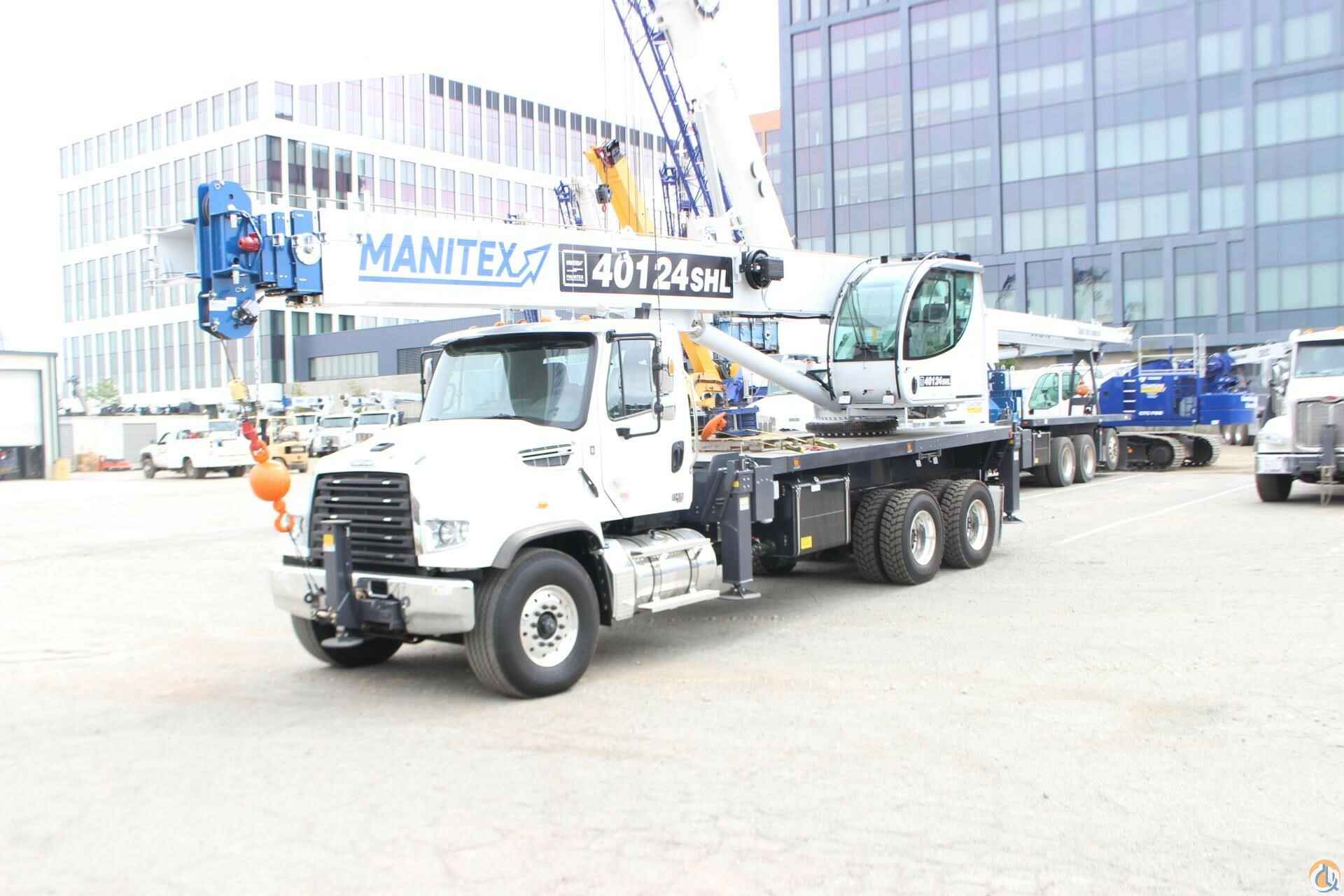

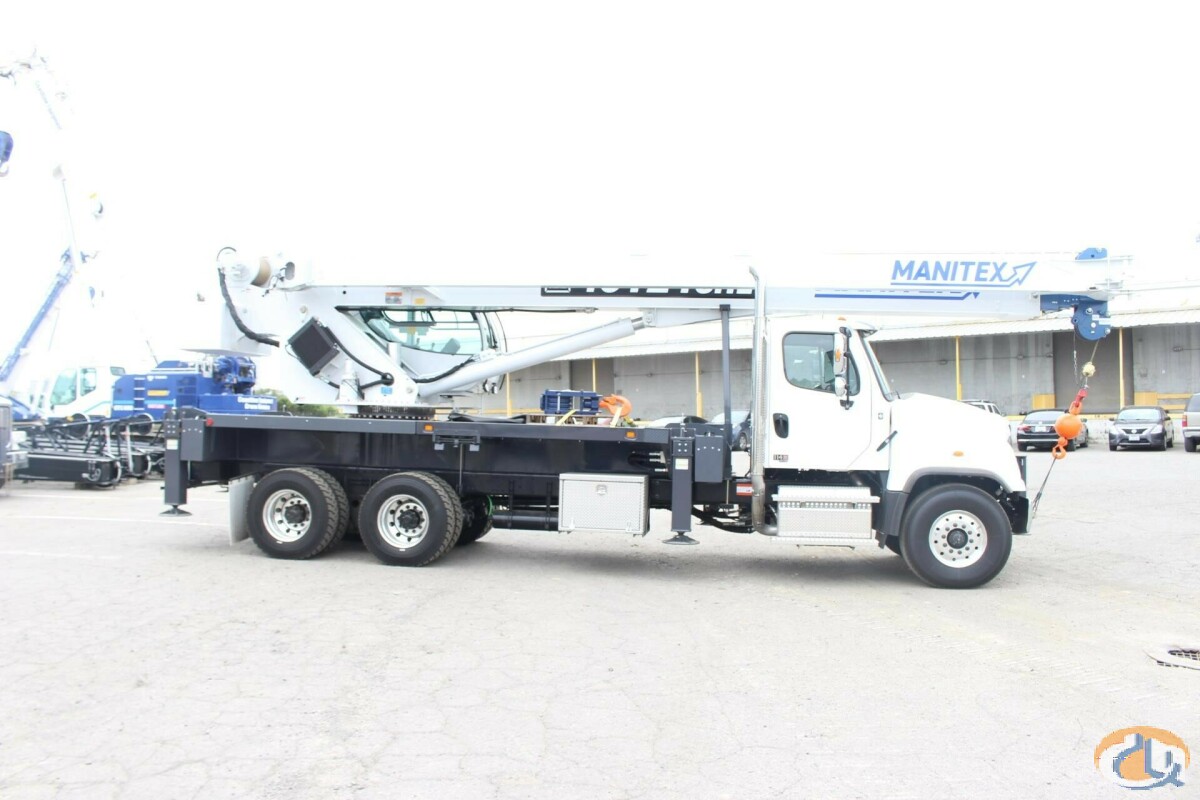

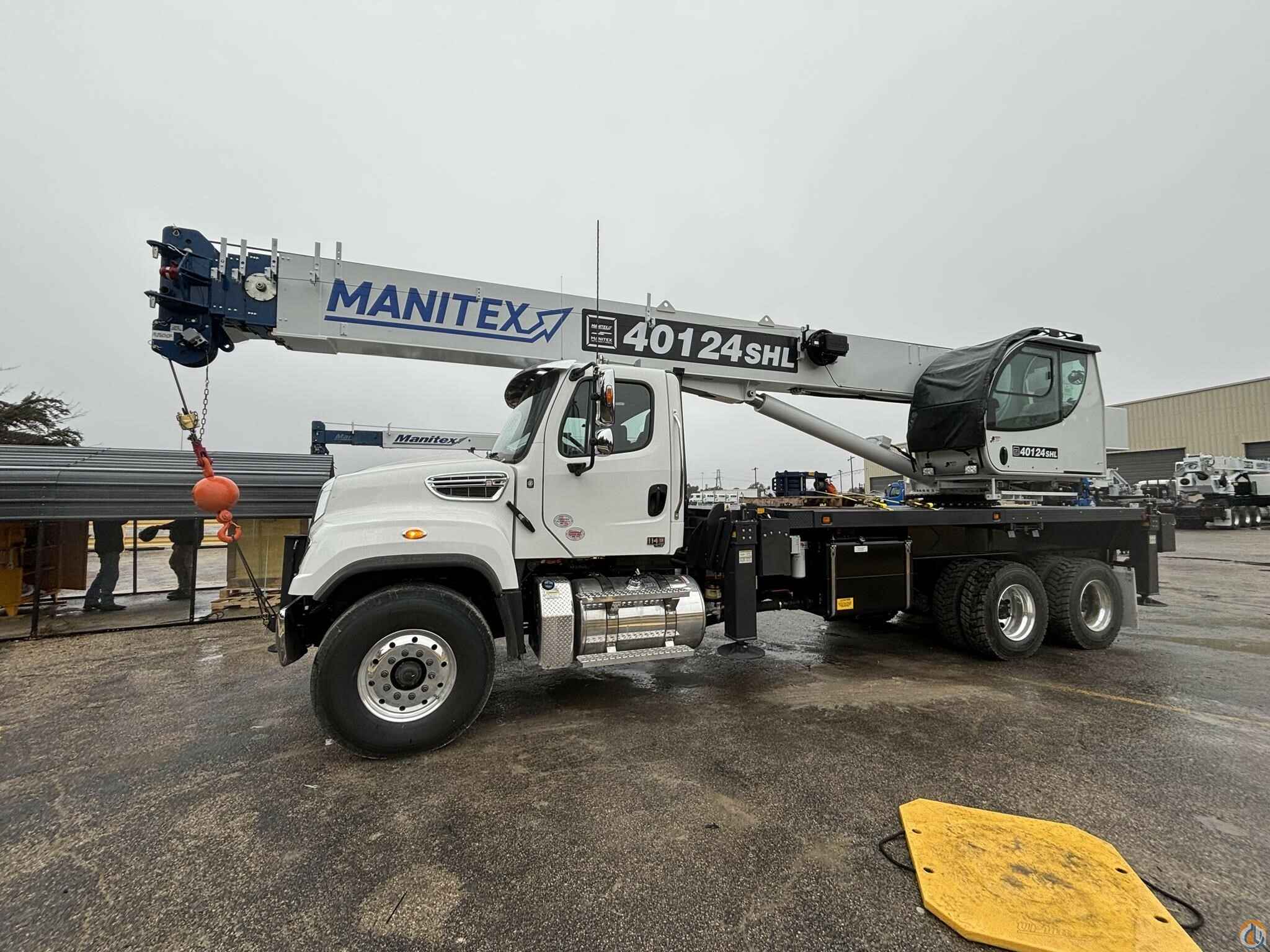

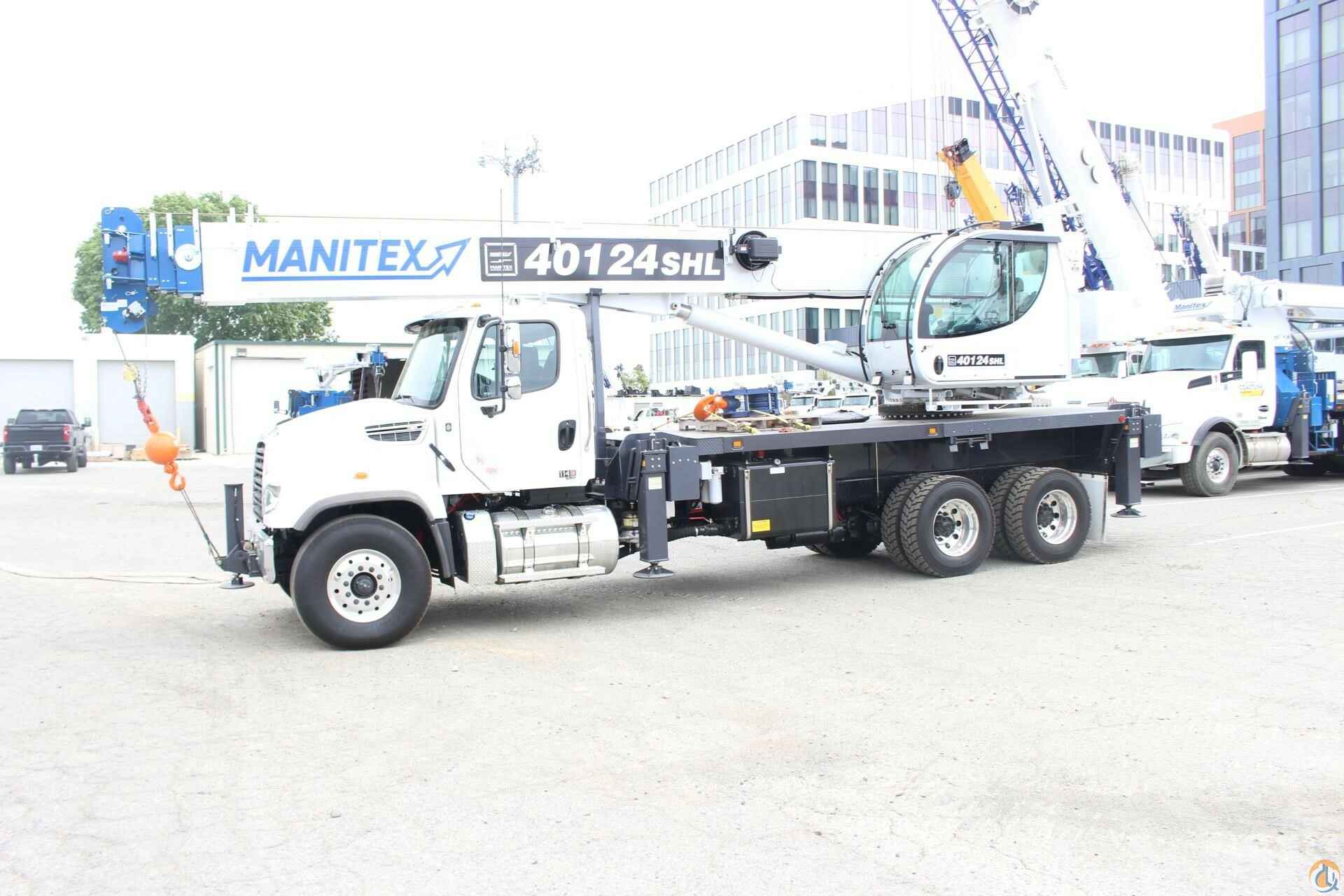

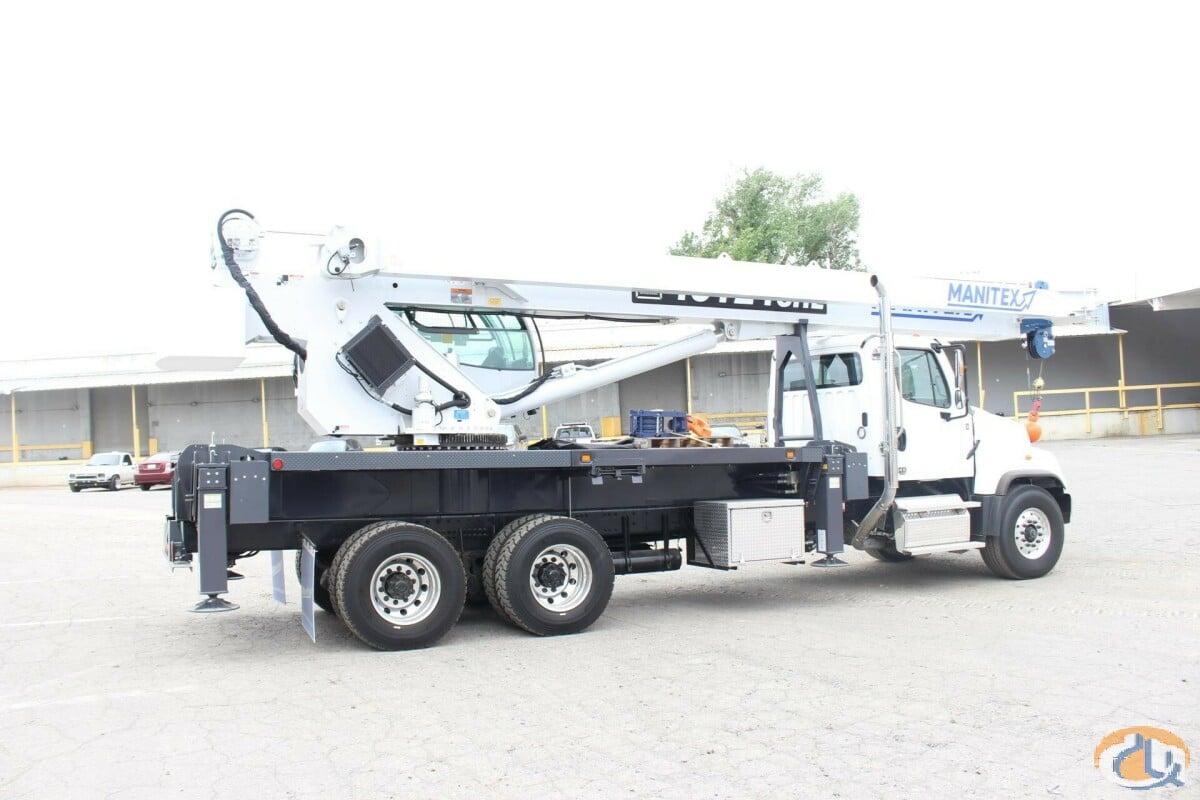

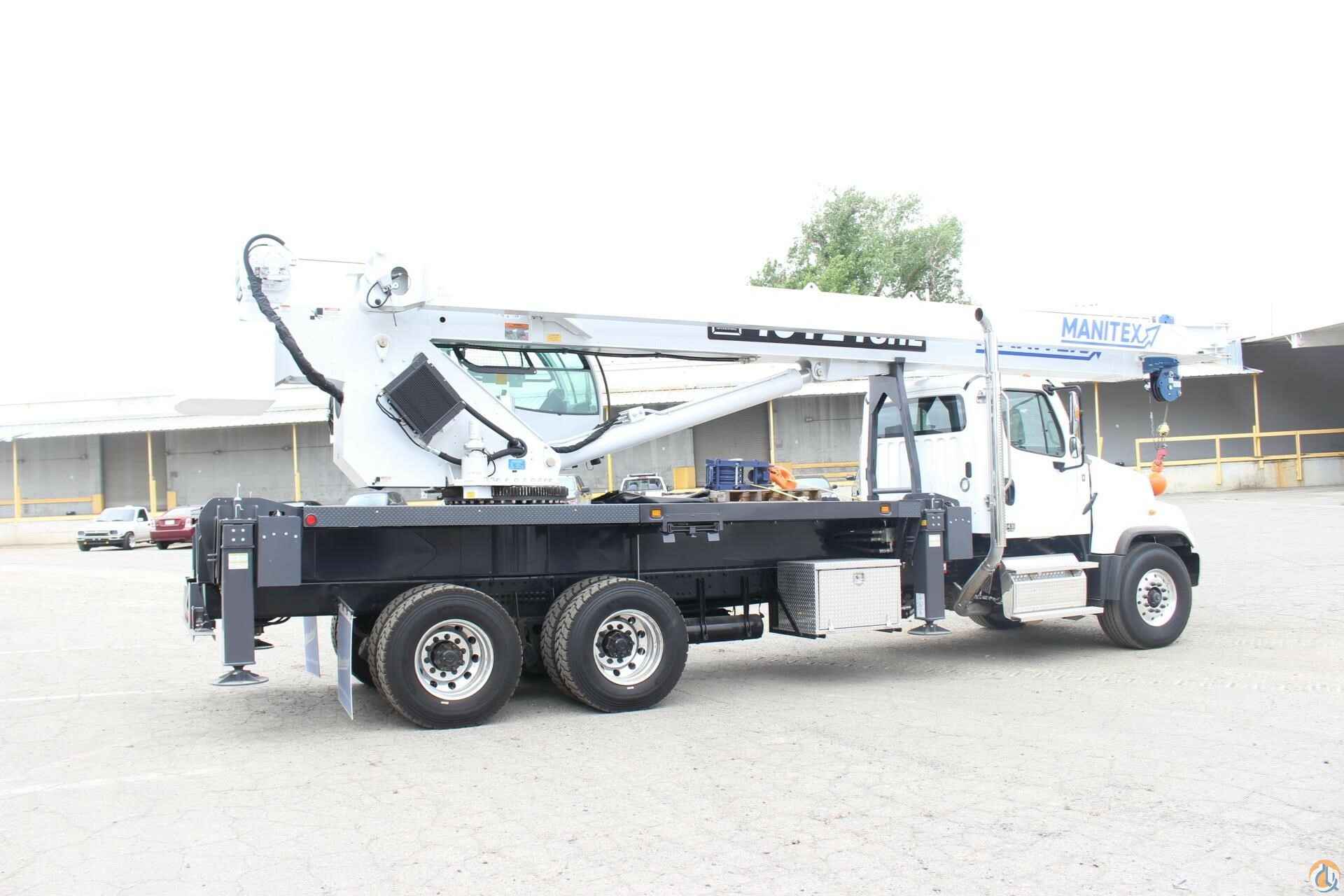

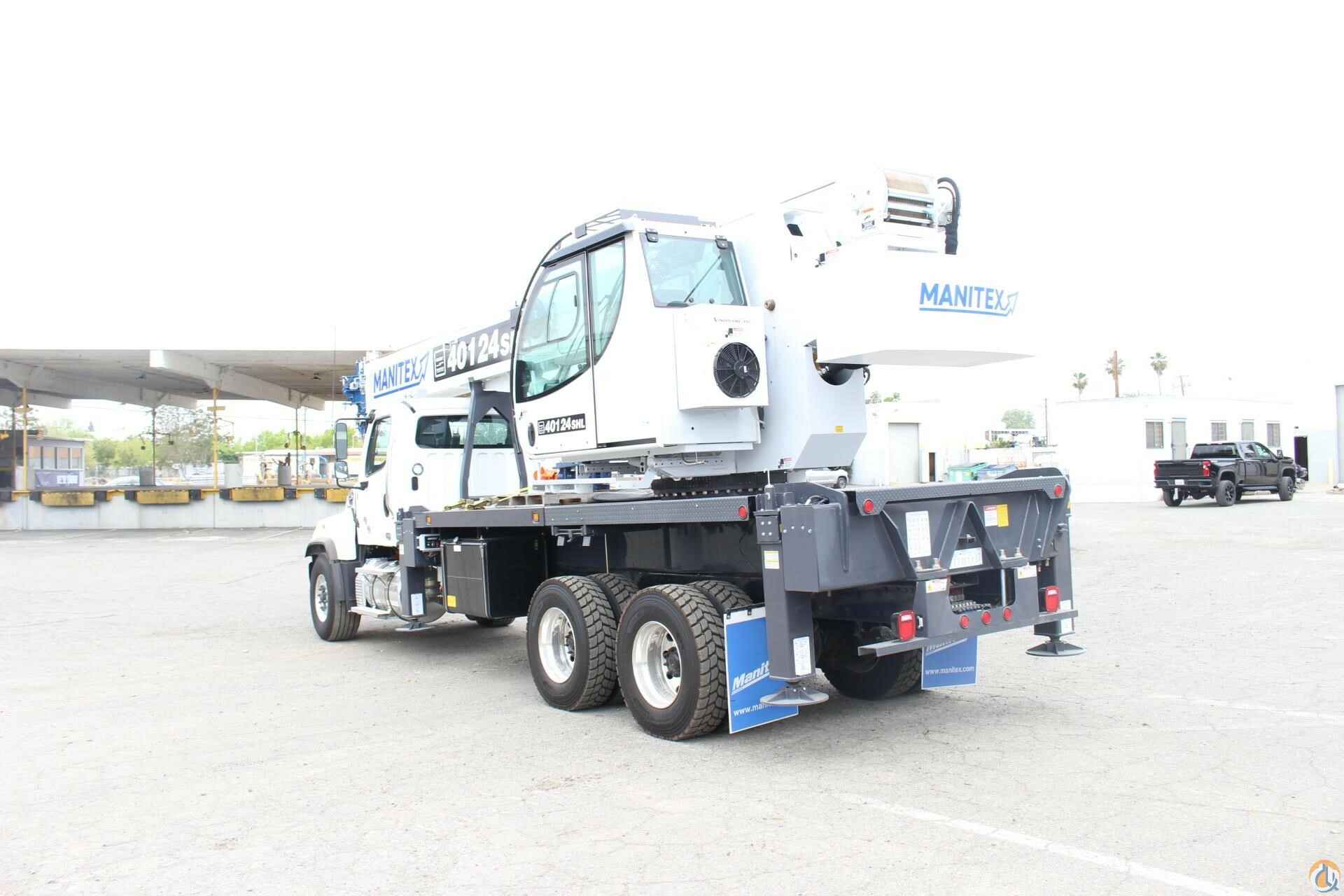

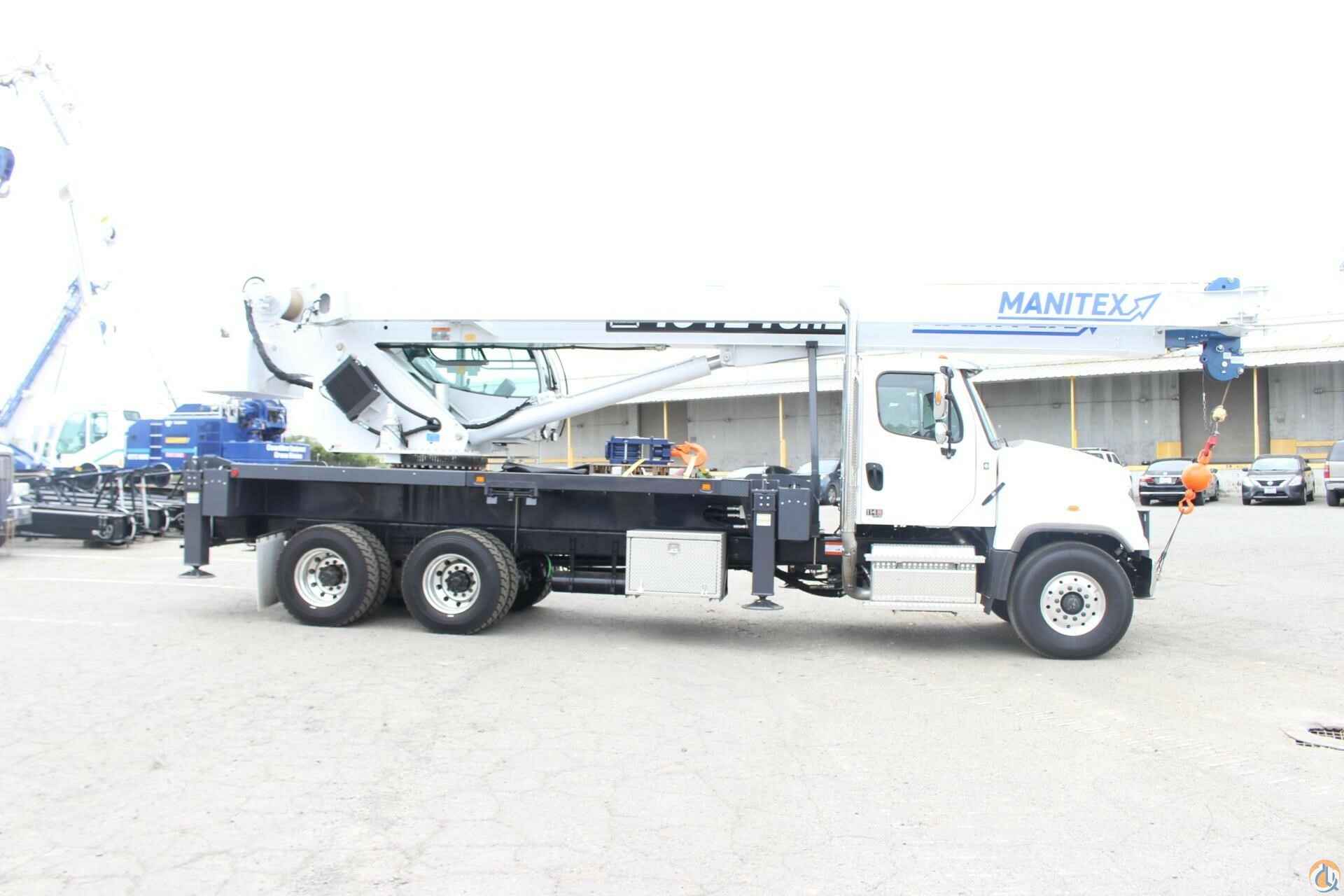

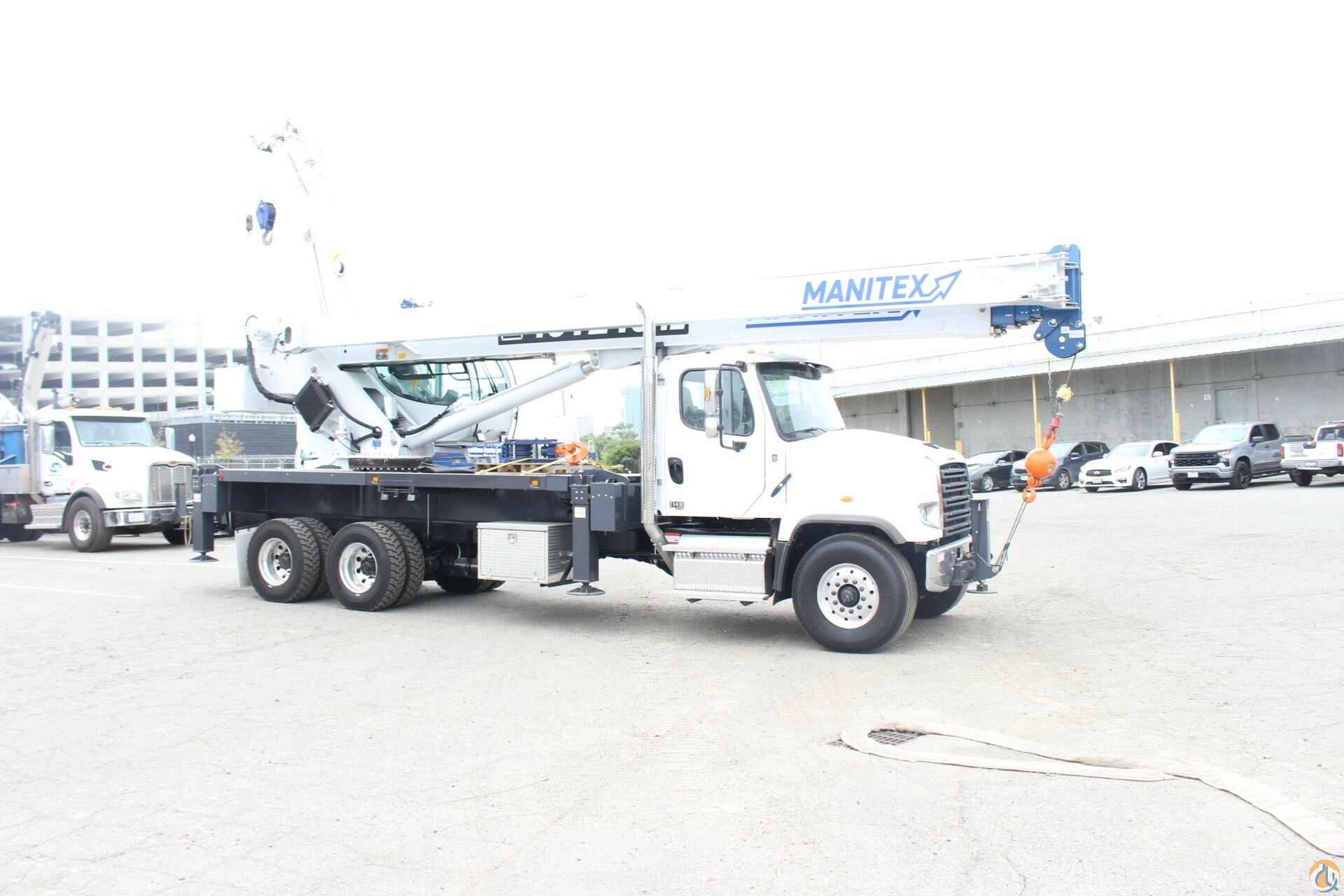

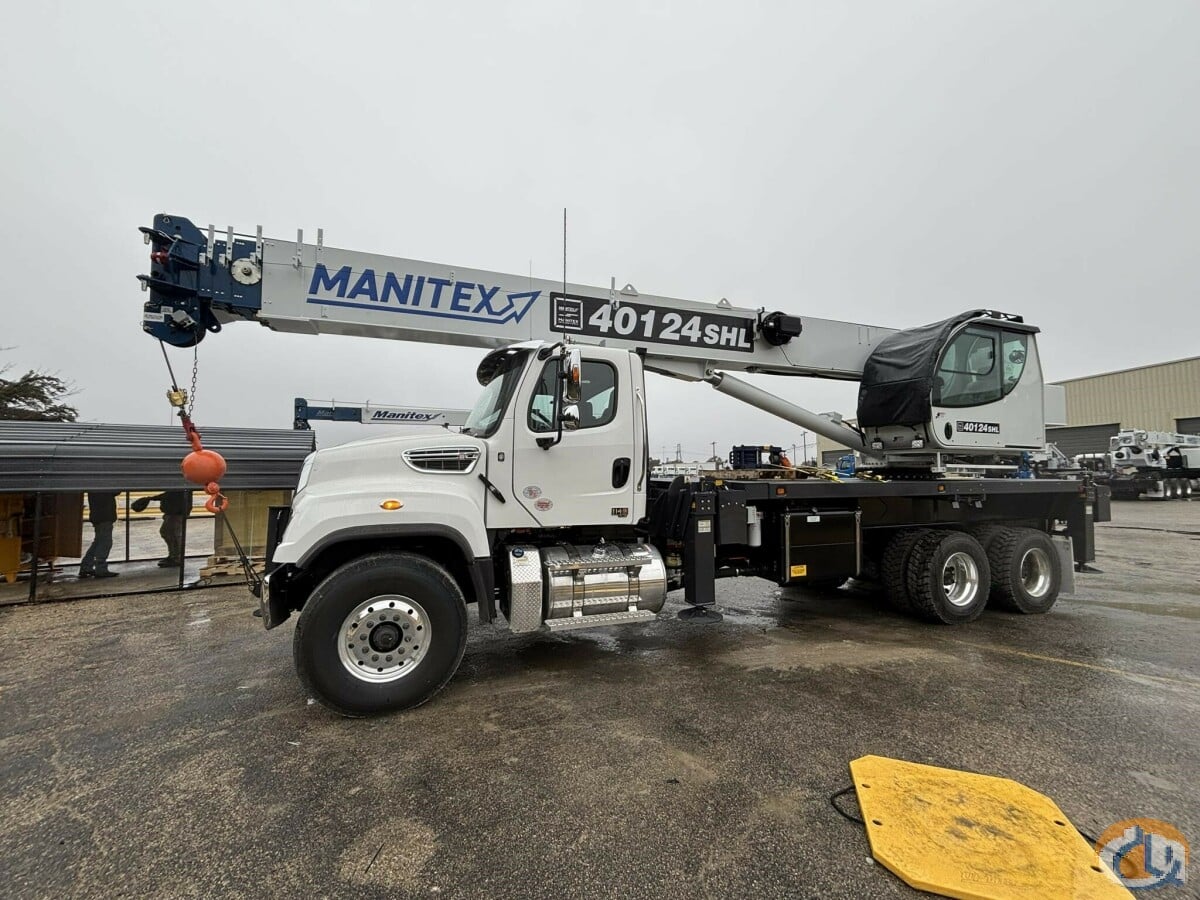

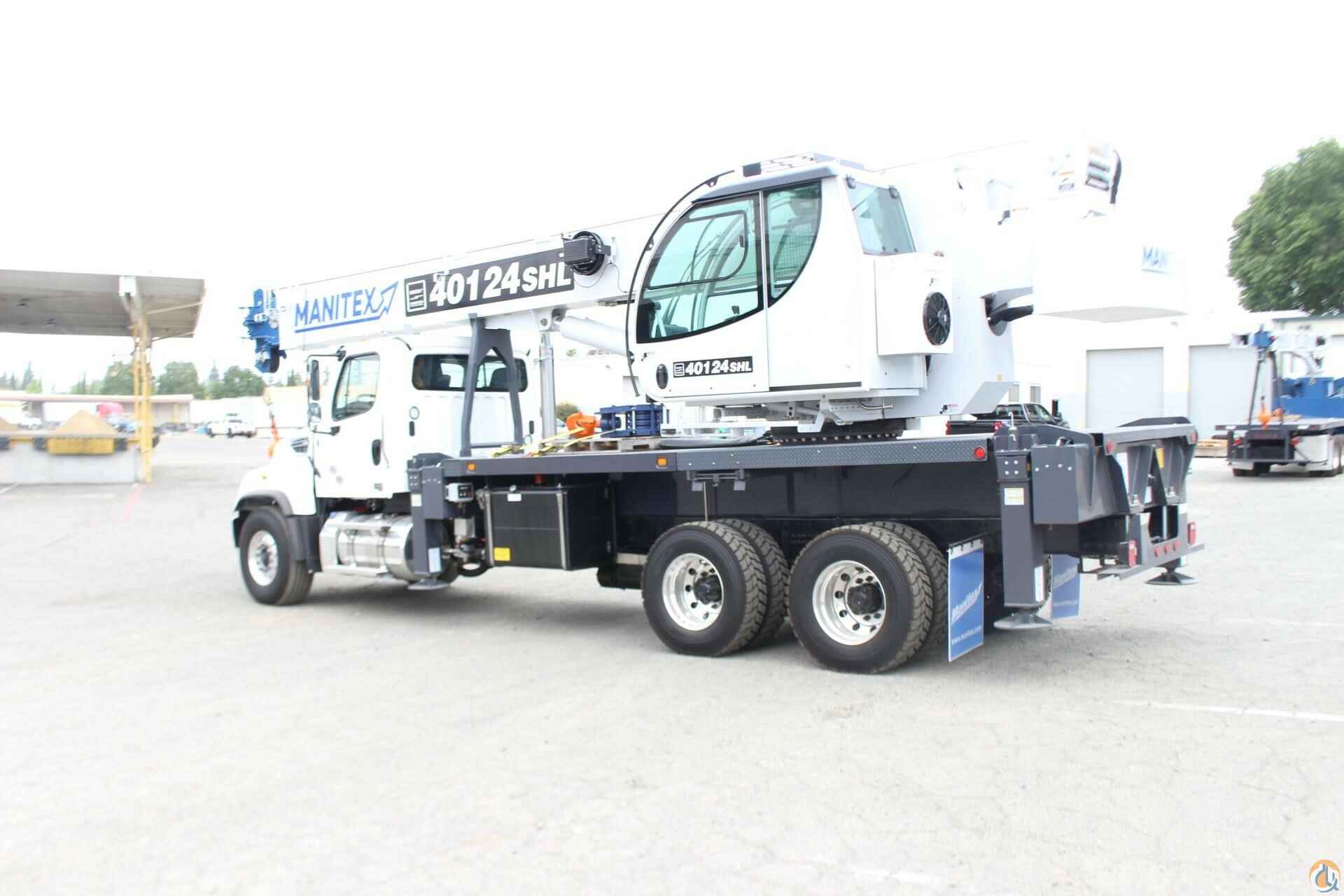

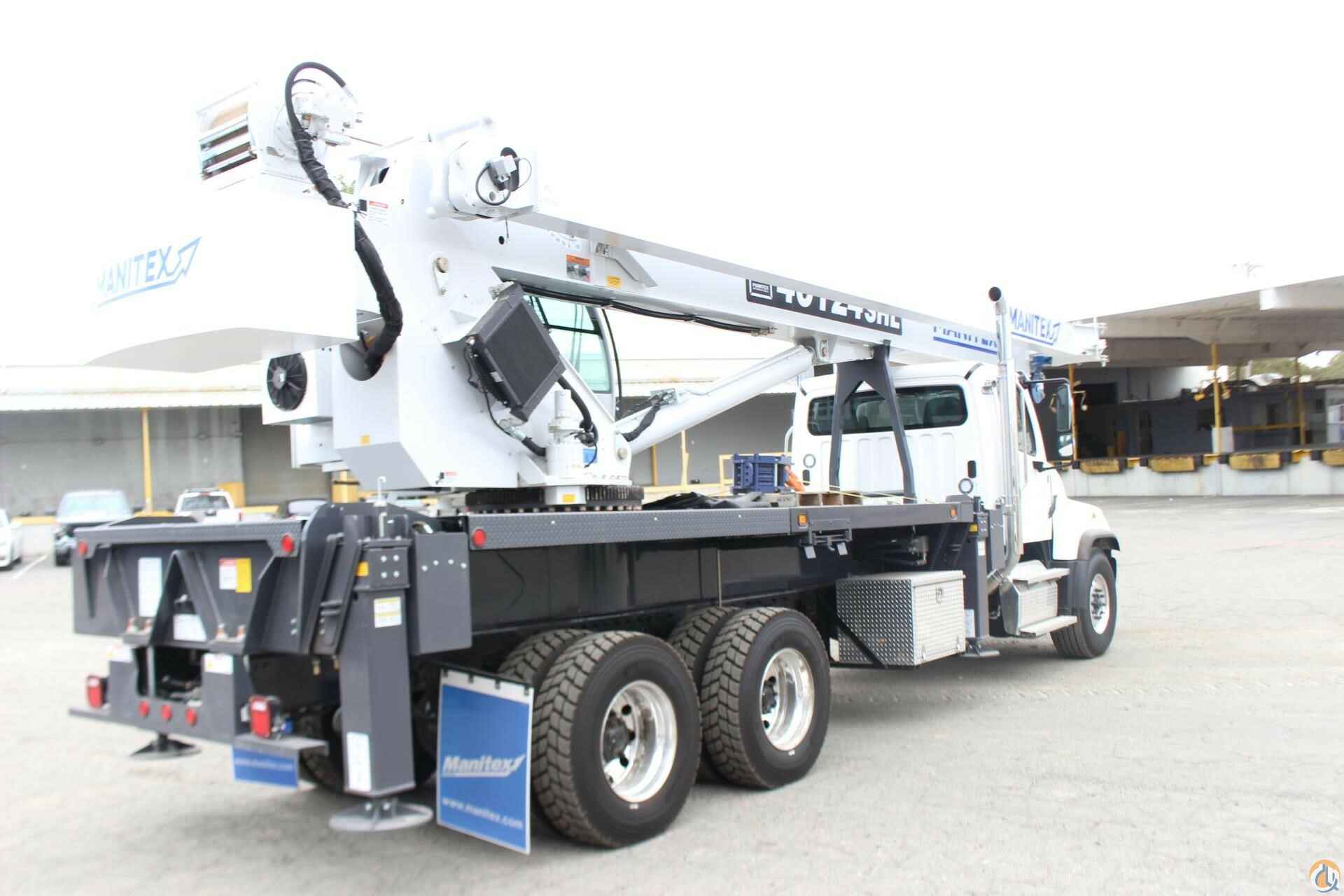

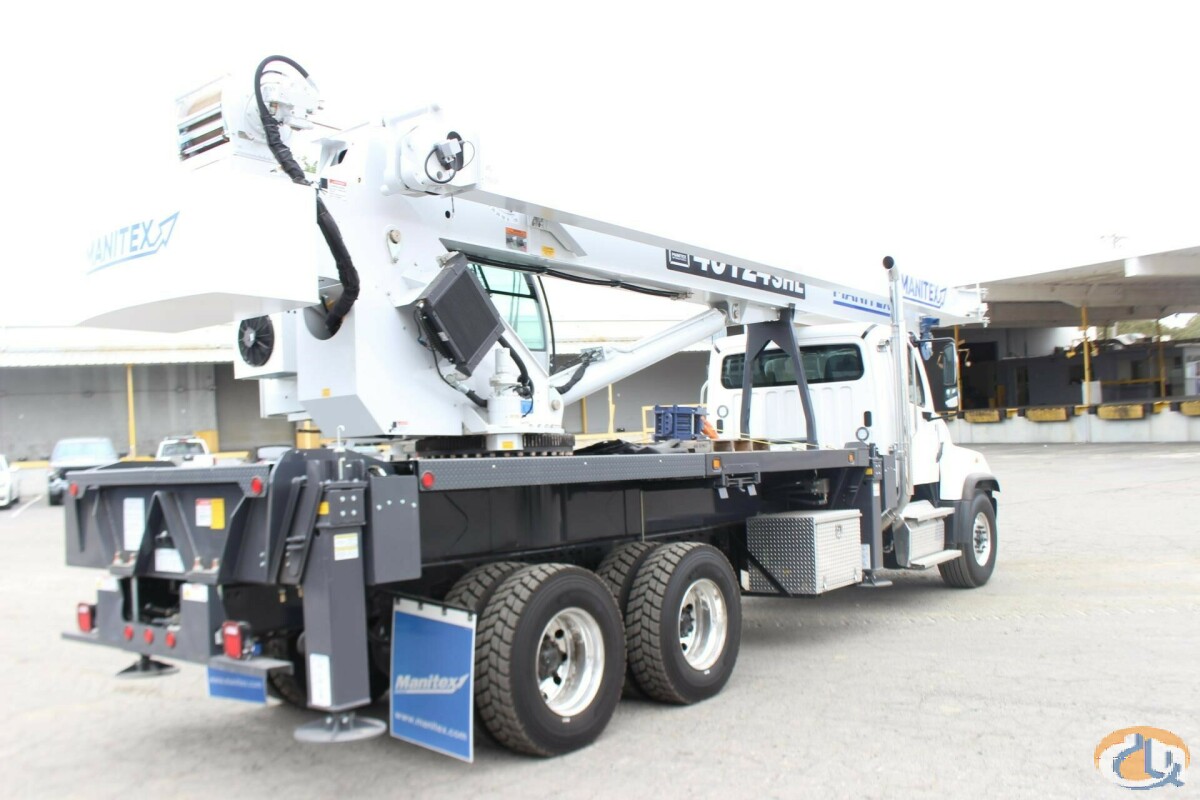

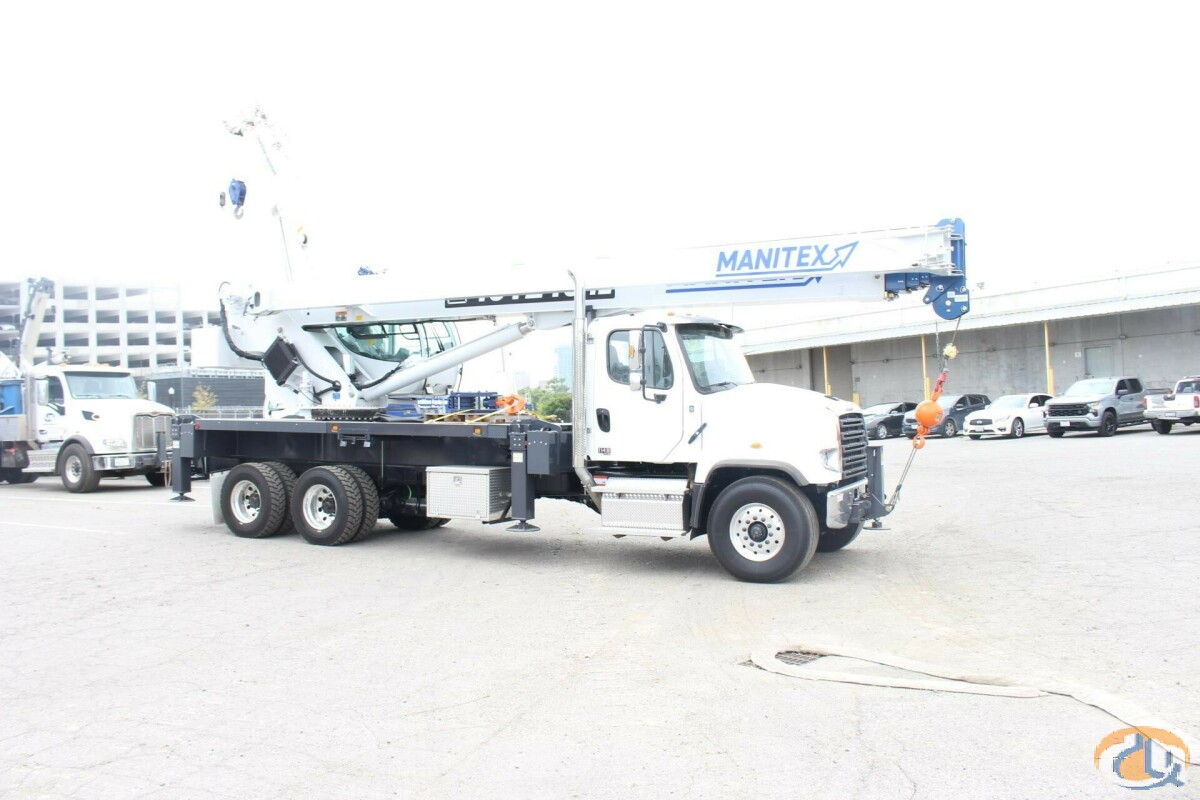

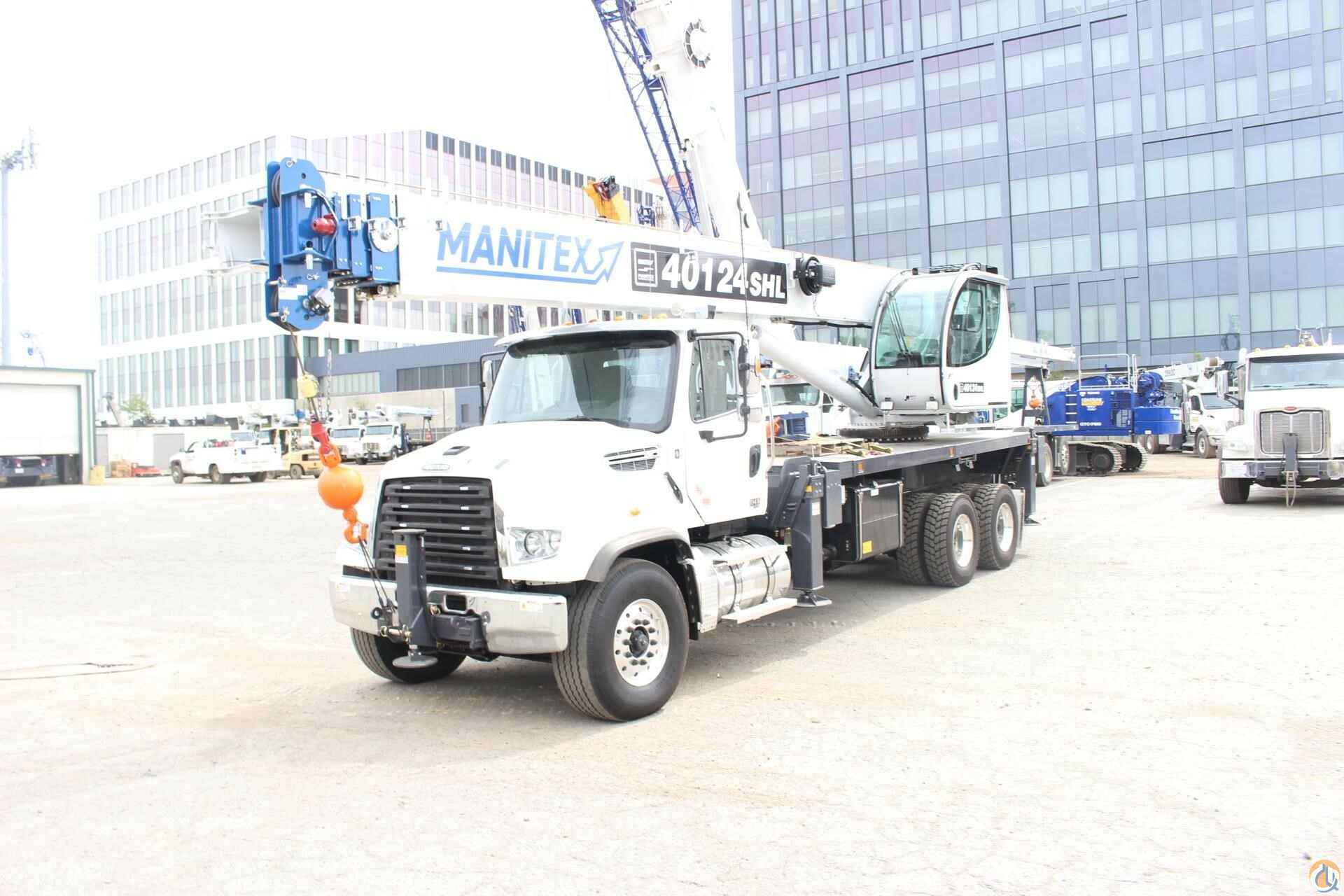

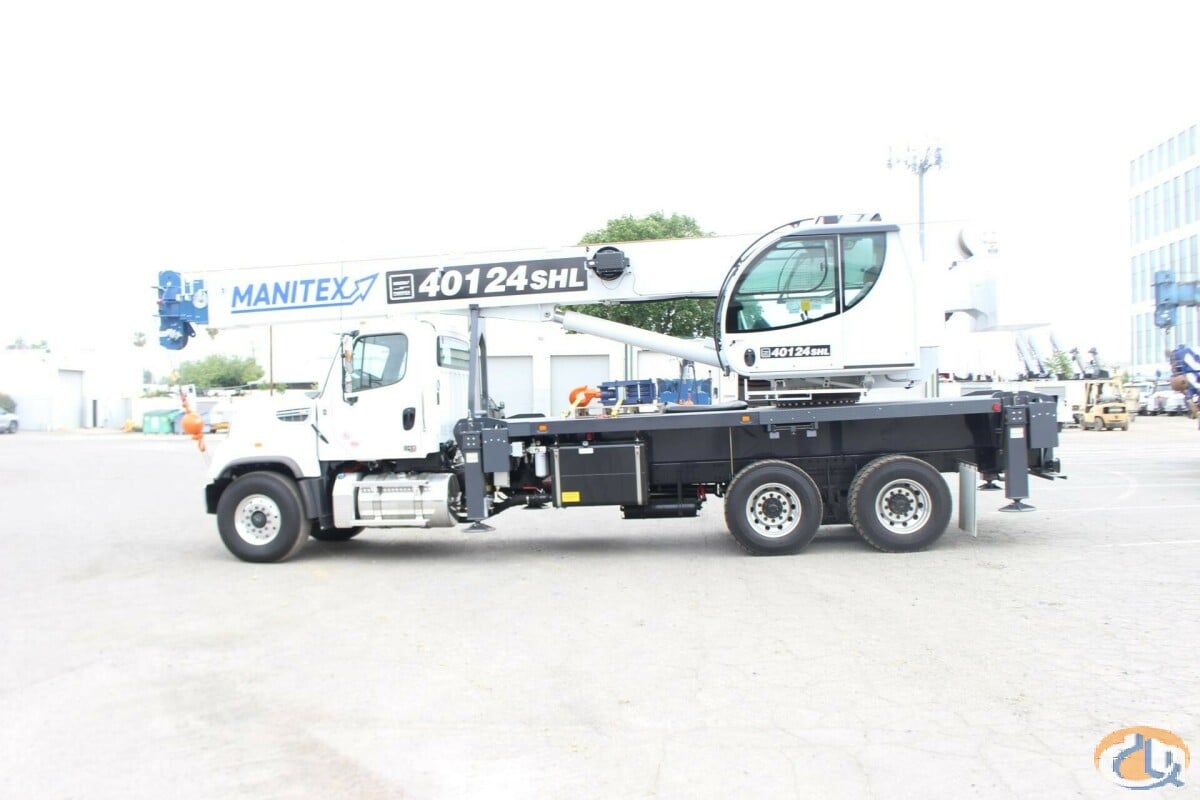

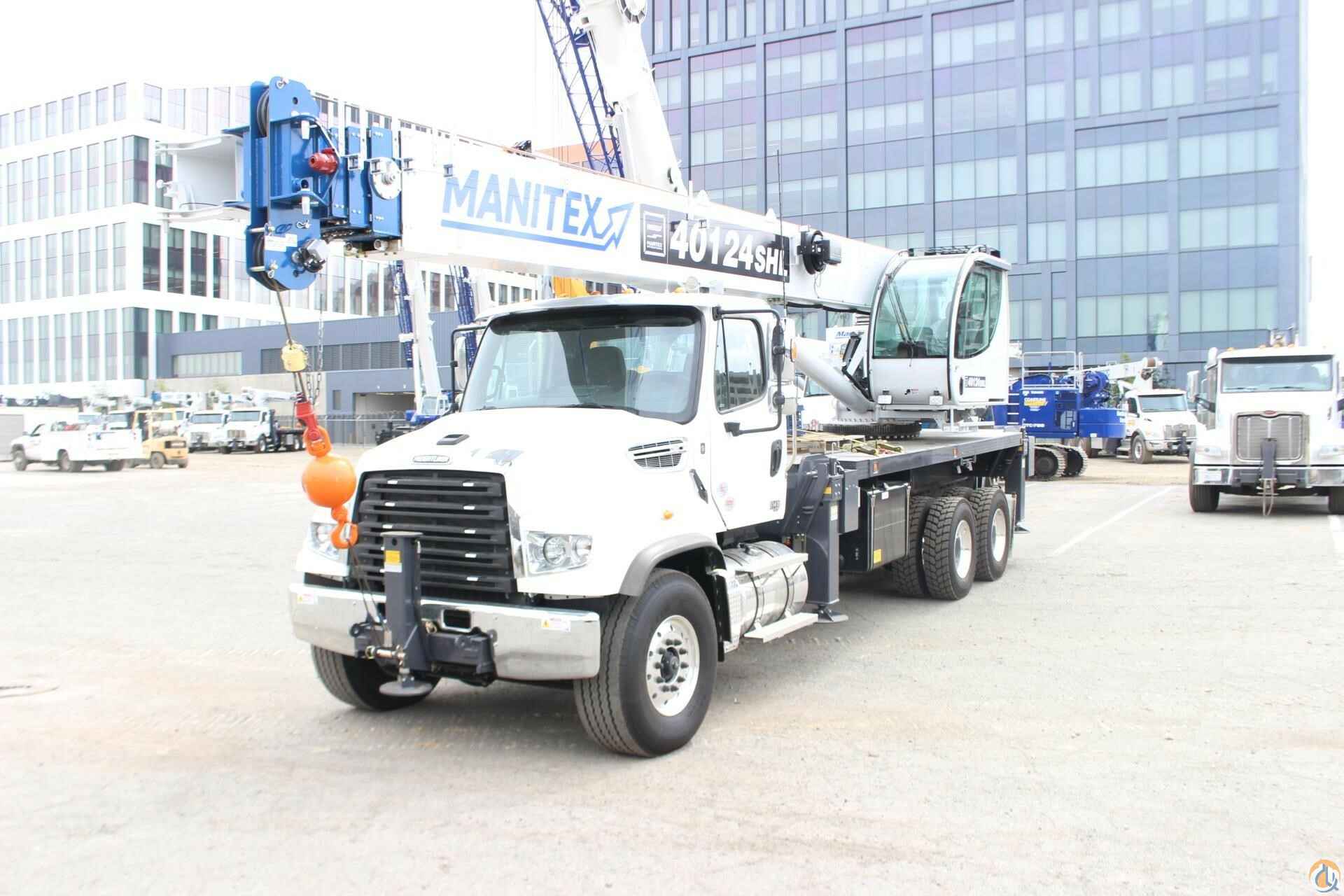

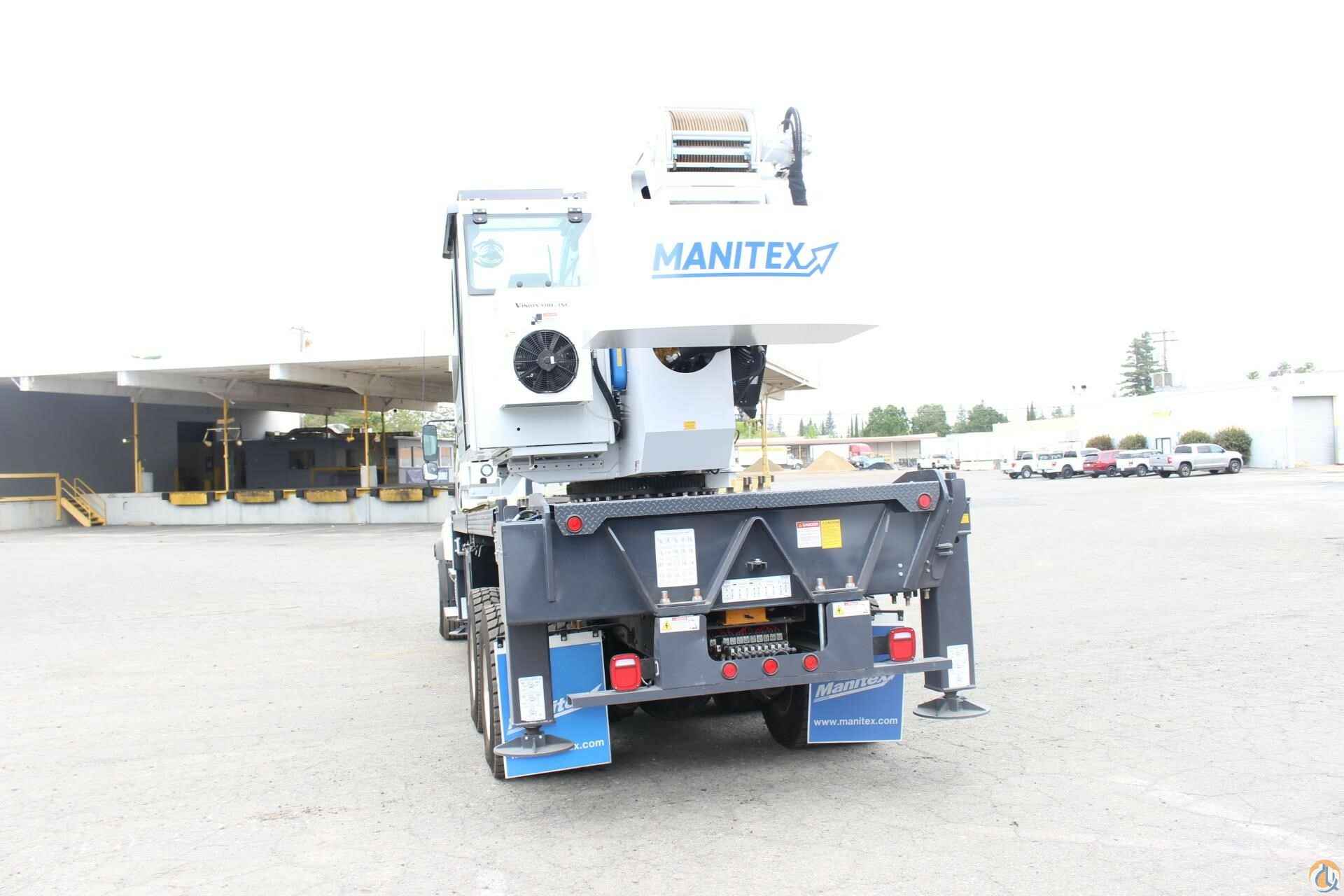

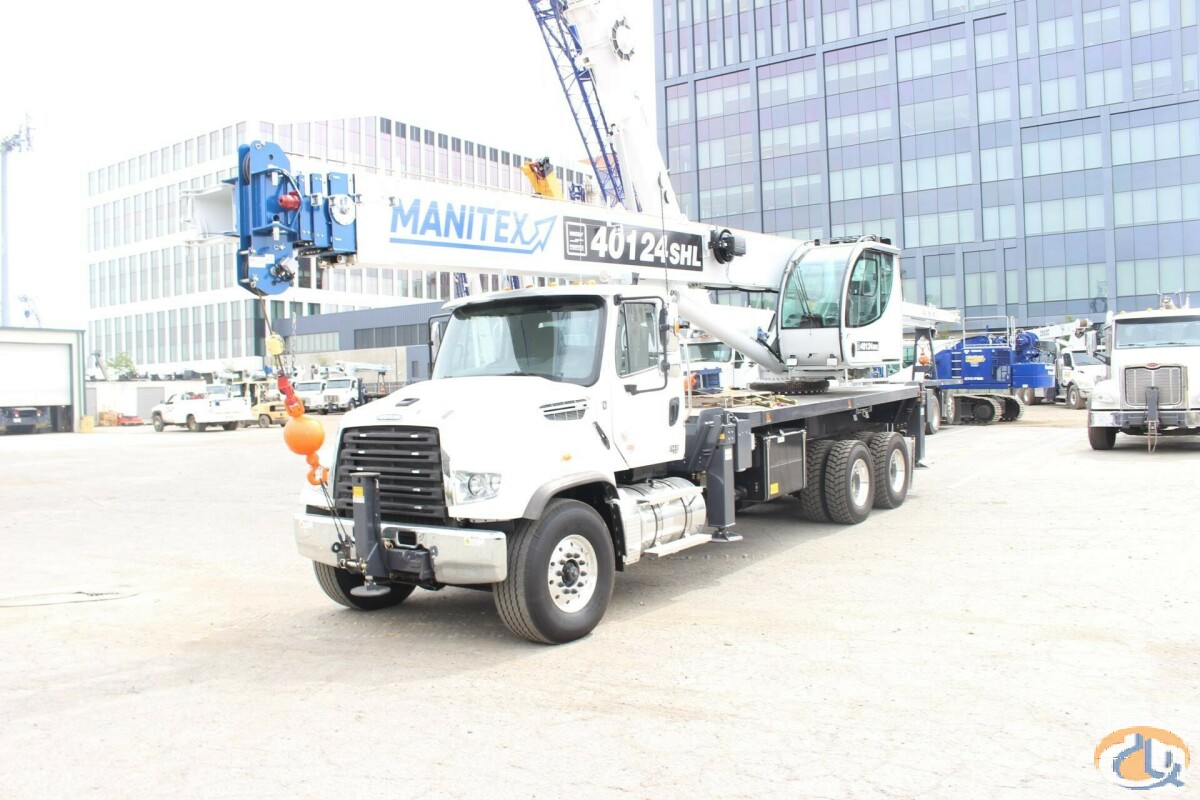

MANITEX 40124SHL
40 TON
Standard features:
124’ five section telescopic boom, 2 speed hoist with grooved drum & hoist drum rotation indicator, 7 ton hook and ball, 2-Upper and 3-Lower load sheave quick reeve boom head, External wired anti-two block with lockout, Boom hoist cylinder. System pressure gauge, 360° area of operation. Continuous rotation. Tilting Cab w/Heater and Windshield cover & upper Hatch guard, Engine Monitoring system, Engine start/stop. Operator’s service/parts manuals. Boom length and angle indicators. Electronic throttle. Foot throttle, Combined free swing and non-free swing functionality, signal horn, 3,4-5 Section Telescopic Boom, 380’ of 5/8” rotation resistant wire rope, Audible Outrigger Motion Alarm, 115 gallon reservoir with suction strainer and ball valve, Outrigger Monitoring System for Verification only, Turret, rotation bearing and swing system, Load moment indicator-audio/visual capacity alert with shutoff, 4 out-and-down outriggers, 22’ spread including capacities for intermediate 13’ 4” and retracted 7’ 2” spreads, Removable Boom Rest, 2 retractable ladders for easy access to bed. 3-section Vane pump counterclockwise rotation is standard, Lower frame for 10’ flatbed, Oil Cooler, Pilot controls, bubble level, ROC solid radio remote outrigger control and control valve for FBS.
Additional Options Included:
• LMI 40124SHL
• 1 Piece Jib 31’
• 10’ Steel Bed
• Standard Mounting
• Braden Winch – 380’ Rope
• 3-Section Vane Pump
• Air Conditioning
• Hot Shift PTO
• Drive Shaft for Pump Installation
• 35 ton 3-Sheave Block for 1-6 part line
• Front center stabilizer
• Mounting – Front Center Stabilizer
• Aluminum Toolbox (36” L x 24” W x 24” H) Chassis Mount
MOUNTED ON 2025 FREIGHTLINER 114SD PLUS
Mounted on a 2025 Freightliner 114SD Plus, Detroit DD13 GEN 5, 505 HP@1625 RPM, 1900 GOV RPM, 1850 LB/FT, @ 975 RPM, Allison 4000 RDS Automatic Transmission with PTO Provision, CUMMINS- MERITOR RT-46-160 46,000# Rear Axle, Detroit DA-F-20.0-5 20,000# Drop Single Front Axle. No Fifth Wheel, 100 Gallon Aluminum Fuel Tank, AM/FM/WB World Tuner With SIRIUSXM Bluetooth IPOD Interface, USB and Auxiliary, Inputs, J1939.
