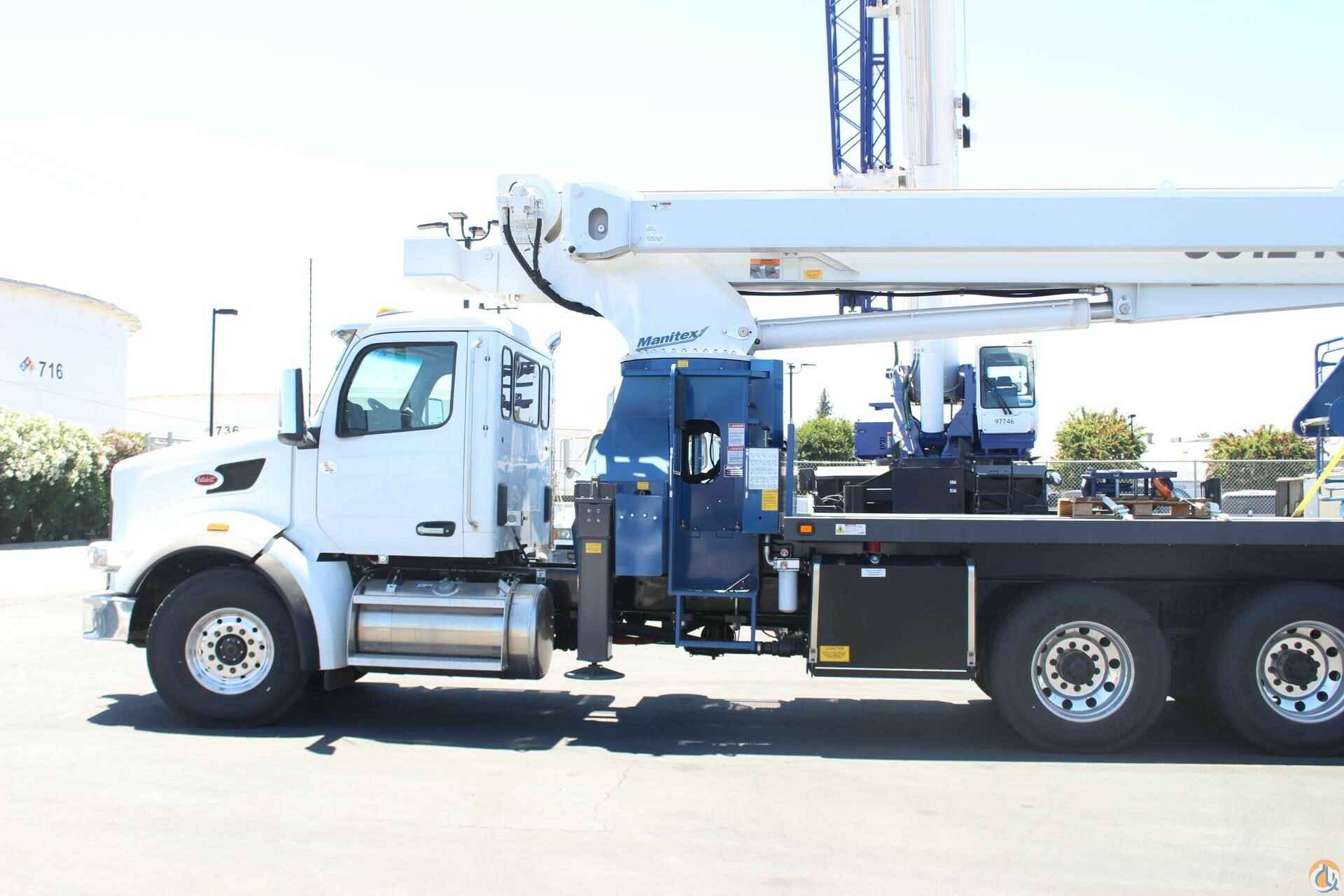

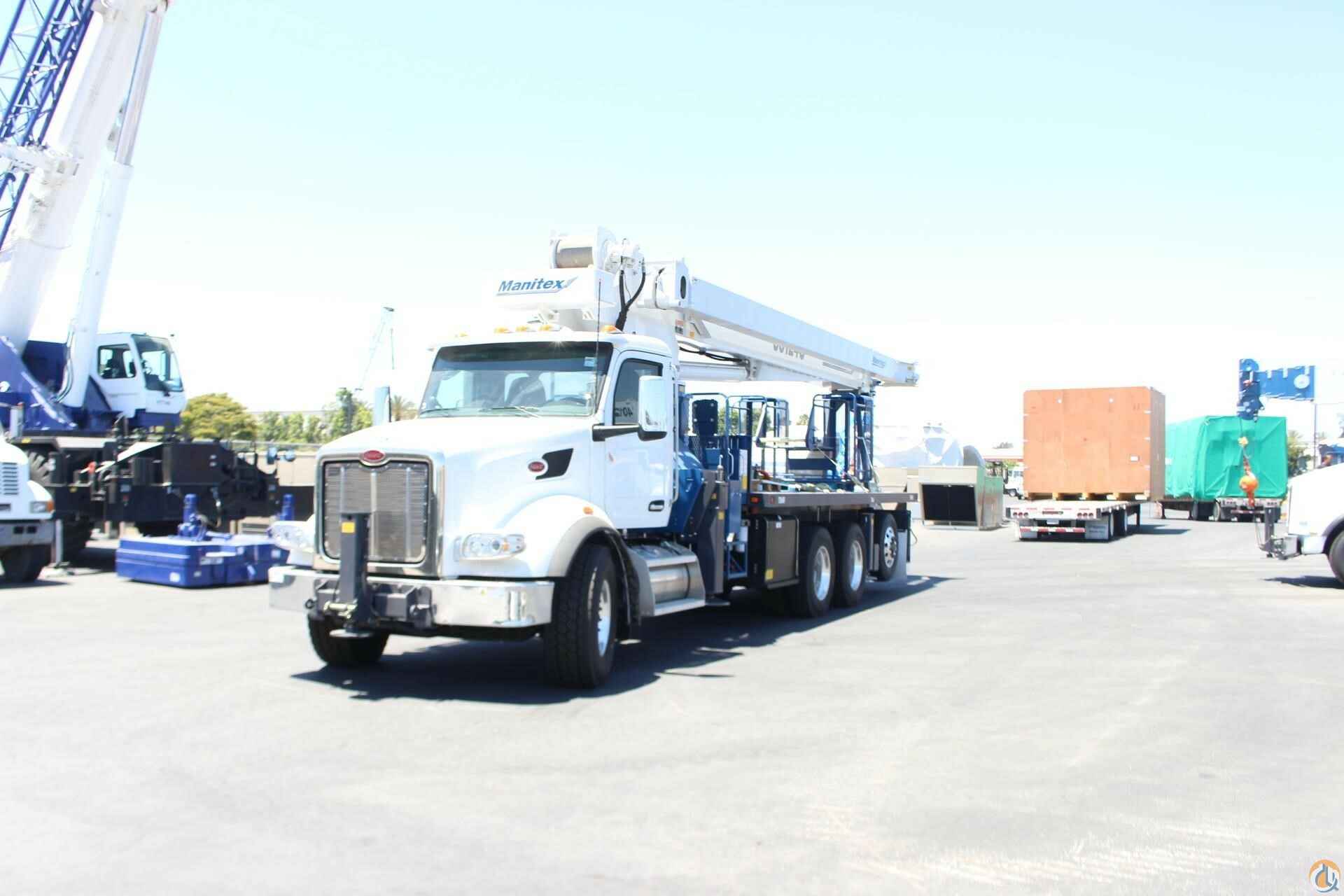

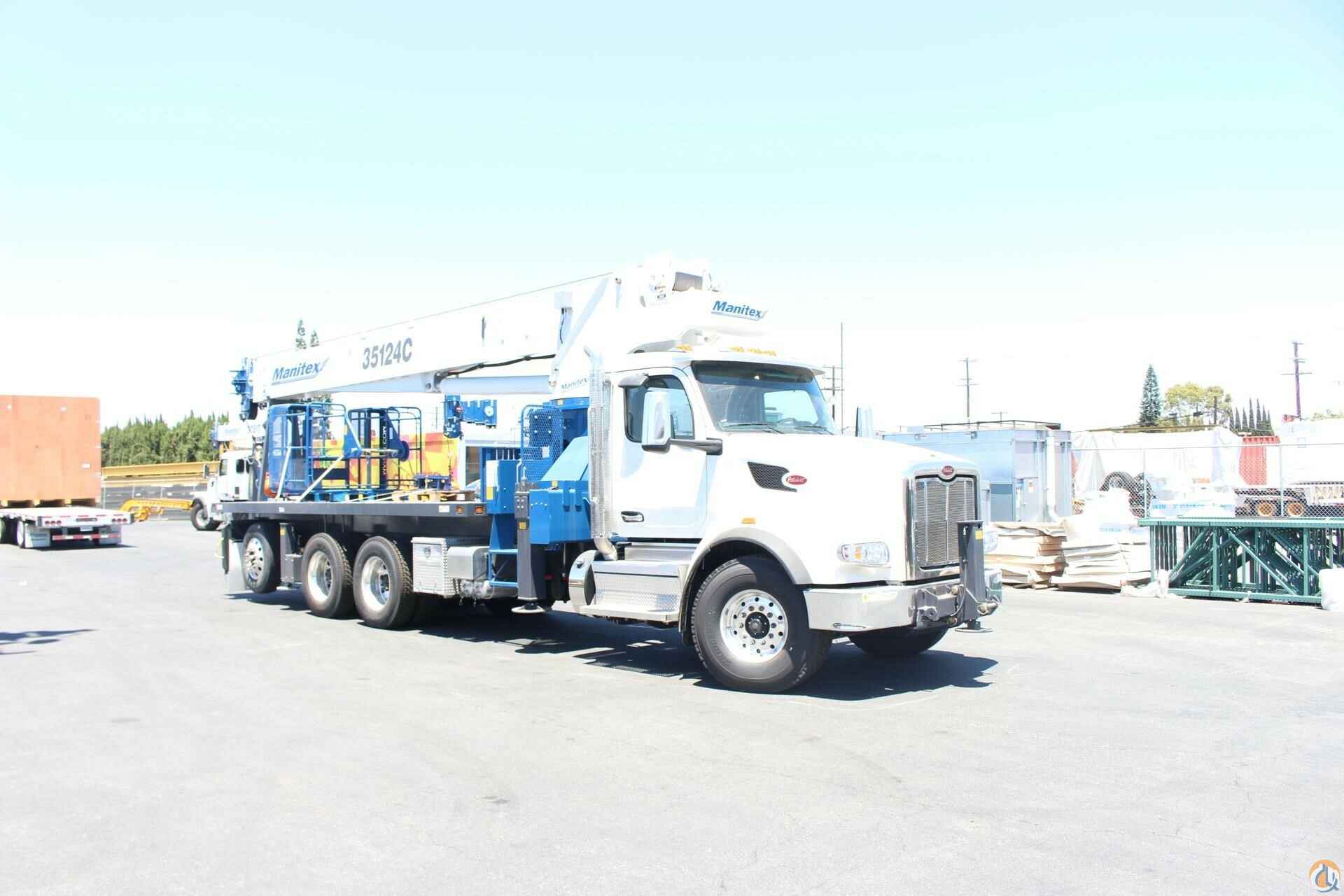

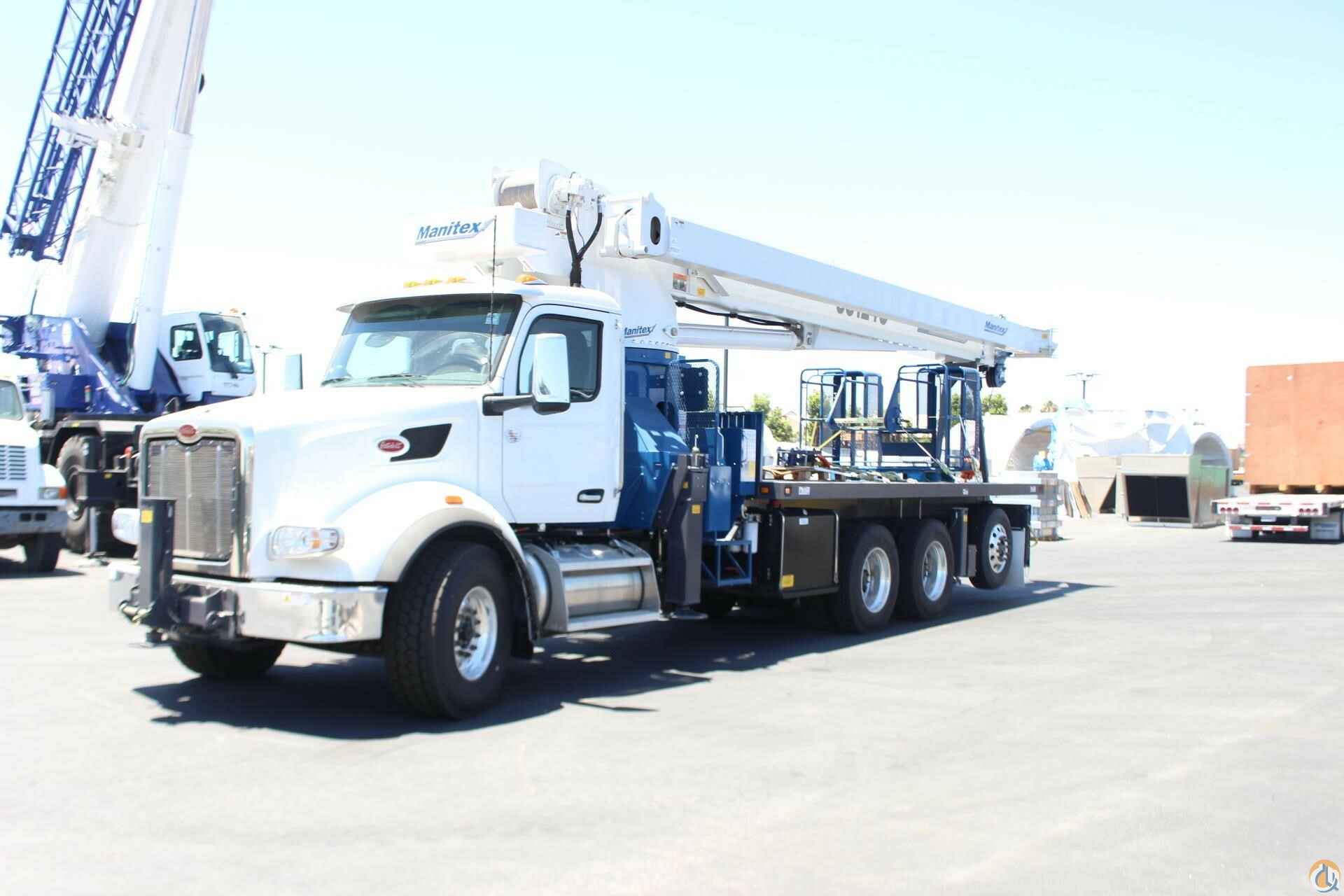

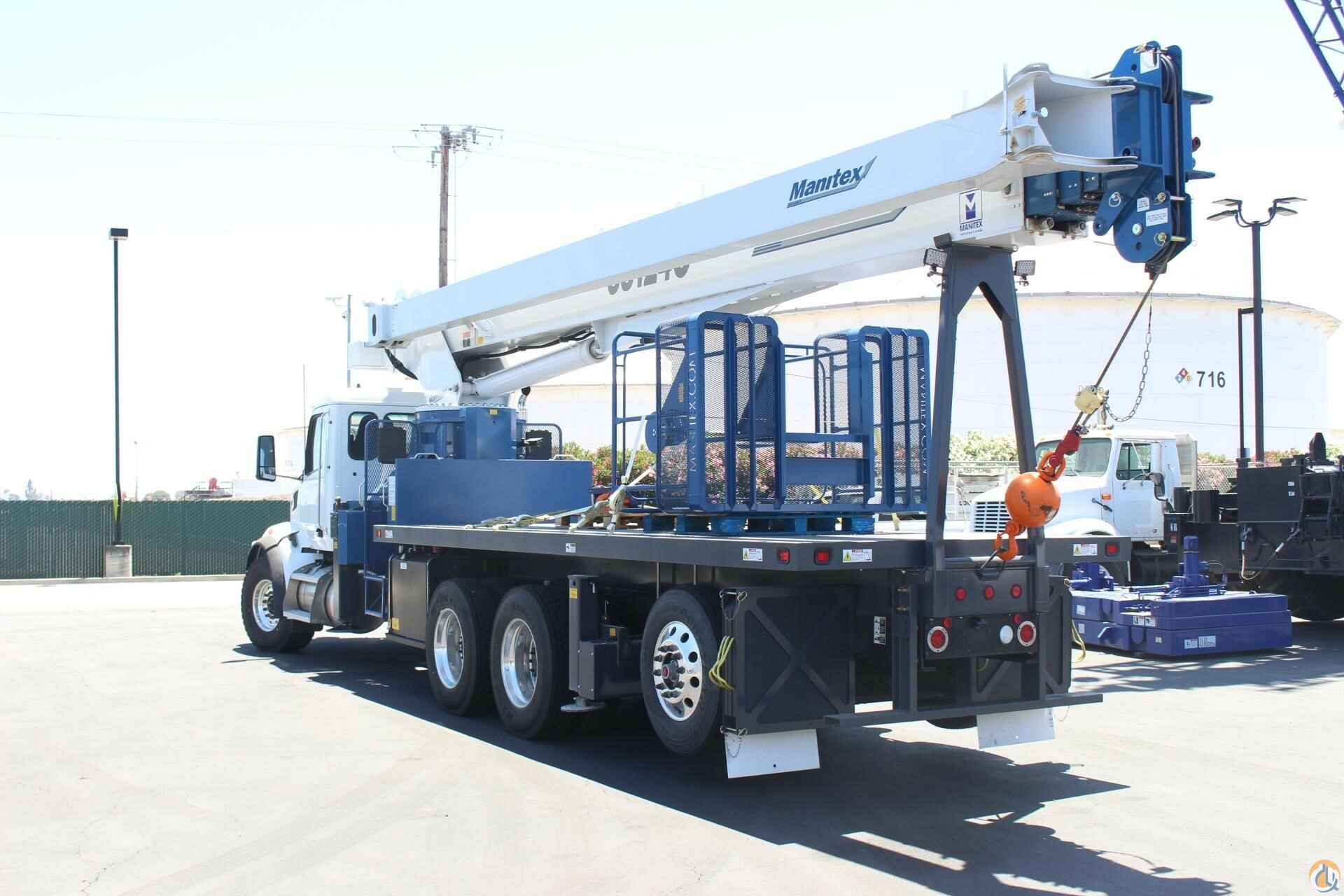

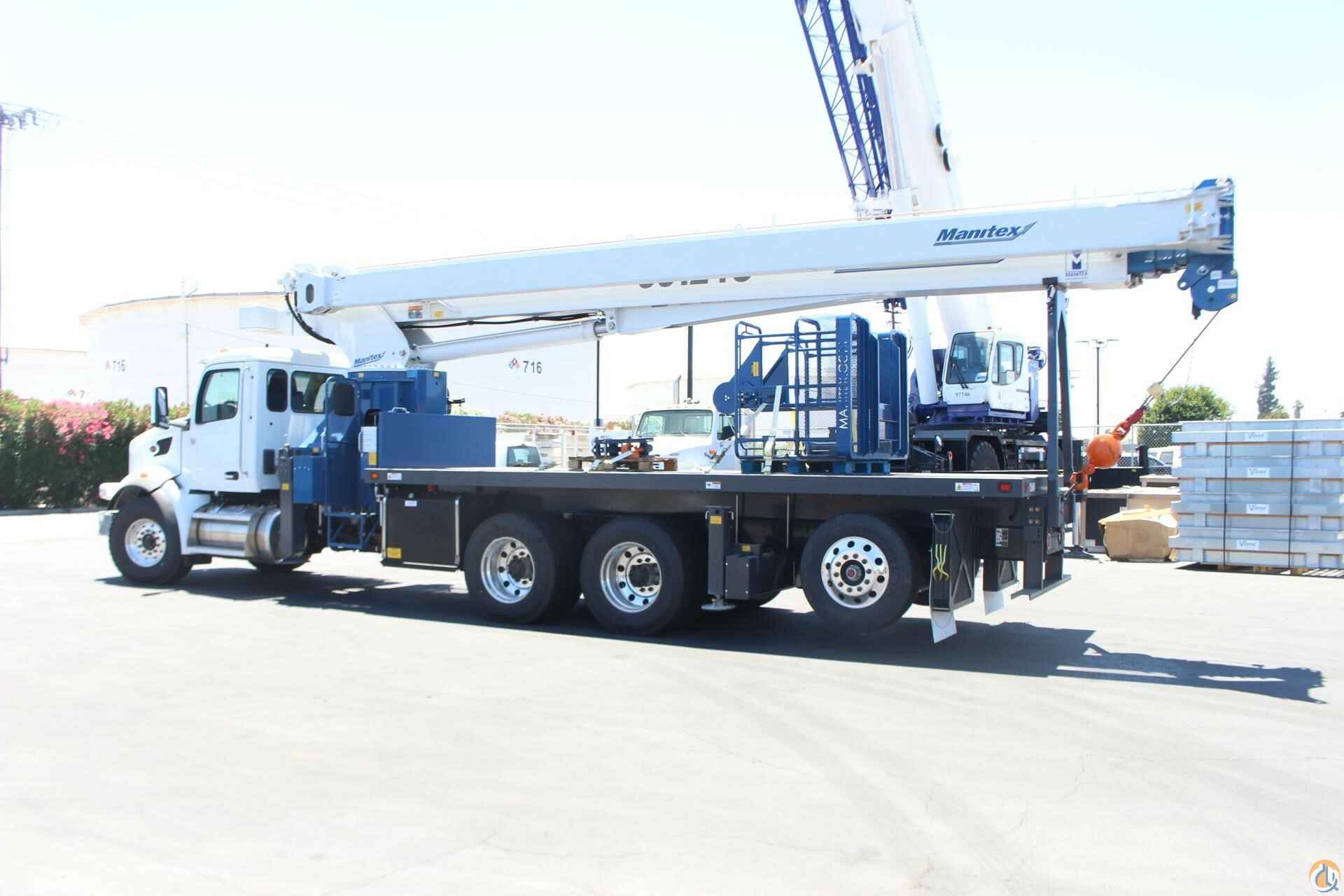

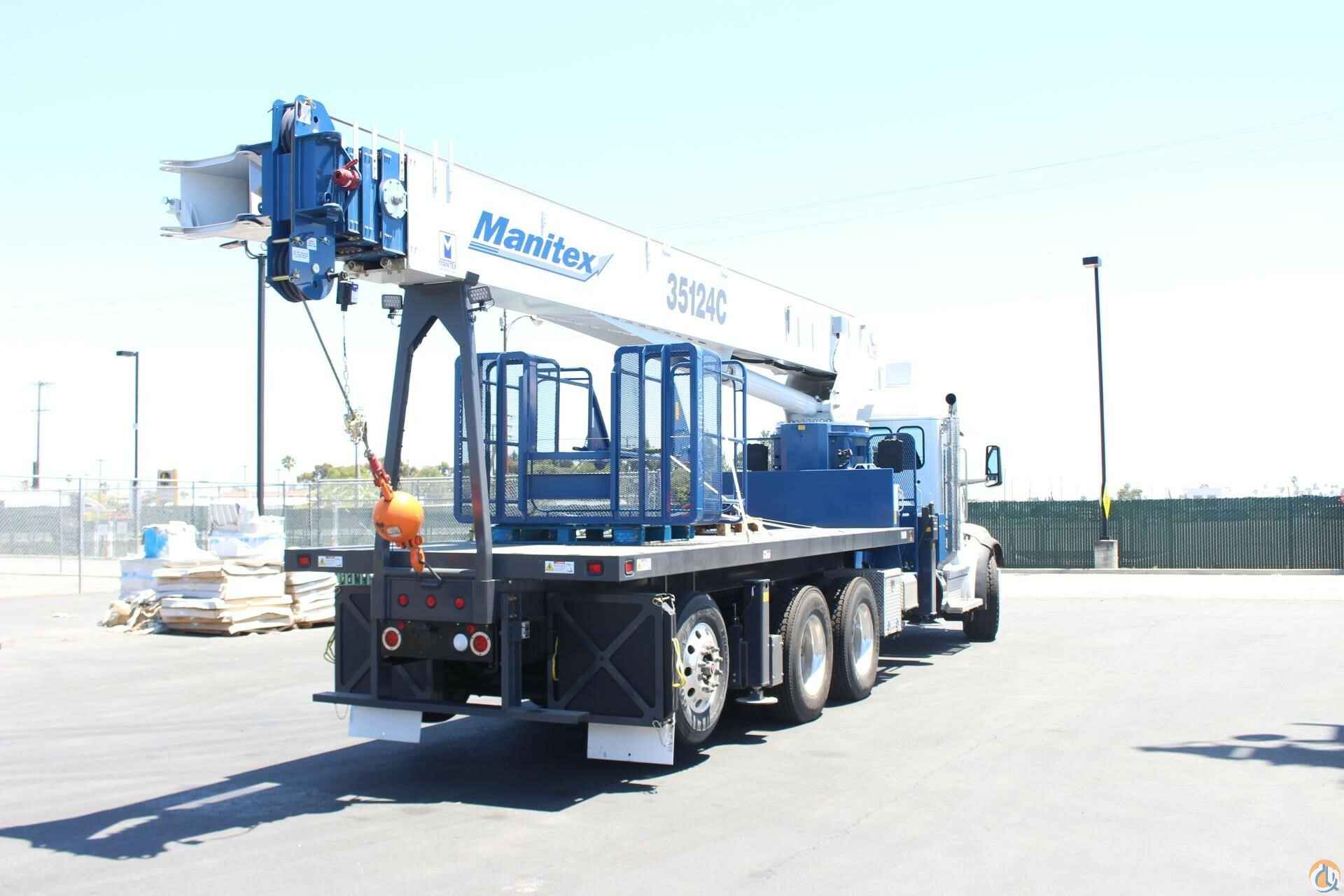

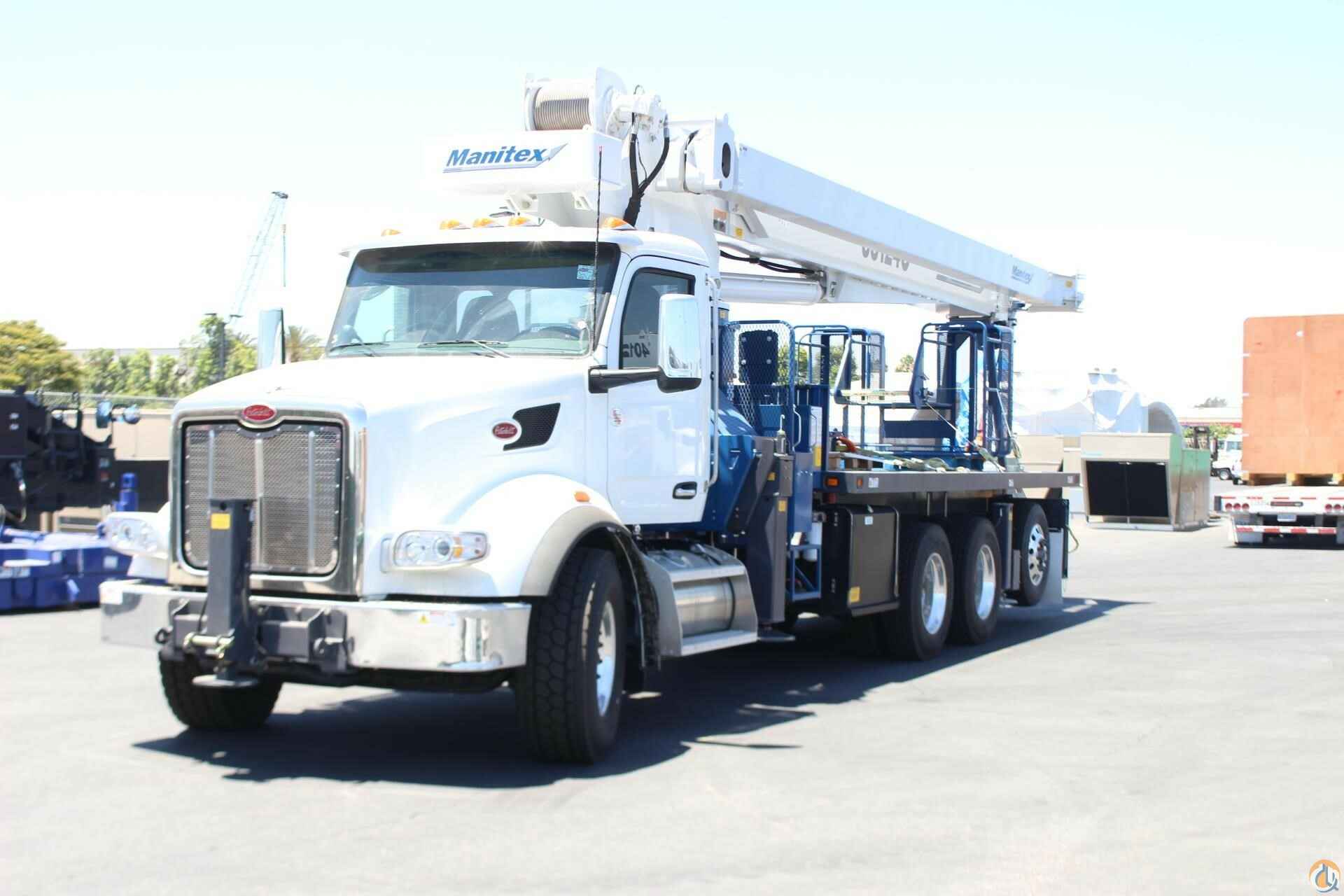

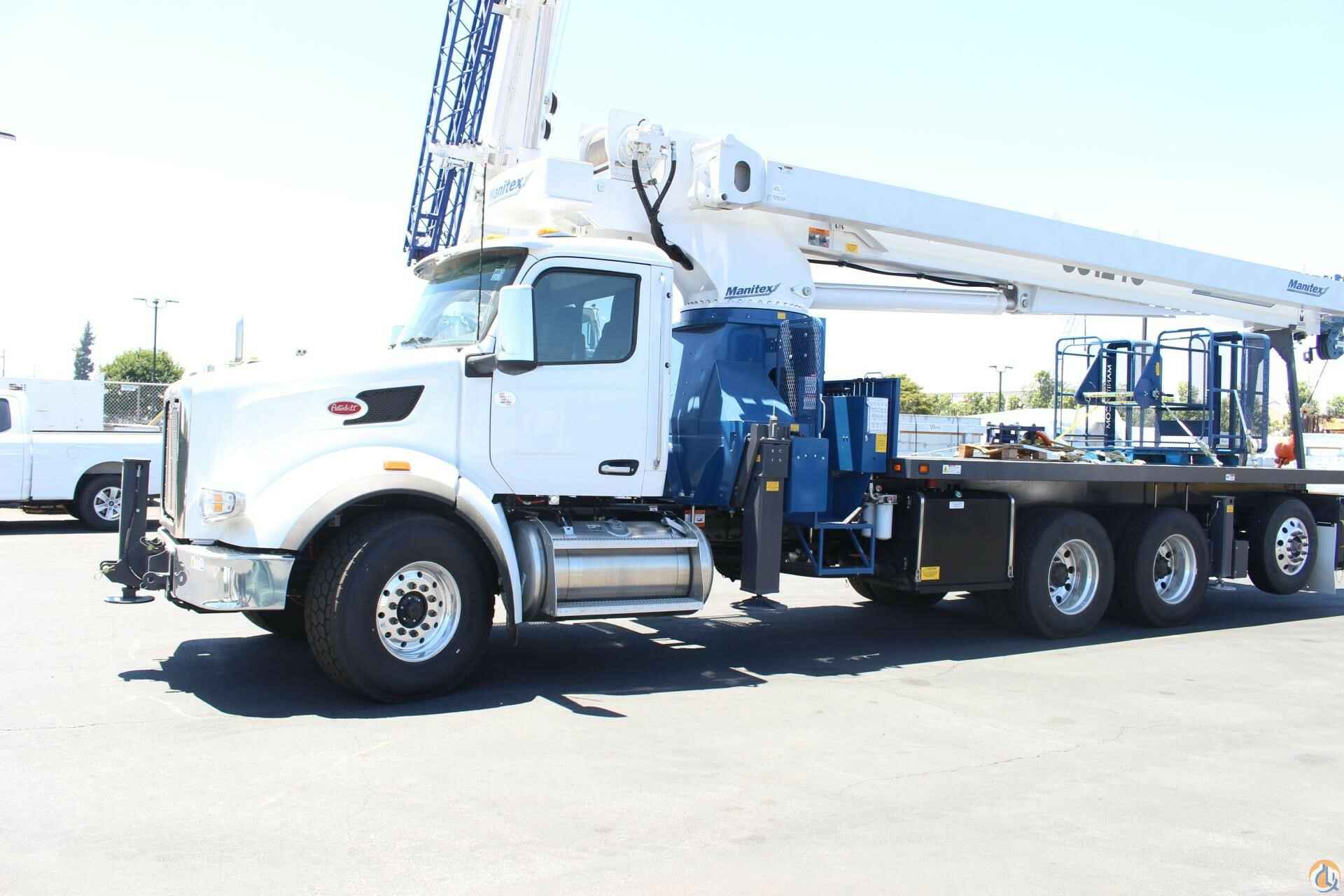

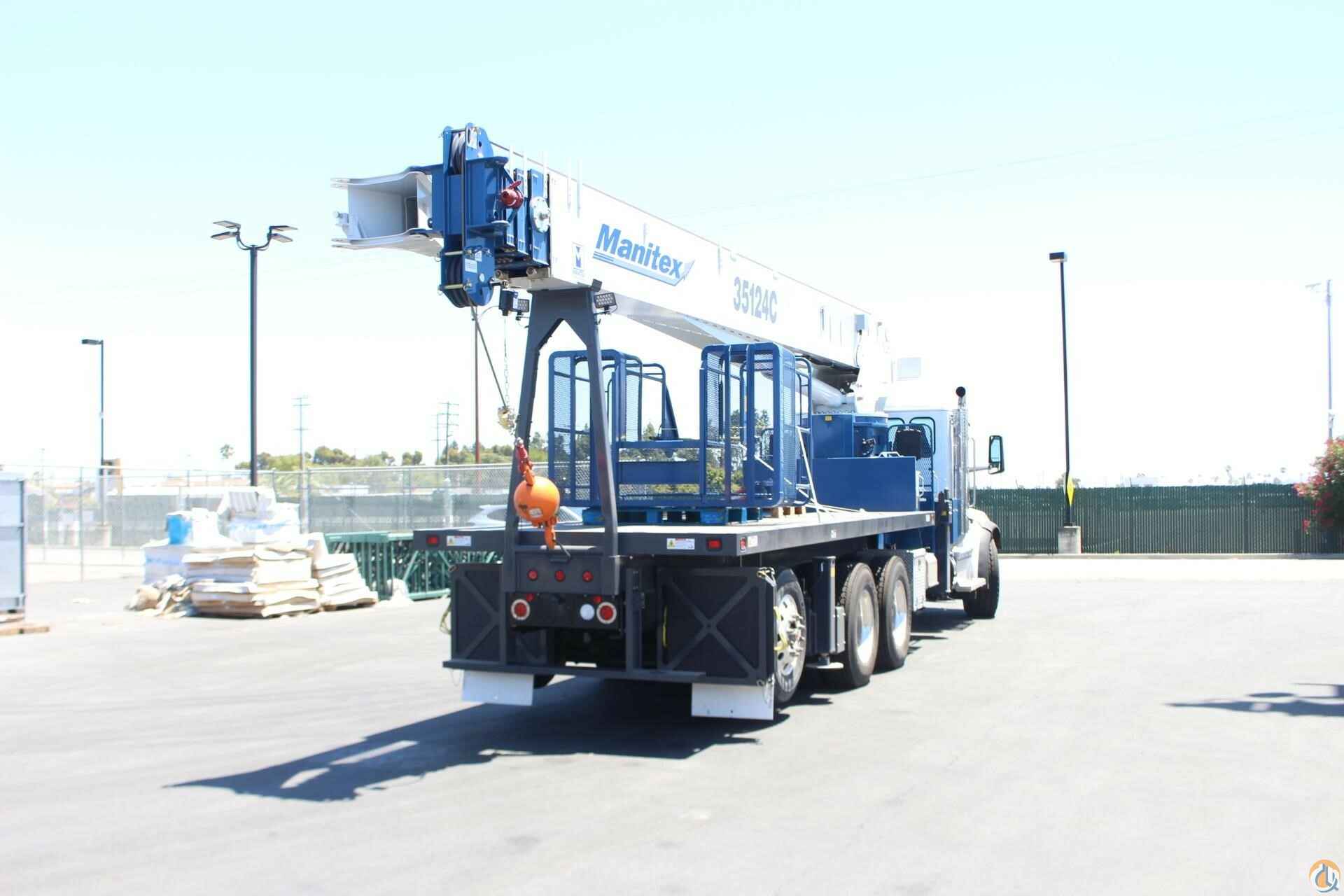

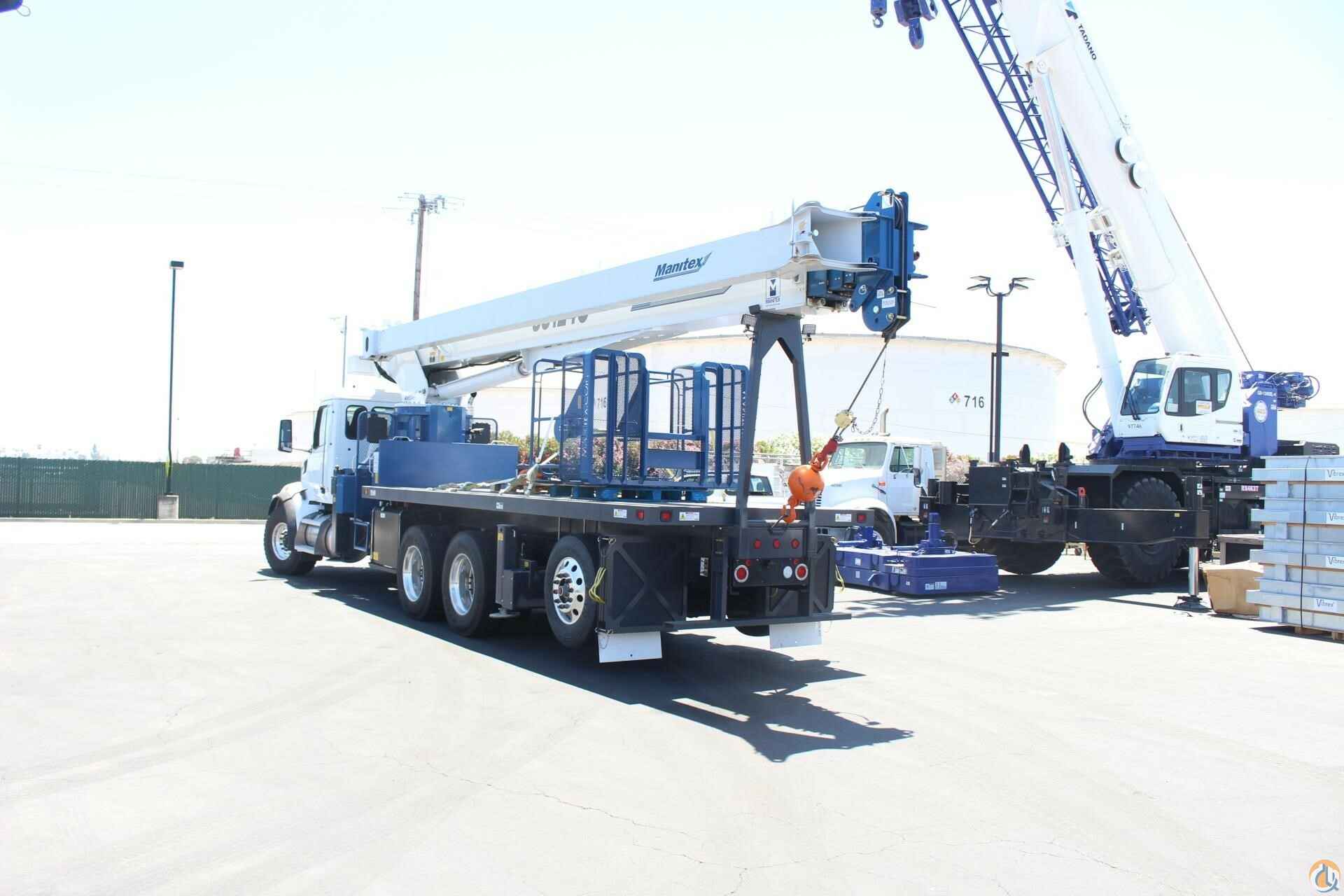

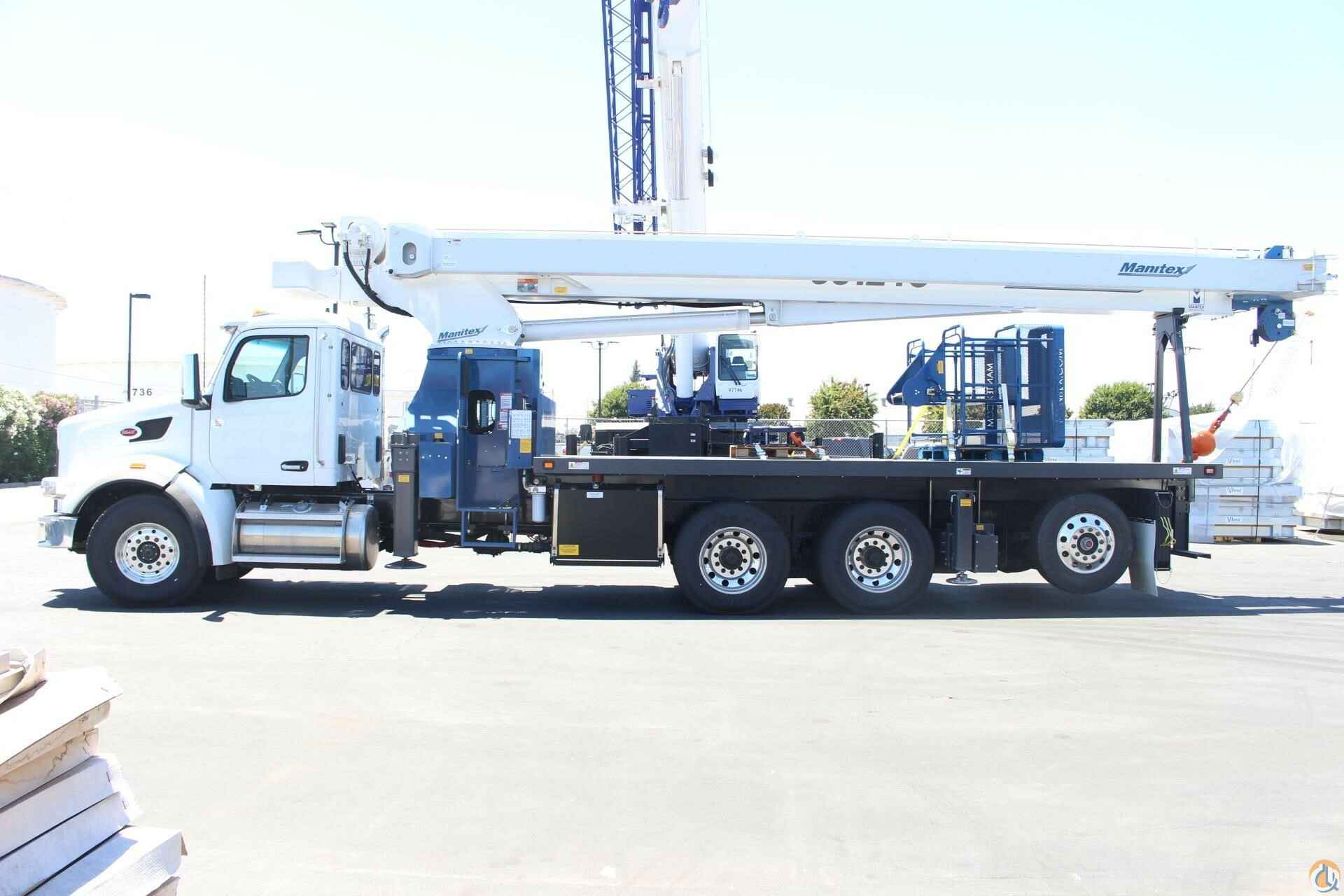

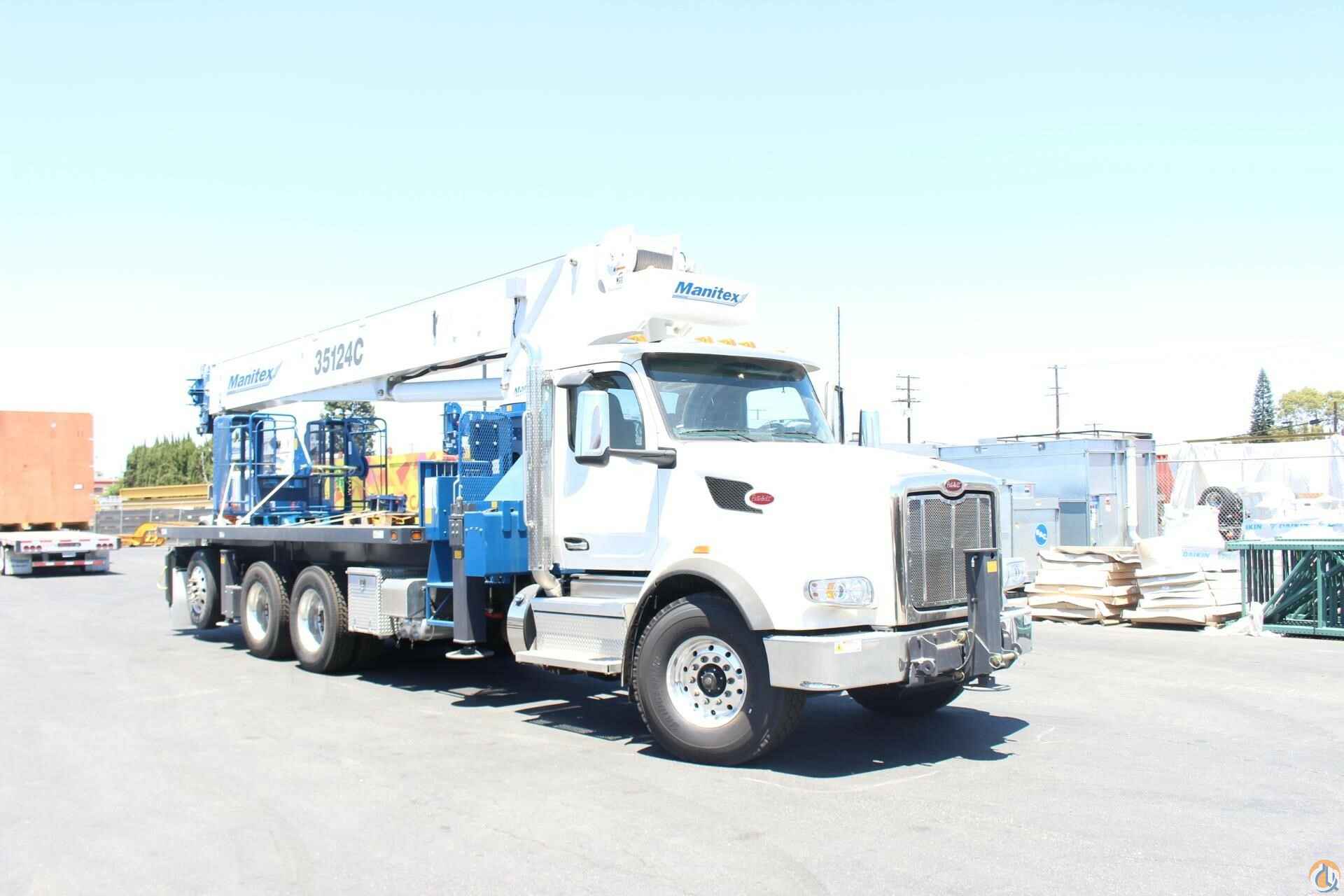

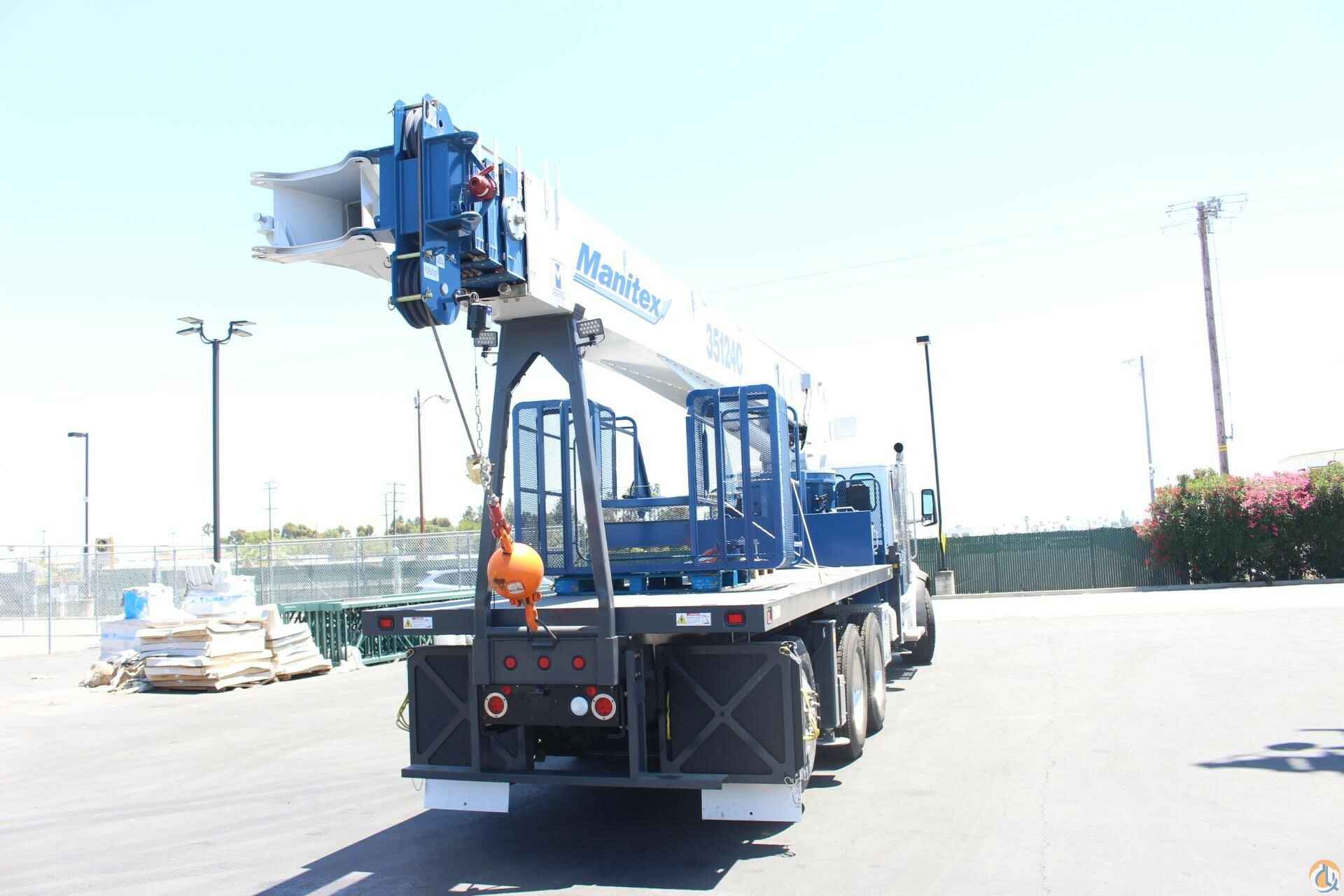

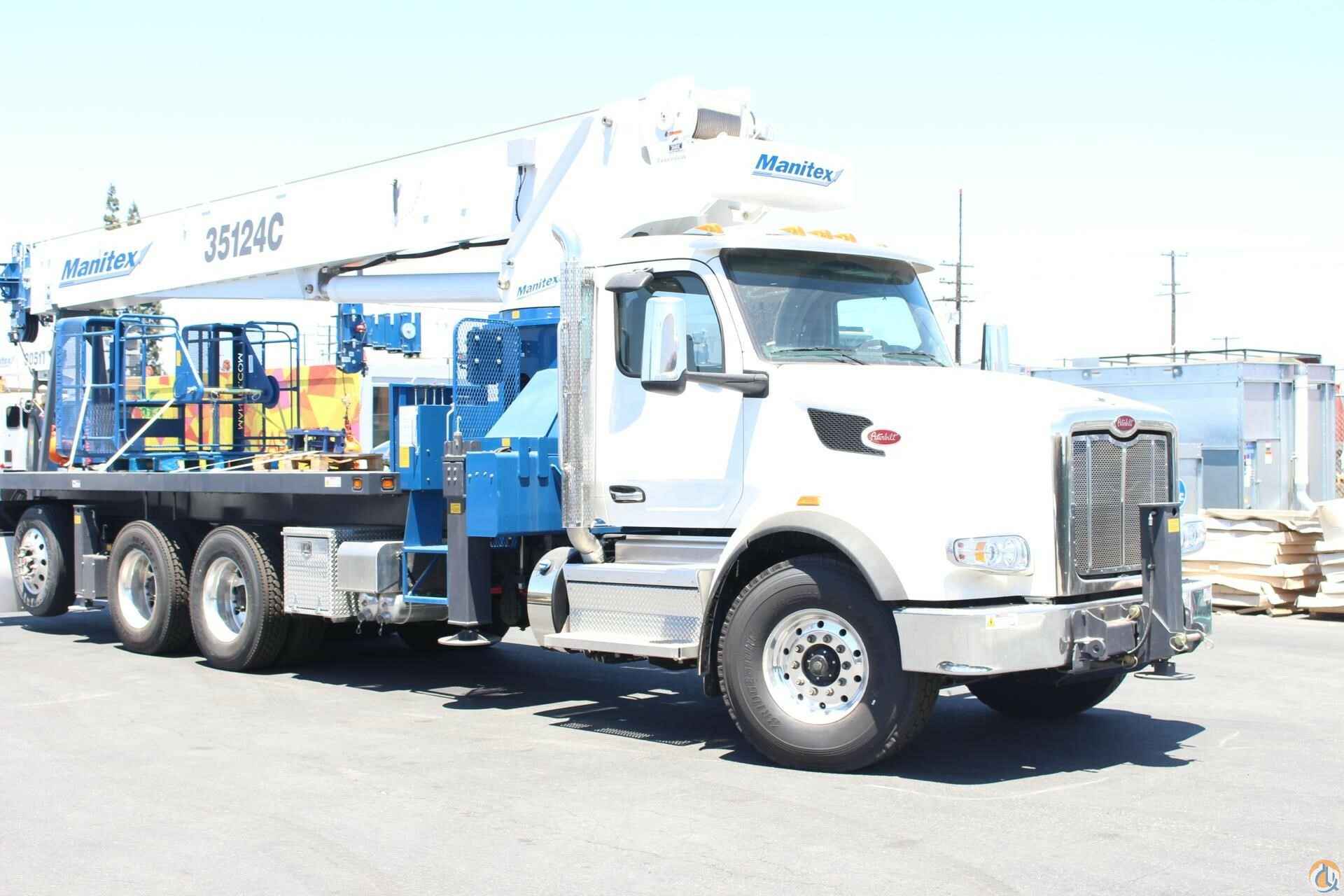

NEW MANITEX 35124C
35 TON CRANE
Standard features:
124’ Five-Section Telescopic Boom, 2-speed hoist with grooved drum, 7 ton hook and ball, , 3-Load Sheave Quick Reeve Boom Head, Radio Anti-Two Block Option, Normal Pedestal, Boom Hoist Cylinder, System Pressure Gauge, 372° Non Continuous Rotation, Removable Boom Rest, Engine Start/Stop, Operator’s Service/ Parts Manuals, Boom Length and Angle Indicators, Foot Throttle, Electronic Throttle, Signal Horn, Bubble Level, Beverage Cup Holders, 380’ of 5/8” rotation Resistant Wire Rope, 115 Gallon Reservoir w/Suction Strainer & Ball Valve, Pedestal, Turret, Rotation Bearing & Swing System, Dual Operator Control Stations, Can Bus Load Moment Indicator – Audio/Visual Alert w/Shutoff Hermetically sealed Printed Circuit Board Electrical System w/LED Circuit Status Indicators, Audible Outrigger/Stabilizer Motion Alarm, Out and Down Front Outriggers w/22’ Spread, 3-Section Vane Pump Counterclockwise Rotation is Standard, Subframe for 22’ Bed, Outrigger Monitoring System for Verification only.
Additional Options Included:
• 1 Piece 31’ Jib Radio
• 22’ Steel Bed with 1/8” thick Steel Thread Plate
• Hotshift PTO
• Heavy Duty Hydraulic Reservoir
• 15 Ton 1-Sheave Quick Reeve Block
• Front Center Stabilizer
• 24” Steel Bulkhead
• Wireless radio remotes.
• 2 Person Steel Basket
• 5 Crib Plates
• Control valve for operation of single stabilizer, Required w/FBS
• Aluminum Toolbox (48” x 24” x 24”) flatbed mount
MOUNTED ON 2023 PETERBILT 567
Mounted on a 2023 Peterbilt 567 tractor chassis with a PACCAR MX-13 510 HP @1600 diesel engine with an Allison 4500 RDS GEN 5 Transmission, Dana Spicer D2000F 20,000 lb. front axle, Meritor RT46-160 46,000 lb rear axle, Watson-Chalin SL13 13,500 lb. Tag Axle, Full set of Alcoa Aluminum Polished wheels, polished Aluminum 110 gallon fuel tank, Heater and air conditioner with defrosters, ConcertClass AM/FM/WB radio, and unit is painted Alcoa two-stage White.
