AVAILABLE DEC. 2025

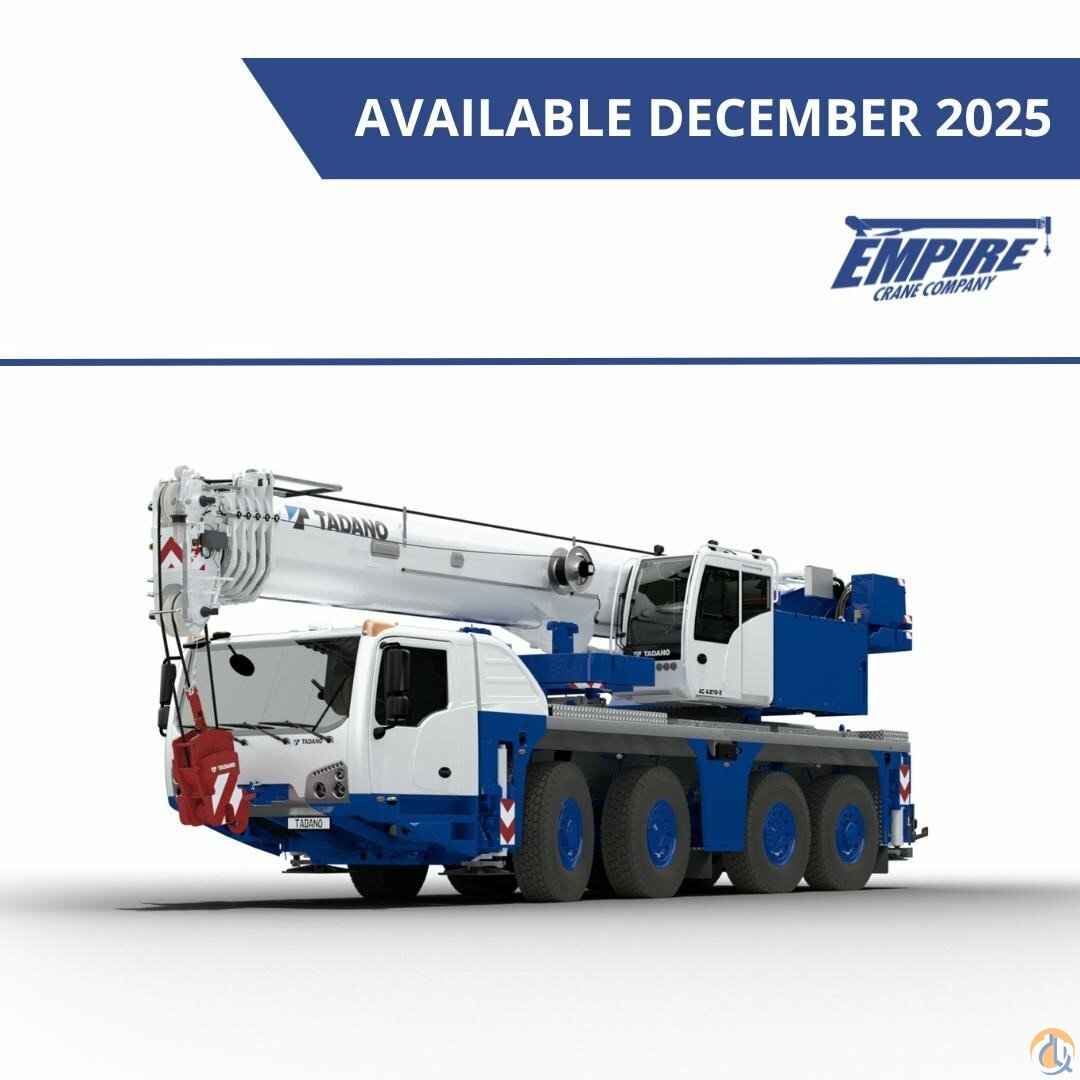

The AC 4.070-2 is the most compact crane of its class and raises the bar in many areas by having the best lifting capacities out there. Thanks to comprehensive equipment that comes as standard and a versatile range of accessories, it is well-suited not only for use as a versatile assist crane for setting up large cranes, but also for urban work site assignments.
MAX. CRANE CAPACITY: 75 USt
MAIN BOOM LENGTH: 34.1 ft – 164.0 ft
BOOM EXTENSION: 5.2 ft / 21.3 ft / 29.5 ft – 52.5 ft
MAX. TIP HEIGHT: 223.0 ft
MAX. COUNTERWEIGHT: 26,200 lbs
OUTRIGGER BASES: 26.5 ft x 21.3 ft
HOIST LINE PULL: 15,040 lbs
MAX RADIUS: 137.8 ft
DIMENSIONS: L: 38.4 ft W: 8.4 ft H: 12.4 ft
AXLES: 4
ENGINE: Mercedes-Benz
DRIVE: 8 x 4 x 8 (8 x 6 x 8)
