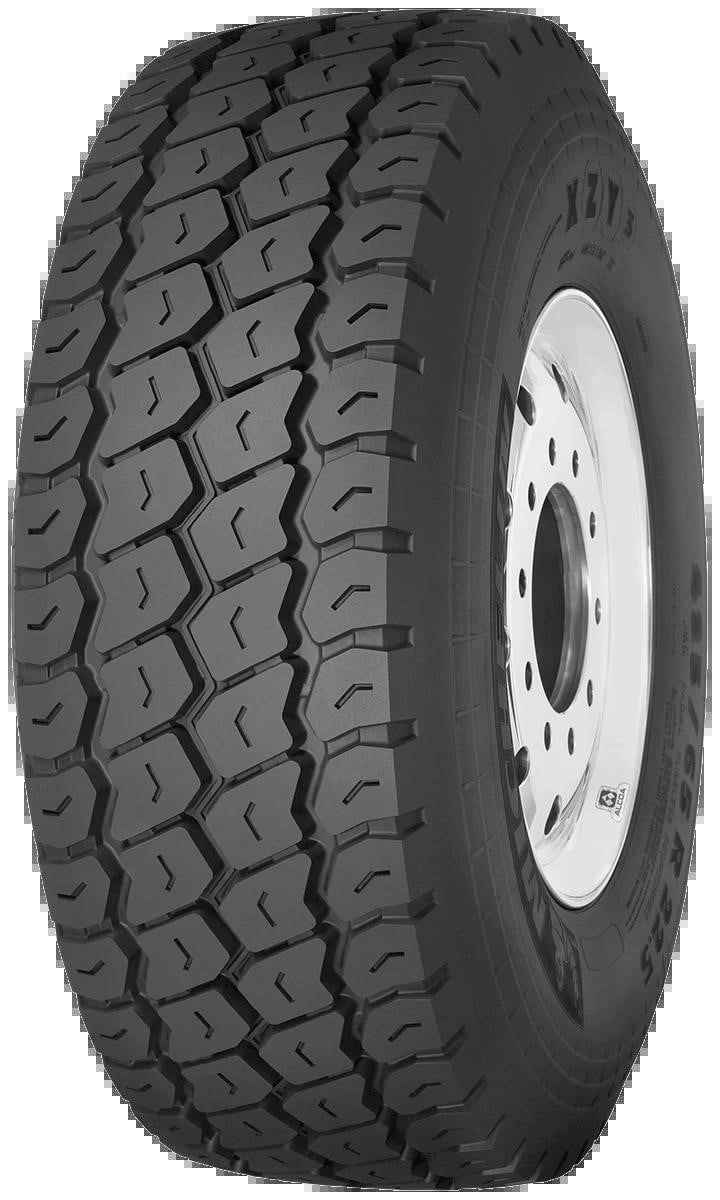

STOCK PHOTO USED Fits Magni Telehandlers 1. Thick Tread Volume Long Tread Life – Delivers increased mileage and improved durability: +5% in tread width, +3% in tread depth, +4% in net contact area vs. Michelin XDY-2 tire. 2. Full-Width Elastic Protector Ply Casing Durability – Helps protect the working plies from bruising and penetrations, and downtime. 3. Circumferential Grooves Driver Confidence – Excellent wet traction throughout the tread life. 4. Optimized Tread Design Driver Confidence – Promotes excellent traction in soft soil and mud. 5. Rectangular Bead Bundle Casing Durability – Simulates a solid steel rod "strapping" the tire onto the wheel. This design stabilizes the entire bead region and minimizes fatigue in order to extend casing life. Size: 445/65R22.5 Load Range: L Catalog Number: 83691 Tread Depth: 23 32nds Max. Speed: 65 mph/105 kph Loaded Radius: 21.1 in./536 mm Overall Diameter: 45.8 in./1164 mm Overall Width: 17.8 in./451 mm Approved Wheels (Measuring wheel listed first.): 14.00, 13.00 Revs Per Mile: 455 Max. Load and Pressure Single: 12800 lbs./130 psi/5800 kg/900 kPa
