Condition: New
Serial #: GS550
Unit #: GS550
Part #: GS550-00
Location:
ON SALE - Click Here for Pricing, Brochures, and Specifications

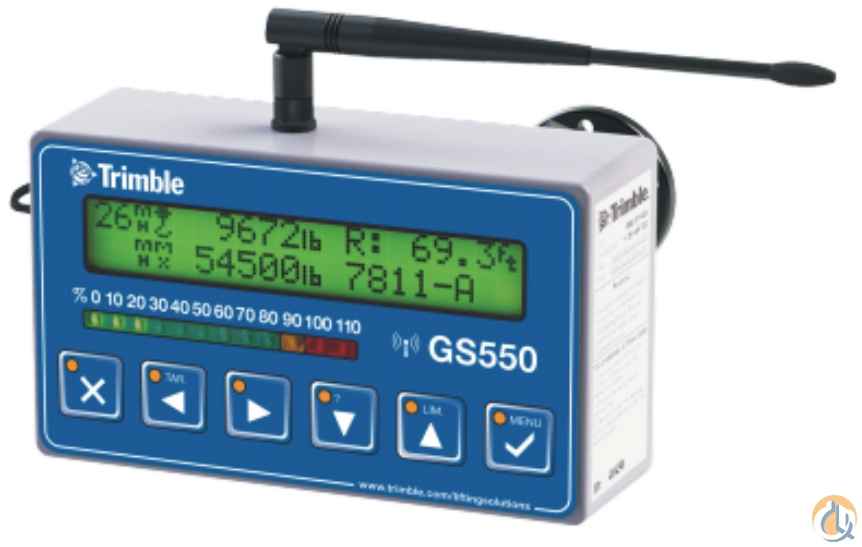

The LSI Trimble GS550 display serves as the backbone of the wireless crane warning system. The unit integrates both the display and operator interface as well as the computer that manages all the sensors and monitors the crane load chart. The Trimble GS550 console utilizes direct sequence spread spectrum two way communication to reliably monitor up to 32 sensors in the harshest radio frequency environments with a reception range up to 4,300 feet. A 6"long sunlight readable 2 line LCD display allows the operator a simple yet comprehensive overview of crane operations.
- Monitors up to 32 sensors simultaneously
- Direct Sequence-Spread Spectrum-Two Way Communication
- Reception range: 4,300 feet / 1,300 meters
- User settable limits and alarms for each installed sensor
- USB port allows uploading of load charts or download of data logger content to USB drive
- Operators can set up to 99 parts of line
- Operating Temperature: -29F to +122F / -20C to +50C
- Ram mounting bracket
- 6" long, sunlight readable 2 line x 20 character per line LCD Display
- Display will data log up to 15,000 events (Events can include: out of limit alarms, productivity data, etc.)
- Data log content can be downloaded via a USB drive from the onboard USB port
- Sensors automatically stop transmitting 5 minutes after the display is turned off to preserve sensor battery life
- Diagnostic mode
- Listening mode option for remote sensor monitoring
- The display will trip function lockouts on cranes with installed solenoid valves when limits are exceeded
It can start as a basic Wind Speed, Anti Two Block, Load, or Boom Length Angle system, or can be utilized as a full rated capacity indicator, monitoring load charts. All communication between LSI sensors and the GS550 Display is wireless. This innovative technology eliminates cables and costly installation charges. Wireless communication will help you avoid expensive and time consuming troubleshooting of cable breaks, junction boxes and more. The GS550 is a “plug and play” product. If there is a sensor failure, the system immediately informs the operator of the location of the issue. 99 percent of the time the operator can resolve the problem, which eliminates the need to have an on-site technician. Should you ever need to replace a sensor, the new sensor’s ID will automatically replace the old ID in the display. This only takes a few seconds to complete. The GS550 Display will trip function lockouts on cranes with installed solenoid valves when limits are exceeded. Each application has different requirements for system security. The GS550 offers you the ability to easily set password restrictions for all key operating aspects of the system. In addition, the display has a supervisor password level. This extra level of security allows only a supervisor to access restricted areas of the display. The GS550 Display offers users one of the best sunlight readable displays found in the market today, if you wear polarized lenses, the display readability is unparalleled. Each GS550 Display ships standard with a built in data logger that can monitor up to 16,000 events. Data is downloaded with the onboard USB port to a USB drive. You can also utilize the USB port to upload load charts via a USB drive. The display can store over 3,500 pages of load charts
