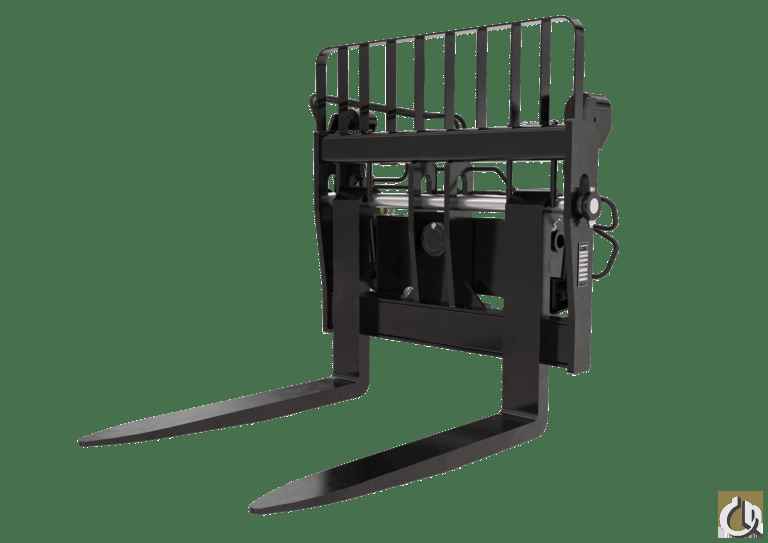

*Stock Image. Not Actual Attachment
One (1) New 2024 Floating Forks with Hydraulic leveling 11,000lbs Capacity for the MRT Vision & Vision Plus Series Rotating Telehandler Equipped As Shown Below:
TECHNICAL CHARACTERISTICS
- Pin-type floating forks.
- Hydraulic leveling (+/- 10 deg)
- Max. fork spread 1180 mm (external fork edge)..
- Distance to center of gravity (in): 1’ 4”
CAPACITIES
- Capacity (lb): 11,023 lbs.
WEIGHT
- Overall weight: 1,389 lbs.
WEIGHT & DIMENSIONS
- Overall height (in): 4’4”
- Overall length (in): 5’7”
- Overall width (in): 4’4”
WORKING PARAMETERS
- Fork spread minimum (in): 3’10”
MACHINE CAMPATIBILITY
- MRT 2260, MRT2570, MRT2660, MRT3060, MRT3570
