4 Axle Boom Dolly Boom Dolly Part for Sale

NOW WITH PATENT-PENDING REVERSE STEERING!! Call for Details!

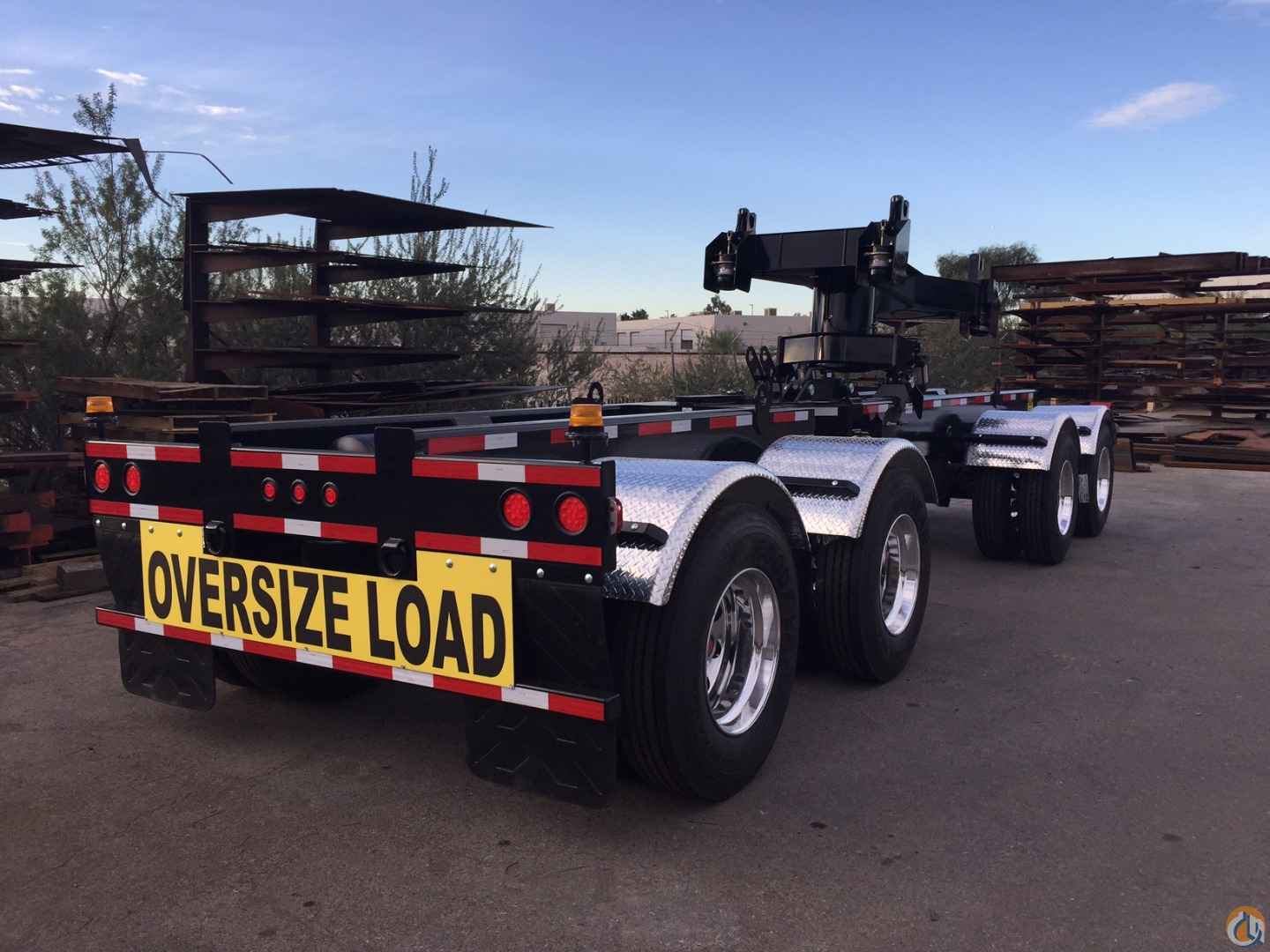

Our four axle dolly line can be configured to suit a number of all terrain cranes. The dolly frames are fabricated almost entirely from steel tube, ensuring maximum strength and support while minimizing overall tare weight. The boom support tower is engineered for simplified loading with quick, safe, and secure coupling. Most importantly, they include patented features that prolong tire life, improve turning radius, and minimize torque pressure to the boom during travel.

FRAME: Heavy duty articulating, ASTM A500-grade tubing.

TOWER: Robust tube mast with air-actuated fore-aft pivot adjustment. User-friendly air locking engagement pins.

AXLE(S):1. Self-steering, air lock out, 23,000 LB

2: Straight, 22,500LB

3: Force-steering, 22,500LB

4: Force-steering, 22,500LB

SUSPENSION:Heavy duty air-ride.

BRAKES: 16.5”x7” S cam air brakes on all axles, spring override chambers on three axles.

WHEELS: 22.5” x 8.25”. Inners: white powder-coated steel. Outers: Alcoa polished aluminum. Spare Tire Included.

FENDERS: Bolt-on, polished aluminum diamond plate.

AIR SYSTEM: Conforms to current DOT standards.

PAINT: Dolly painted or powder coated per customer specified color(s).

ELECTRICAL: LEDs for clearance, signal, and brake lighting with 7-pin connection standard.

OPTIONAL: Tool Box, Rear Backup Camera, Spreader Bar Mounts, Customer requested features
