3-Axle Boom Dolly Boom Dolly Part for Sale

NOW WITH PATENT-PENDING REVERSE STEERING!! Call for Details!

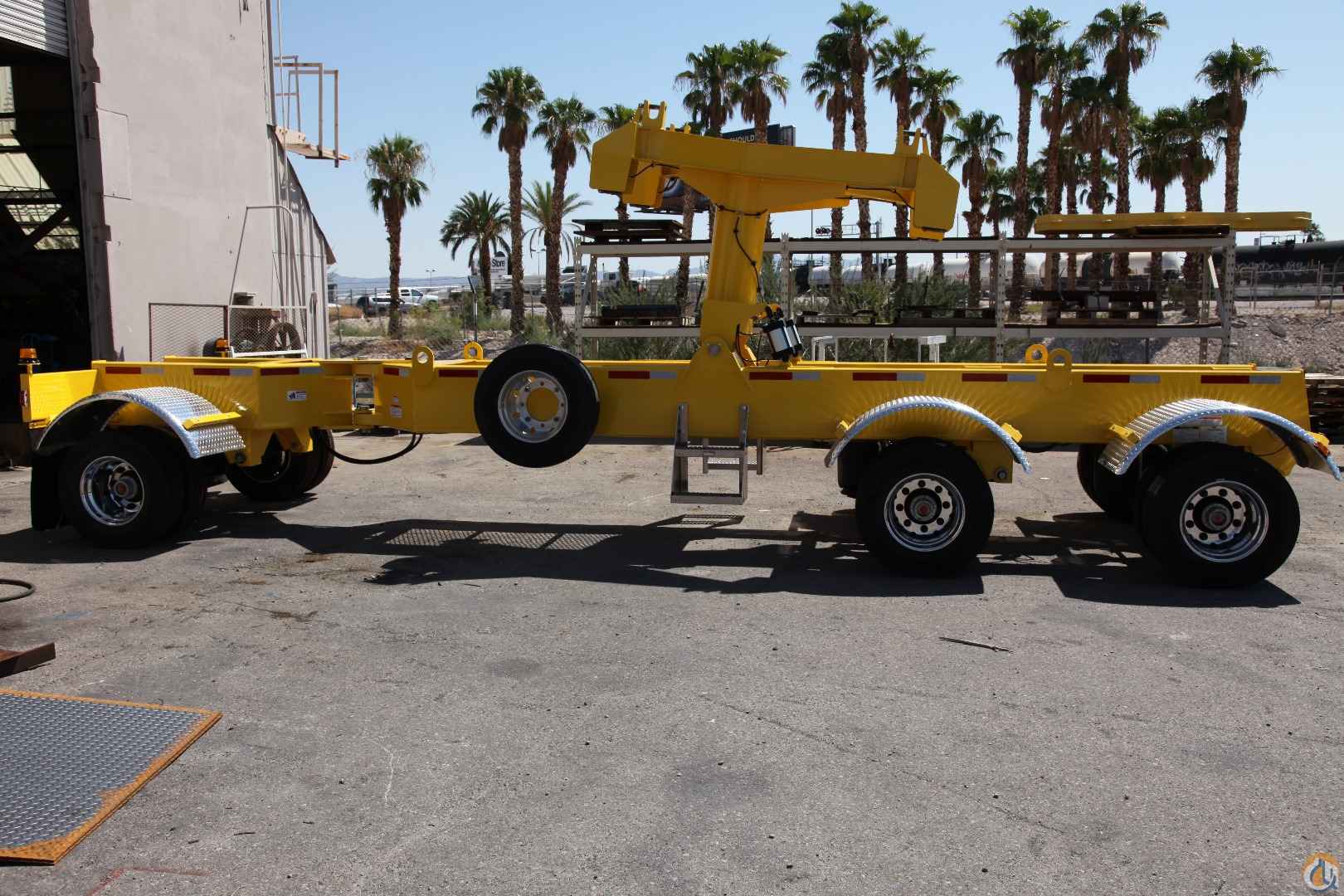

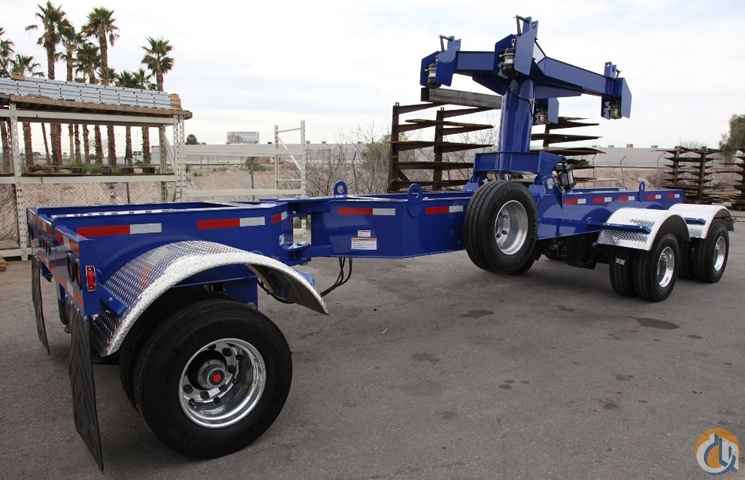

Our 3-axle dolly line can be configured to suit a number of all terrain cranes. The dolly frames are fabricated almost entirely from steel tube, ensuring maximum strength and support while minimizing overall tare weight. The boom support tower is engineered for simplified loading with quick, safe, and secure coupling. Most importantly, they include patented features that prolong tire life, improve turning radius, and minimize torque pressure to the boom during travel.

FRAME:Heavy duty articulating with air lock out, ASTM A500-grade tubing

TOWER:Robust tube mast with air-actuated fore-aft pivot adjustment. User-friendly air locking engagement pins.

AXLE(S) 1: Self-steering, air lock out, 23,000LB

2:Straight, 22,500LB

3:Force-steering, 22,500LB

SUSPENSION:Heavy duty air-ride.

BRAKES:12.25” x 7.5” S cam air brakes on all axles, spring override chambers on two axles.

WHEELS:17.5” x 6.75” with 8-stud x 275mm pattern. Inners: Alcoa spun aluminum Outers: Alcoa polished aluminum. Spare Tire Included.

FENDERS:Bolt-on, polished aluminum diamond plate.

AIR SYSTEM:Conforms to current DOT standards.

ELECTRICAL: LEDs for clearance, signal, and brake lighting with 7-pin connection standard.

OPTIONAL: Tool Box, Rear Backup Camera, Spreader Bar Mounts, ABS, customer requested features
