Stock Image. Not Actual Equipment

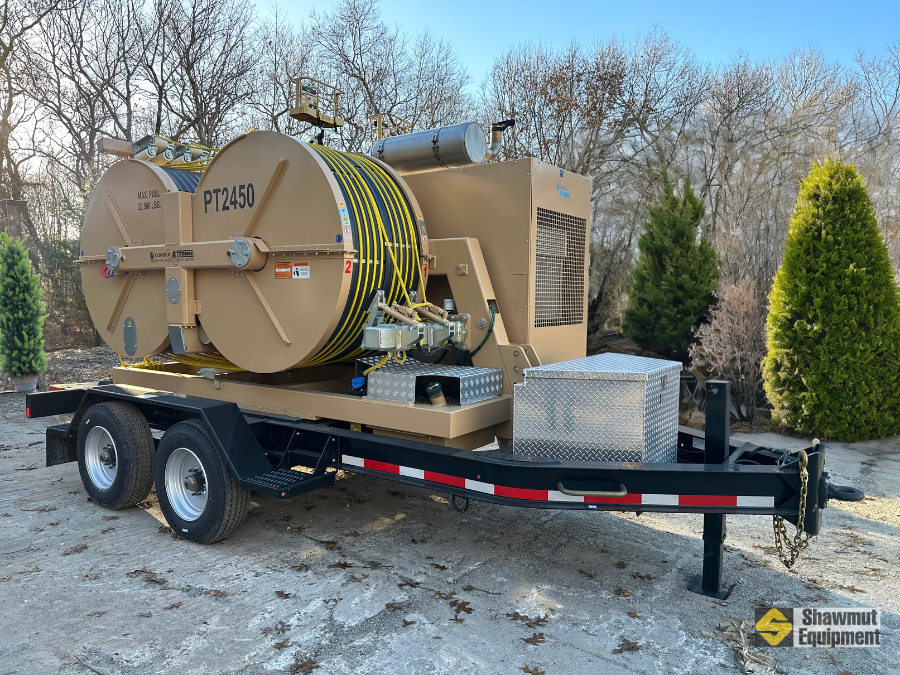

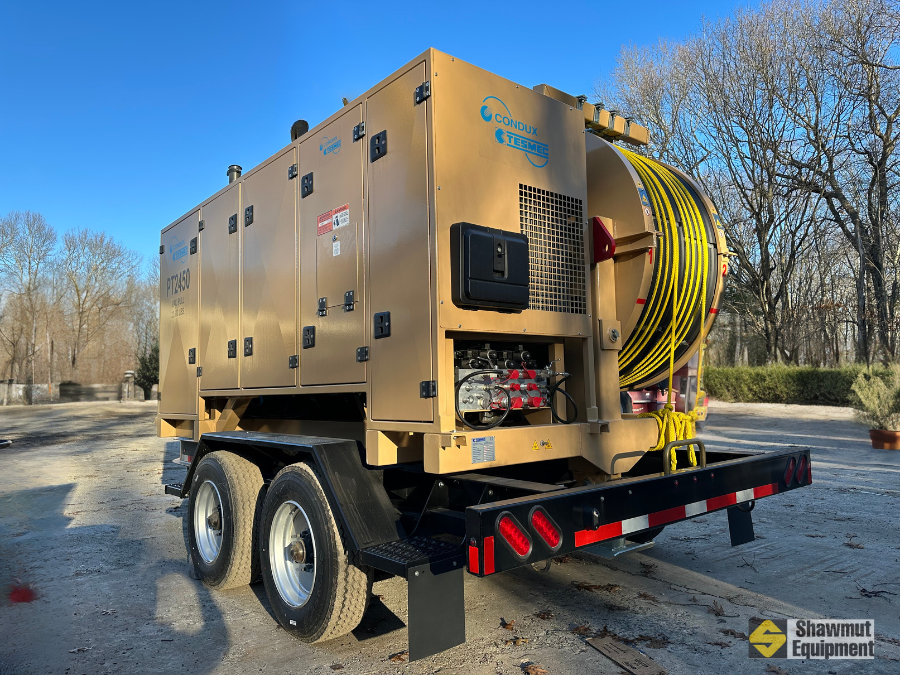

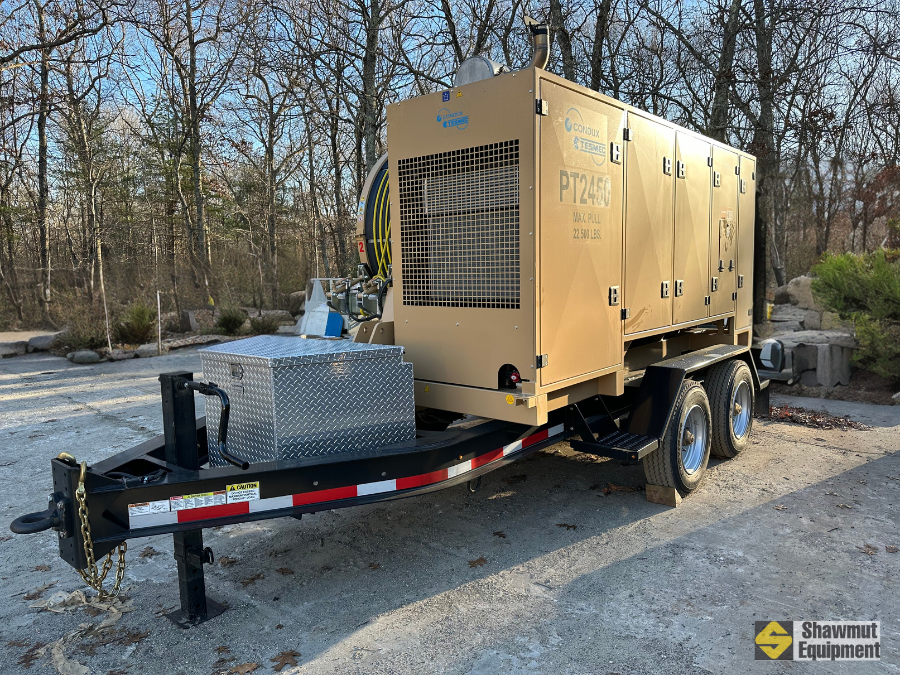

One (1) 2023 Condux Tesmec PT2450, S/N: 10802, Hydraulic Puller – Tensioner, Equipped As Shown Below:
-New digital HMI provided with:
-Color 7-in. display.
-Integrated pull and speed recorder.
-Remote diagnostic with GPS data recorder.
-Radio remote control.
-Negative self-acting hydraulic brake.
-Hydraulic oil cooling system.
-Hydraulic quick connectors to control 2 separate reel stands/winders.
-Electronic arrangement for connection of multiple machines and for stringing synchronization.
Gearbox with -3 operating positions:
-Neutral position (with free bull-wheels for conductor loading and unloading).
-Low tension position 450 – 2,700 lbs (2 – 12 kN).
-Nominal tension position 1,800 - 11,240 lbs (8 - 50 kN).
-Hydraulic front and rear stabilizer.
-Grounding connection points.
-Hydraulic rope clamp for reel change operations.
-Automatic greaser.
-Max pull 2 x 11,240 lbf (50 kN)/1 x 22,480 lbf (100kN).
-Speed at max pull/tension 1.25 mph (2 km/h).
-Max speed 3.1 mph (5 km/h)
-Pull/tension at max speed 2 x 4,500 lbf (20 kN).
-Bull-wheel diameter 59 in (1,500 mm).
-Max conductor/rope diameter 15/8 in (42 mm).
-Number of grooves per side 5 & 5.
-Diesel 140 hp (105 kW)
-Emission Level tier 4f/Stage IV Diesel Engine.
-Cooling system liquid.
-Electrical system 24 V.
-Hydraulic Transmission: Closed Hydraulic with a Pull Presetting System that Automatically Adjusts Pulling Speed.
-DOT Weight (w/rope) 20,100 lbs (9,120 kg).
-Overall Length 233 in (5,918 mm).
-Overall Width 102 in (2,591 mm).
-Height 121 in (3,073 mm).
