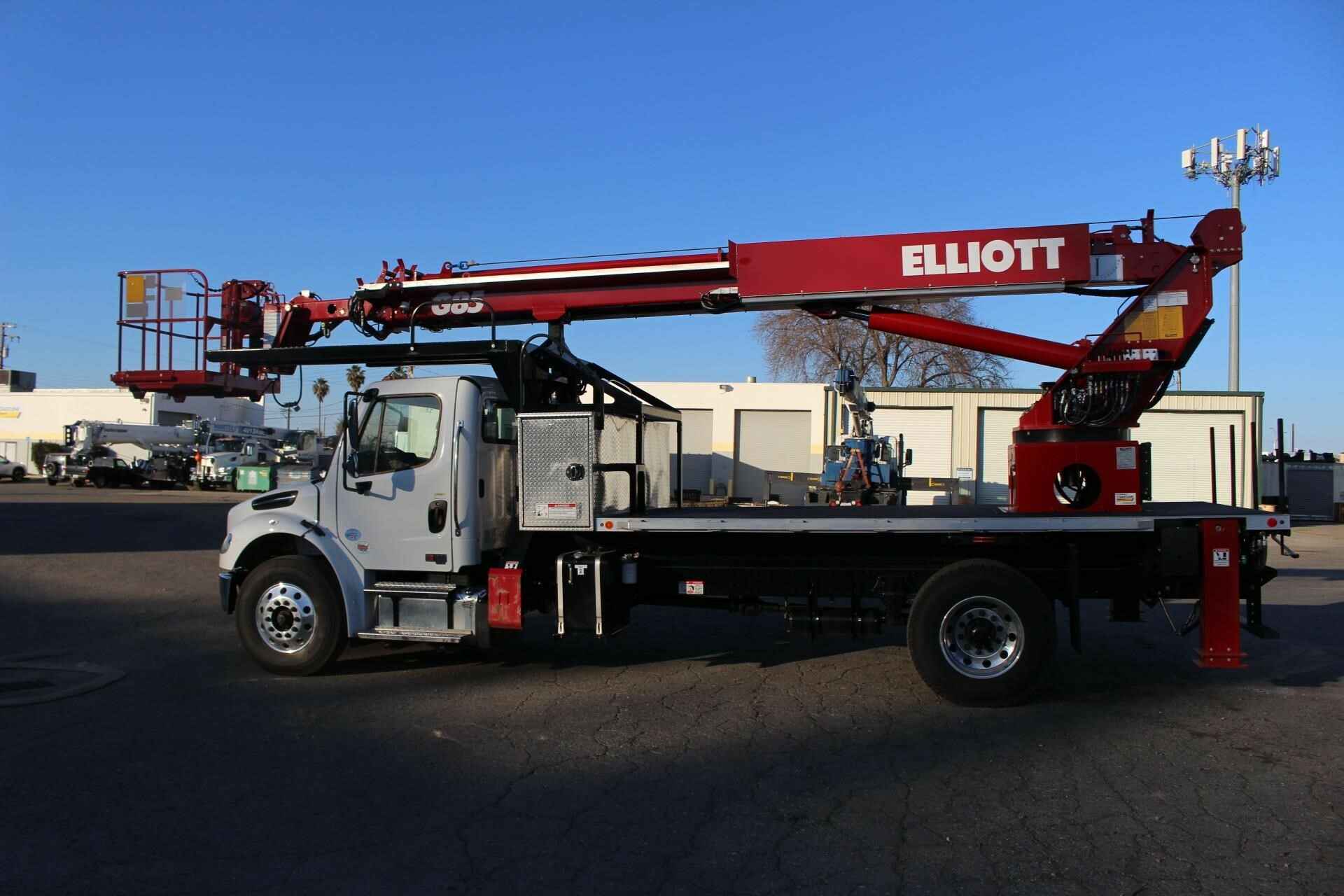

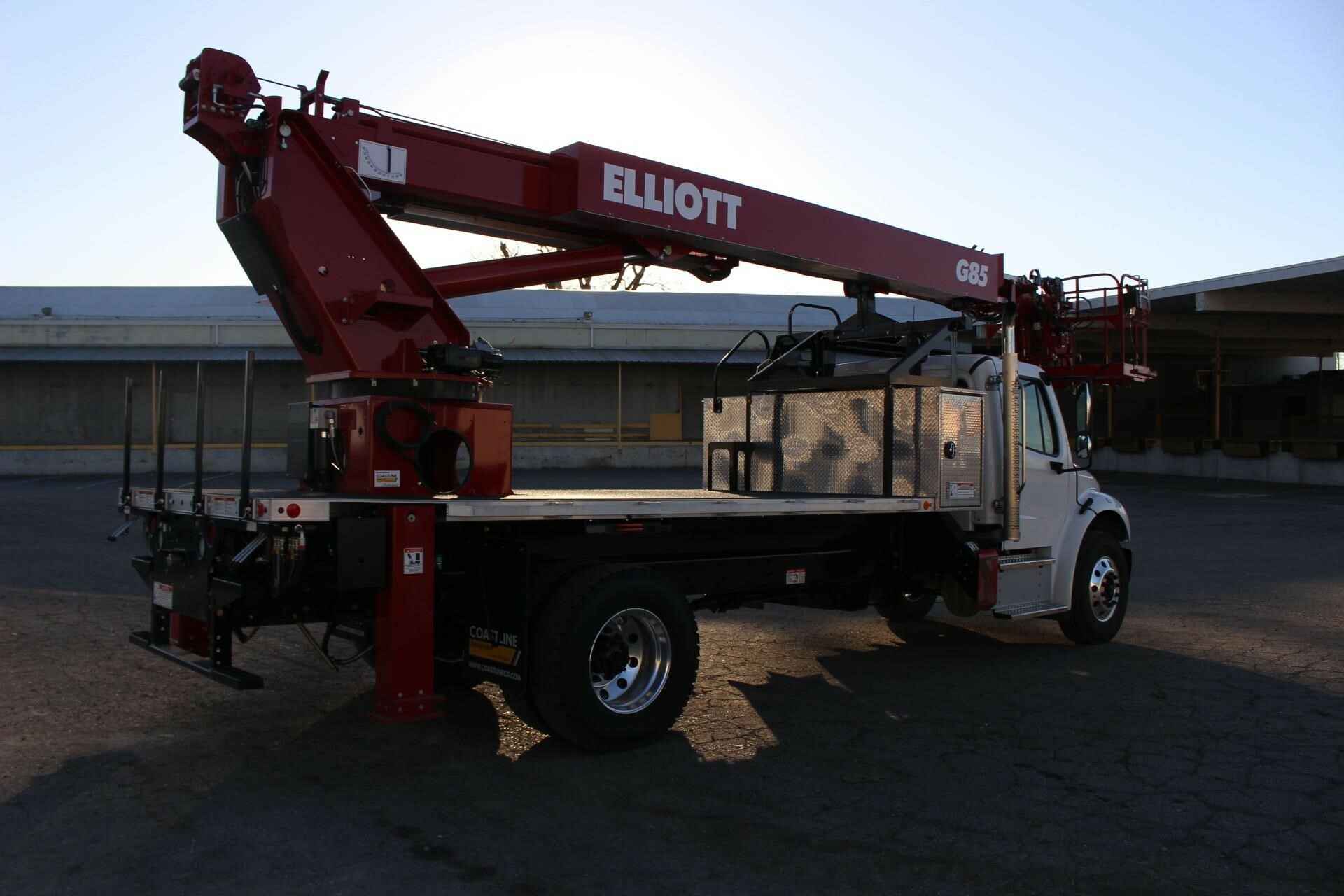

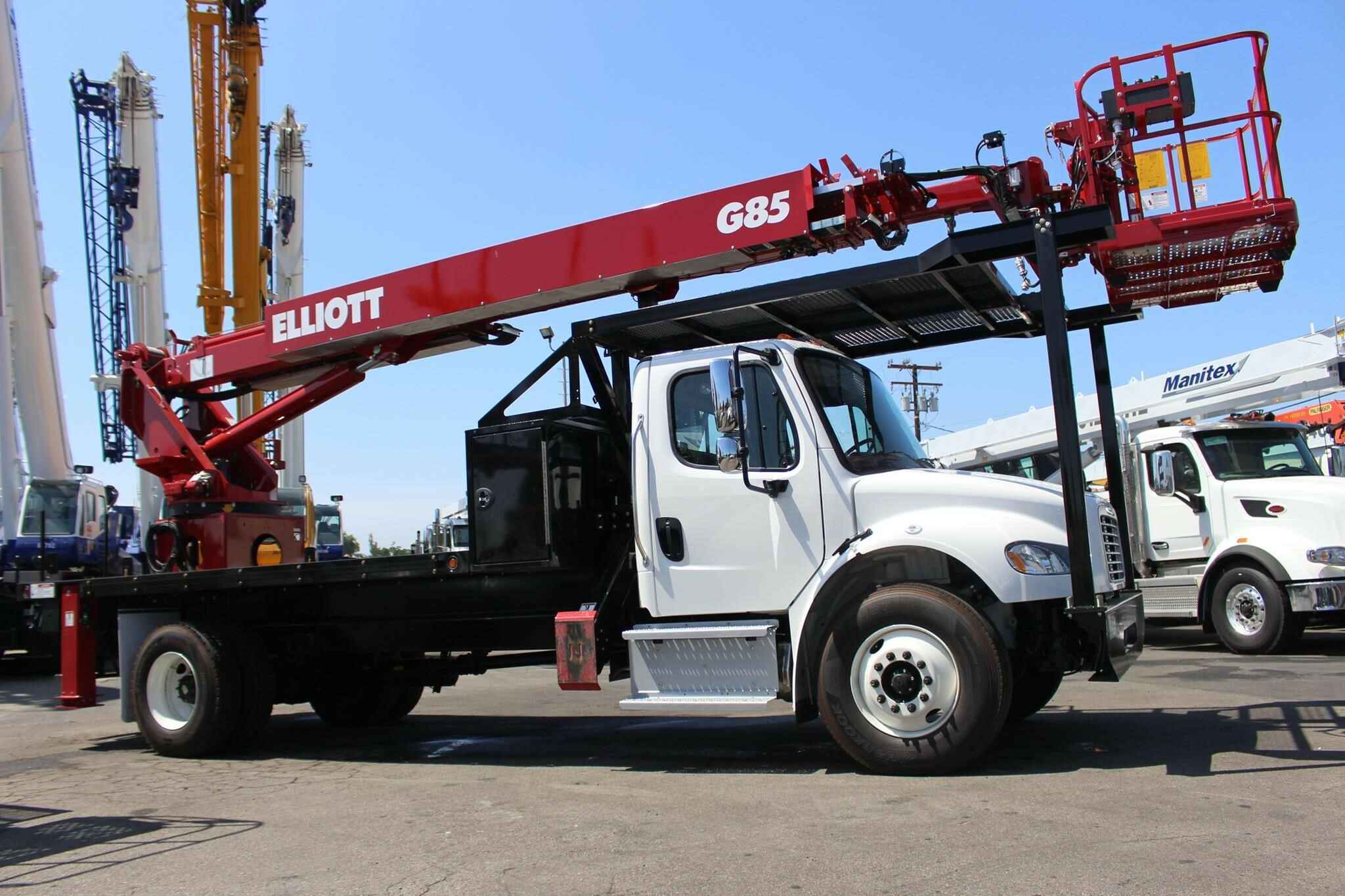

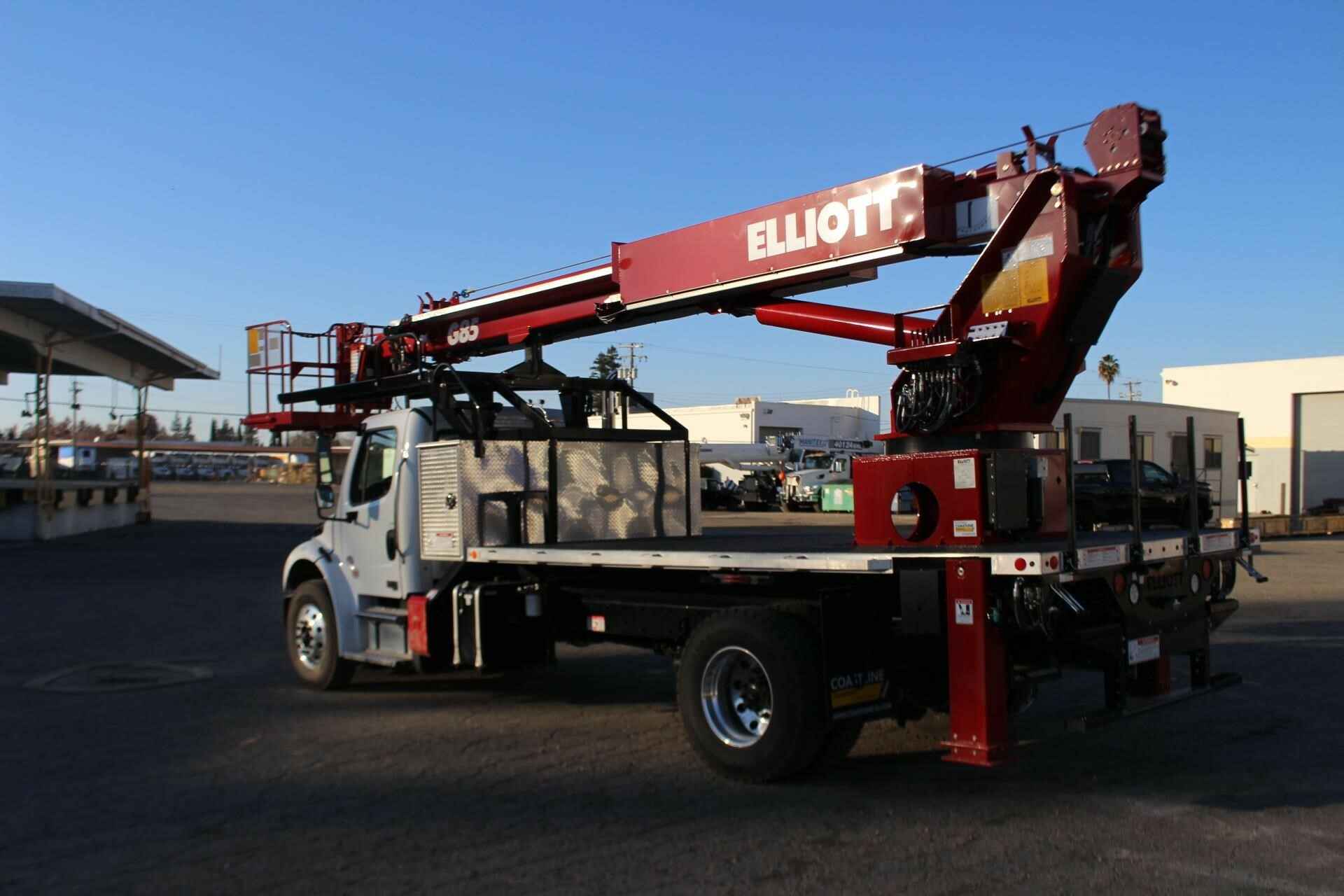

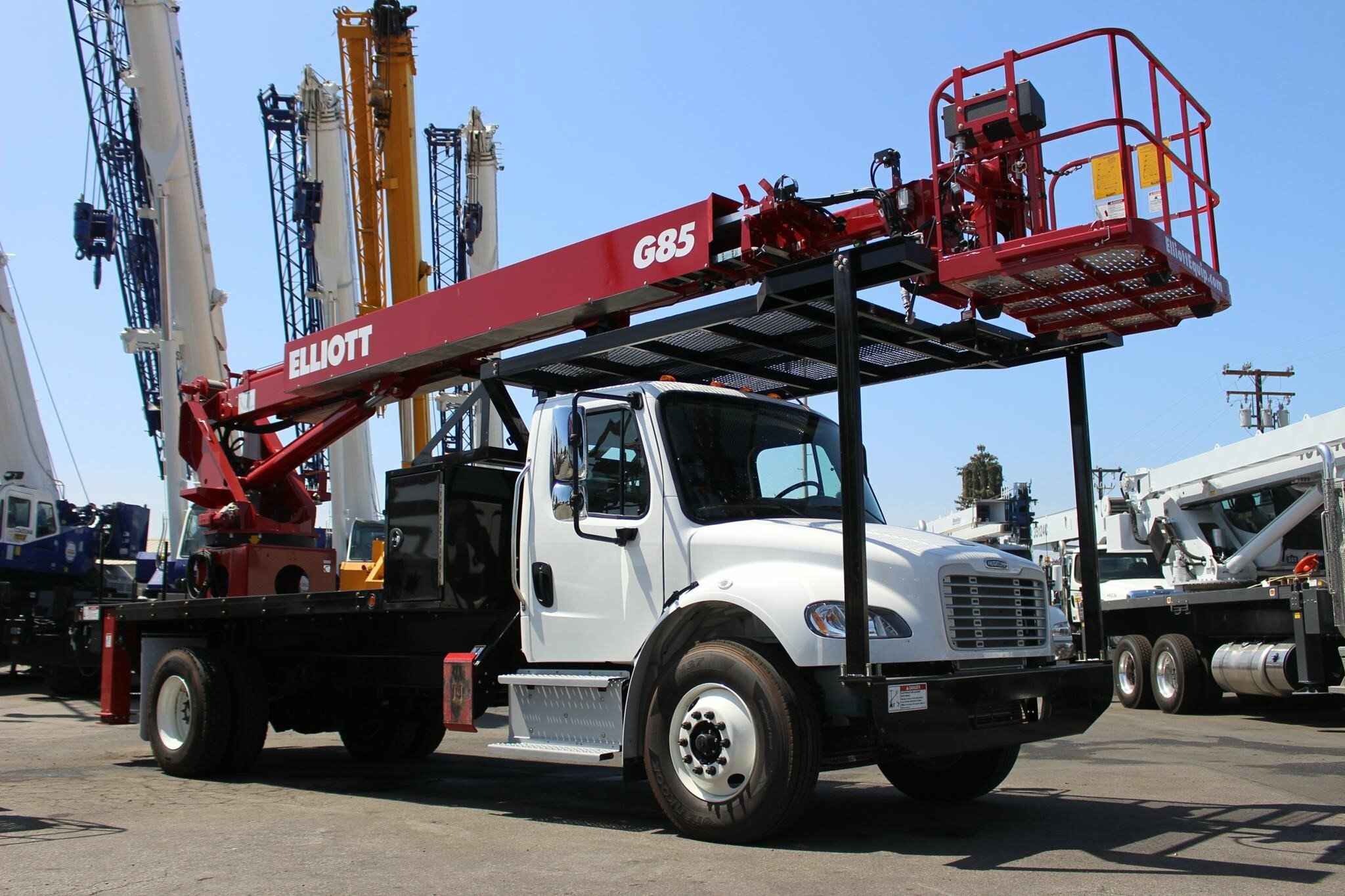

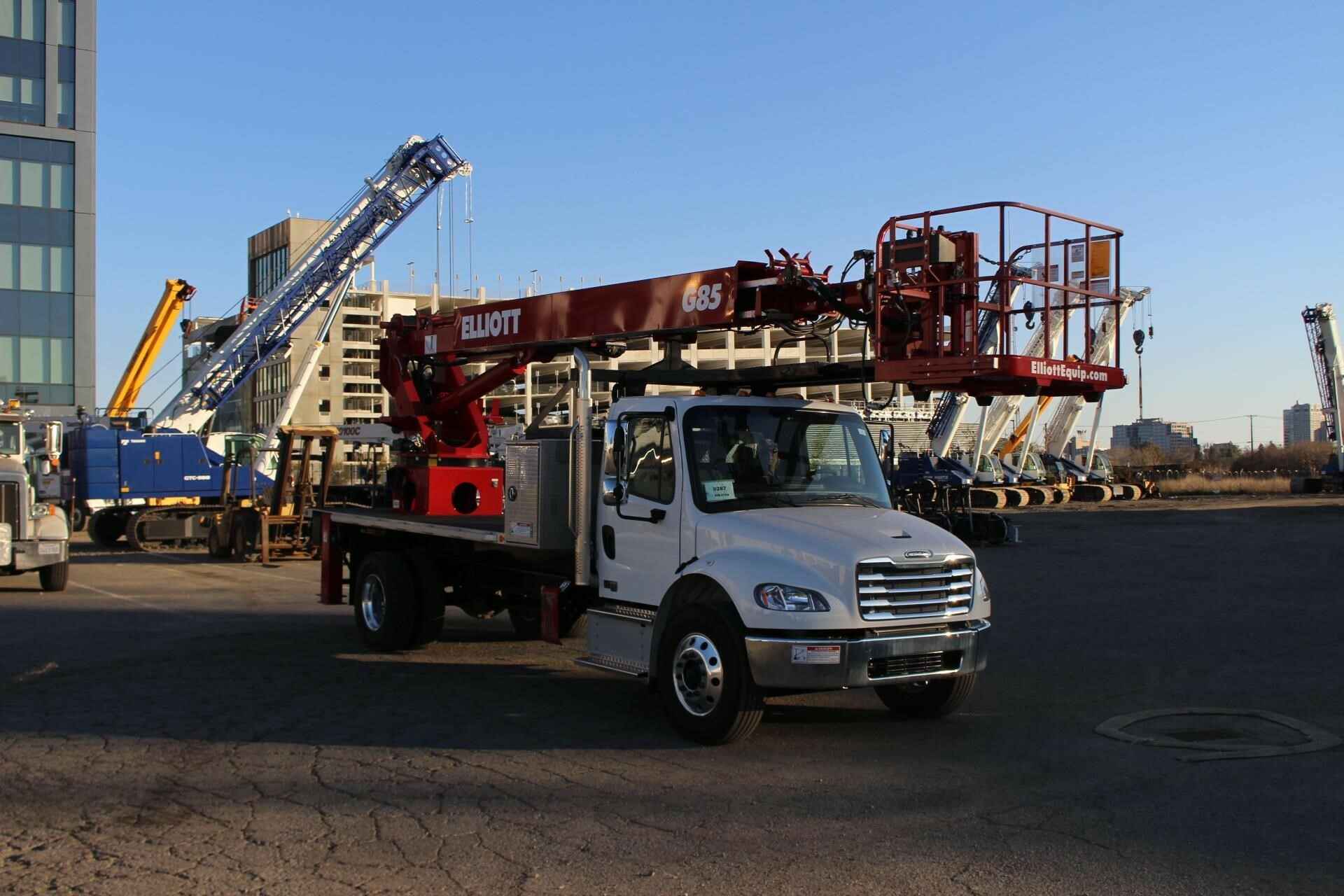

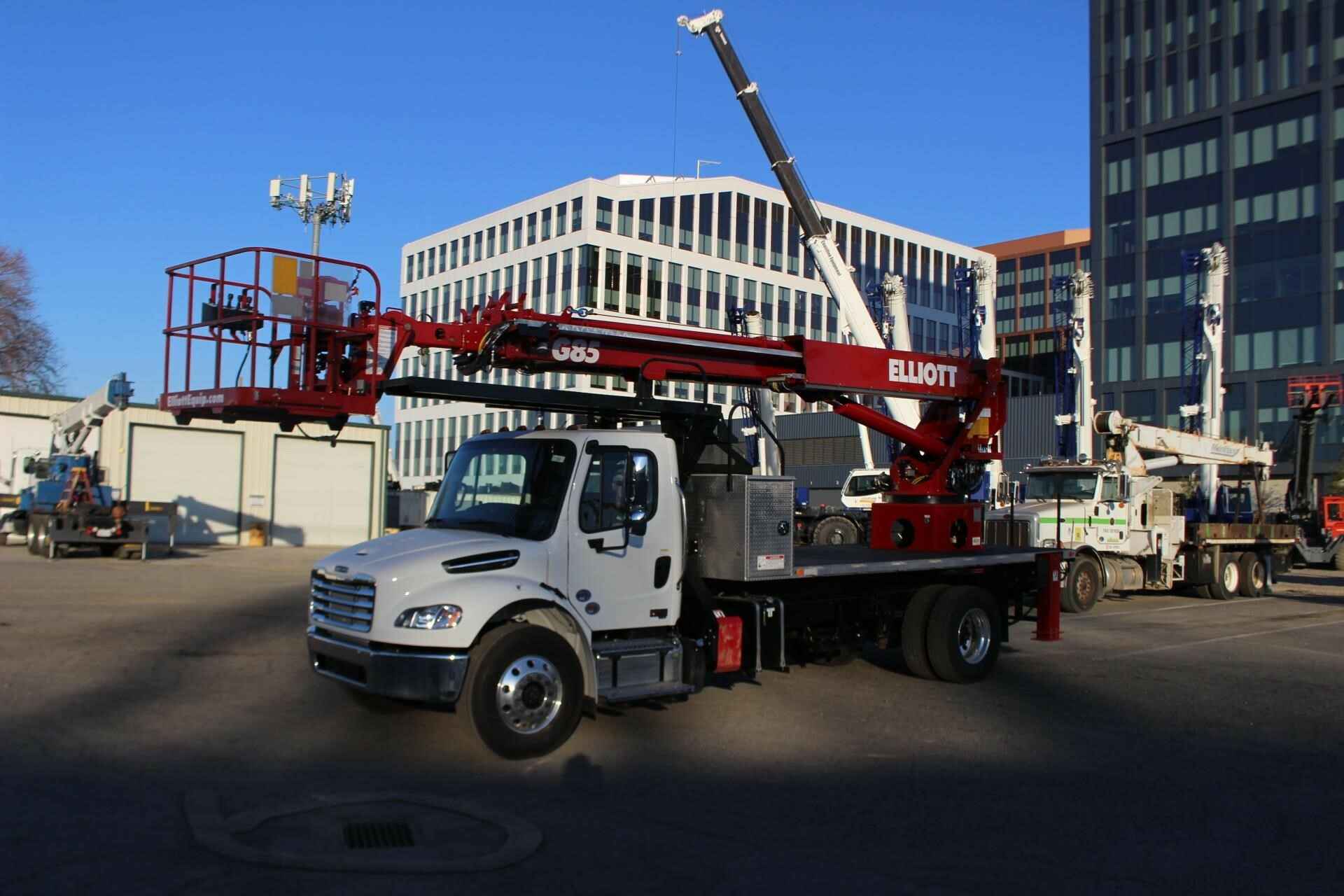

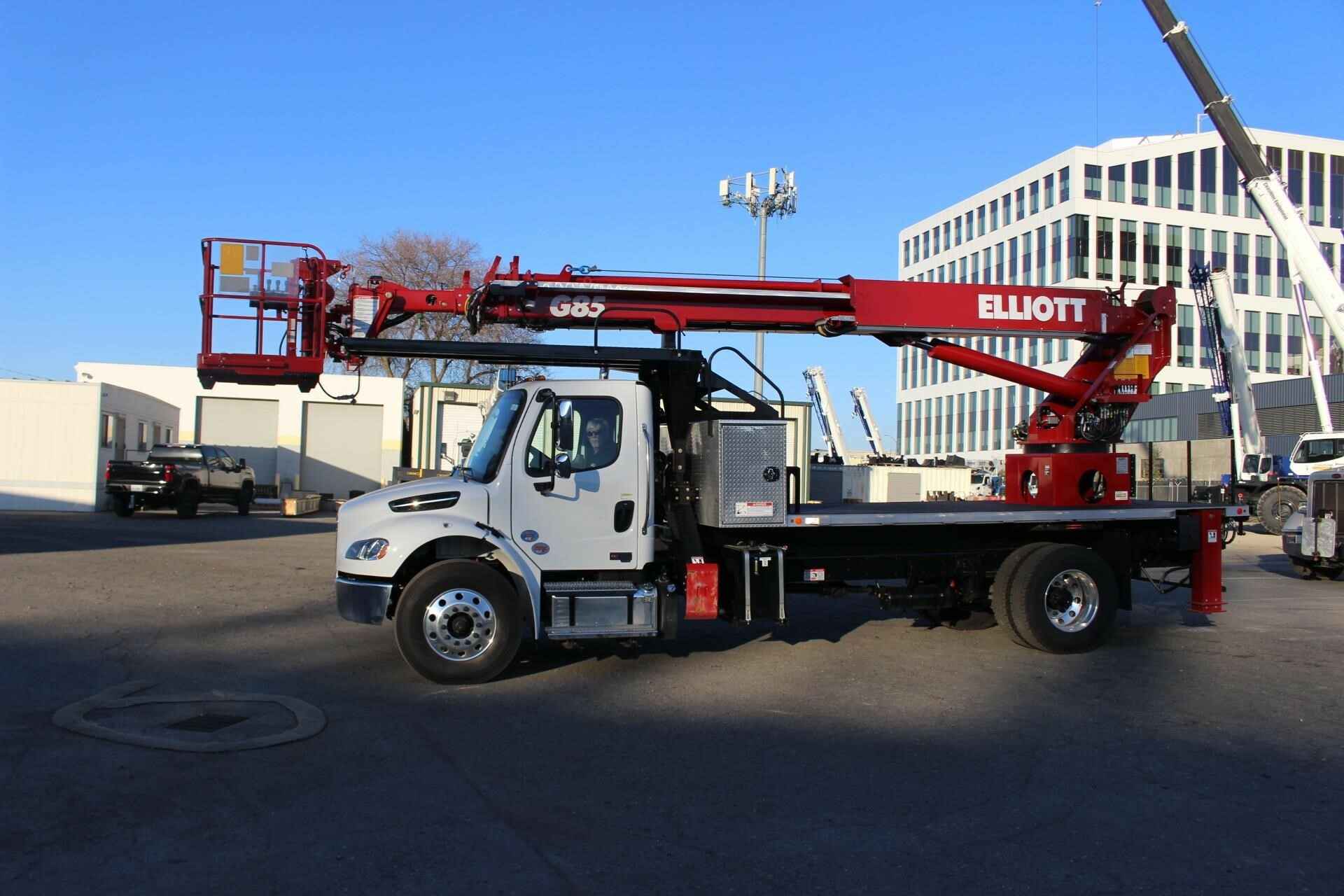

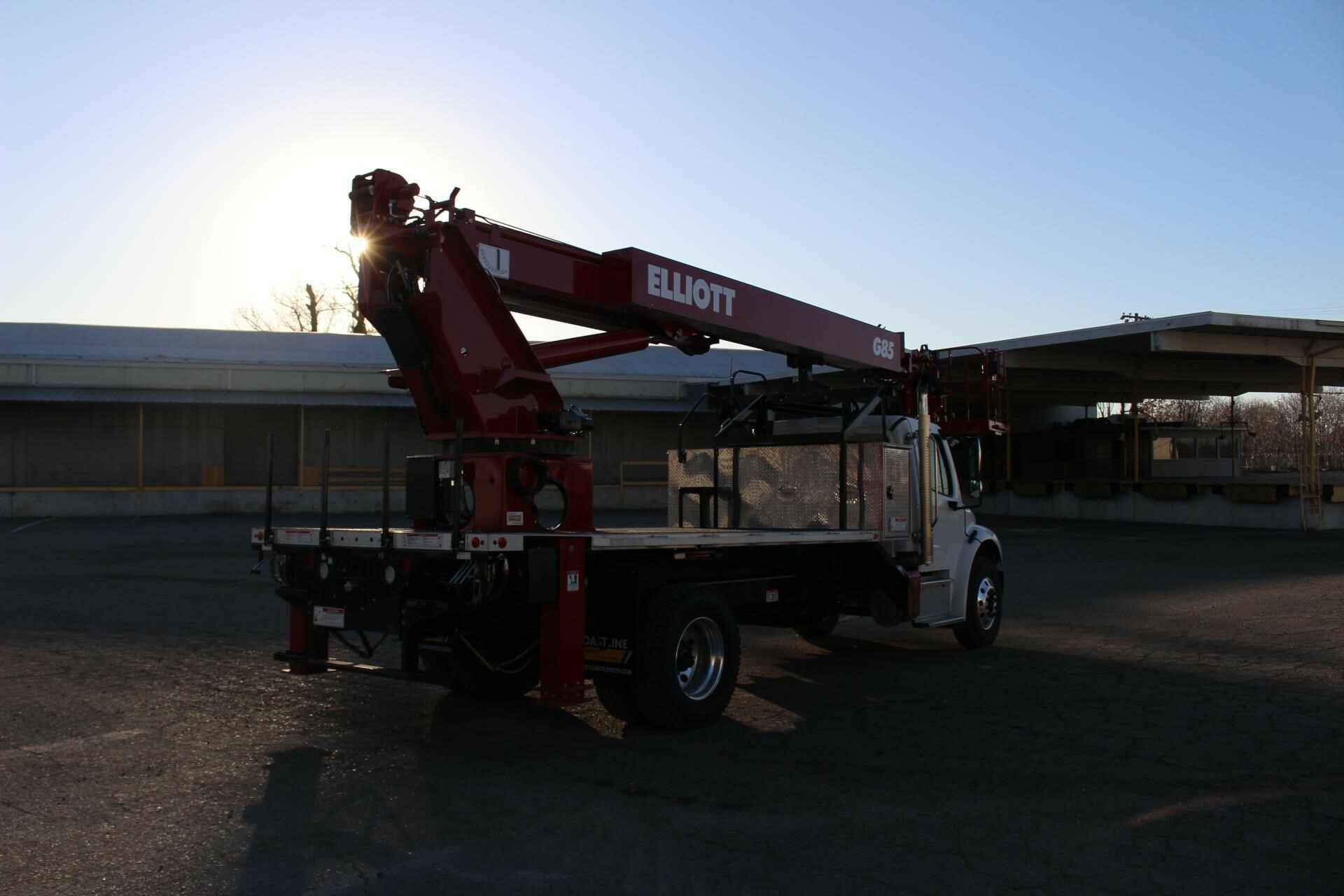

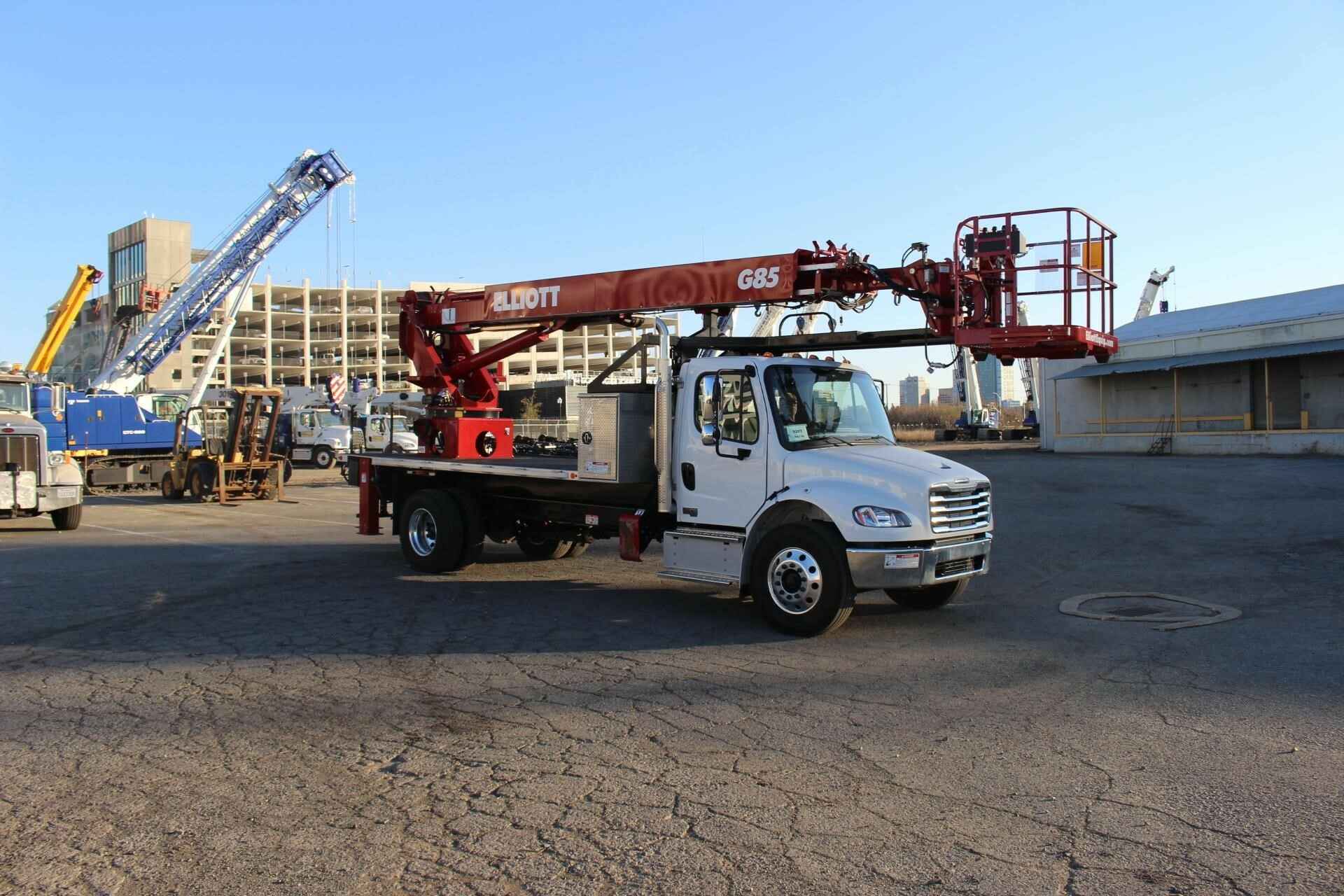

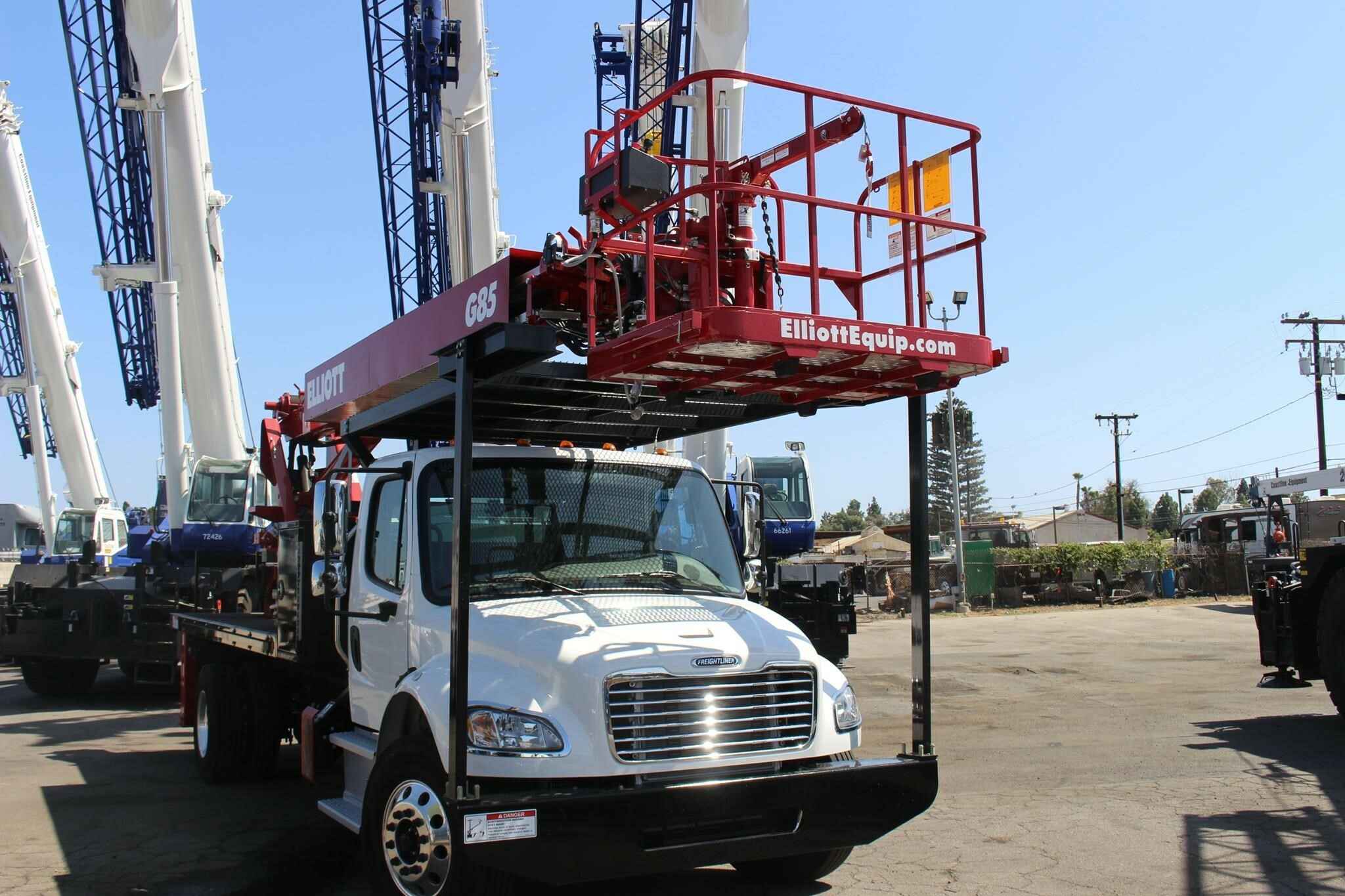

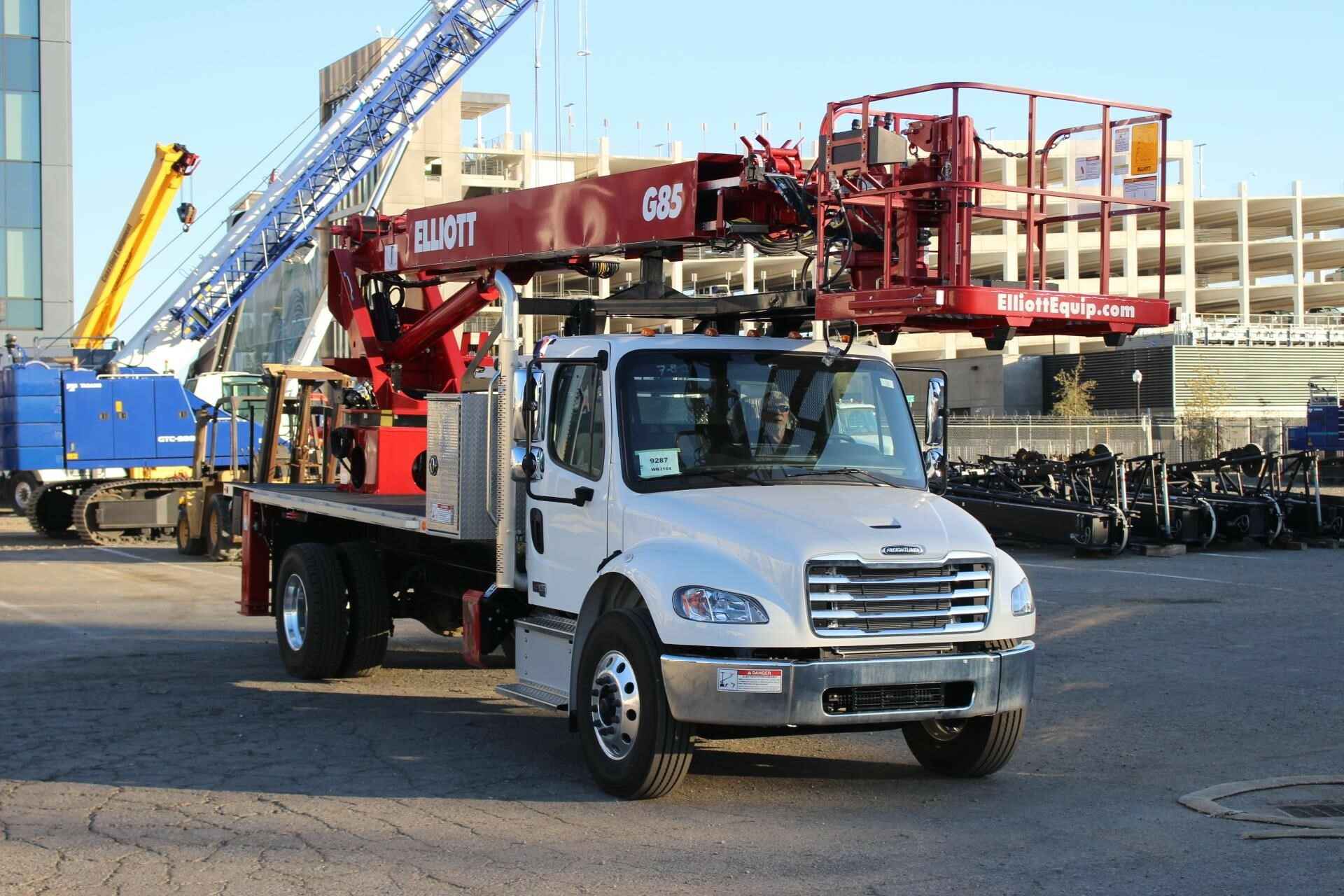

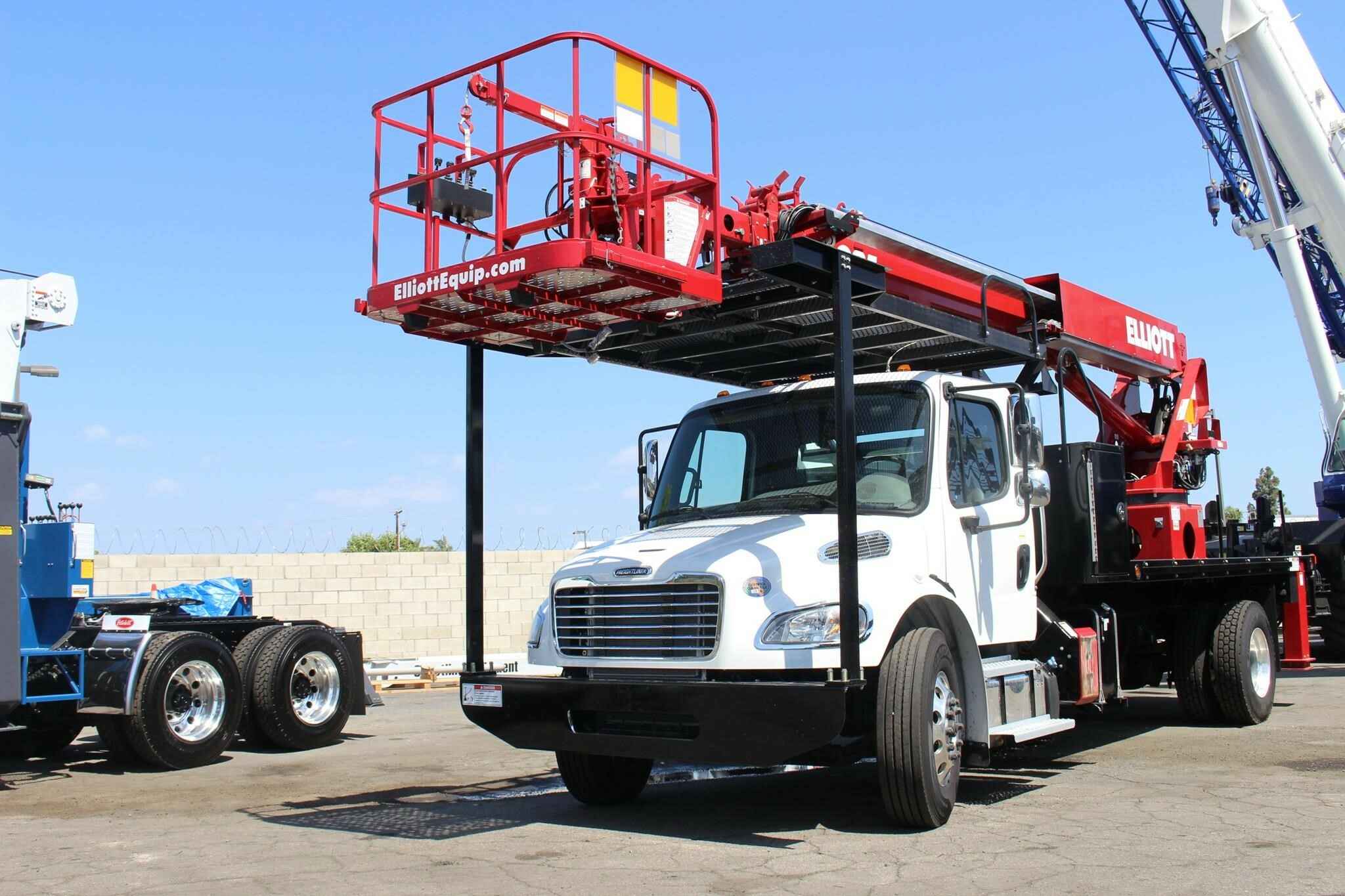

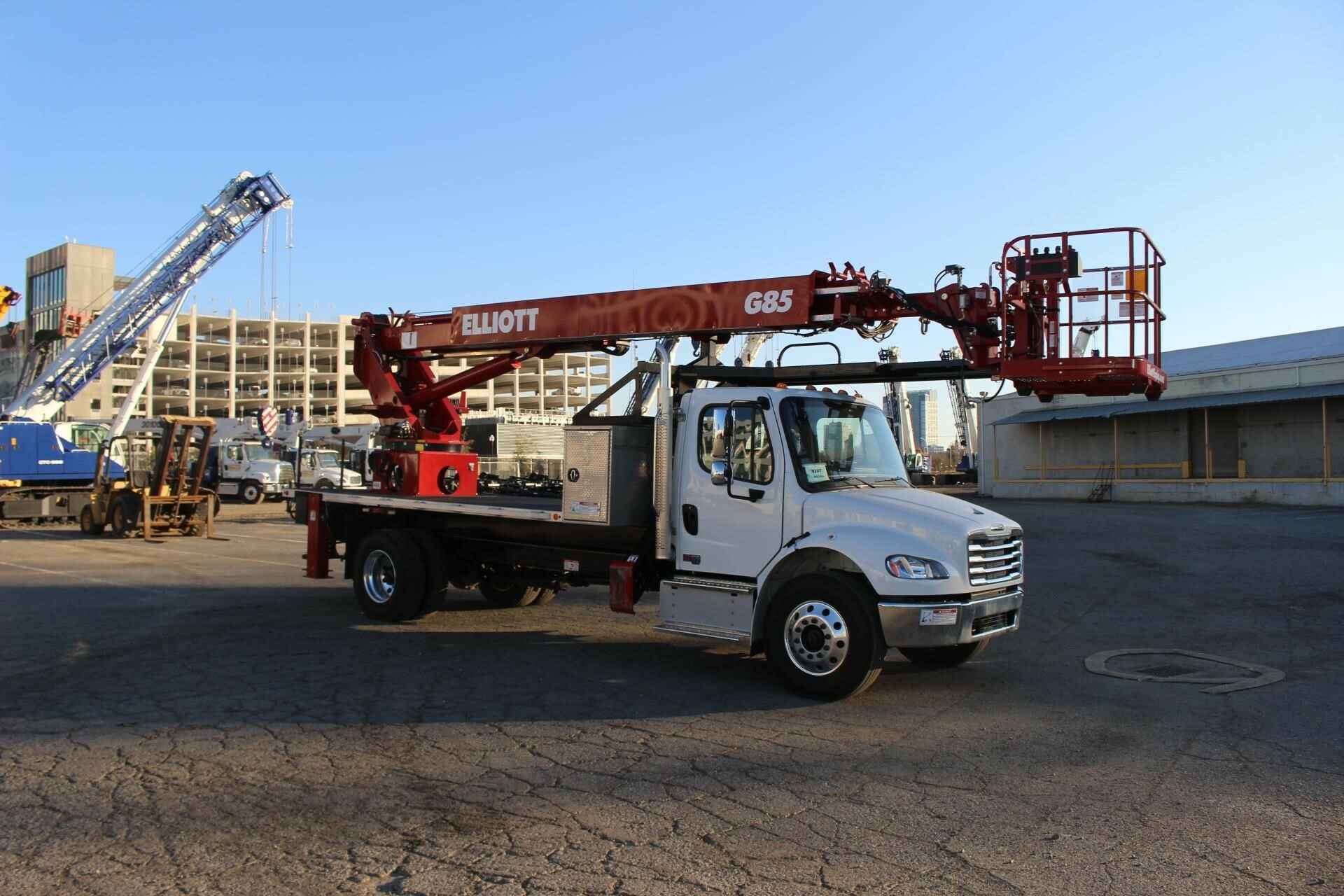

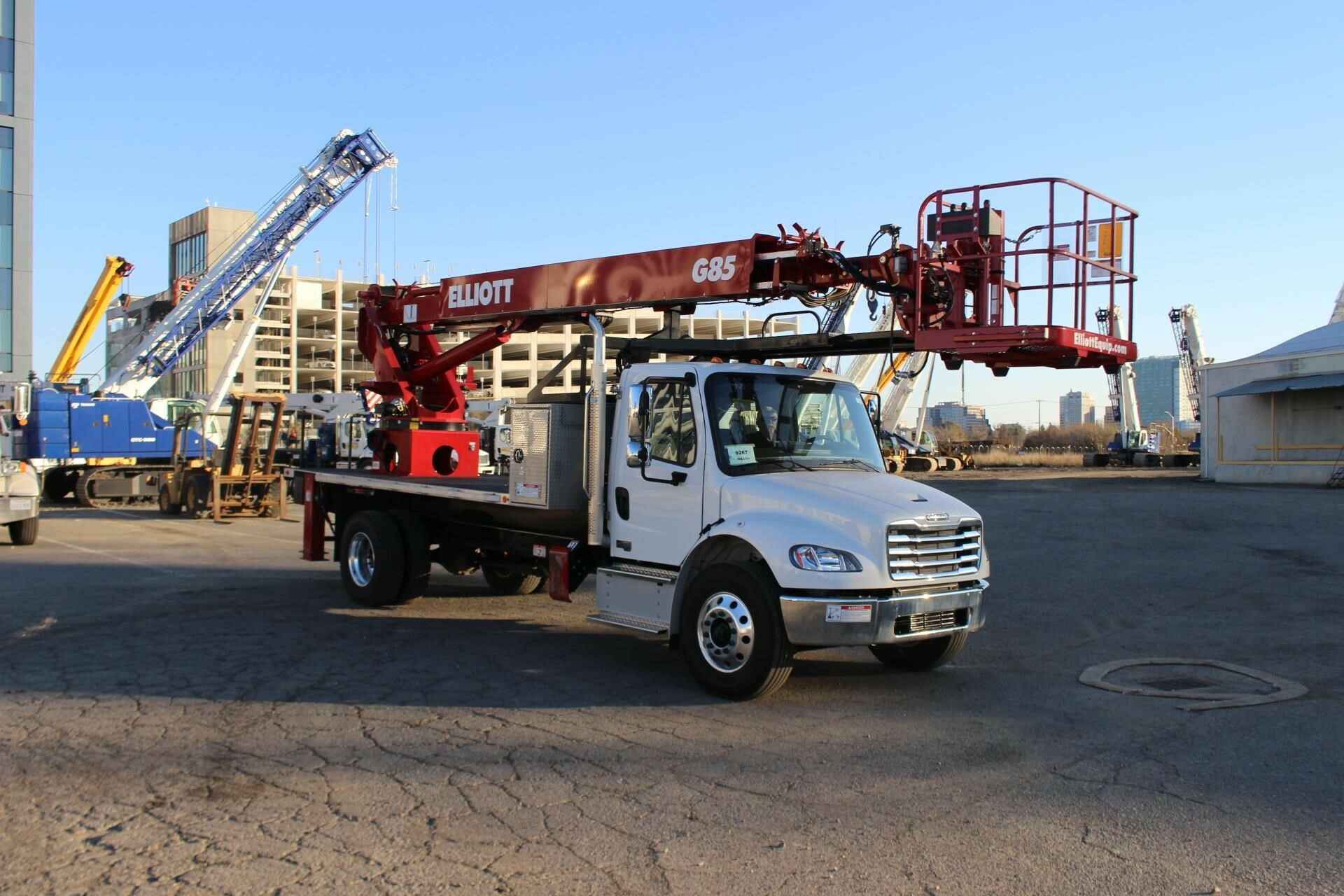

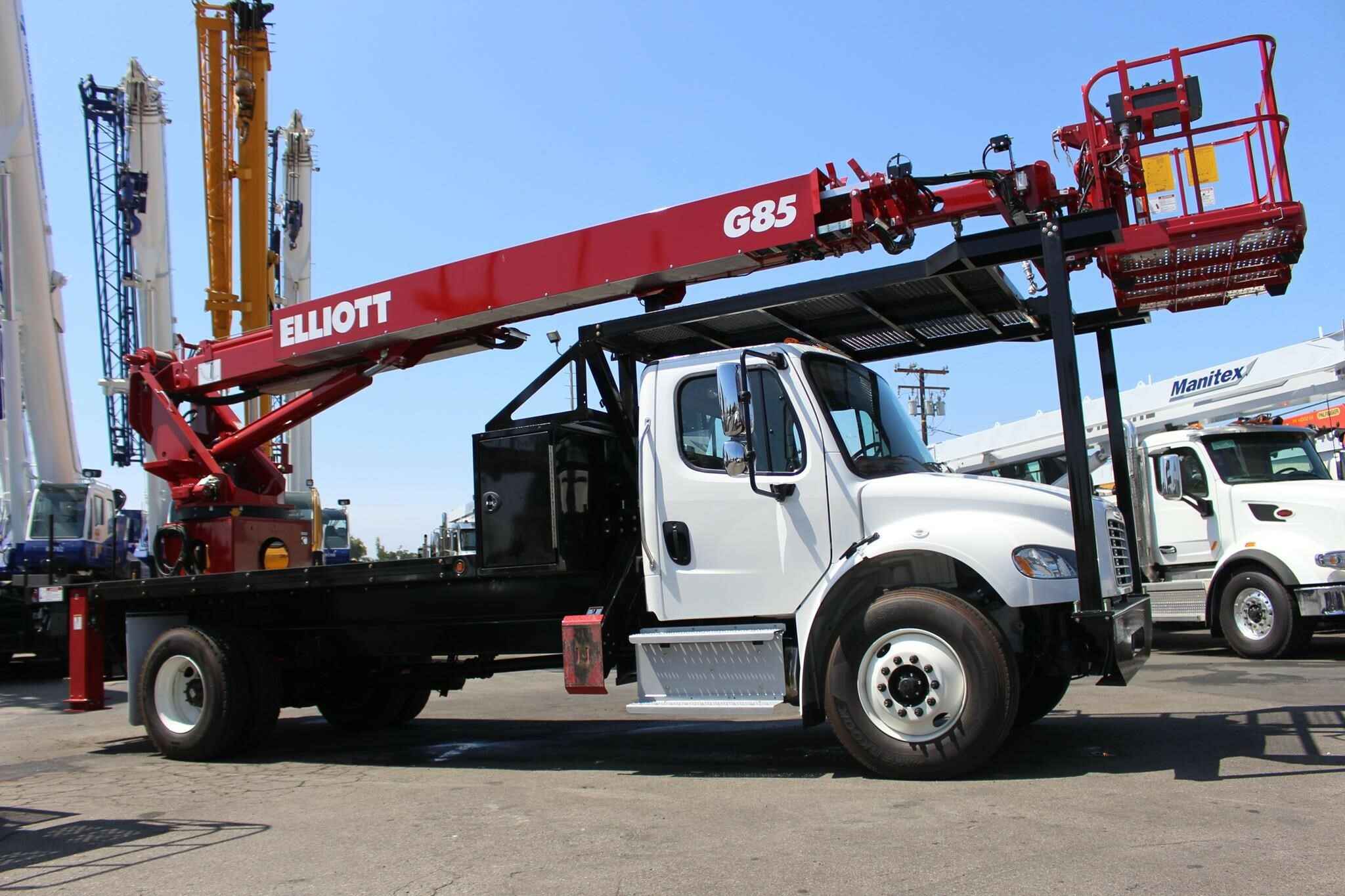

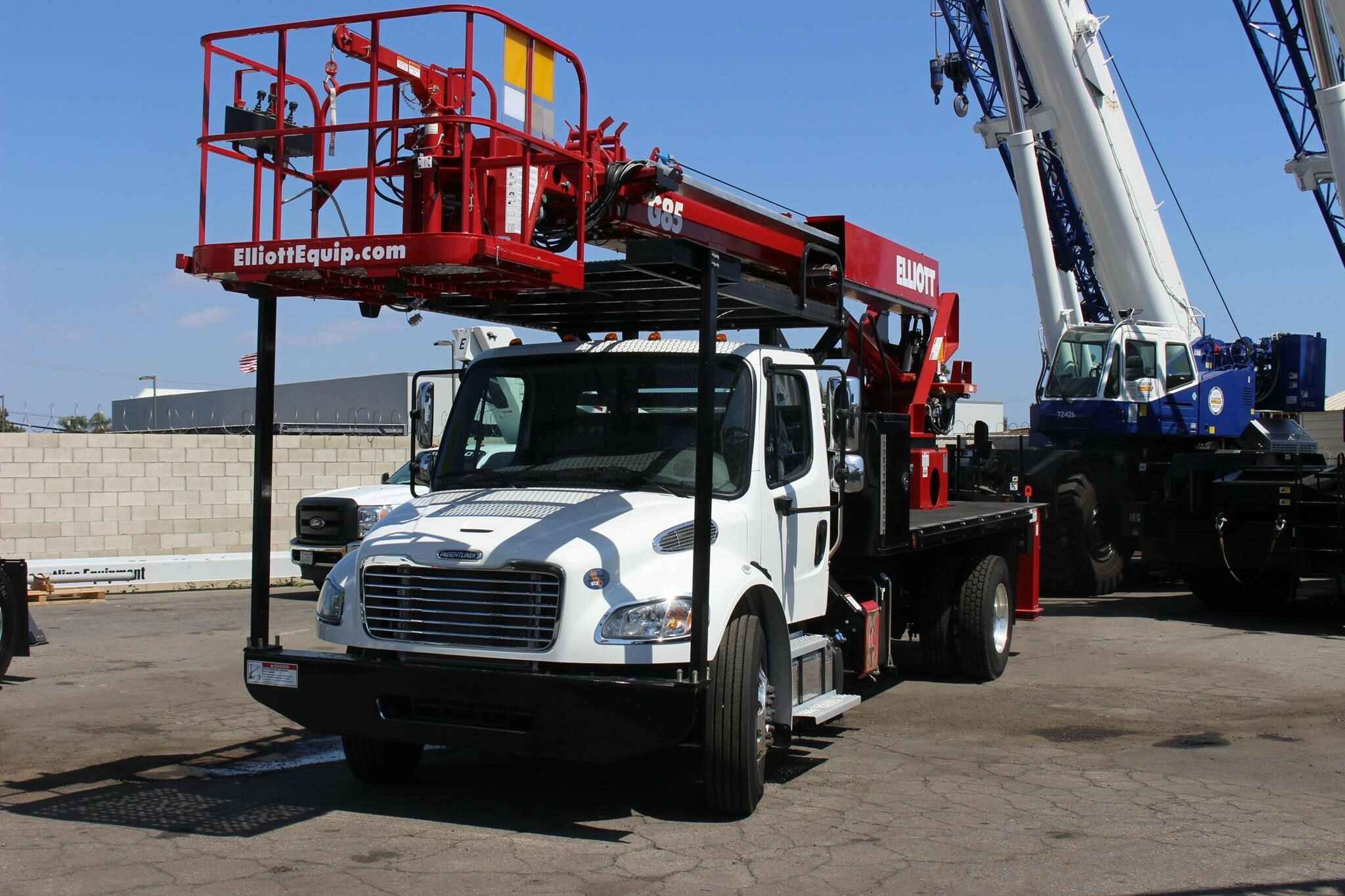

ELLIOTT G85R
Standard features:
Our new Elliott HiReach G85R, having an 87’ working height. Basic unit includes base assembly supporting rear mounted rotating turret, hydraulically powered continuous rotation mechanism, oil reservoir mounted to truck frame, oil and manual hydraulic controls mounted to turret. Electronic proportional three stick remote controls on platform. Base mounted “MH" type hydraulically powered, individually controlled rear main outriggers and “A” secondary outriggers behind cab. High strength steel four section hydraulically telescoping boom with one double acting 7” lift cylinder plus (1) 2 ½” piggyback and (1) 3” extension cylinder. Two cable carriers to boom tip with covers. Electronic self-levelling and rotating 40” x 60” EZR work platform with remote levelling from platform and aluminum floor. Power take off and pump drive, pressure gauge, pump and holding valves on all cylinders. Remote start/stop at upper and lower controls, 12-volt emergency pump with switch at upper and lower controls. PTO hour meter, backup alarm, fire extinguisher, safety triangle kit, and two body harness and lanyards. LED lights to include all bed marker lights, stop, tail and turn. Installed on chassis, tested and ready to operate. Unit certified to ANSI A92.2 for Vehicle-Mounted Elevating and Rotating Aerial Devices. Platform capacity 500 lbs.
Additional Options:
• 16’ steel bed with LED lights and Grip Deck Coating
• Stand Rear Bumper with Steps and Grab Handles
• Automatic Rotation Lockout – Prevents Boom from Rotating to Side where MH Outriggers are not fully extended Horizontally (“A” Outriggers Remain Fully Extended)
• 5,900 lb. Planetary Winch with Anti-Two-Block Switch, Horn, Two Part Hook & 180’ 3/8” Cable & Retainer Lug
• 500 lb. Platform Mounted Jib with hydraulic Winch, Jib Stows in platform
• 110 Volt Line to Platform
• (2) Sign Forks on Platform
• Hot Shift PTO for Automatic Transmission
• 98” x 36” x 24” Steel Crossbody Box (Requires 2” shorter bed)
• (4) 24x24x1 Composite Plastic Outrigger pads w/2 steel holders
• Welder/generator Start/stop switch in Platform
• Welder Leads to Platform – (2) 1 Gauge Cables
• 1Oxy/Acetylene Bottle Holder on Bed
• HiReach Unit Painted Red, Subframe Painted Black, Outriggers Painted Red (STD)
MOUNTED ON 2025 Freightliner M2 106
Mounted on a 2025 Freightliner M2-106 truck chassis with a 260 HP Cummins B6.7 diesel engine, AF Allison 2500 RDS automatic transmission, Detroit DA-F-13.0-3 13,000 lb. front axle, Detroit DA-RS-20.0-4 20,000 lb. rear axle, 50 gallon aluminum fuel tank (LH), AM/FM radio, cruise control, air conditioning, Color white.
