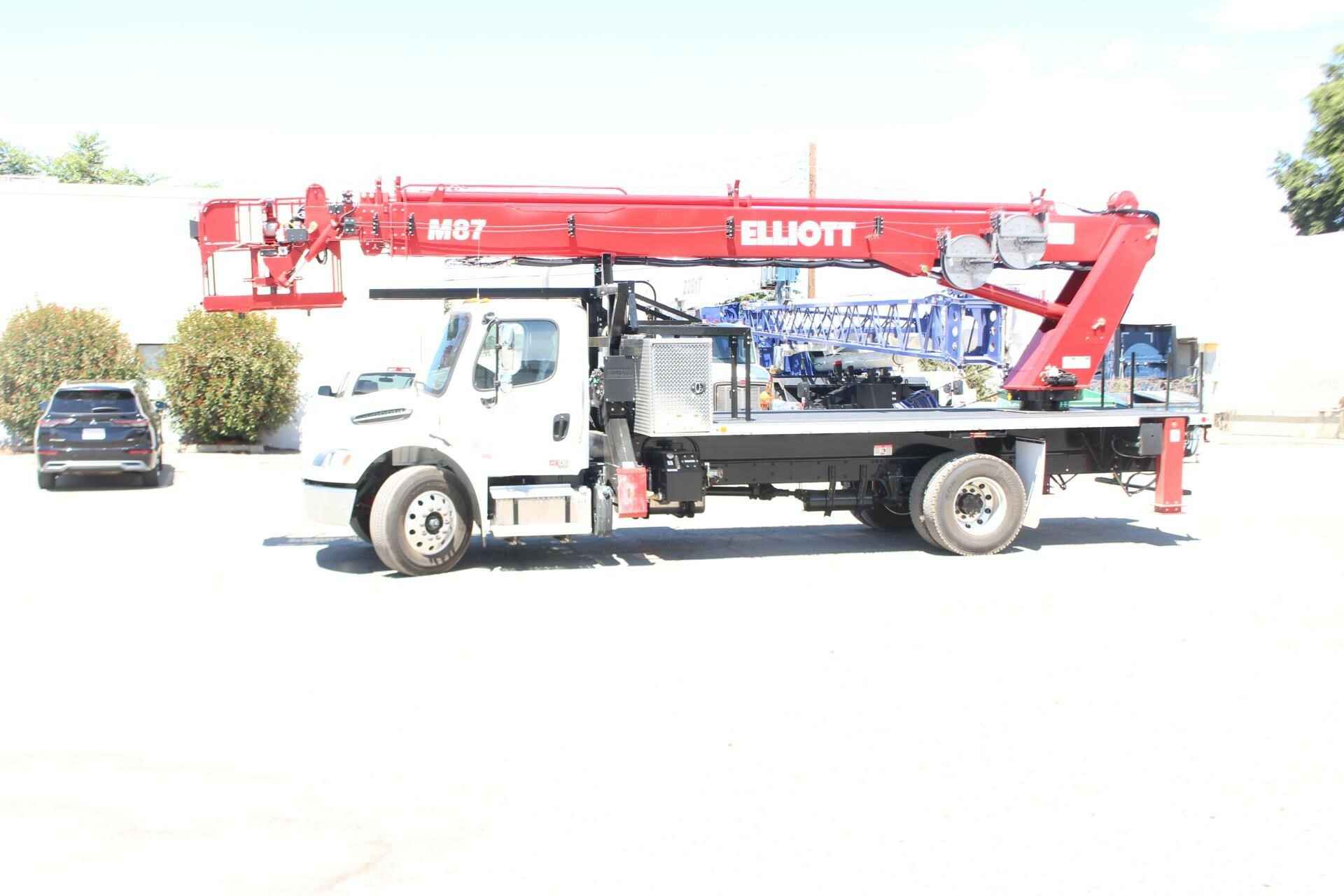

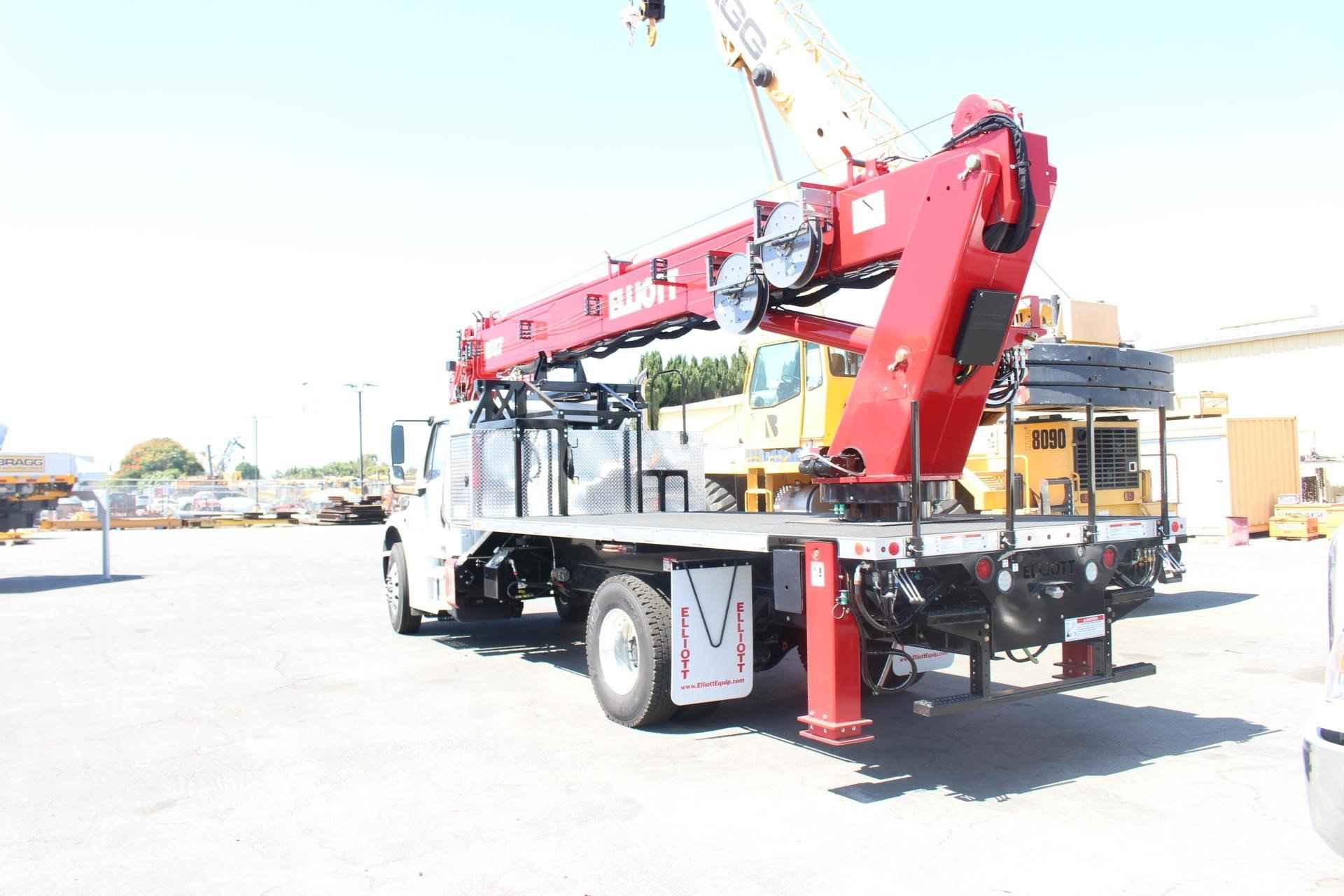

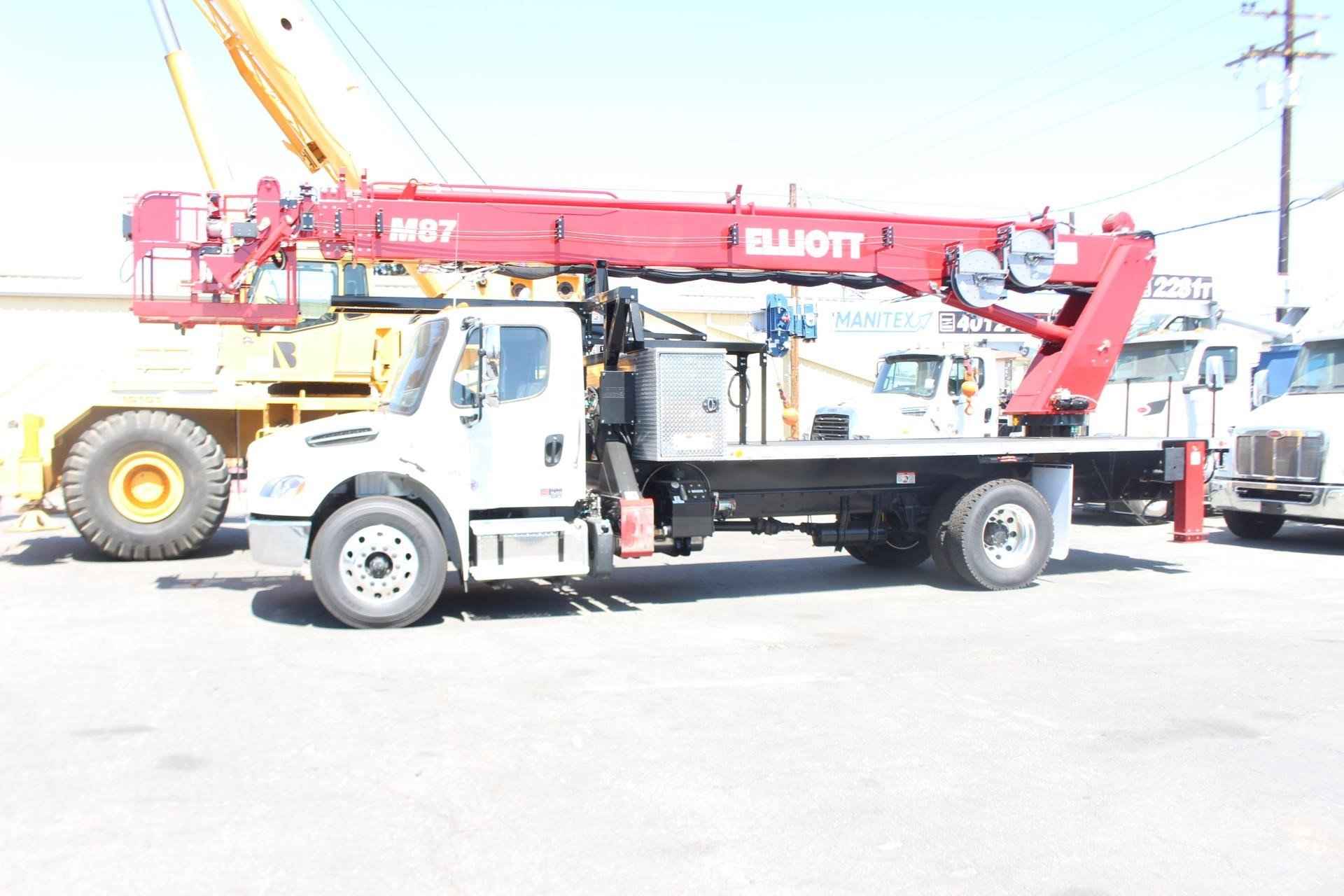

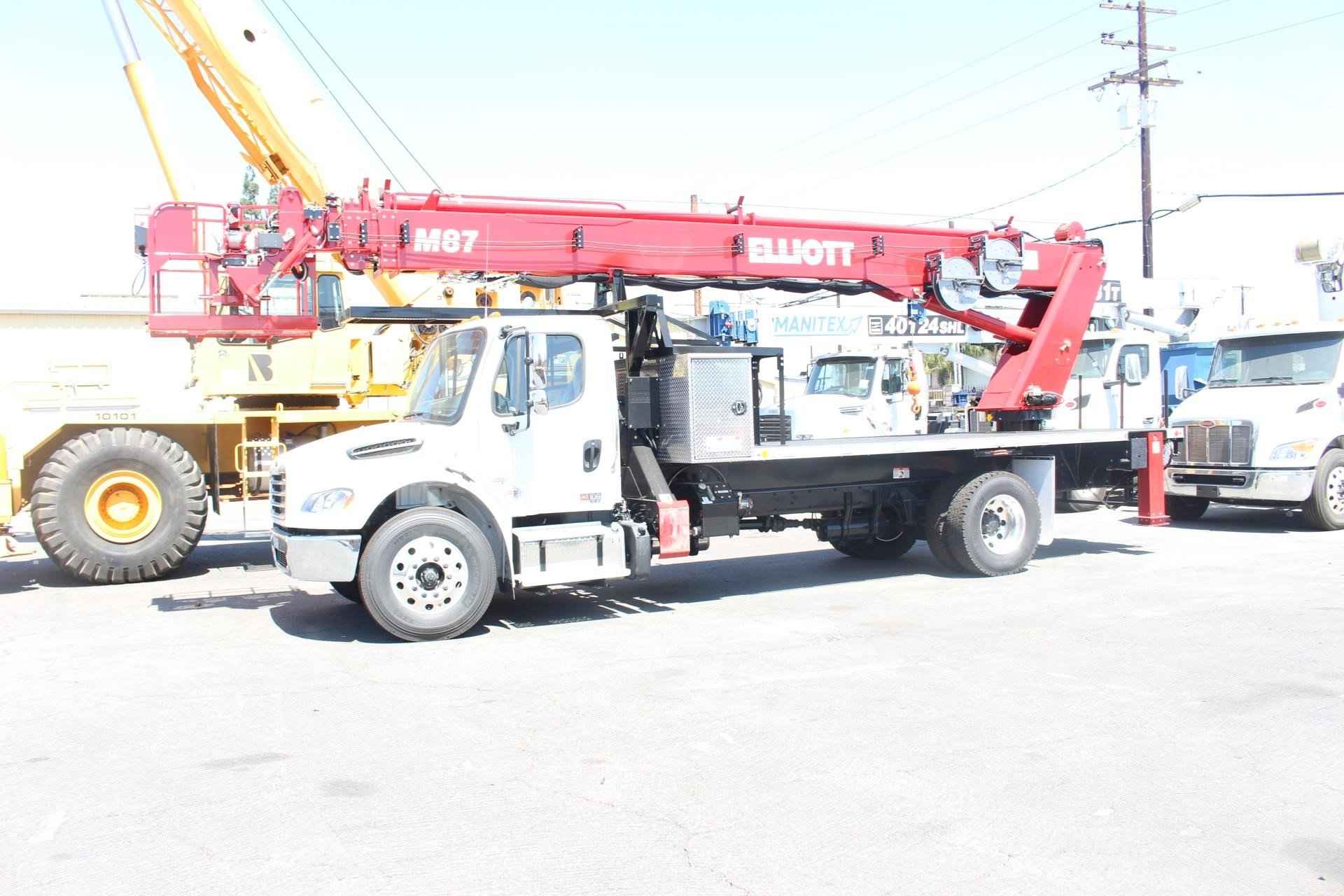

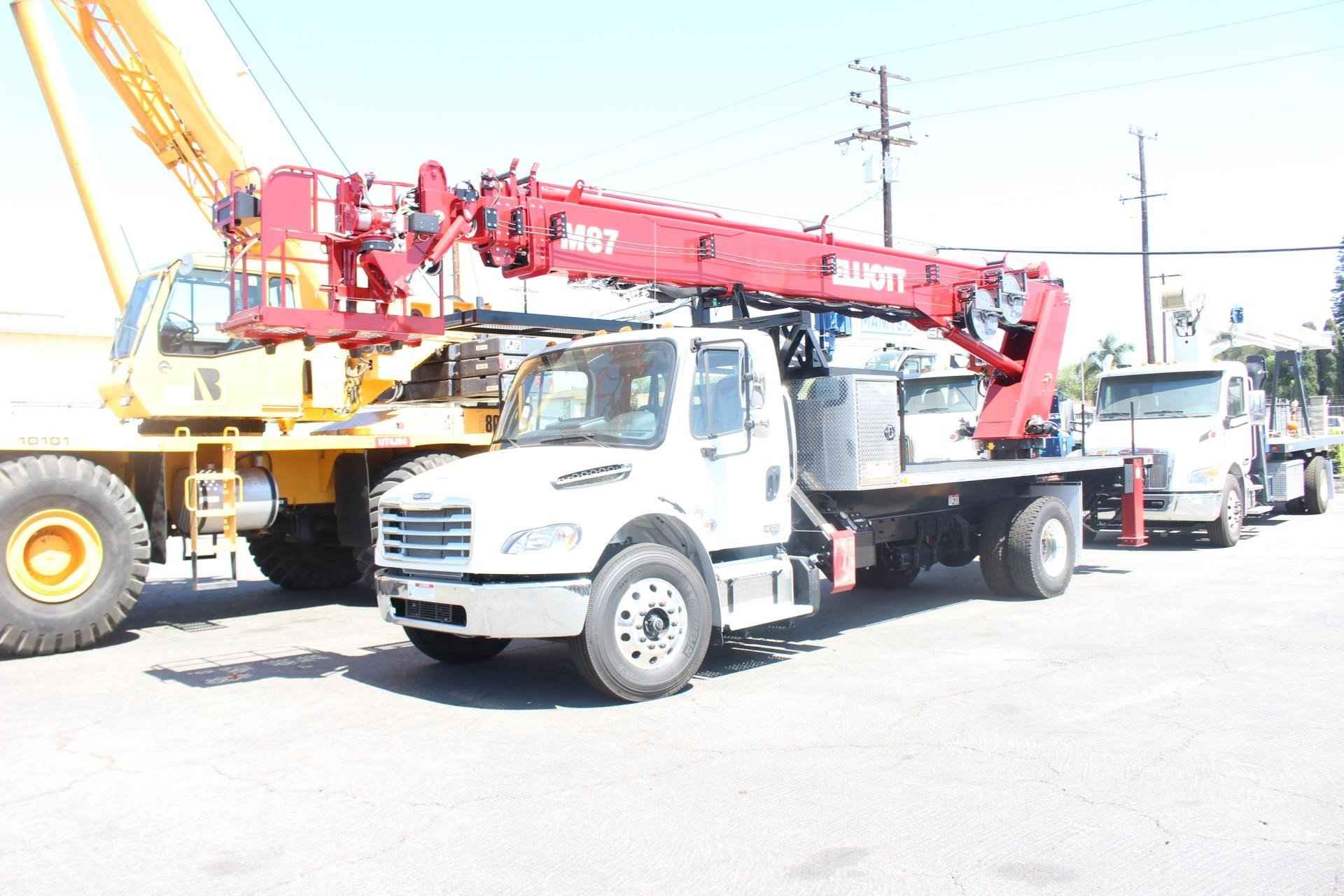

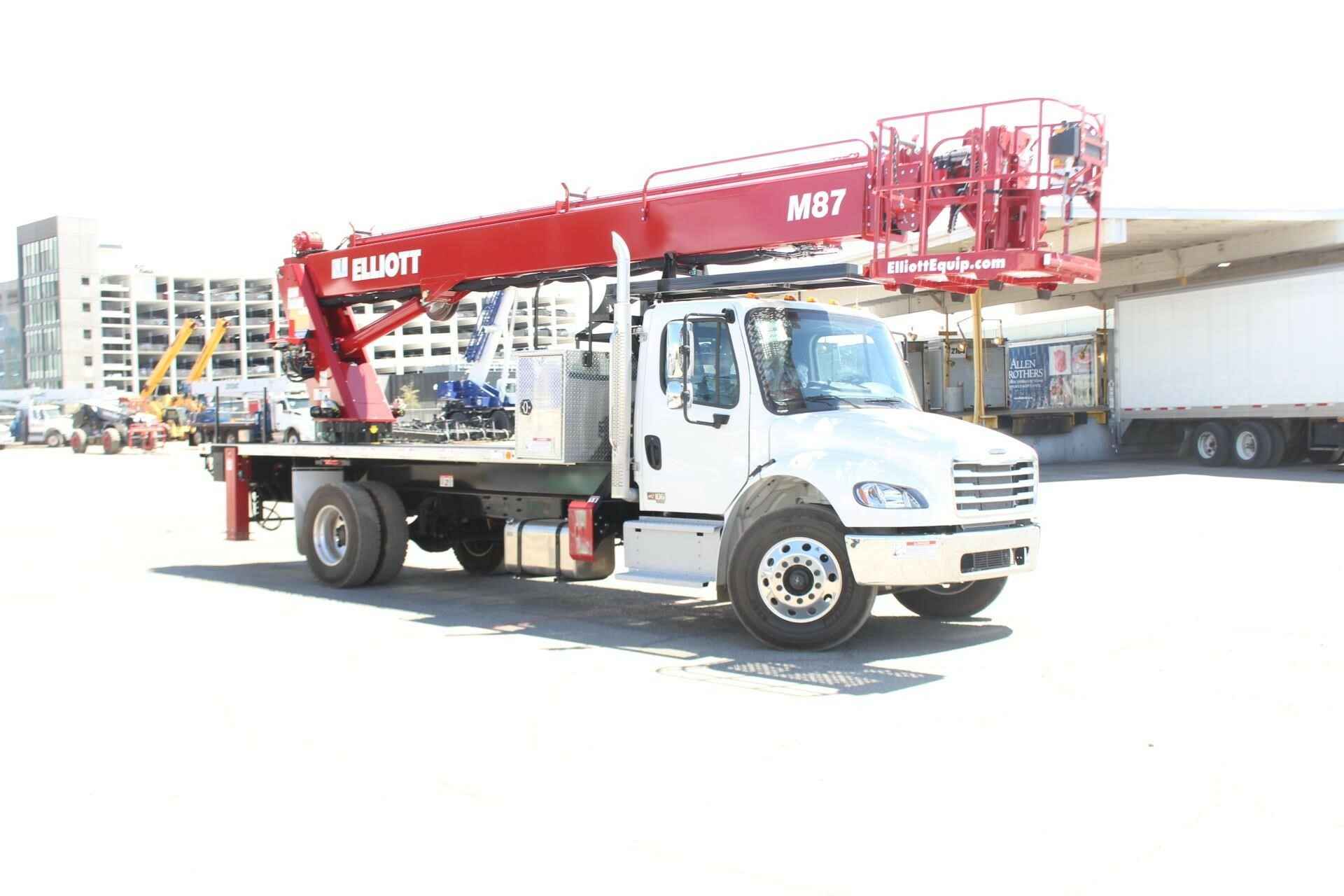

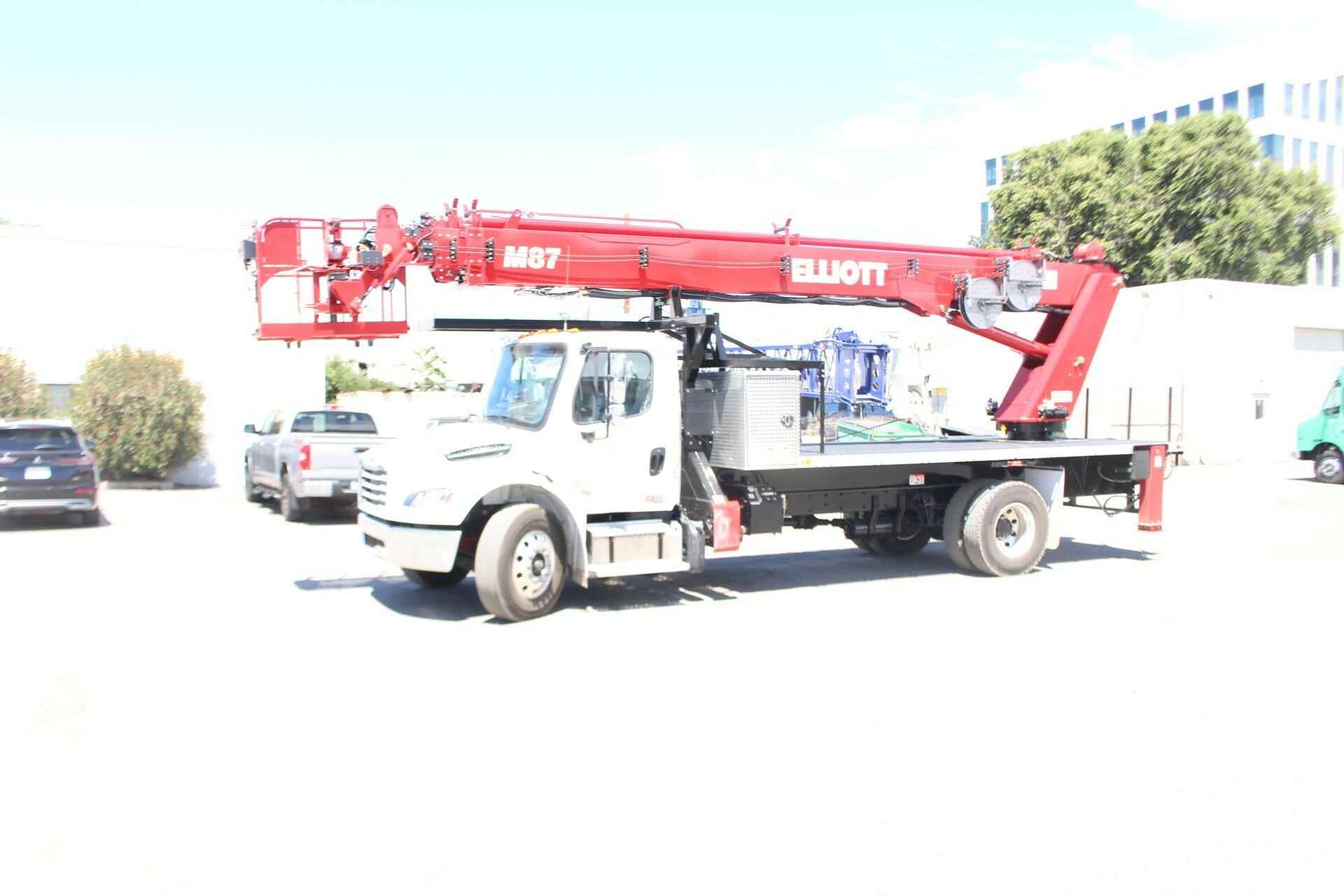

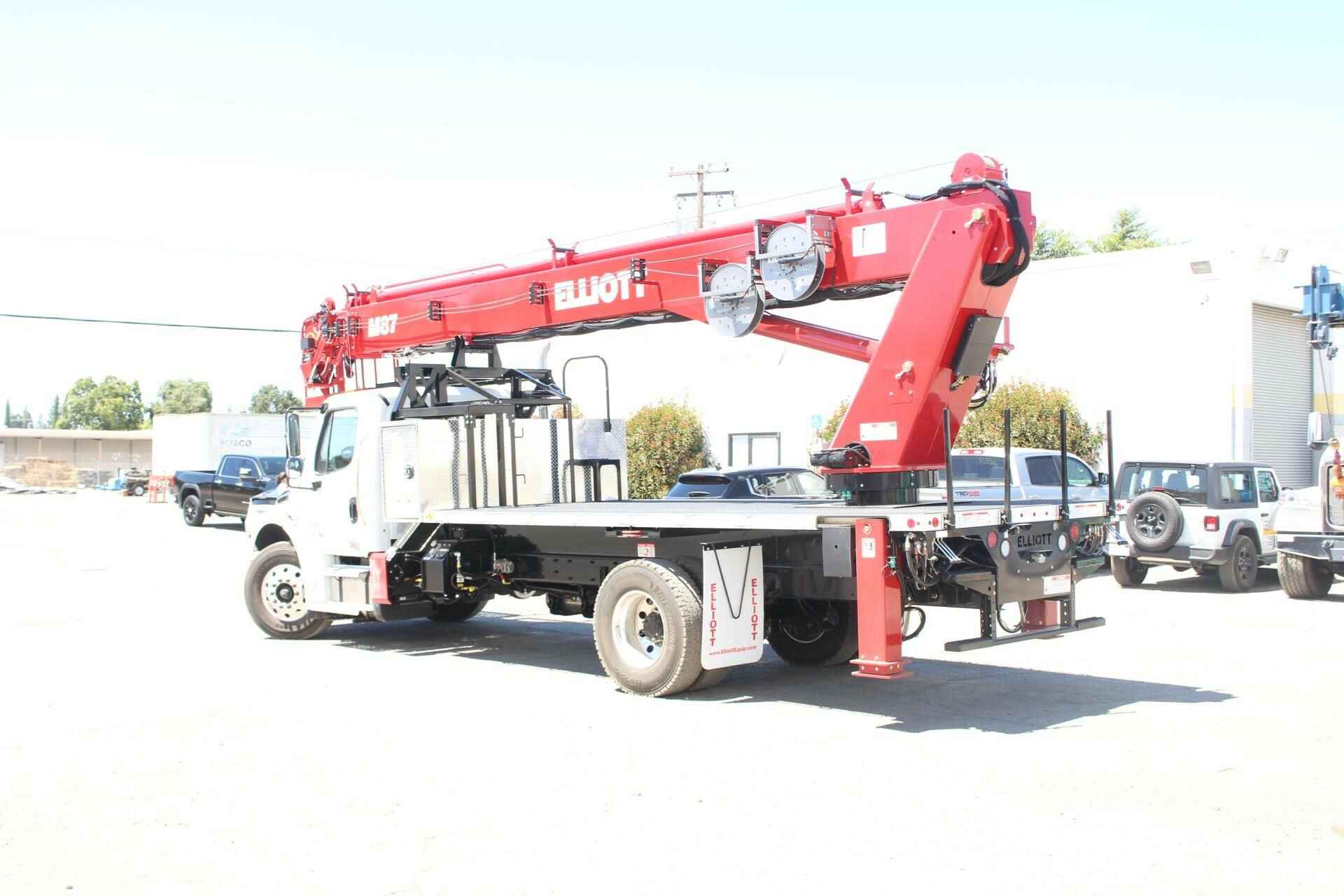

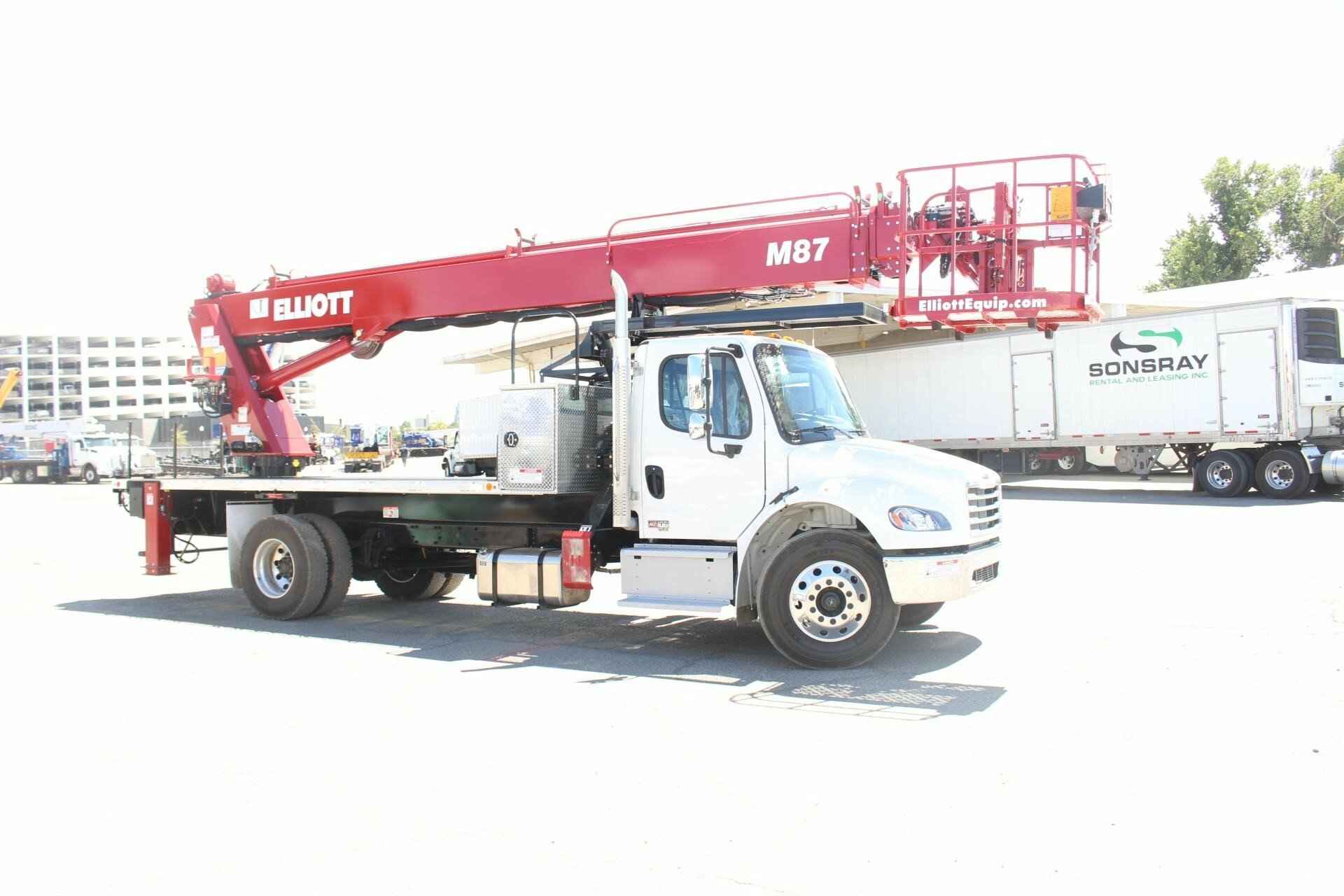

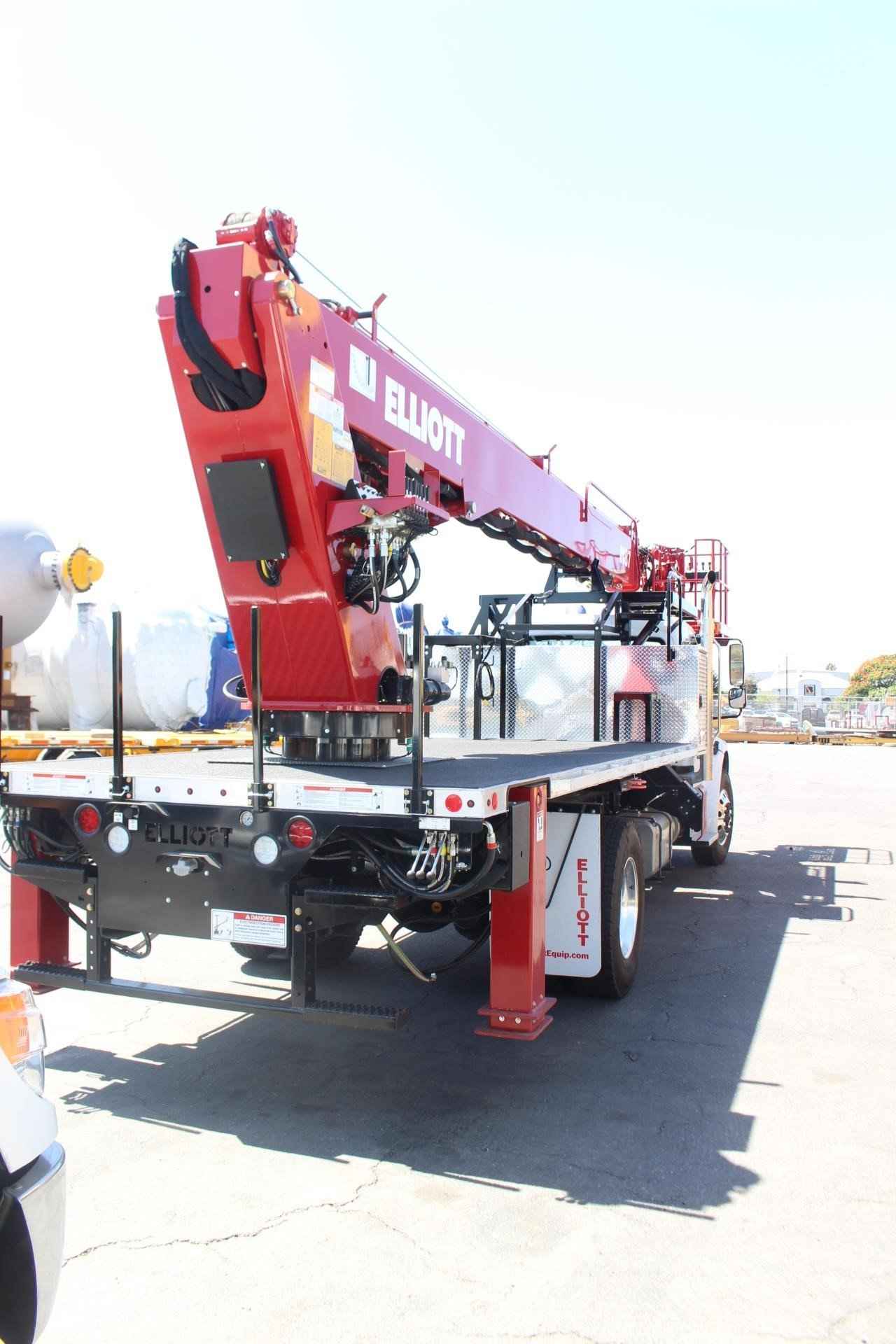

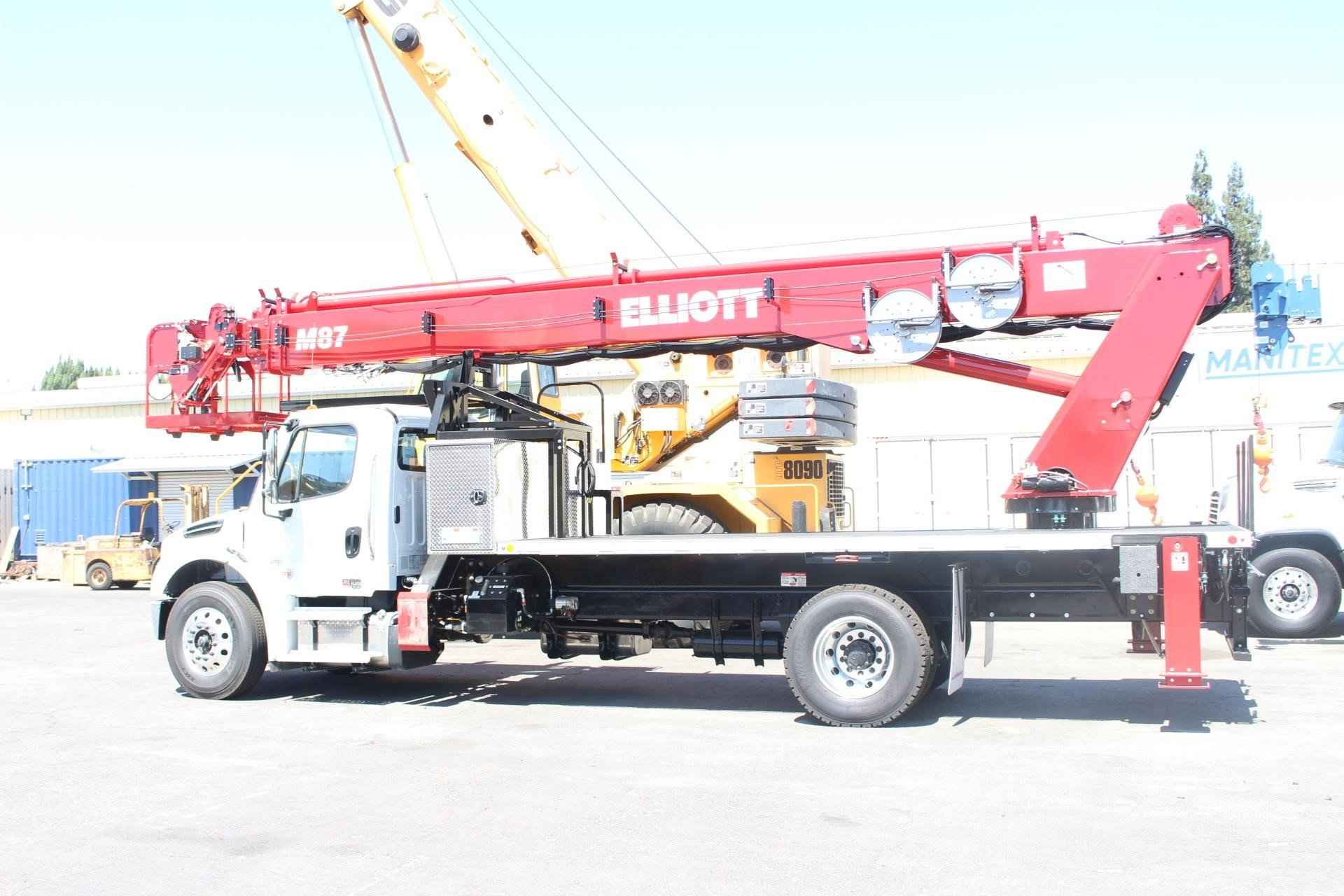

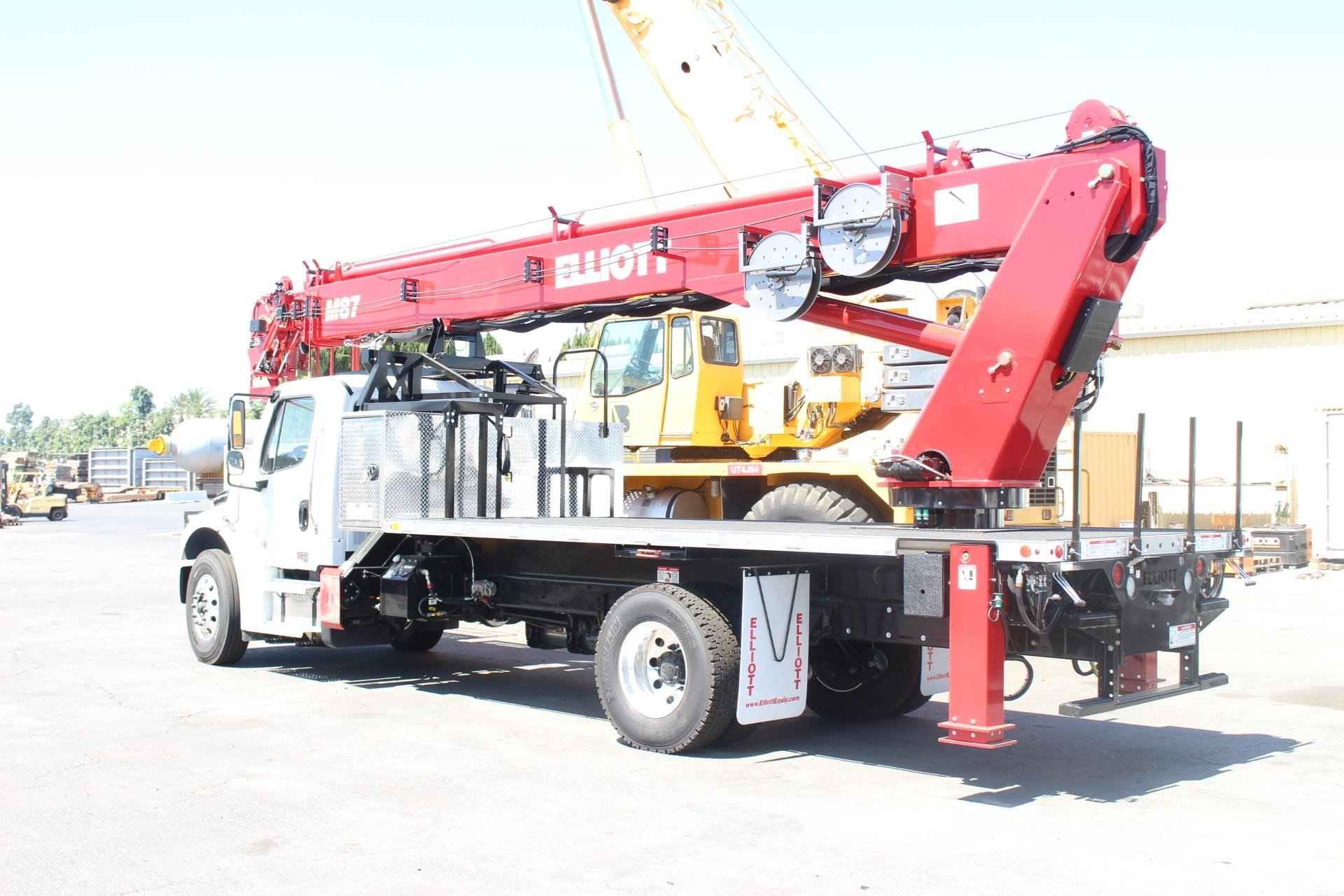

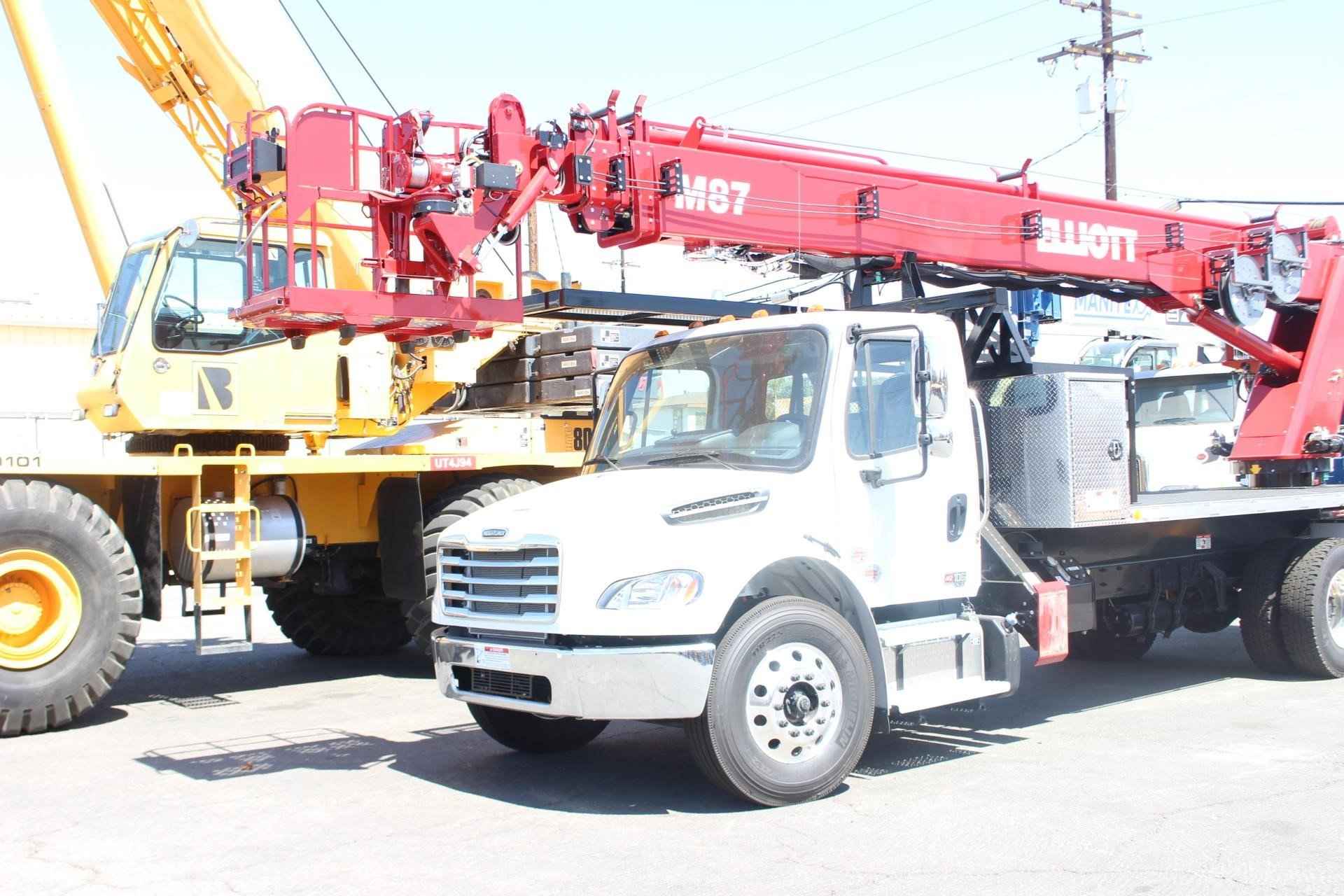

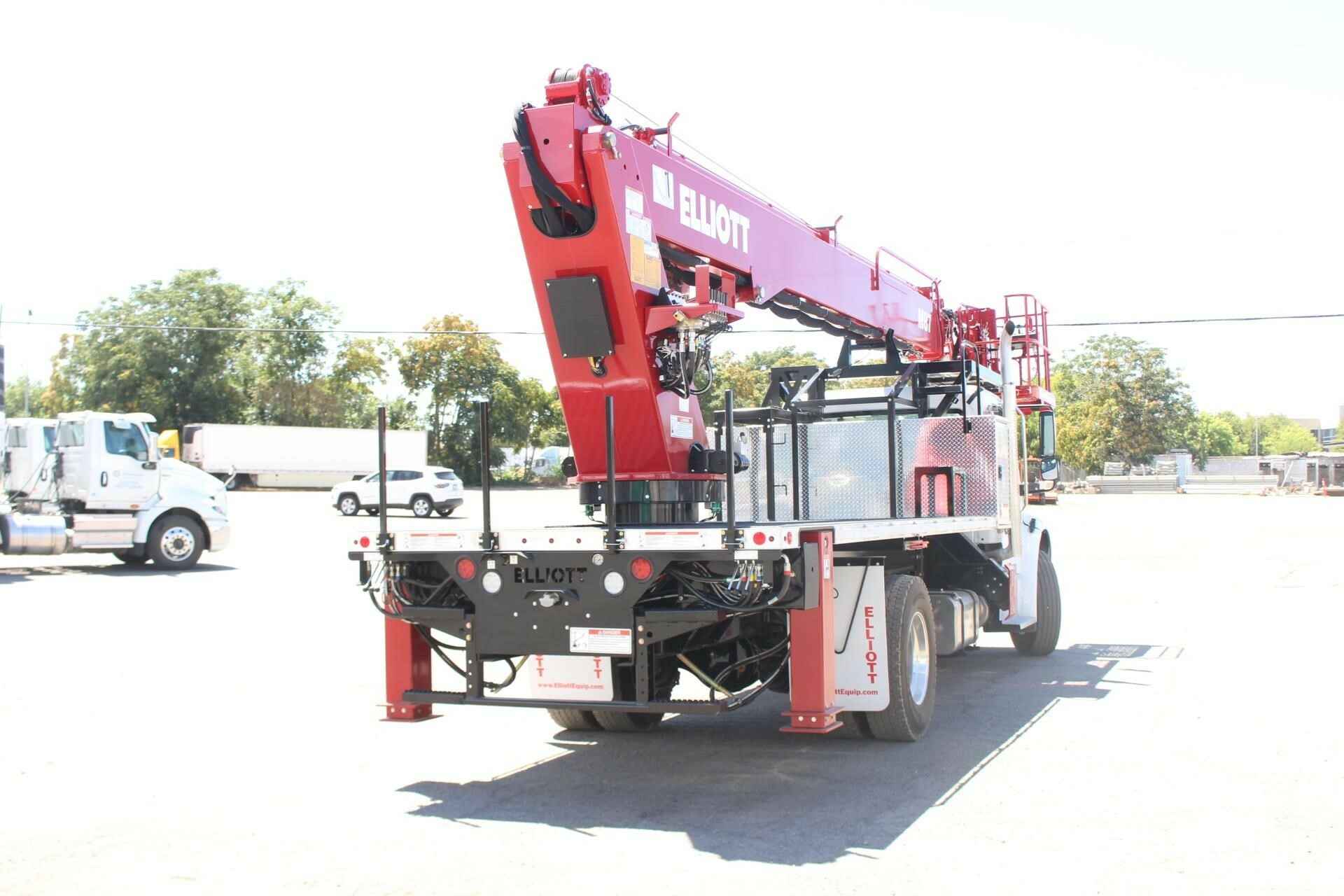

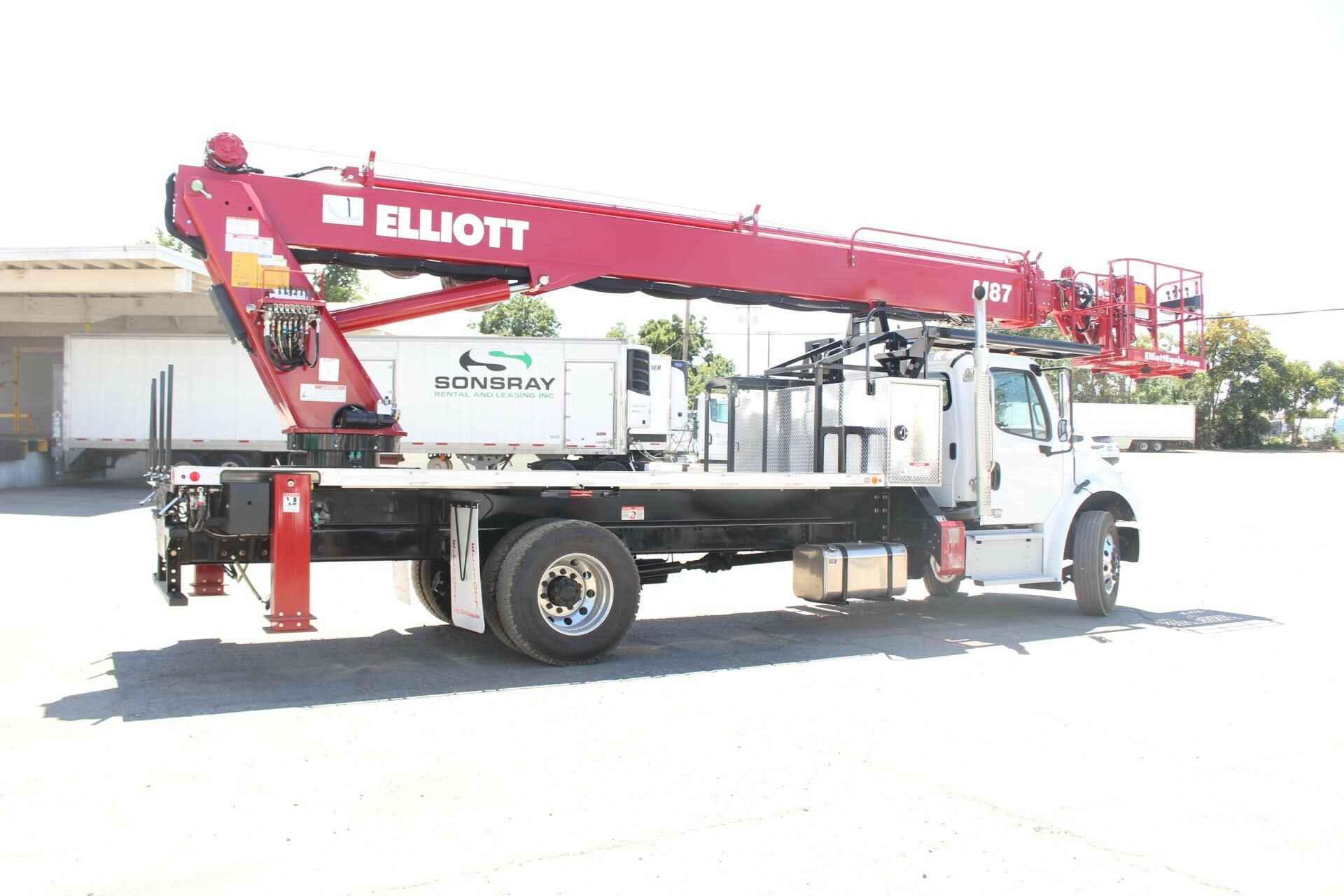

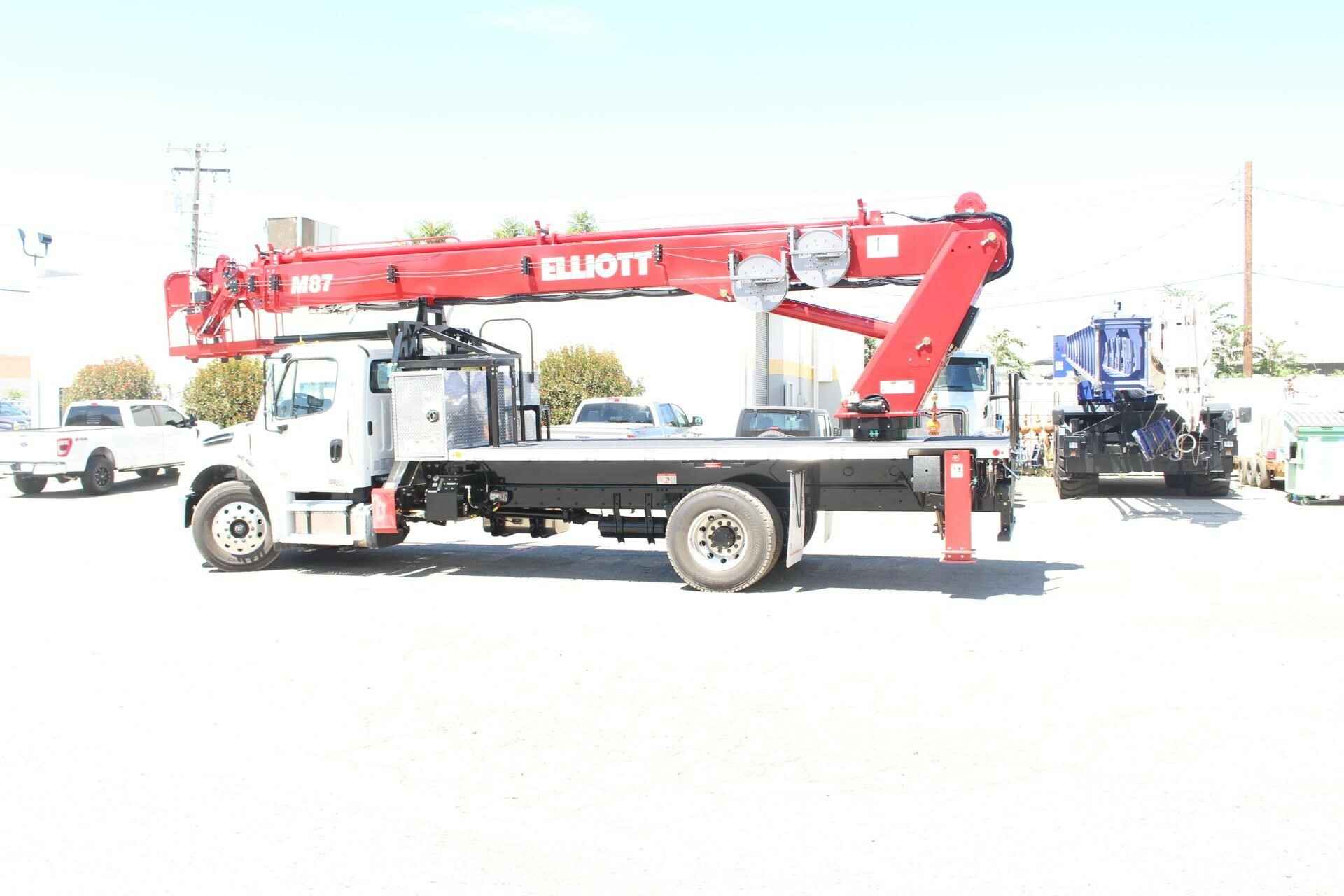

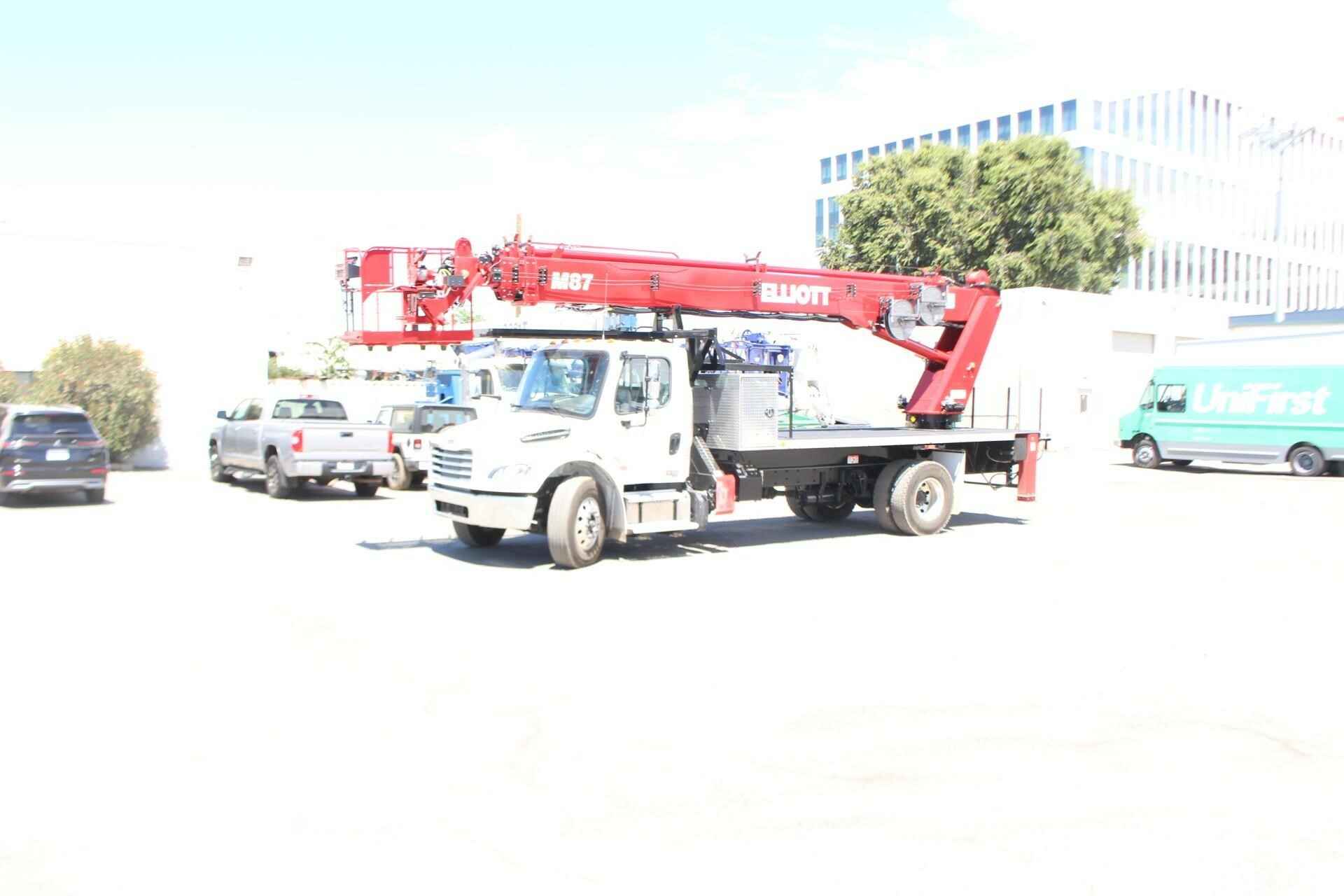

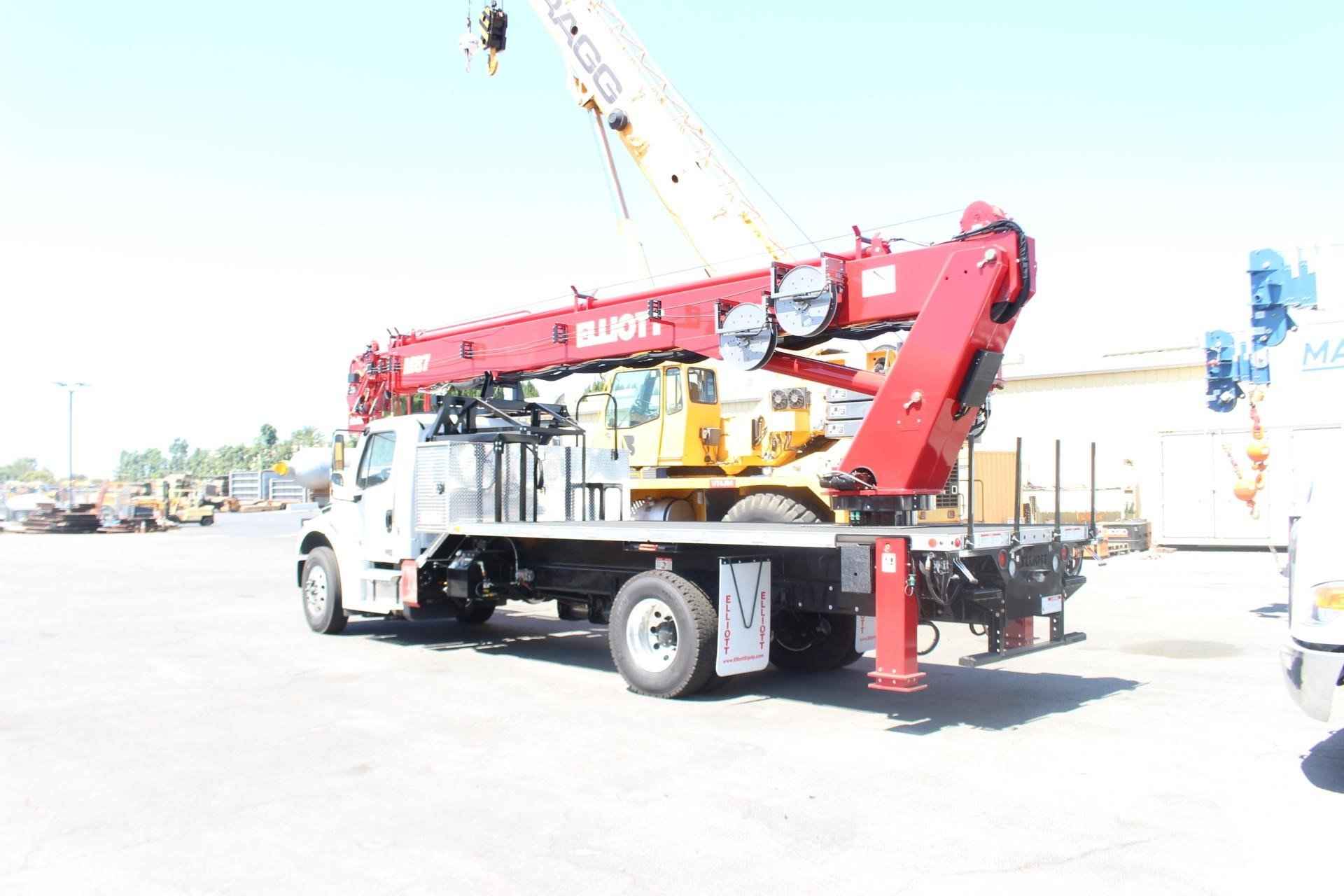

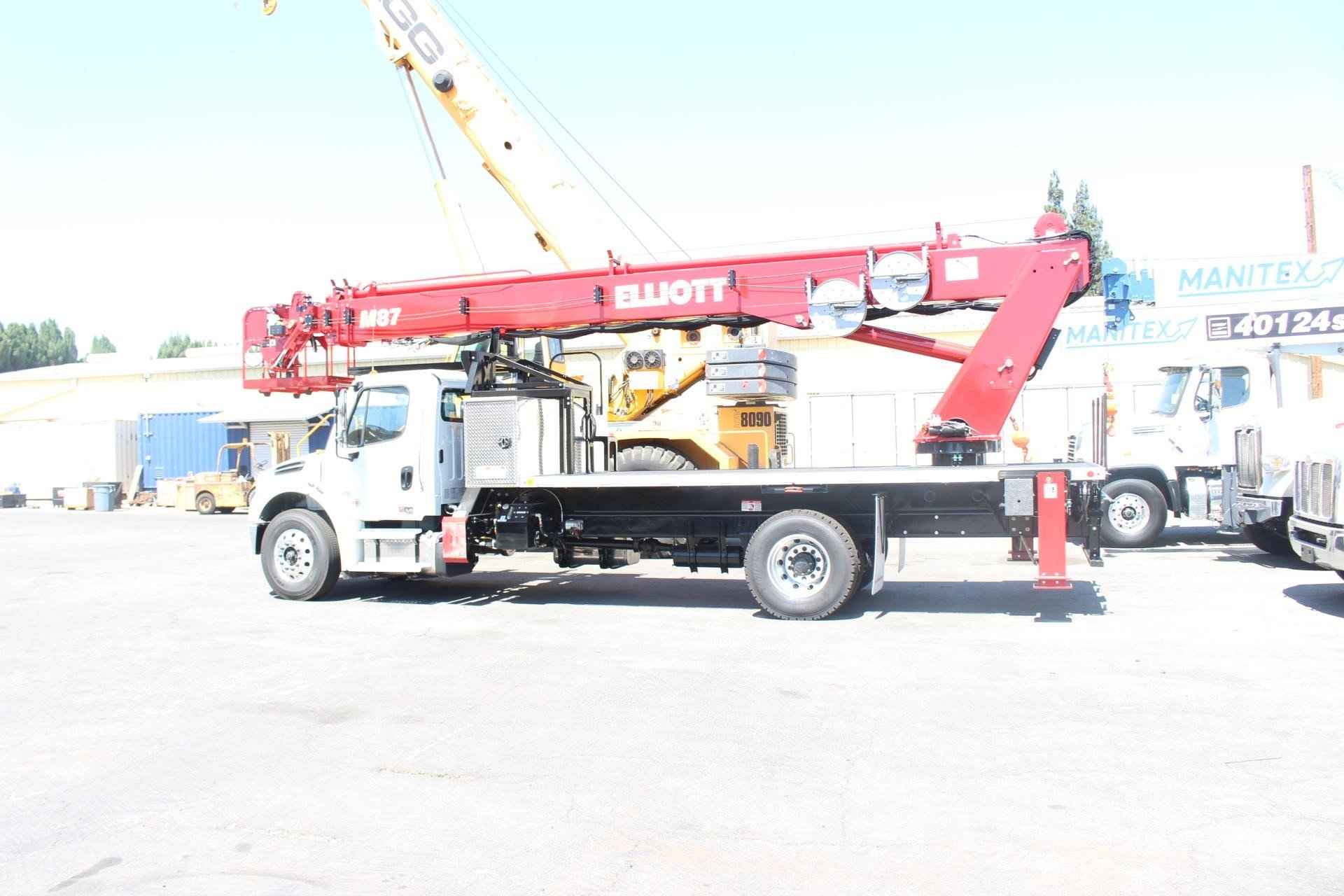

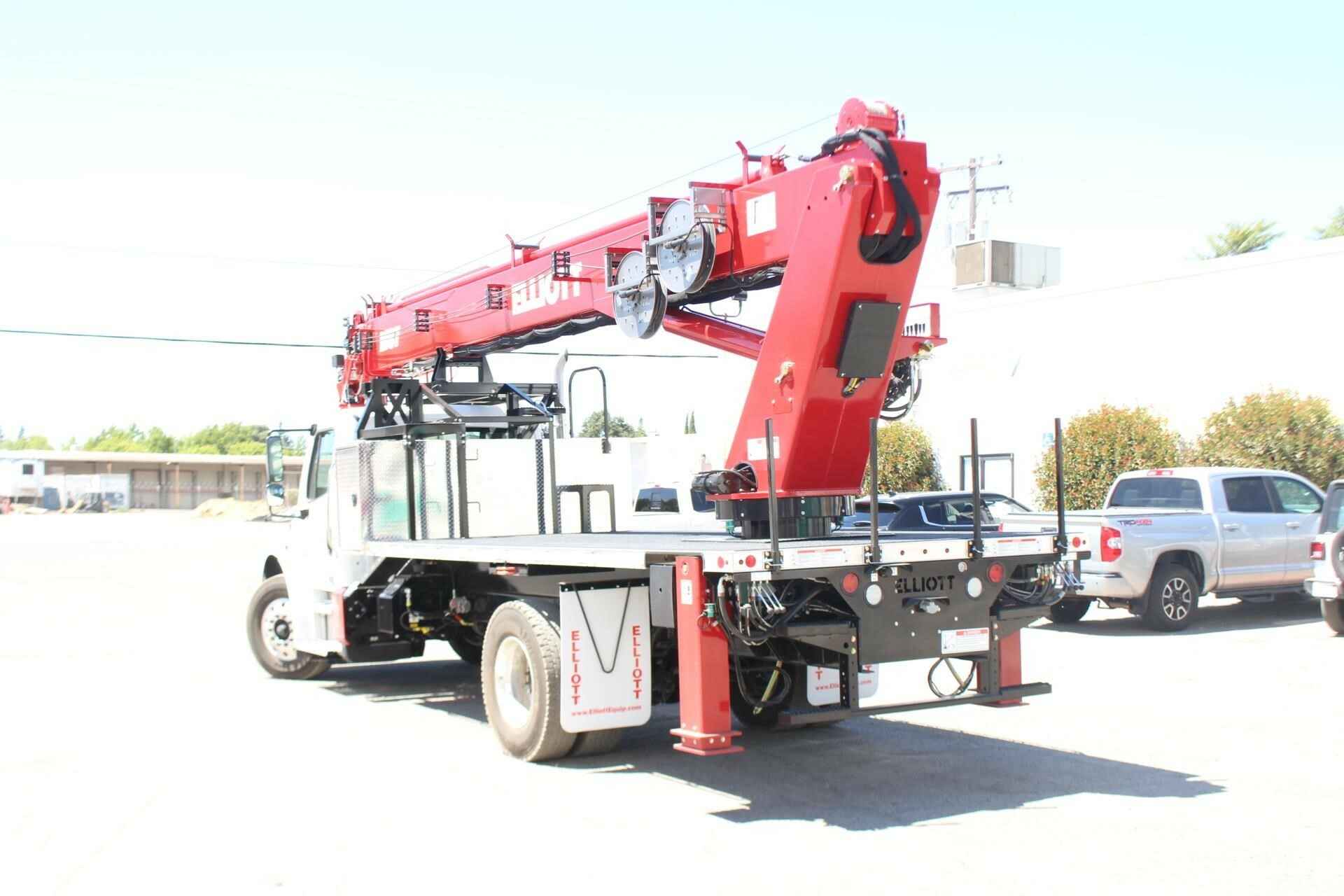

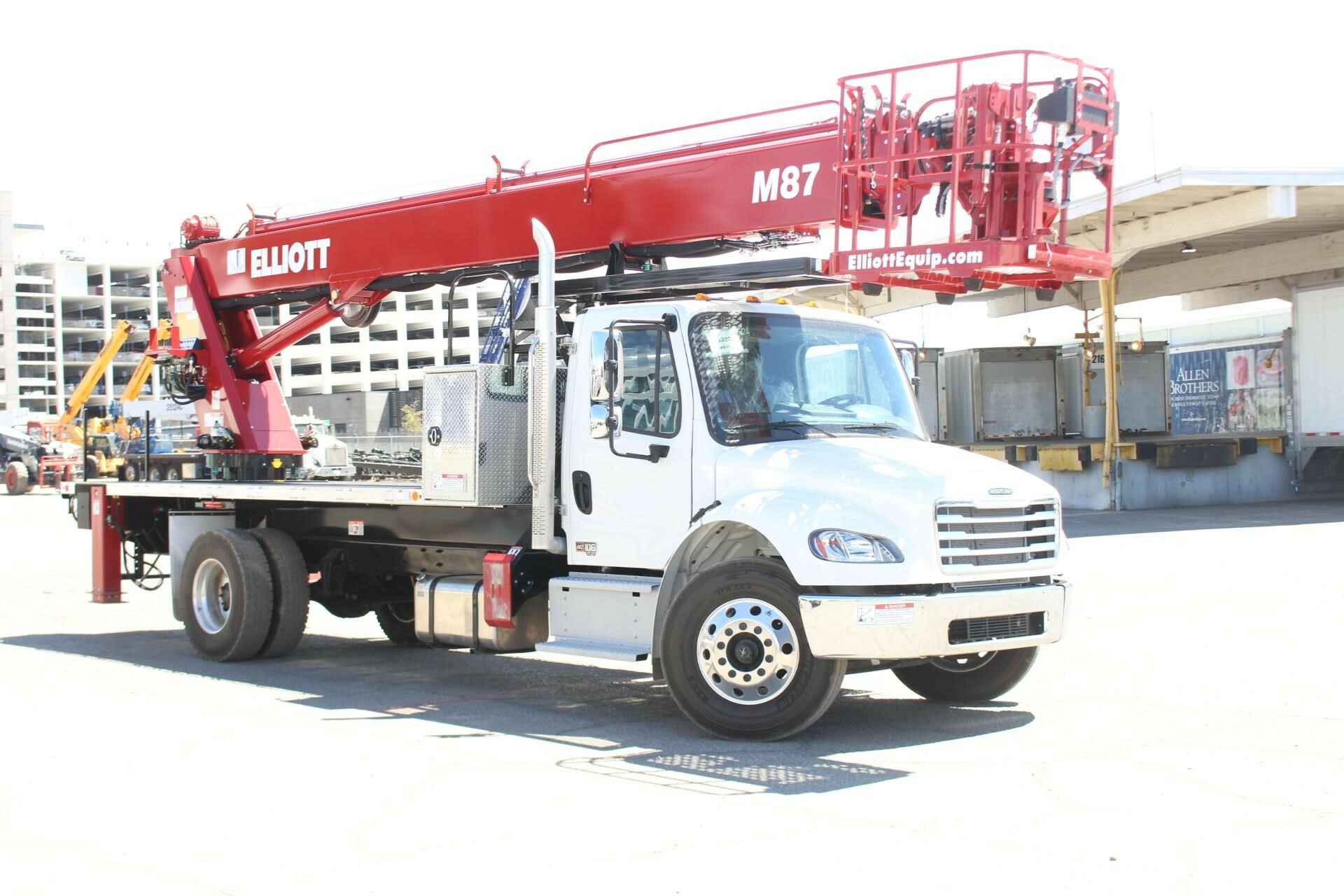

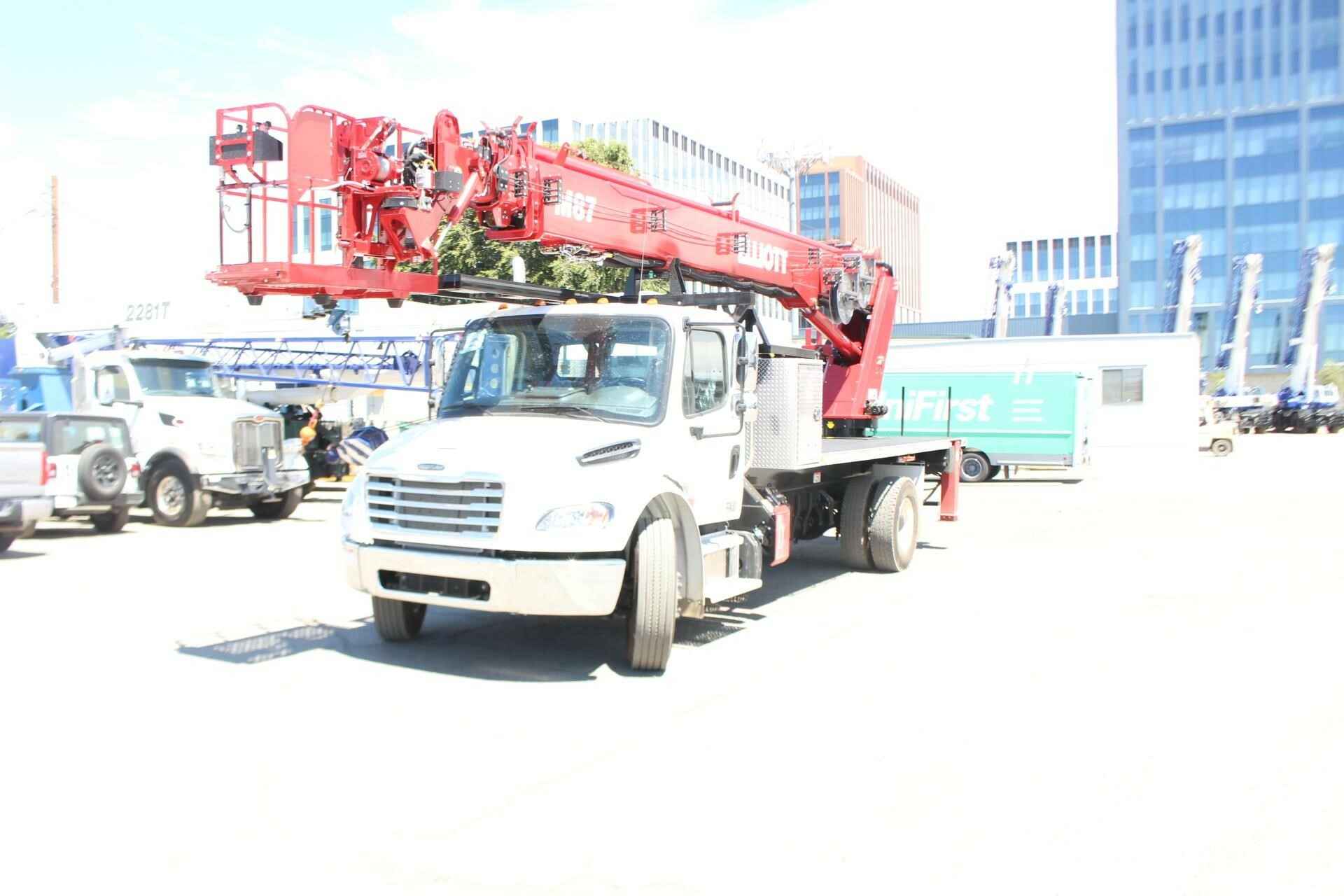

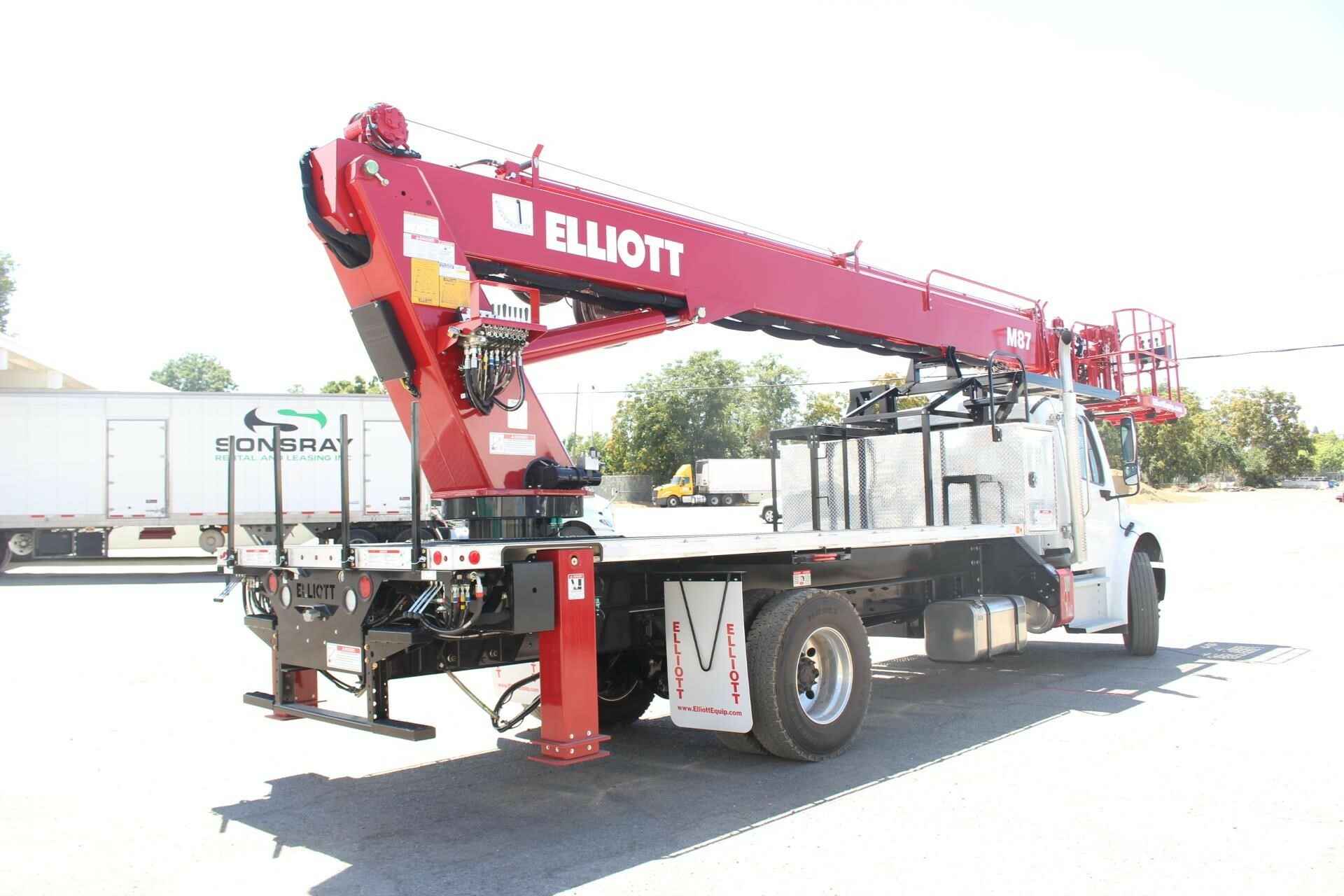

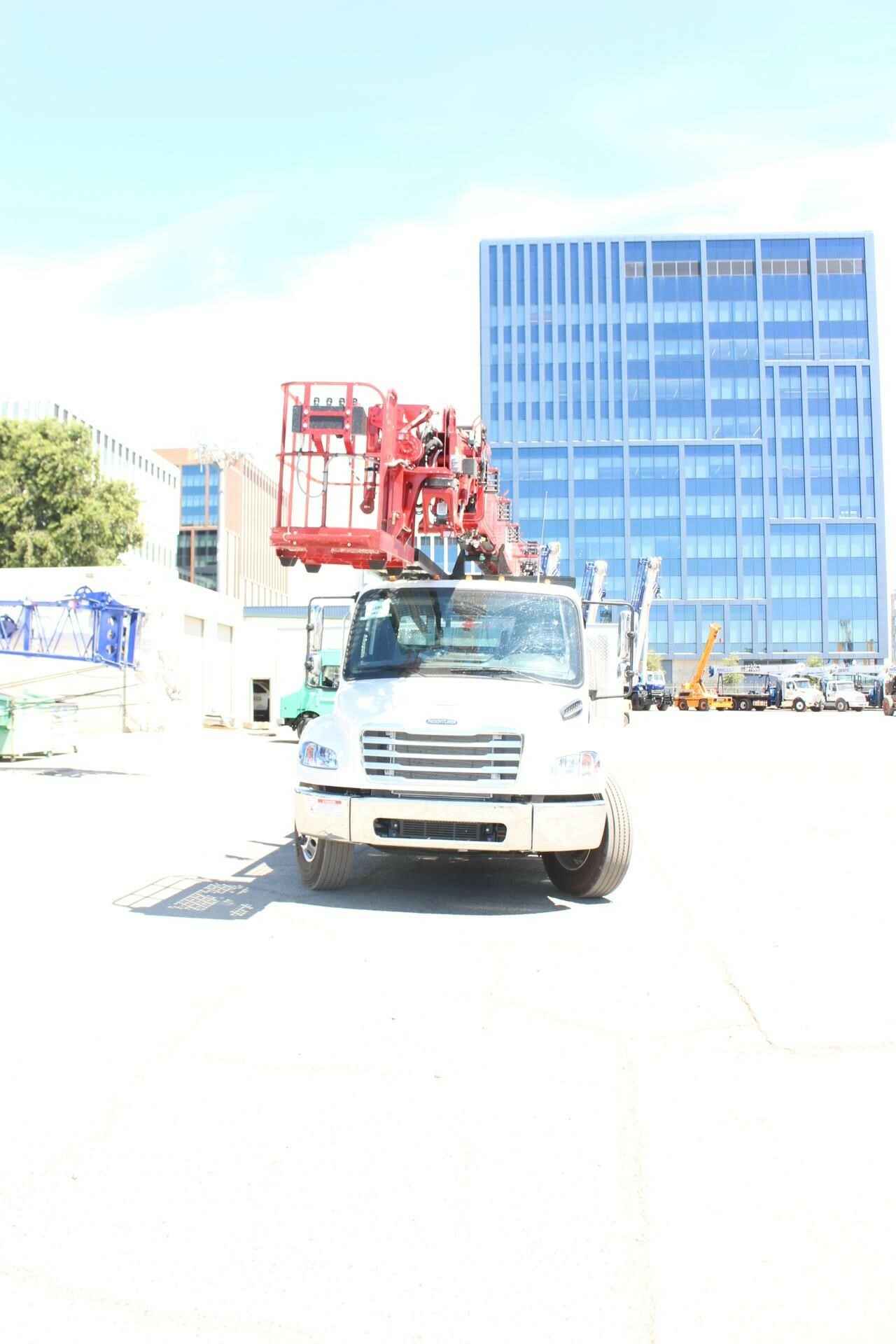

ELLIOTT M87R
One new Elliott HiReach M87R having a 87' working height. Basic unit includes base assembly supporting a rear mounted rotating turret, hydraulically powered continuous rotation mechanism. Oil reservoir mounted to truck frame with oil. Manual hydraulic controls mounted at turret. Electronic proportional three-stick controls on platform. Base mounted "MH" type hydraulically powered , individually controlled rear main outriggers and "A" style over frame secondary outriggers behind cab. Steel three section proportional telescoping boom powered by single hydraulic extension cylinder and cable drive. Internal cable carrier. Electronic/hydraulic self-leveling and rotating 30" x 54" end hung work platform. Leveling from platform. PTO, pressure gauge, pump, and holding valves on all cylinders. Remote start/stop at upper and lower controls, 12-volt emergency pump with switch at upper and lower controls, PTO hour meter, backup alarm, fire extinguisher, safety triangle kit, and two body harness and lanyards. LED lights to include all bed marker lights, stop, tail and turn. Installed on chassis, tested, checked and ready to operate. Unit certified to ANSI A92.2 for Vehicle-Mounted Elevating and Rotating Aerial Devices. Platform capacity 600 lbs.
Additional Options Included:
• 18’Aluminum Bed with LED Lights and Grip Deck Coating (Sides Unpainted)
• Standard Rear Bumper with Steps and Grab Handles
• Automatic rotation Lockout- Prevents Boom from Rotating to Side Where “MH” Outriggers are not fully extended horizontally. (“A” Outrigger remain fully extended)
• 2,000 lb. Planetary Winch with Anti-Two-Block Switch, Horn, & 3/8” Cable & Retainer Lug
• 500 lb. Platform Mounted Jib with Hydraulic Winch. Jib Stows in Platform
• 110 Volt Line to Platform
• (2) Sign Forks on Platform
• Walkway Access to Platform when Boom Stowed (19,500 GVWR Chassis)
• Hot Shift PTO for Automatic Transmission
• 98” x 36” x 24” Aluminum Crossbody Box (Requires 24” Shorter Bed) (Treadplate-No paint)
• Walkway Access to Platform when Boom is stowed.
• (4) 24” x24” x1” Composite Plastic Outrigger Pads with (2) Steel Holders
• Chassis Rating – 25,999 lb. GVWR Non CDL
• Mounting Bracket Above Crossbody Box for Welder/Generator Bolted to Bed
• Welder Leads to Platform-Reel on Boom
• Welder/Generator Start/Stop Switch in Platform
• HiReach Unit Painted Red, Subframe Painted Black, Outriggers Painted Red (STD)
MOUNTED ON 2024 Freightliner M2 106
2024 Freightliner M2 106, 300 hp Cummins B6.7 diesel engine (660 lb/ft), 222" WB, 156" C.A., 90" AF, Allison 2500 RDS automatic transmission, 29,000 GVWR, Detroit DA-F-10.0-3 10,000 lb front axle, Detroit DA-RS-19.0-4 19,000 lb rear axle, Michelin XZE2 11R22.5 front tires and Michelin XDN2 11R22.5 rear tires, hydraulic brakes, 50 gallon alum fuel tank (LH), AM/FM radio, cruise control, power windows, power locks, tilt steering, air conditioning, air ride driver seat, two-man pass. bench seat. Color: White. 1-year tow warranty.
F.O.B. Omaha, NE
