June 15, 2023
Unit 119042
New Unit

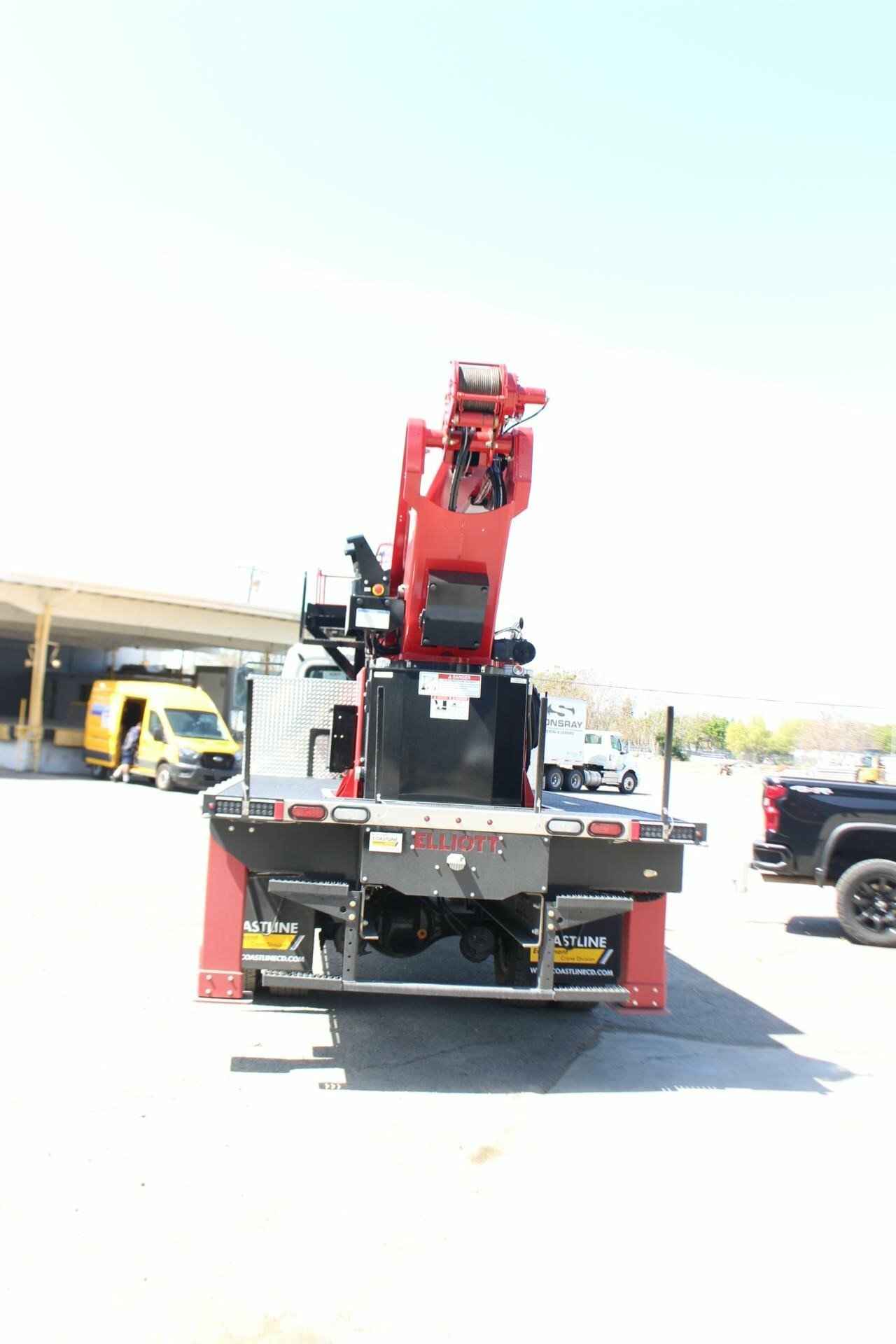

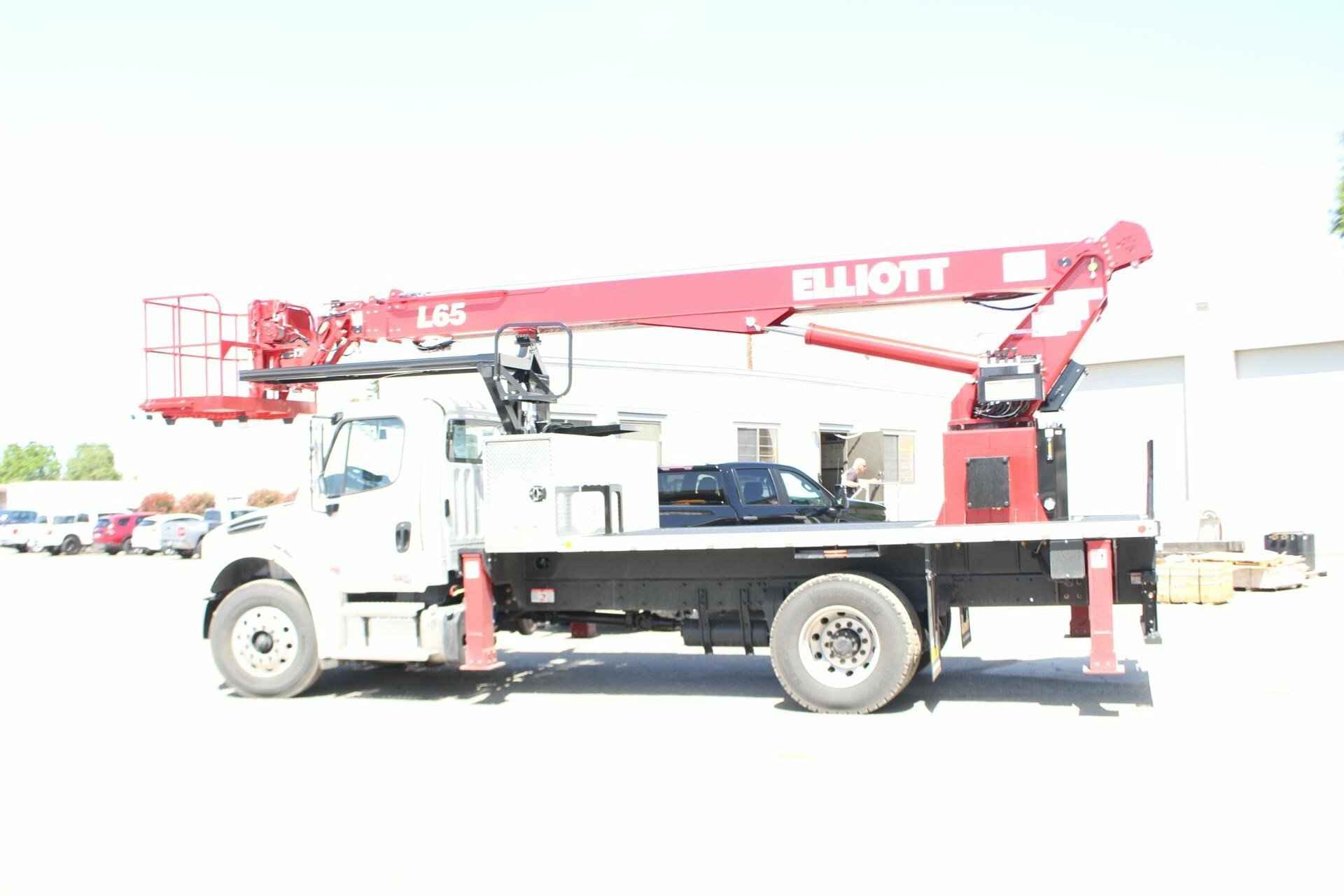

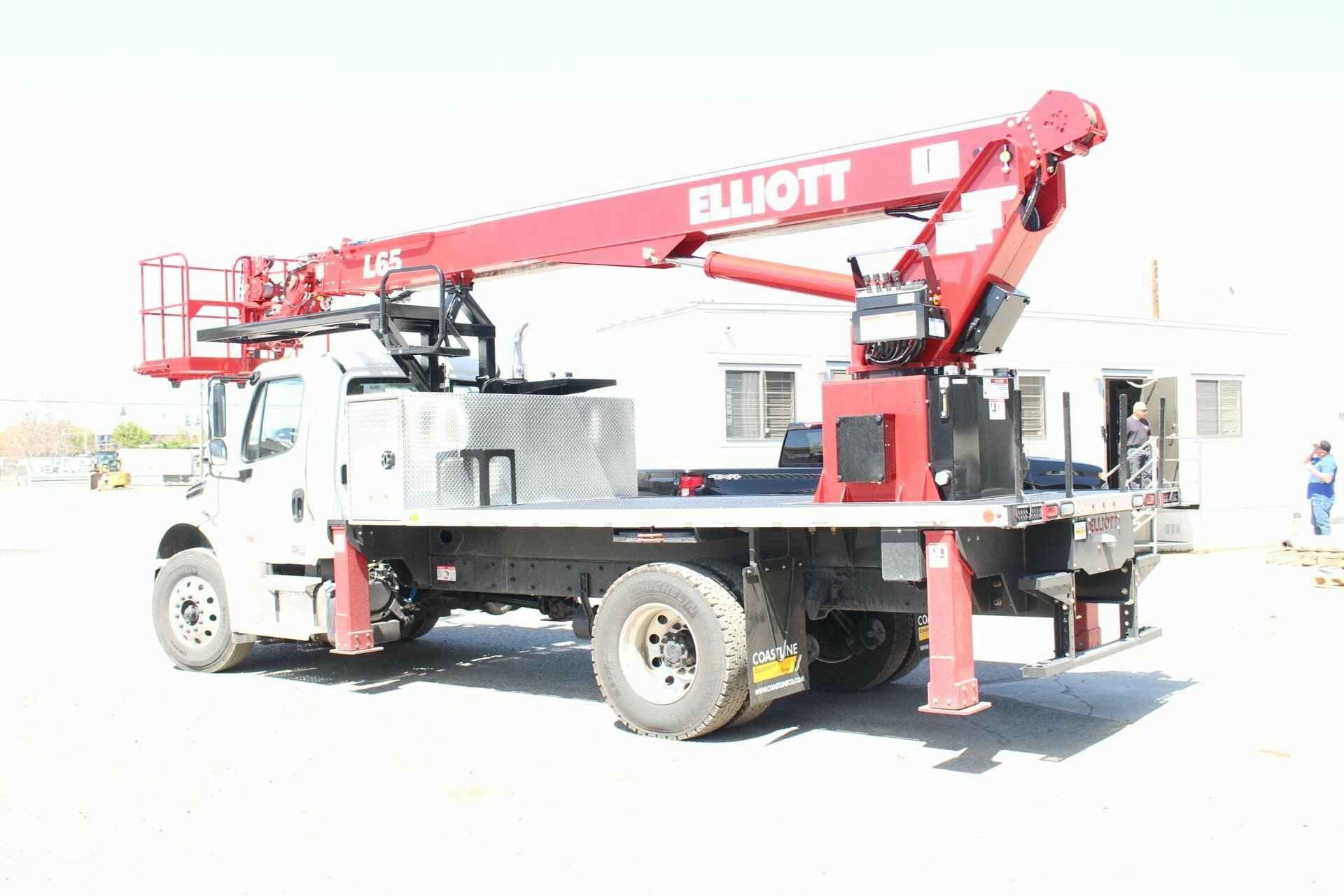

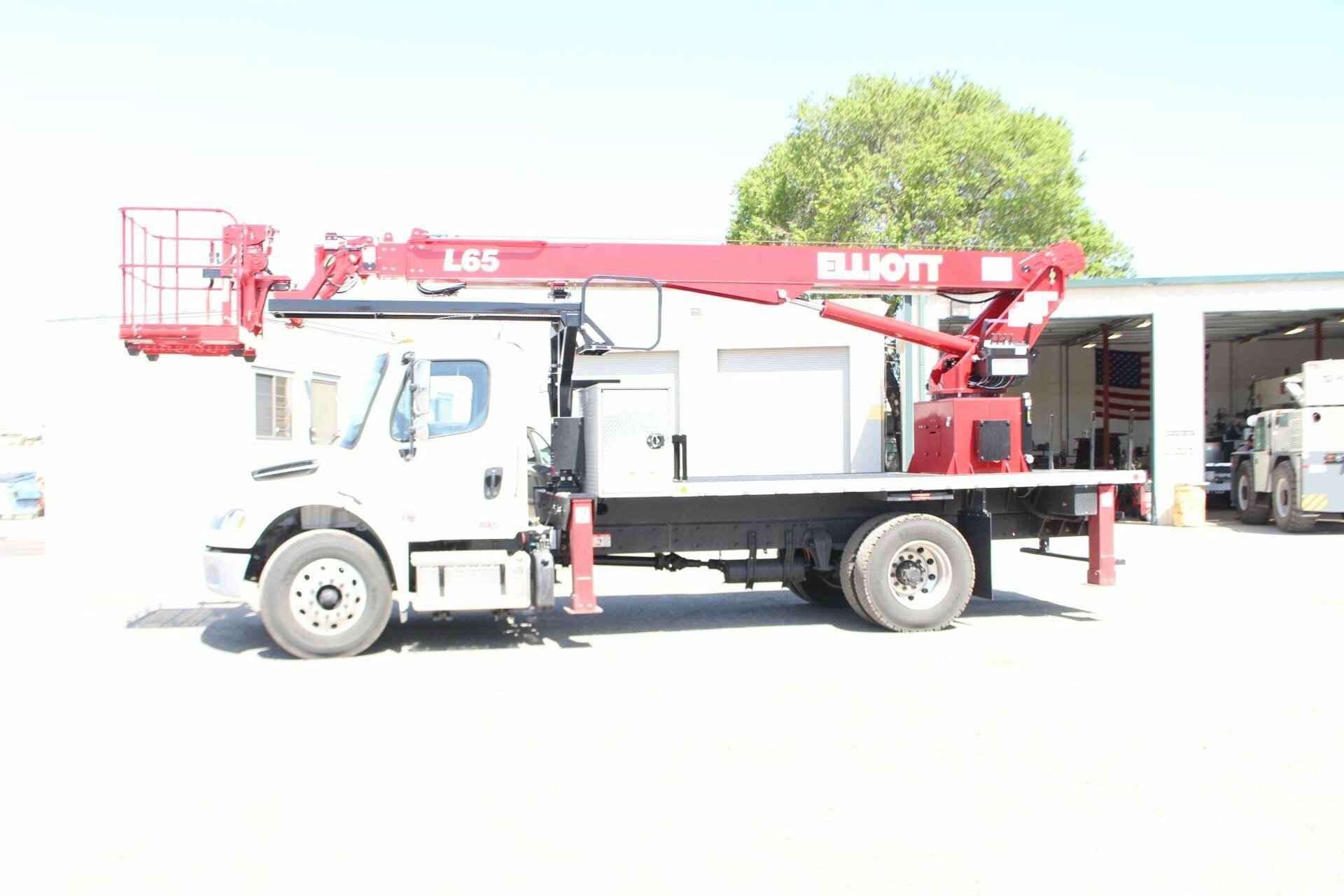

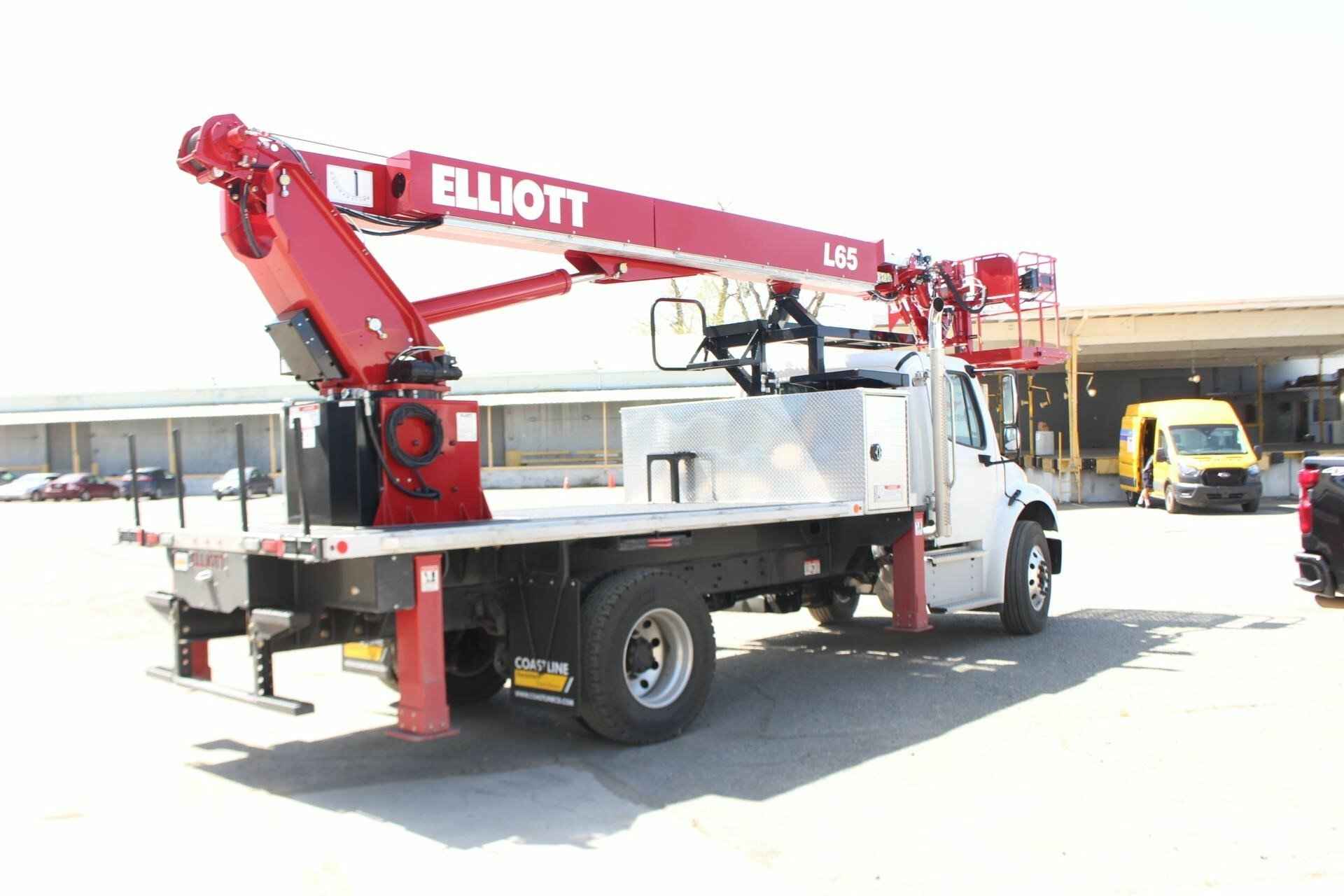

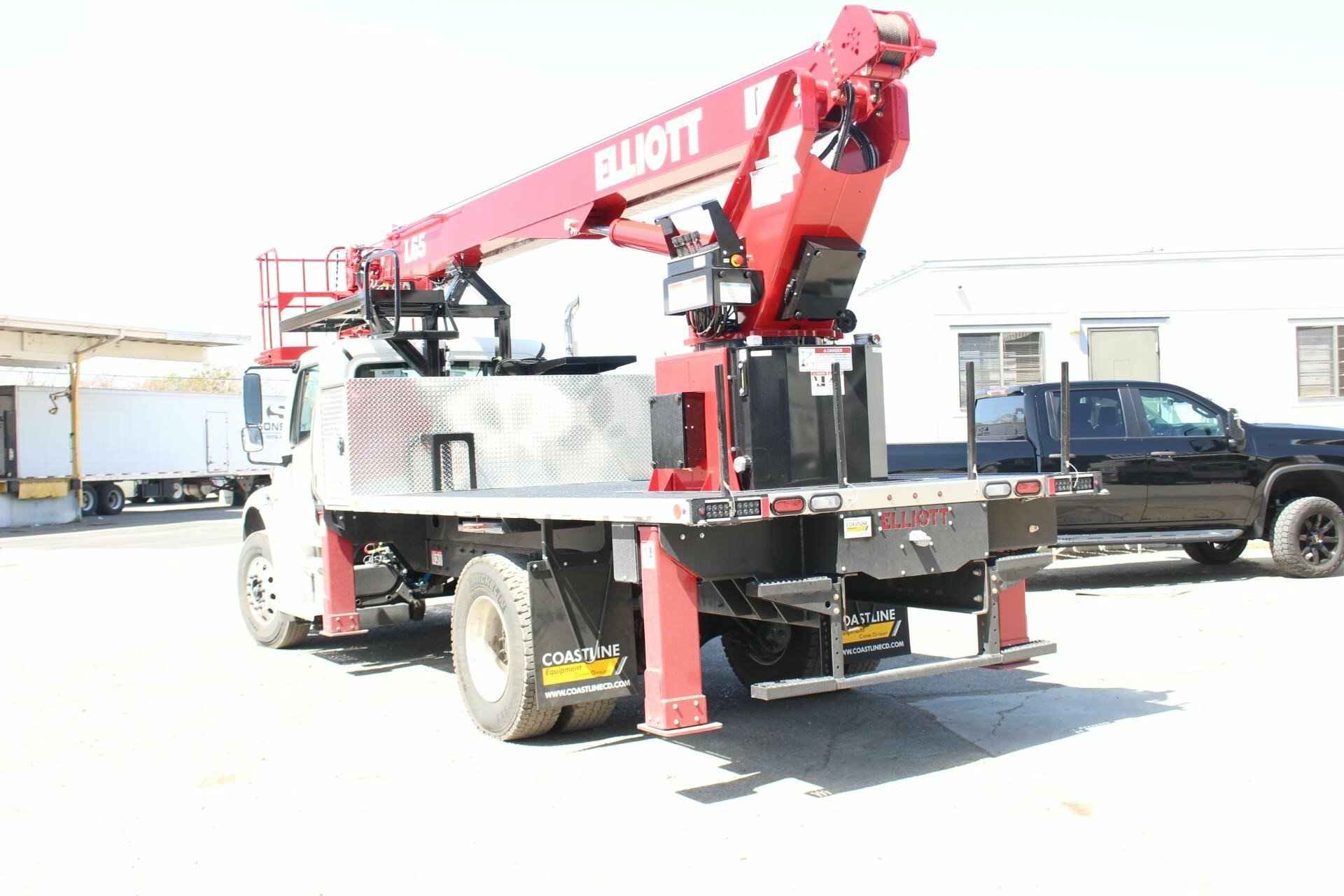

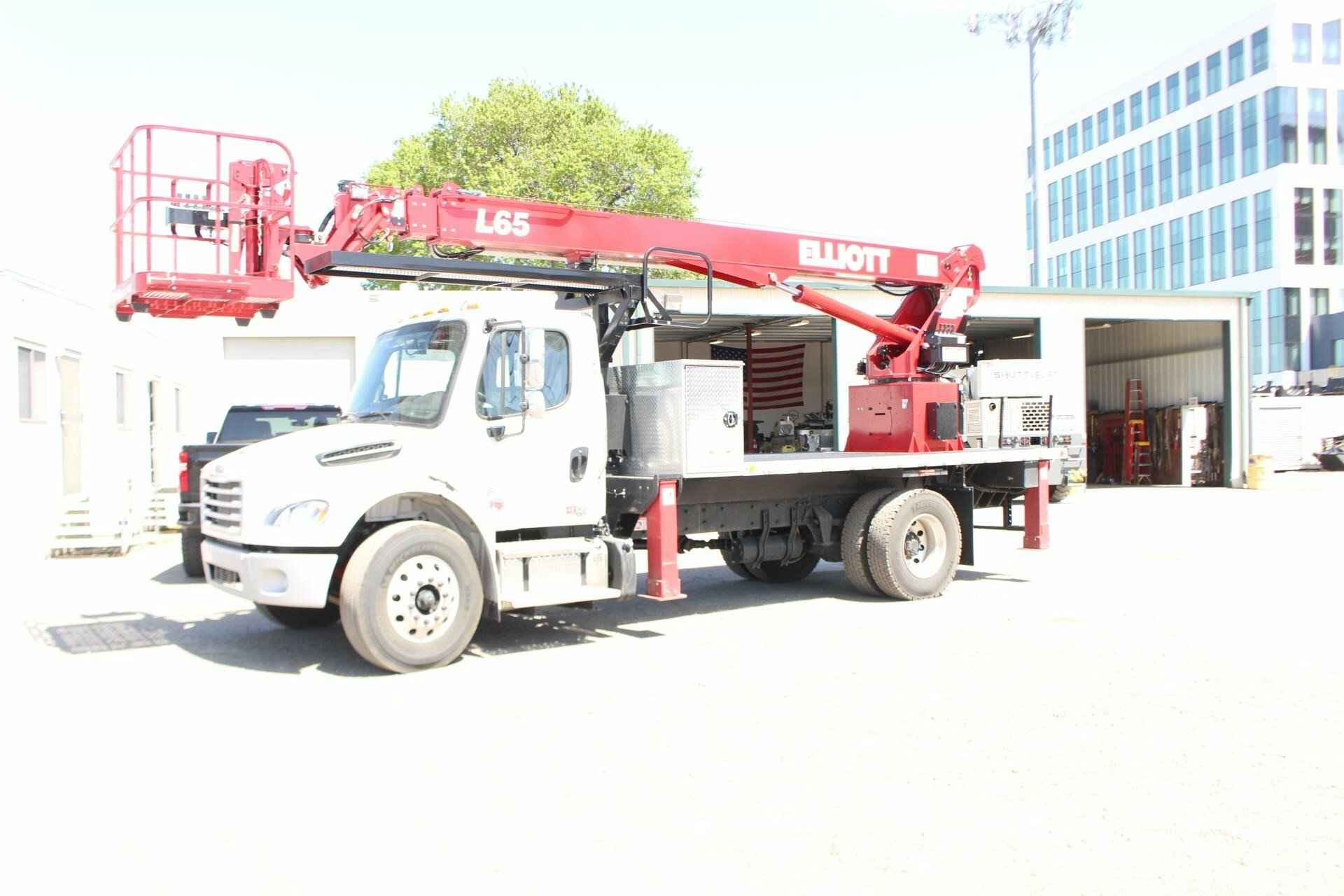

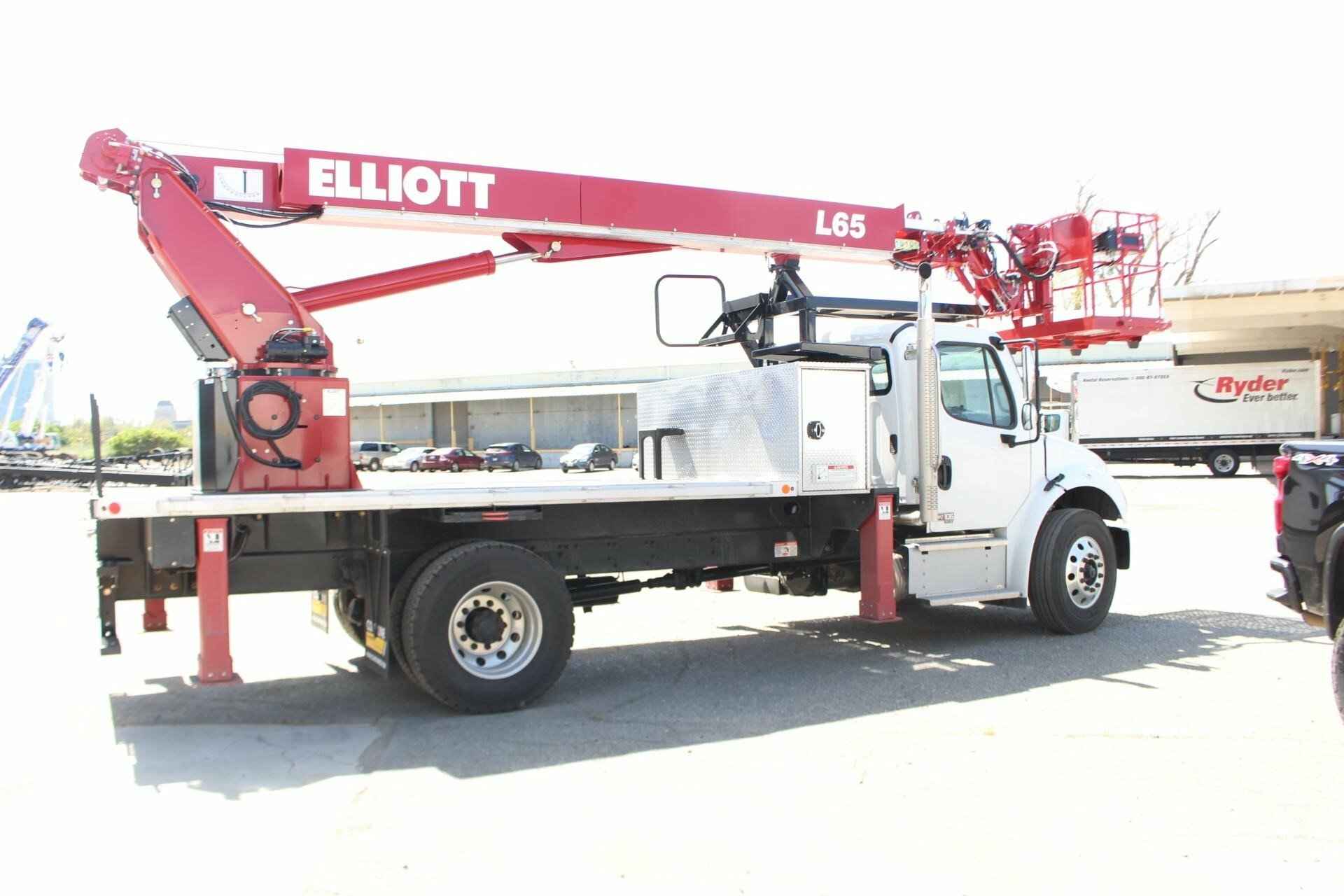

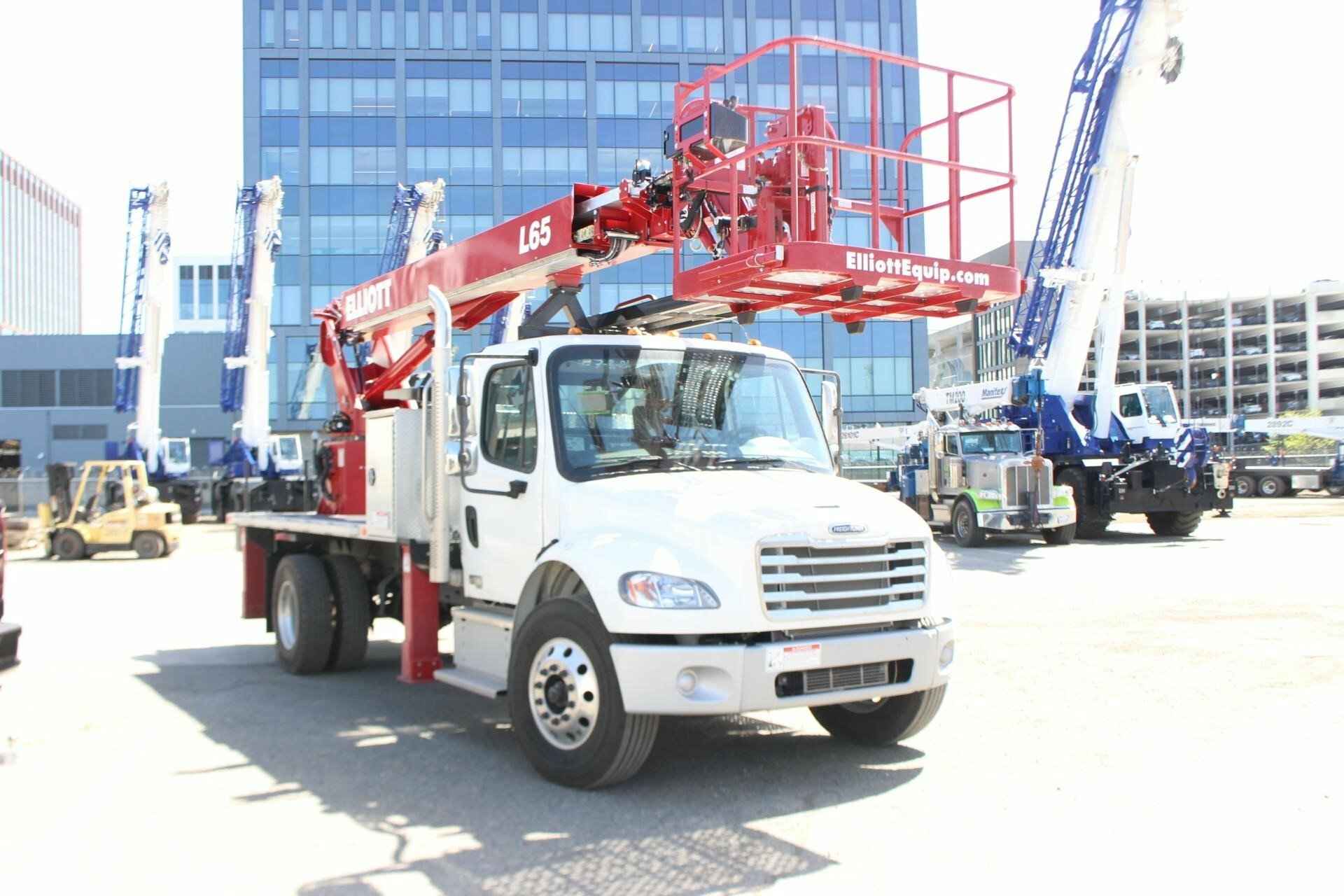

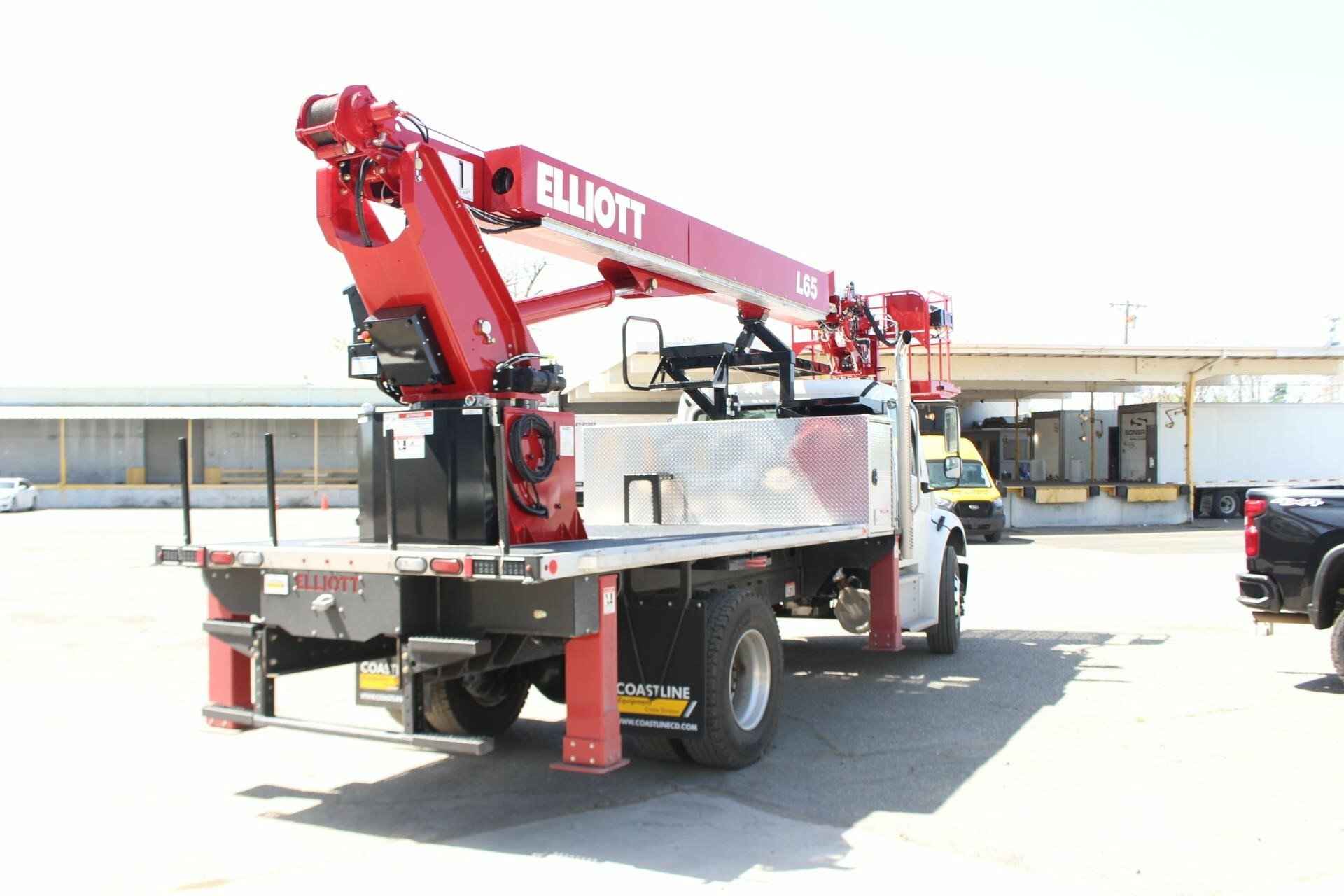

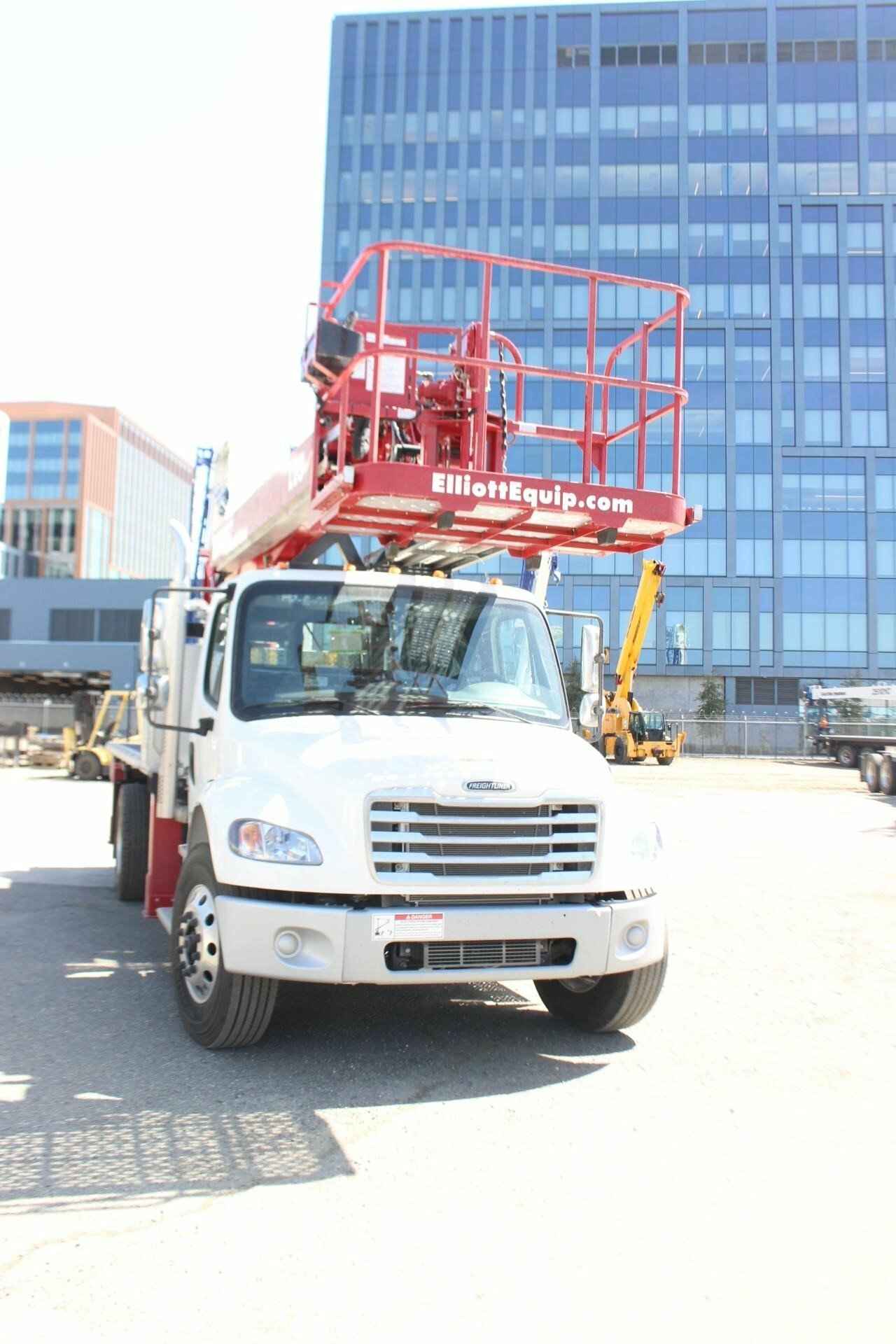

ELLIOTT L65R
Standard features:
One new Elliott HiReach L65R having a 65' working height. Side Reach – 56’6” (Center of rotation to end of platform), Platform Capacity – 600lbs., Rear mount turret with boom stowed over the truck cab, Certified ANSI A92.2 for vehicle-mounted elevating and rotating aerial devices, Boom – 3 section 4-plate design, Lift cylinder – 6” double acting, Boom extension – Hydraulic (no cables), Continuous rotation, Oil reservoir – steel 30-gallon capacity includes sight and temperature gauge. Located back of turret box, Subframe-High strength full length, Lower controls – Electric over hydraulic on turret, Rear Outriggers – 17’0” out and down outriggers, Secondary outriggers – 12’0” out and down outriggers, Outrigger controls – rear of bed each corner. Electric over hydraulic, Cable Carrier – full length with tube for hoses and cables. Includes cover, Platform - hydraulic self-leveling with 160° of rotation. Aluminum floor, Hydraulic pump – fixed gear, USB outlet at upper controls, PTO hour meter, Chassis control – Start/Stop, Throttle and horn located at rear bumper, lower turret controls and upper platform, Automatic rotation lockout – Prevents boom from rotating to side where outriggers are not fully extended horizontally, Emergency pump – 12 volt with switch at lower turret and upper platform, Backup alarm, LED lights – bed marker, stop/tail/turn and reverse, Safety kit – Fire extinguisher, safety triangle kit, and two body harnesses with lanyards, Manuals – (1) operation, maintenance and safety, (1) Parts and (2) electronic copies of each, Maintenance filters –(1) extra high pressure and (1) return filter.
Additional Options:
• 40” x 60” Platform (standard)
• 110 Volt Line to Platform
• (2) Sign Forks on Platform Extendable
• (4) Single-axis joysticks - hardwired
• Walkway with steps and handrails. Includes boom rest.
• 5,900 lb. Planetary Winch with Anti-Two-Block Switch, Horn, Two Part Hook, Cable Packer, 180' of 3/8" Cable, 2-part block & Retainer Lug
• 500 lb. Platform Mounted Jib with Hydraulic Winch. Jib Stows in Platform.
• Hot Shift PTO for Automatic Transmission
• Aluminum 14’6” includes stake pockets and tie down rails. Black grip deck
• (4) 24”x24”x1” composite plastic outrigger pads with (2) steel holders
• Straight down (2 steps with grab handles)
• 98" x 36" x 24" Aluminum Crossbody Box (Requires 2' Shorter Bed) (Treadplate-No paint)
• One button operation – “Platform Stow” – Automatically stow the platform, “Platform Unstow” Unstow the platform to either side of the chassis at lower controls, “Chassis Auto-Level” – Automatically level the chassis with outriggers, “Outrigger Stow” – stow outriggers automatically
• Chassis Rating - 25,999 lbs. GVWR Non CDL
• Mounting Bracket Above Crossbody Box for Welder/Generator (Miller 185/230)
• Welder/Generator Start/Stop Switch in Platform
• Welder Leads to Platform - (2) 1 Gauge Cables
• HiReach Unit Painted Red, Subframe Painted Black, Outriggers Painted Red (STD)

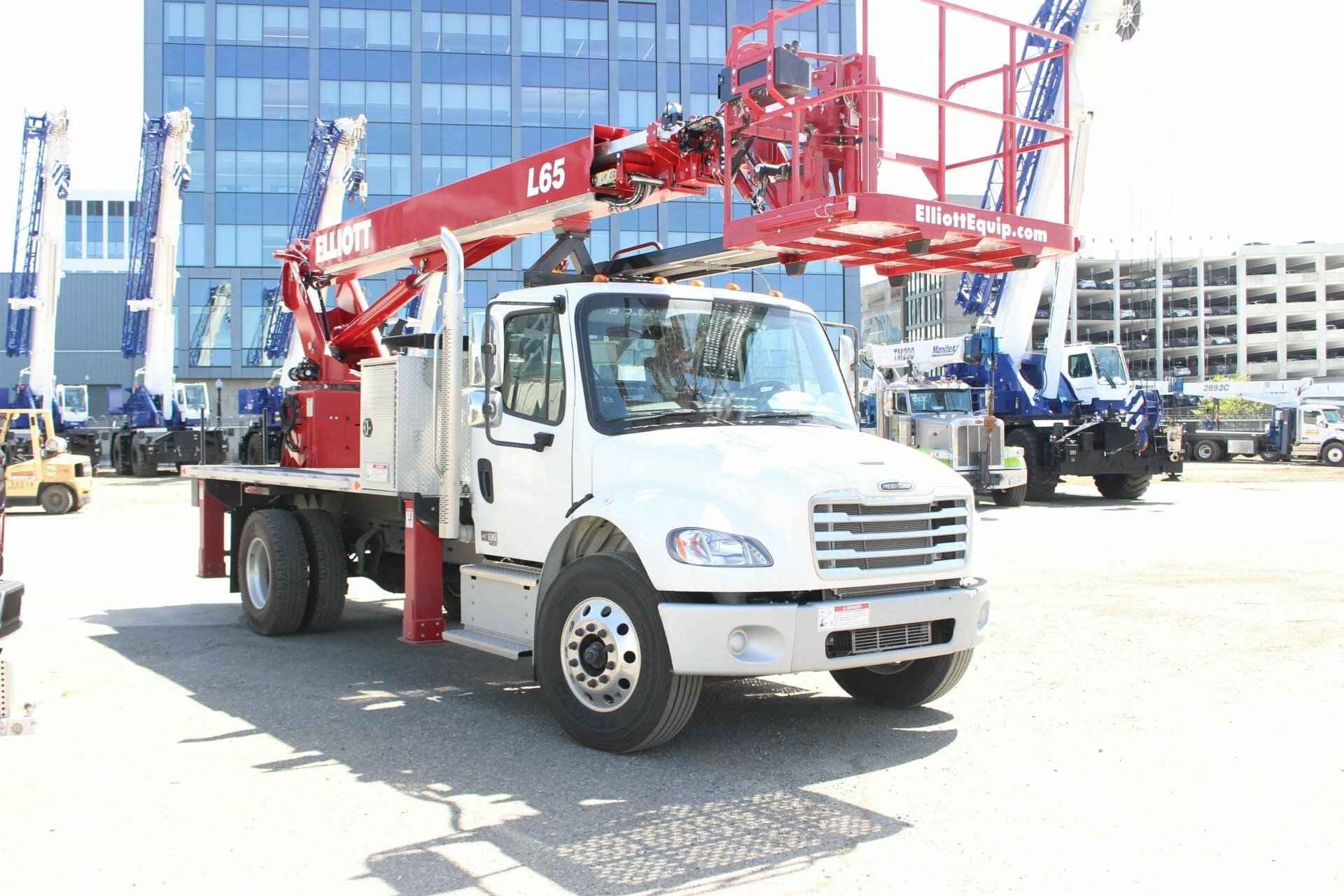

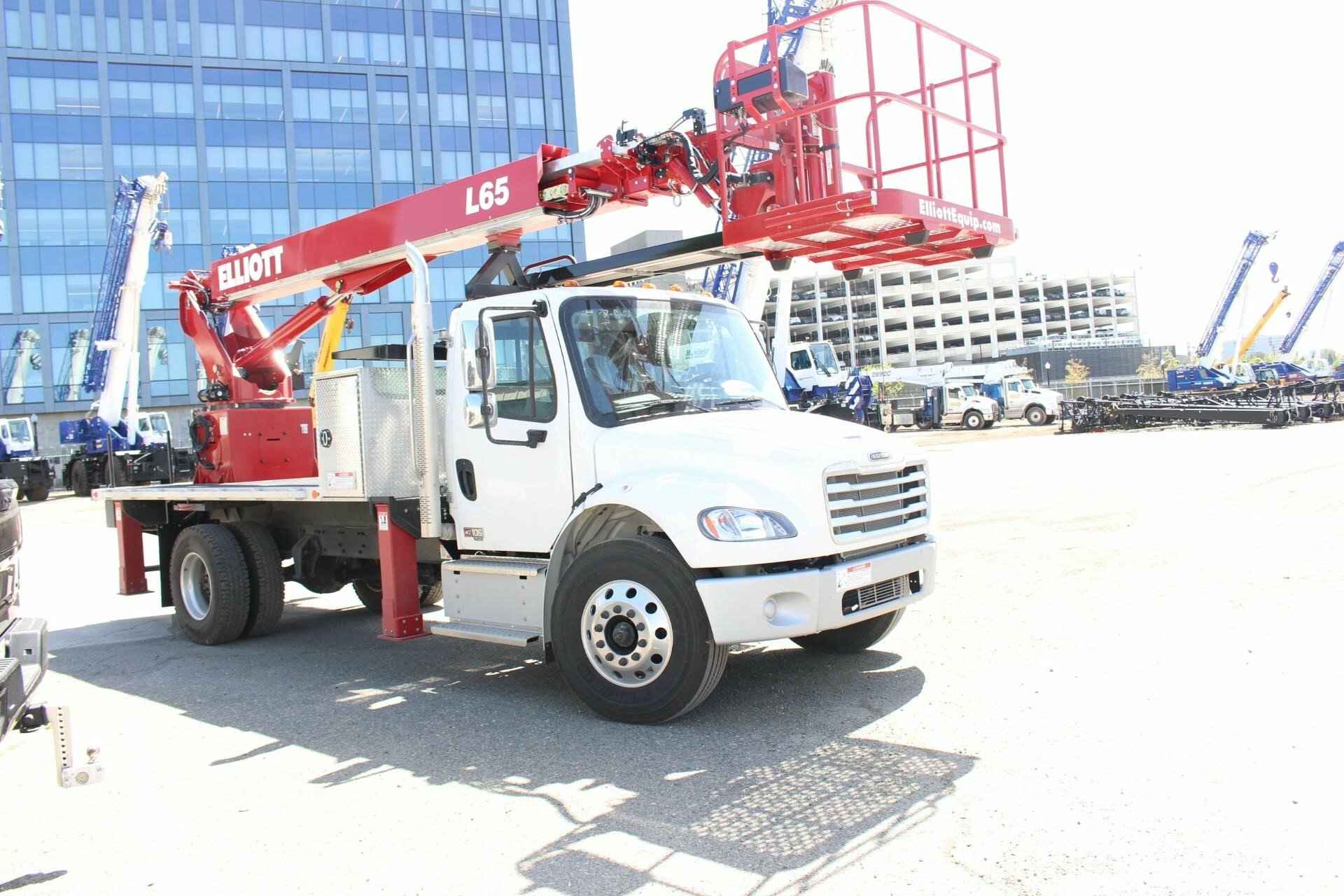

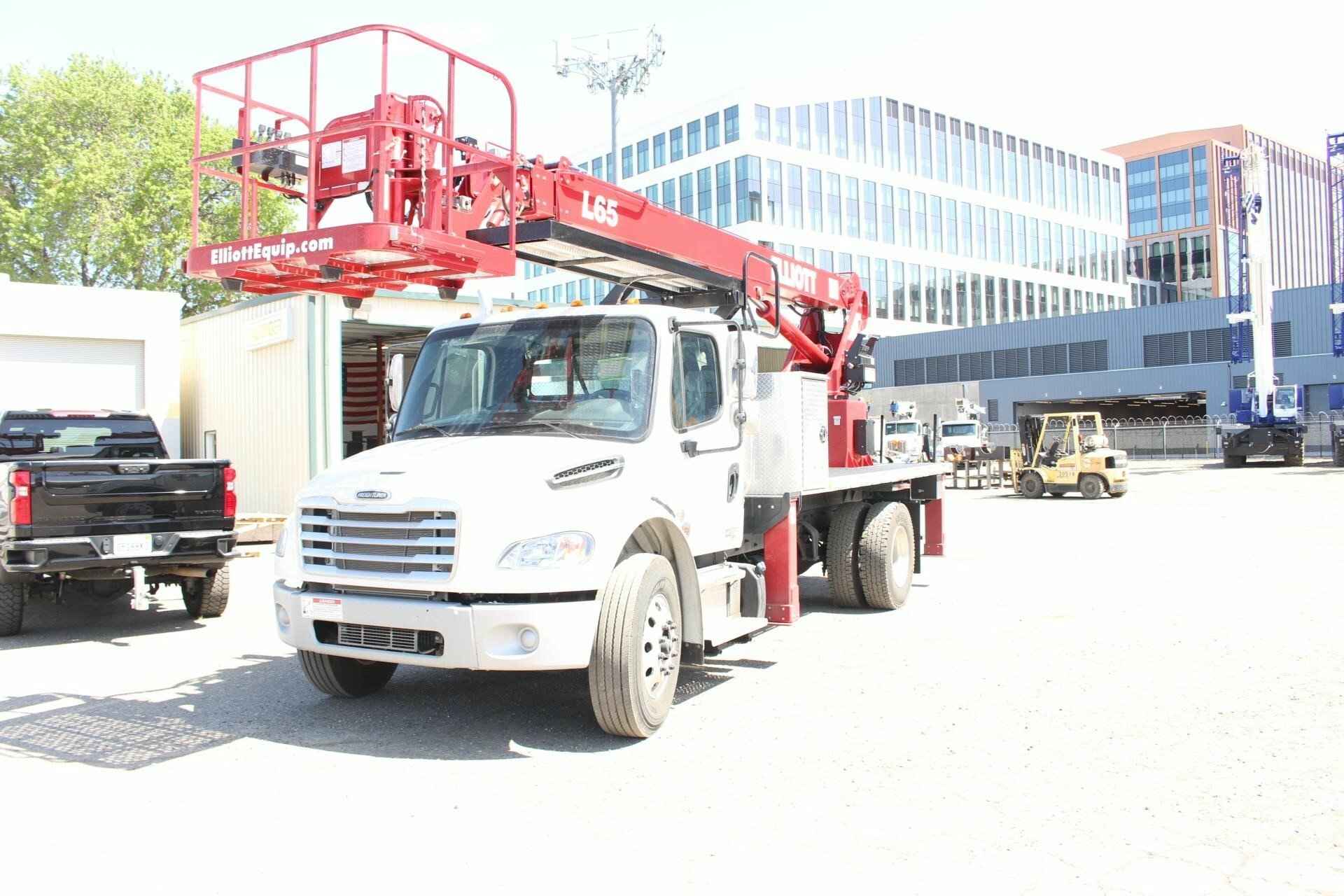

MOUNTED ON 2024 FREIGHTLINER M2 106
Mounted on a 2024 Freightliner M2 106 with a 280 HP Cummins B6.7 diesel engine, 198” WB, 132” C.A. 90” AF, Allison 2500 RDS automatic transmission, 29,000 GVWR, Detroit DA-F-10.0-3 10,000 lb. drop single front axle, Detroit DA-RS-19.0-4 19,000 lb. R series rear axle, Michelin XZE2 11R22.5 14 ply radial front tires and Michelin XDN2 11R22.5 Radial rear tires, hydraulic brakes, 50 gallon alum fuel tank (LH), AM/FM radio, cruise control, power windows, power locks, tilt steering, air conditioning, air ride driver seat, two-man passenger bench seat, unit is painted white,
