Engineered and designed for rugged reliability and reduced maintenance, NOV Hydra Rig injectors are backed by the experience achieved from the manufacturing of over 2,000 injectors.

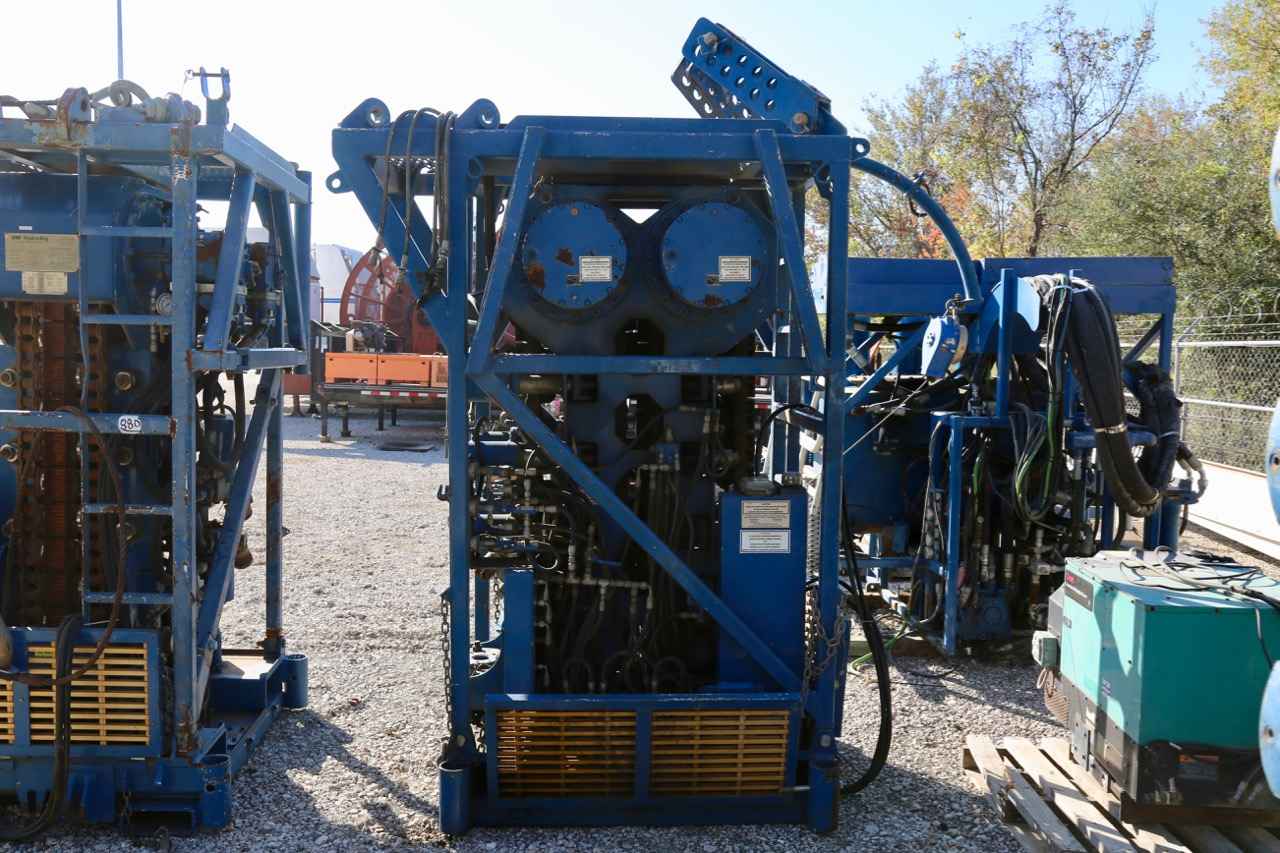

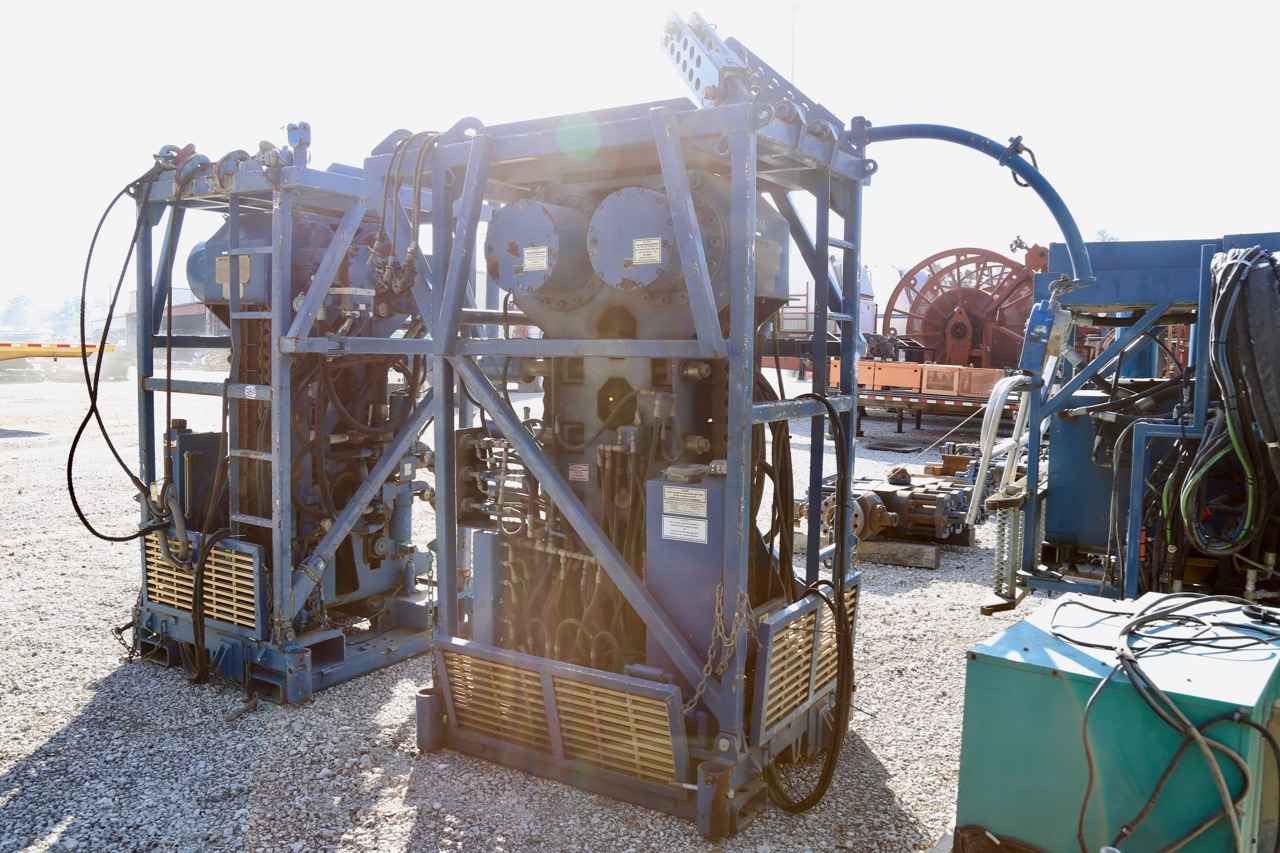

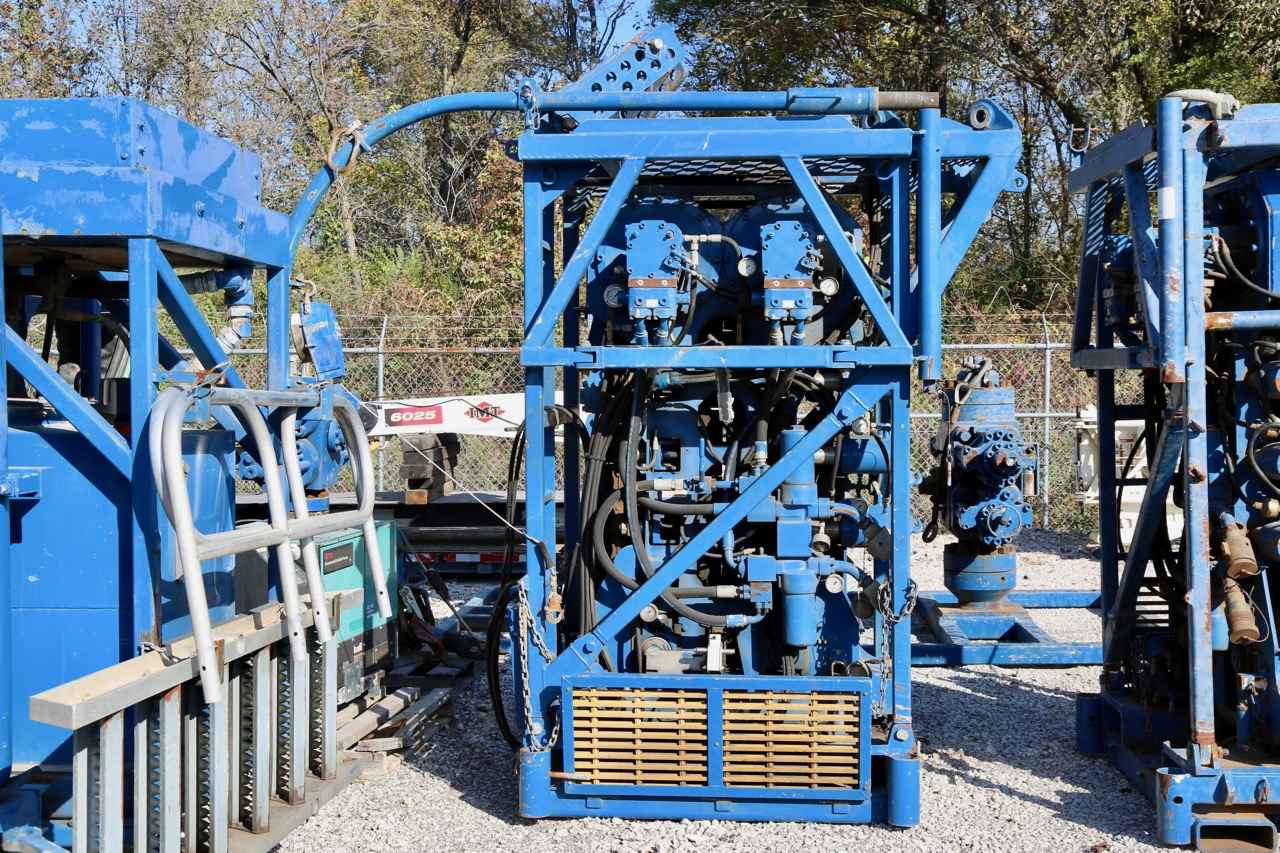

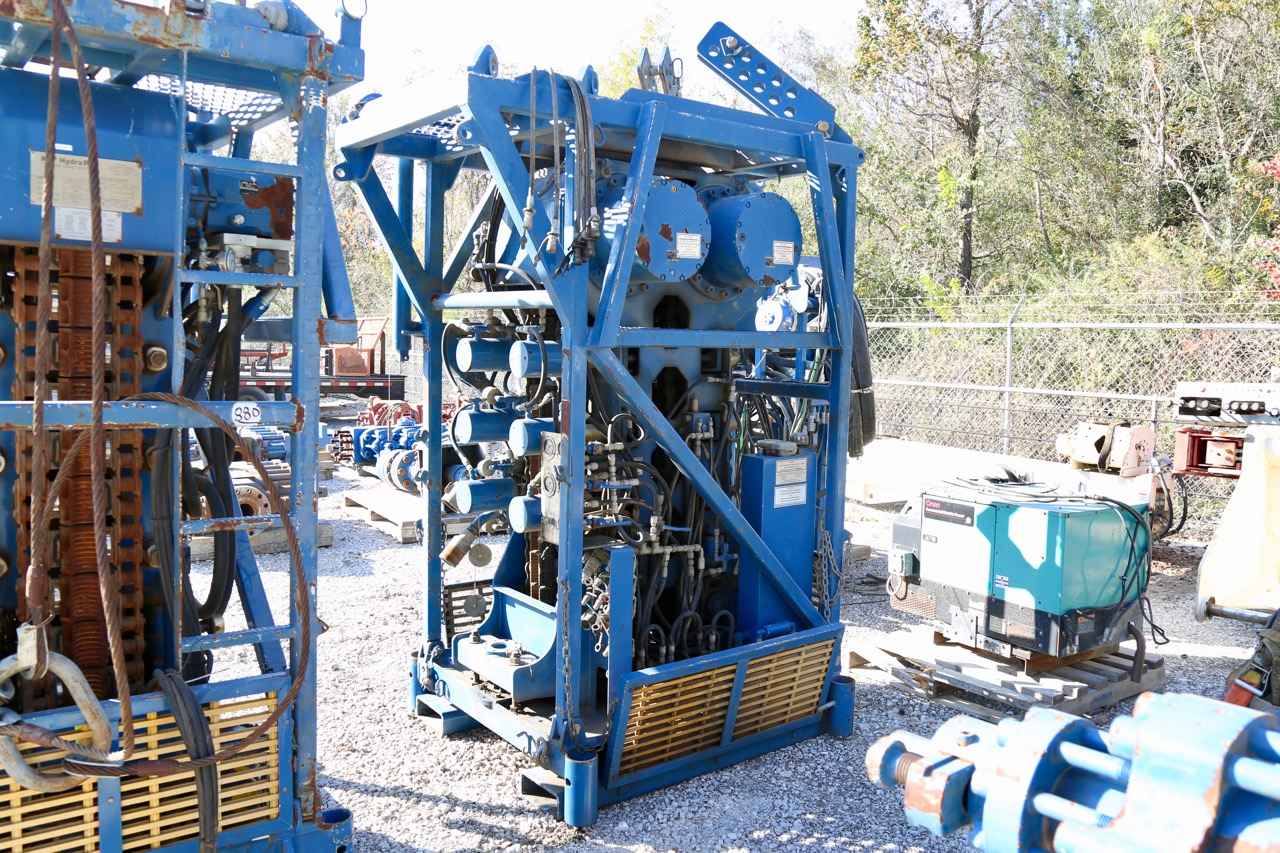

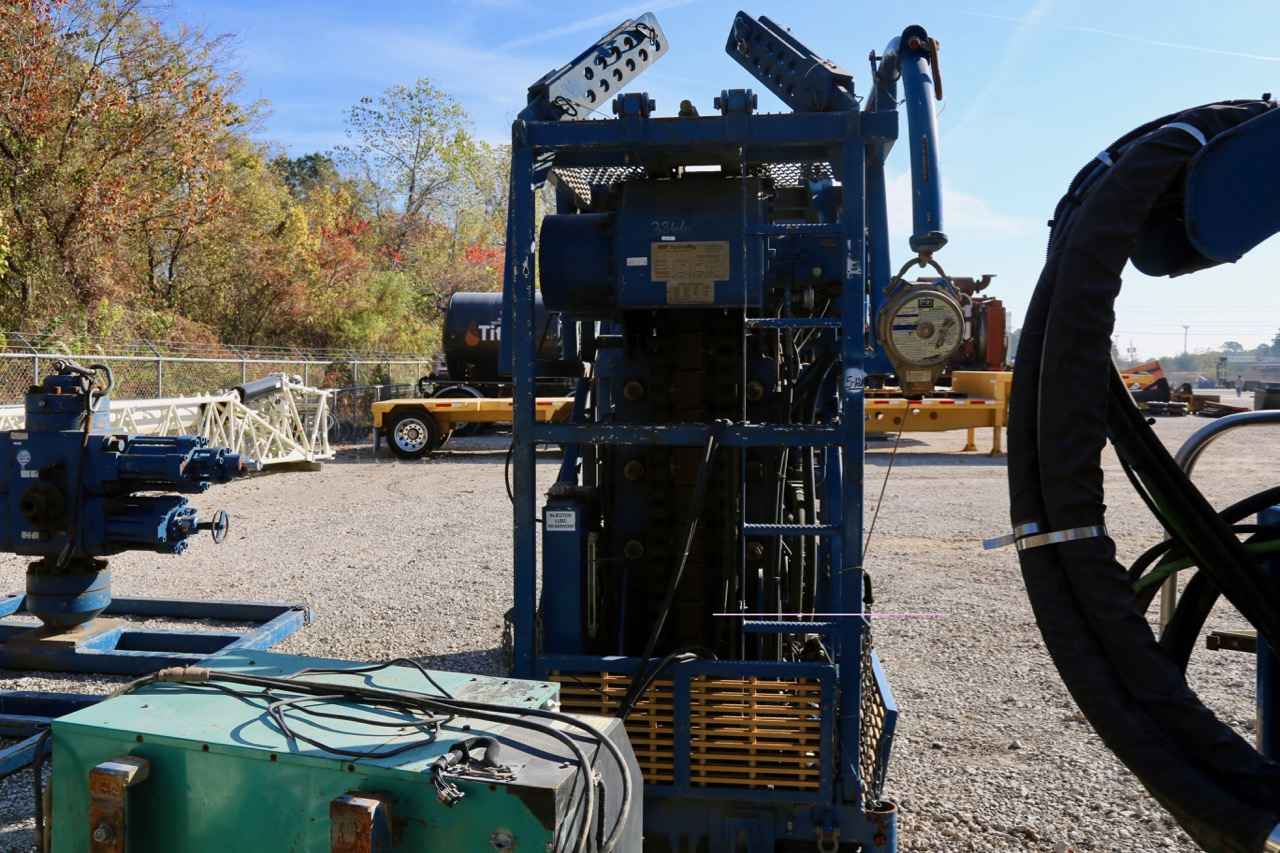

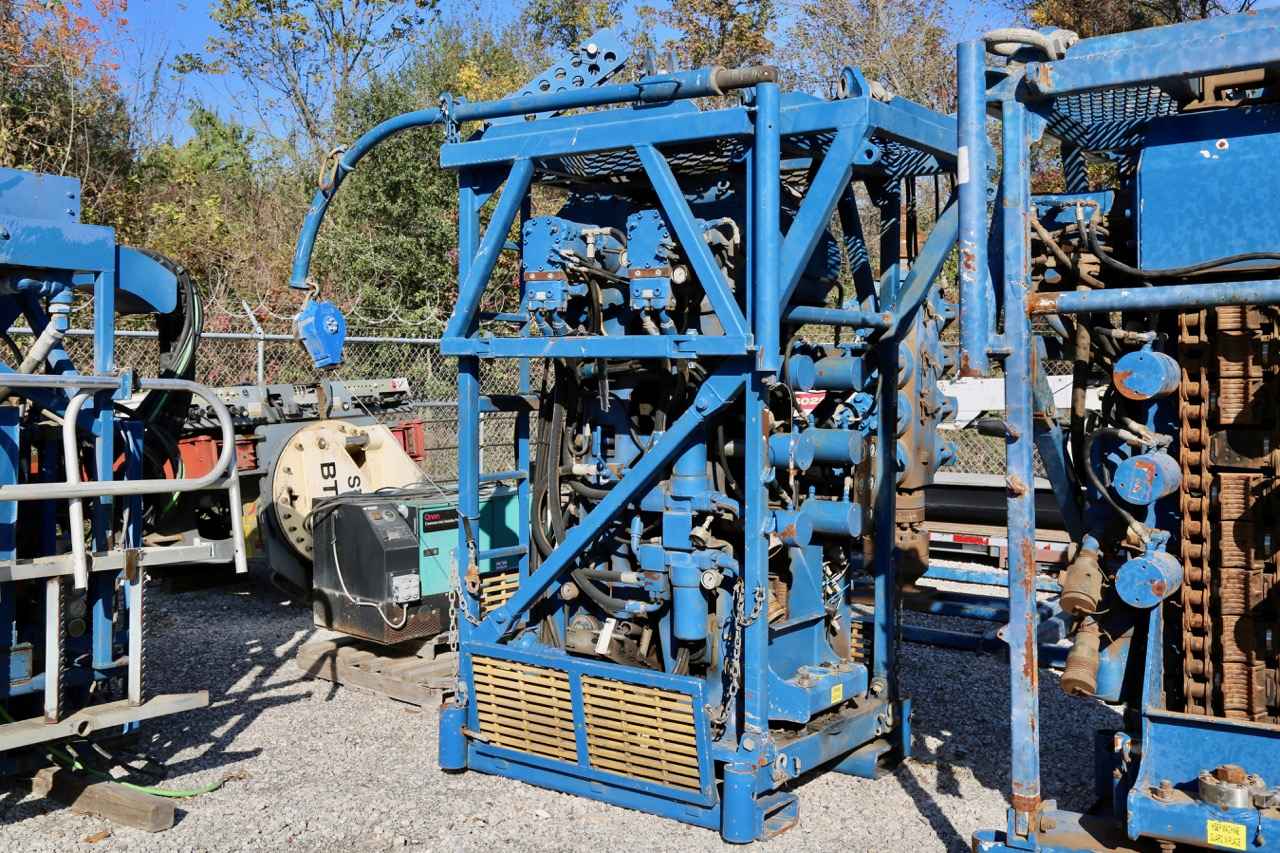

Whether you are packaging a new, custom-built unit with the HR-680 model injector, or just replacing your existing injector, the HR-680 has the performance and dependability you demand in the toughest oilfield conditions around the world.

Designed to handle 1" to 3 ½" coiled tubing strings, this model is capable of running the new 130,000 psi designs with superior slow speed control (inches per minute). The HR-680 has an 80,000 lbs continuous lifing capacity and 40,000 lbs continuous snubbing capacity.

The drive system and traction system enhances your performance in the field.

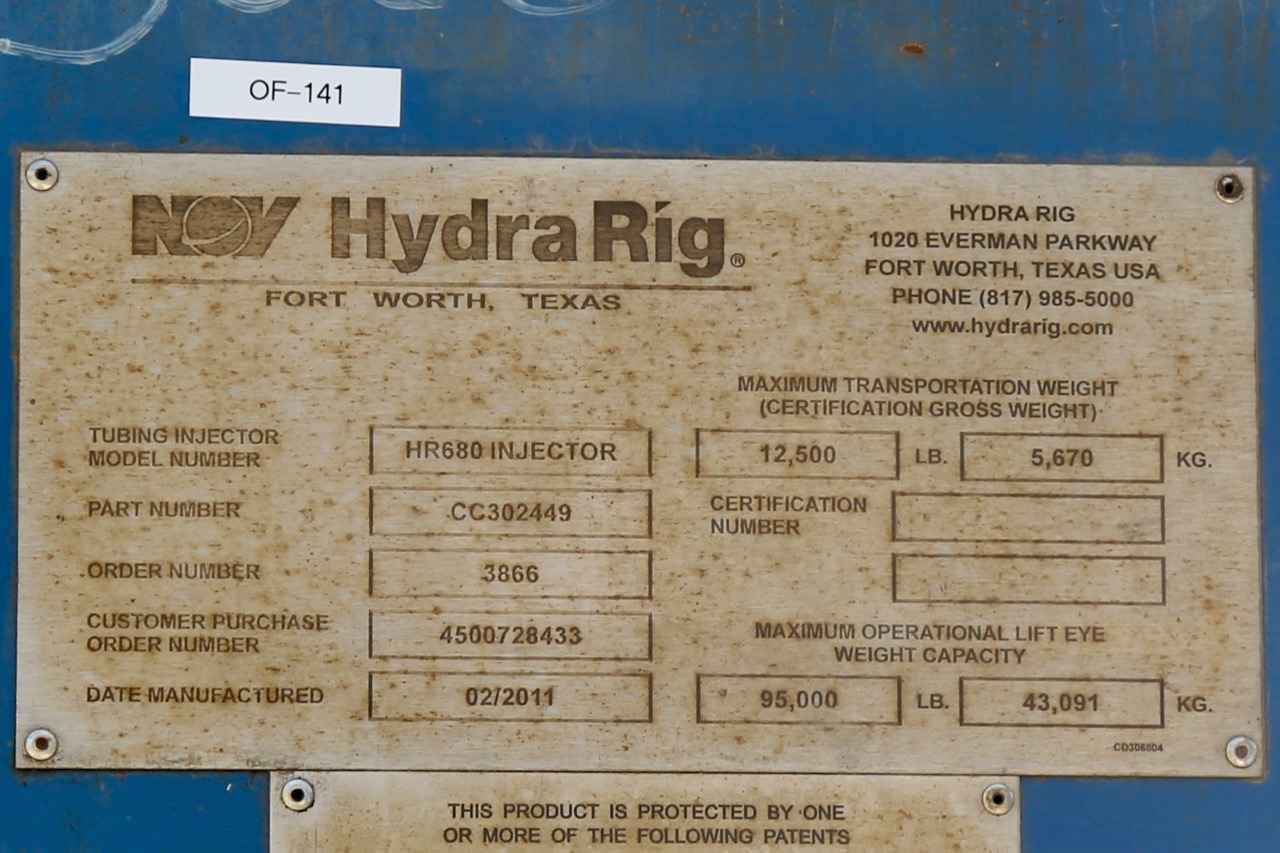

Specifications

Max. speed (Min. displacement): 200 f/min

Max. speed (Max. displacement): 108 f/min

Horsepower: 150 hp continuous at 120° F

Lifing capacity through outer frame: 95,000 lbs

Lifing capacity from stripper: 80,000 lbs

Assembled weight (72" gooseneck, stripper box, min. handling slings, lube tank, excludes fall pole, other options): 9,500 lbs

Approx. individual gripper weight: 6 lbs

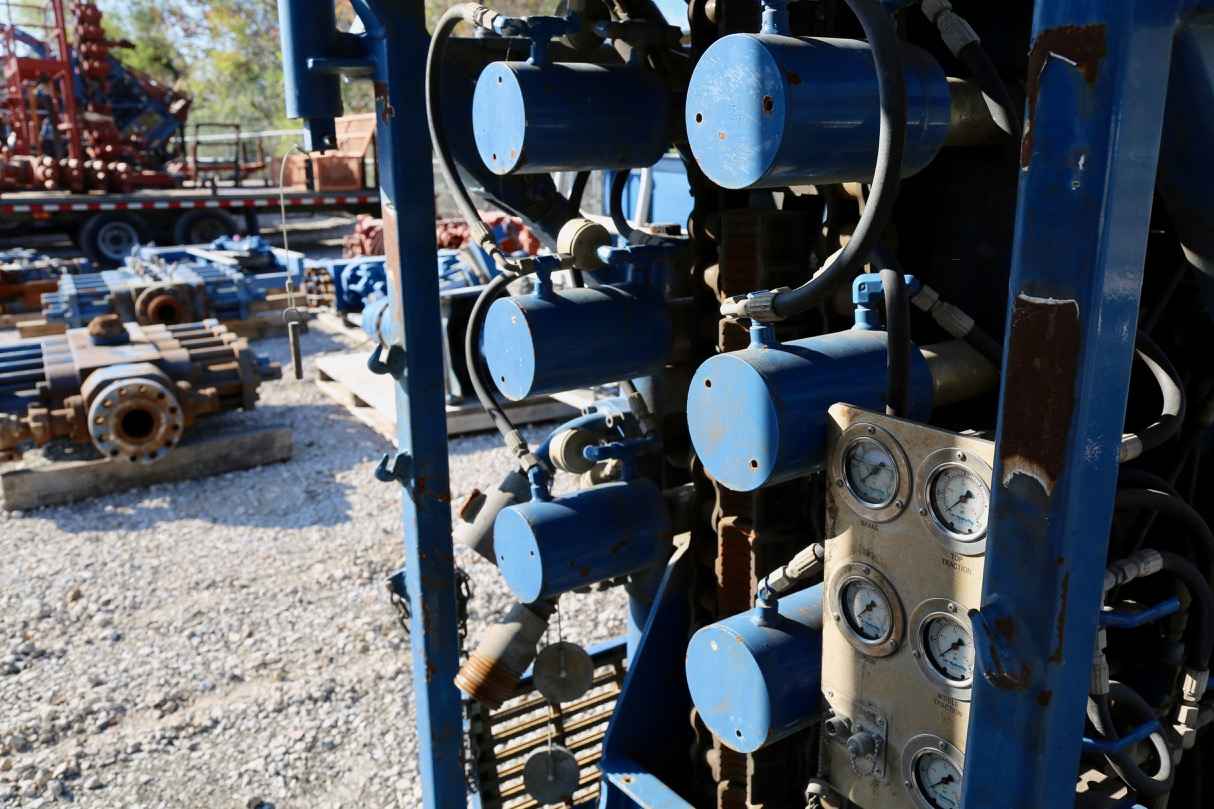

Drive System

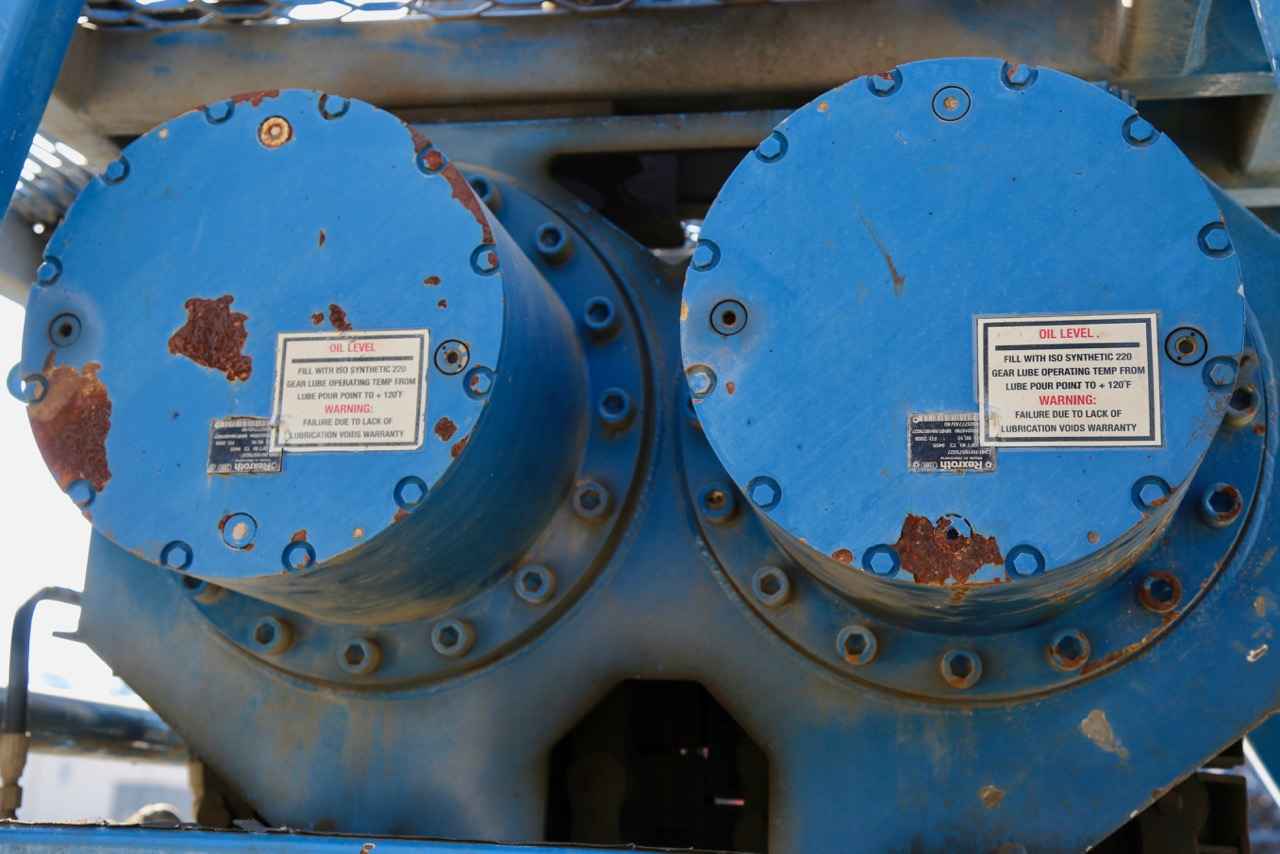

Deep reduction, purpose-built gear drives

Dual hydraulic motor input (variable displacement, piston motors)

Counterbalance valves plumbed directly to motor

Tubing odometer for maintenance and inspection requirements

Dual oil seals on gear drive output shafts for long and reliable service

Dual spring applied/pressure released brakes mounted between the hydraulic drive motors and gear drives

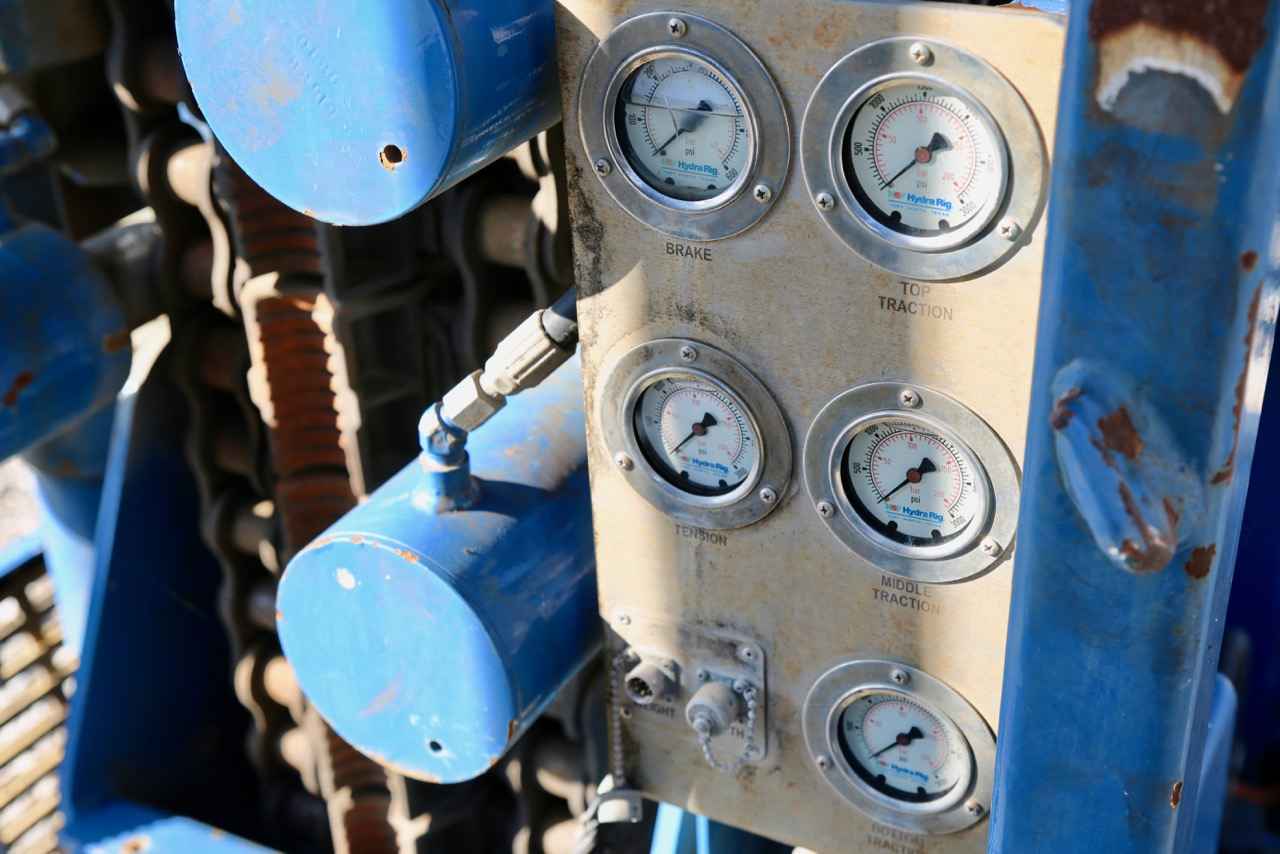

Traction System

Reduced remove/install time with patented "Quick Connect" Gripper System (1-3 seconds)

Hardened and grooved single piece grippers

Elastomeric suspension system for grippers

Reduced maintenance with no greasing of chain bearings required due to "sealed-for-life" design

Purpose-built and simplified direct down tension chain system

Spray type injector chain lubricating system

Improved skate entrance design for smoother chain bearing entry into traction system
