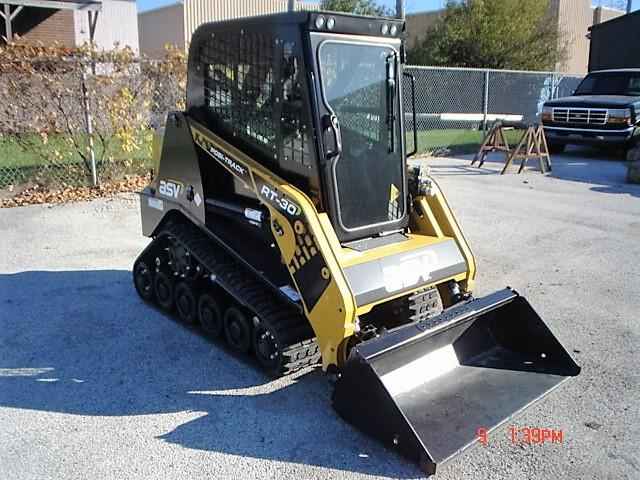

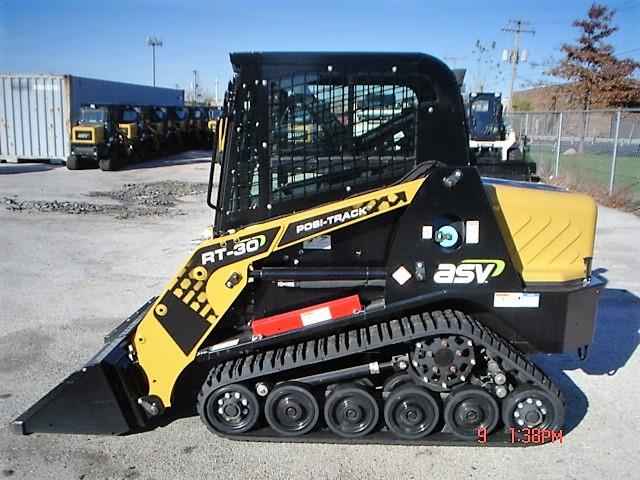

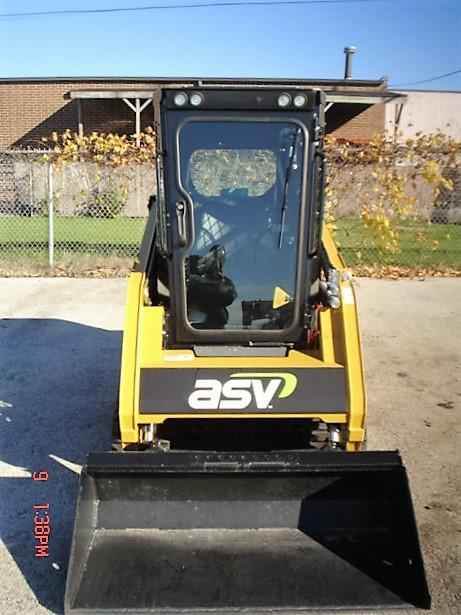

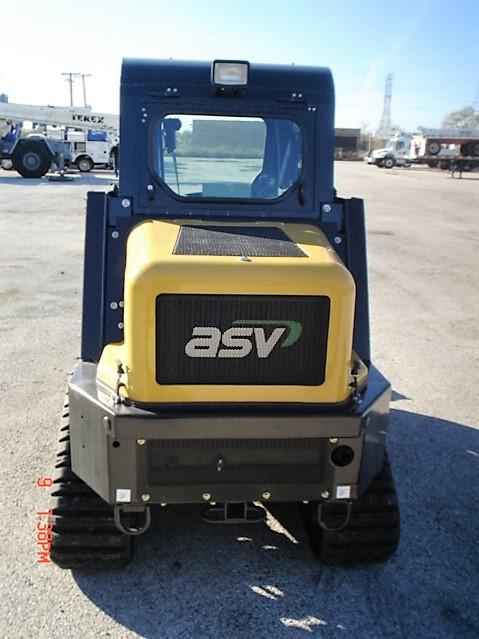

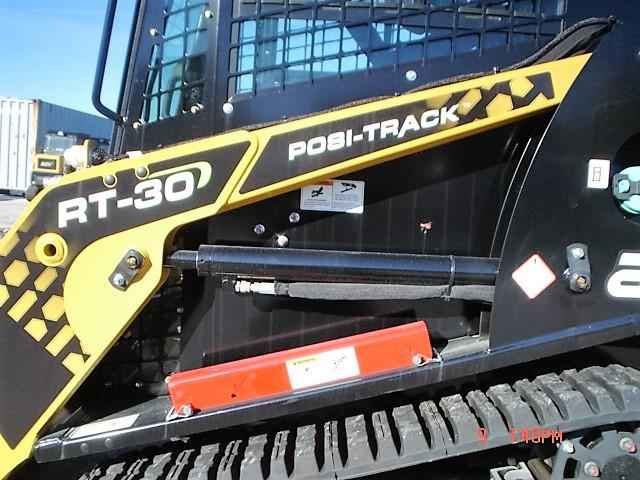

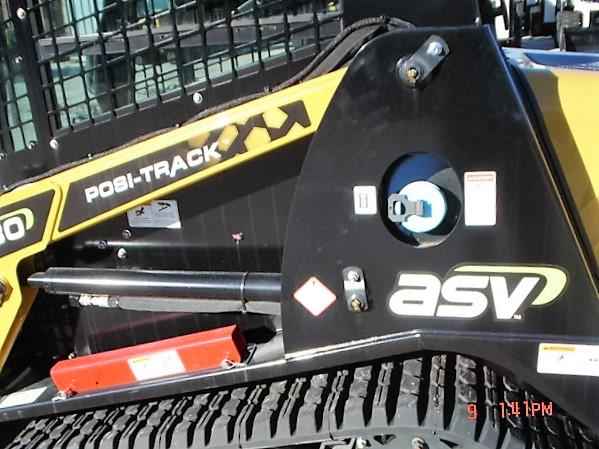

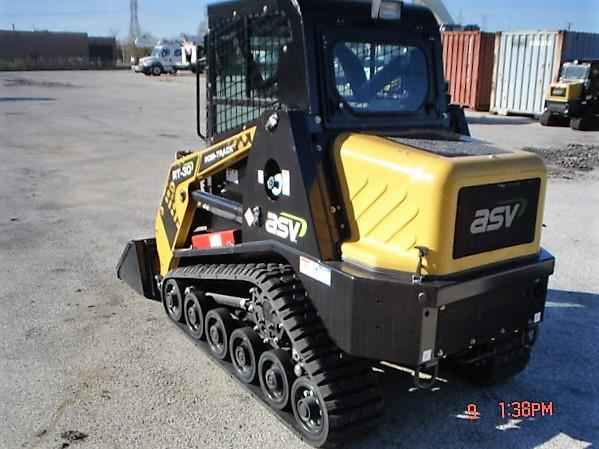

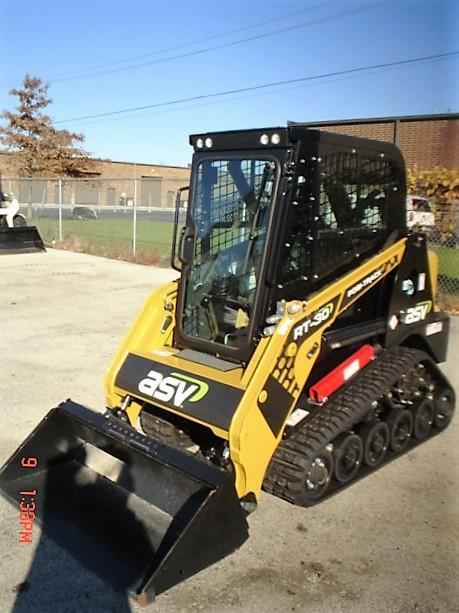

New 2016 ASV Compact Track Loader Model RT30

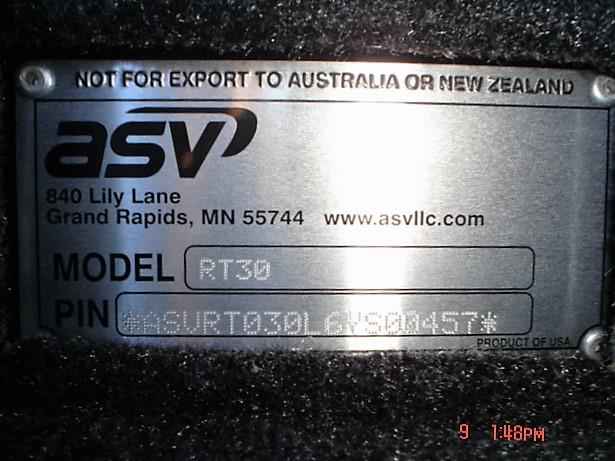

Serial Number ASVRT030L6YS00457

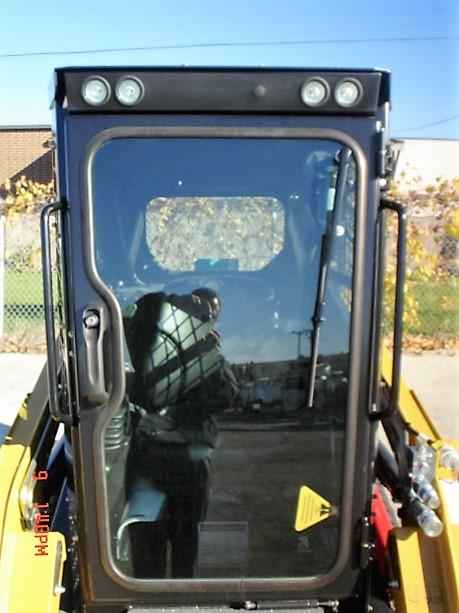

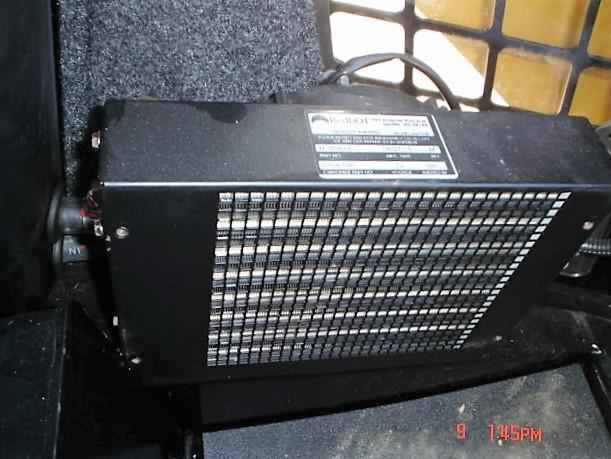

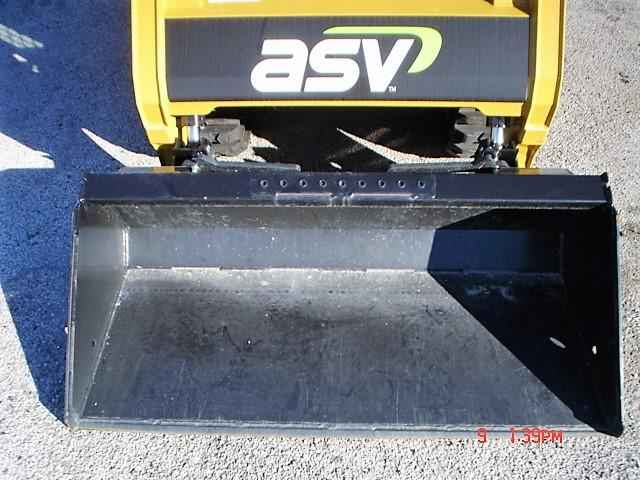

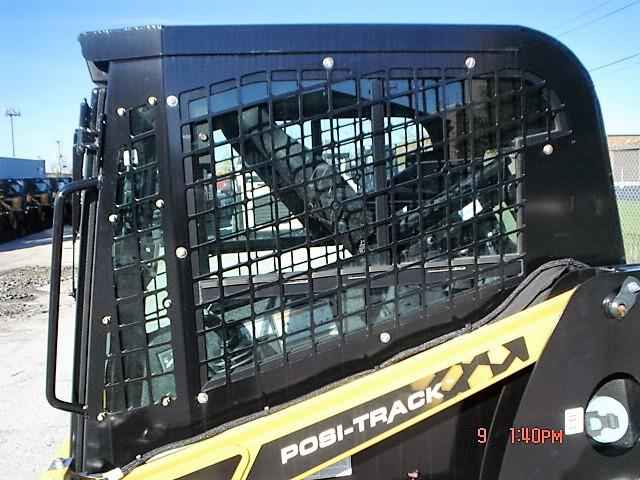

Equipped with all standard equipment Plus the following options: - Fully enclosed cab with sound insulation, heater, suspension seat with 2 belt, & front window wiper. - 48 dirt bkt Operating Specs: Operating weight: 3,600

Shipping weight: 3245 lb.

Ground pressure @ op. wght: 3.0 psi

Rated operating capacity (35% of tip load): 665 lbs.

Tipping load: 1900 lb.

Travel speed, max.: 5.3 mph

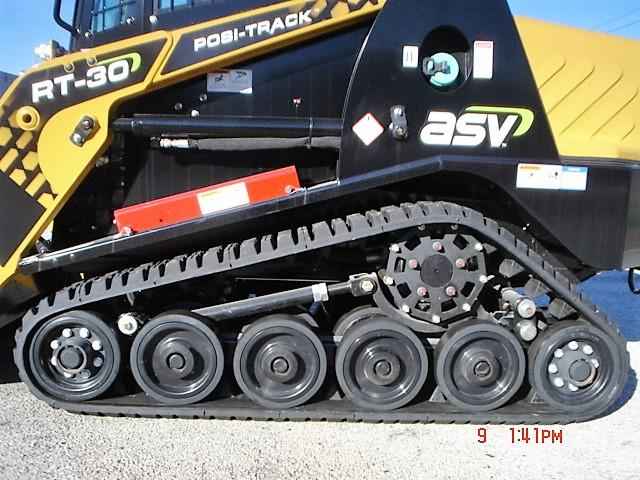

Undercarage: Track width: 11 inch

Track on ground: 55 inch

Grnd contact area: 1,183 sq. inch

Ground clearance: 10 inch

Hydrostatic direct drive sprockets, elevated, with low friction, replaceable rollers

Roller wheel diameter: 10 inch

Engine: Perkins 403D-15, 3-cylinder

Displacement: 92 cu inch

Gross power rating: 32.7 hp

Torque, peak: 64.39 ft-lb.

Engine-driven cooling fan and radiator

Dual stage air cleaner

Meets U.S. EPA Tier 4 final standards Auxiliary Hydraulics:Pump capacity: 10 gpm

Sys. pressure: 3000 psi

INTERMITTENT control via joystick button or CONTINUOUS via console switch, mode selectable

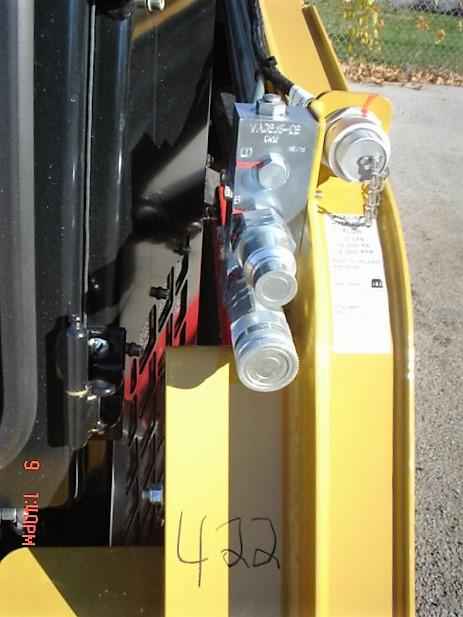

Push-to-connect couplers

High efficiency oil cooler beside engine radiator
