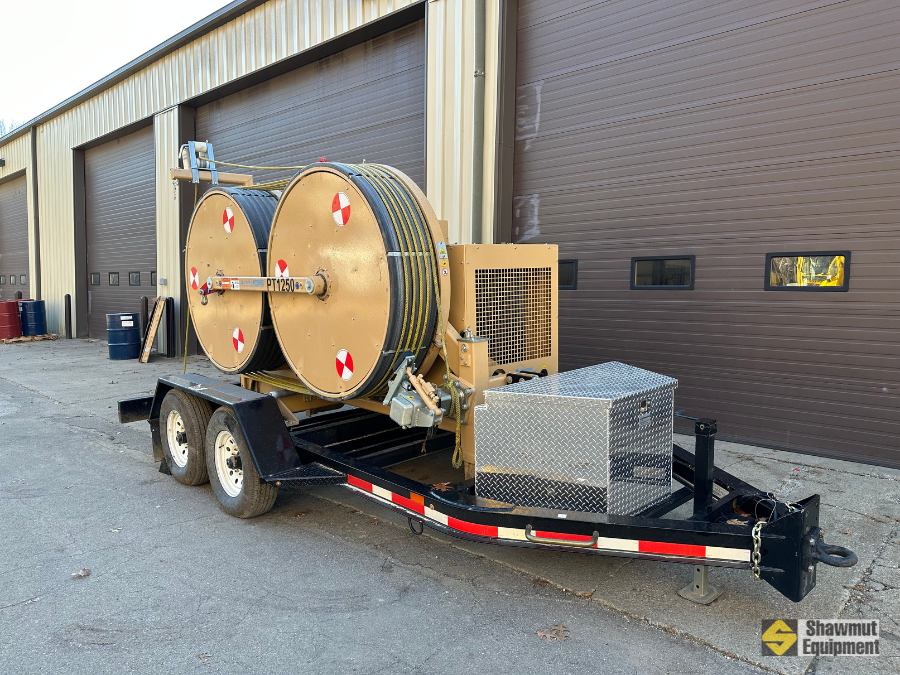

2022 Condux Tesmec PT1250, S/N: 10468, Hydraulic Puller – Tensioner

- New digital HMI provided with:
  Color 7-in. display
  Integrated pull and speed recorder
  Remote diagnostic with GPS data recorder
- Radio remote control
- Negative self-acting hydraulic brake
- Hydraulic oil cooling system
- Hydraulic quick connectors to control a separate reel stand/winder
- Electronic arrangement for connection of multiple machines and for stringing synchronization
- Gearbox with 3 operating positions
  Neutral position (with free bull/wheels for conductor loading/unloading
  Low tension position 450 – 2,700 ibs (2-12 kN)
  Nominal tension position 1,800 – 11,240lbs (8-50kN)
- Hydraulic front stabilizer
- Grounding connection point
- Hydraulic rope clamp for reel change operations
- Automatic greaser
- Max pull/tension 11,240 lbf (50kN)
- Speed at max pull/tension .9mph (1,5 km/h)
- Max speed 3.1 mph (5 km/h)
- Pull/tension at max speed 3,597 lbf (16 kN)
- Bull – wheel diameter 59 in (1,500 mm)
- Max conductor/rope diameter 1 5/8 in (42 mm)
- Number of grooves – 5
- Diesel Engine 74 hp (55,4 kW)
- Emission level tier 4f/Stage IIIIB
- Electrical system 12 V
- Closed hydraulic with a pull presetting system that automatically adjusts to pulling speed
- Weight (w/rope) 9,700 lbs. (4,400 kg)
- Overall length 215 in (5,461 mm)
- Overall width 100 in (2,540 mm)
- Height 108 in (2,743 mm)
