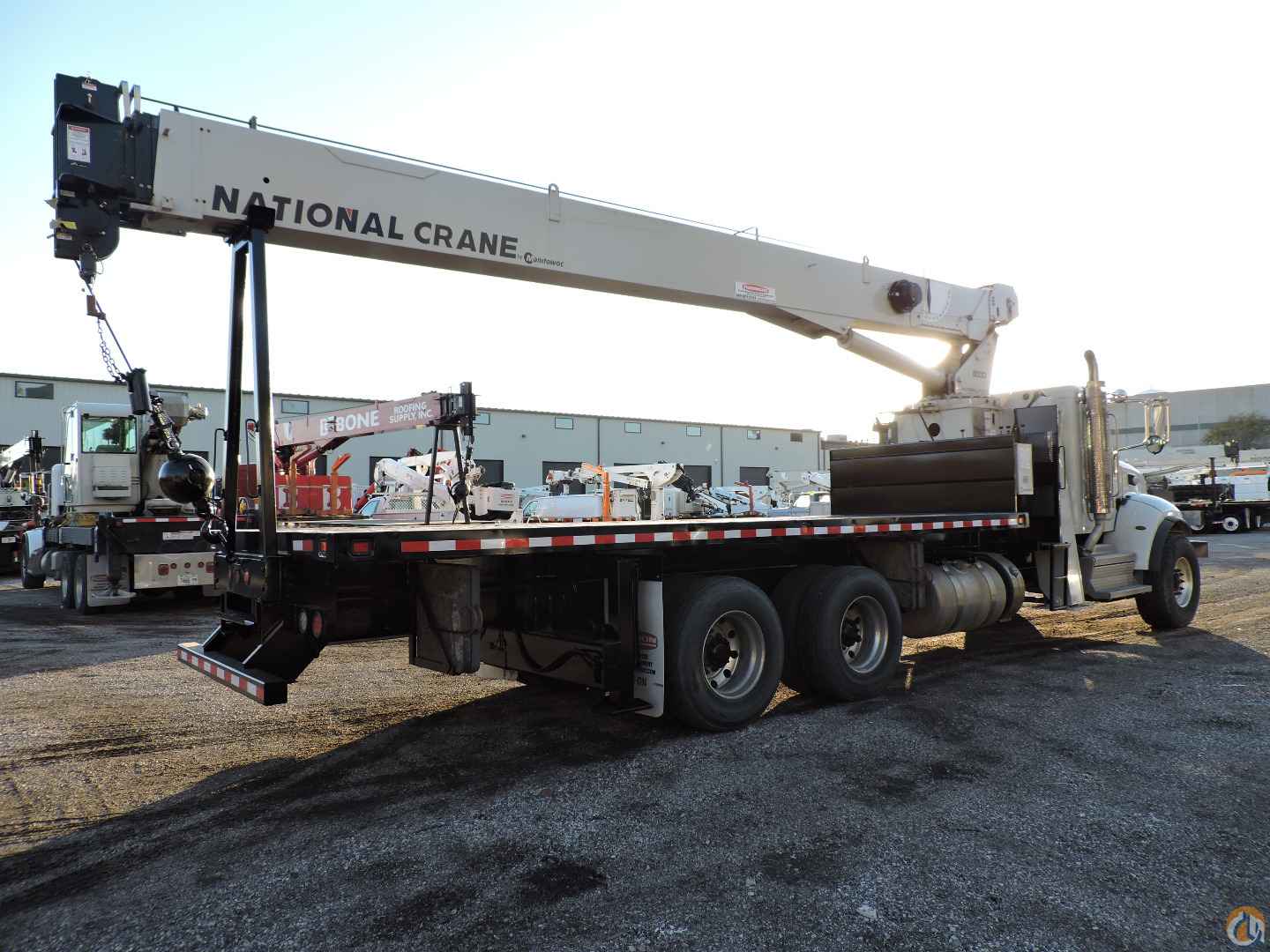

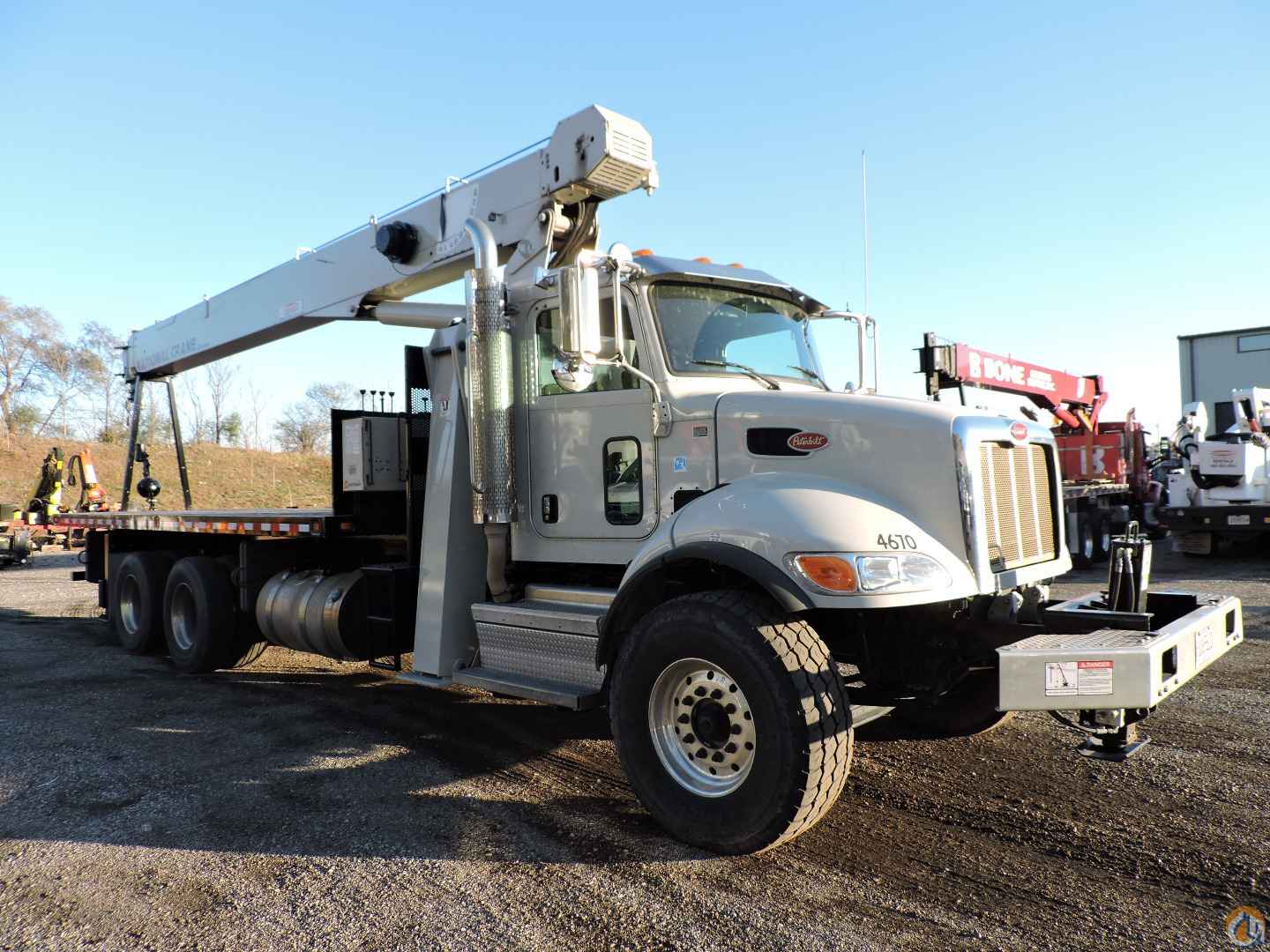

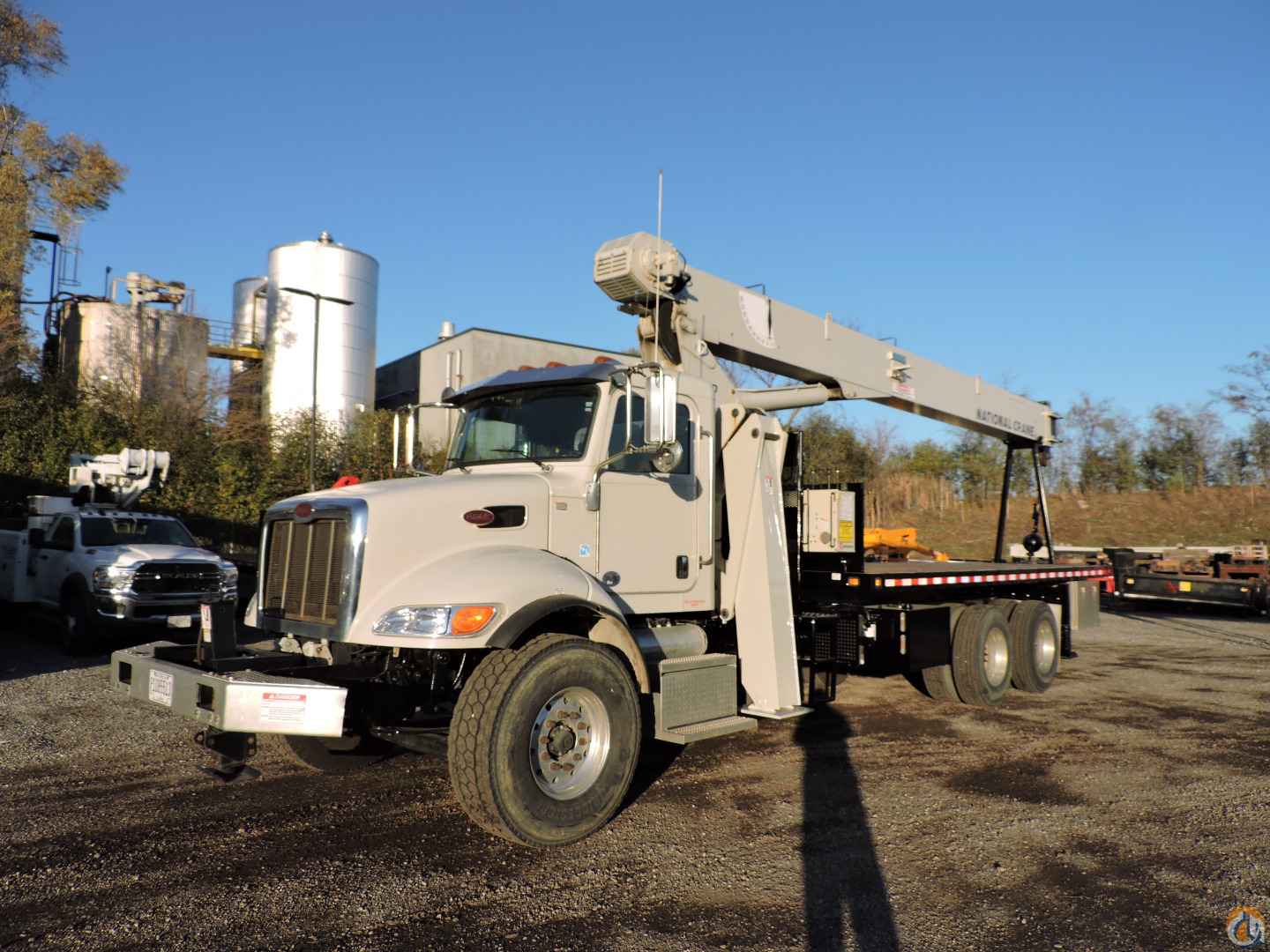

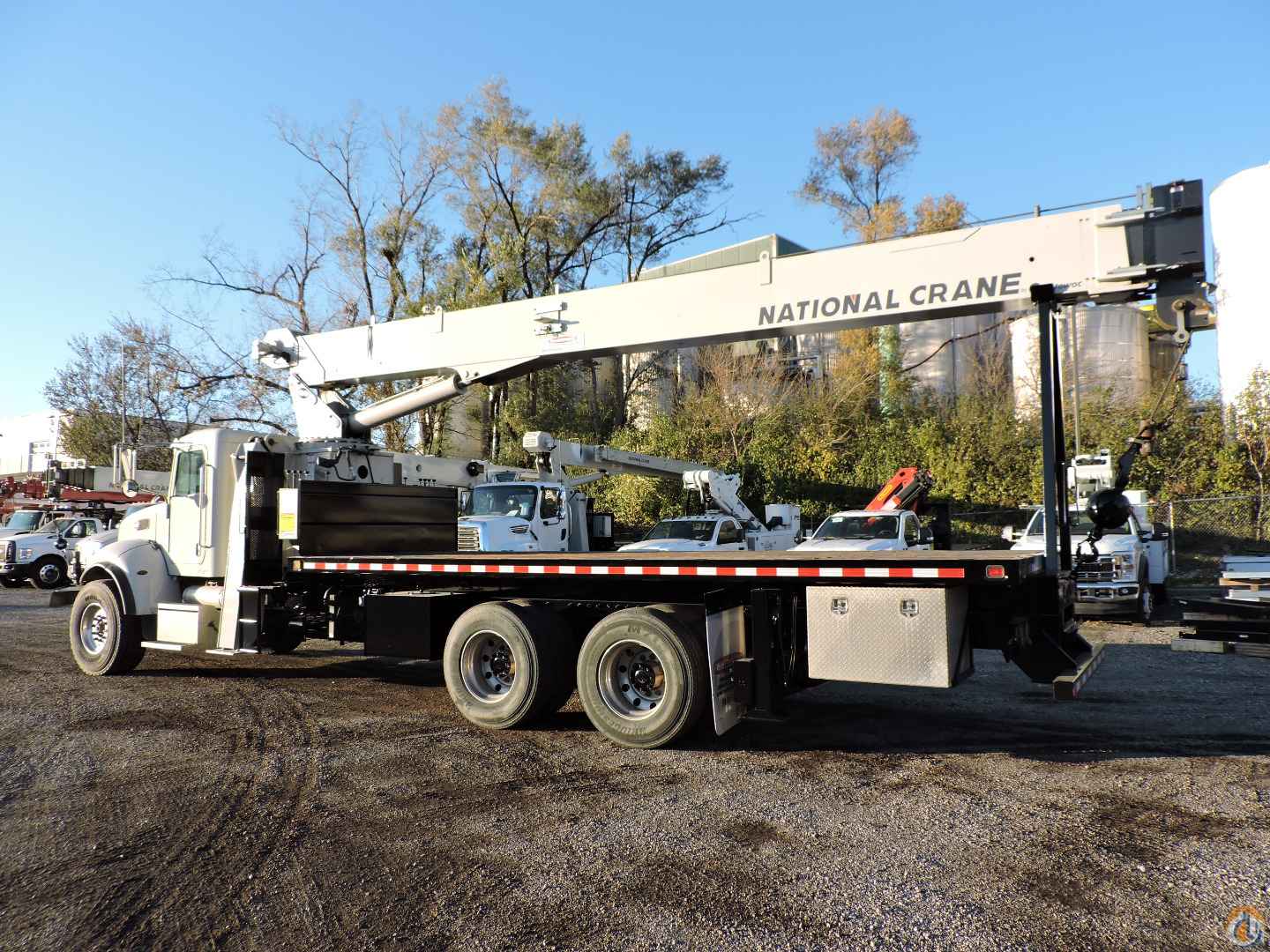

National Crane 8100D equipped as follows:

- 23 ton capacity

- 29-6” to 100’ four (4) section proportional boom – 110’ sheave height

- Calibrated for future jib

- “A” type box slide outriggers in front 21’ span

- Out and down rear hydraulic stabilizers with 16’ span

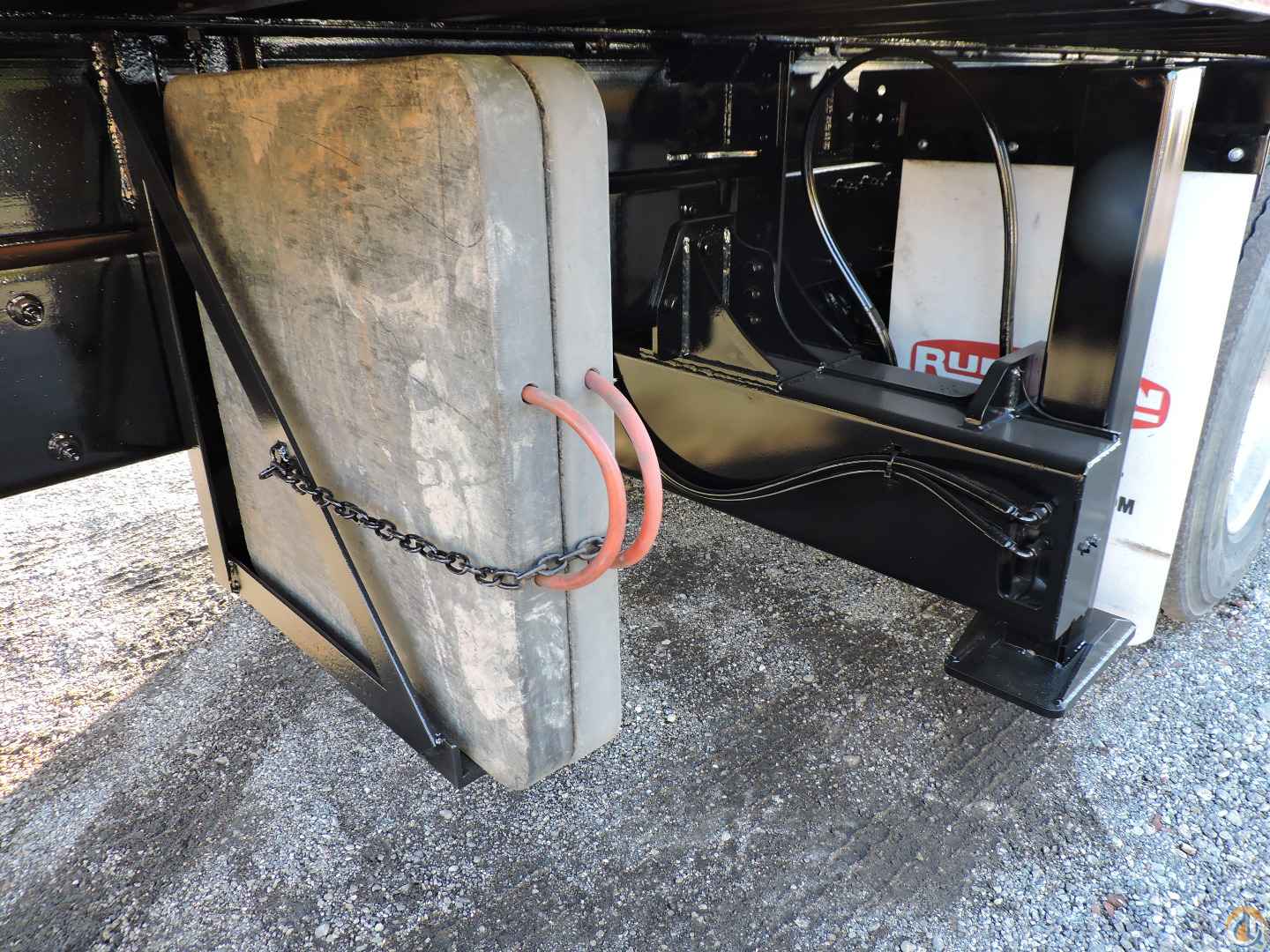

- Single front outrigger for 360 degree stability

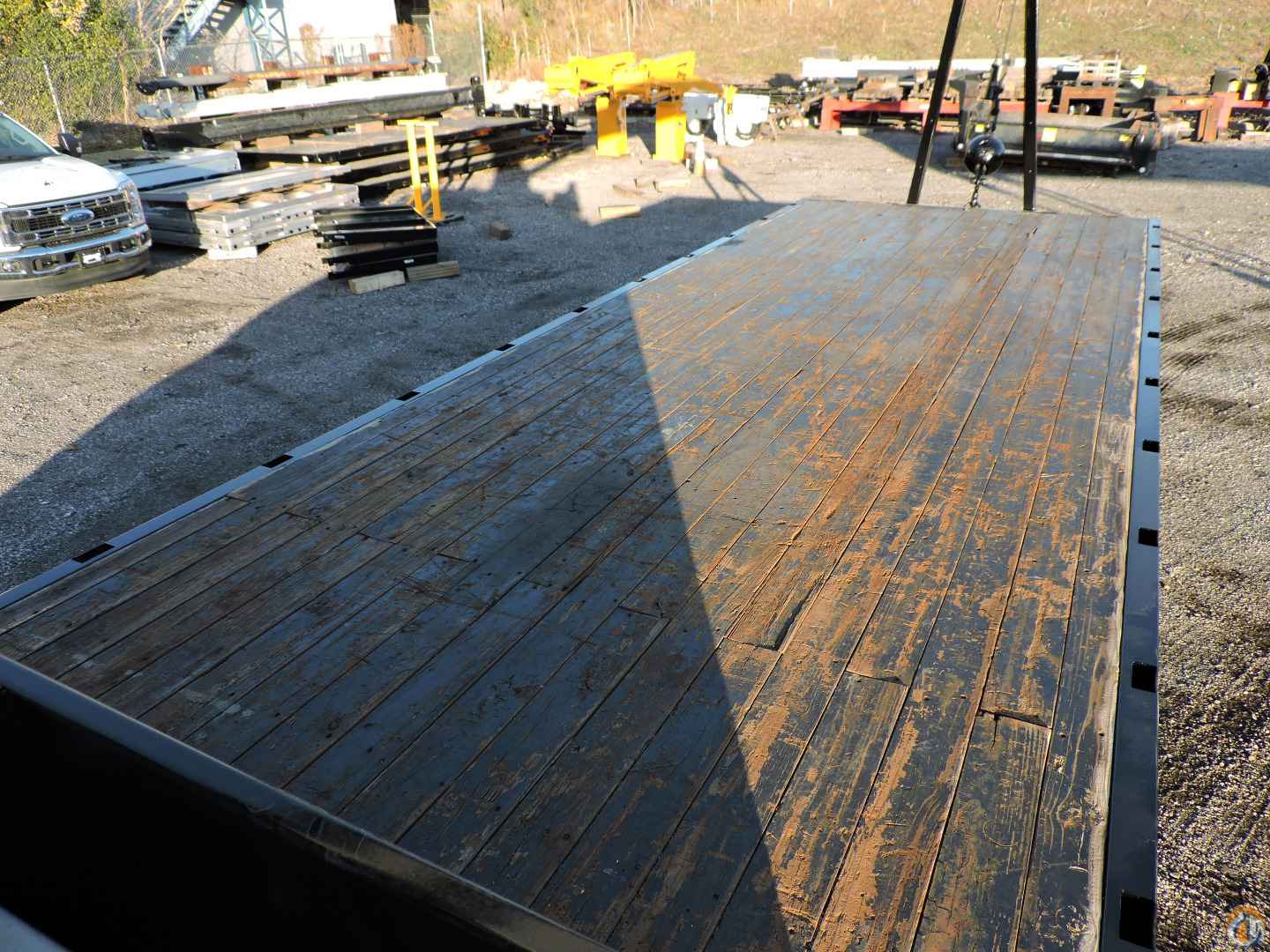

- 22’ wood deck with 30” steel bulkhead

- Outrigger motion alarm

- Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case

- Internal anti-two block wiring

- Rated Capacity Limiter System (RCL) computer capacity alert system RCL displays boom angle and length, working radius, rated load and total weight being lifted

- Hi-performance planetary winch with 9/16” spin resistant wire rope

- 7 ton round downhaul style weight with top swivel and hook

- Burst-O-Speed winch with 147 FPM and 206 FPM line speed

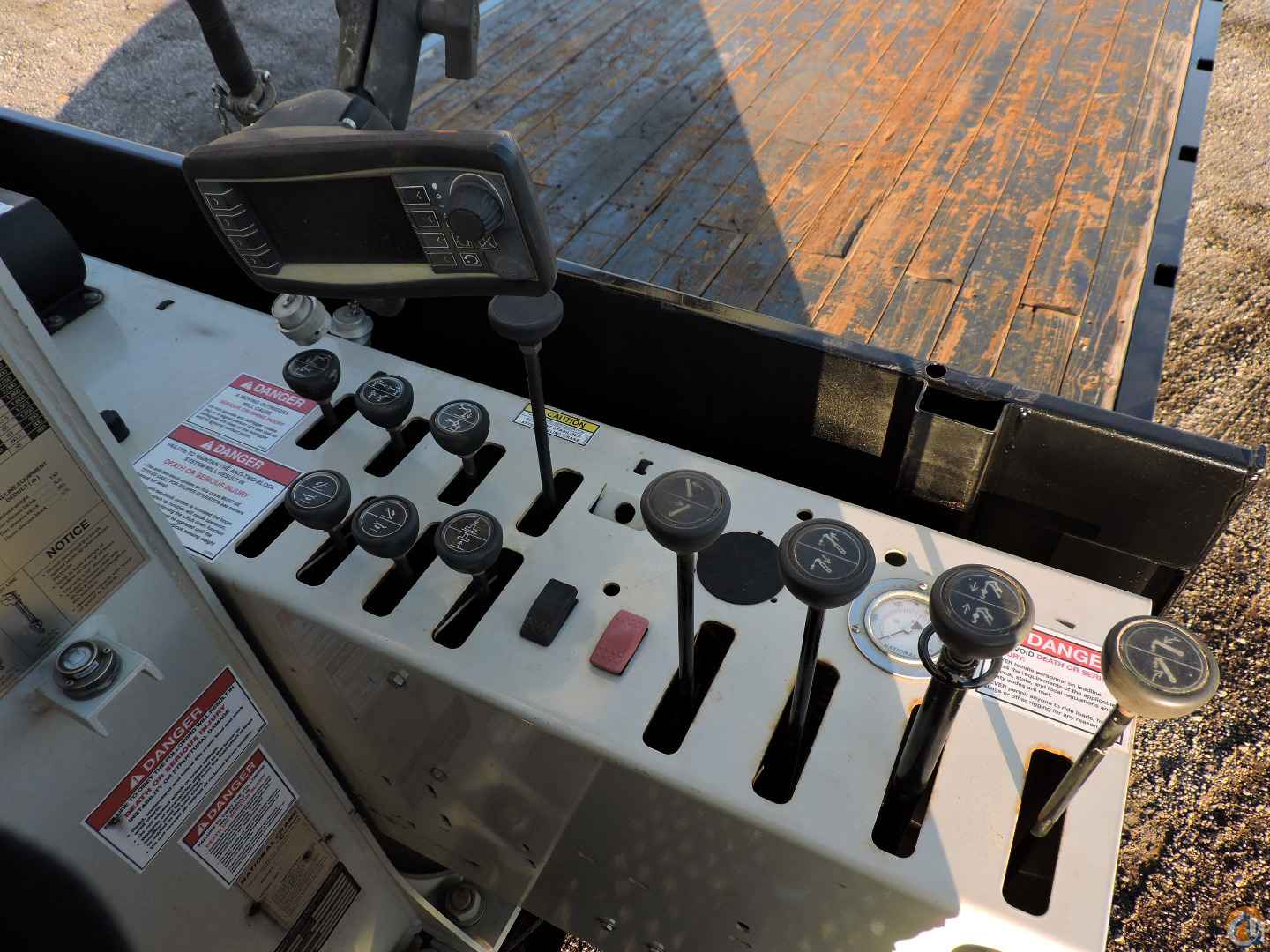

- Dual side controls with operator platforms, foot throttles, horn and kill switches

- Operator platform 40” above ground for maximum visibility

- 375^o non-continuous rotation, adjustable swing drive

- Adjustable swing speed

- Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing and crane functions, 1 extra control valve in console without lever

- 66 gallon hydraulic tank with return oil diffuser, sight gauge and shut off gate valve

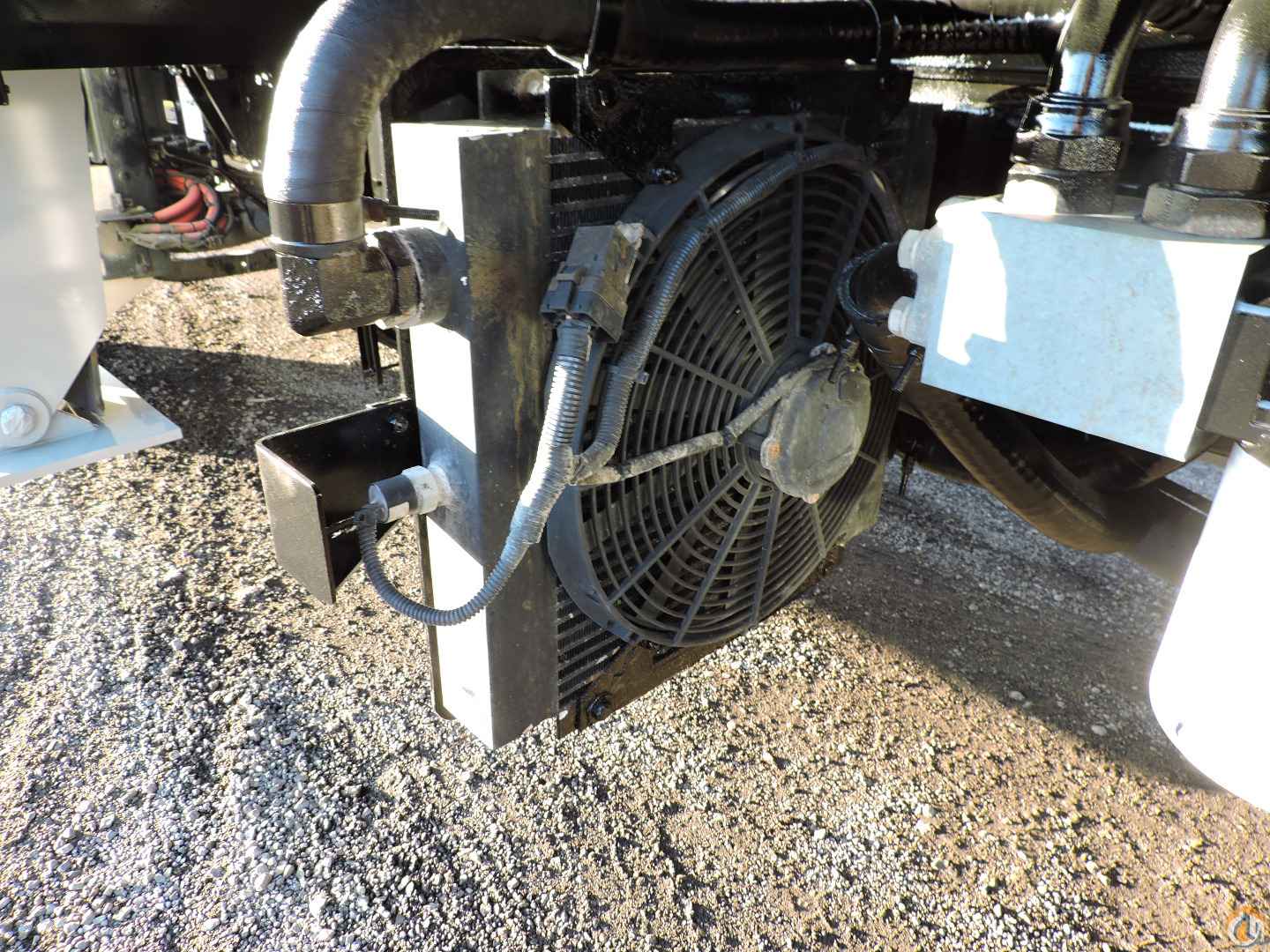

- Single fan oil cooler

- Painted National Platinum

- One removable boom rest

- Hour meter

- Back-up alarm

- Air shift P.T.O.

- Rear bumper underride protection

- One owner’s manual and one CD owner’s manual

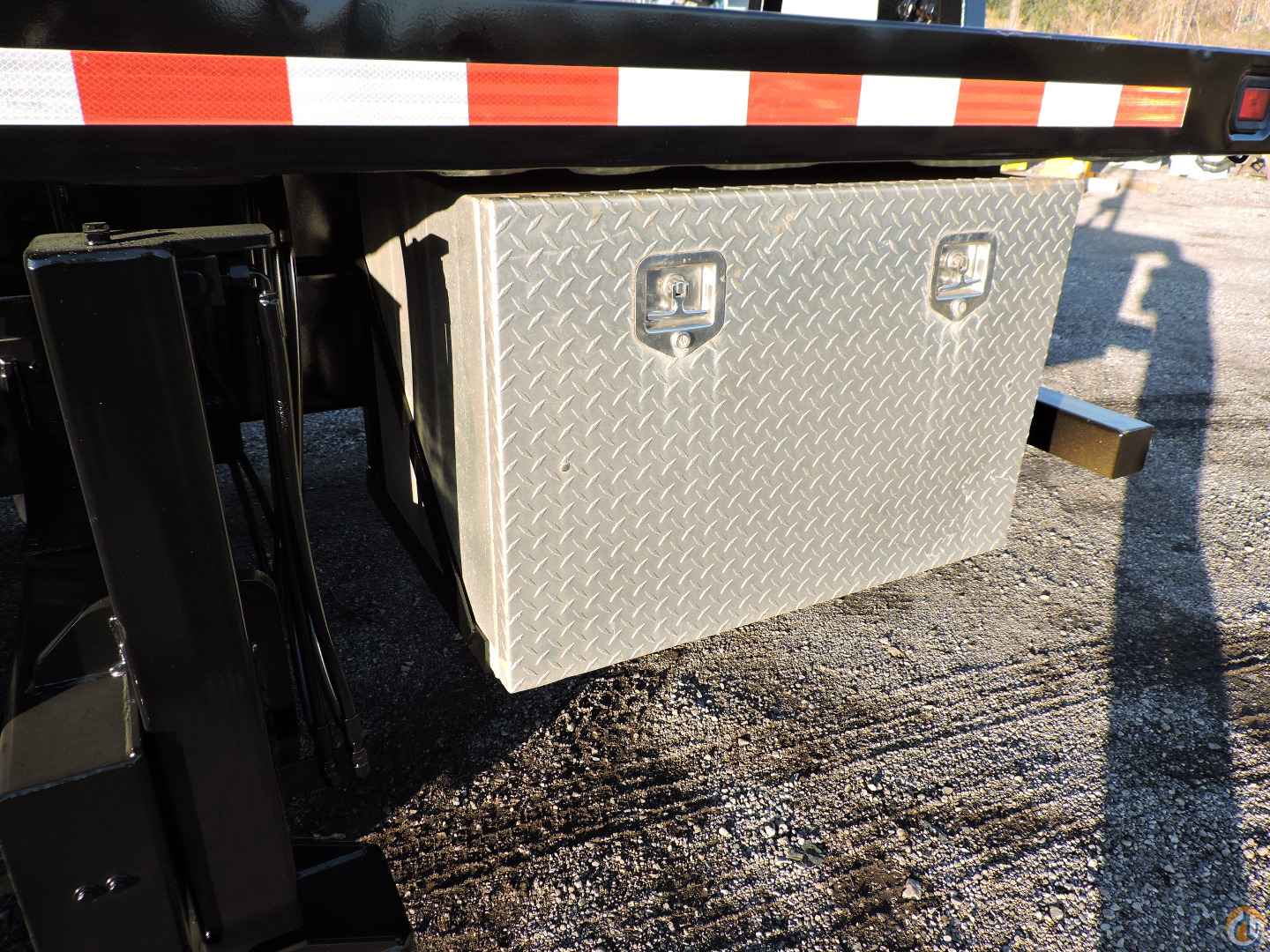

- 36” x 24” x 24” aluminum tool box

MOUNTED ON:

2022 Peterbilt 348 equipped as follows:

- 60,000# GVW

- Paccar PX-9 engine, 350 hp @ 2000 rpm, 1000 lb/ft @ 1400

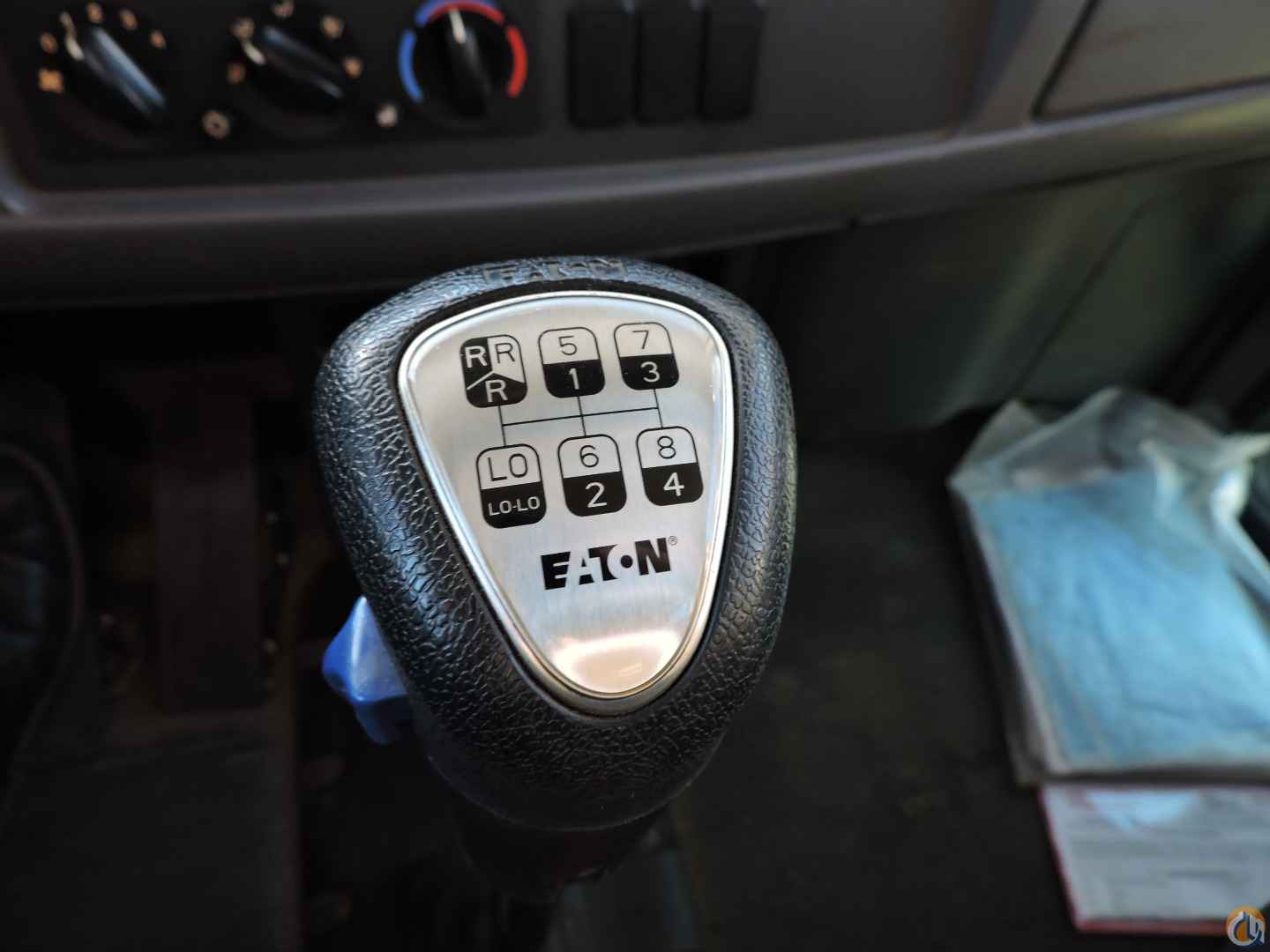

- Eaton RTO14908LL 10-speed transmission

- Front Axle – 20,000# with Taper Leaf springs

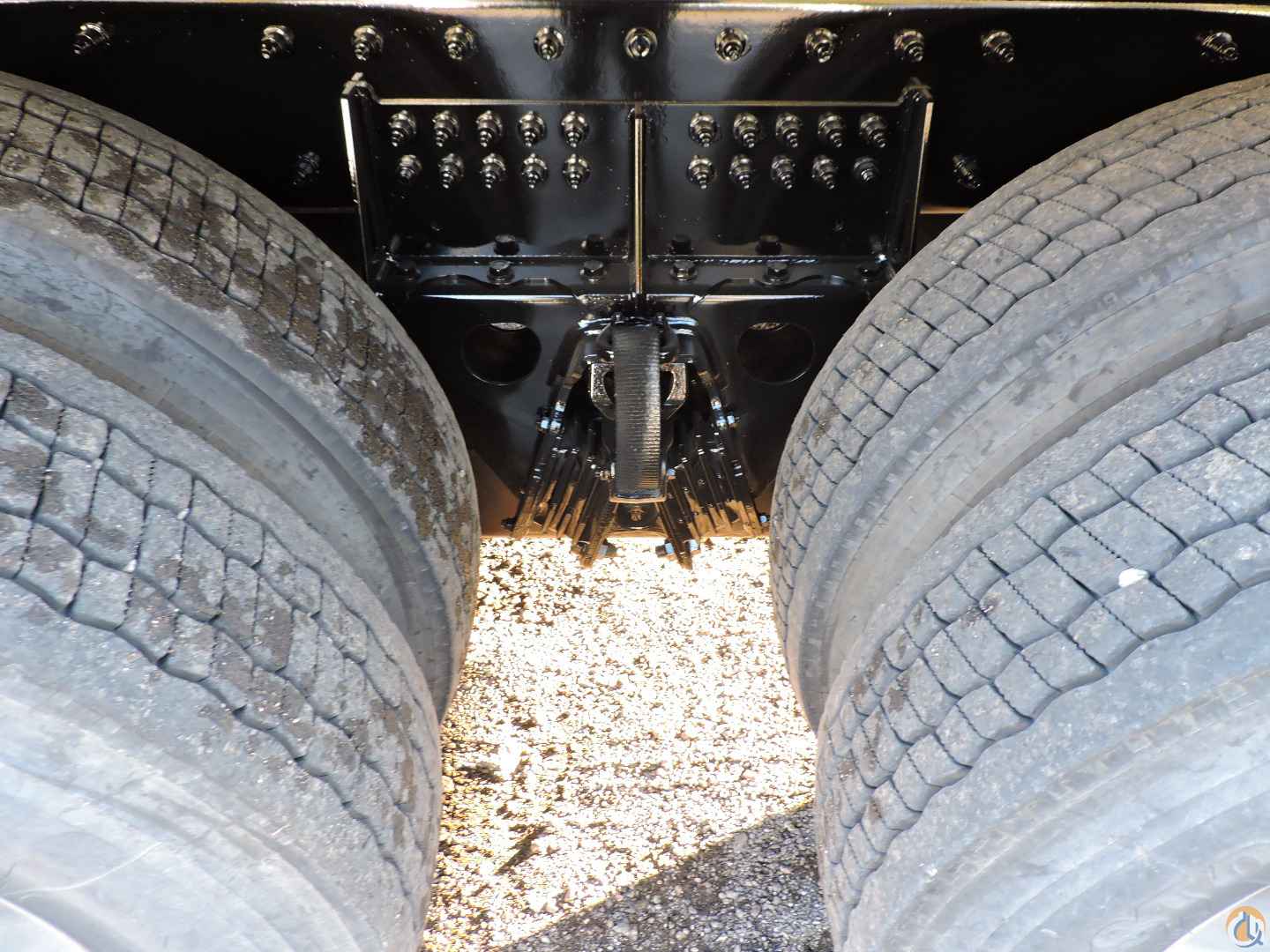

- Rear Axle – 40,000# with Haulmaax HMX400 suspension

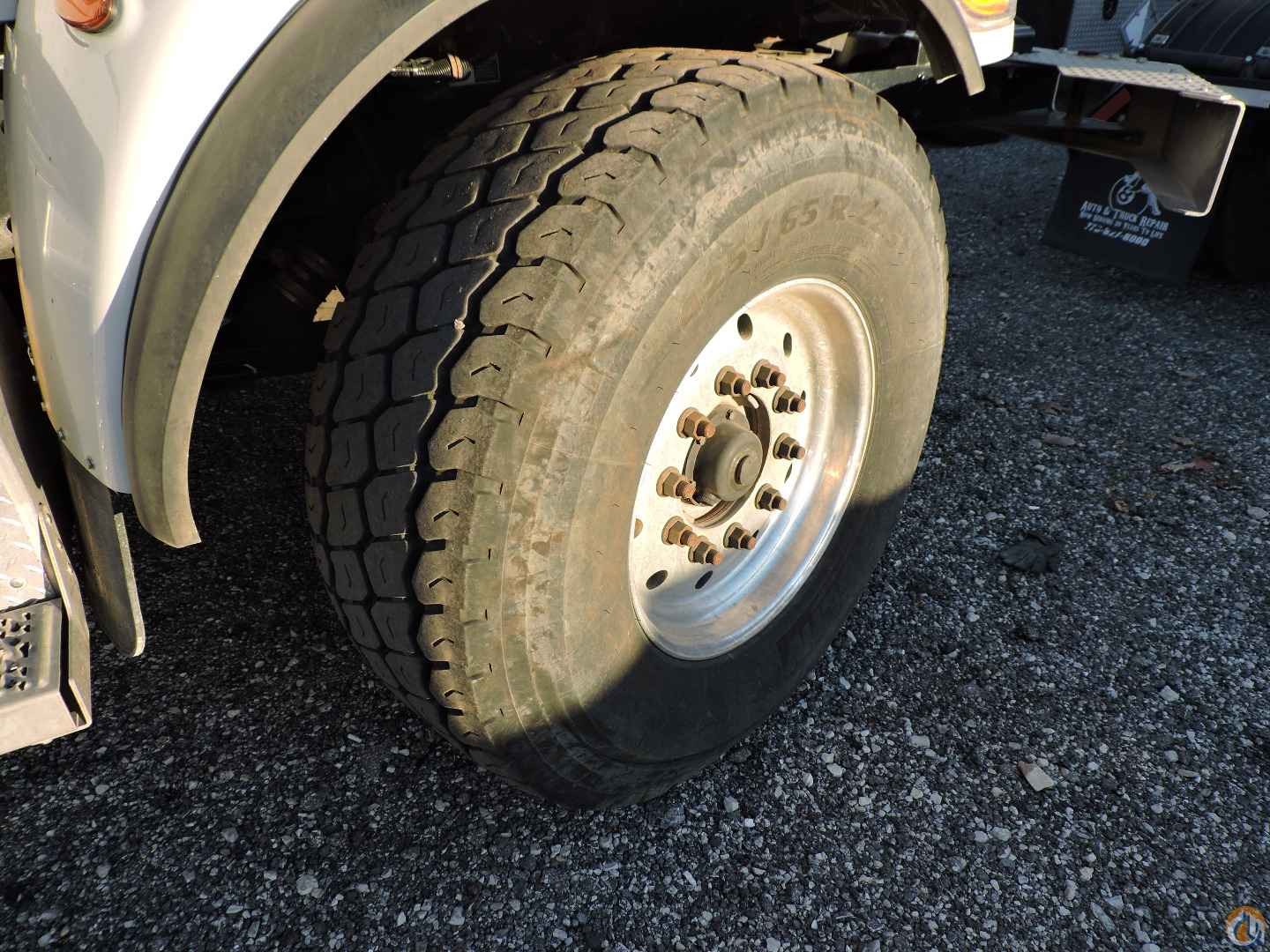

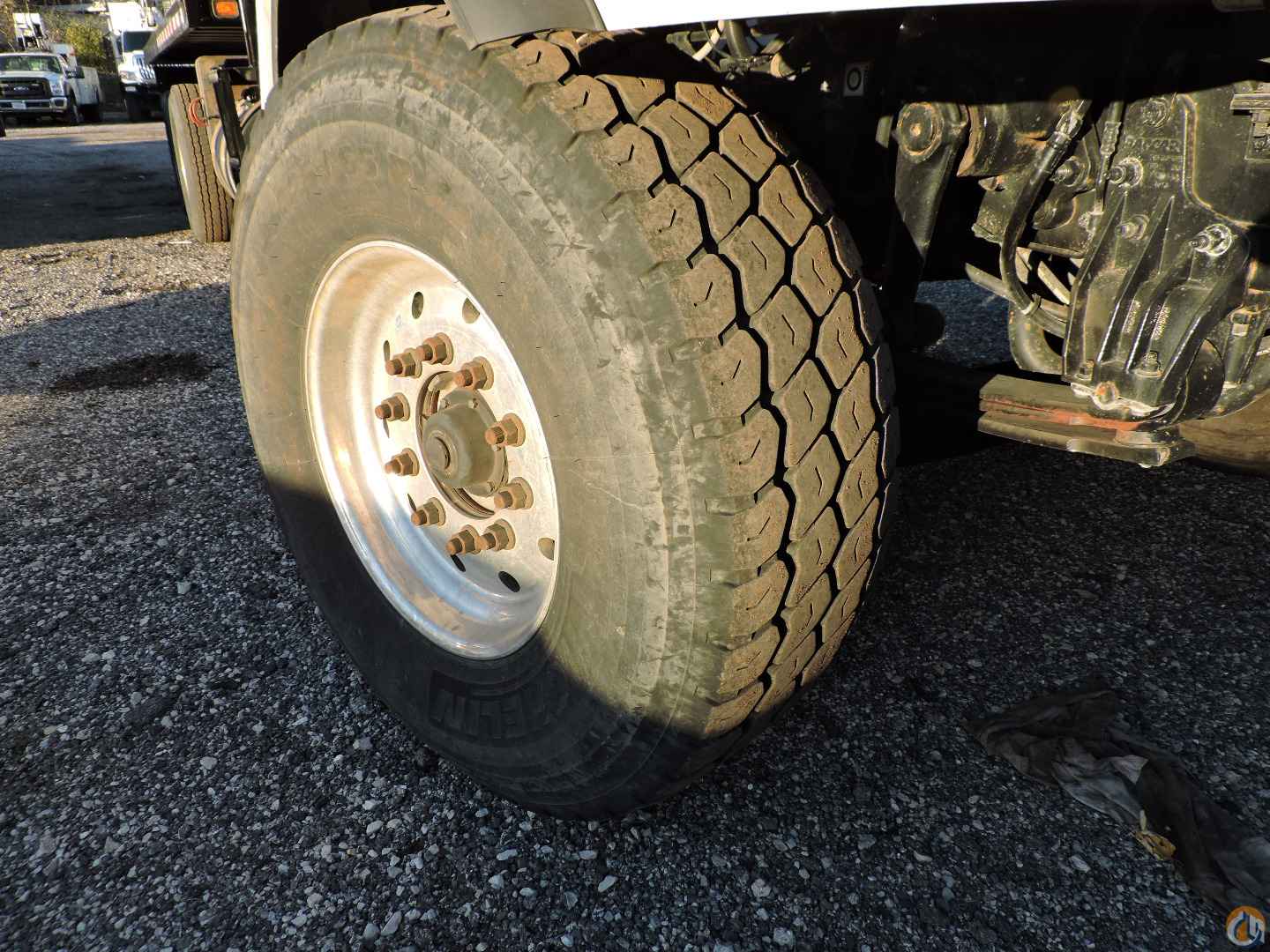

- Front tires 425/65R22.5

- Front wheels – 22.5x12.25 Alcoa aluminum with clean buff finish

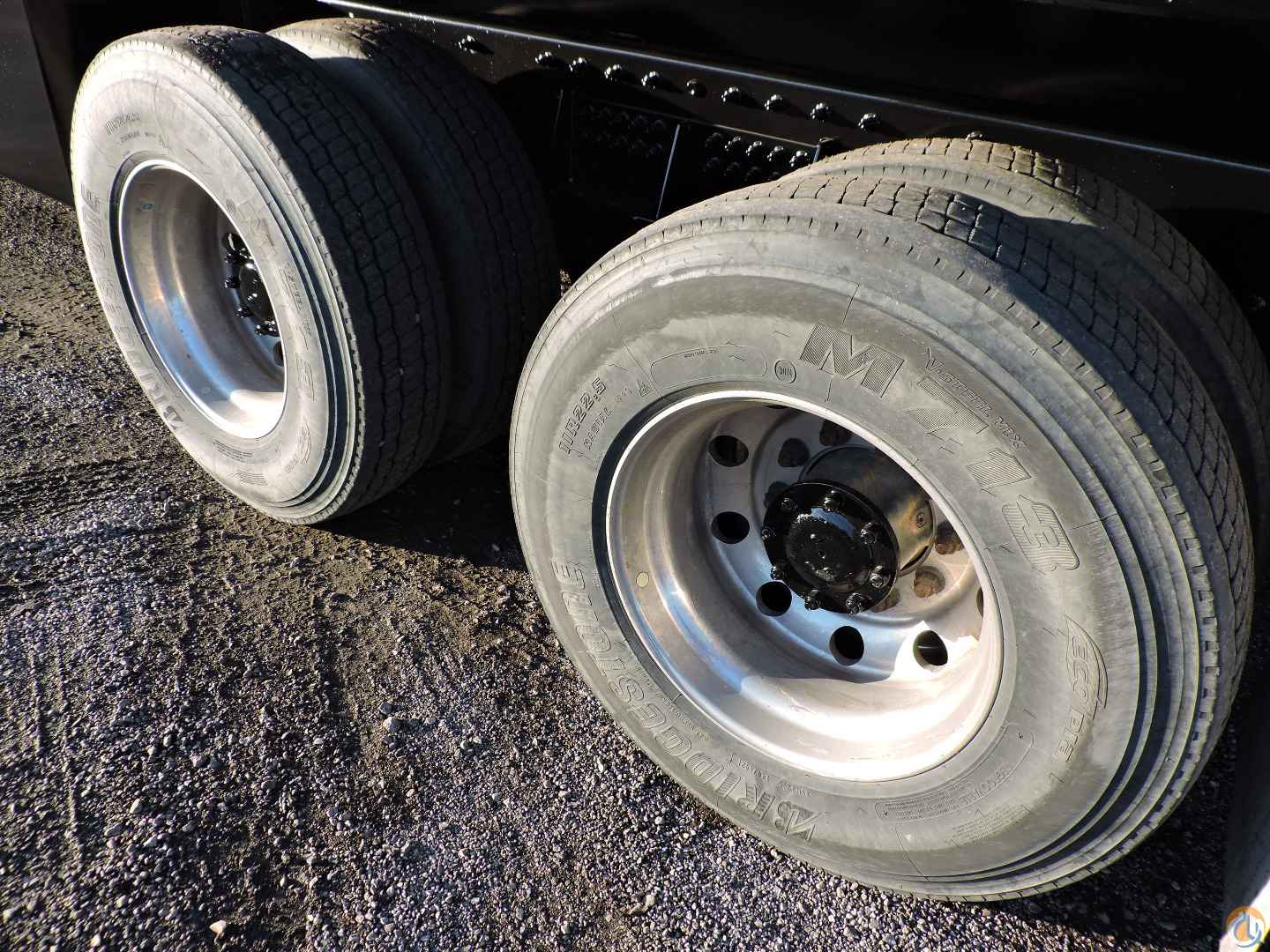

- Rear tires – 11R22.5

- Rear wheels – 22.5x8.25 Alcoa aluminum with clean buff finish

- Differential locks on both axles

- Aluminum hubs

- Anti-Lock Braking System 4S4M

- PACCAR 160 Amp alternator

- Block heater

- PACCAR 12V starter

- Polished aluminum air tanks for tanks on outside of frames

- Three (3) PACCAR Premium 12V dual purpose batteries 2190 CCA

- 2-Speed fan clutch

- Bendix air dryer with heater

- Pull cord drain valves on all air tanks

- Trailer hand valve

- 7-way socket connected to end of frame

- 90 gallon aluminum fuel tank

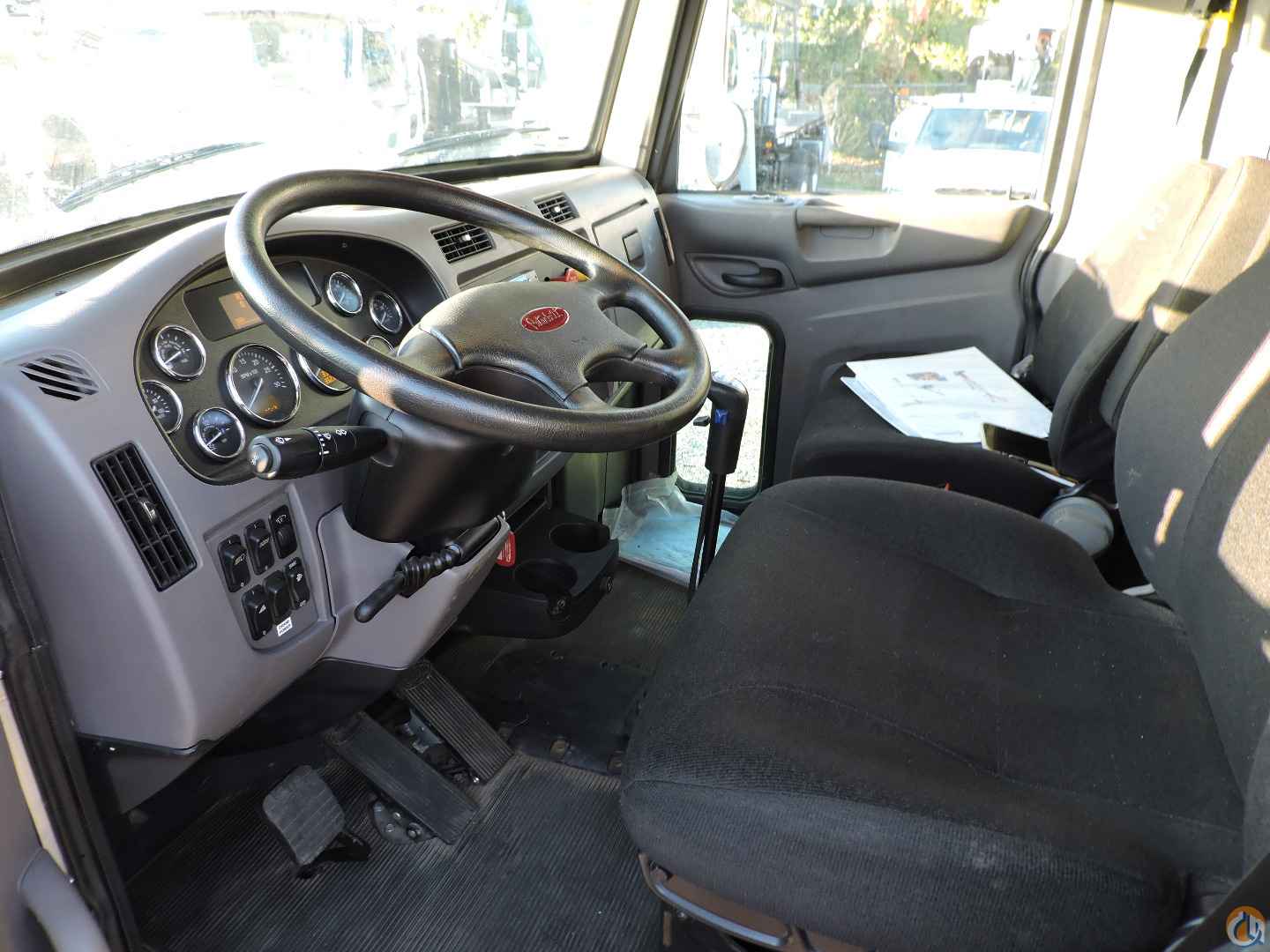

- Driver’s seat – air ride, high back fabric with right armrest

- Passenger’s seat – fixed, low back fabric

- Adjustable steering column – tilt/telescope

- Extended rear window

- Floor mounted cup holder

- Stainless steel heated mirrors

- 8” convex mirrors

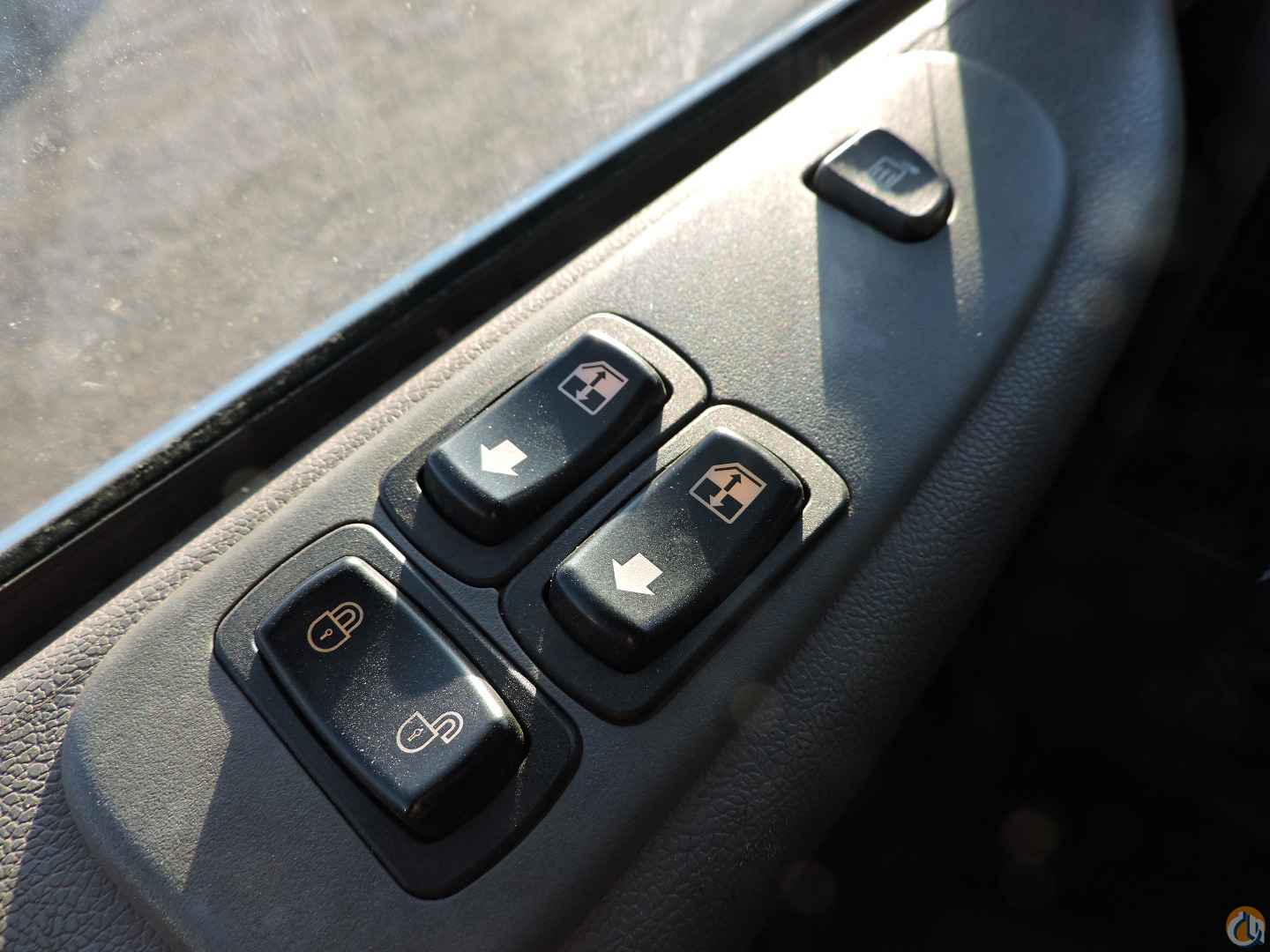

- Power windows and doors

- Air horn mounted under cab

- ConcertClass Stereo – AM/FM, WB, USB, MP3, Bluetooth phone

- Painted National Platinum
