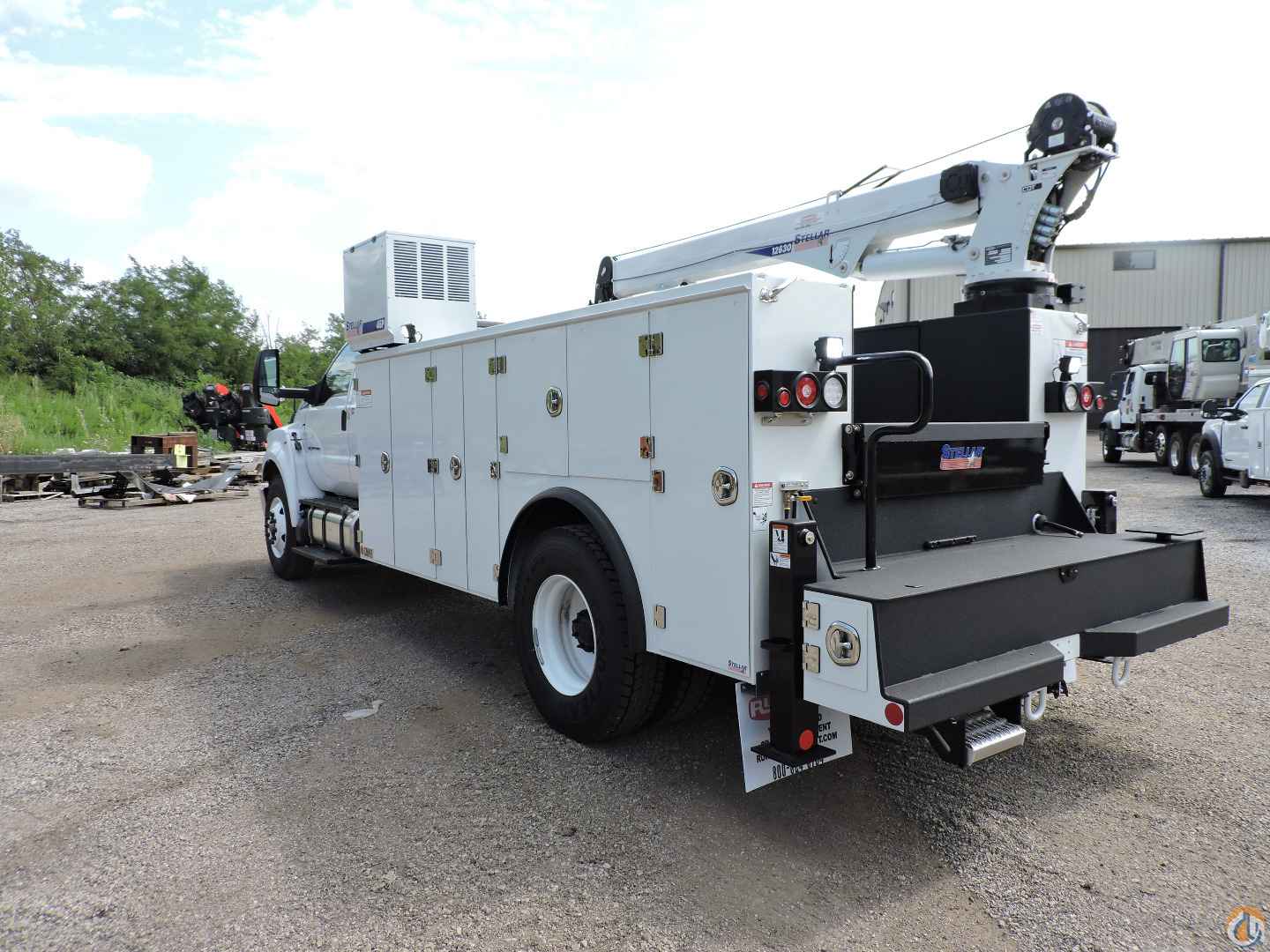

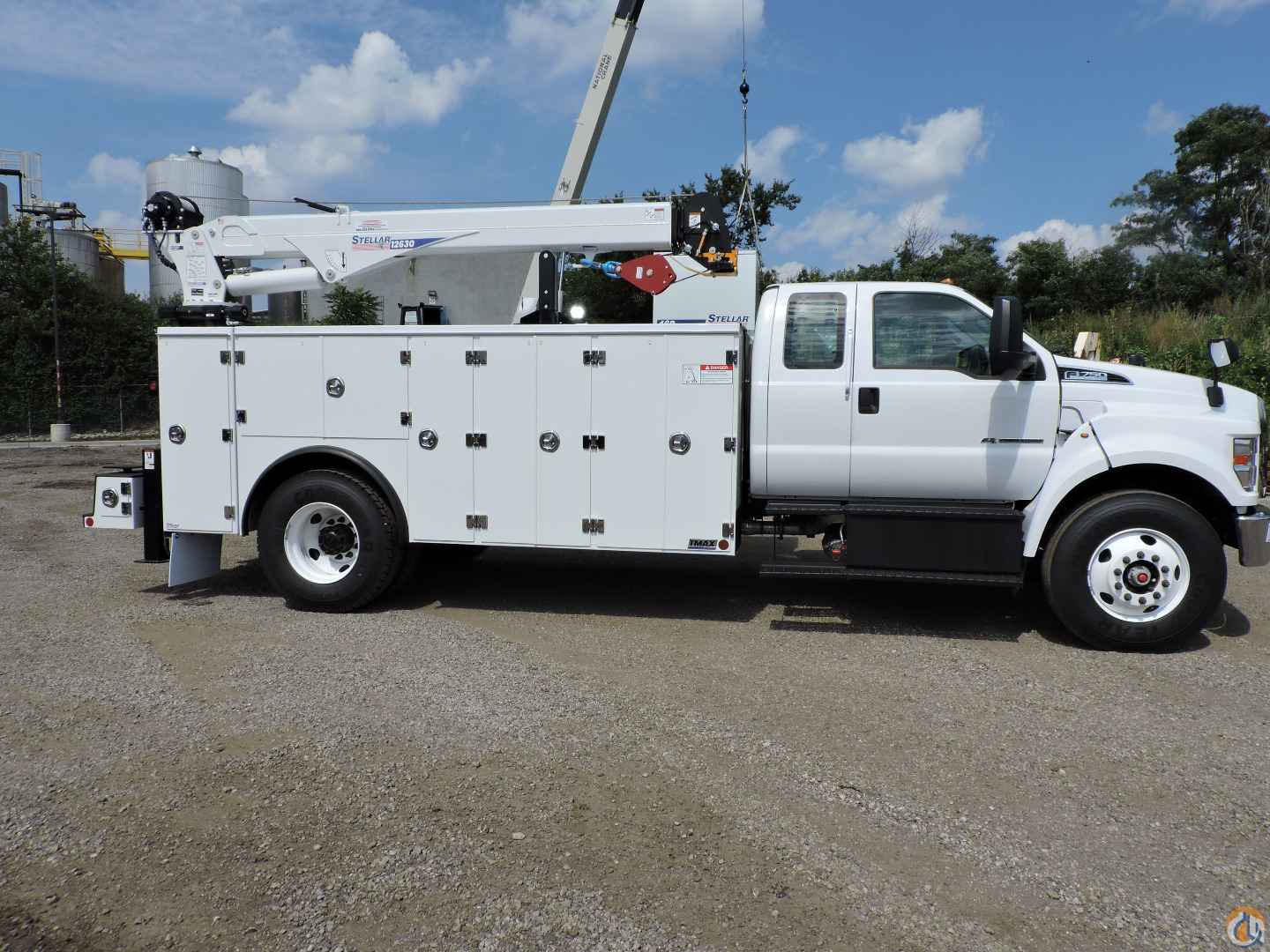

Stellar TMAX2-14 Aluminum Mechanic Body equipped as follows:

- Aluminum doors and side packs

- Torsion box understructure with isolated steel crane compartment

- Master-Lock system

- 168” long

- 50” loadbed width

- Six (6) recessed cargo tie-downs

- Two (2) rear mounted grab handles

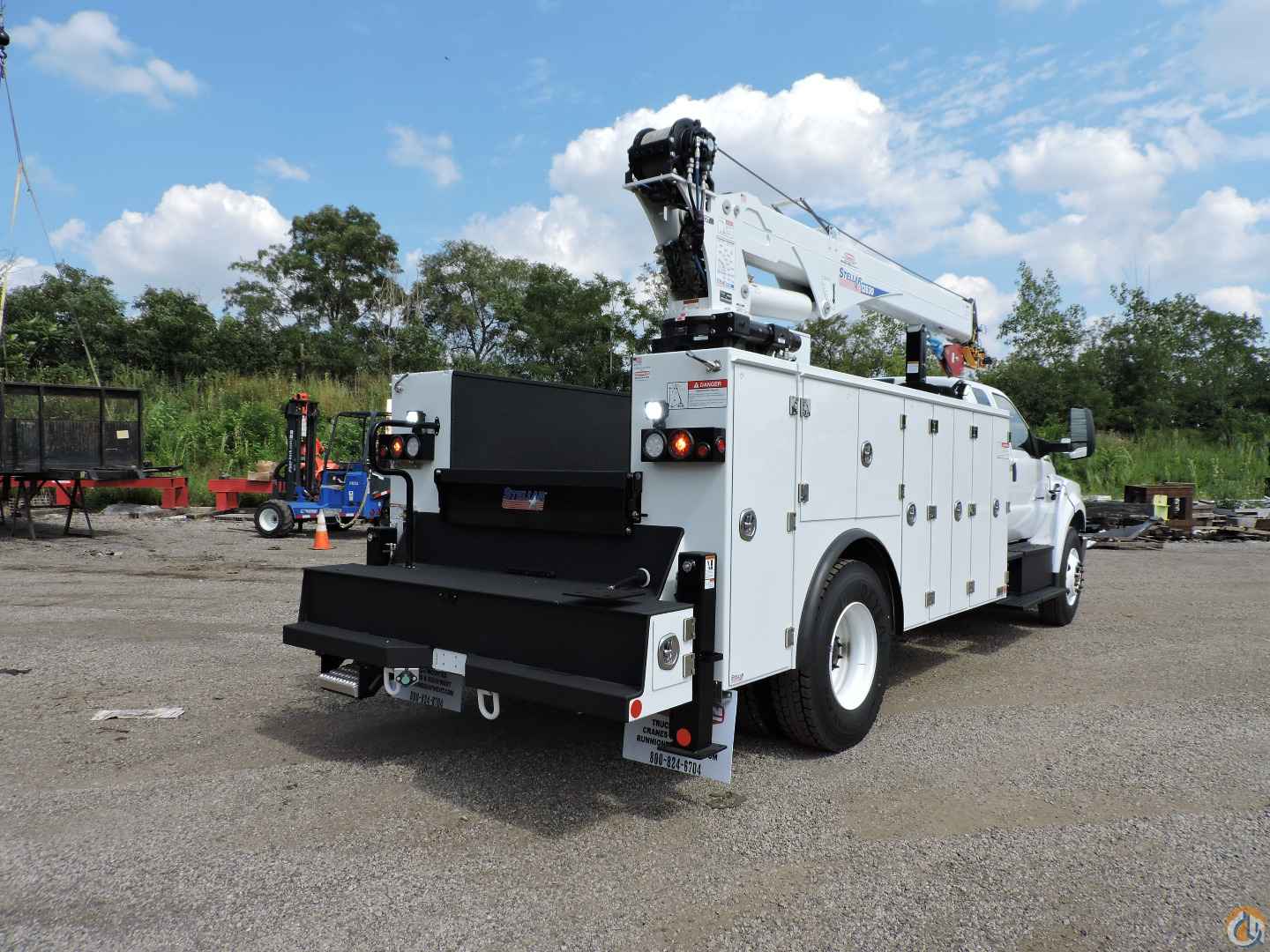

- 12” aluminum fold down tailgate – painted black

- 21” step bumper with thru compartment

- Vise mounting plate – receiver workbench mount

- Step, slide out for TMAX mechanics work bench bumper

- Rubber fenderettes

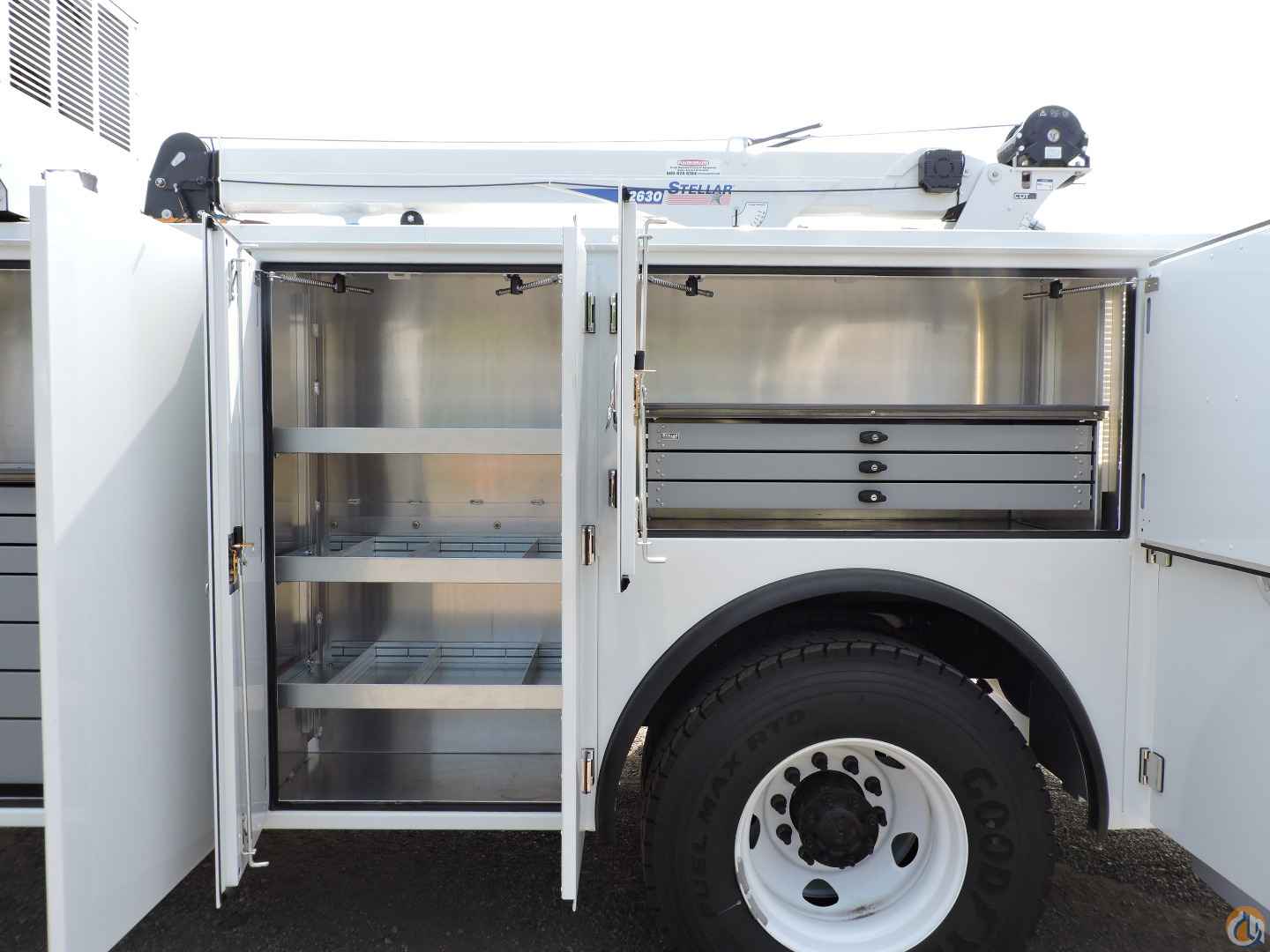

- All compartments raised to 60” H x 22” D

- Overlapped doors on SS1V/CS1V and horizontal compartments

- 2 & 3 point stainless steel compression latches

- Stainless steel “Billet Style” hinges

- Spring loaded door stops

- Dual-seal automotive type compartment weather seal

- LED compartment lights

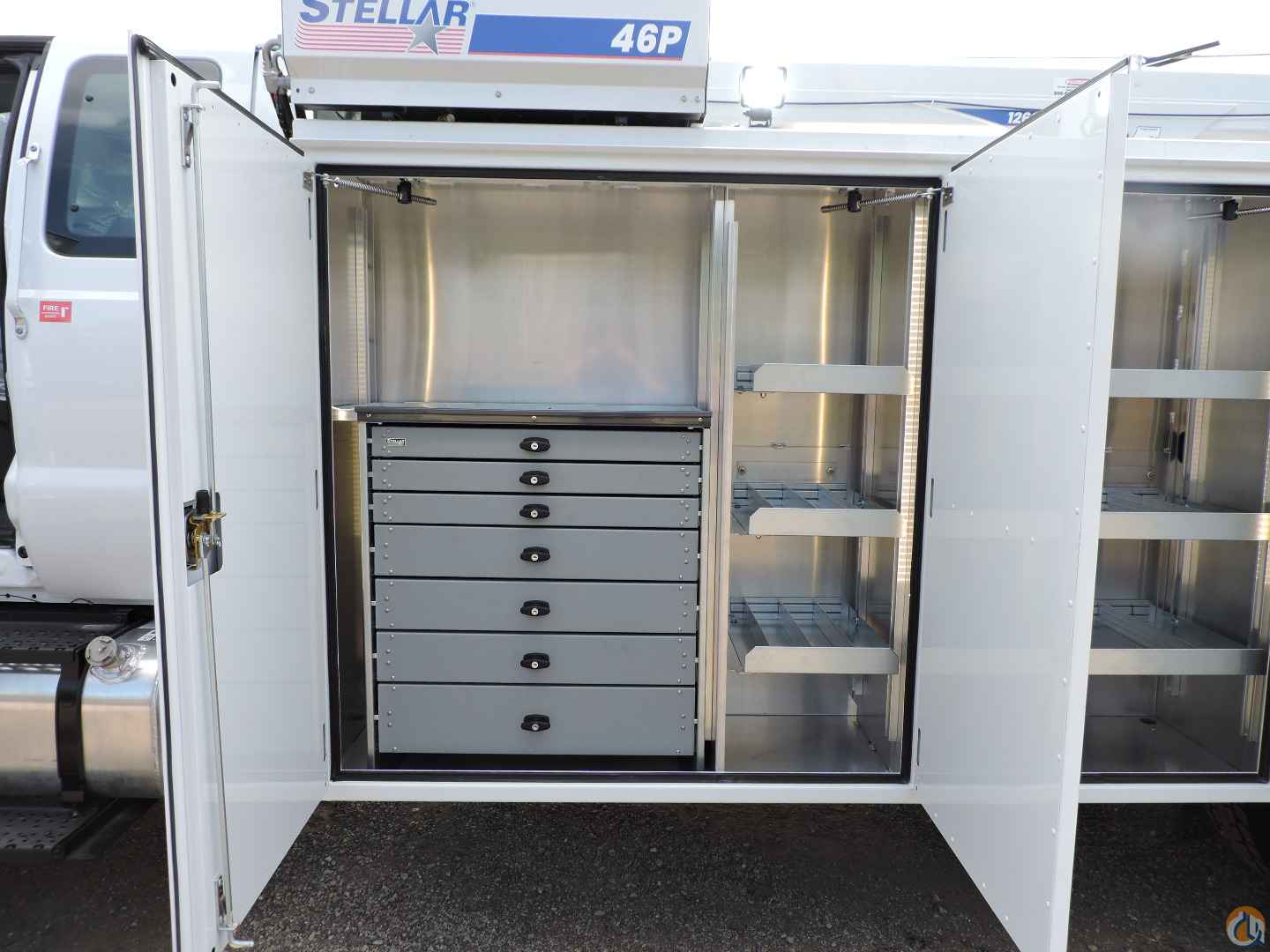

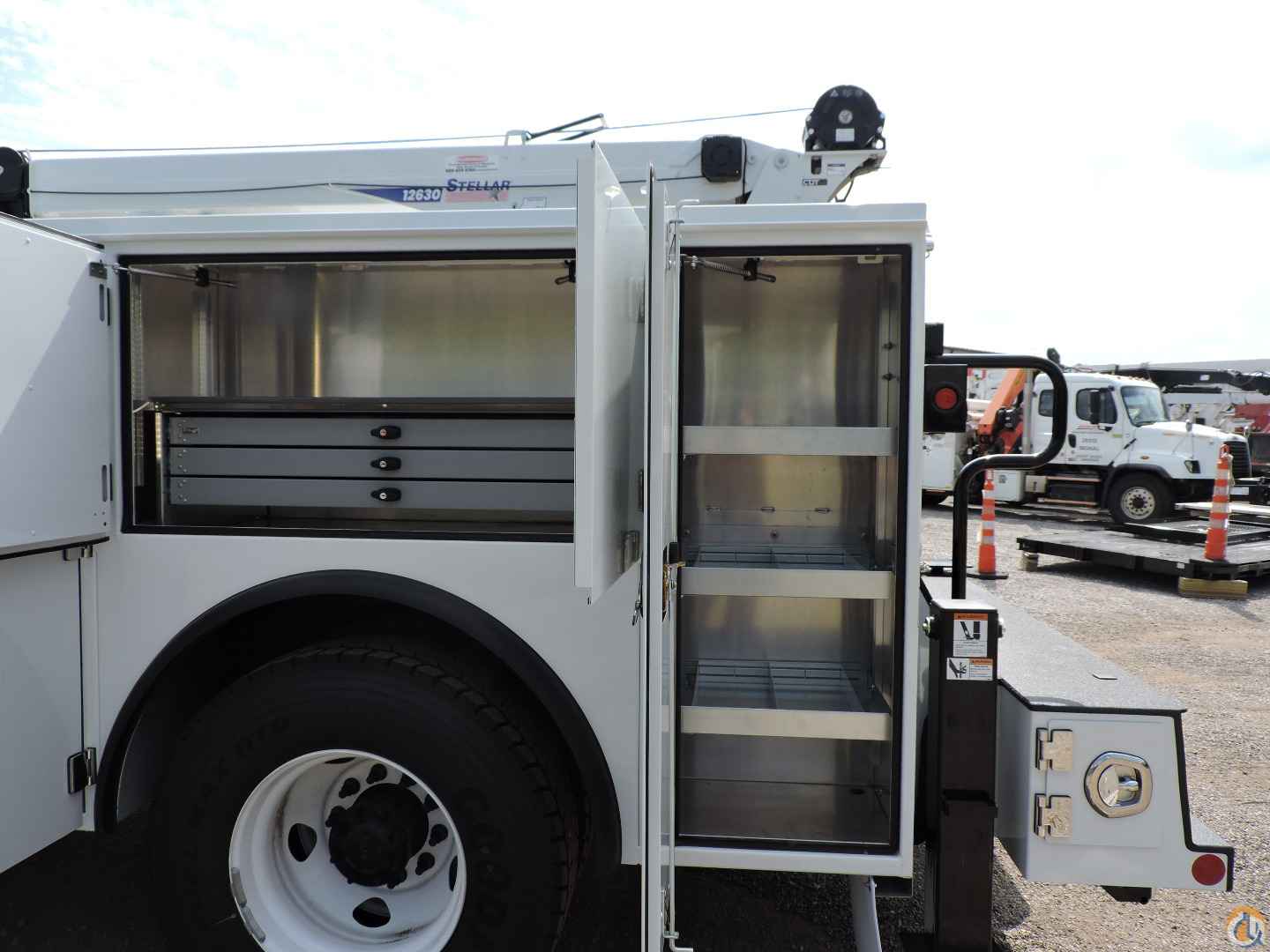

- SS1VF – Heavy duty aluminum drawer set – 35.5” H x 34” W x 18” D – 3-3”, 3-5”, 1-7”, One (1) shelf with (3) dividers with drawer lightbar

- SS1VR – Three (3) shelves with (3) dividers

- SS2V - One (1) shelf with (3) dividers – 36” wide

- SS Horizontal – Heavy duty aluminum drawer set, 11”H x 48”W x 18”D, 3-3”

- SS Rear – Three (3) shelves with (3) dividers

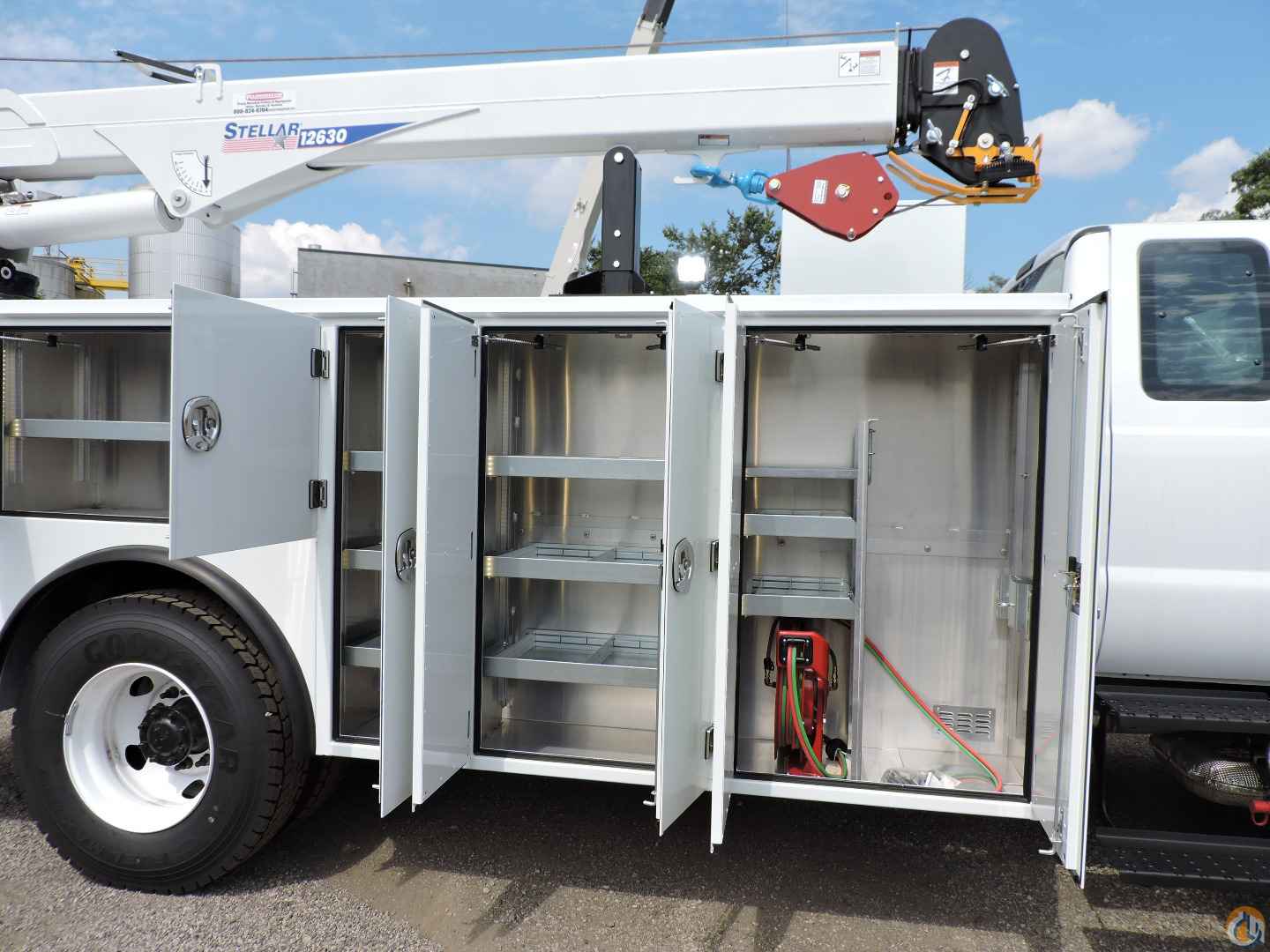

- CS1V – Divider kit with shelves and Oxy-Acetyln bottle holder holds 2 bottles

- CS2V – Three (3) shelf with (3) dividers – 32” wide

- CS3V – Three (3) shelf with (3) dividers – 19” wide

- CS Horizontal – Shelf with 3 dividers – 52” wide

- CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

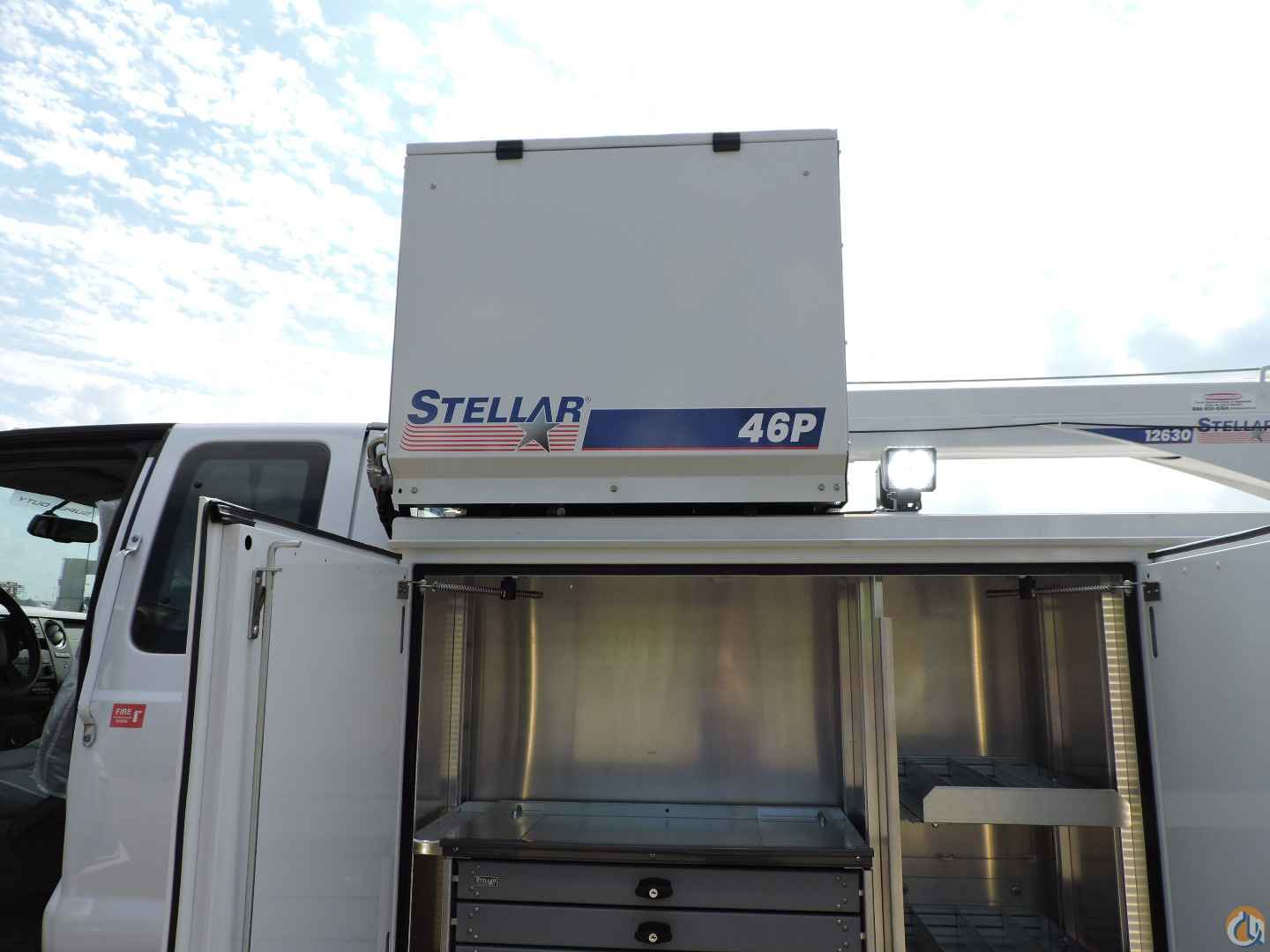

- Stellar 46P hydraulic driven air compressor produces 46CFM @ 175 PSI

- 22-gallon air tanks

- FLR system – ¾” air feed for ½” hose reel (filter, lubricator, regulator)

- LED floodlights – Four (4) total. 1 on boom support, 1 SS behind compressor, 1 on each rear taillight box

- Dual LED Trilliant lights - mounted on boom tip – gravity rotating

- Backup alarm

- ICC safety kit – 2.5# fire extinguisher and reflector kit

- Weld-on receiver hitch

- Spray-on bed liner for load bed walls and floors

- Prime painted white

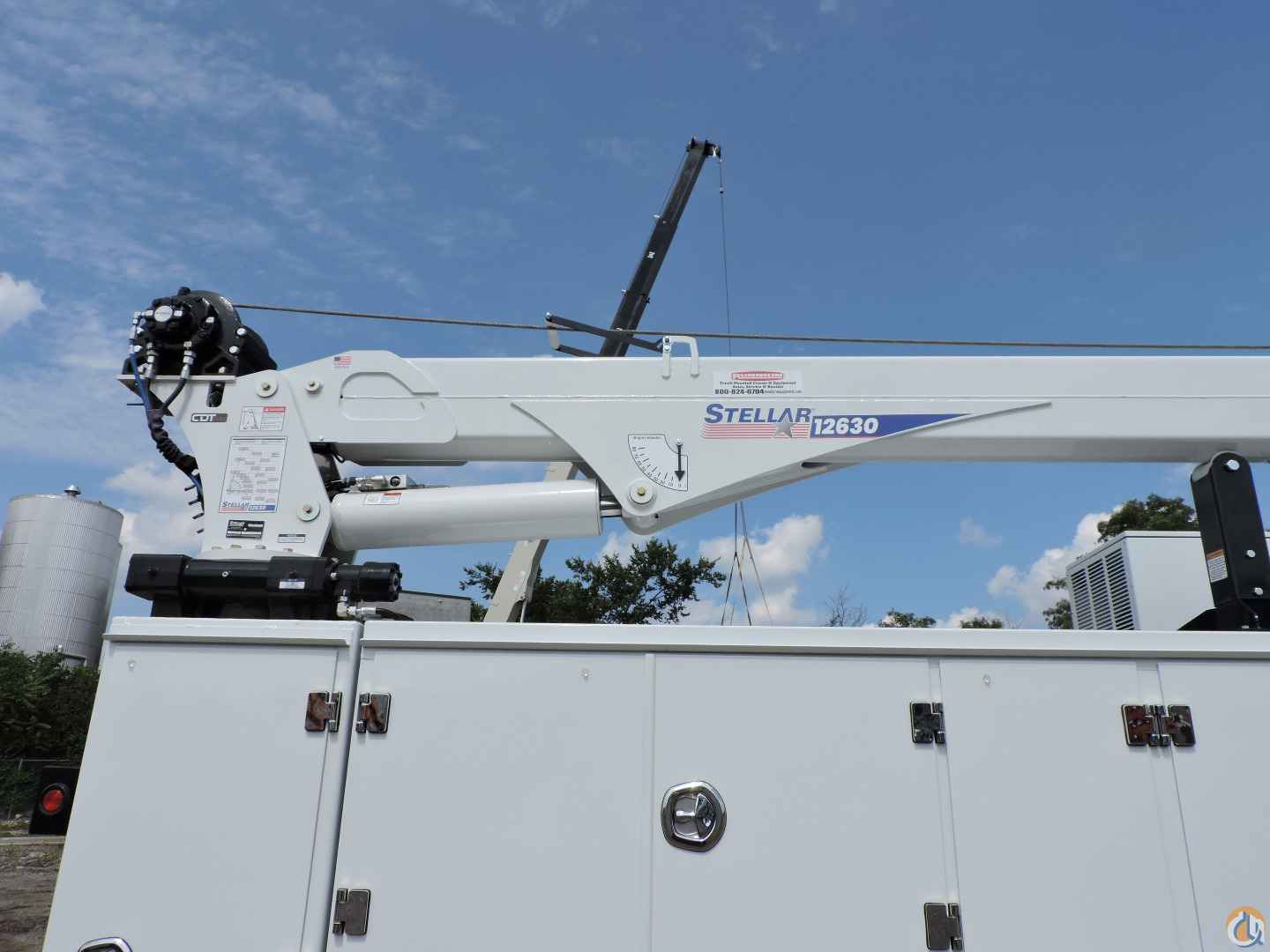

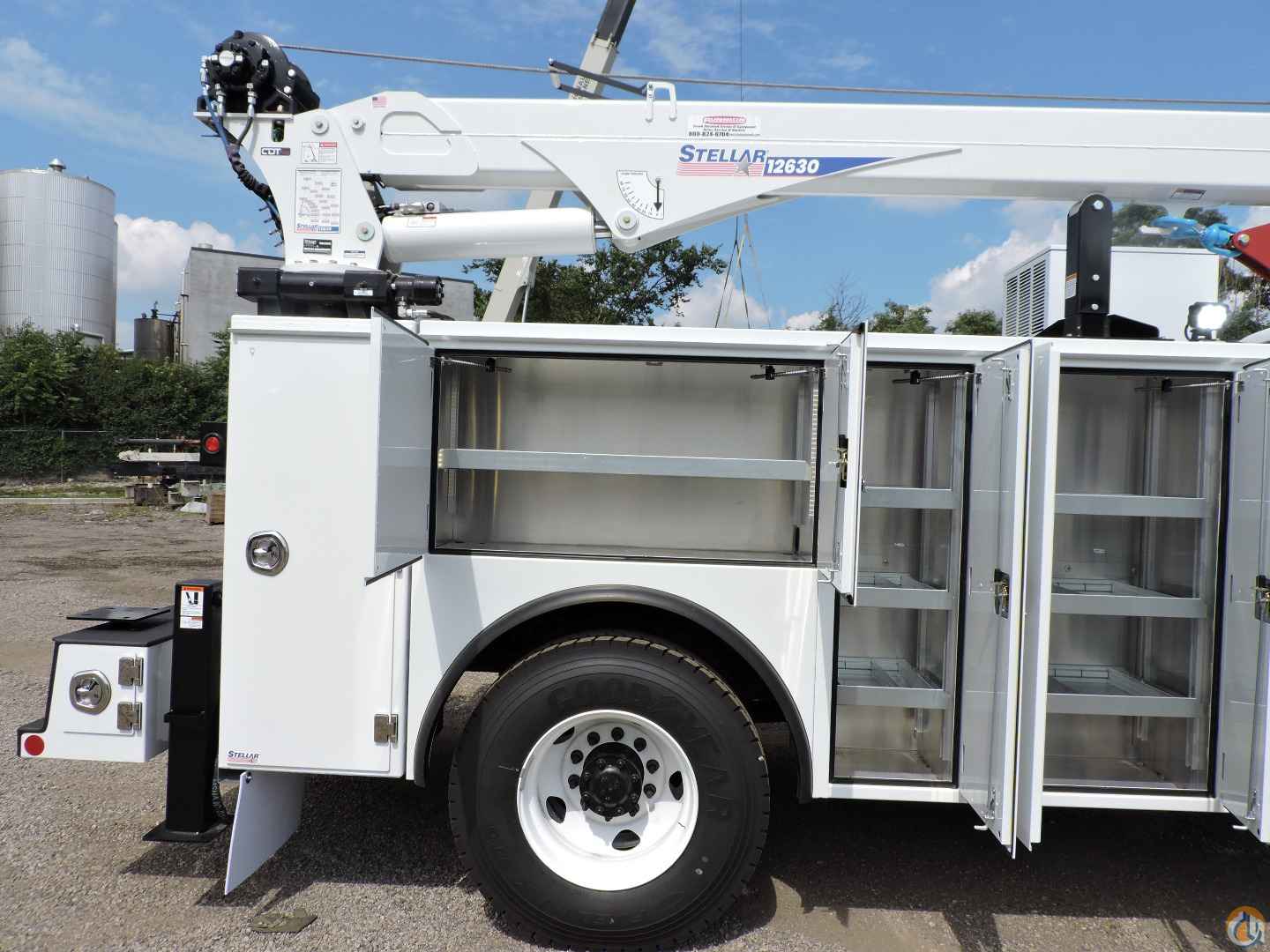

Stellar 12630 telescopic crane equipped as follows:

- 77,800 ft/lb rated when in boost mode

- 12,000# maximum capacity

- 30’ maximum hydraulic reach

- Hexagonal boom – optimized to deliver dramatically less boom flex and side to side movement

- Boom elevation: -10° to +80°

- 400° non-continuous rotation – durable enclosed rotation system with a cast iron base and an internal mechanical stop

- Planetary winch with 100’ of 7/16” wire rope

- Max line pull speed 55ft/min

- Quick release snatch block stow

- Adjustable boom support, roller rest

- Proportional radio remote control – LCD features real time load capacity, maximum distance with the current load, boom angle, and percentage of load

- CDTplus boost mode allows for a momentary 18% increase in the capacity of the crane, and a Safe Mode to keep the crane and operator safe should a load indicating device fail to operate correctly

- On-Demand speed control ramps engine RPM up only when the crane is being used. When crane is not used for 5 seconds engine RPM returns to idle. This lowers fuel consumption and reduces noise pollution in the work area

- Greasable pivot bushings, each pivot pin location includes bushings and grease zerks to provide for years of use

- Hydraulic stabilizers

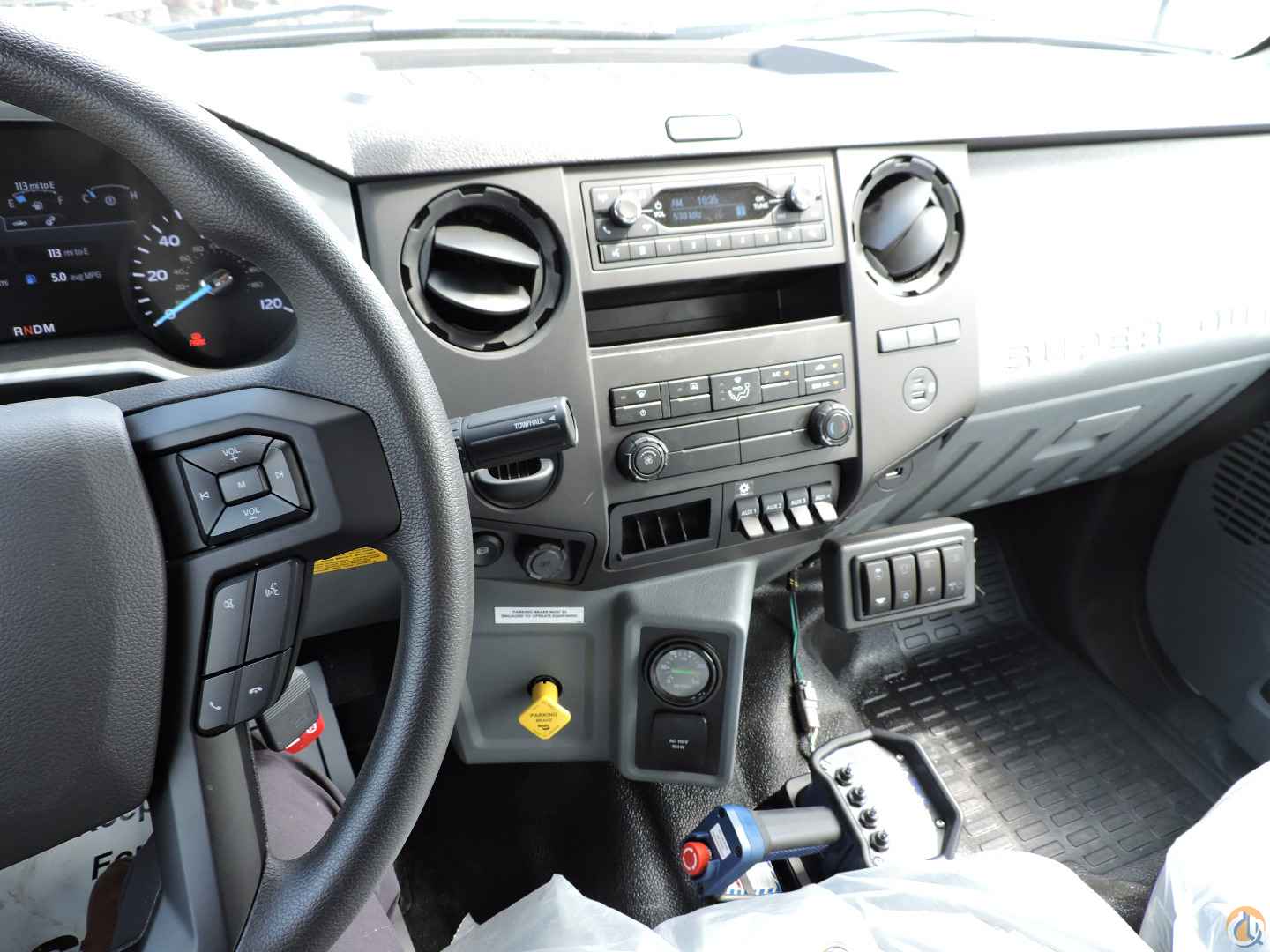

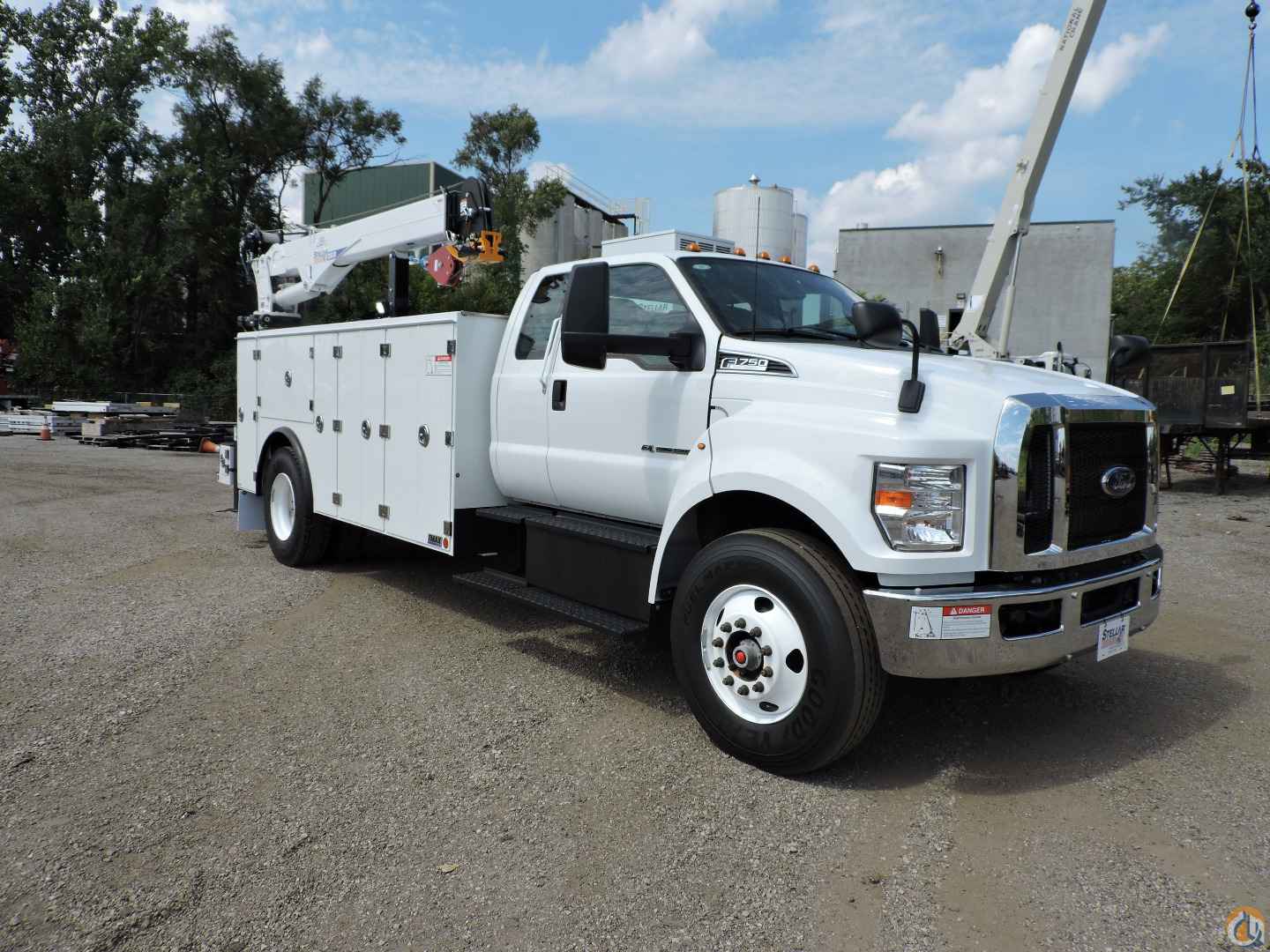

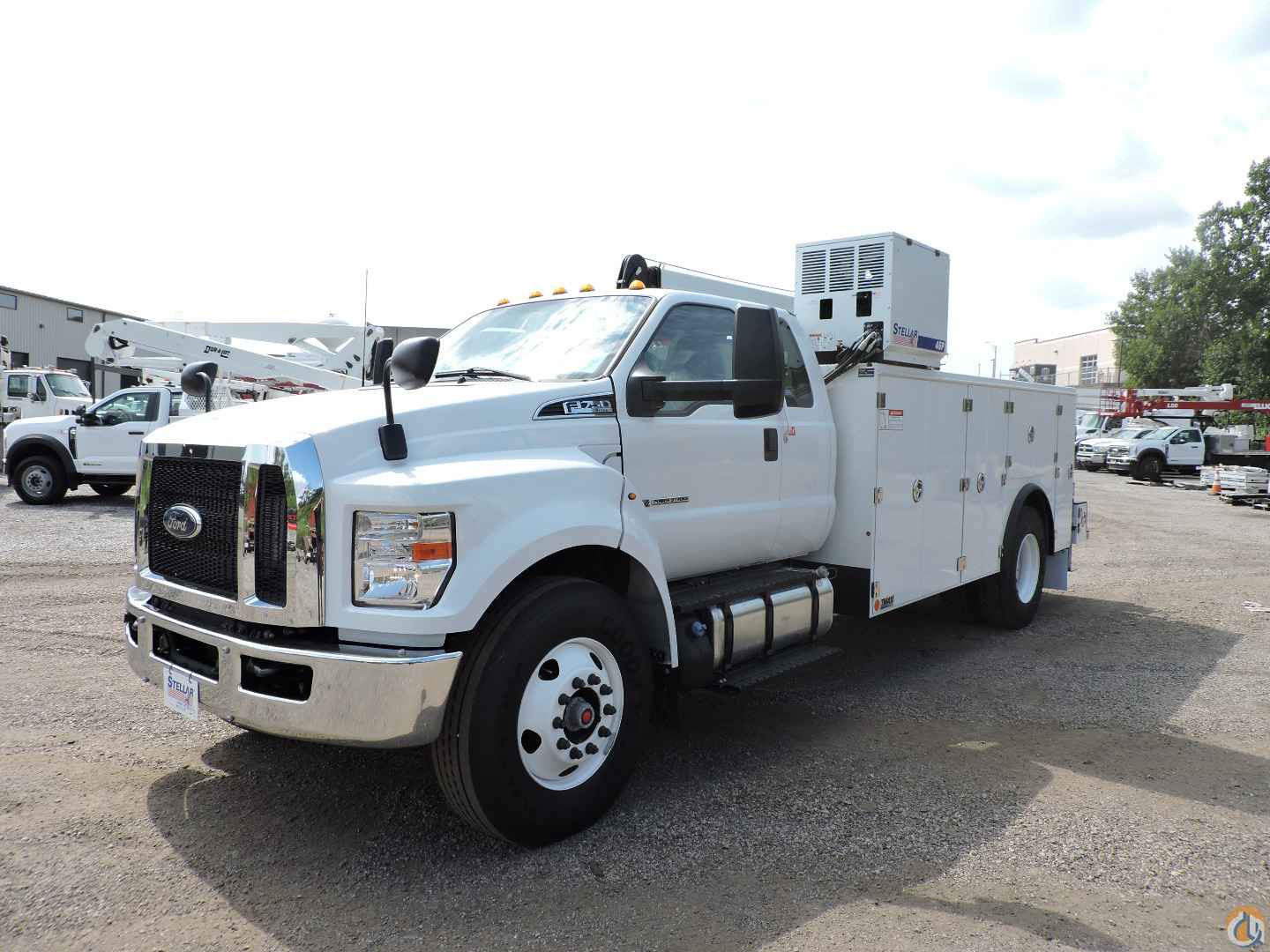

2026 Ford F750 Supercab equipped as follows:

- Extended cab

- 33,000# GVW

- 6.7L Power stroke V8 turbo diesel – 270HP

- Air brakes

- Exhaust brake

- Engine block heater

- Ford torqshfit HD 10-speed automatic

- Front axle: 12,000#

- Rear axle: 21,000#

- Chrome bumper
