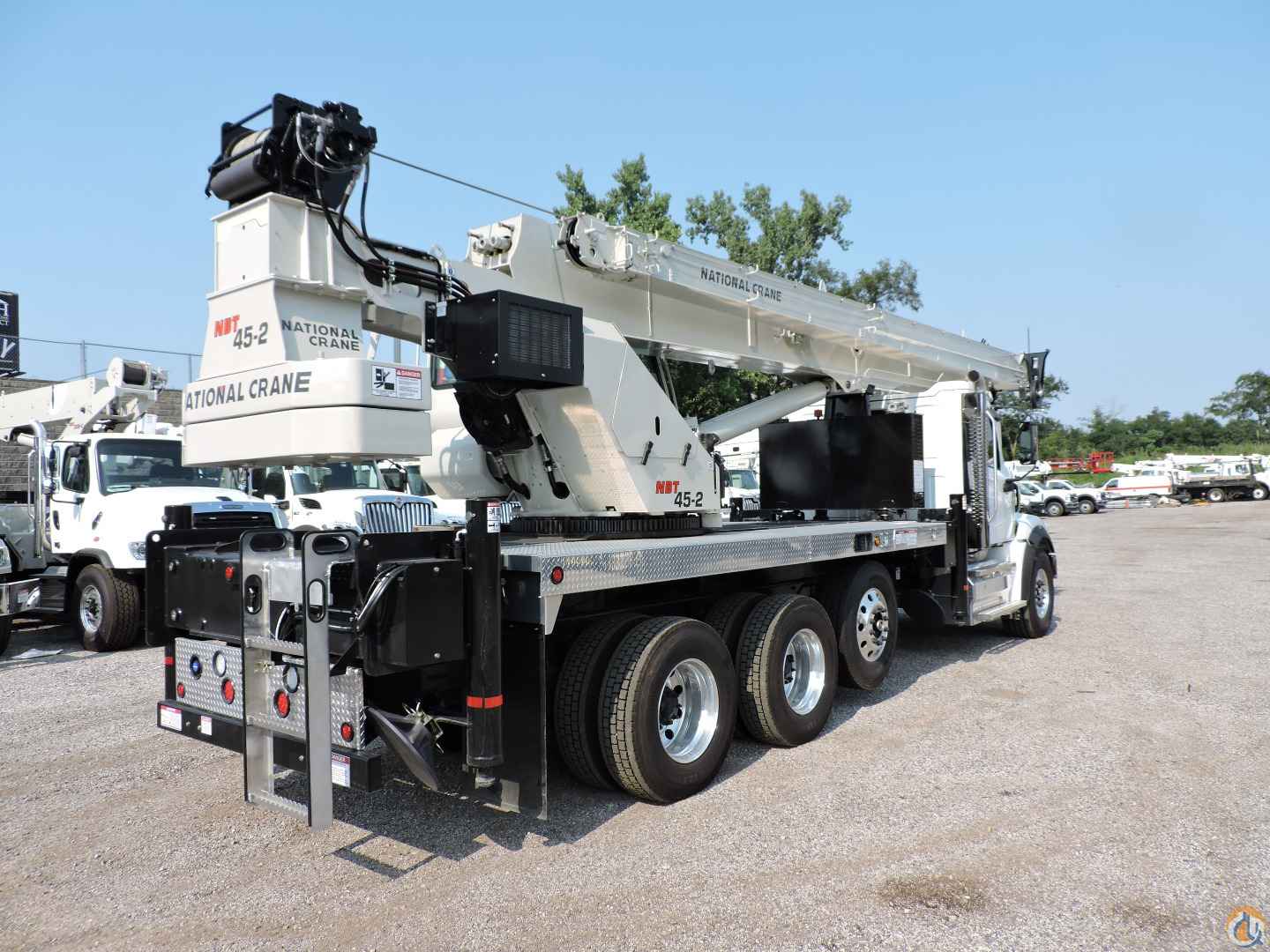

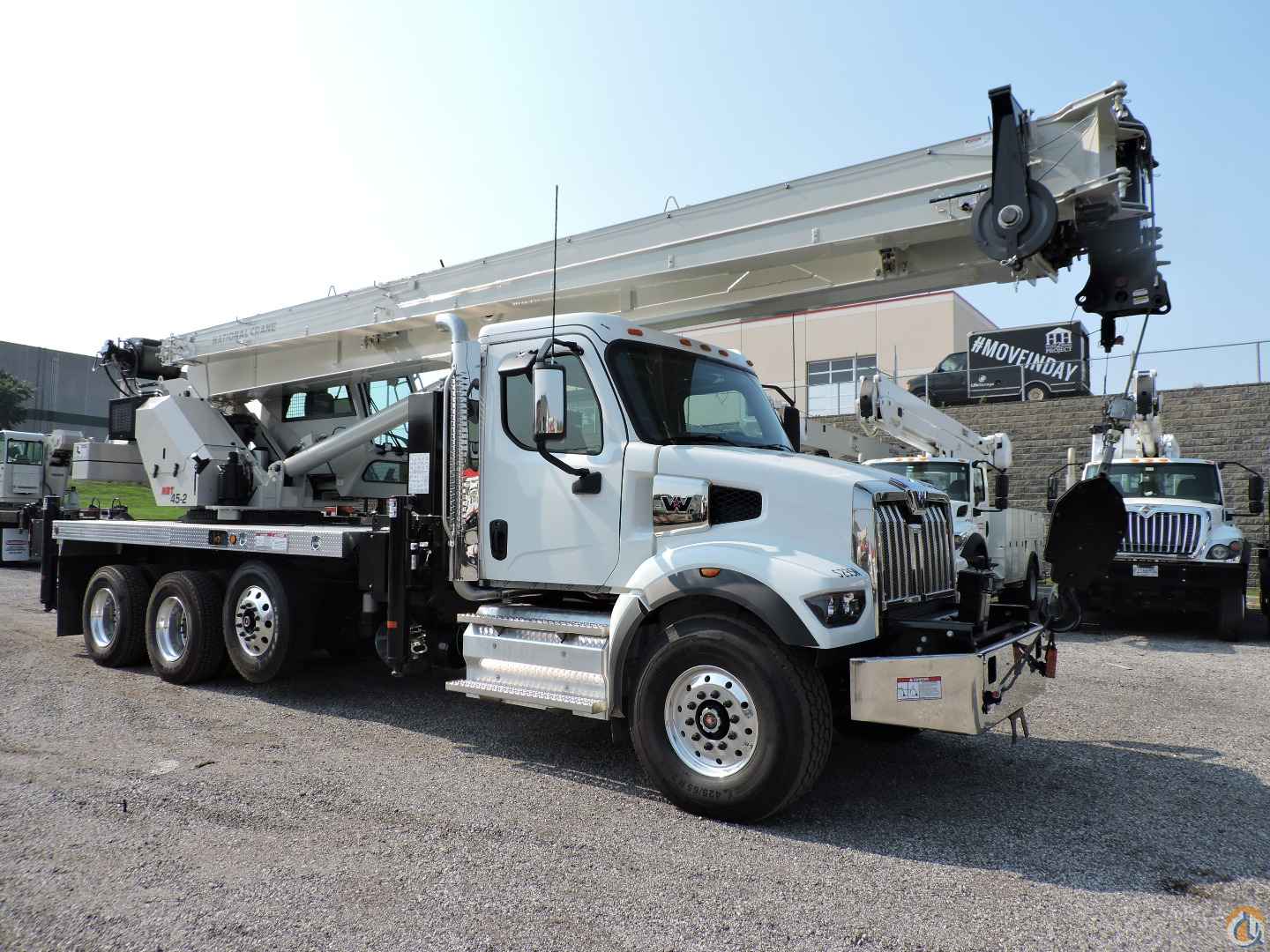

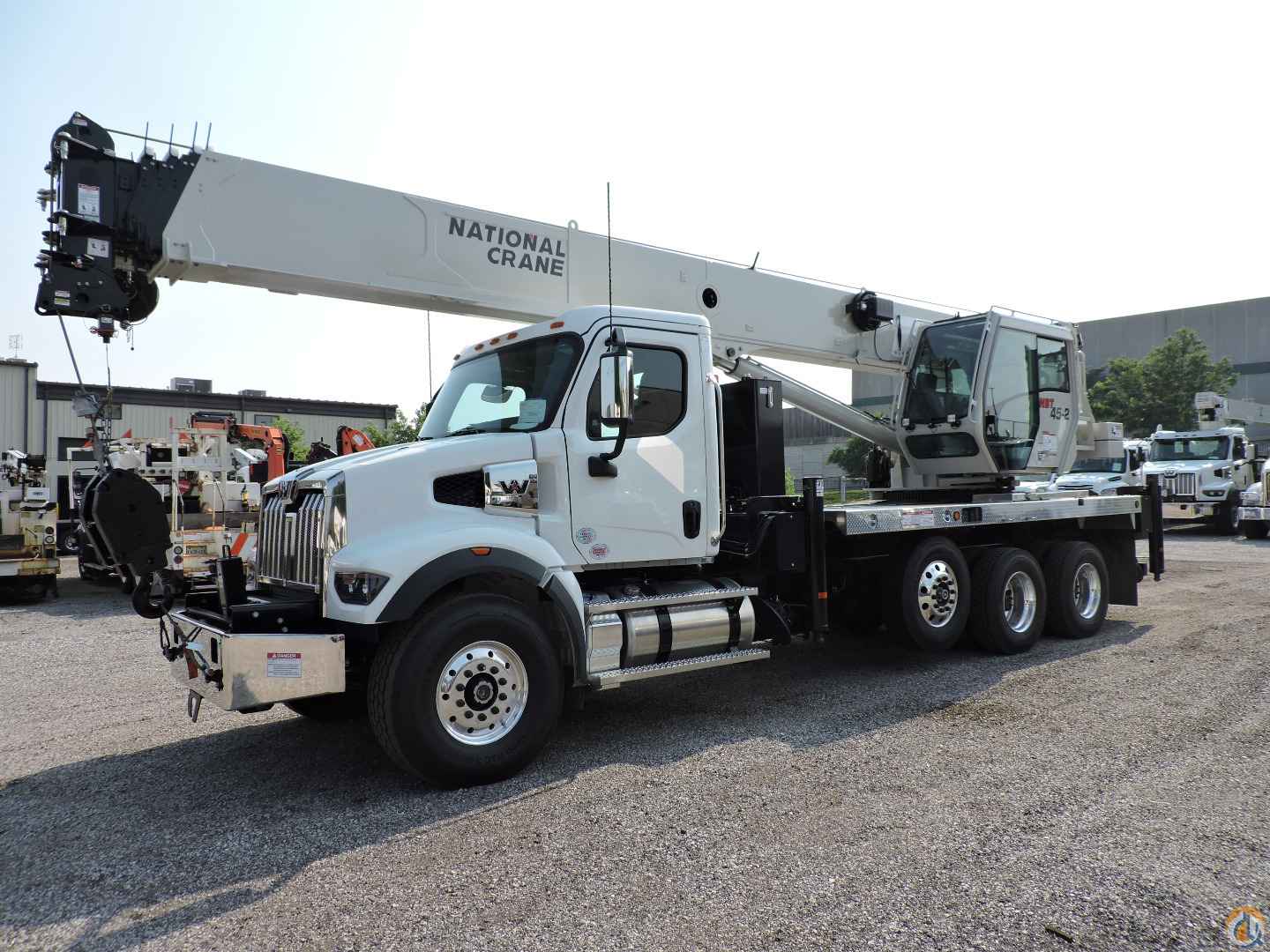

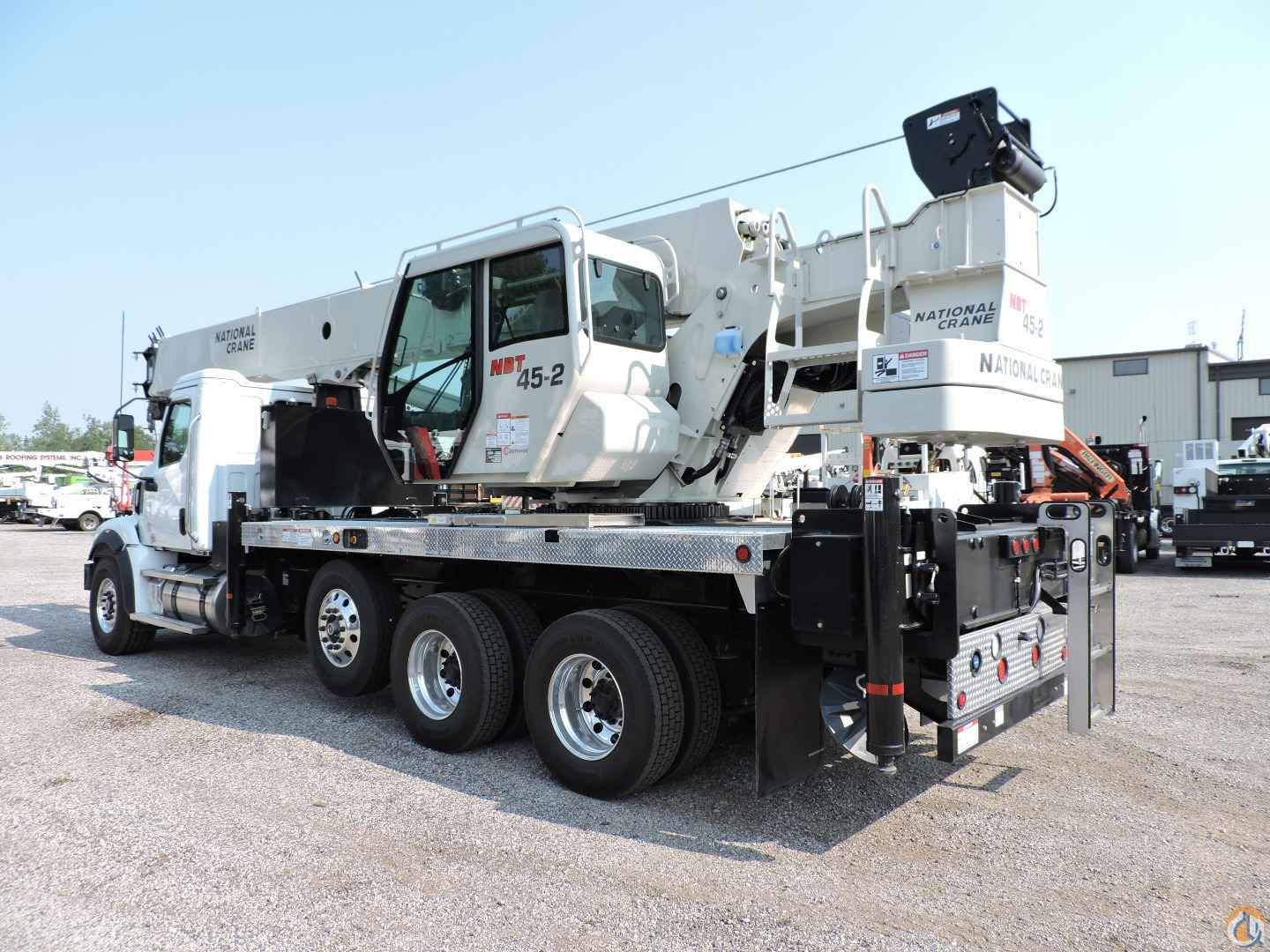

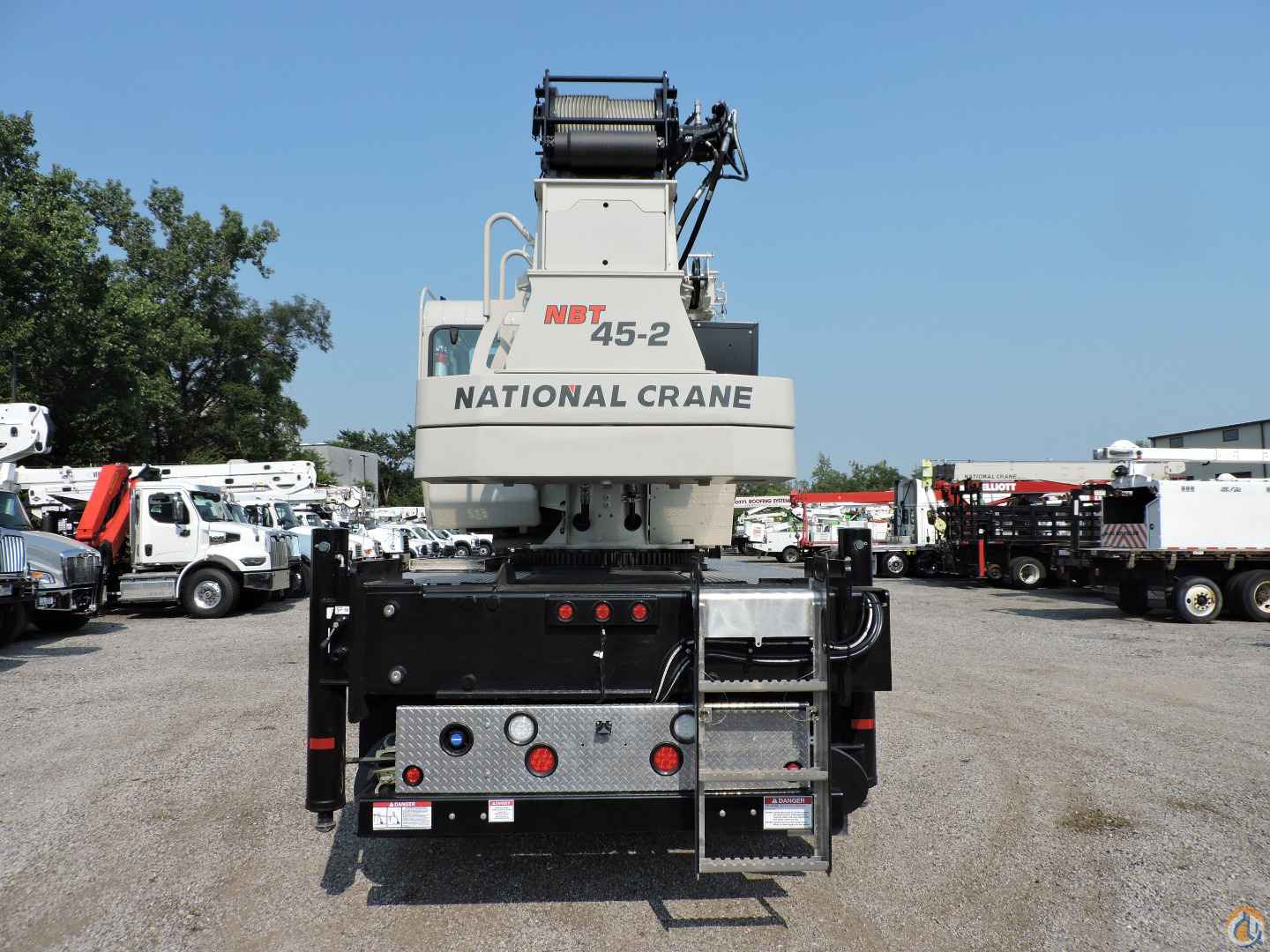

National Crane NBT45-2 equipped as follows:

- 45-ton capacity

- 5-section boom 31’ – 127’, 192’ tip height

- Three quick reeve cast iron sheaves

- 31’ - 55’ manually telescoping jib

- Max Counterweight Package - Two (2) total rotating, superstructure mounted, non-removable counterweight slabs, 6,000 lbs

- Rated Capacity Limiter (RCL) and anti-two block system; graphical, color RCL system with audio/visual warning system and control lever lockout. Electronic display of boom angle, boom length, relative load moment indication, rated load, load, radius and boom tip height

- Internal anti-two block system

- Standard work area definition system (WADS) allows the operator to pre-select and define safe working areas. When crane approaches set limits, audio/visual warnings alert the operator of jobsite obstructions

- 0°-20° tilting cab: all steel construction crane cab, acoustical lining, & tinted glass

- Deluxe heated seat with armrest mounted dual-axis electric controllers

- Windshield with electric wiper

- Sliding skylight with sunshade

- Hot water cab heater with defroster (diesel fired with remote diesel tank mounted to cab)

- Air conditioning and circulating fan

- AM/FM/Bluetooth radio with two (2) speakers

- Fire extinguisher

- Dual cab mounted work lights

- Engine start/stop switches

- Signal horn

- 360-degree continuous rotation

- Planetary glide swing with foot actuated multi-disk brake and pinion guard

- Pressure compensated, load sense, closed center hydraulic system

- Variable displacement piston pump

- 122-gallon hydraulic reservoir

- Filter condition indicator

- Oil temperature transducer and oil cooler with electric fan and butterfly valve on suction line

- Main hoist with grooved drum, two-speed power up and down, automatic multi-disc brake, electronic drum rotation indicator and drum cable follower. Bare drum maximum pull 17,250 lbs

- 450’ of 5/8” diameter 35x7 wire rope (5:1 design factor) for main hoist

- Single line pull 11,280 lbs

- 20-ton single sheave “Quick Reeve” type block with swivel hook and safety latch

- Hydraulic front and rear outriggers. Two section extendable beams with integral check valves. 20” diameter polymeric outrigger floats. Controls located in crane cab and on both sides of sub frame

- Single front outrigger

- Hydraulic reservoir mounted on top of front outrigger box

- Outrigger Monitoring System included

- Outriggers have three position settings (0%, 50%, 100%)

- Outrigger motion alarm

- 360 degrees stable

- Back-up alarm

- Marker and indicator lights

- Full-length aluminum decking – 102” wide

- Fold down ladder on driver’s side for crane cab access

- One removable ladder stowed/locked at the rear of the crane frame

MOUNTED ON:

2026 Western Star 47X equipped as follows:

- Detroit DD13 engine, 470 hp at 1625 rpm, 1650 ft/lbs at 975 rpm

- DT12-1650-OV Vocational 12-speed overdrive automated manual transmission

- 20,000lb front axle with flat leaf suspension

- 46,000lb tandem rear axle with Airliner suspension

- 13,500lb steerable pusher axle with Air Lift suspension

- Differential lock tandem axles

- Air dryer with heater

- Tires: FR – Continental HAC3 425/65R22.5 front tires

- Tires: RR – Continental HDL2 11R22.5 rear tires

- Tires: PR – Continental HSC3 11R22.5 pusher tires

- Aluminum wheels

- 100-gallon fuel tank with painted steel bands

- 13-gallon DEF tank

- Three (3) 2775CCA batteries

- Drivers Seats – Air ride, high back, black Cordura

- Passenger Seat – Non-suspension, mid back, toolbox, black Cordura

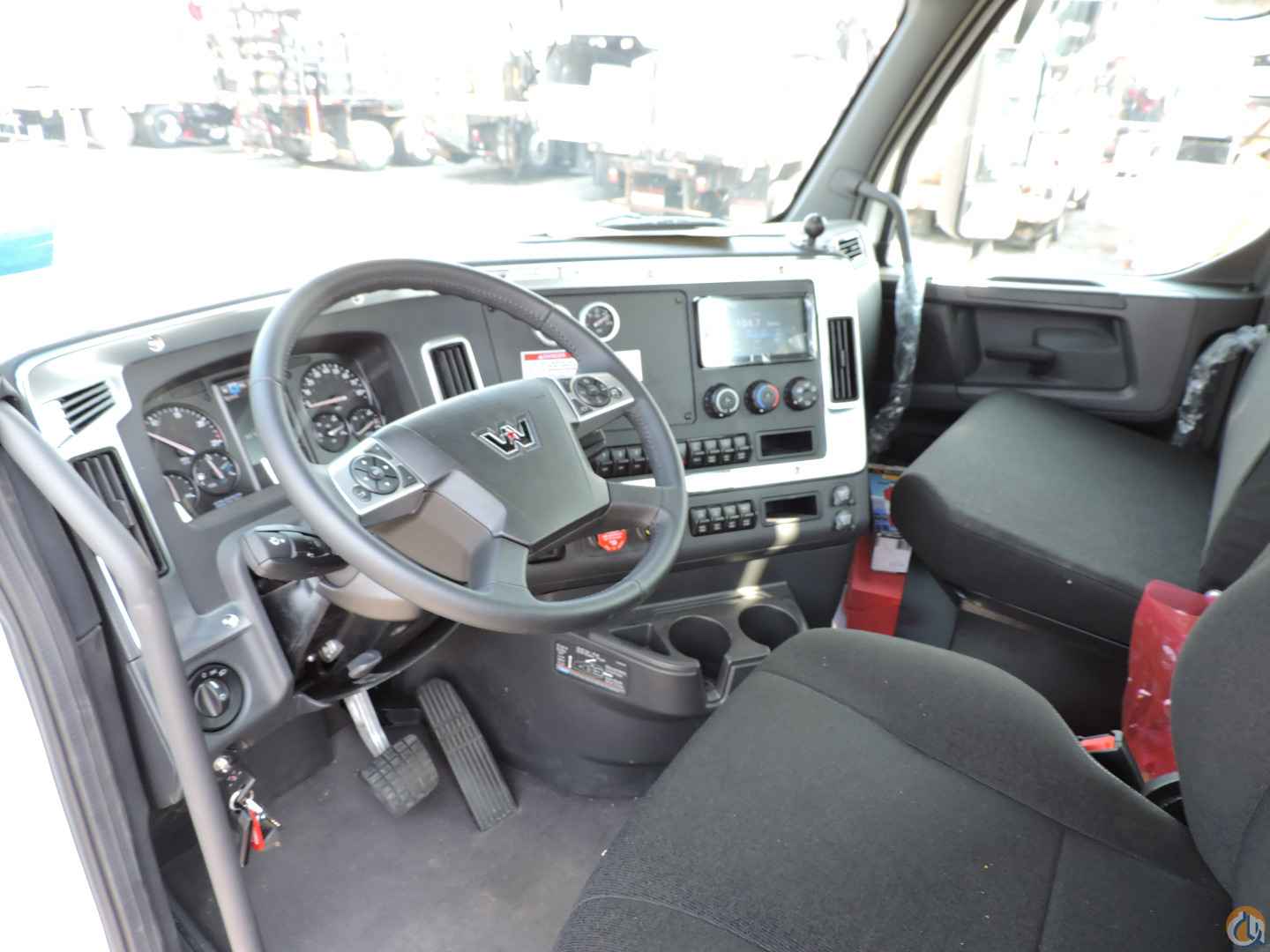

- Adjustable steering column - tilt/telescope

- Cruise control

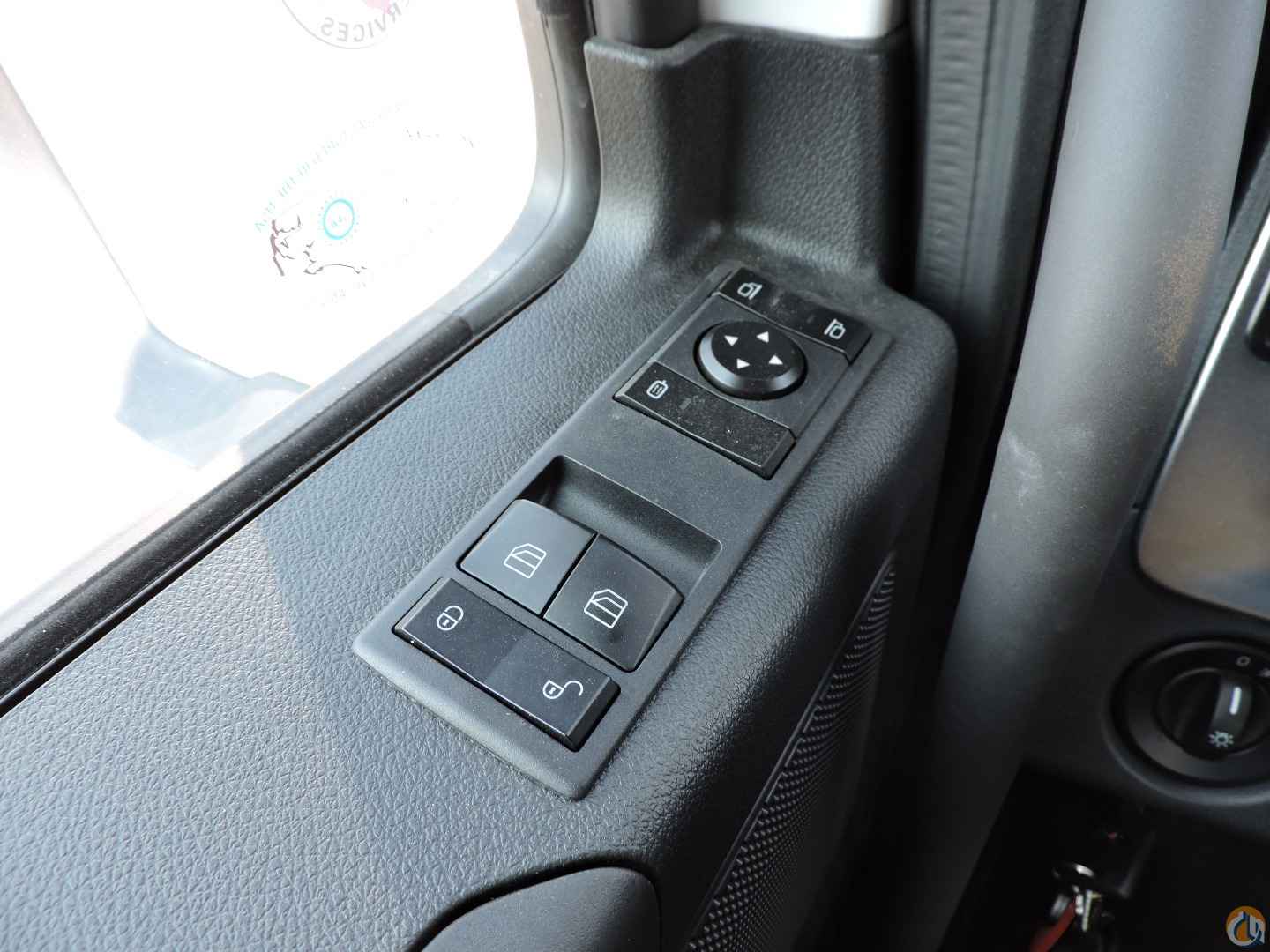

- Power door locks

- Air conditioner

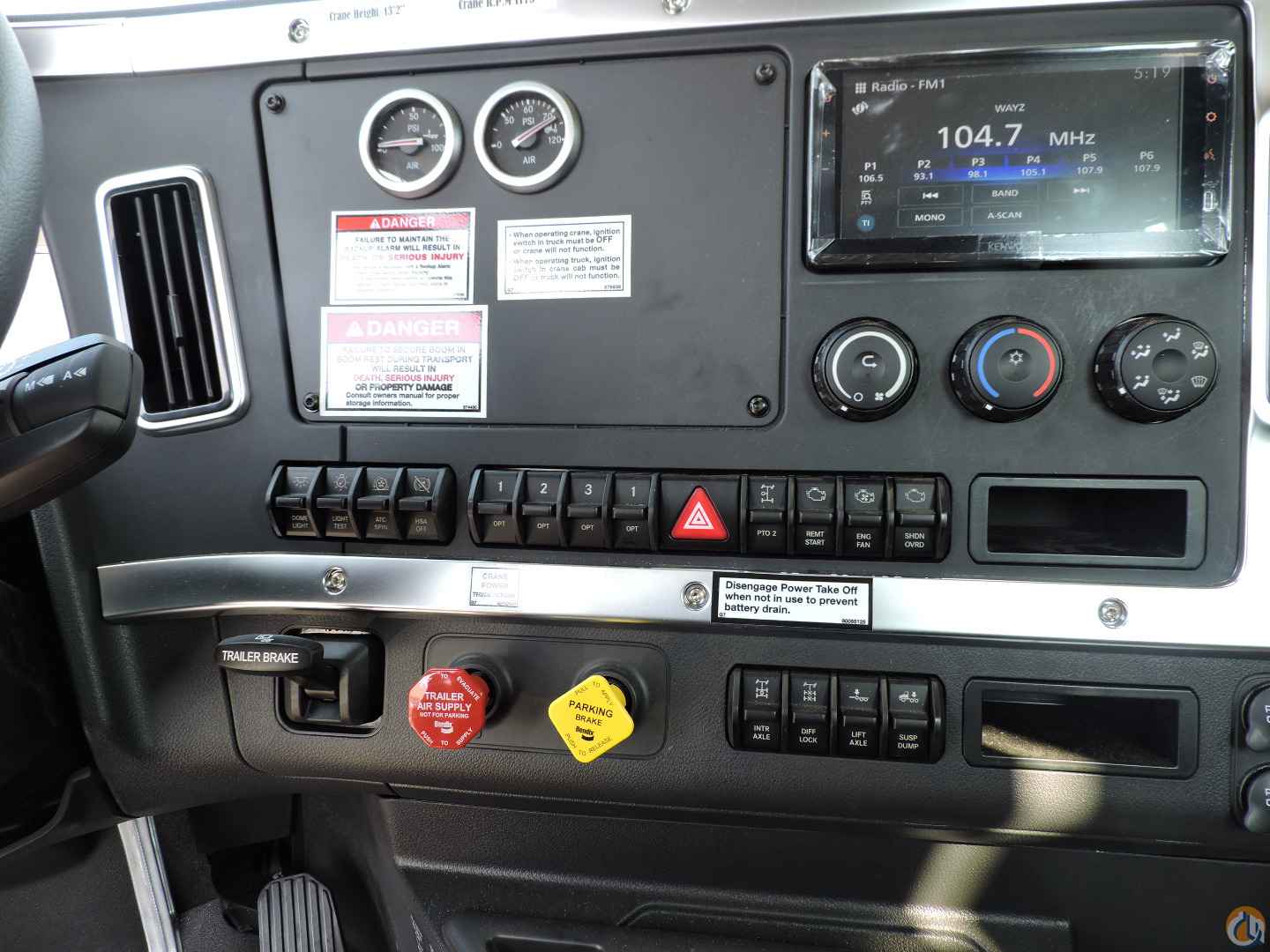

- AM/FM/WB radio with Bluetooth, and USB

- Heated mirrors

- Painted white
