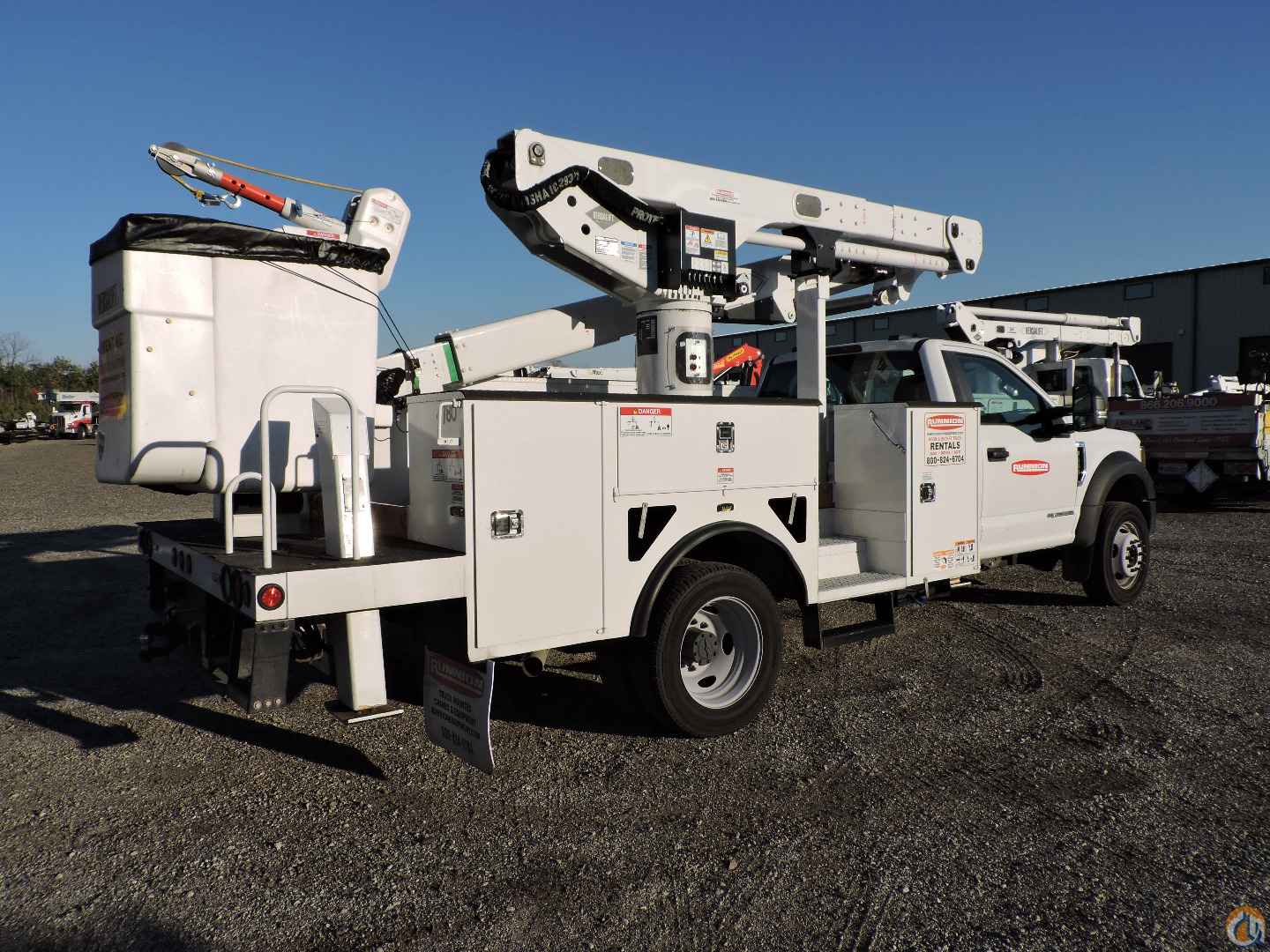

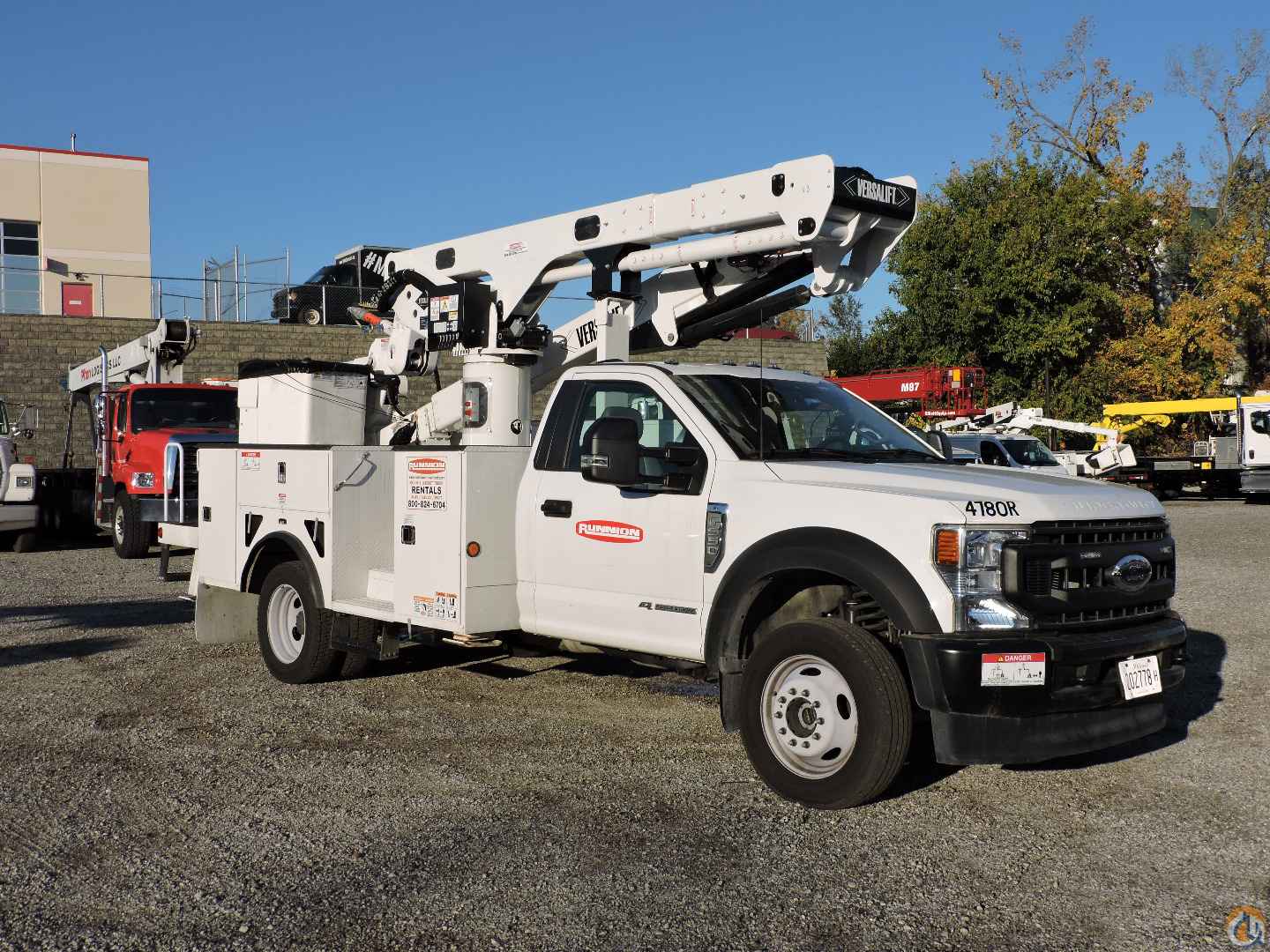

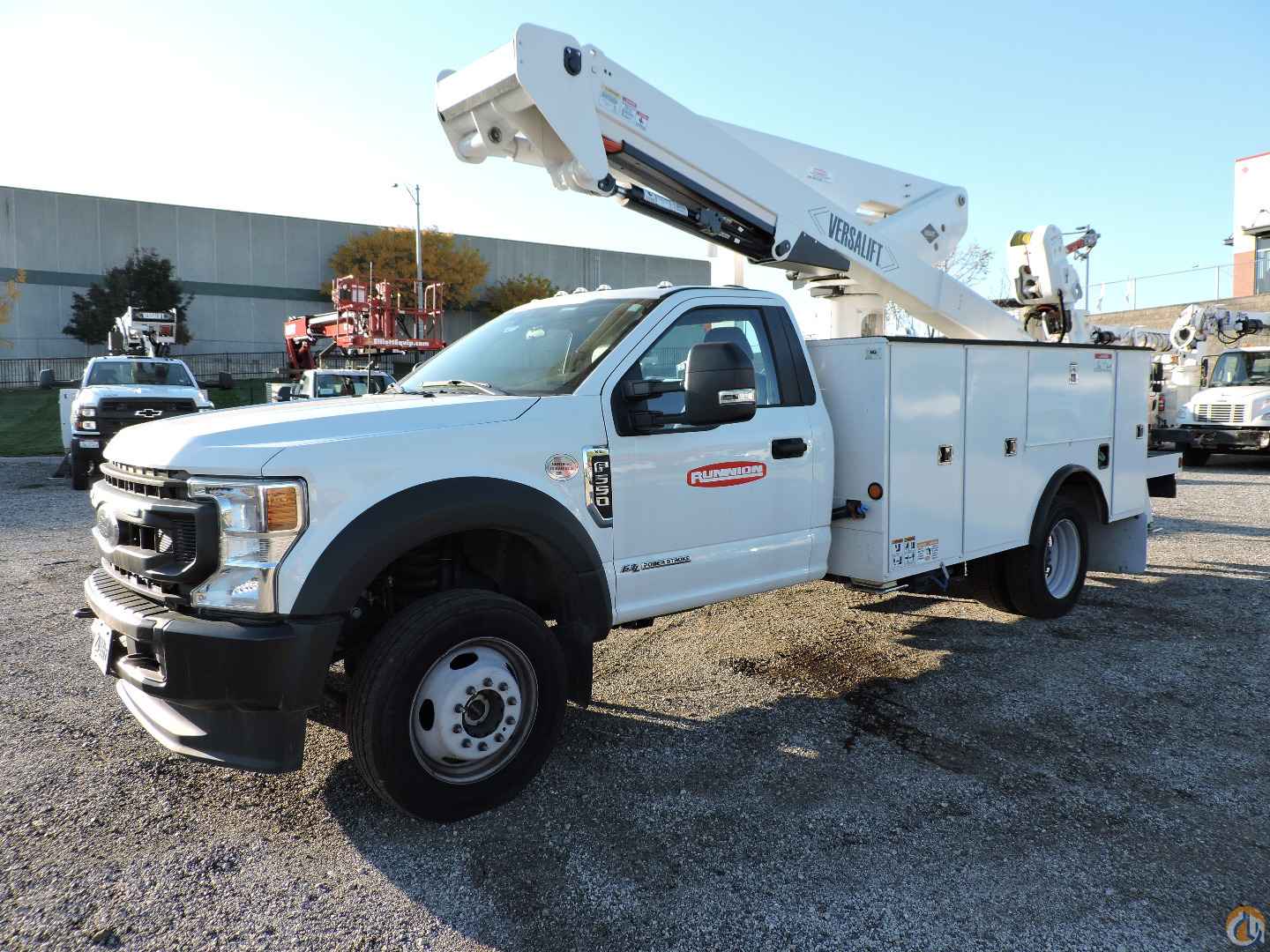

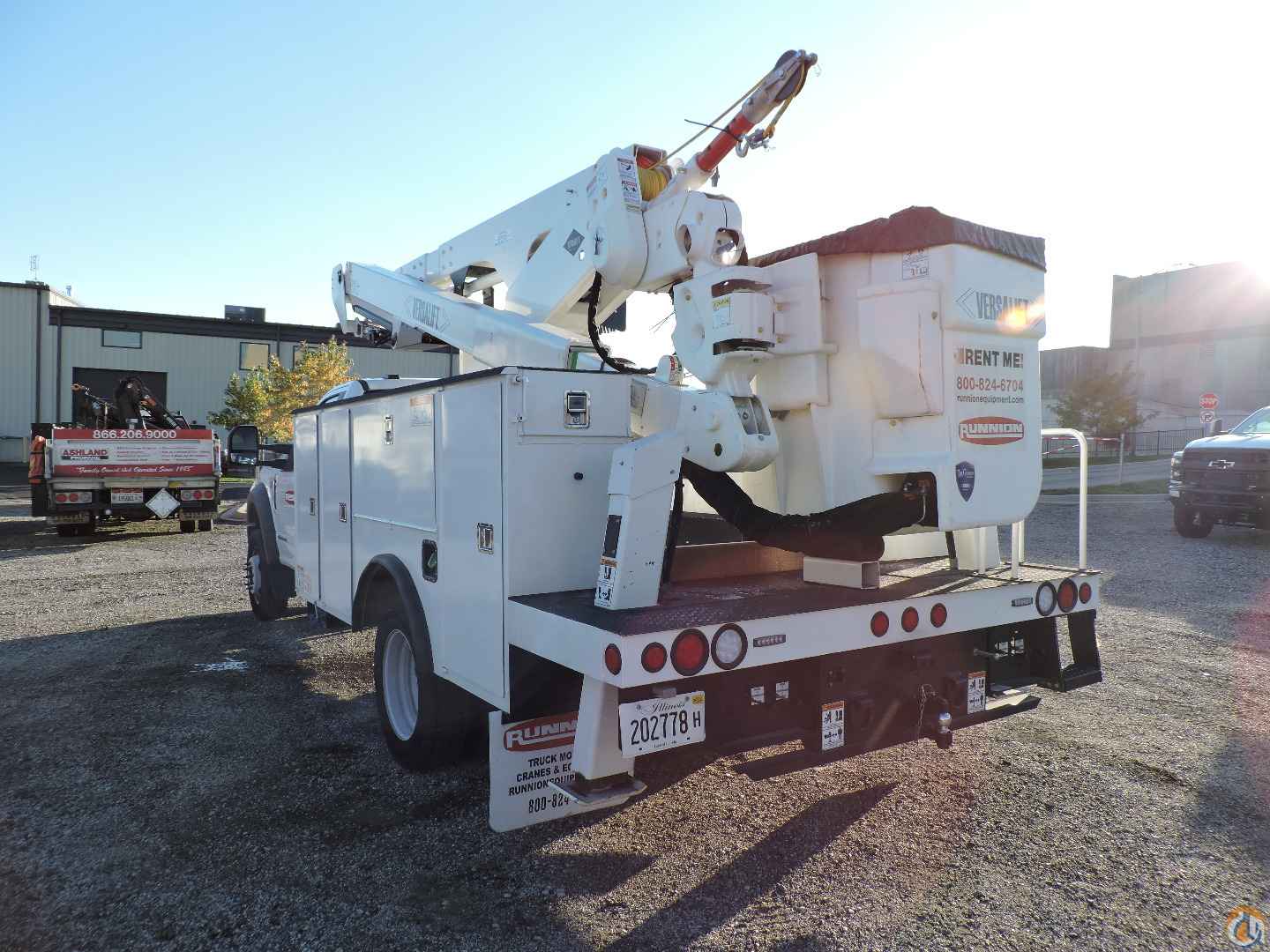

VERSALIFT VST-47-MHI equipped as follows:

- 52 ft. 4 in. working height

- 30 ft. 9 in. horizontal side reach

- Platform capacity of 300 lbs

- Side mounted closed one-step 24 in. X 30 in. X 42 in. fiberglass platform

- Platform liner and vinyl cover

- TruGuard™ dielectric isolating system with right hand single-stick control. All control handles are isolated and tested per ANSI 92.2. The high resistive dielectric system is protected from direct environmental and job-related contamination. TruGuard™ technology incorporates the use of full hydraulic controls with durable metal handles and linkages

- 180 degree Hydraulic platform rotator

- Hydraulic dual arm articulating jib pole and winch package for up to 1,000 lbs. capacity, including insulated jib pole

- 360 degree continuous rotation

- Six GPM open center hydraulic system with a 3000 psi operating pressure

- Side mounted telescopic upper boom allows low stowing of platform. Fiberglass inner boom and patented ELECTROGARD provide insulation gap of 41 inches fully retracted meeting ANSI A92.2 requirements for Category C 46KV and below

- Chassis insulating system (fiberglass lower boom insert) providing 12 in. insulation gap and including accommodations to bridge insulation gap for testing per ANSI 92.2

- ELECTROGARD and inner boom finished with white urethane paint over a white gel coat

- Non-lube bearings used throughout

- One set of hydraulic tool outlets with pressure limit valve. Valve can be adjusted from 1000 to 2500 psi

- Sub frame mounted main A-frame outriggers with pivot feet, two control valves, and a selector valve

- A-frame outriggers with pivot feet

- Outrigger boom interlock system for main and auxiliary outriggers

- Integral reservoir with a 17-gallon (64.4 l) capacity and dual sight gauges

- Individual full pressure controls at the turret actuate all boom functions and is equipped with a selector valve to override upper controls

- 12 volt DC backup pump providing power to all boom functions

- Auto boom latch for mounting on inner boom. The rotary auto boom latch works off the lift hydraulic pressure to open and close

- Standard white urethane paint

- Safety harness and lanyard

- Brand FX service body

MOUNTED ON:

2022 Ford F550 4x4 equipped as follows:

- GVWR: 19,500 lbs

- 6.7L 4V OHV Power Stroke V8 turbo diesel engine

- Automatic transmission

- 225/70Rx19.5G BSW traction tires

- Painted Oxford White
