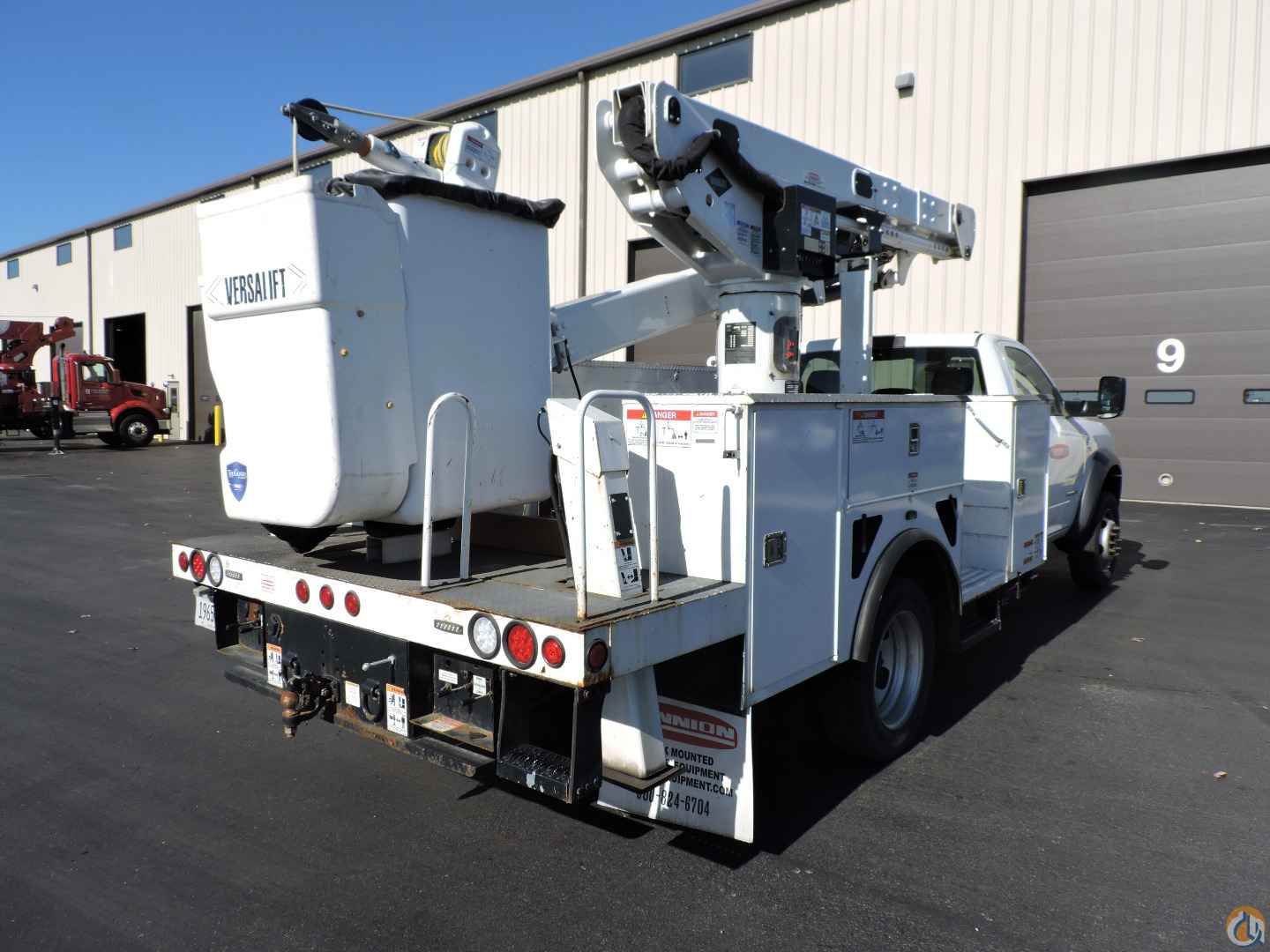

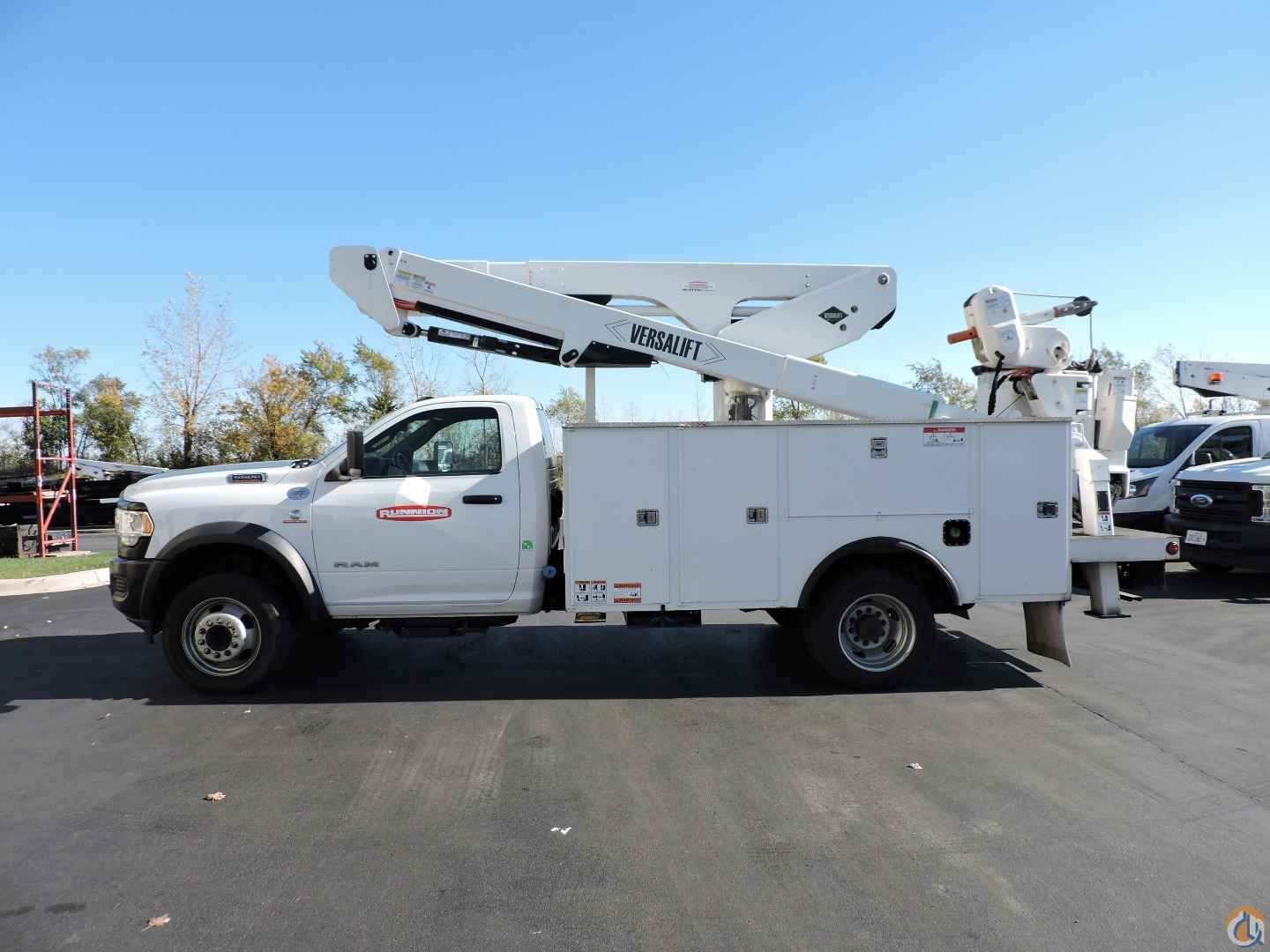

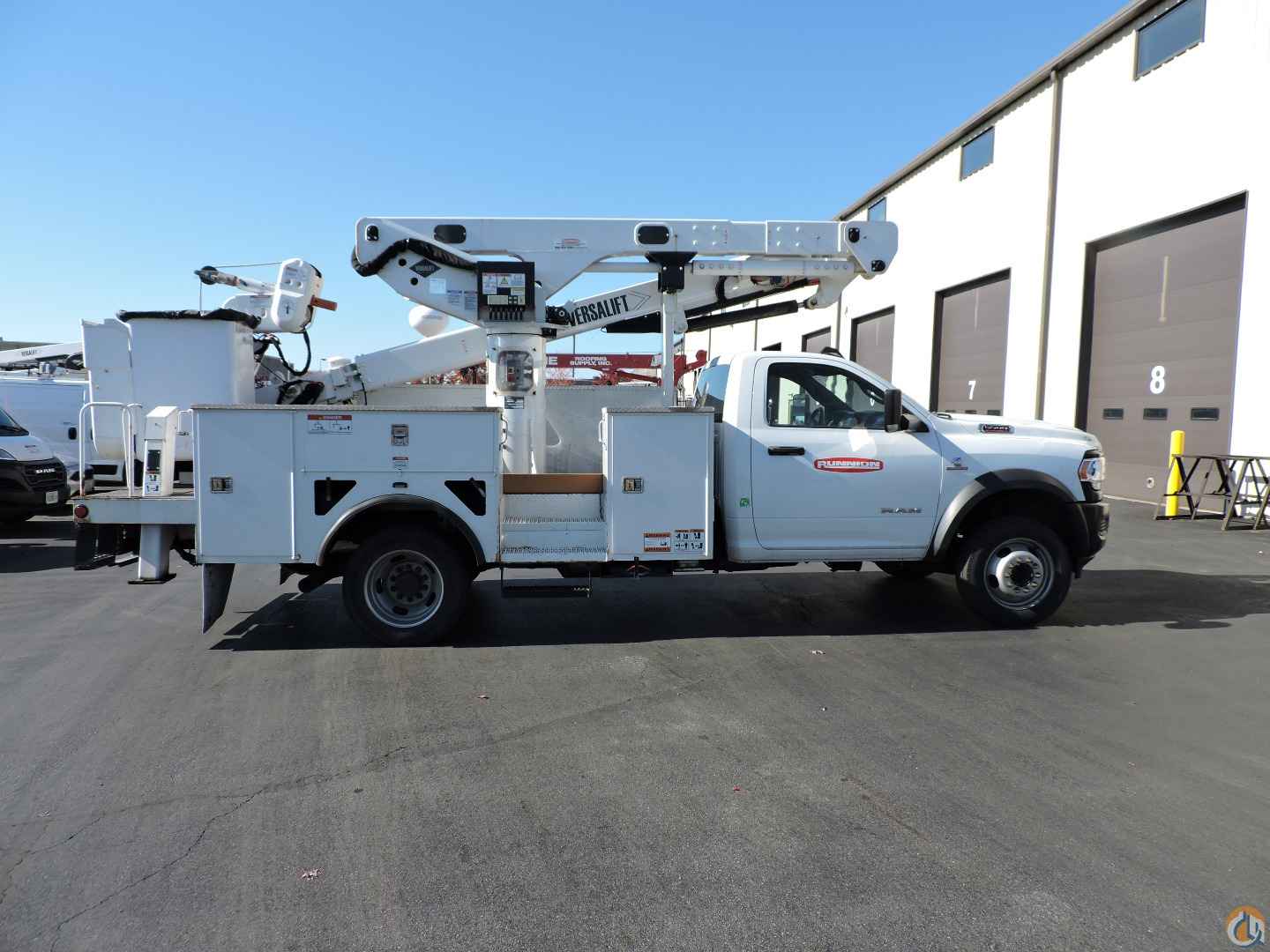

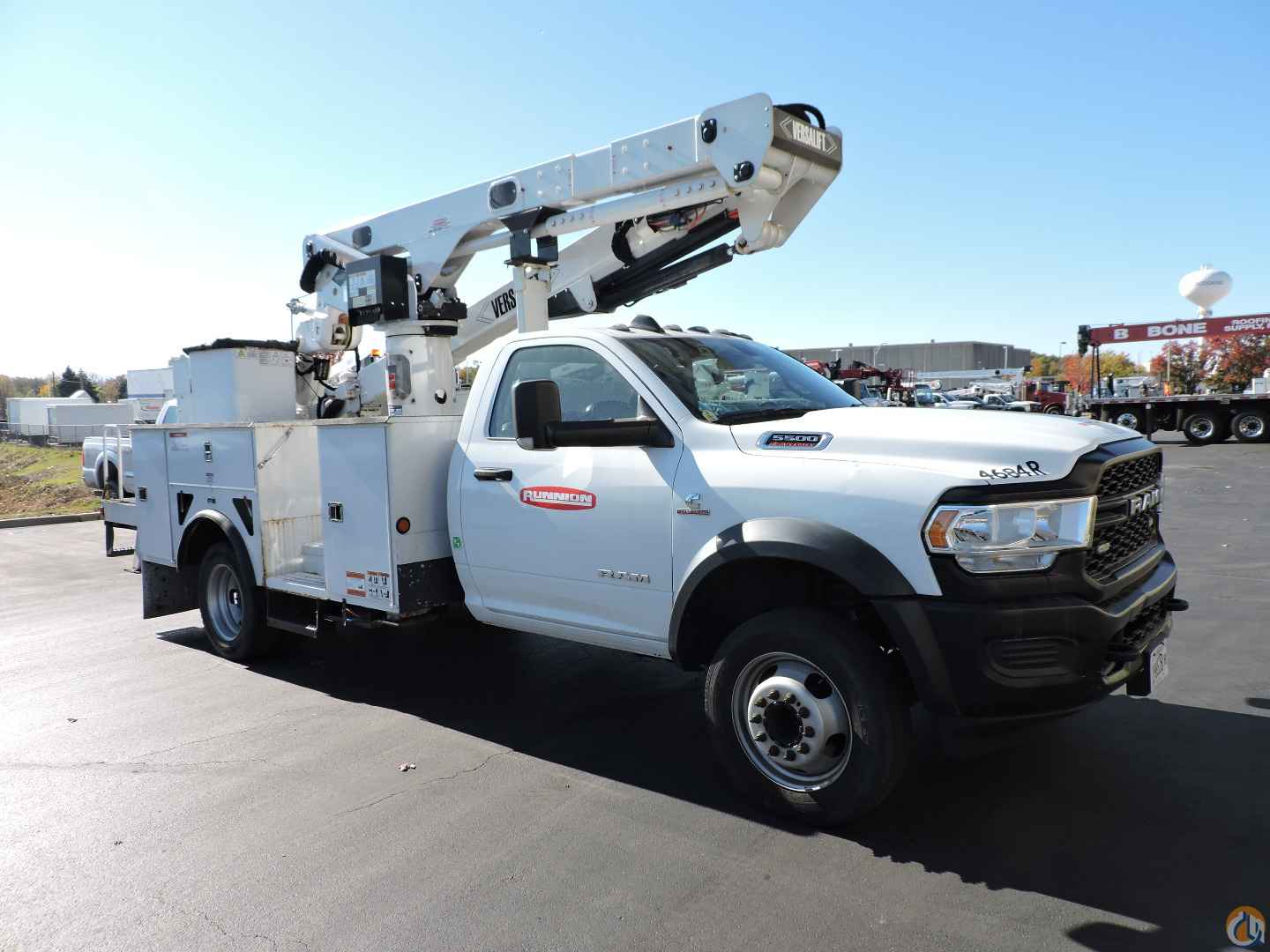

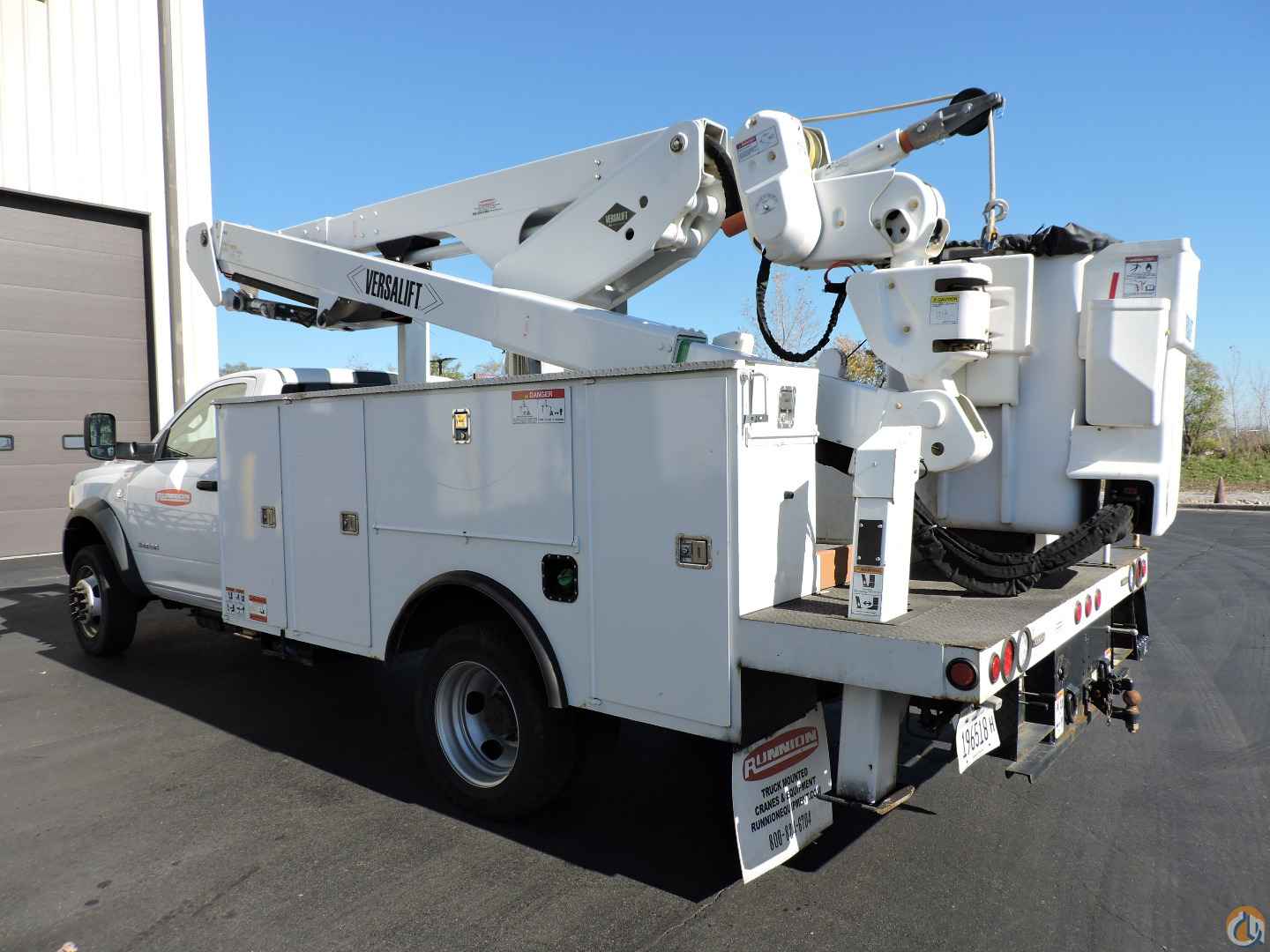

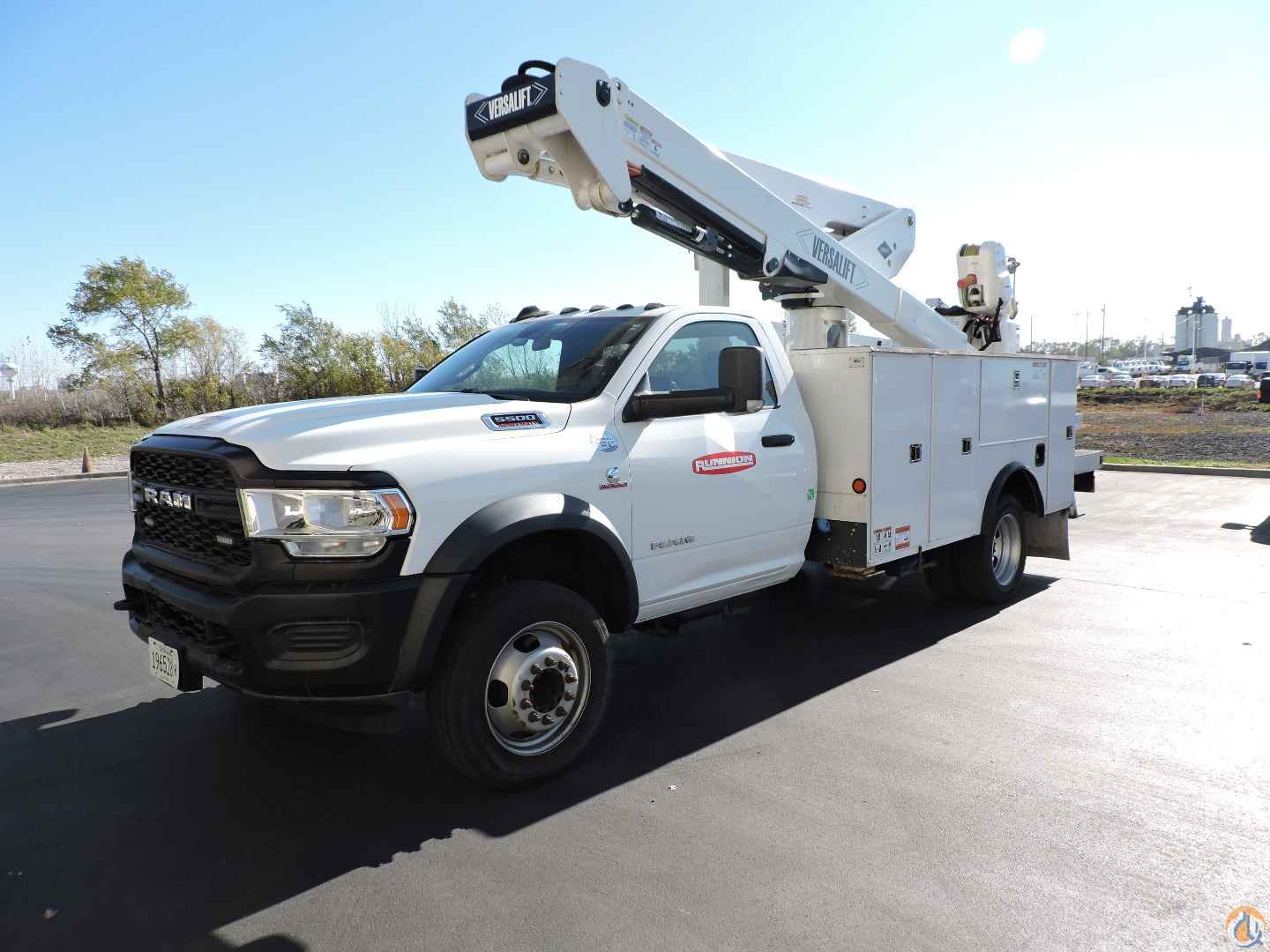

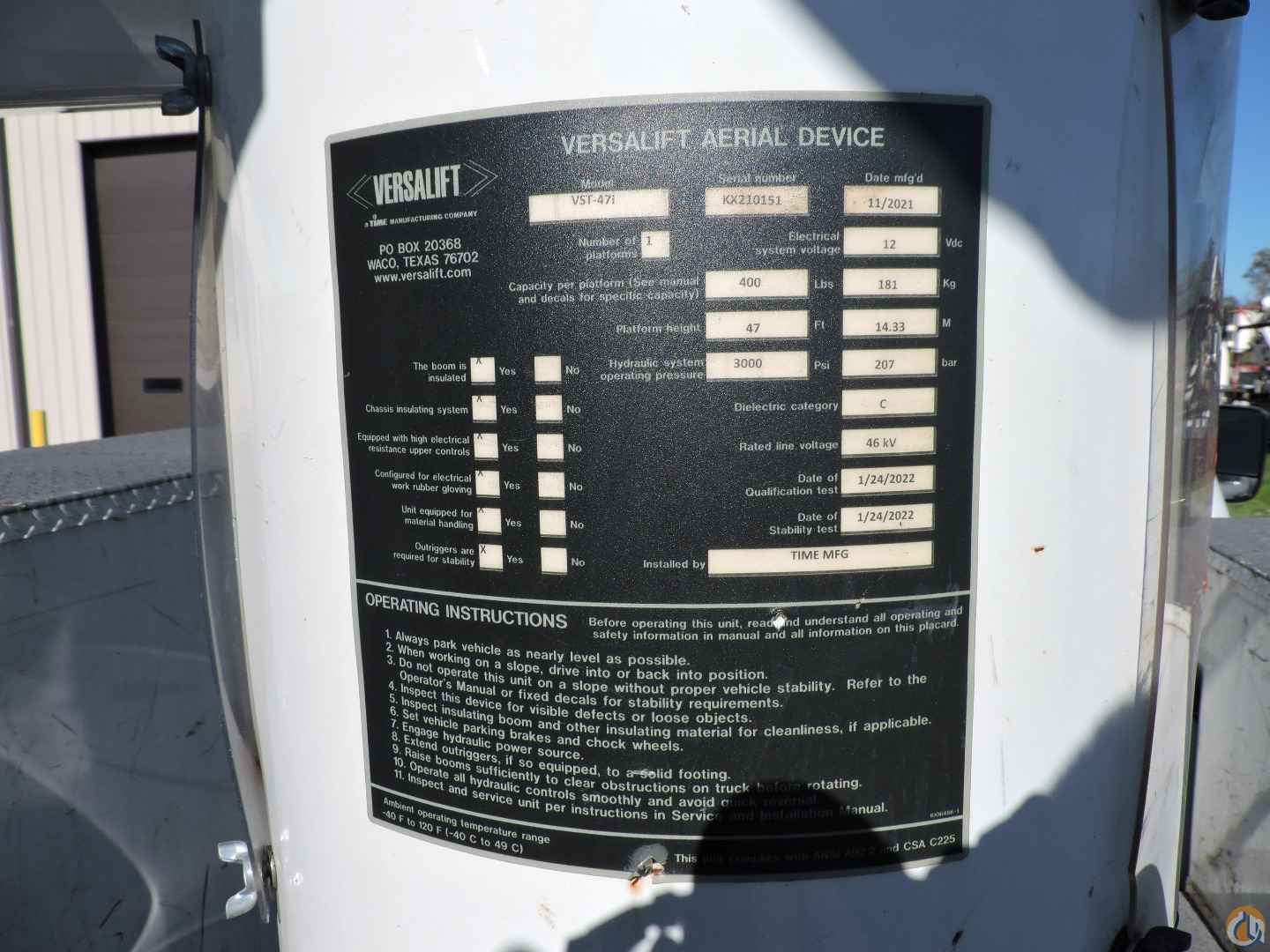

VERSALIFT VST-47-MHI equipped as follows:

- 52’ 4” working height

- 30’ 9” horizontal side reach

- Platform capacity of 400#

- Side mounted closed one-step 24” X 30” X 42” fiberglass platform

- Platform liner and vinyl cover

- TruGuard™ dielectric isolating system with right hand single-stick control. All control handles are isolated and tested per ANSI 92.2. The high resistive dielectric system is protected from direct environmental and job-related contamination. TruGuard™ technology incorporates the use of full hydraulic controls with durable metal handles and linkages

- 180 degree Hydraulic platform rotator

- Hydraulic dual arm articulating jib pole and winch package for up to 1,000# capacity, including insulated jib pole

- 360^o continuous rotation

- Six GPM open center hydraulic system with a 3000 psi operating pressure

- Side mounted telescopic upper boom allows low stowing of platform. Fiberglass inner boom and patented ELECTROGARD provide insulation gap of 41” fully retracted meeting ANSI A92.2 requirements for Category C 46KV and below

- Chassis insulating system (fiberglass lower boom insert) providing 12” insulation gap and including accommodations to bridge insulation gap for testing per ANSI 92.2

- ELECTROGARD and inner boom finished with white urethane paint over a white gel coat

- Non-lube bearings used throughout

- One set of hydraulic tool outlets with pressure limit valve. Valve can be adjusted from 1000 to 2500 psi

- Sub frame mounted main A-frame outriggers with pivot feet, two control valves, and a selector valve

- A-frame outriggers with pivot feet

- Outrigger boom interlock system for main and auxiliary outriggers

- Integral reservoir with a 17-gallon (64.4 l) capacity and dual sight gauges

- Individual full pressure controls at the turret actuate all boom functions and is equipped with a selector valve to override upper controls

- 12 volt DC backup pump providing power to all boom functions

- Automatic throttle control for Dodge chassis

- Auto boom latch for mounting on inner boom. The rotary auto boom latch works off the lift hydraulic pressure to open and close

- Standard white urethane paint

- Safety harness and lanyard

Steel line body equipped as follows:

- 30” tread plate platform extension

- LED lighting package installed in tail shelf

- Access step at rear and side access

- (2) chrome grab handles at side access

- (2) pool type grab handles for rear tail shelf

- Wheel chock storage with pendulum retainers and outrigger pad holders

- Master door locking system, excludes 1st vertical curbside

- 48” High Street side compartments as follows

- 1st Vertical: (2) adjustable shelves with dividers and cutout for outrigger

- 2nd Vertical: (2) adjustable shelves with dividers

- Horizontal: Adjustable dividers installed in compartment bottom

- Rear Vertical: (2) adjustable shelves with dividers

- Hot stick shelf with rear access door

- 40” High Curbside compartments as follows

- 1st Vertical: (2) adjustable shelves with dividers and cutout for outrigger

- 2nd Vertical: Gripstrut access steps to bed area with removable composite side gate

- Horizontal: (1) adjustable shelf with dividers

- Rear Vertical: (5) fixed material hooks 1-3-1

Installation includes the following:

- Combo pintle hitch, D rings

- 7 prong trailer connector

- (2) amber strobe lights in tail shelf

- (2) strobe lights in front grill

- Grounding kit

- Park brake interlock system

- Back up alarm

- Mud flaps

- Outrigger pads

- Wheel chocks

- Fire extinguisher

- 3-piece triangle reflector kit

- Test and certify per ANSI A92.2

MOUNTED ON:

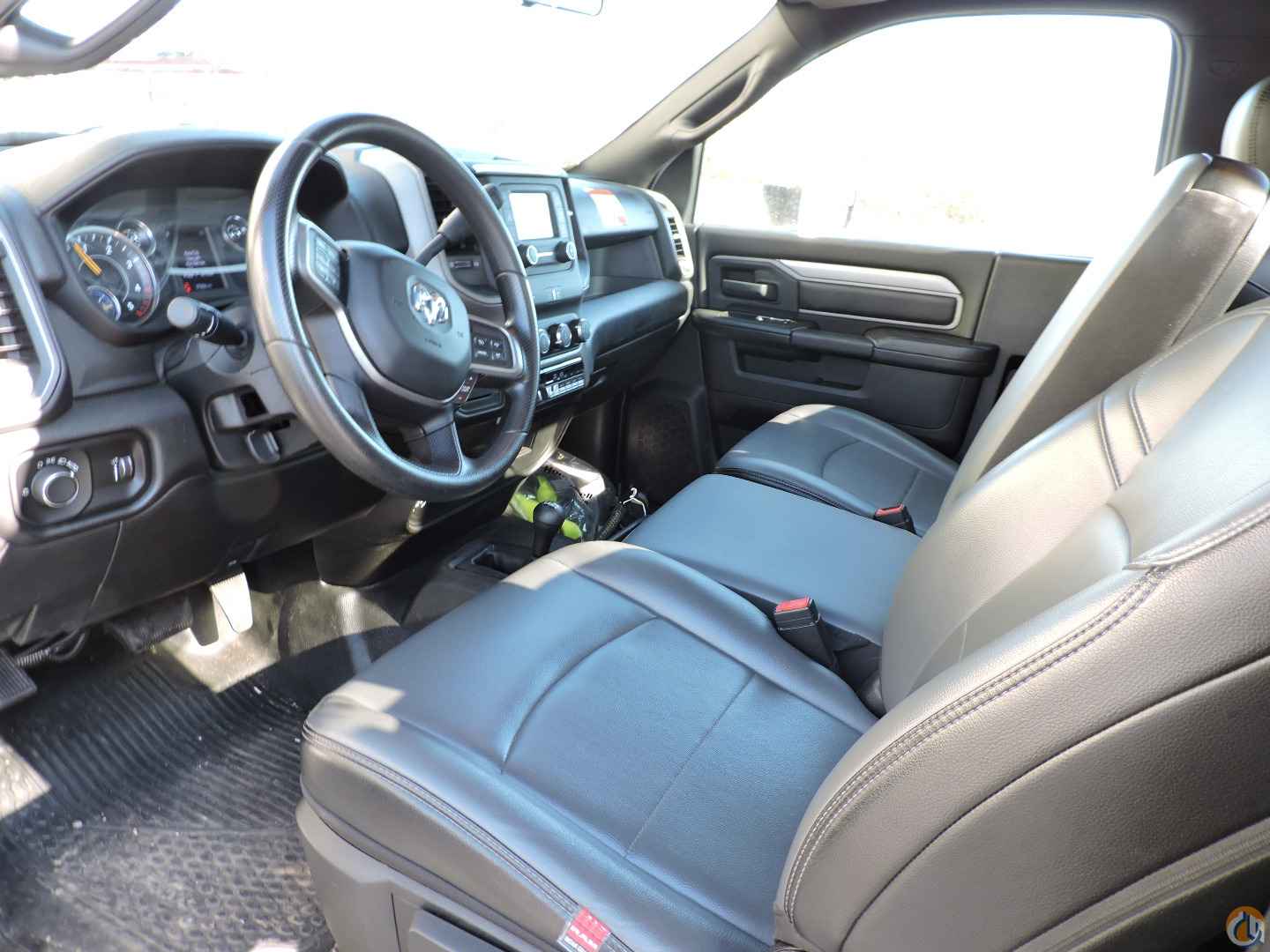

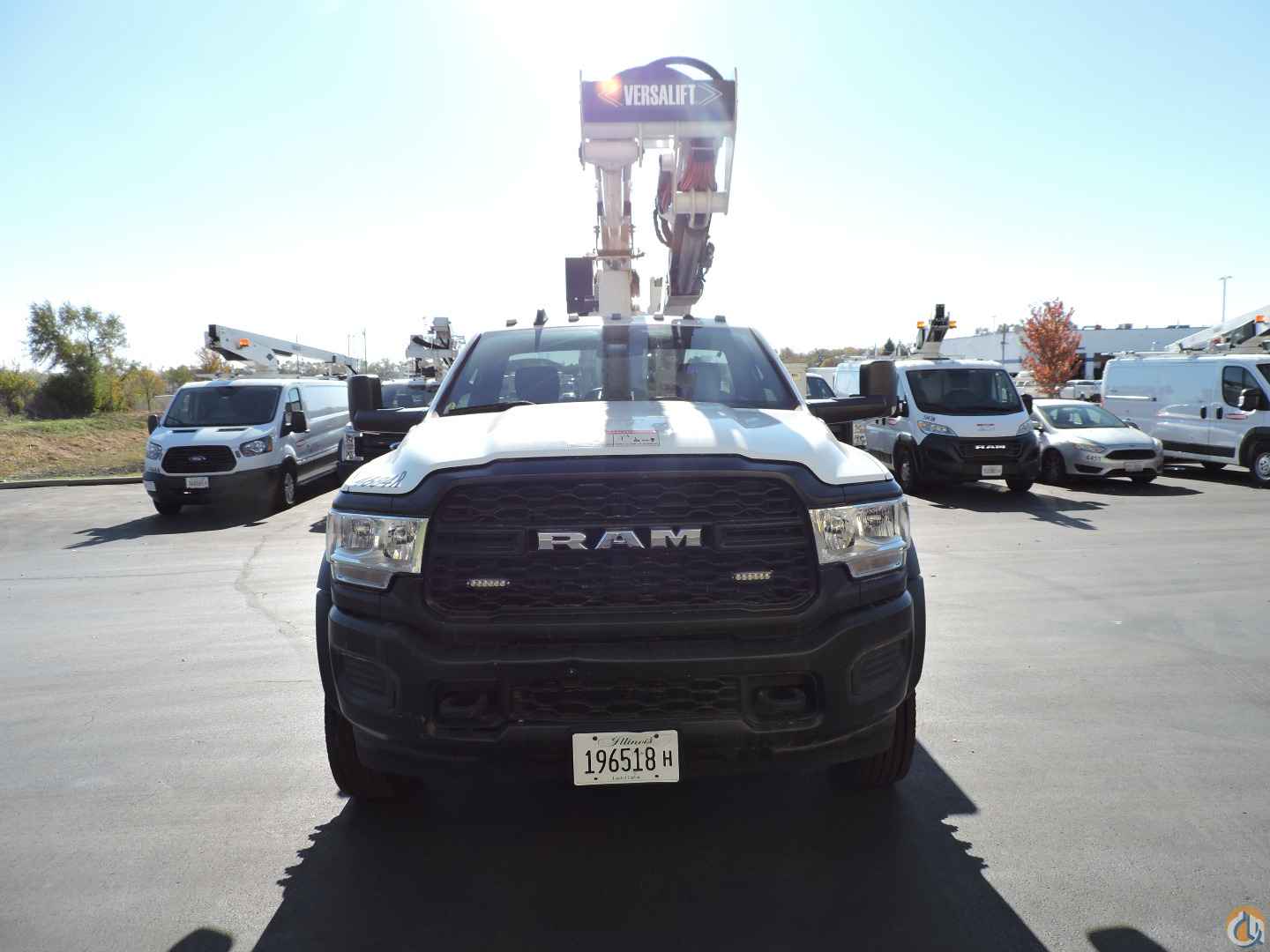

2021 Dodge 5500 4x4 equipped as follows:

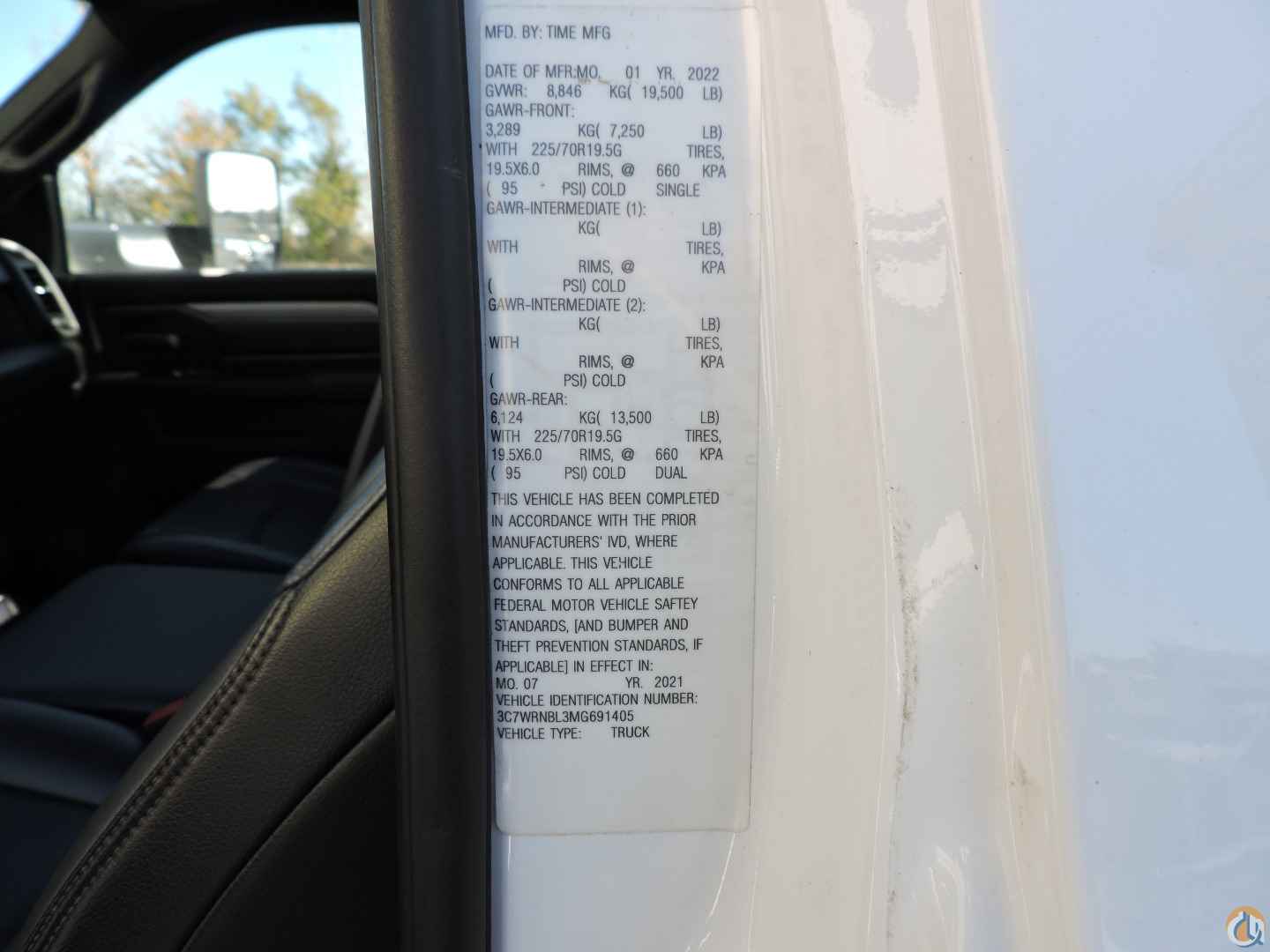

- GVWR: 19,500 lbs payload

- 6.7L I6 Cummins Turbo diesel engine

- 6-speed Aisin S69RC HD automatic transmission

- Heavy duty front suspension group

- Tradesman Level 1 equipment group

- Electrical accessory group

- Air conditioning

- Cold weather group

- Engine block heater

- 225/70Rx19.5G all traction tires

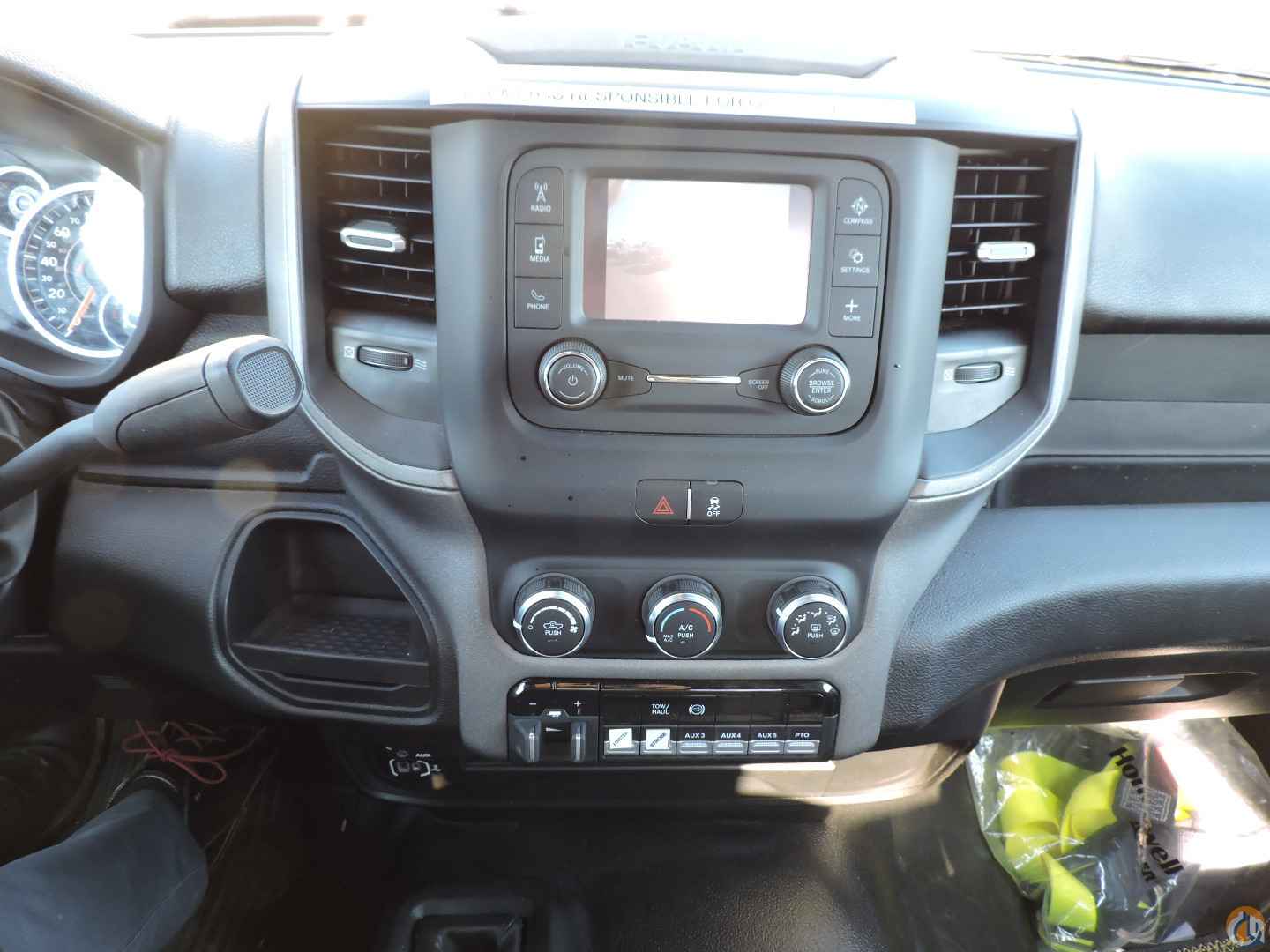

- Uconnect 3 with 5” display

- HD vinyl 40/20/40 slit bench seat

- Parkview rear back up camera

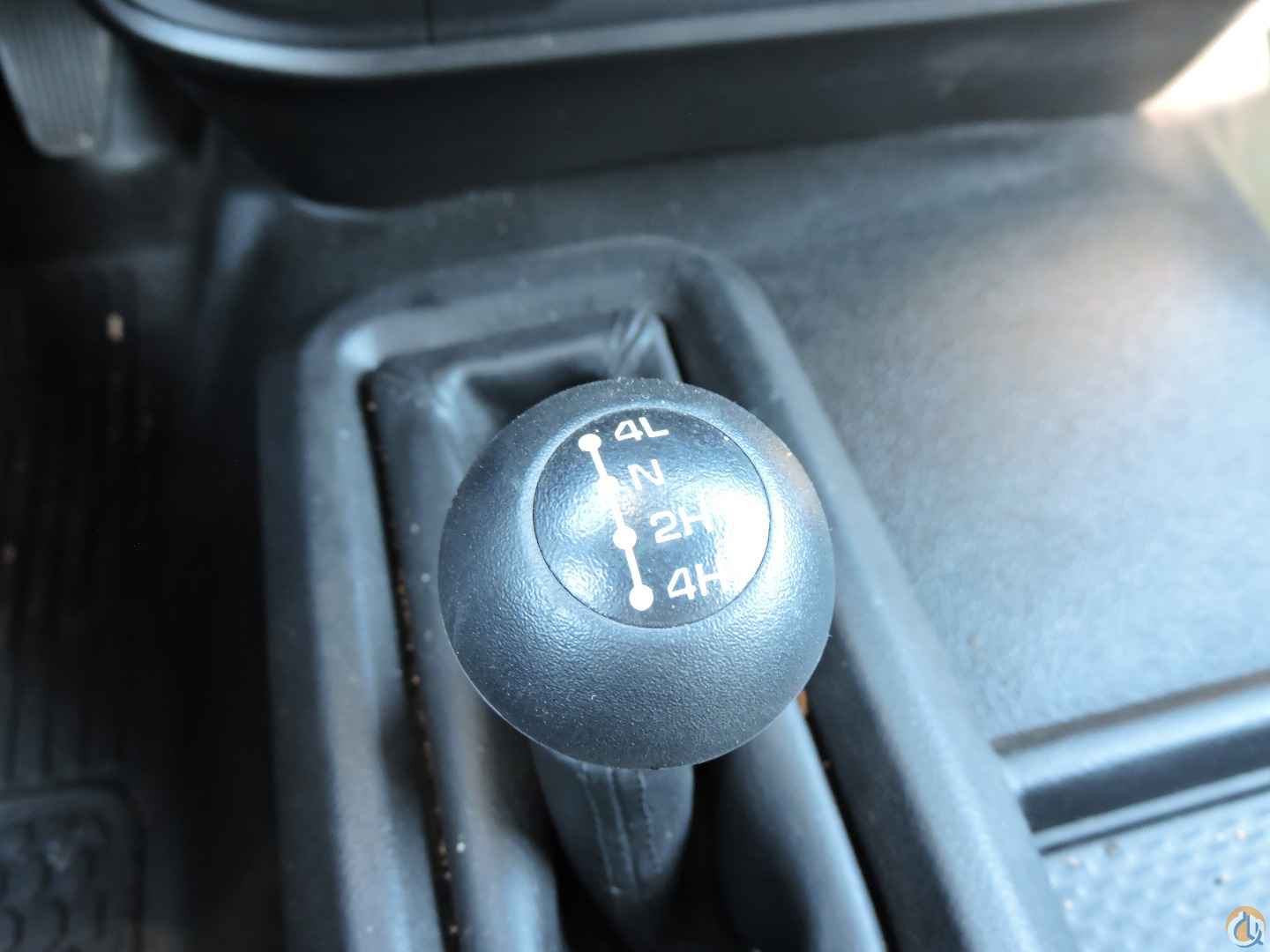

- Transfer case skid plate shield

- Painted Bright White clearcoat
