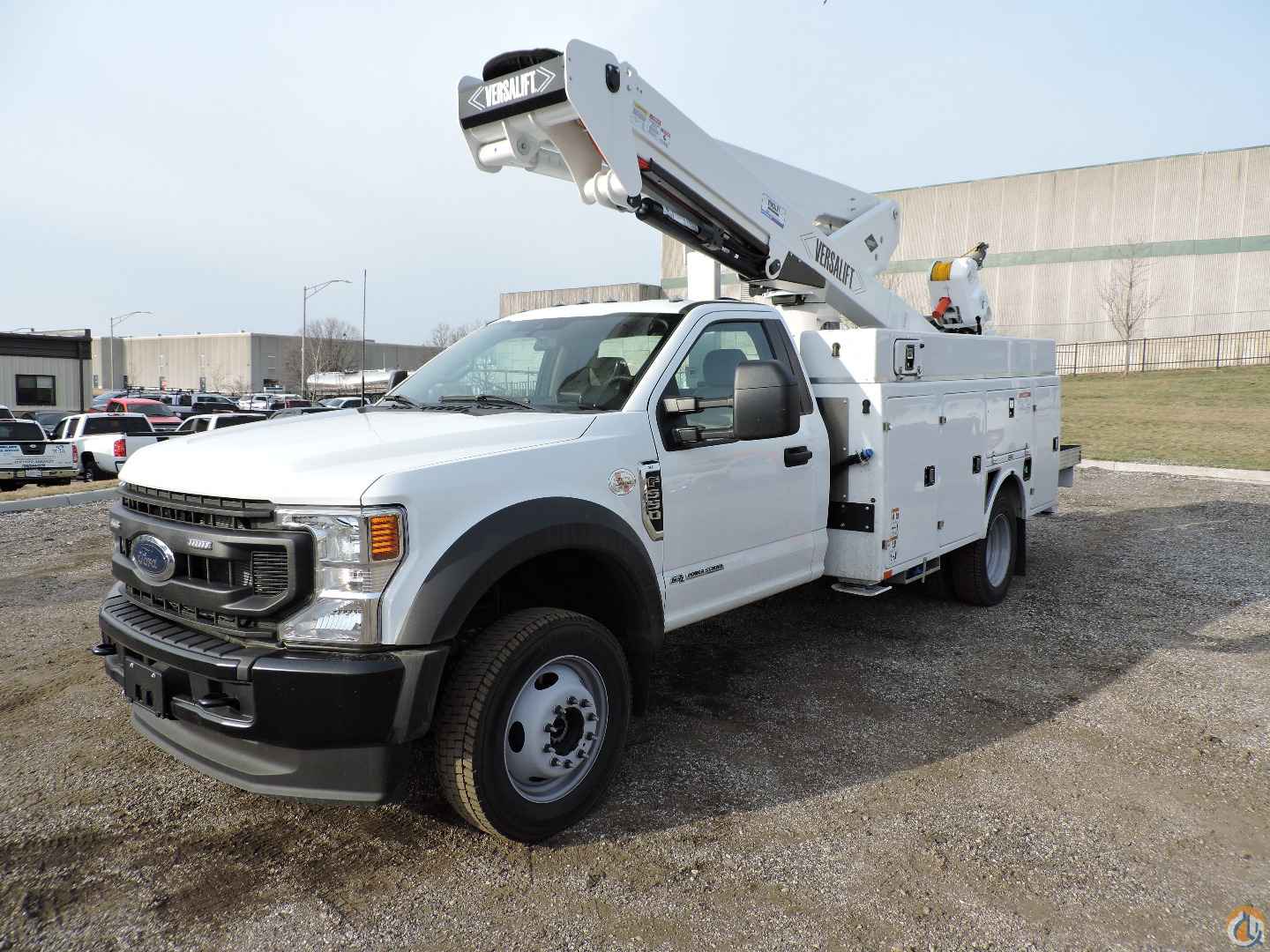

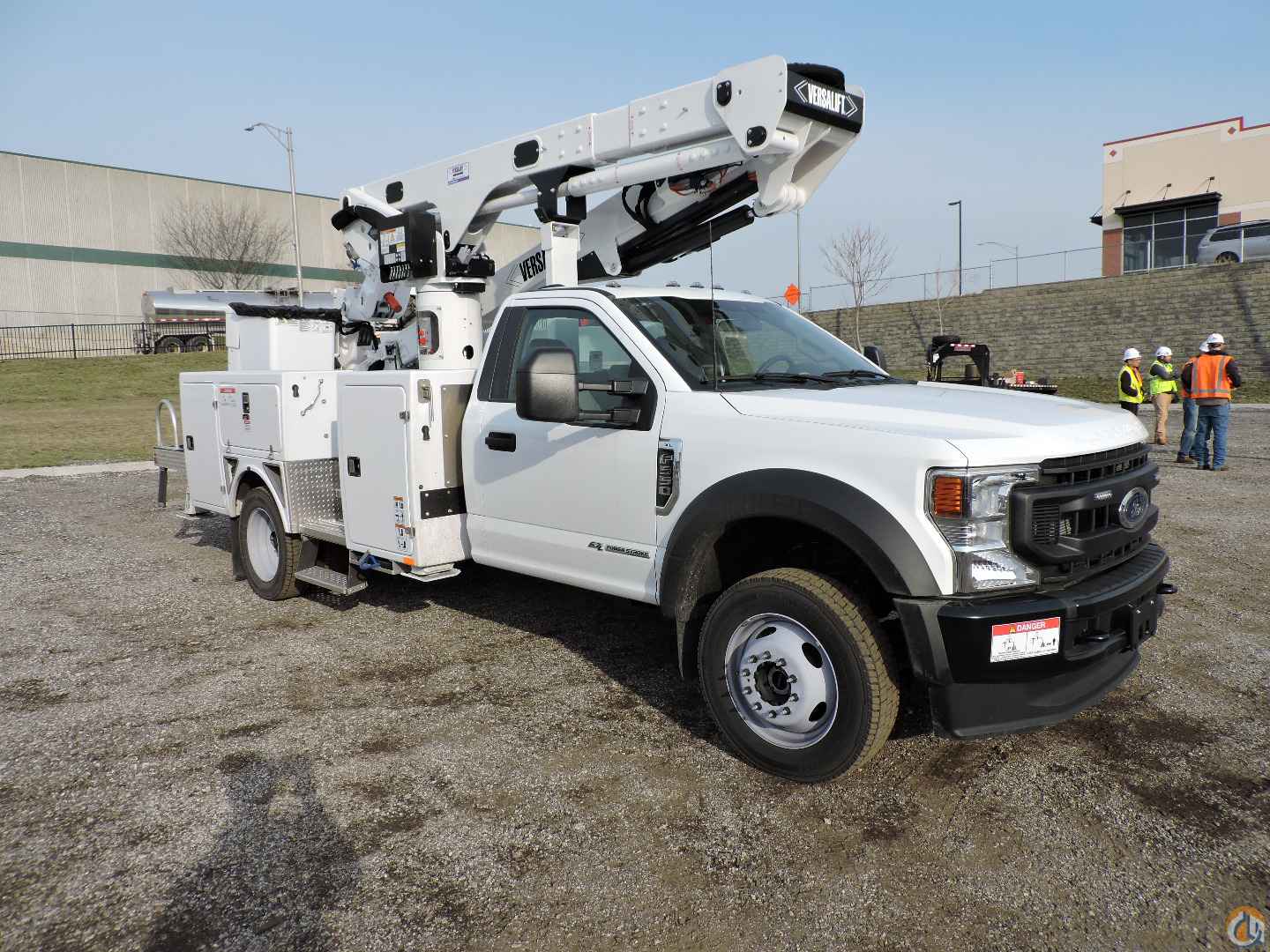

VERSALIFT VST-47-MHI equipped as follows:

- 52 ft. 4 in. working height

- 30 ft. 9 in. horizontal side reach

- Platform capacity of 400 lbs

- Side mounted closed one-step 24 in. X 30 in. X 42 in. fiberglass platform

- Platform liner and vinyl cover

- TruGuard™ dielectric isolating system with right hand single-stick control. All control handles are isolated and tested per ANSI 92.2. The high resistive dielectric system is protected from direct environmental and job-related contamination. TruGuard™ technology incorporates the use of full hydraulic controls with durable metal handles and linkages

- 180 degree Hydraulic platform rotator

- Hydraulic dual arm articulating jib pole and winch package for up to 1,000 lbs. capacity, including insulated jib pole

- 360^o continuous rotation

- Six GPM open center hydraulic system with a 3000 psi operating pressure

- Side mounted telescopic upper boom allows low stowing of platform. Fiberglass inner boom and patented ELECTROGARD provide insulation gap of 41 inches fully retracted meeting ANSI A92.2 requirements for Category C 46KV and below

- Chassis insulating system (fiberglass lower boom insert) providing 12 in. insulation gap and including accommodations to bridge insulation gap for testing per ANSI 92.2

- ELECTROGARD and inner boom finished with white urethane paint over a white gel coat

- Non-lube bearings used throughout

- One set of hydraulic tool outlets with pressure limit valve. Valve can be adjusted from 1000 to 2500 psi

- Sub frame mounted main A-frame outriggers with pivot feet, two control valves, and a selector valve

- A-frame outriggers with pivot feet

- Outrigger boom interlock system for main and auxiliary outriggers

- Integral reservoir with a 17-gallon (64.4 l) capacity and dual sight gauges

- Individual full pressure controls at the turret actuate all boom functions and is equipped with a selector valve to override upper controls

- 12 volt DC backup pump providing power to all boom functions

- Auto boom latch for mounting on inner boom. The rotary auto boom latch works off the lift hydraulic pressure to open and close

- Standard white urethane paint

- Safety harness and lanyard

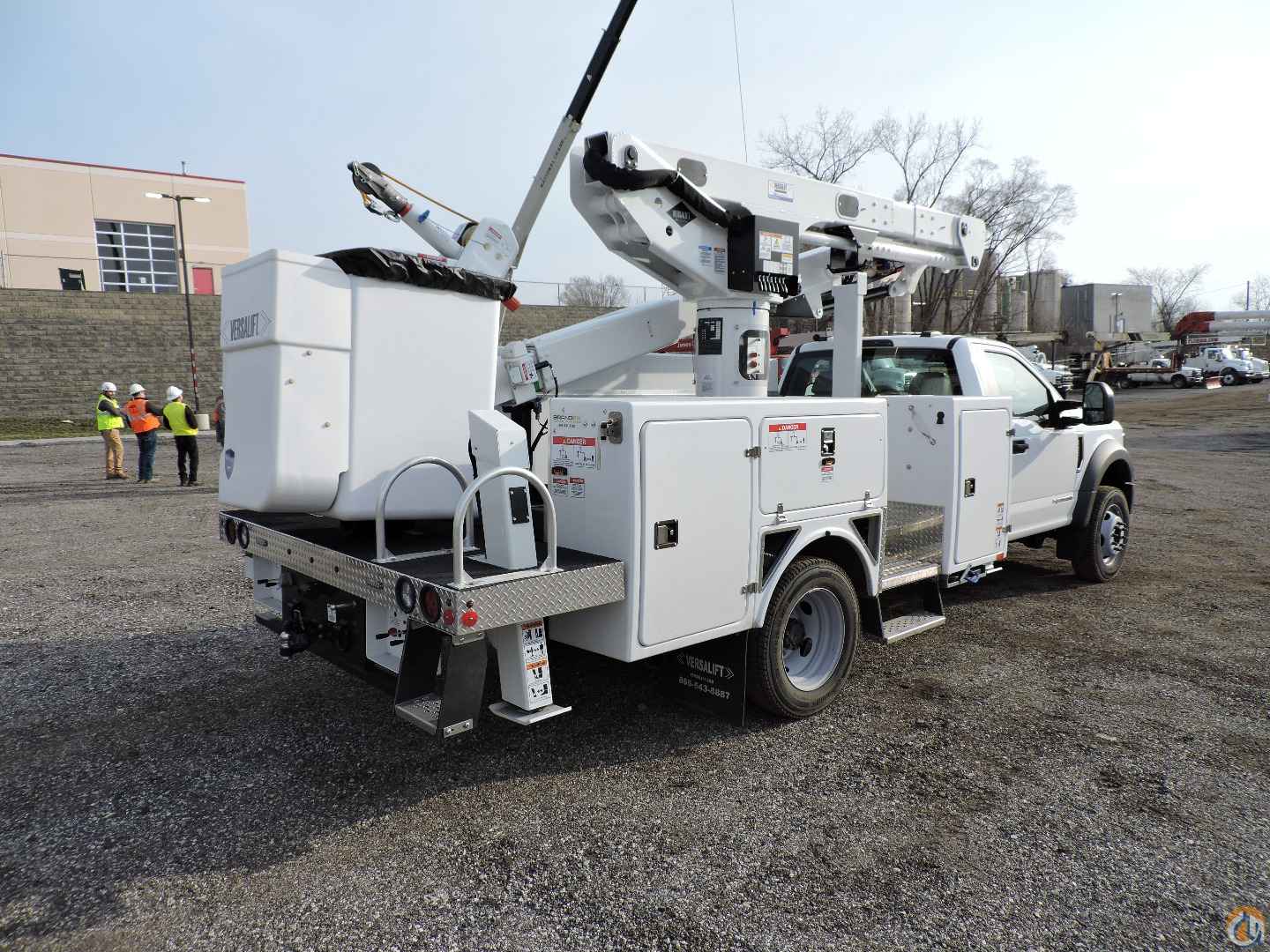

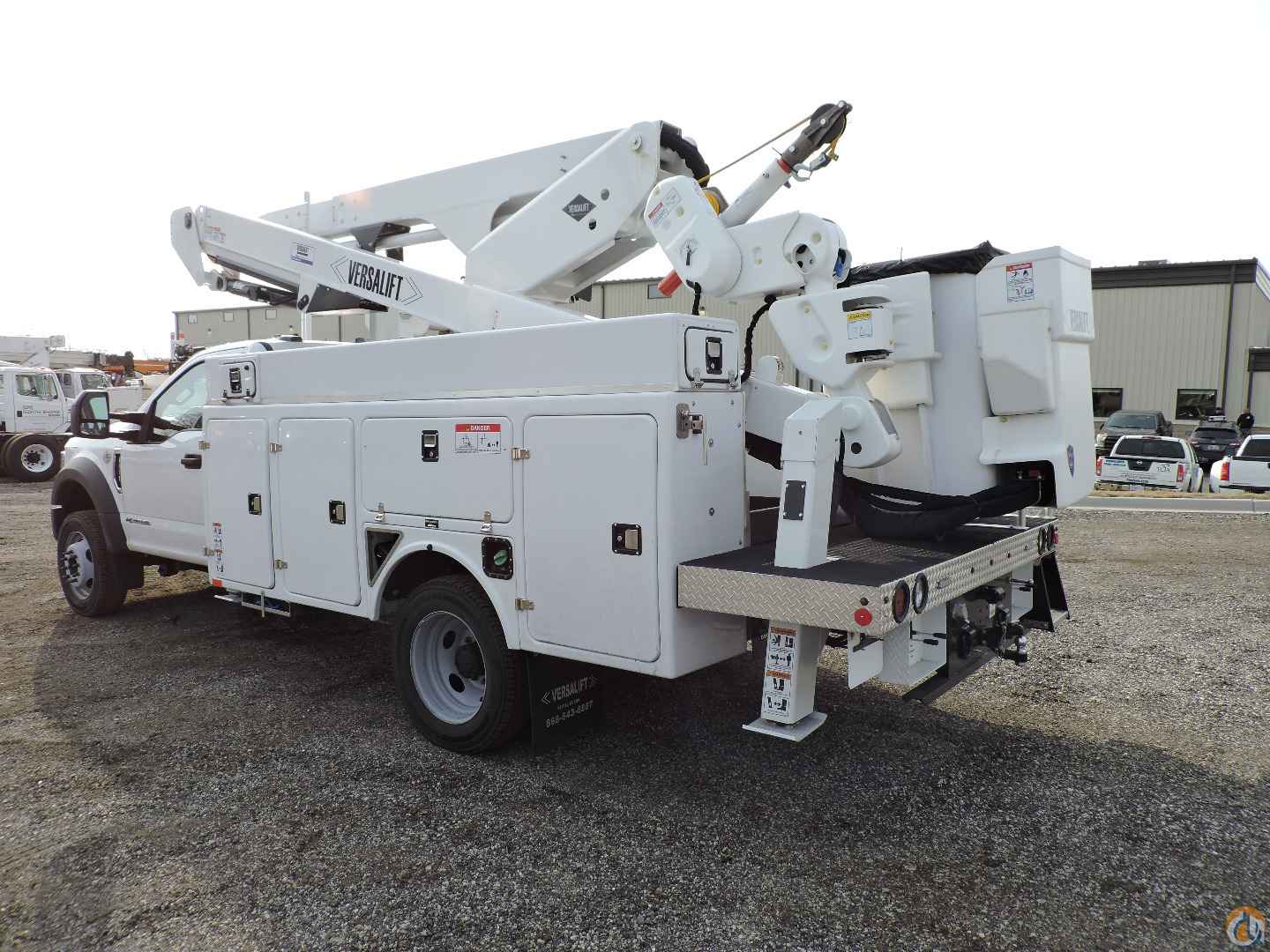

BFX Bodies 132” long x 42” high x 94” wide service body equipped as follows:

- 30 inch aluminum tread plate platform extension

- BFX LED lighting package installed in tail shelf

- Cable access step at rear and side access

- Two (2) stainless steel grab handles at side access and two (2) aluminum grab rails at rear tail shelf

- Wheel chock storage and outrigger pad holders

- Push/pull rod lock system

- 42” High Street side compartments as follows

- 1st Vertical: (2) adjustable shelves with dividers and cutout for outrigger

- 2nd Vertical: (2) adjustable shelves with dividers

- Horizontal: (1) removable shelf with dividers

- Rear Vertical: (2) adjustable shelves with dividers

- 132” x 18” x 11” fiberglass hotstick top box with door at rear

- 42” High Curbside compartments as follows

- 1st Vertical: (2) adjustable shelves with dividers and cutout for outrigger

- 2nd Vertical: Grip strut access steps to bed area with removable plastic tail board

- Horizontal: (1) adjustable shelf with dividers

- Rear Vertical: (5) fixed material hooks 1-3-1

Installation includes the following:

- Combo pintle hitch, D rings

- 7 prong trailer connector

- (2) amber strobe lights in tail shelf

- (2) strobe lights in front grill

- Grounding kit

- Park brake interlock system

- Back up alarm

- Outrigger pads

- Wheel chocks

- Fire extinguisher

- 3-piece triangle reflector kit

- Test and certify per ANSI A92.2

MOUNTED ON:

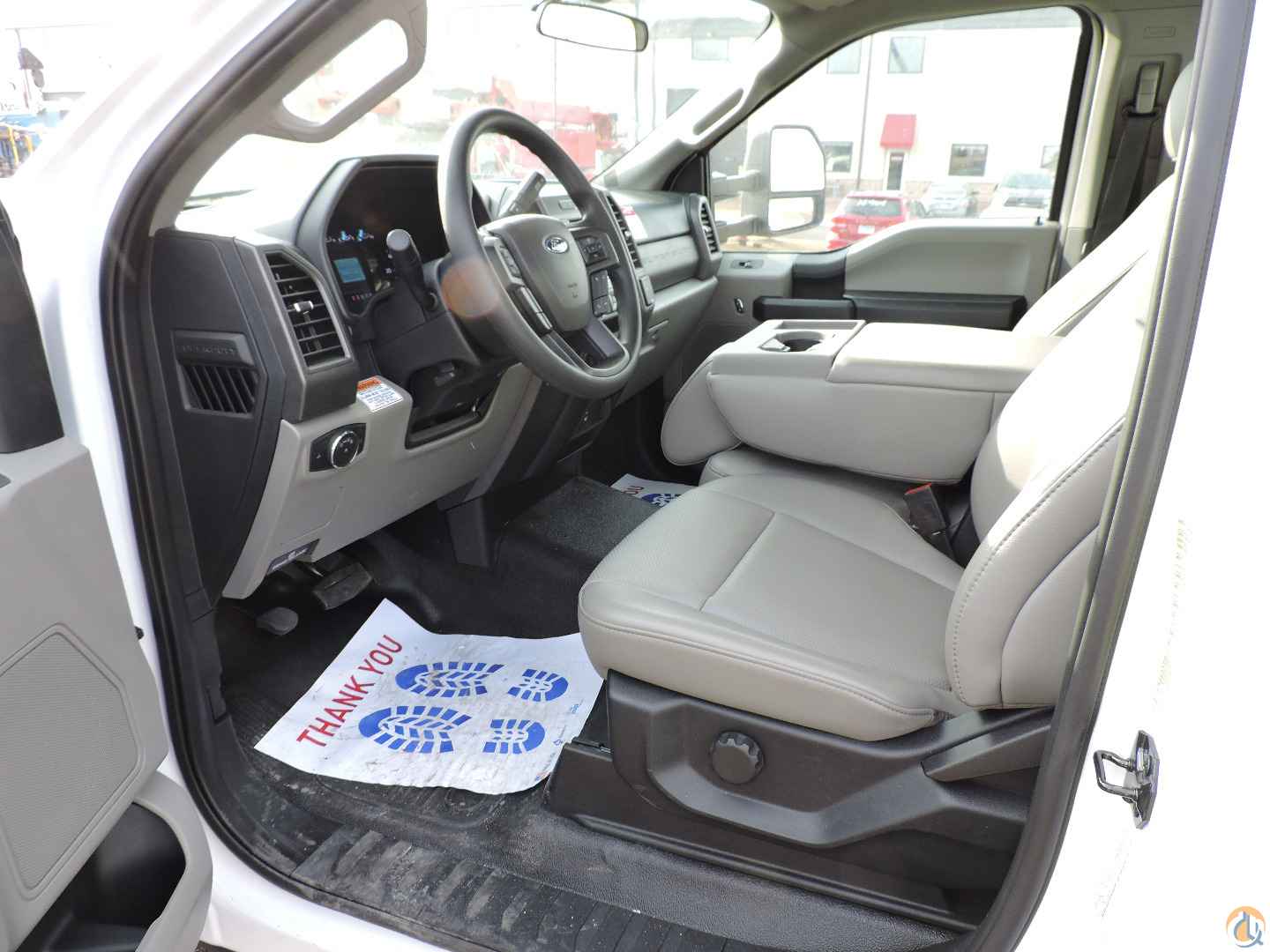

2021 Ford F550 4x4 equipped as follows:

- GVWR: 19,500 lbs payload plus upgrade package

- XL Value Package includes

- Power equipment package includes

- Power windows

- Power door locks

- Remote keyless entry

- Steering wheel mounted cruise control

- 6.7L 4V OHV Power Stroke V8 turbo diesel engine

- TorqShift 10-speed automatic transmission

- Snow plow prep package including dual alternators (Total 332-Amps)

- 4.88 limited slip axle

- Air conditioning

- Engine block heater

- 225/70Rx19.5G BSW traction tires

- Radio: AM/FM stereo includes 4 speakers

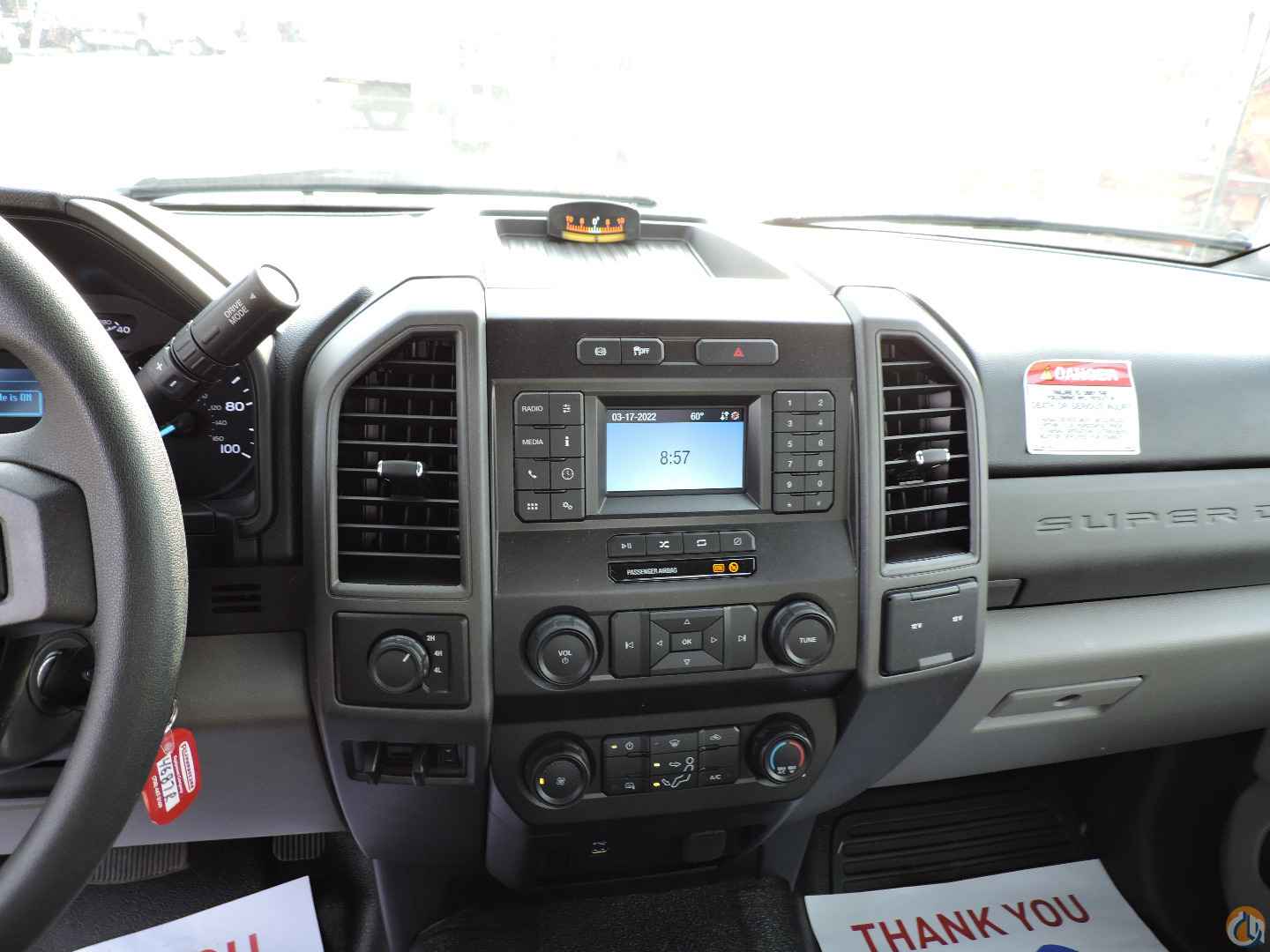

- 4.2” center-stack screen and SYNC communications system

- HD vinyl 40/20/40 slit bench seat

- Trailer brake controller

- Operator Commanded Regeneration (OCR)

- Rear view camera and prep kit

- Painted Oxford White
