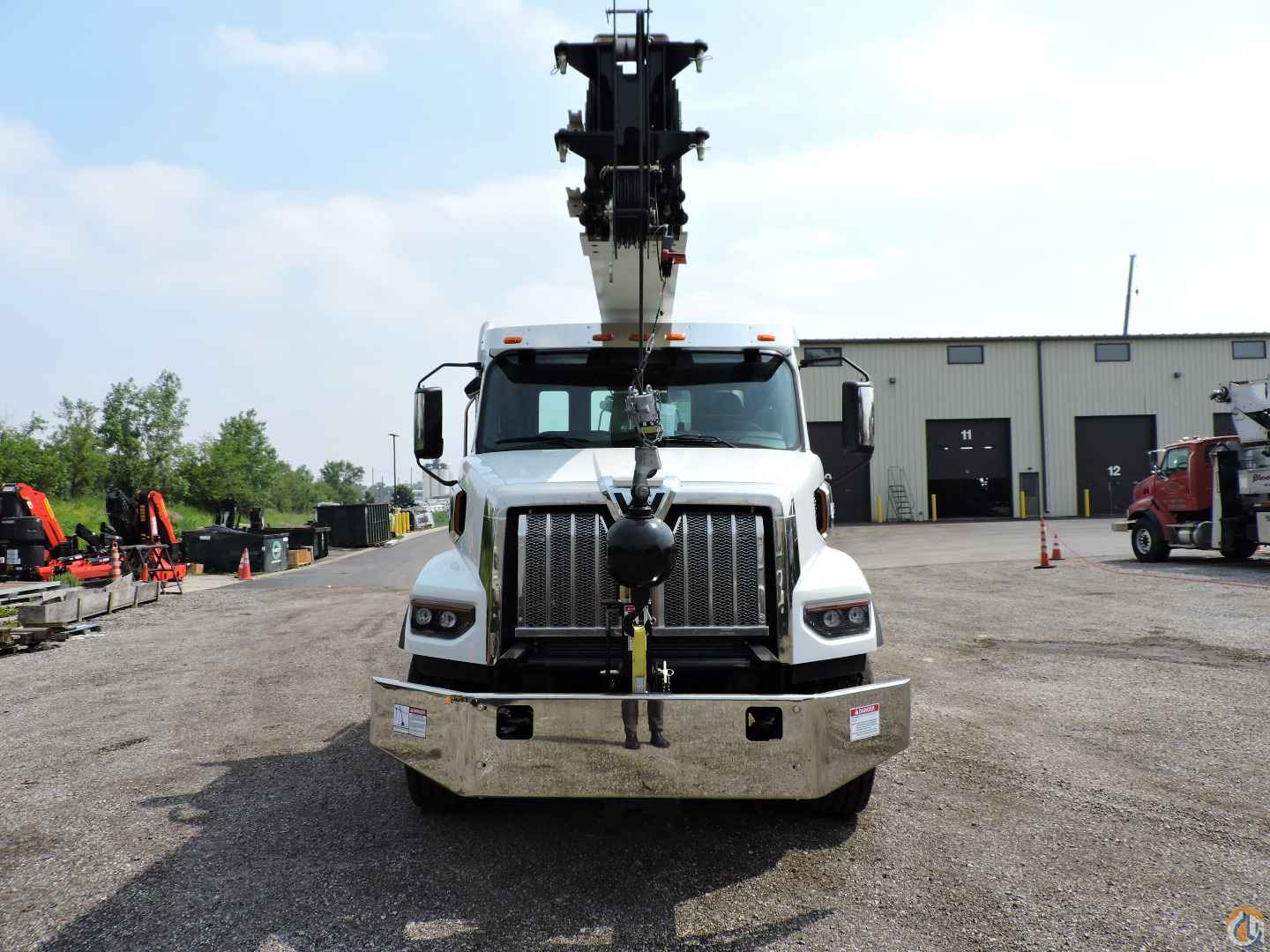

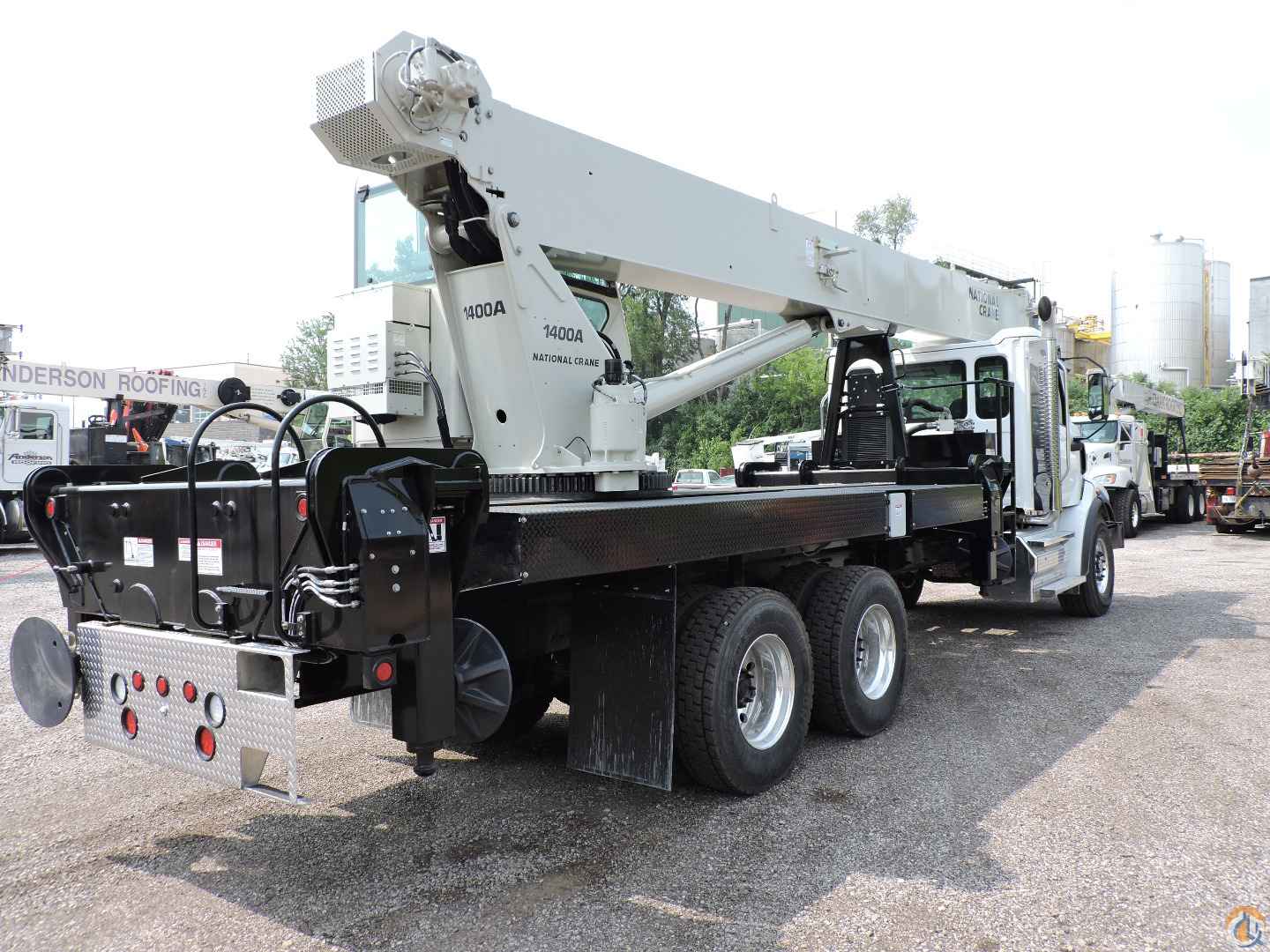

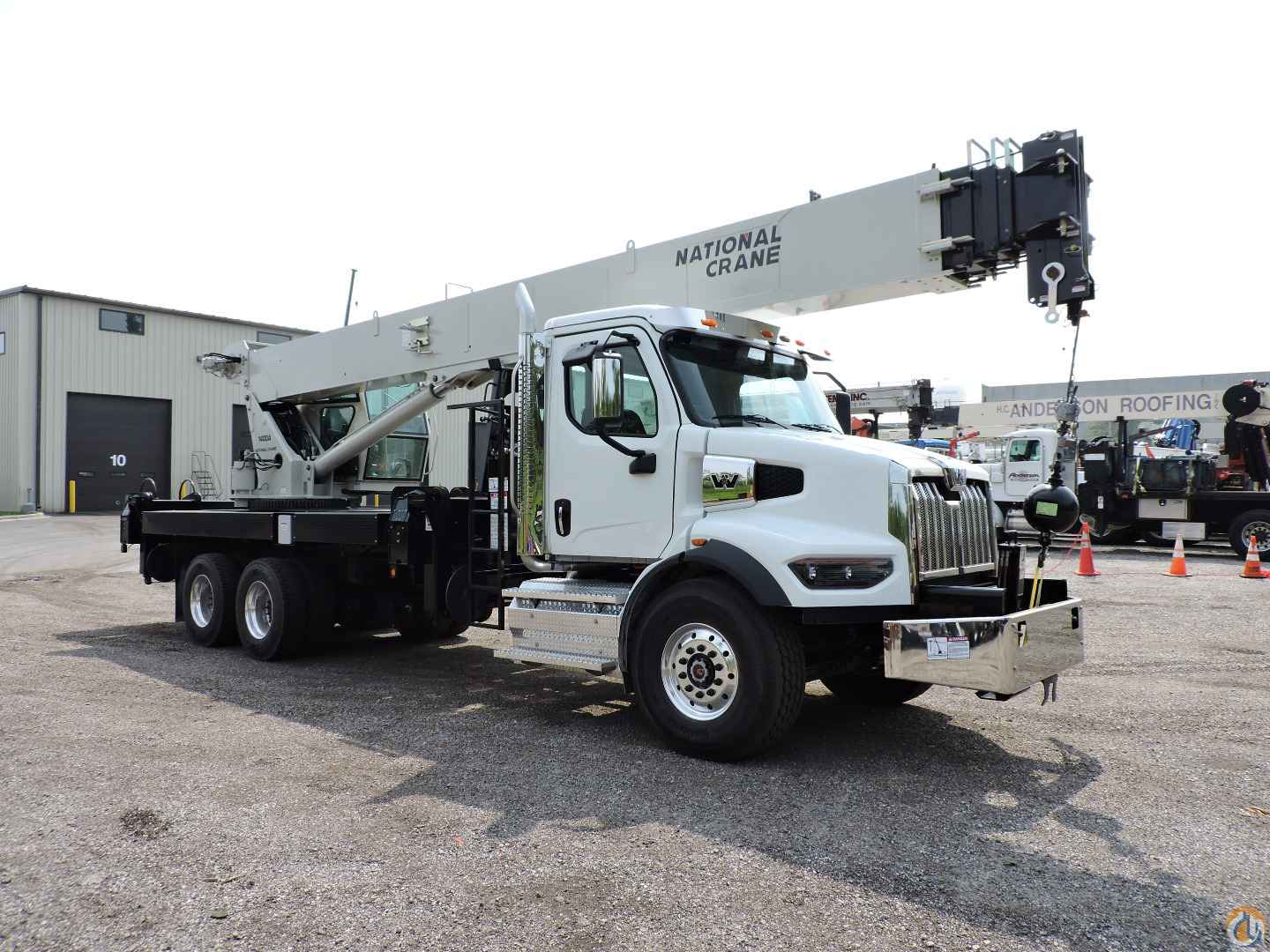

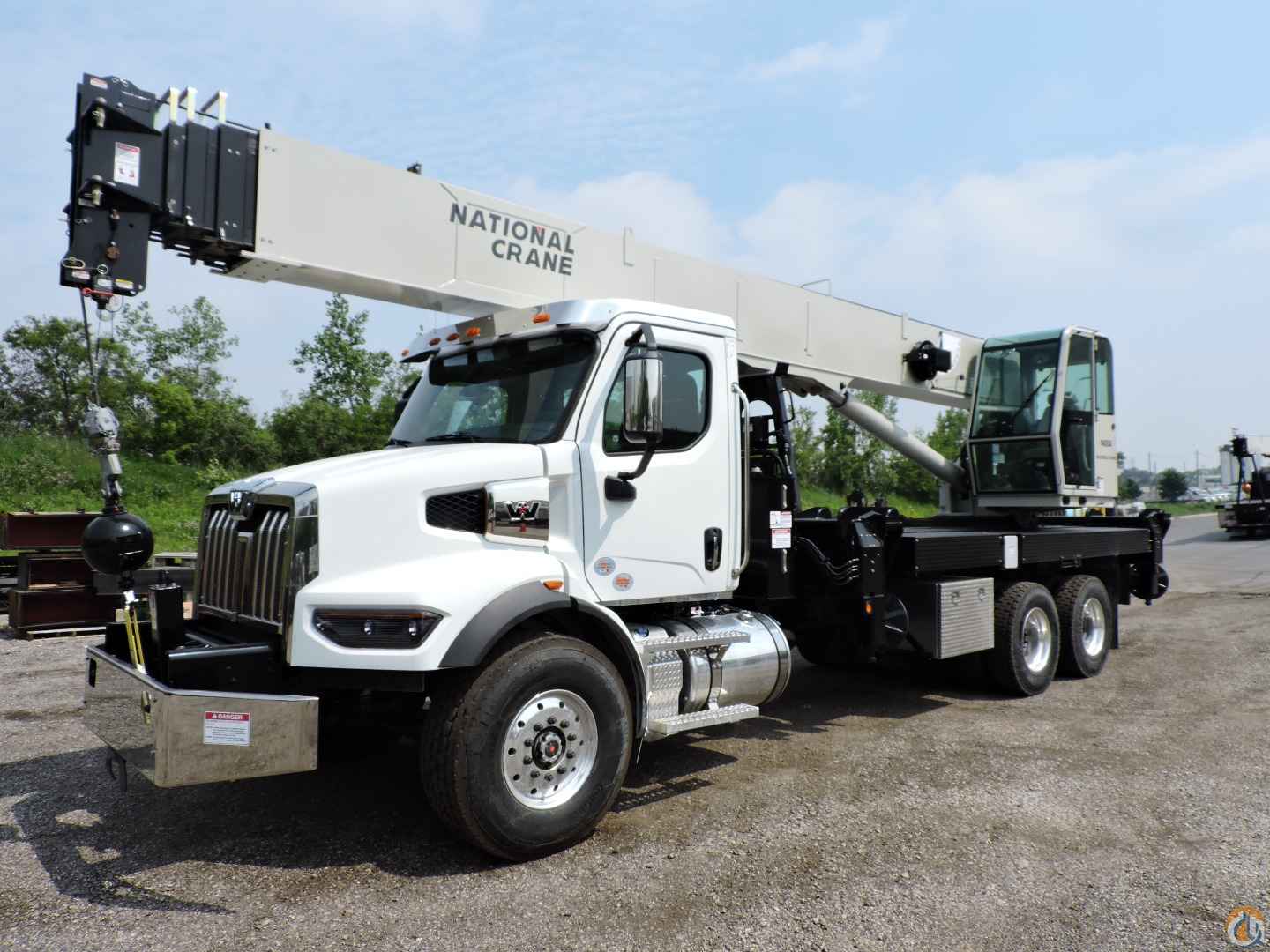

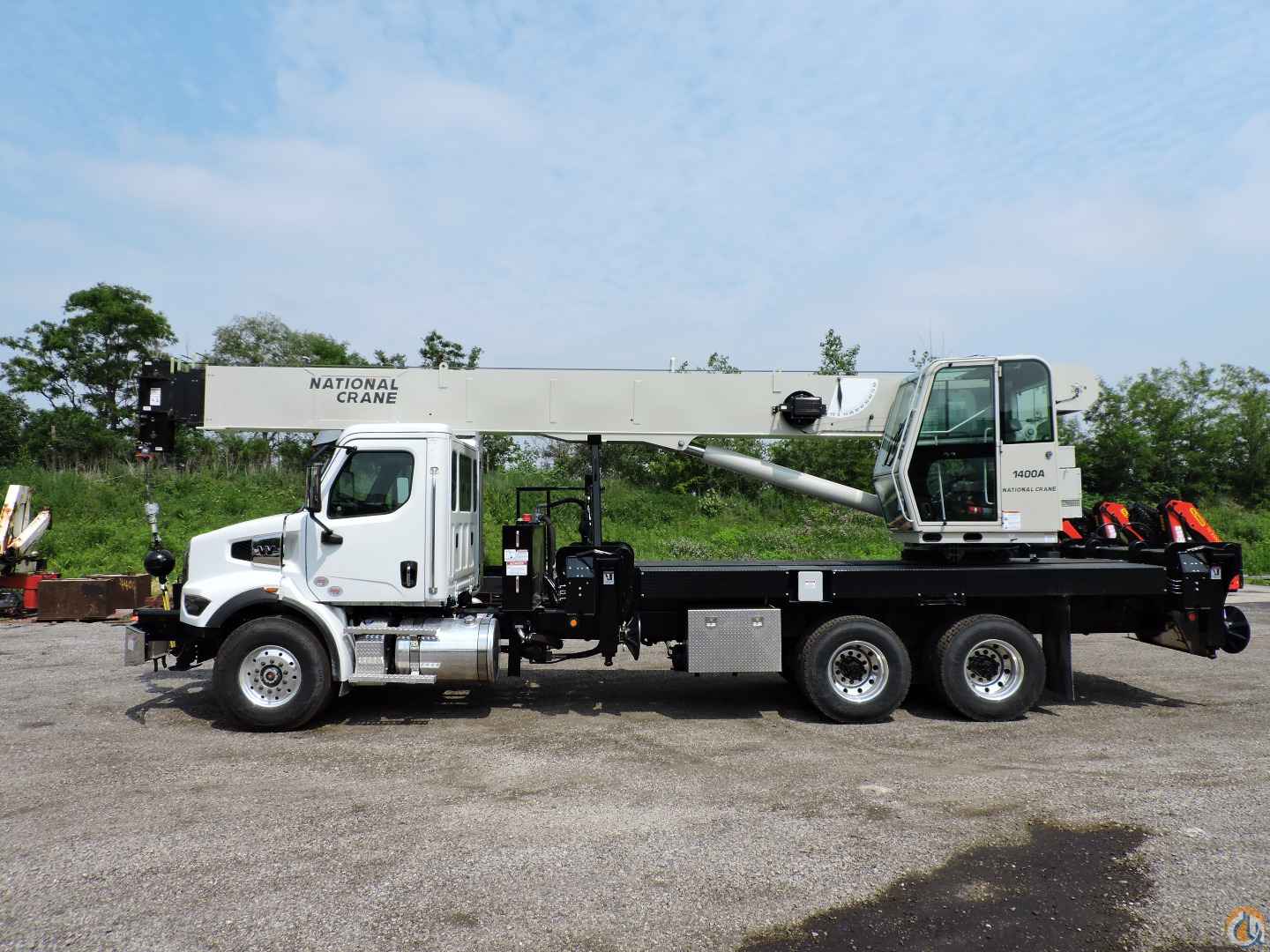

National Crane 14127A equipped as follows:

- 33-ton capacity

- 31.6’ to 127’ full power telescopic five section boom (137’ tip height)

- Outrigger motion alarm

- Two sets of out and down crossframe outriggers with 24.7’ span (17’ span for reduced capacity)

- 20” diameter polymeric removable outrigger pads

- Additional outrigger controls at operator’s seat

- Level bubbles at outrigger control stations

- Single front outrigger for 360-degree stability includes “First Up” feature

- LMI computer overload shutdown/warning system

- RCL displays information on length and angle of boom, working radius, rated load, and total weight being lifted

- Internal anti-two block wiring

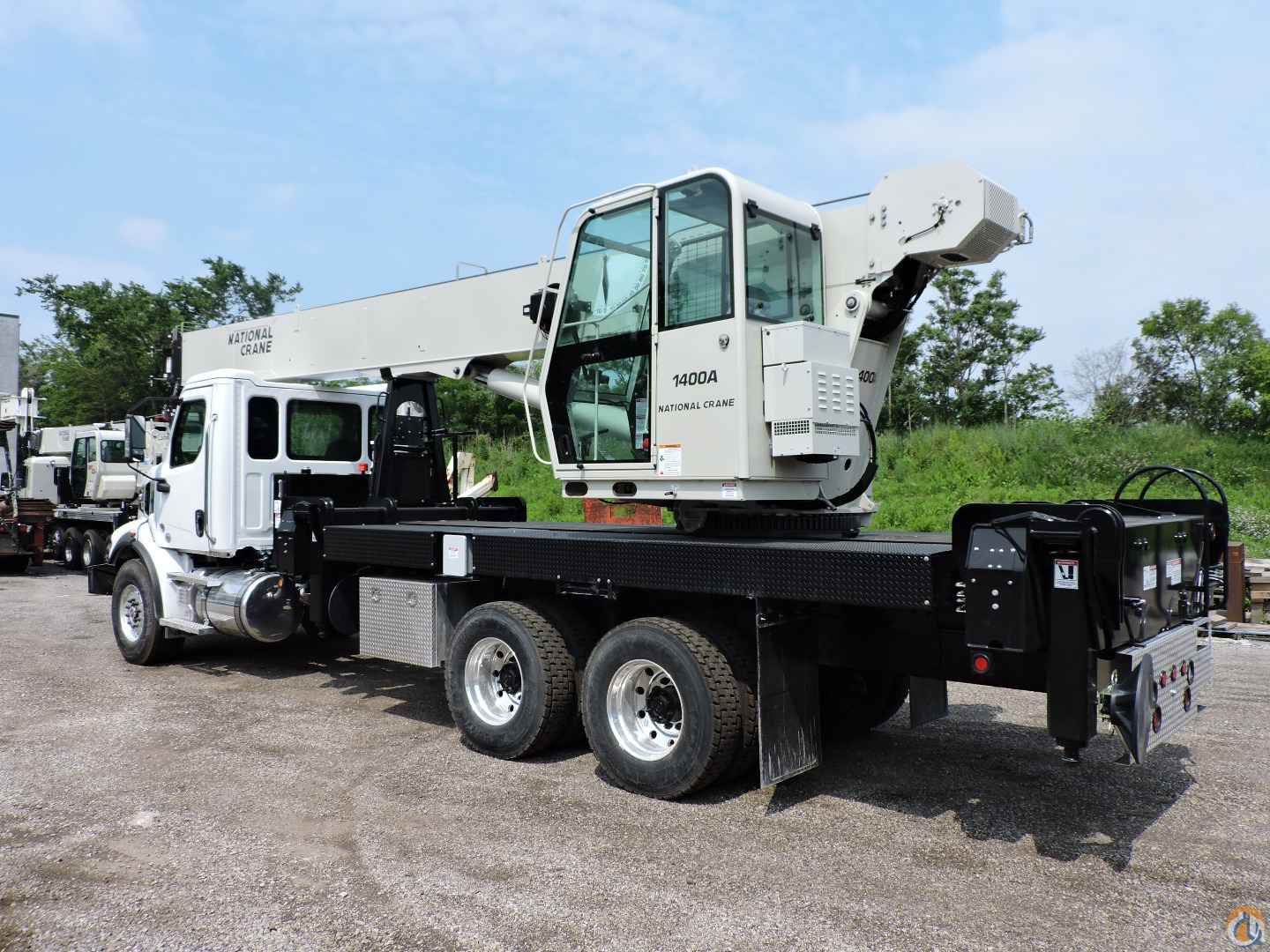

- Deluxe Operator cab

- Single axis joysticks in seat arm rests

- Engine start/stop switch

- Horn from operator’s cab

- Air conditioning and diesel fueled cab heater

- 360-degree continuous rotation “Glide Swing” with manual foot brake control in cab

- Manually applied rotation lock for bearing with 360-degree positioning

- Adjustable swing speed

- High performance planetary winch

- 9,000 lb. single part line pull

- 2-speed winch with 5/8” rotation resistance wire rope

- Round downhaul weight headache ball with top swivel; 5-ton capacity rating

- Electronic drum rotation indicator, last layer indicator

- Heavy duty boom rest

- Hydraulic oil cooler

- 99-gallon hydraulic oil reservoir

- Sight gauge

- Suction line gate valve

- One aluminum tool box 36” x 24” x 24”

- Painted “National Platinum”

- Back up alarm

- Hour meter

MOUNTED ON:

2026 Western Star 47X equipped as follows:

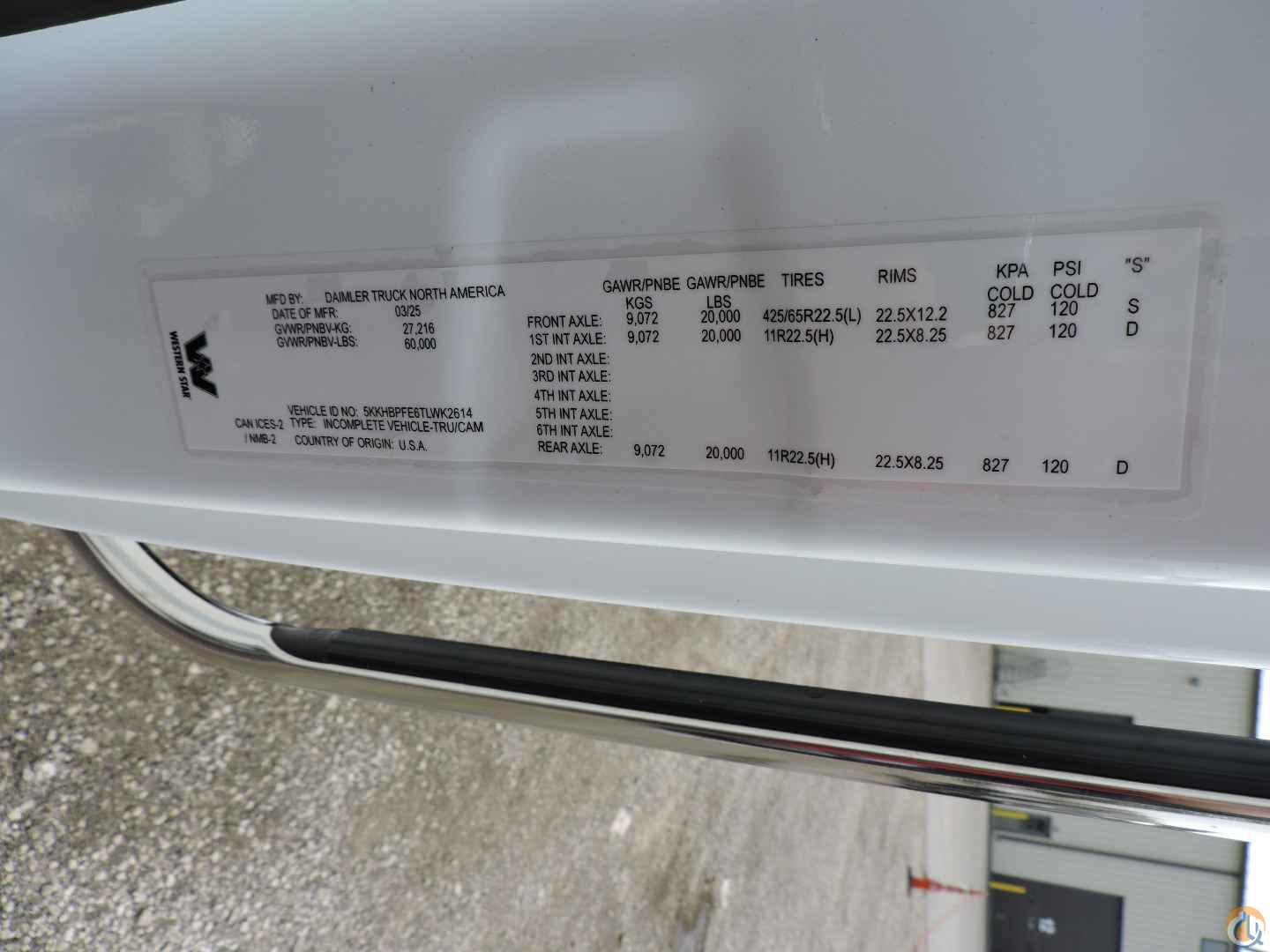

- 54,000 lb GVWR

- Cummins L9 350 hp @ 2,200 rpm, 1,050 lb-ft @1,200 rpm

- Engine block heater

- Allison 3000 RDS automatic transmission

- 20,000lb set forward front axle with taperleaf front suspension

- 40,000lb rear axle with Hendrickson Haulmaax EX suspension

- Differential lock tandem axles

- Air dryer with heater

- Tires: FR –425/65R22.5 front tires

- Tires: RR –11R22.5 rear tires

- Aluminum wheels with polished outer finish

- 80-gallon fuel tank

- Polished aluminum diamond plate DEF tank cover

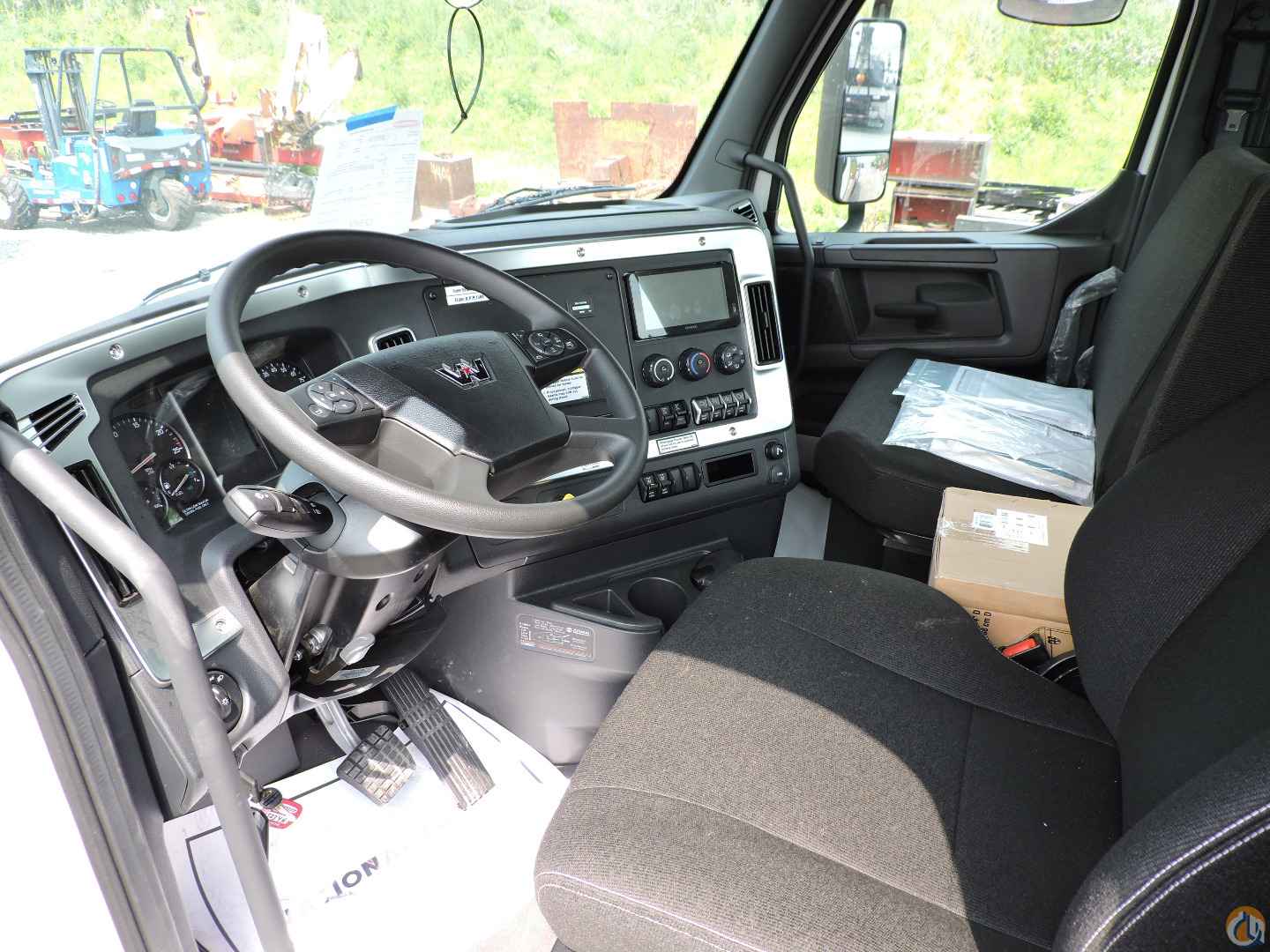

- Driver’s Seats – Air ride, high back, black Mordura

- Passenger Seat – Mid back, battery box, black Mordura

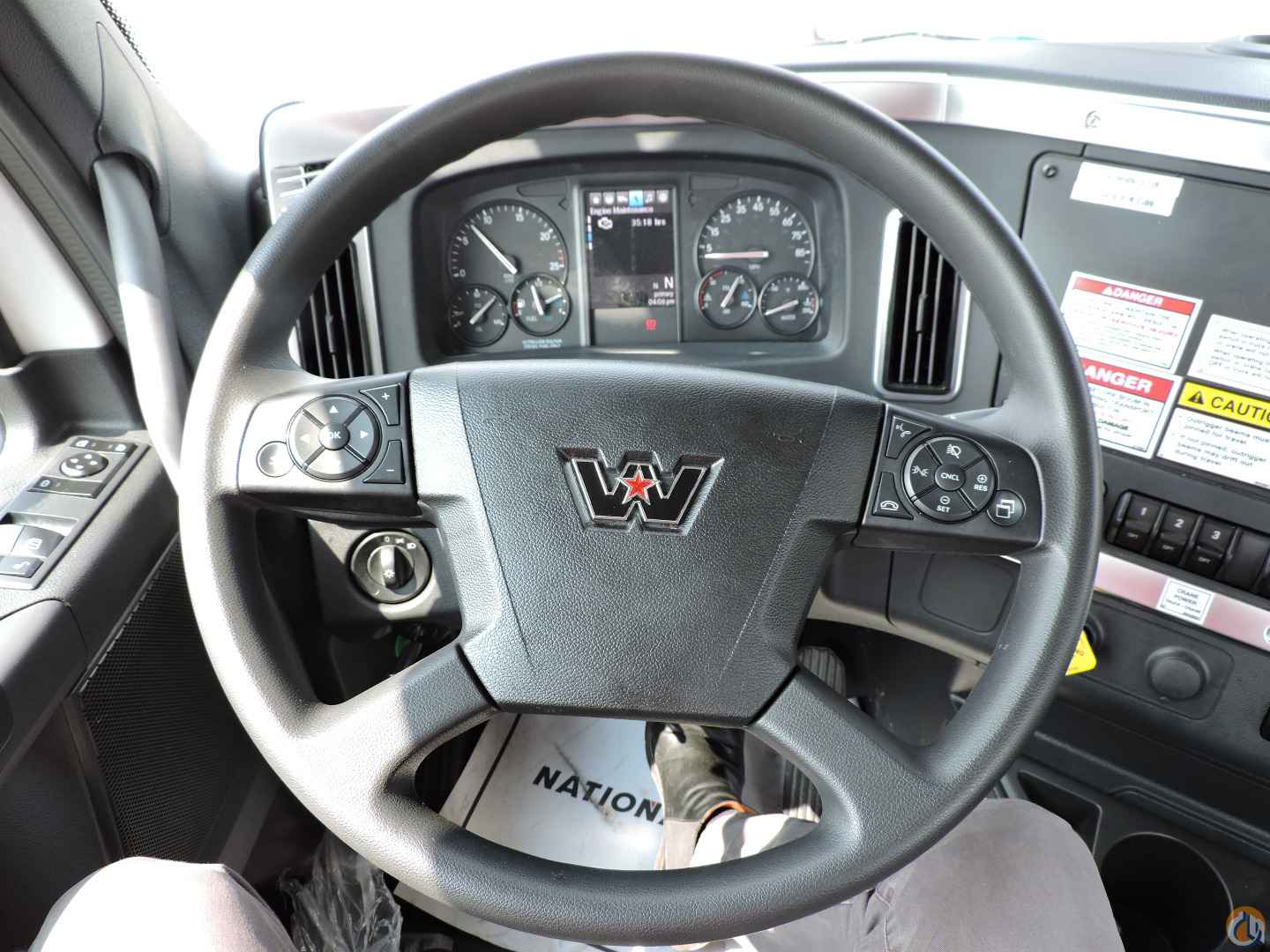

- Adjustable steering column - tilt/telescope

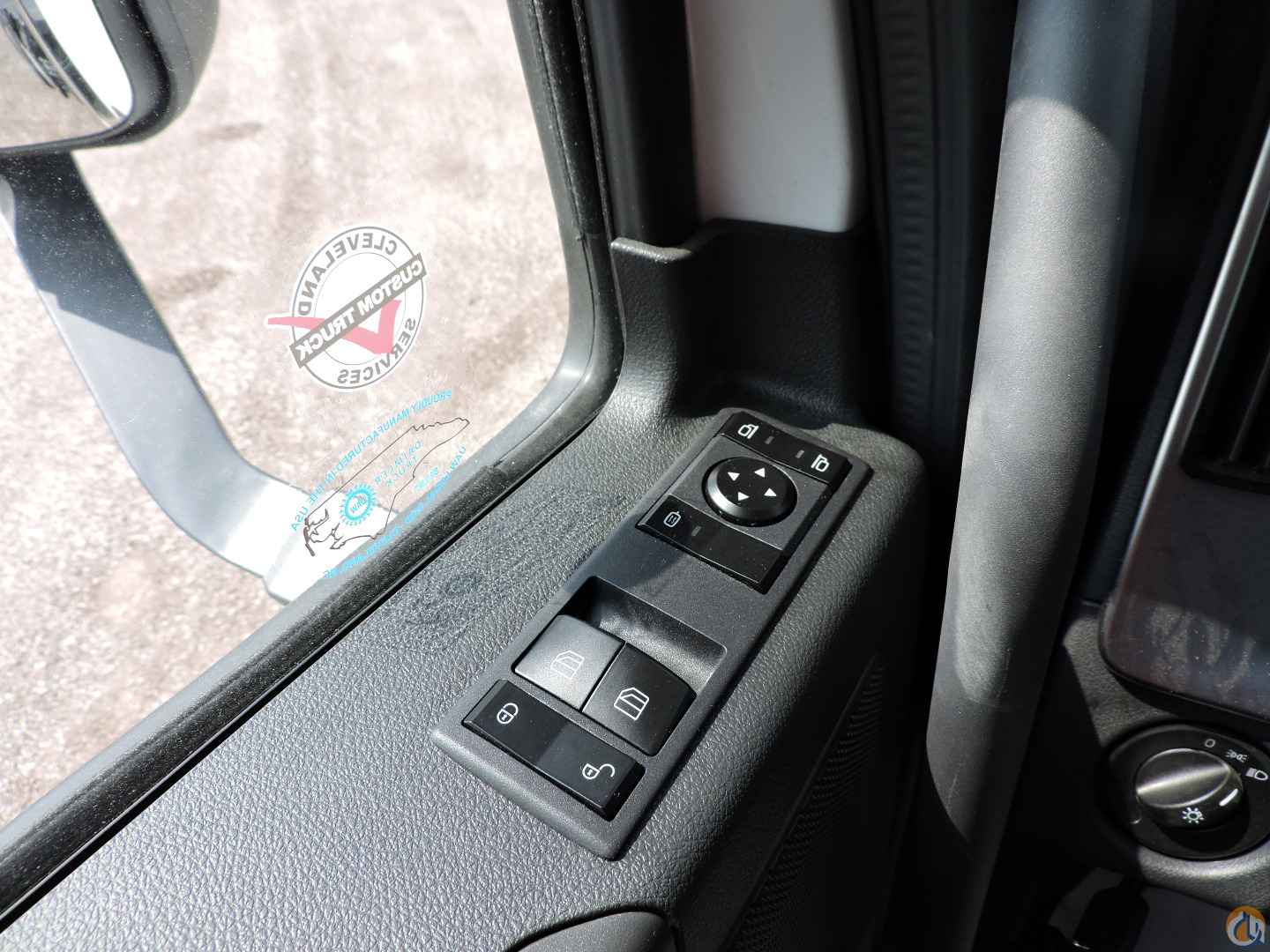

- Power door locks with keyless entry

- Air conditioner

- Bright steel bumper

- Exterior sun visor, stainless steel

- Air horn

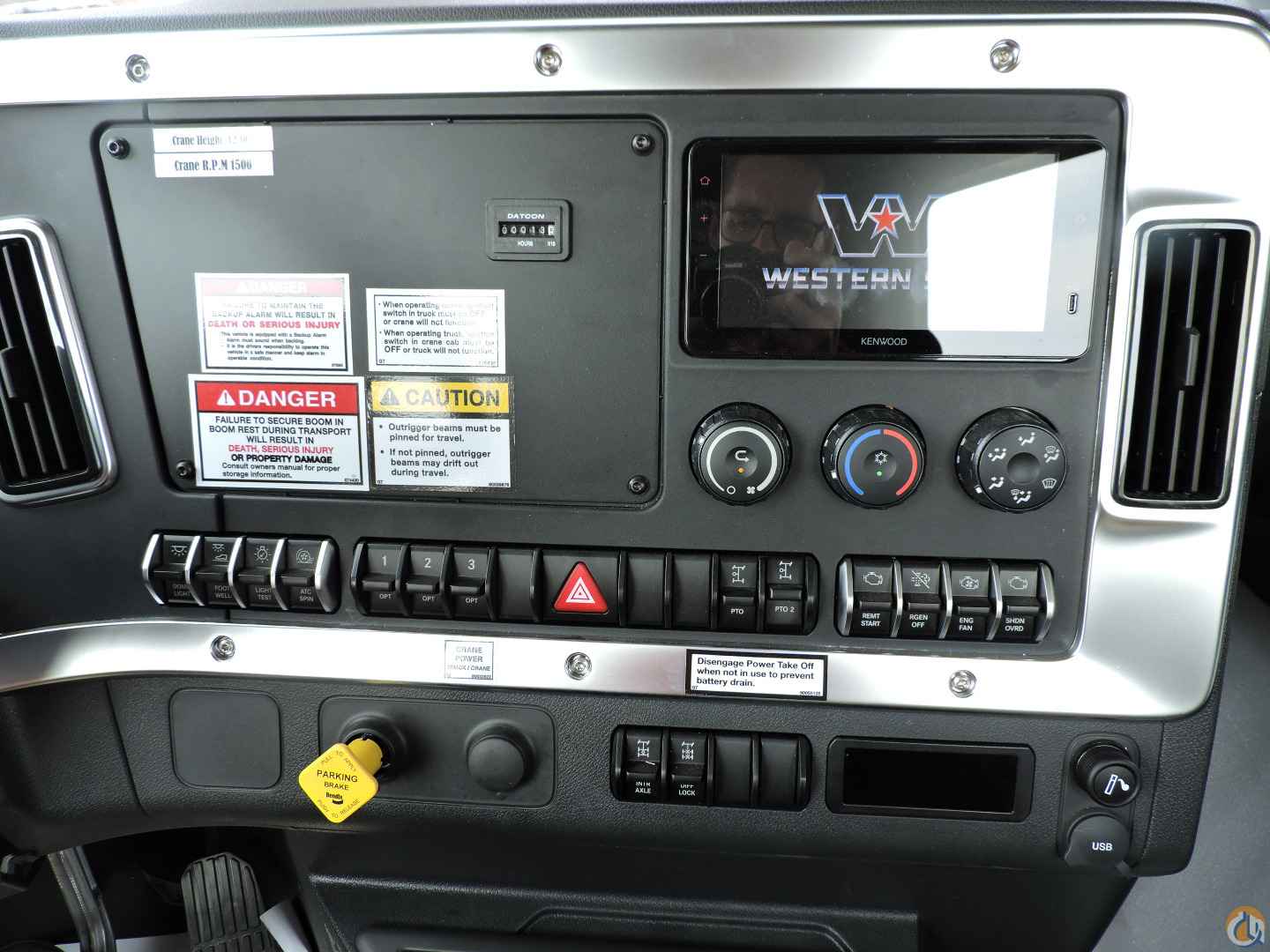

- AM/FM/WB radio with Bluetooth, and USB

- Heated mirrors

- Painted Sand Gray
