Boom Details

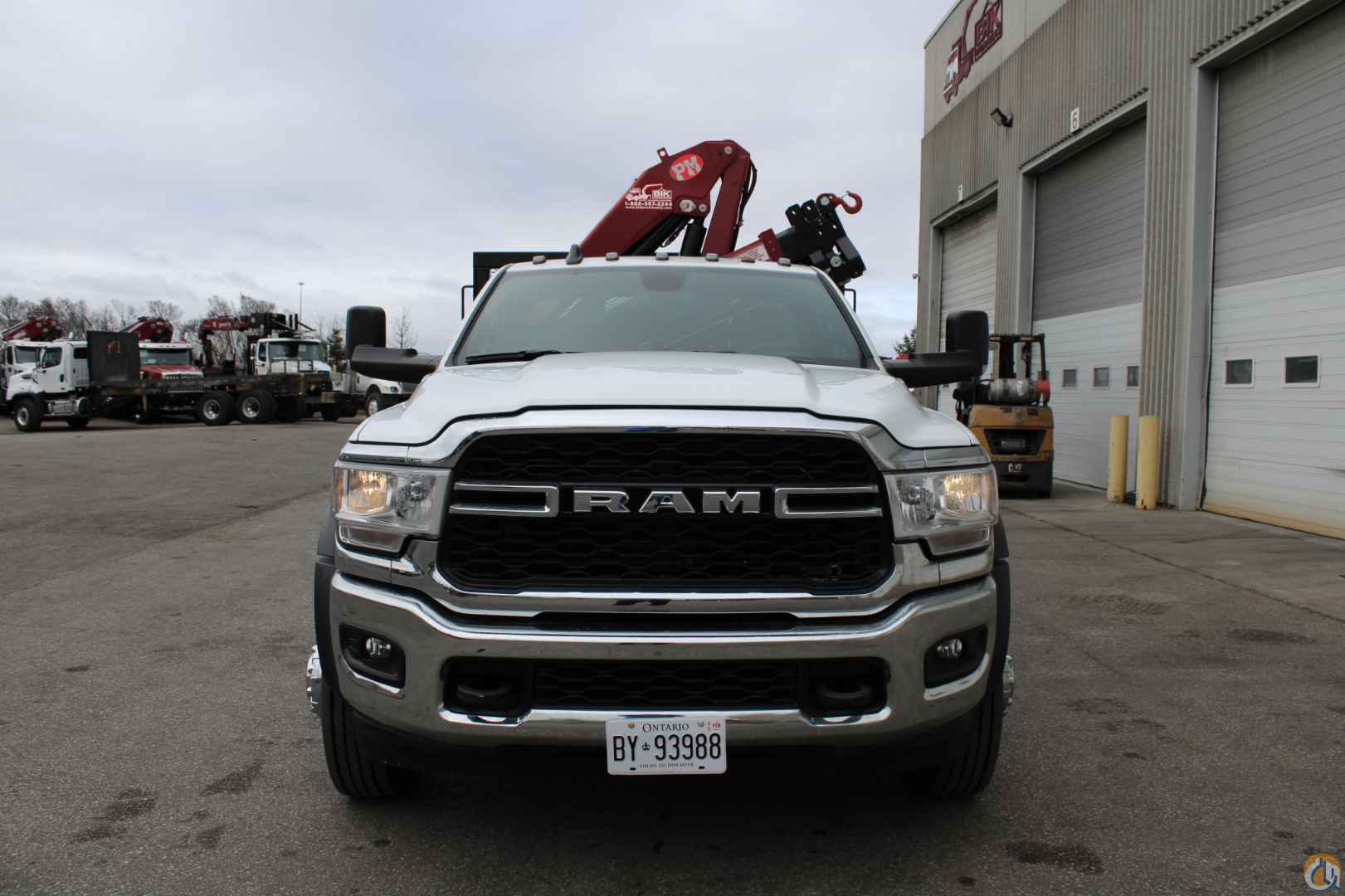

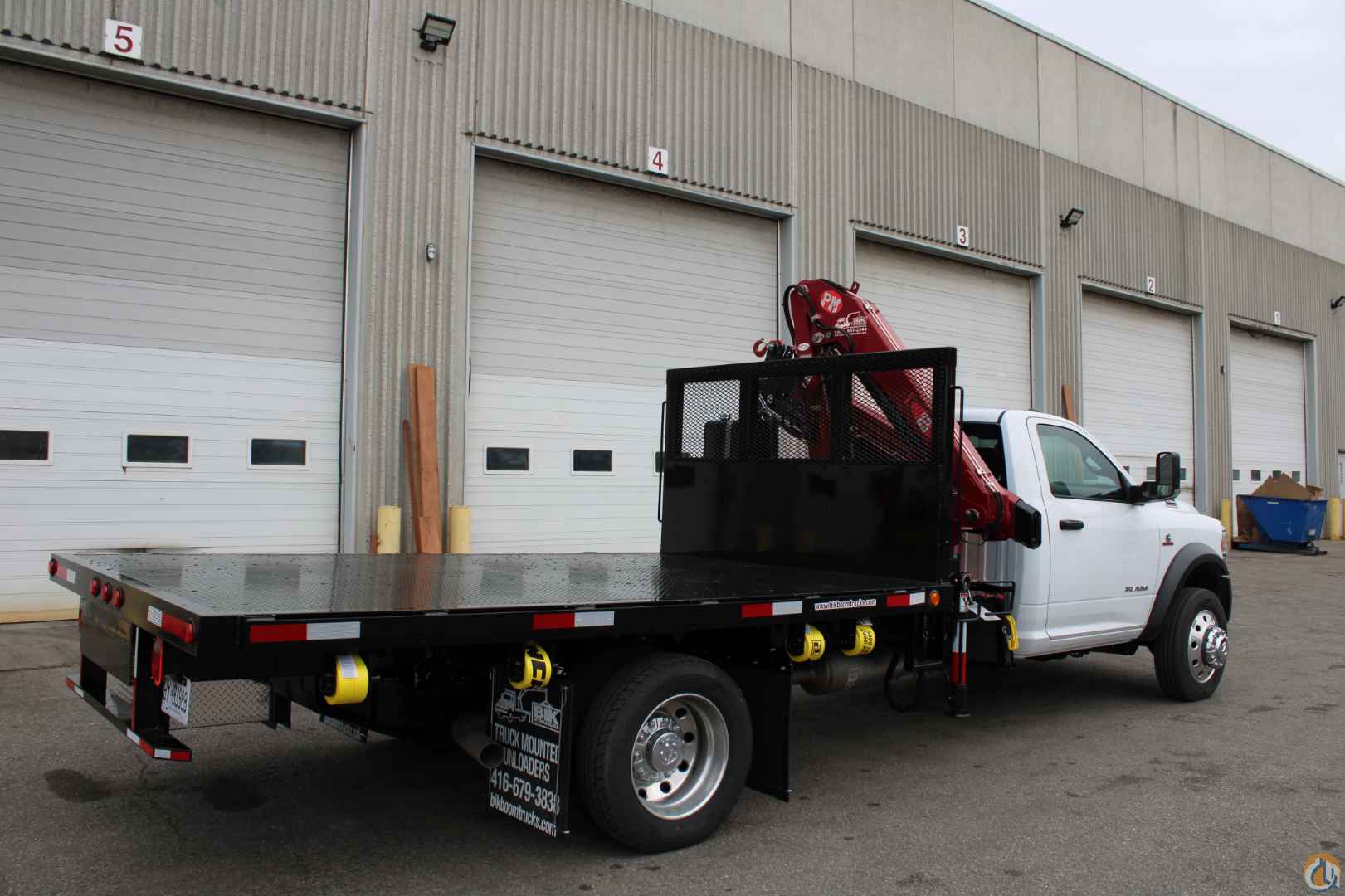

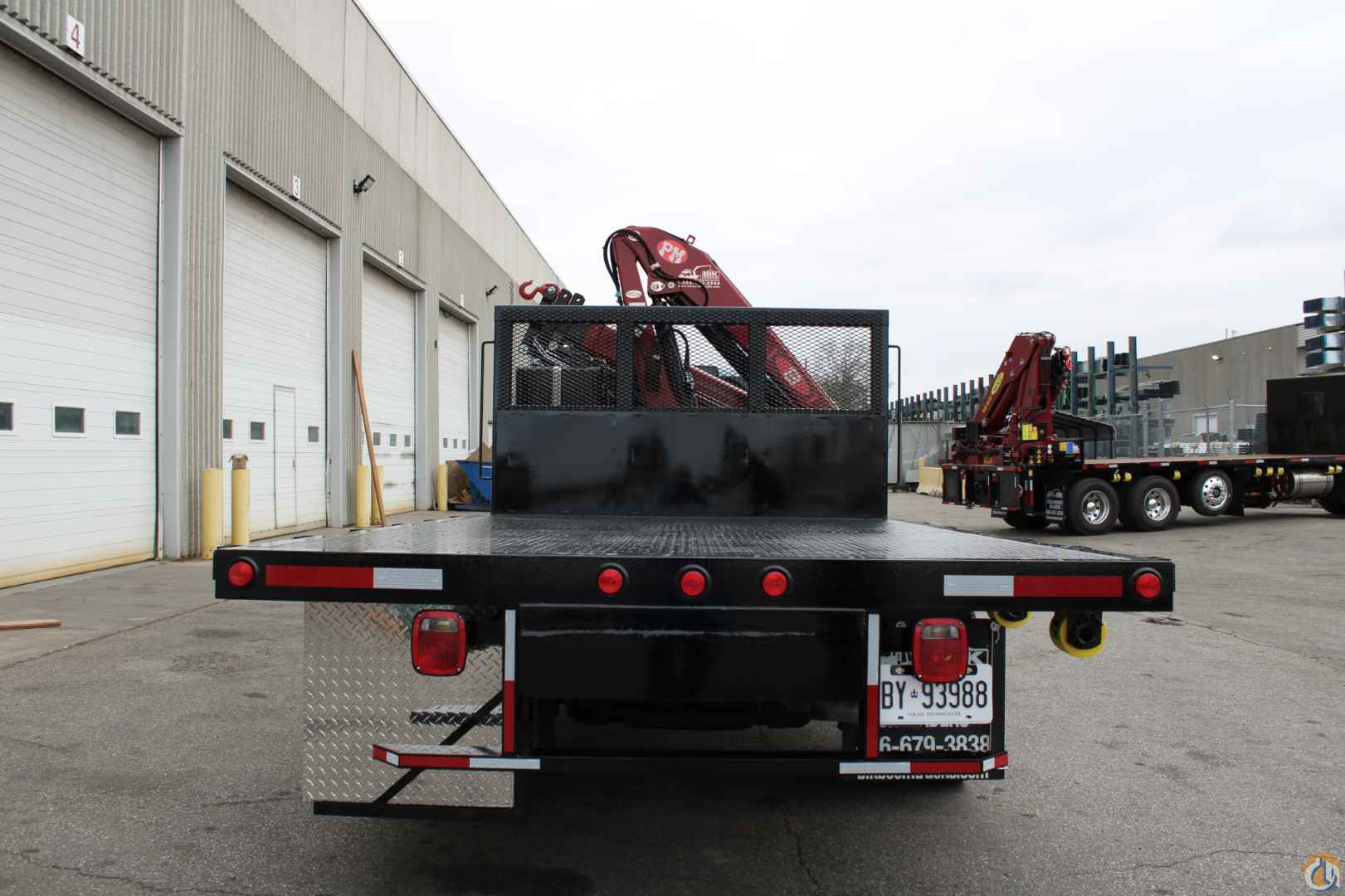

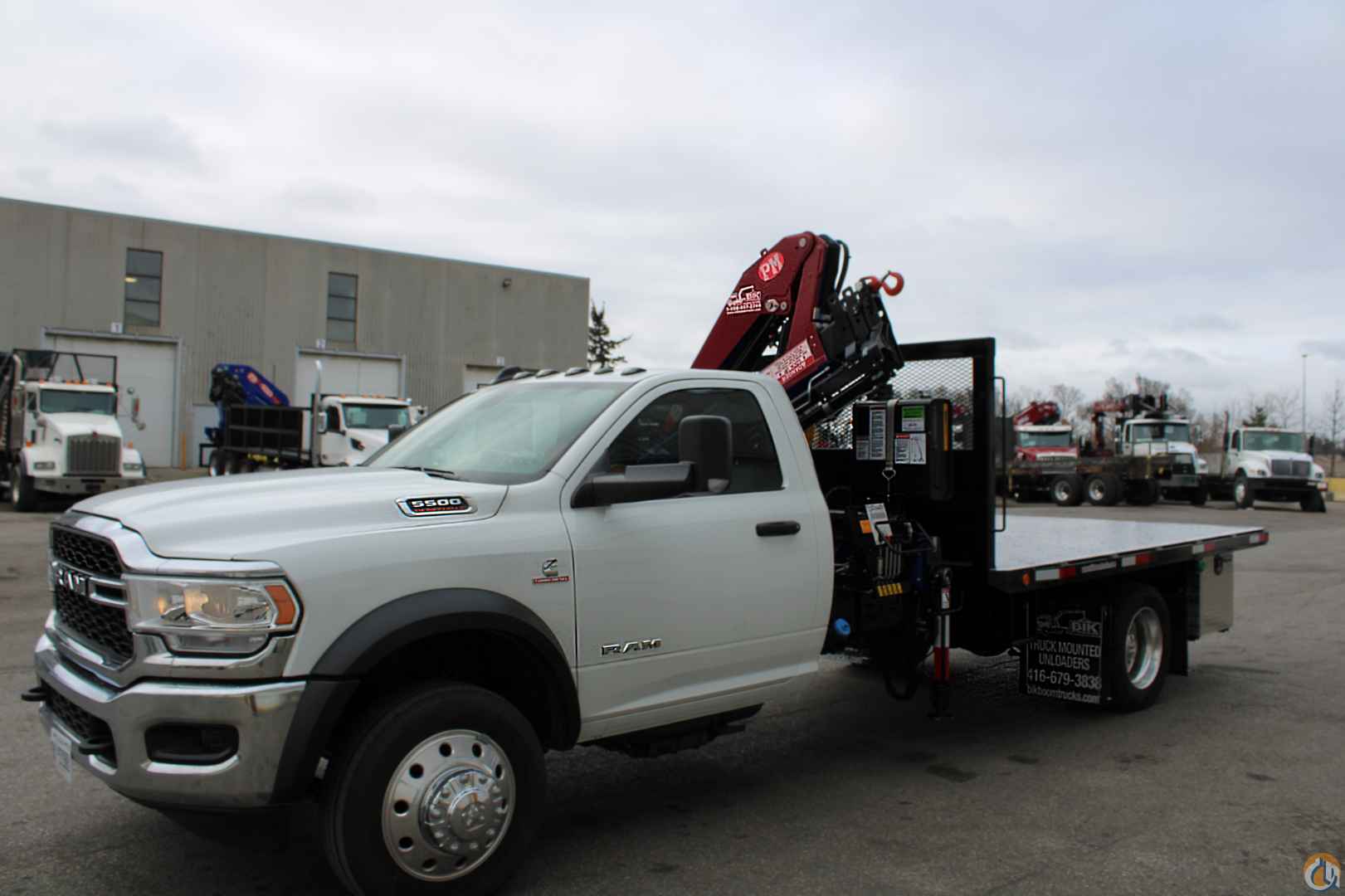

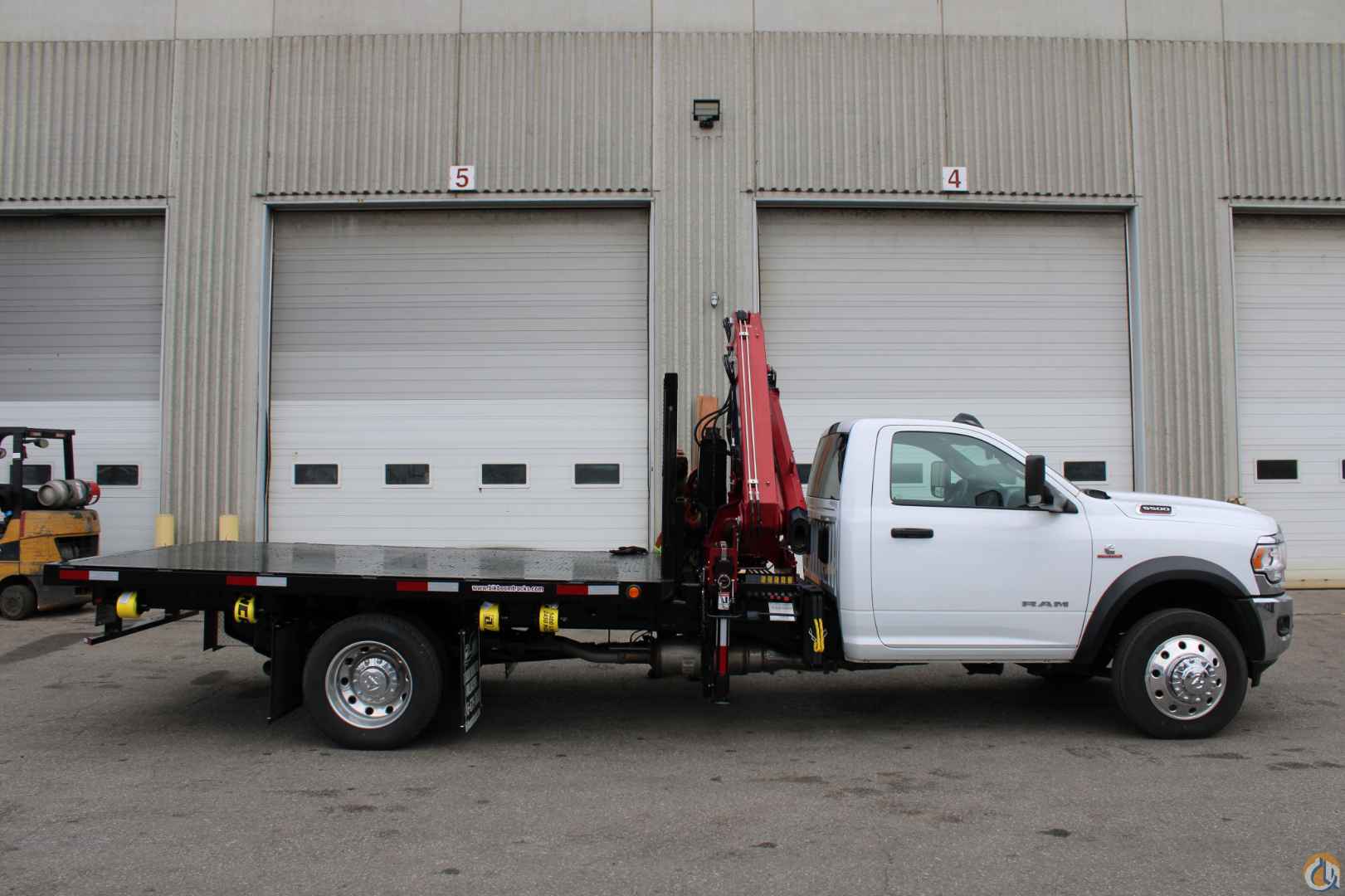

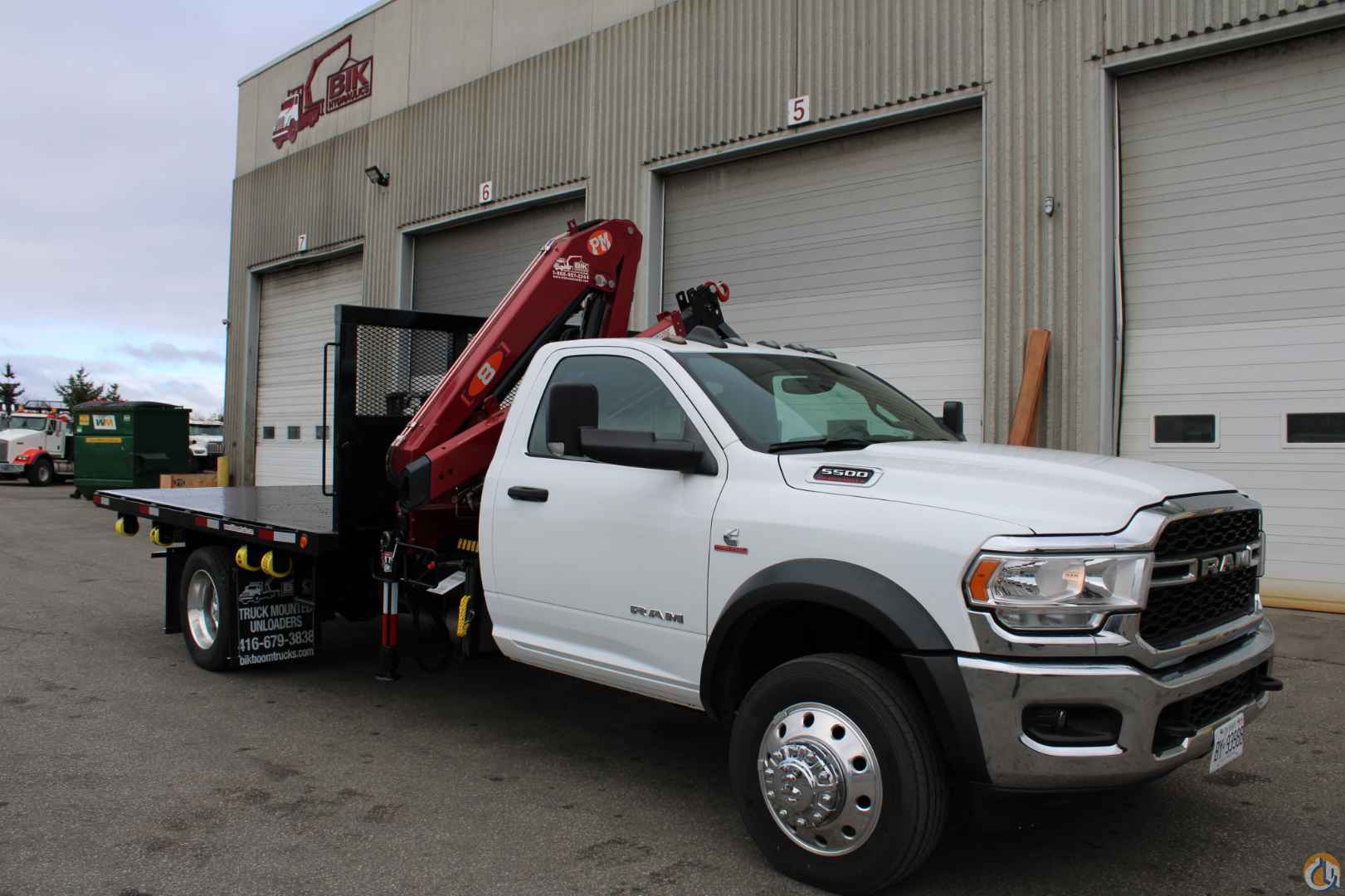

NEW – PM 8023 KNUCKLE BOOM
- 3-Hydraulic extensions to 29′-6″ Horizontal Reach (40′ Vertical)
- Horizontal Capacity:
-
- 7,170 lb @ 6’3″
- 4,299 lb @ 12’10”
- 2,690 lb @ 18’3″
- 2,006 lb @ 23’7″
- 1,565 lb @ 28’6″
-
- Installed at the rear on custom shear-plated Sub Frame by BIK, prepped, primed, and painted. New Air Operated PTO, Hydraulic Pump Supply and Return Lines, Hydraulic tank mounted on pedestal w/ shut-off valve. Load Tested.
Standard Features Includes :
- Manual OUT & Hydraulic DOWN – Radial, manual tilting 2-sided stabilizers w/ round foot pads welded to bottom of cylinder
- Load Holding Valves on cylinders for Safety and Security of Operator and Load
- Heavy Duty Pedestal Turning Cylinders for greater turning Torque, reduced wear, and improved precision- 400 degrees rotation
- End of Frame Mount – Behind Cab
