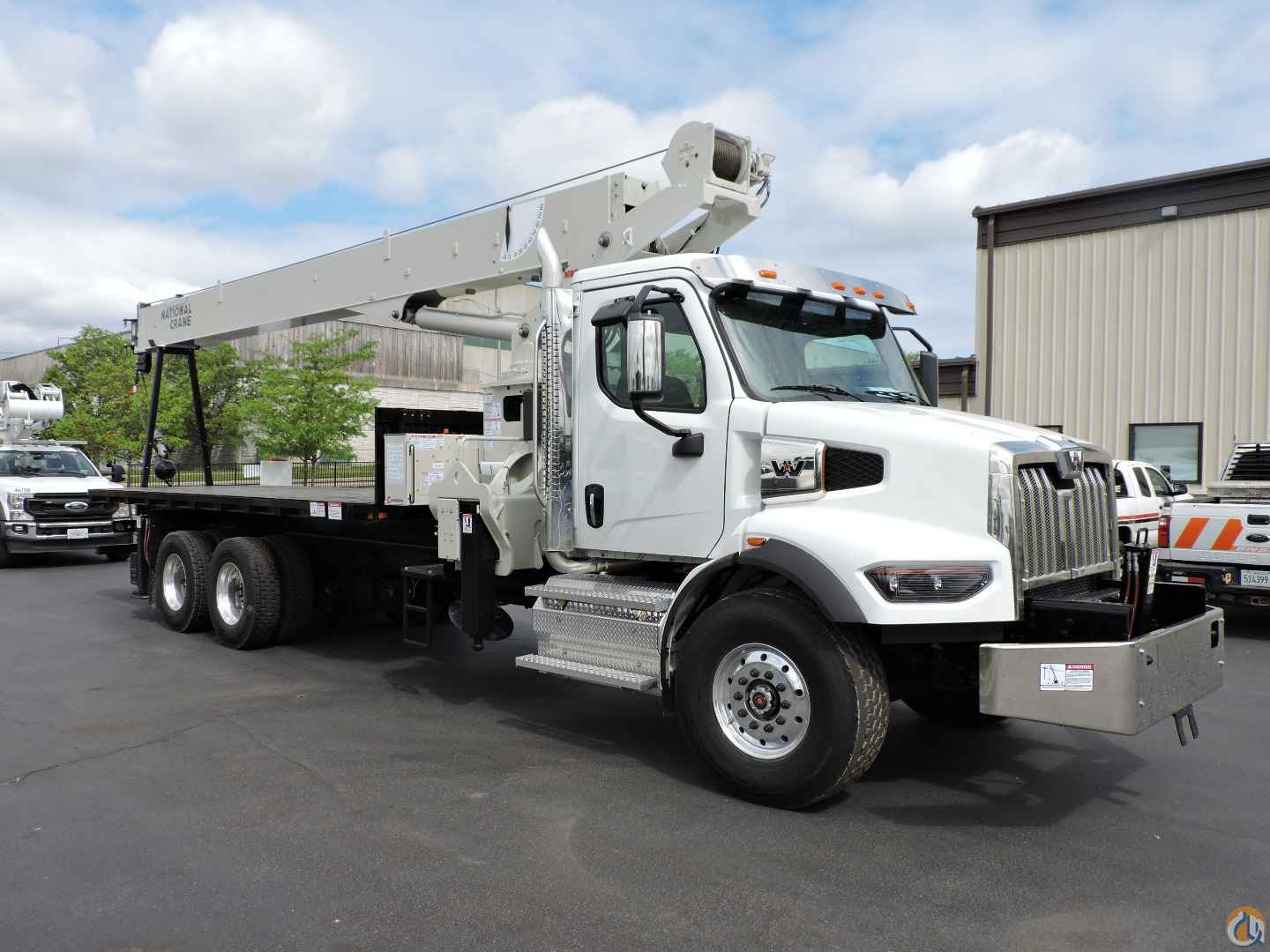

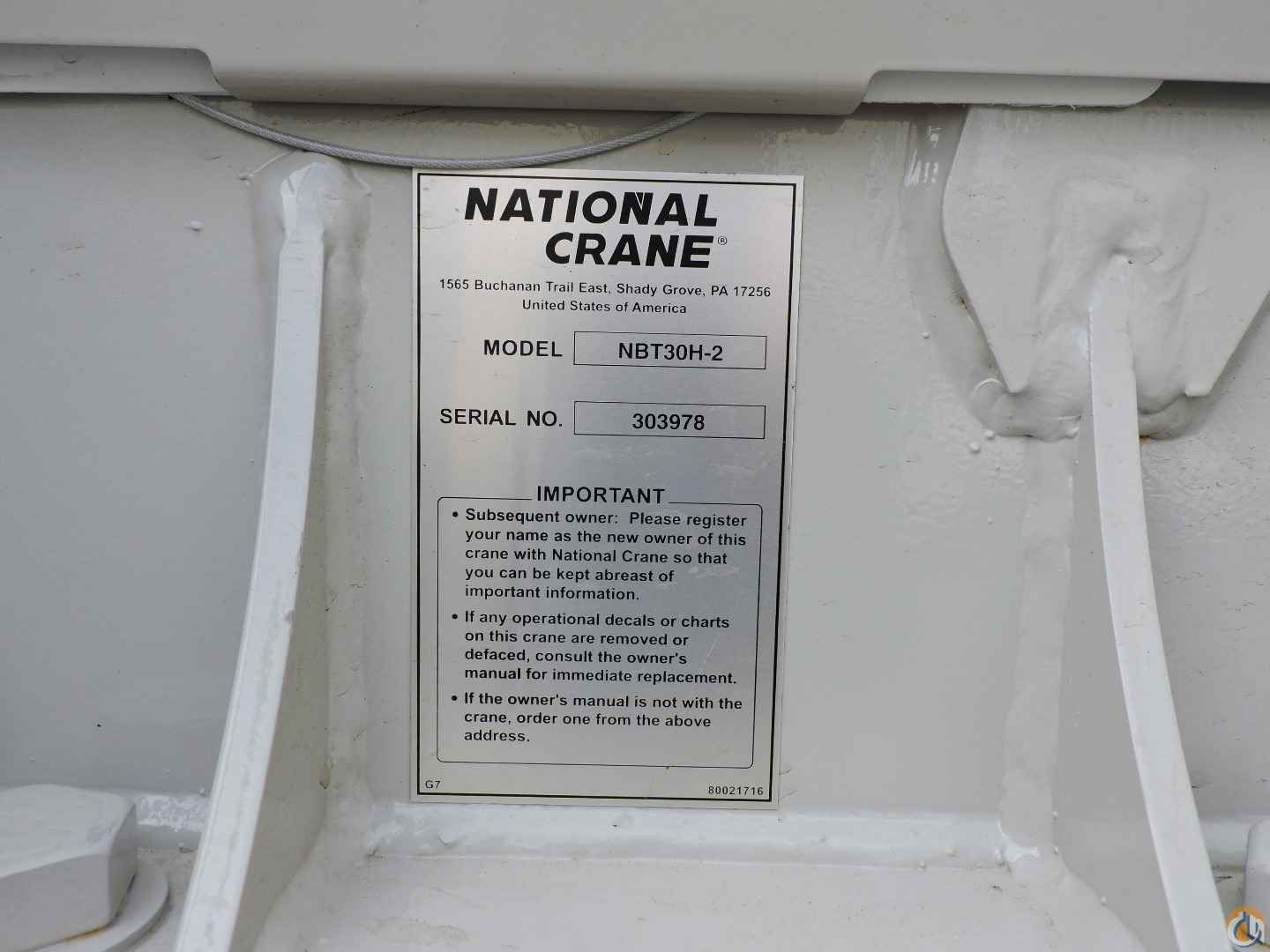

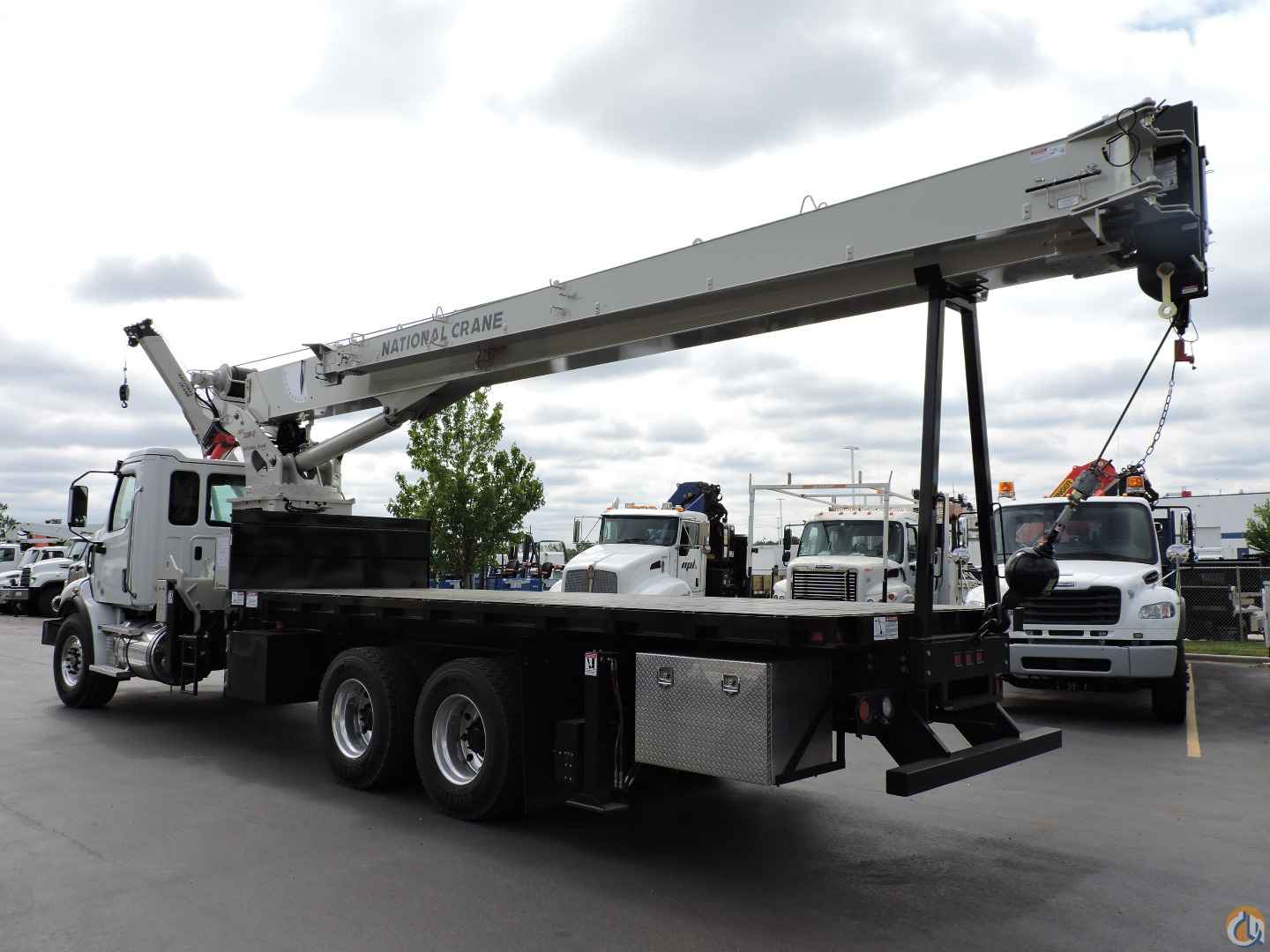

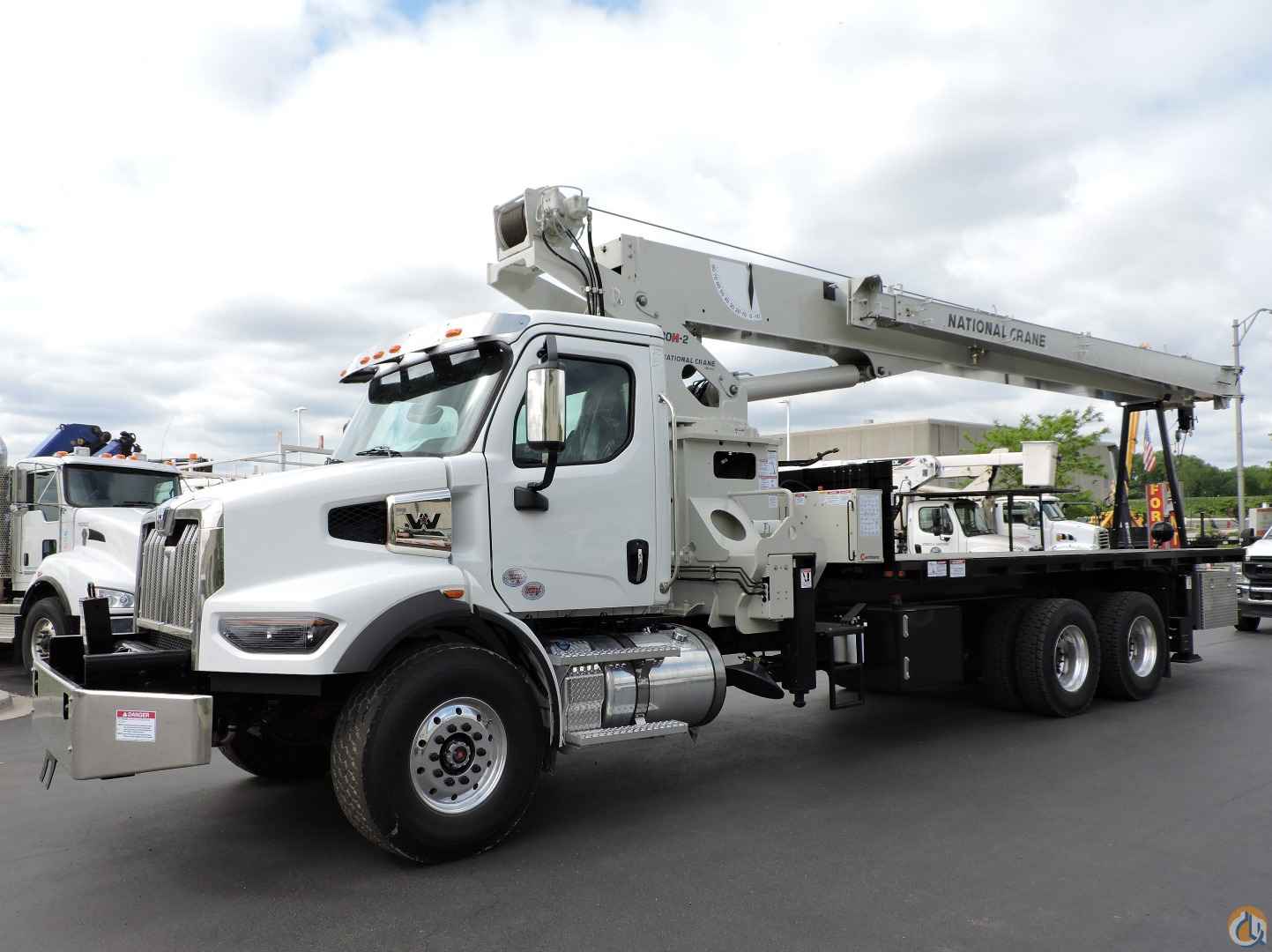

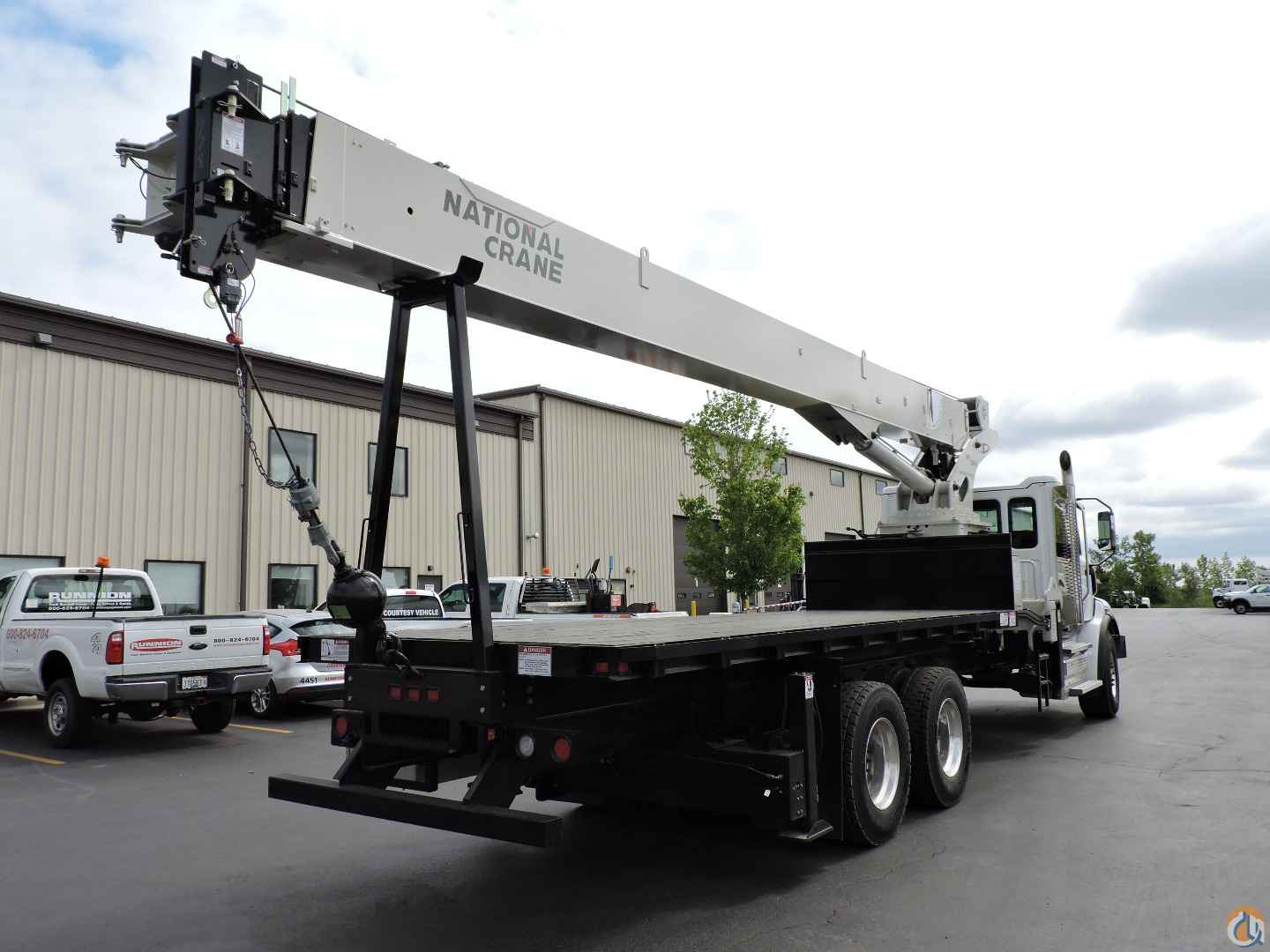

National NBT30H-2 equipped as follows:

- 30-Ton capacity

- 33’ – 110’ four section boom, 120’ tip height

- 25-44 ft telescoping boom extension

- Rated Capacity Limiter System – displays boom angle and length, working radius, rated load and total weight being lifted. Includes WADS

- Anti-two block system with internal wiring

- Front out-and-down outriggers with 20’ full span, 14’ mid span with manual lock pins. Capacity charts provided for full, mid, and fully retracted span

- Rear out and down stabilizers with 18’6” span

- Two (2) 20” diameter polymeric outrigger pads for main outriggers

- Single front outrigger for 360° stability

- Outrigger motion alarm

- Outrigger monitoring system

- 410° non-continuous rotation with adjustable swing drive

- 390’ of 9/16” rotation-resistant wire

- Single line pull – 7,700 lbs

- Round downhaul weight with top swivel, 7-Ton capacity

- Two-speed winch

- Dual-side manual control levers

- Electric outrigger control pendant for outriggers and stabilizers

- Hydraulic system includes load sensing piston pump

- 73-gallon oil reservoir with butterfly valve on suction line

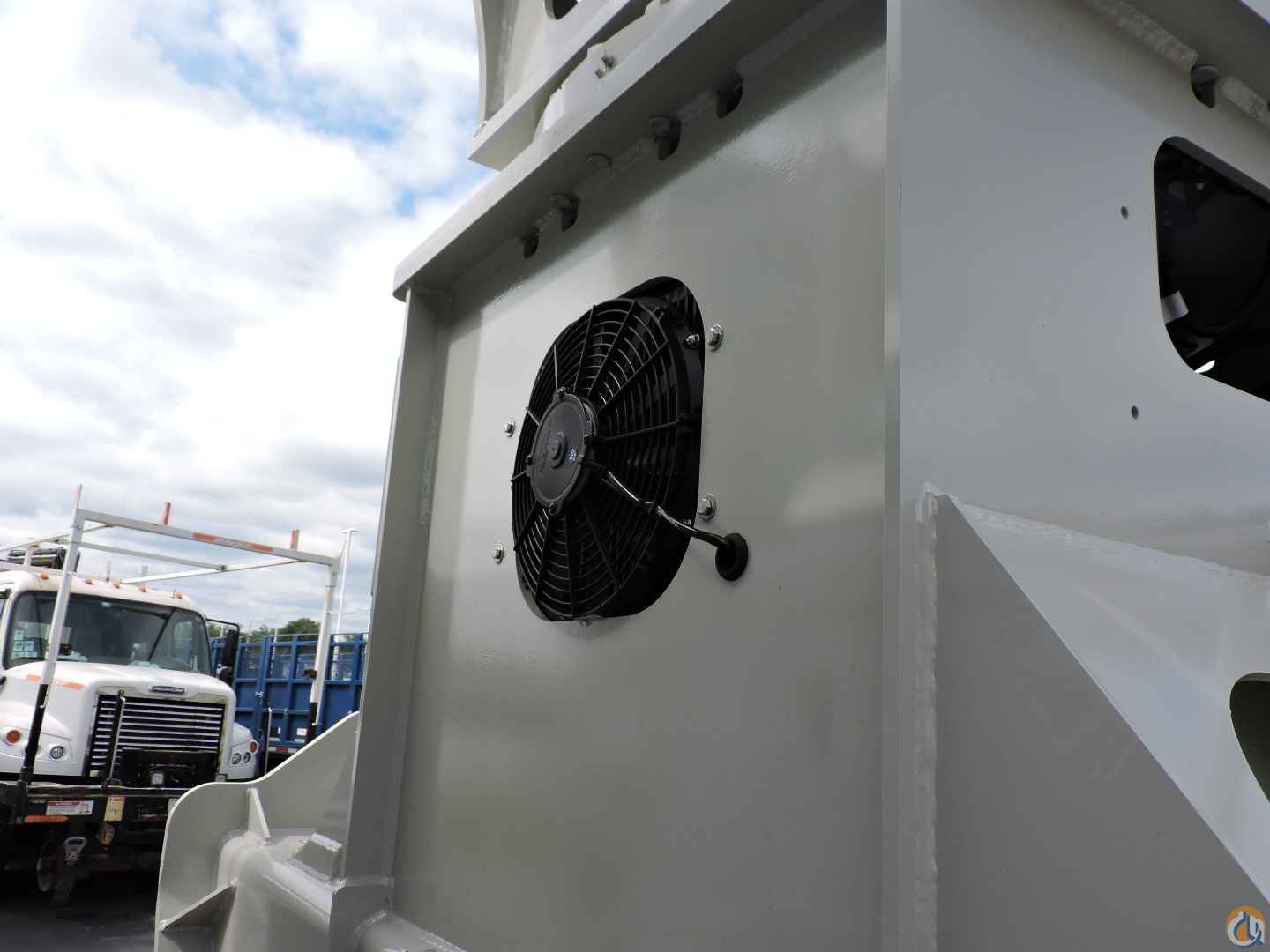

- Oil cooler

- Painted National Platinum

- 22’ super duty wood bed with rub rails

- 30” bulkhead

- 36” x 24” x 24” aluminum tool box

MOUNTED ON:

2026 Western Star 47X equipped as follows:

- Cummins L9 350 hp @ 2,200 rpm, 1,050 lb-ft @1,200 rpm

- Engine block heater

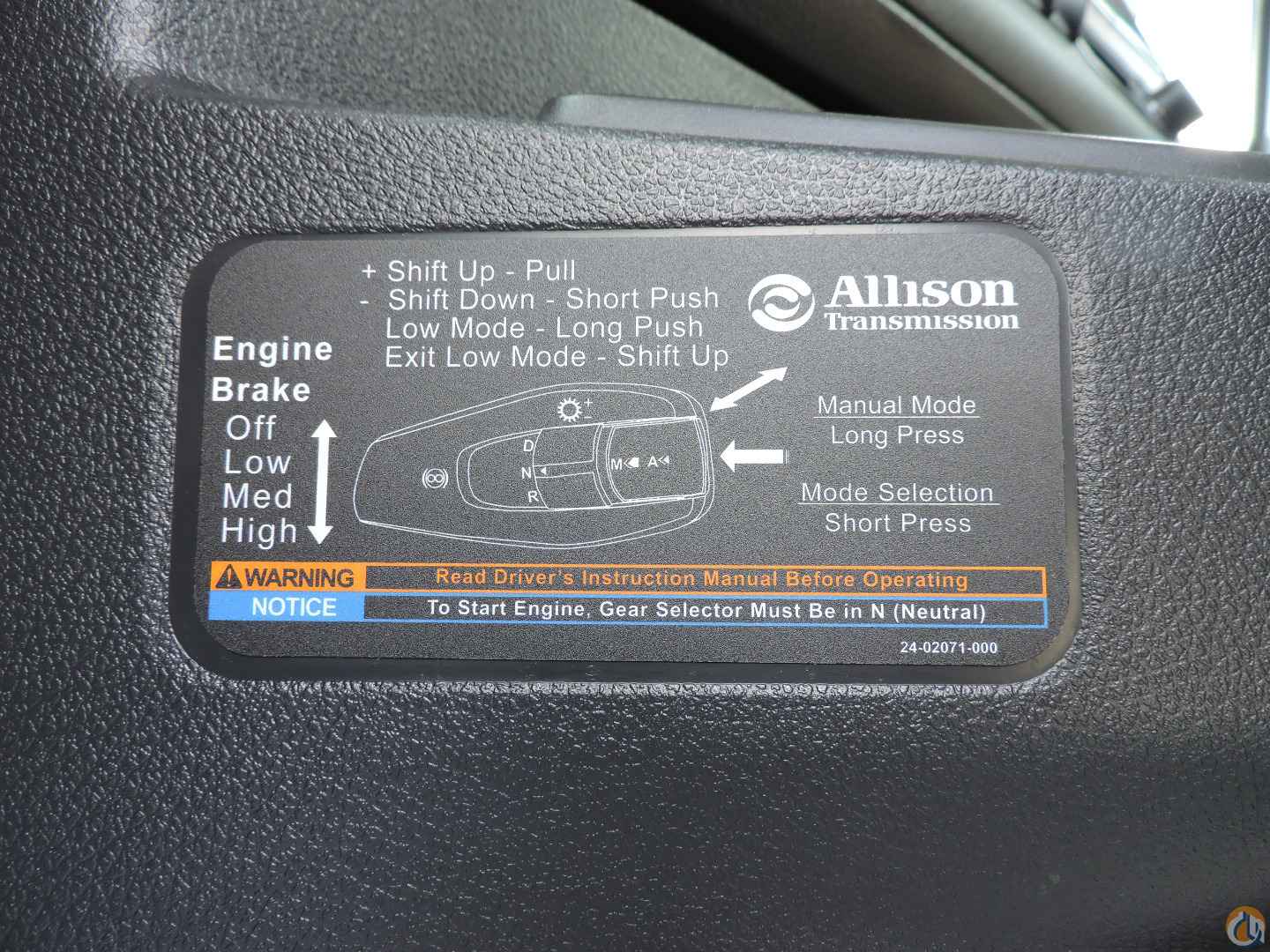

- Allison 3000 RDS automatic transmission

- 20,000lb front axle with taperleaf suspension

- 40,000lb rear axle with Hendrickson Haulmaax suspension

- Differential lock tandem axles

- Air dryer with heater

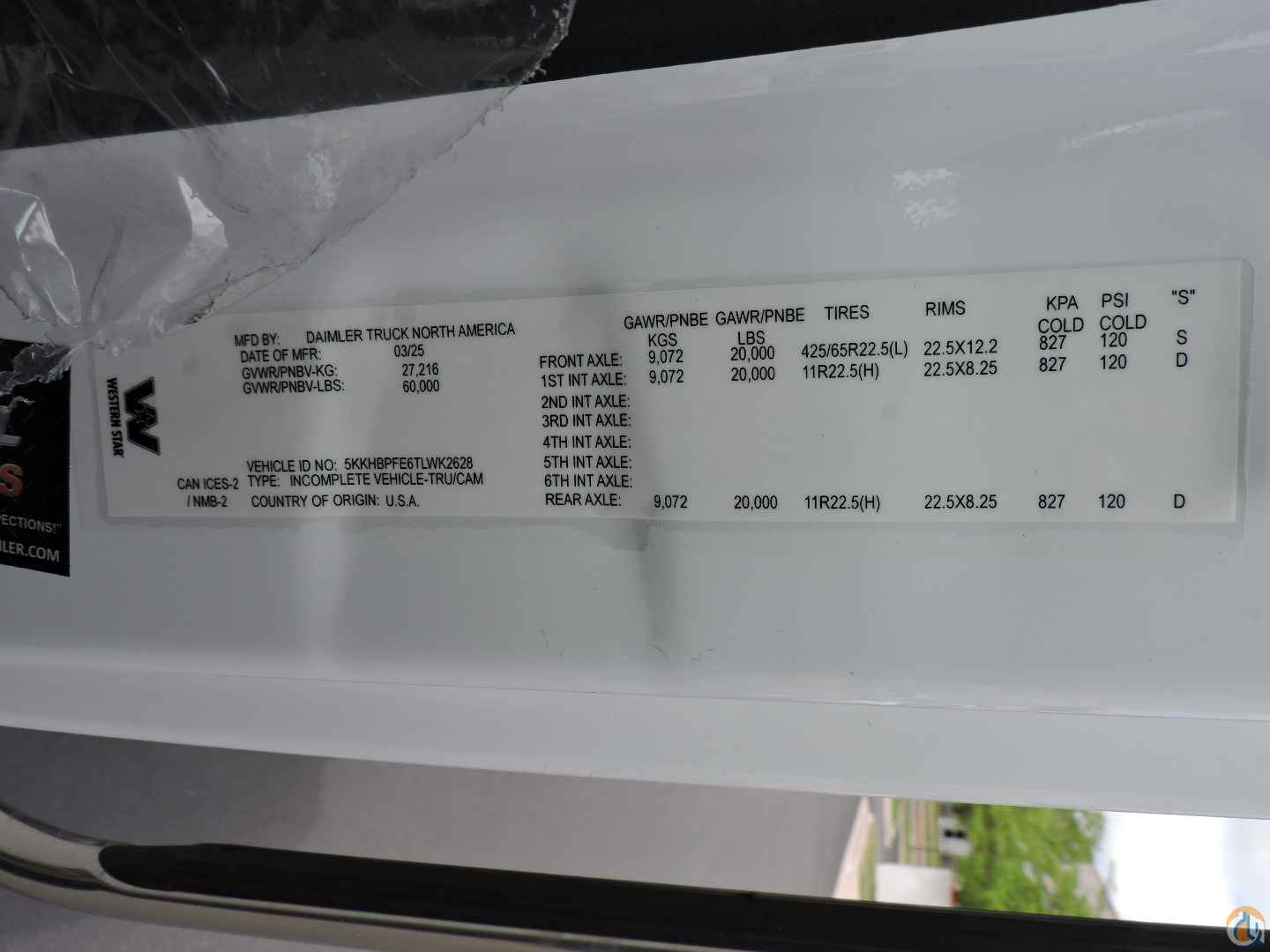

- Tires: FR –425/65R22.5 front tires

- Tires: RR –11R22.5 rear tires

- Aluminum wheels with polished outer finish

- 80-gallon fuel tank

- Polished aluminum diamond plate DEF tank cover

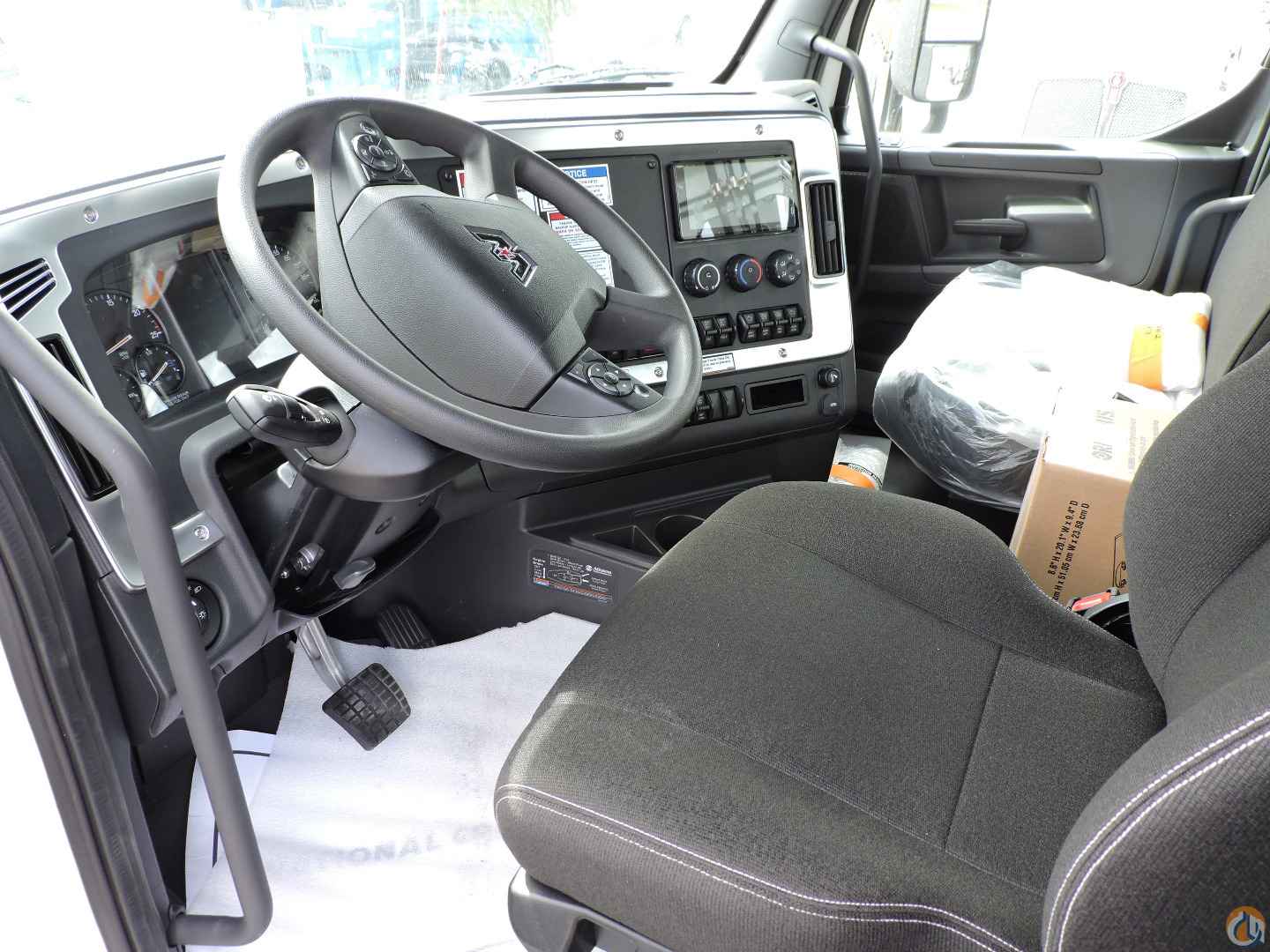

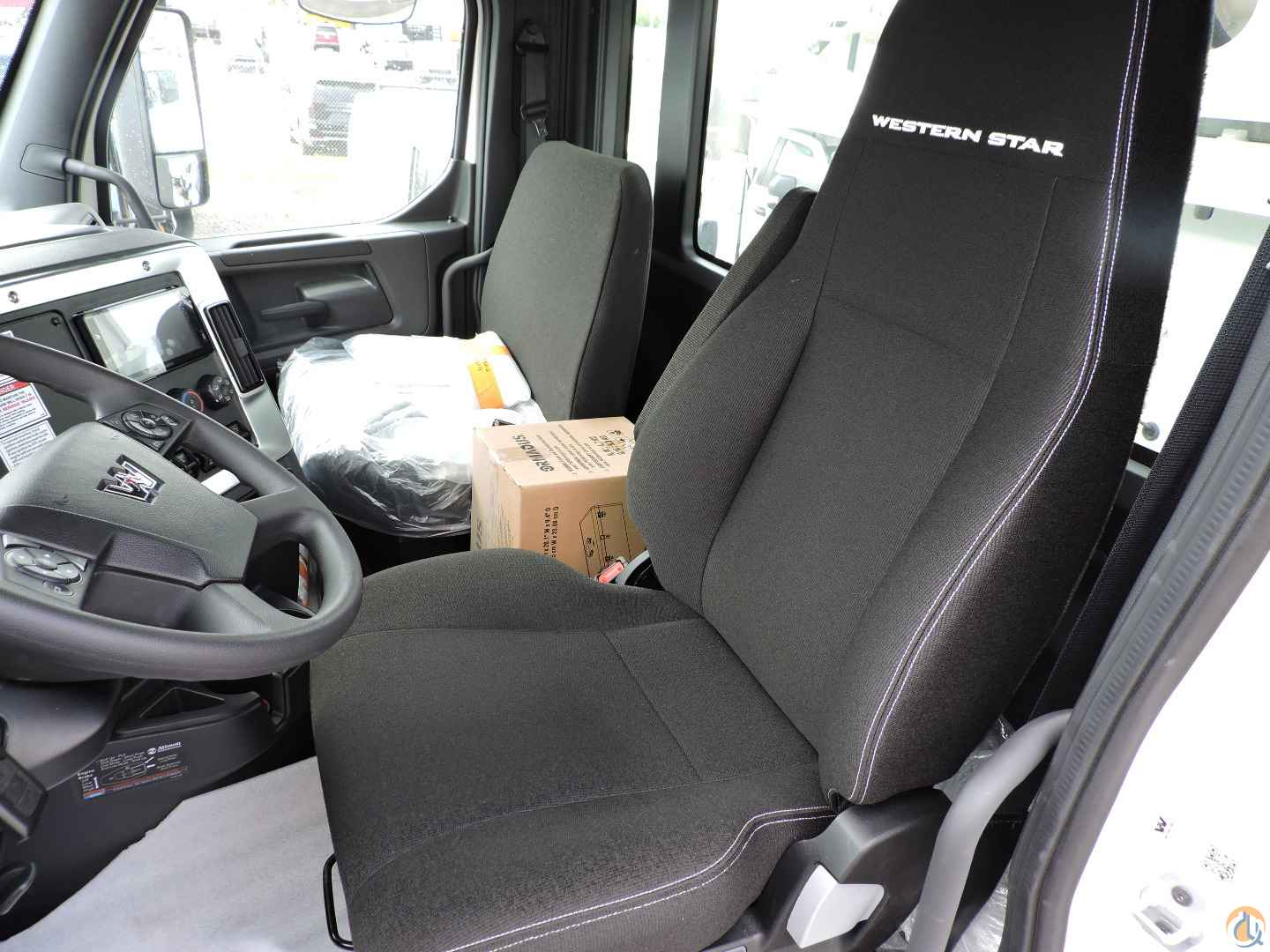

- Driver’s Seats – Air ride, high back, black Mordura

- Passenger Seat – Mid back, battery box, black Mordura

- Adjustable steering column - tilt/telescope

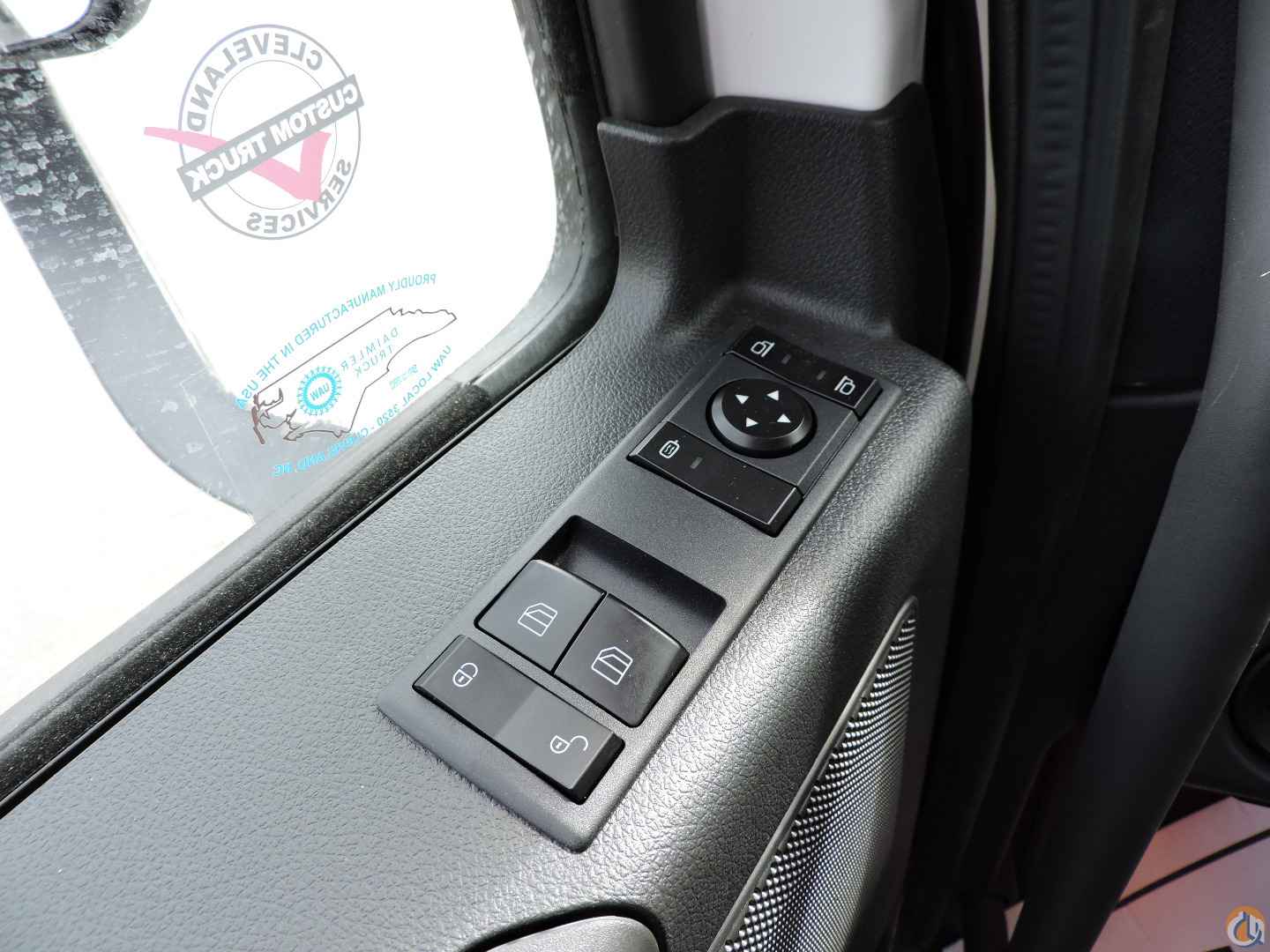

- Power door locks with keyless entry

- Air conditioner

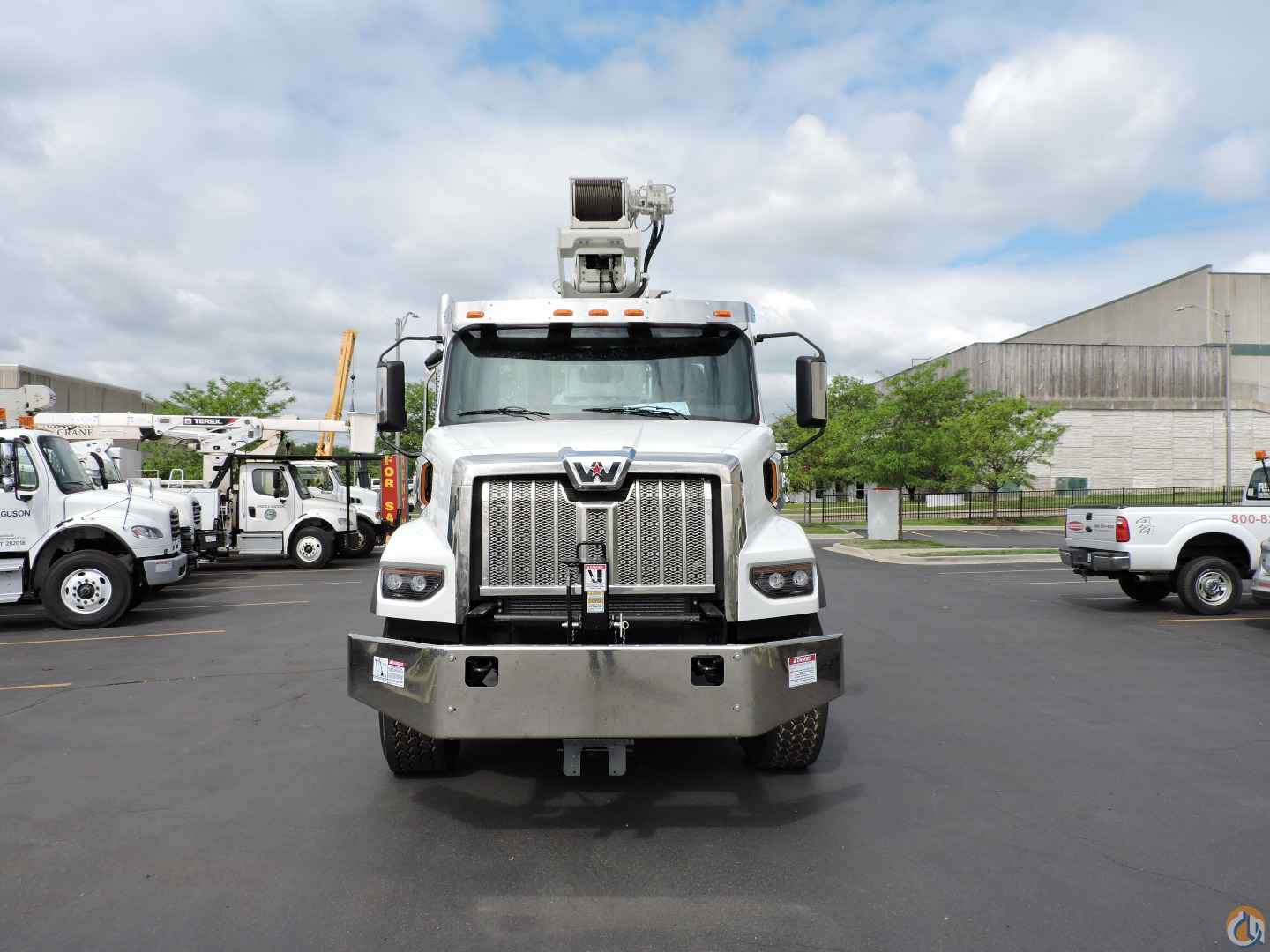

- Bright steel bumper

- Exterior sun visor, stainless steel

- Air horn

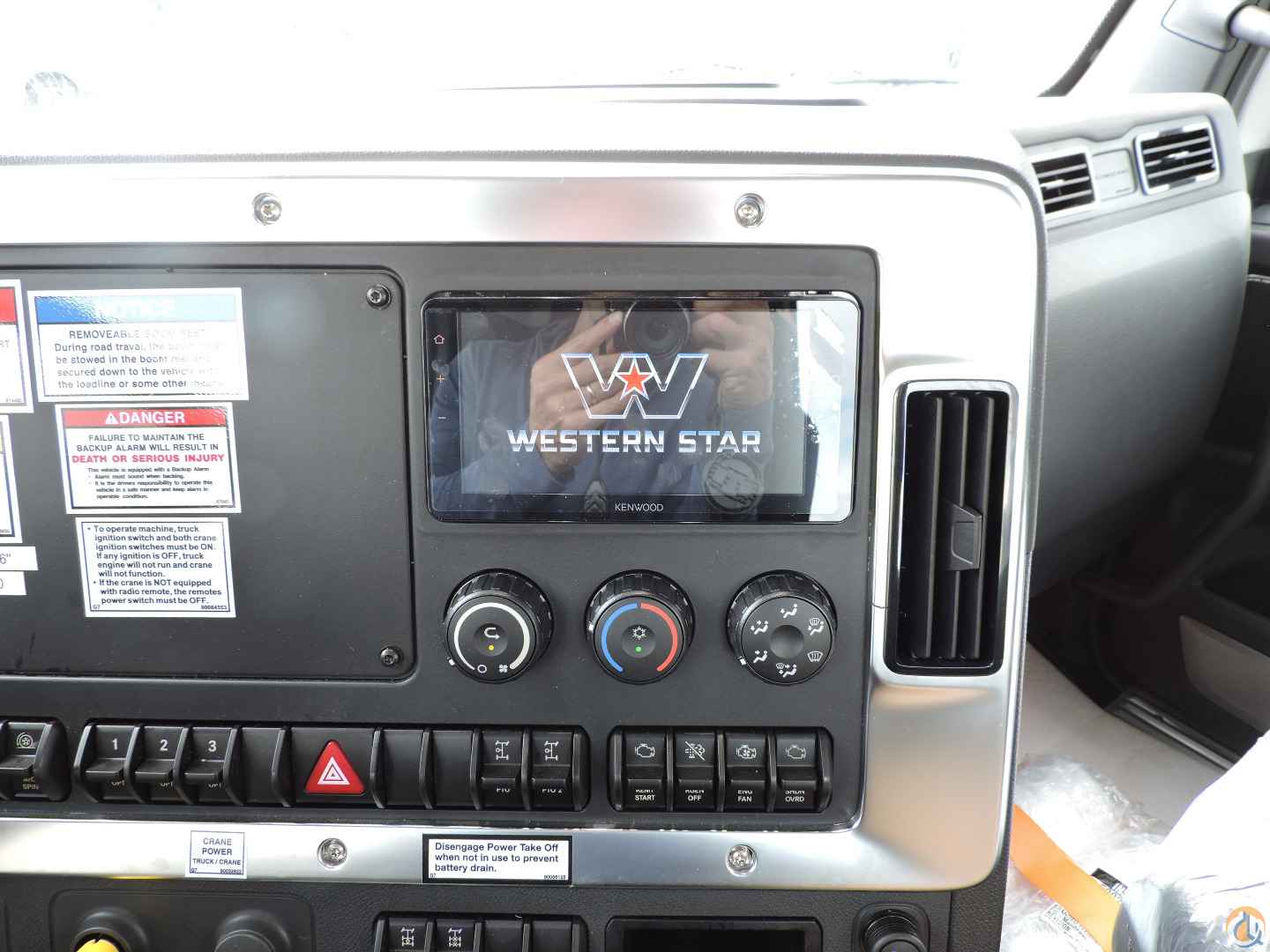

- AM/FM/WB radio with Bluetooth, and USB

- Heated mirrors

- Painted white
