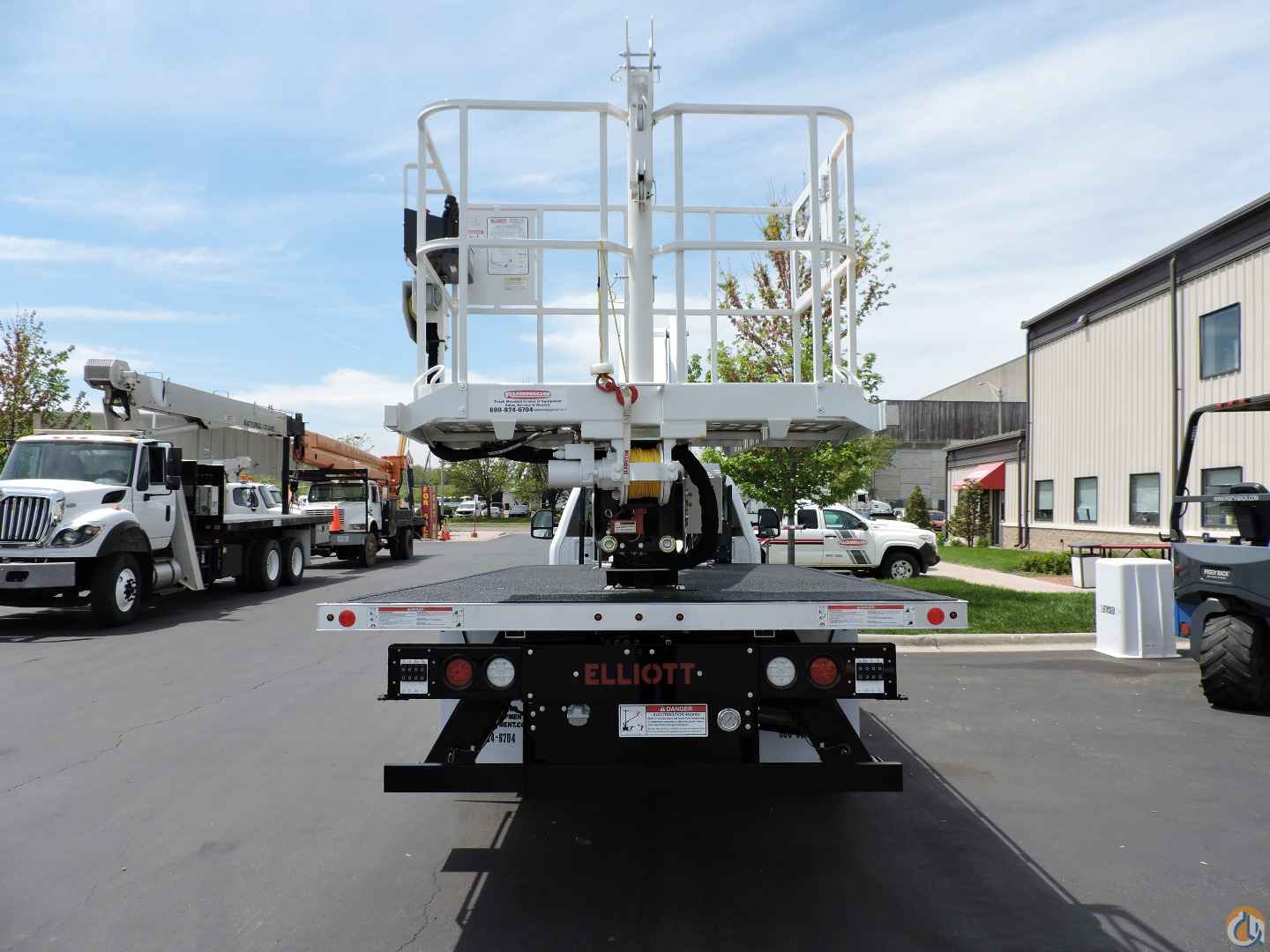

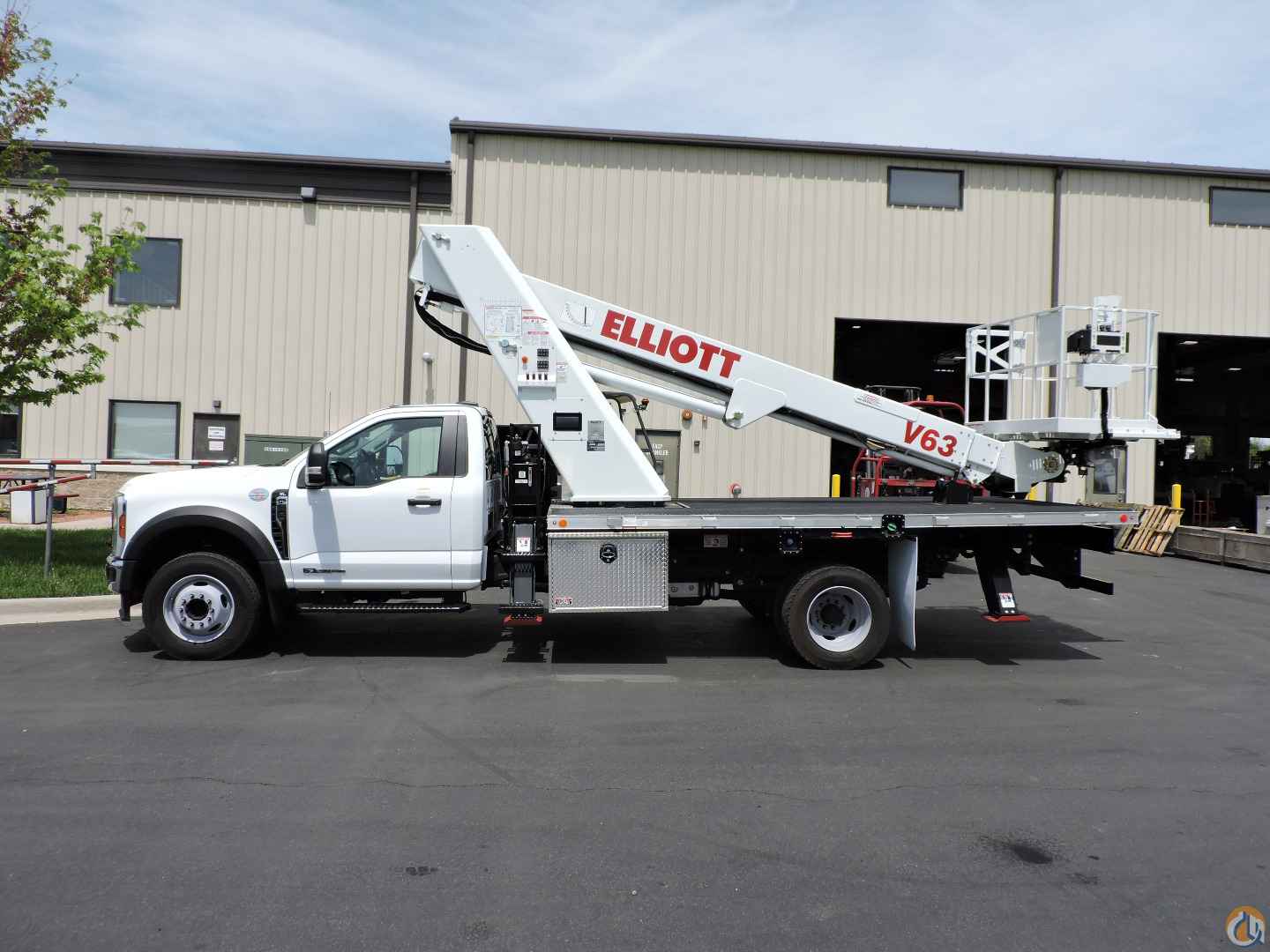

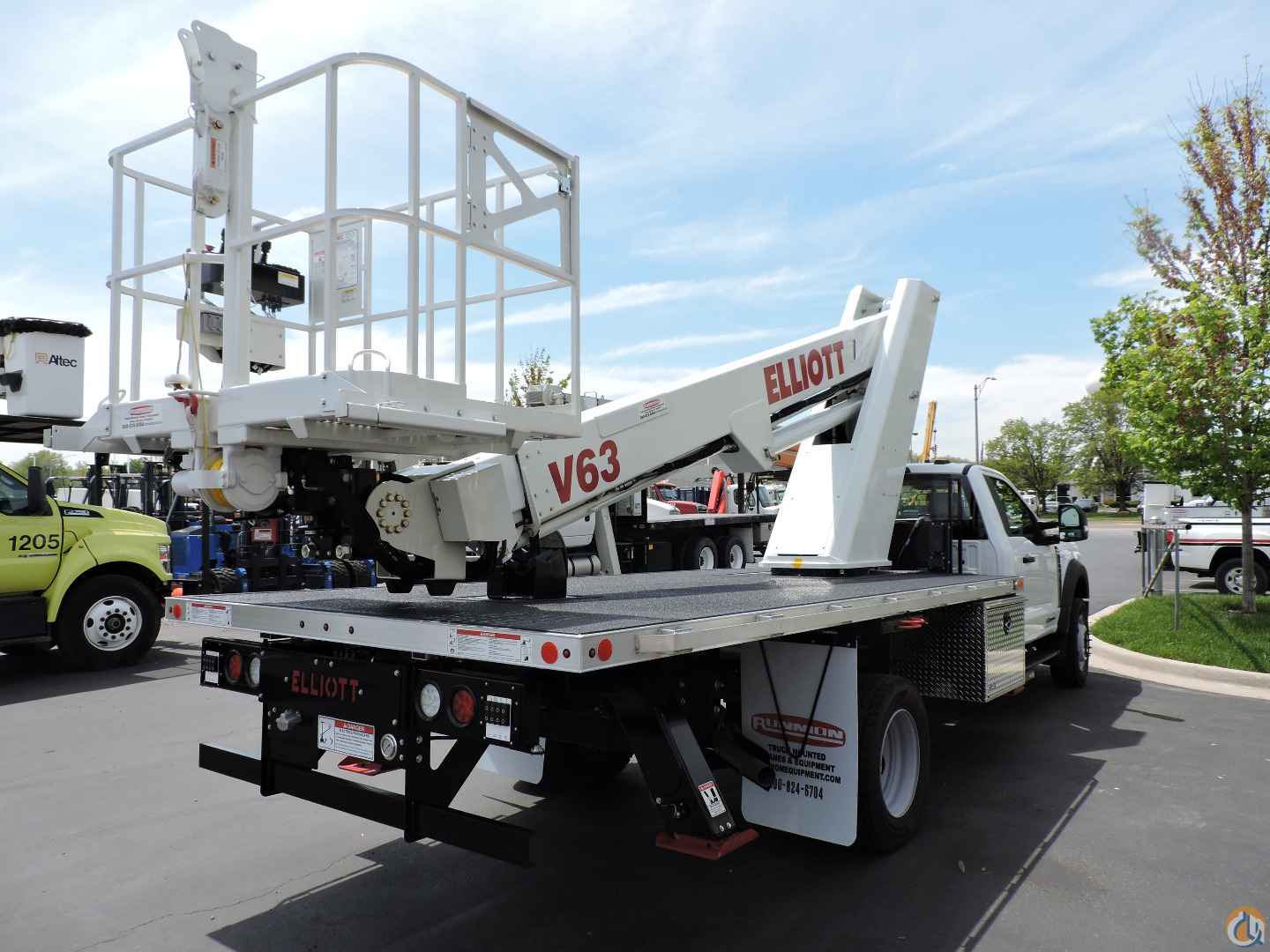

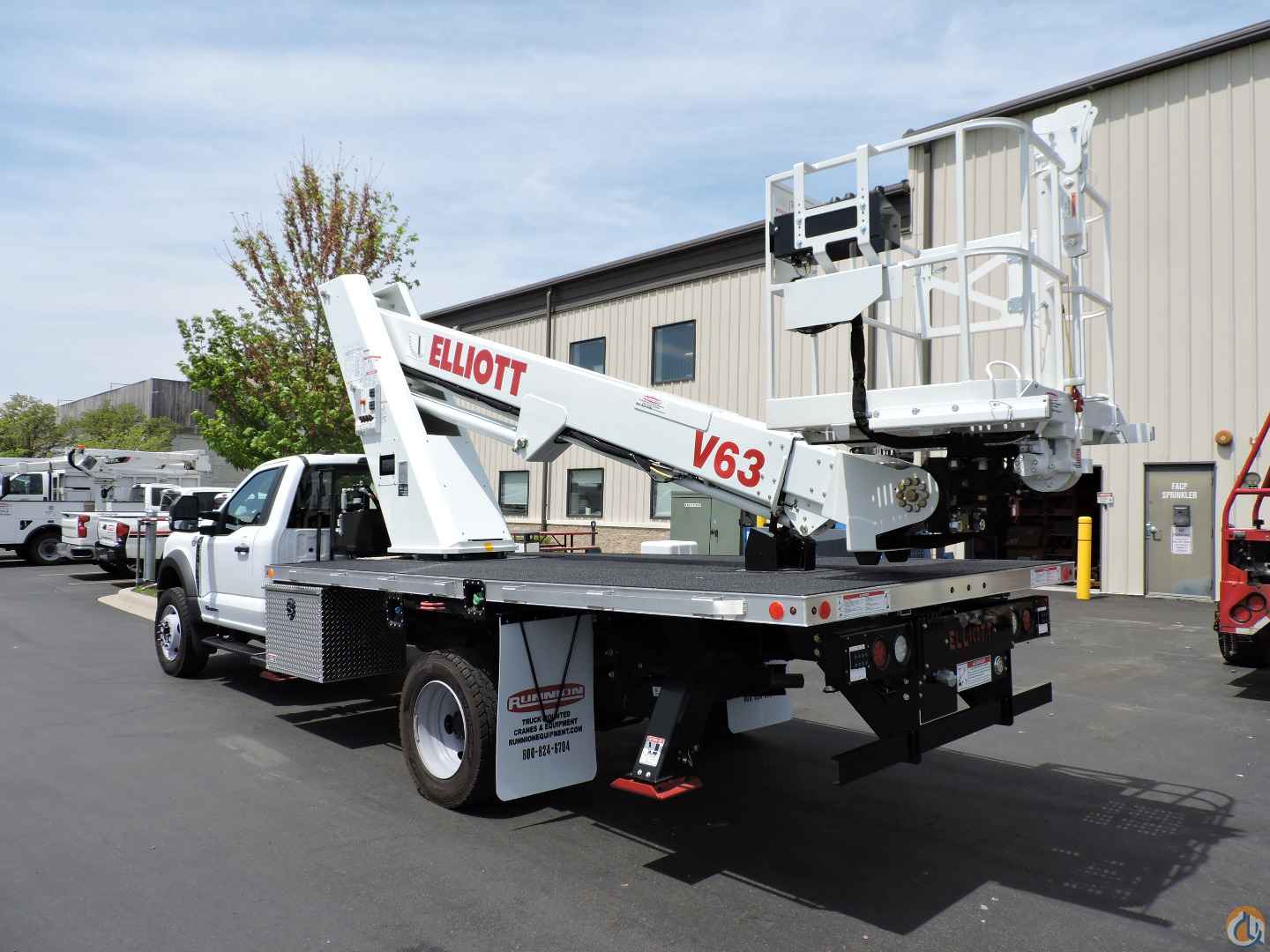

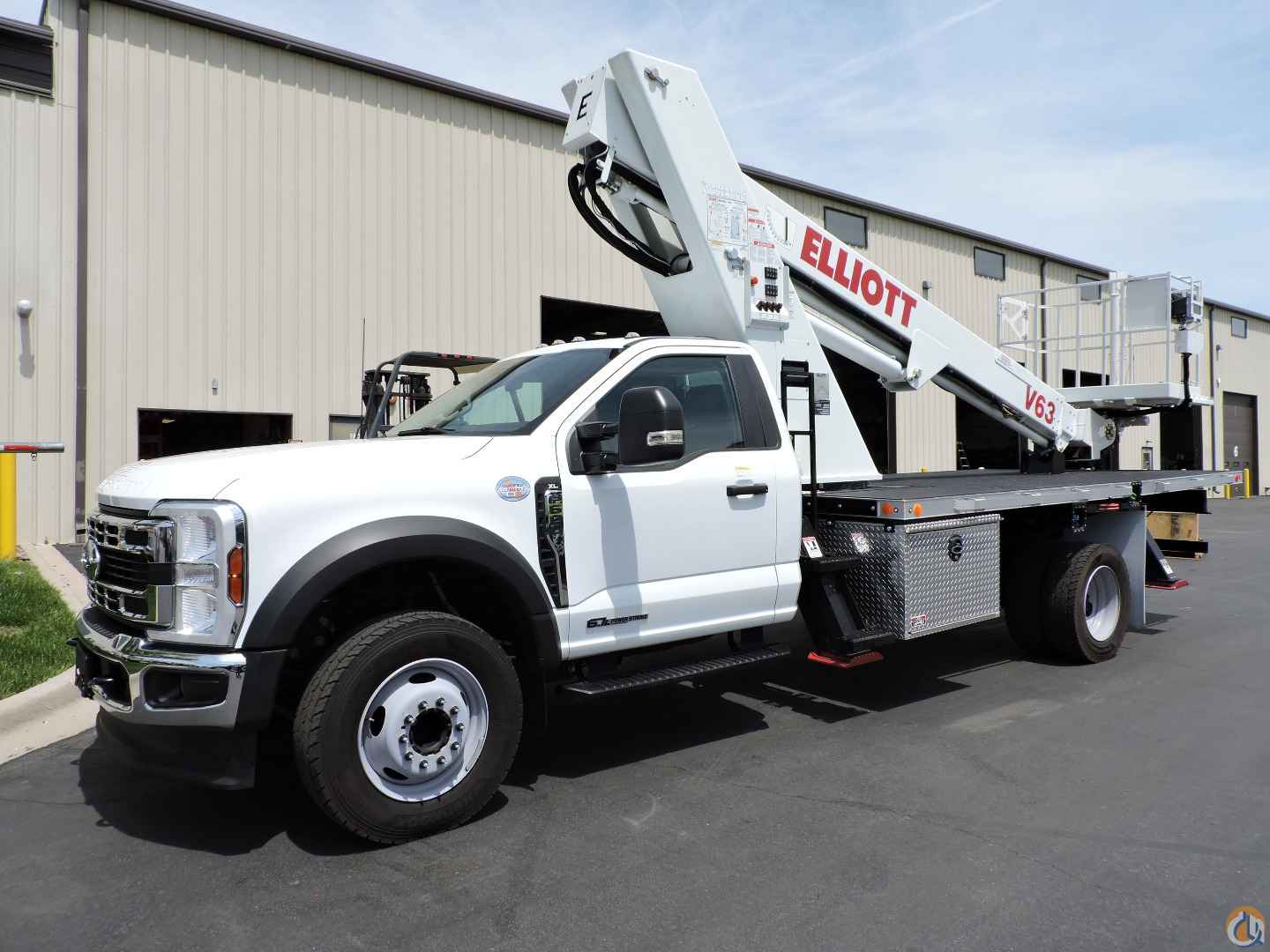

Elliott V63F aerial lift equipped as follows:

- 63’ work height

- Continuous rotation

- Hydraulically self-leveling and rotating top mounted platform

- 40” x 60” platform with sign forks

- Platform capacity 500 lbs

- 1,000 lb main boom winch

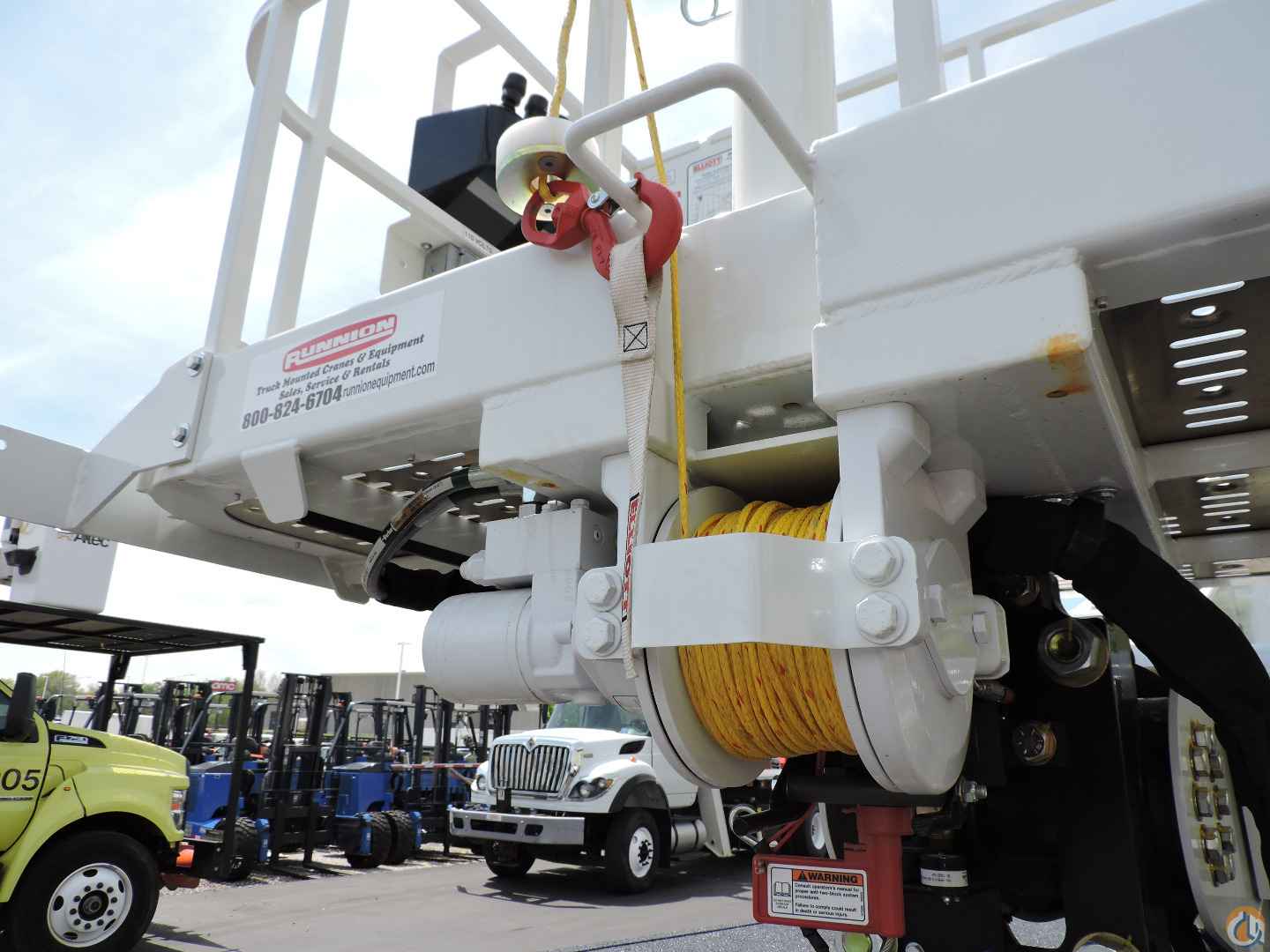

- 500 lbs platform jib with hydraulic winch mounted under platform

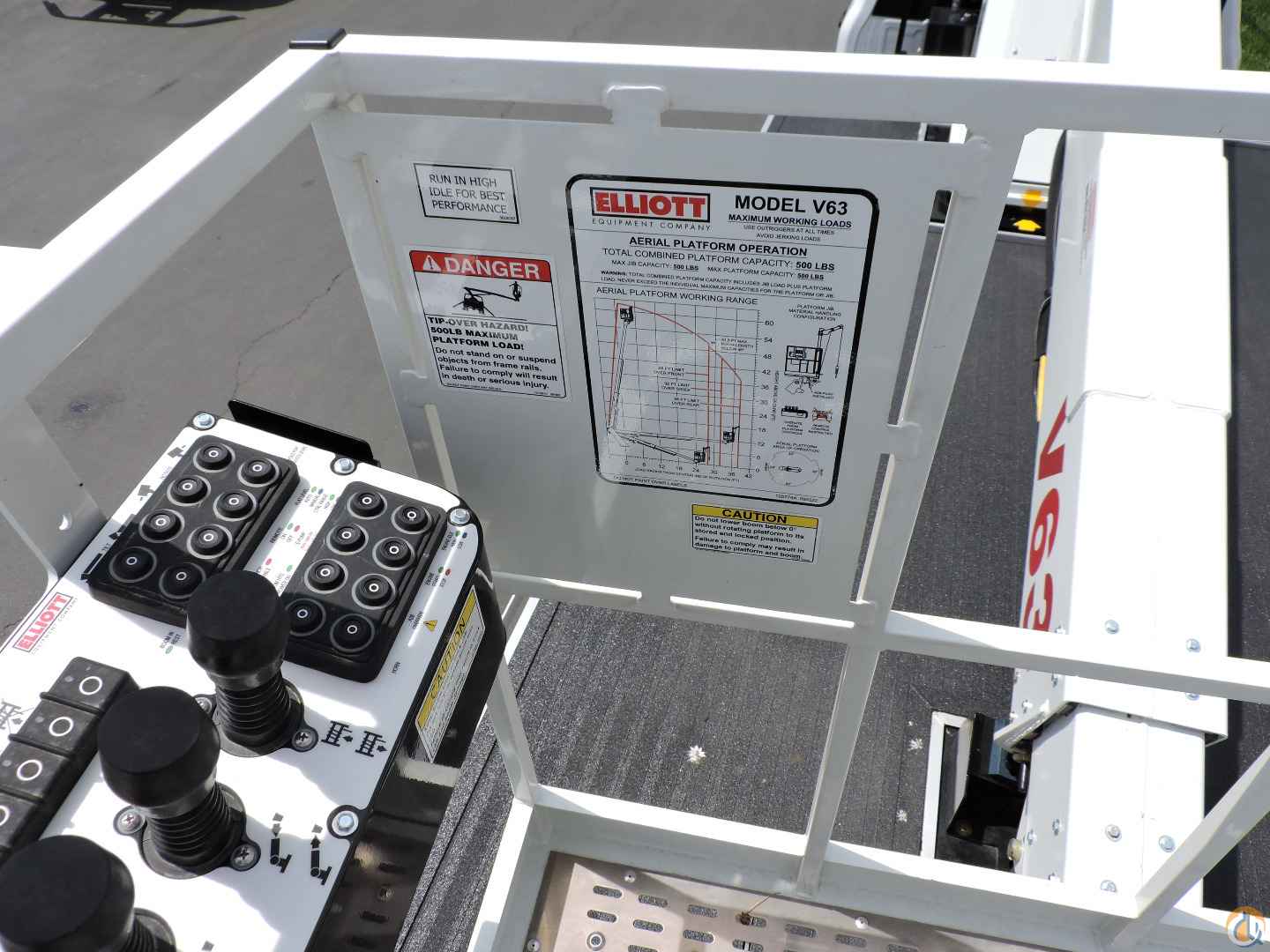

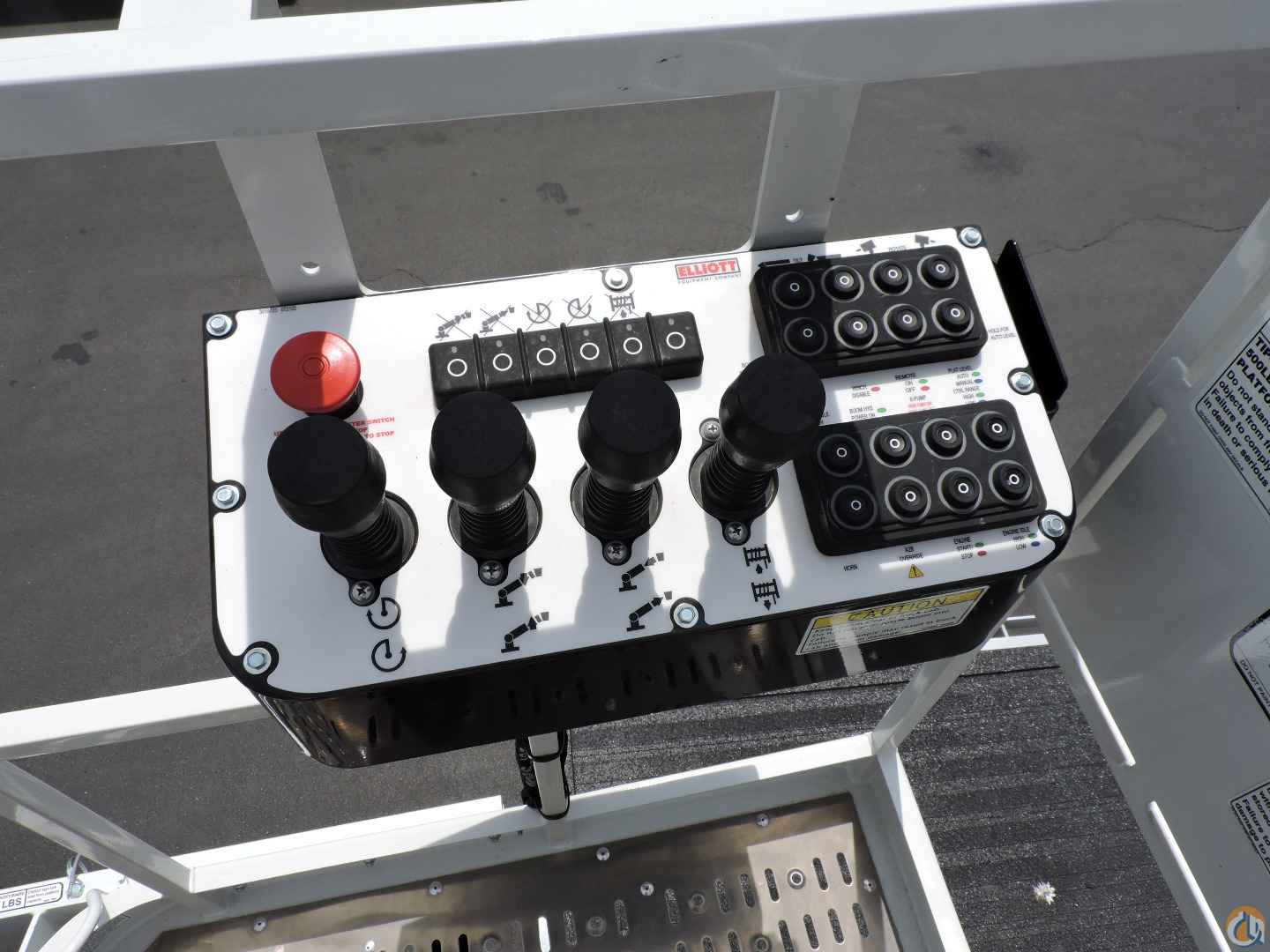

- Four (4) single-axis joysticks, hardwired

- Controls in platform to include O/R – boom selector, boom auto-stow, chassis controls, and platform leveling

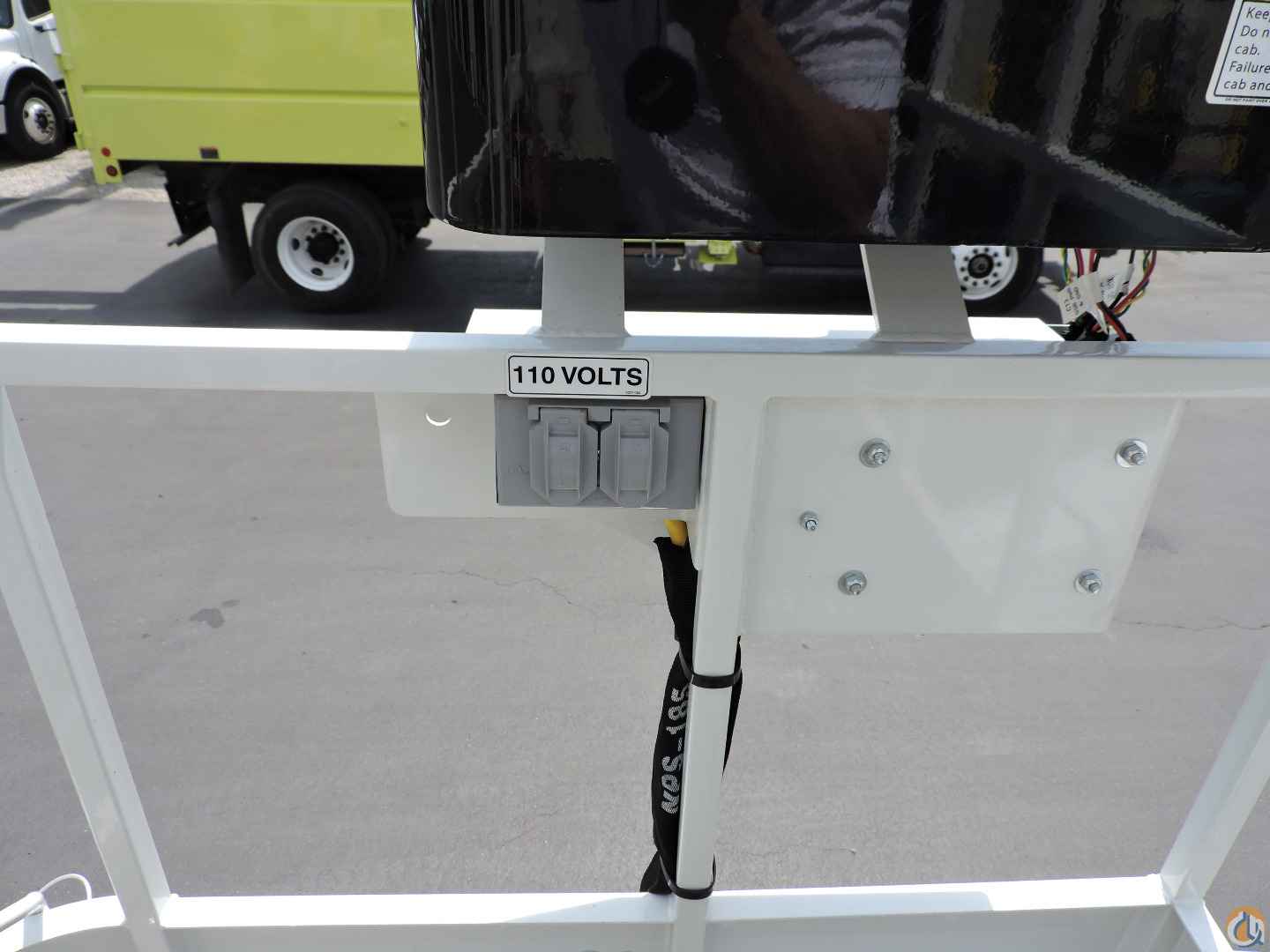

- 110V line to basket

- Electronic proportional controls on platform for boom and platform control

- “A” type outrigger at front and rear with fixed outrigger shoes

- Single outrigger valve located in rear compartment with access panel

- Electric outrigger controls mounted at each corner of the bed

- Four (4) 24” square composite plastic outrigger pads with two steel holders

- Steel three-section hydraulically telescoping boom

- Proportional electric controls mounted at turret

- Turret controls include chassis engine start/stop, chassis engine high/low all boom functions, platform leveling and rotation, and boom auto-stow

- Holding valve mounted on all cylinders

- Oil reservoir mounted to truck frame

- 12V emergency pump with switch at upper/lower controls

- Two body harnesses and lanyards

- 15’6” aluminum bed with LED lights and grip deck coating

- Two (2) 36" x 24" x 24" aluminum underbody mounted toolbox

- Unit painted white with black subframe and red outriggers

- Hot shift PTO

- LED lights to include all bed marker lights, stop, tail, and turn

- Backup alarm

- Fire extinguisher

- Safety triangle kit

MOUNTED ON:

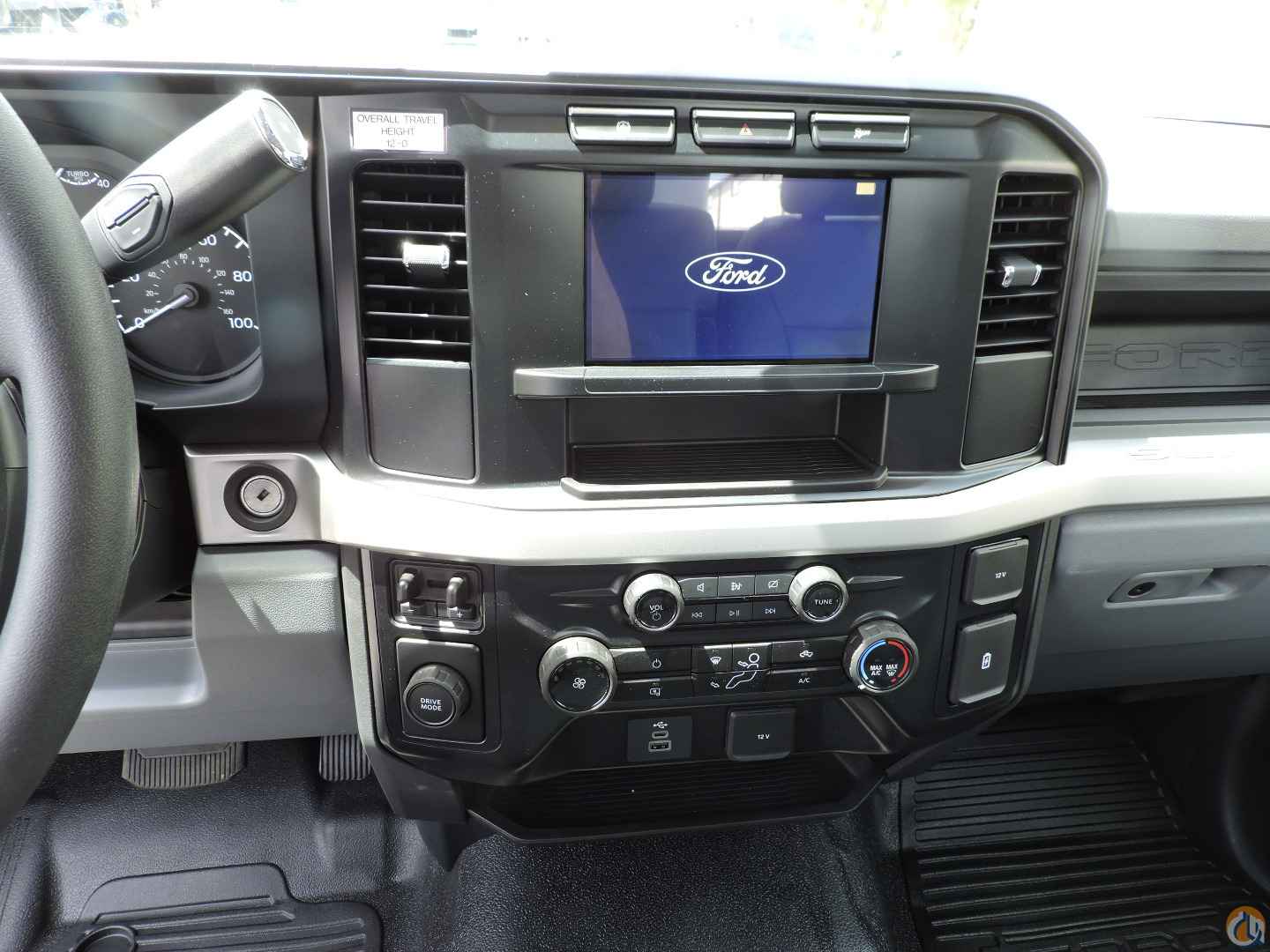

2024 Ford F600 4x2 equipped as follows:

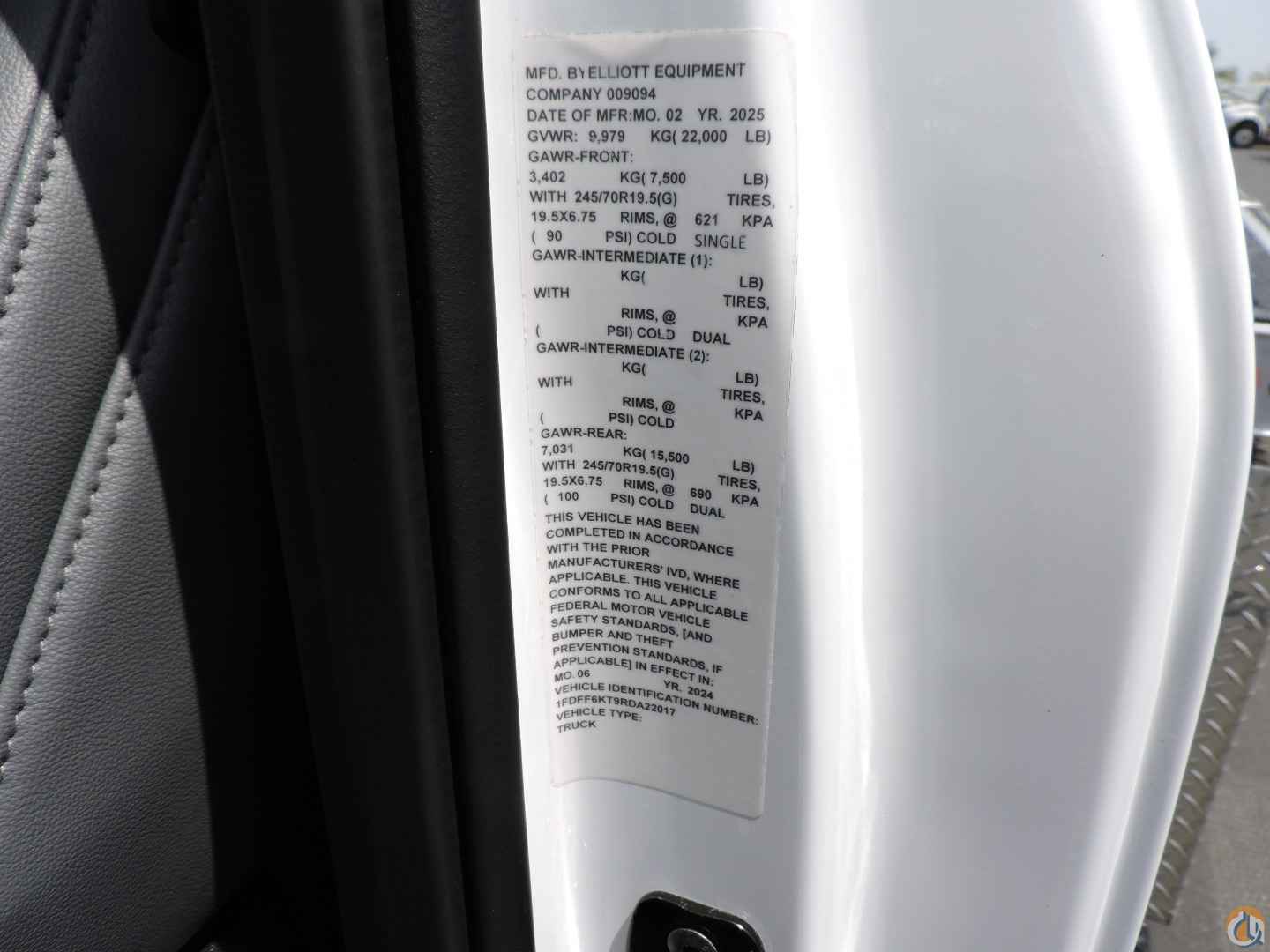

- 22,000 lbs GVWR, non-CDL

- 6.7L 4V OHV Power Stroke V8 turbo diesel B20 engine

- Engine block heater

- Torqshift 10-speed automatic transmission

- 7,500 lb front axle

- 15,500 lb rear axle

- Front and rear 19.5” painted steel wheels

- Tires – P245/70R

- Platform running boards

- AM/FM stereo radio

- 40/20/40 split bench seat- vinyl

- Color white
