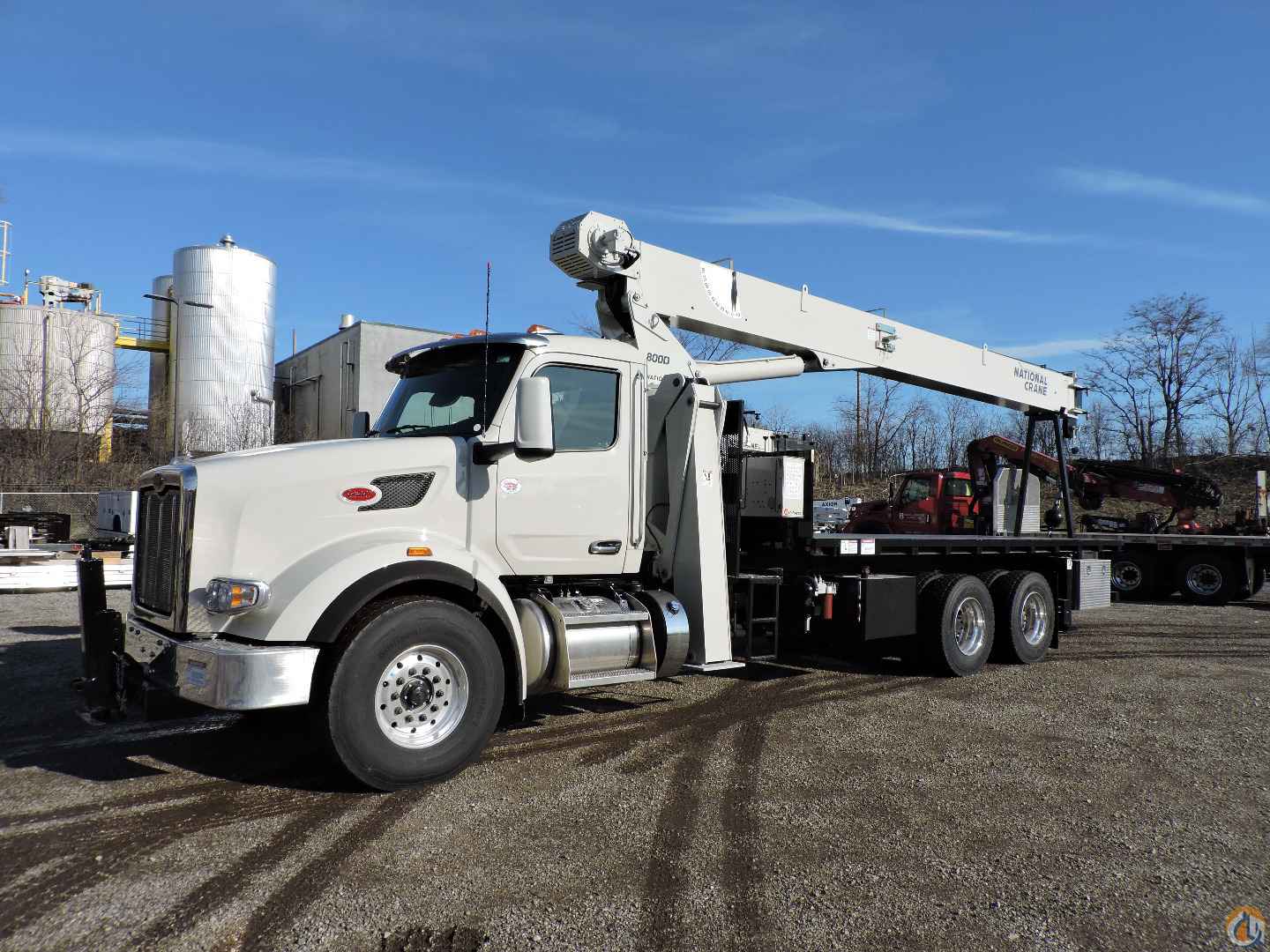

National Crane 8100D equipped as follows:

-          23 ton capacity

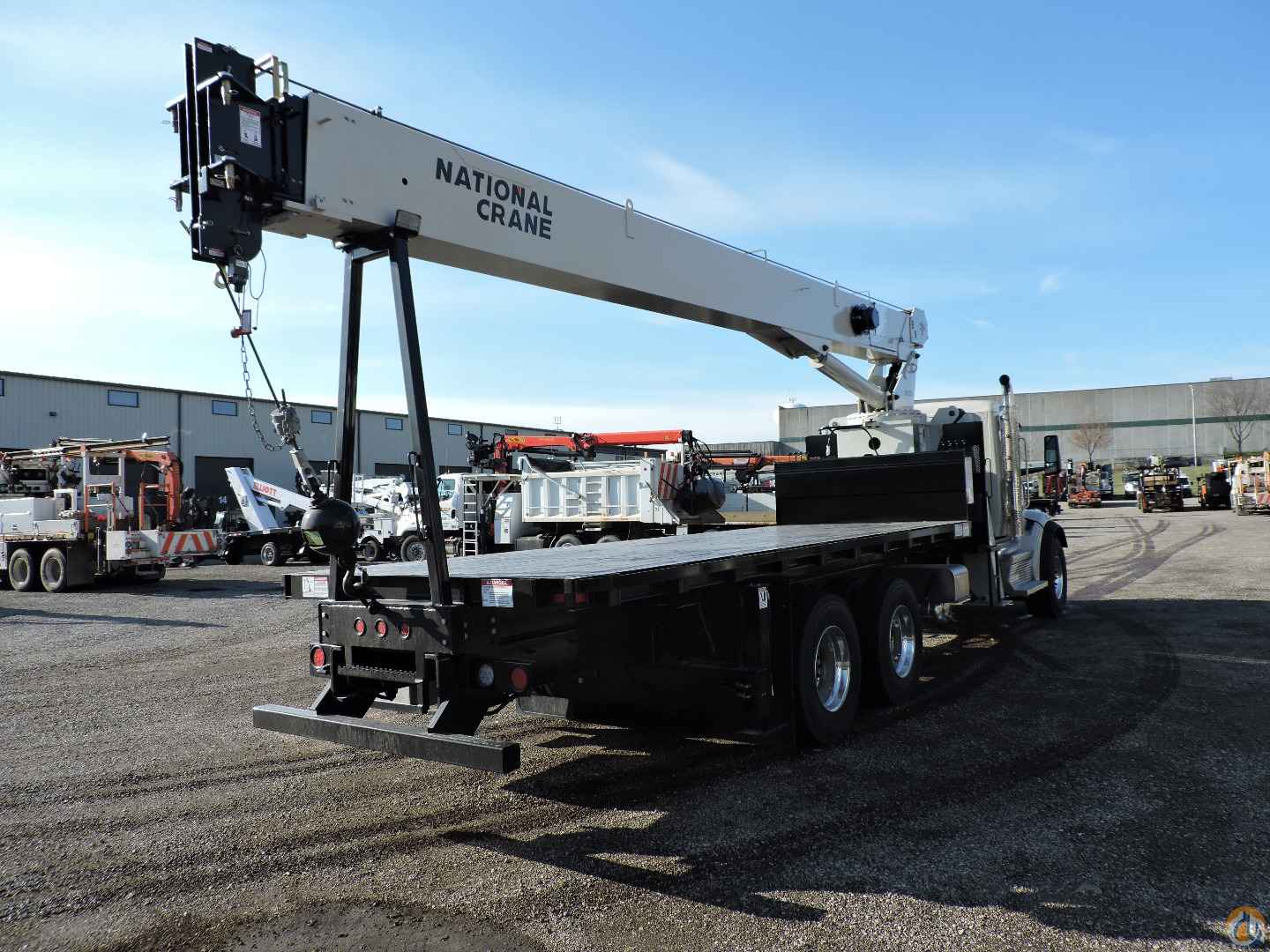

-          29.5’ to 100’ four (4) section telescopic boom – 110’ sheave height

-          Jib Preparation package includes boom mounted brackets for field jib installation, jib load charts and software for jib operating mode selection.

-          “A” type box slide outriggers with swivel pads

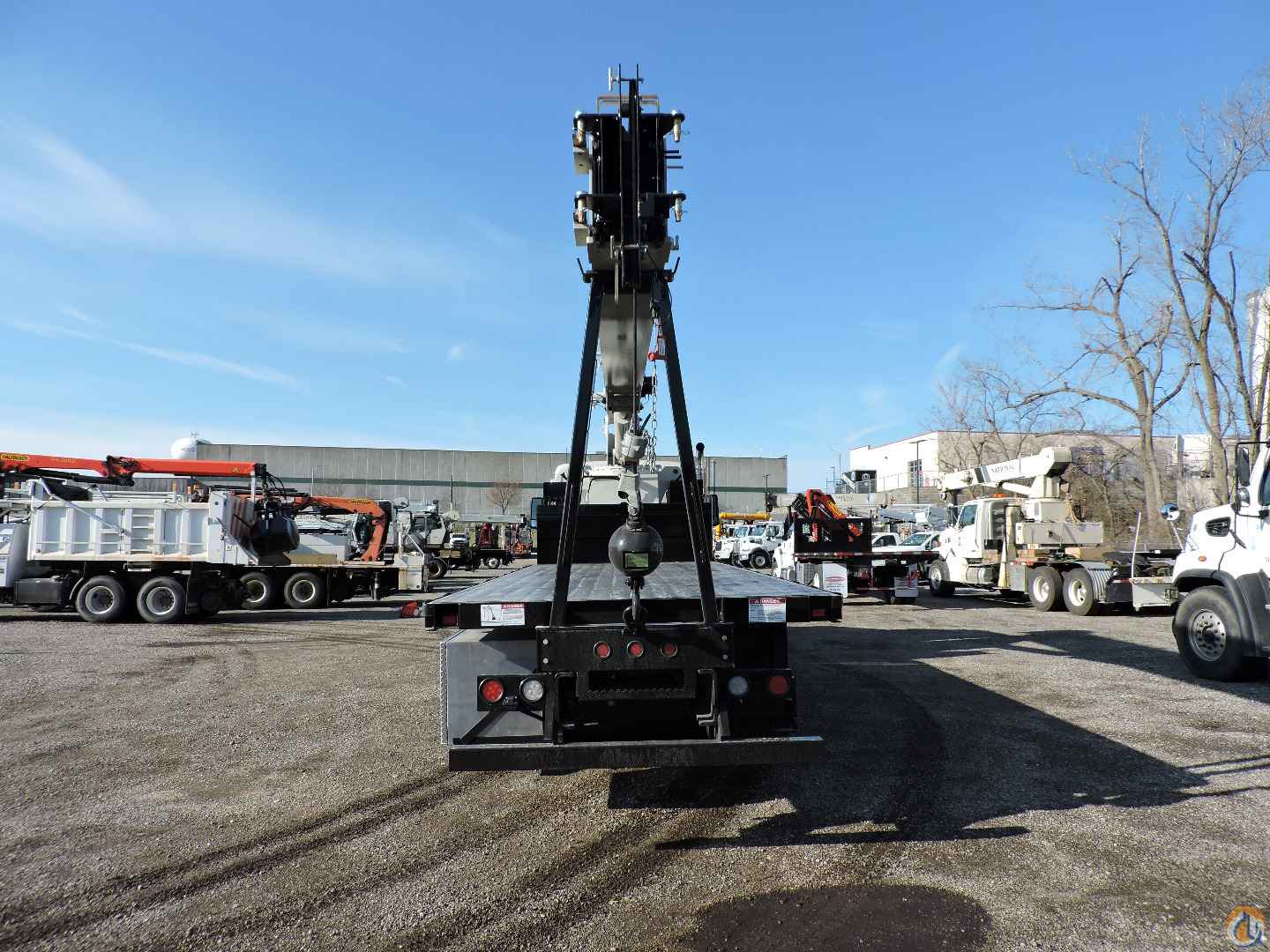

-          Out and down rear hydraulic stabilizers with 16’ span

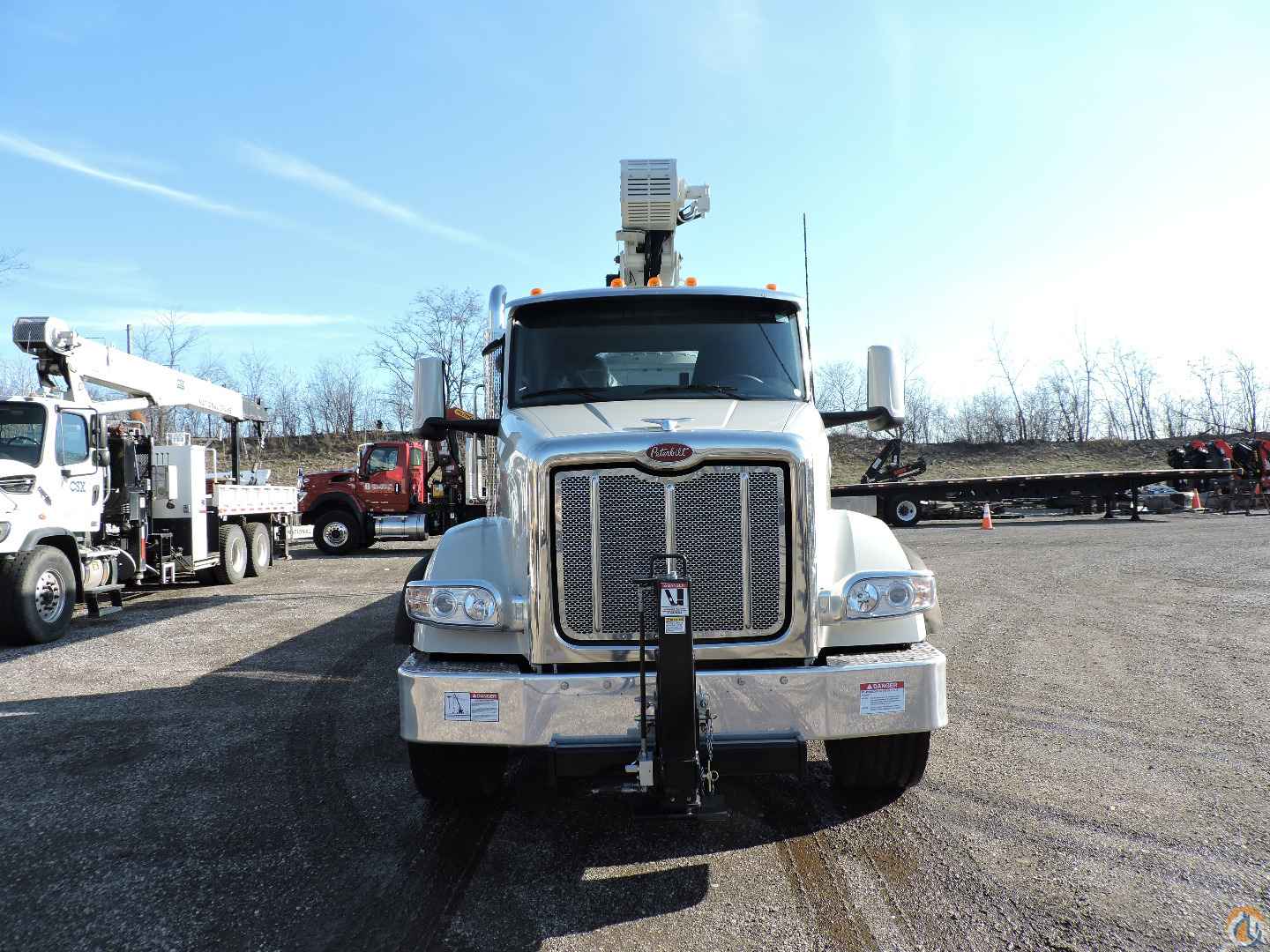

-          Single front outrigger for 360 degree stability

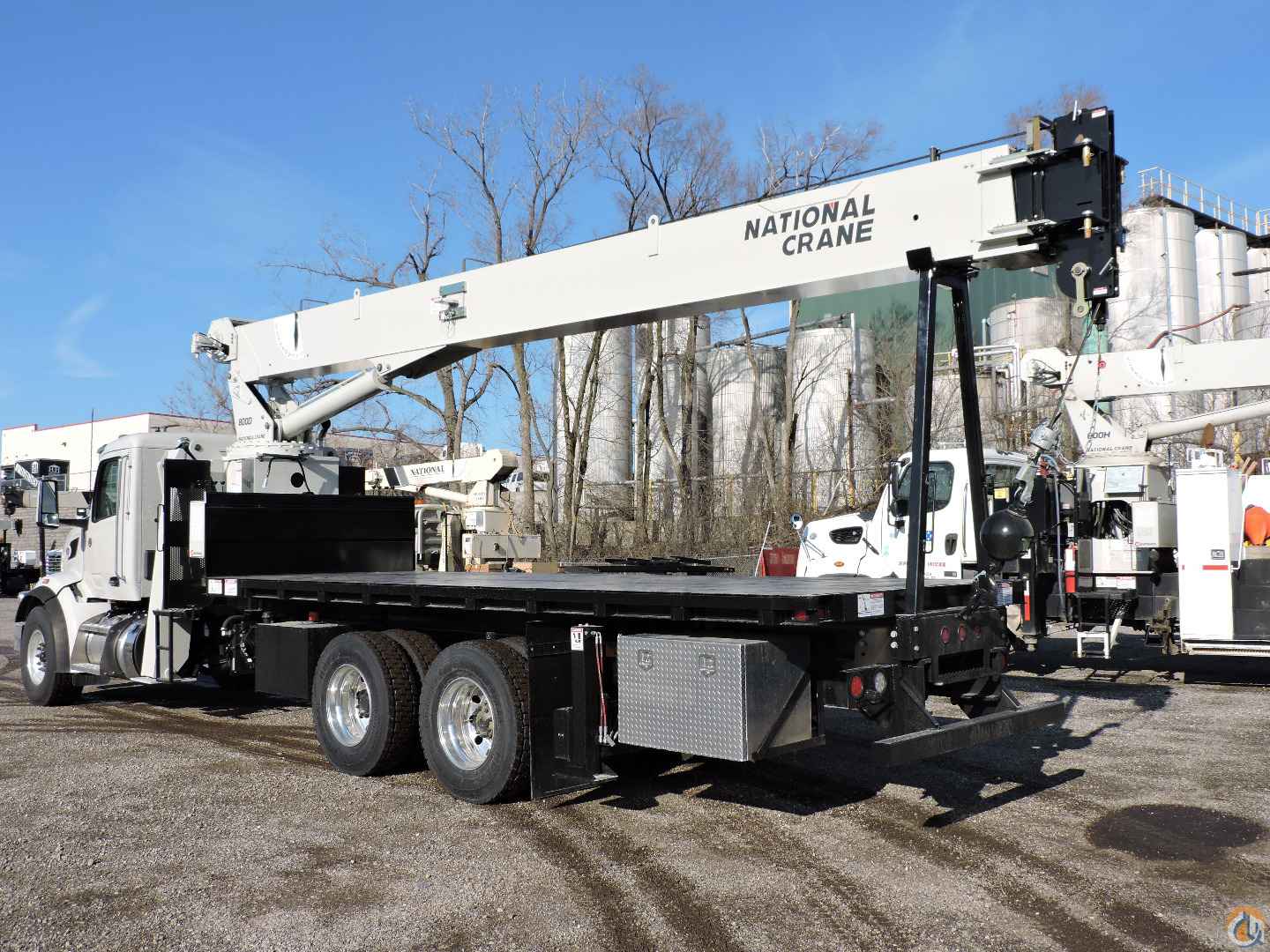

-          22’ super duty wood deck with 30” steel bulkhead

-          Outrigger motion alarm

-          Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case.

-          Internal anti-two block wiring

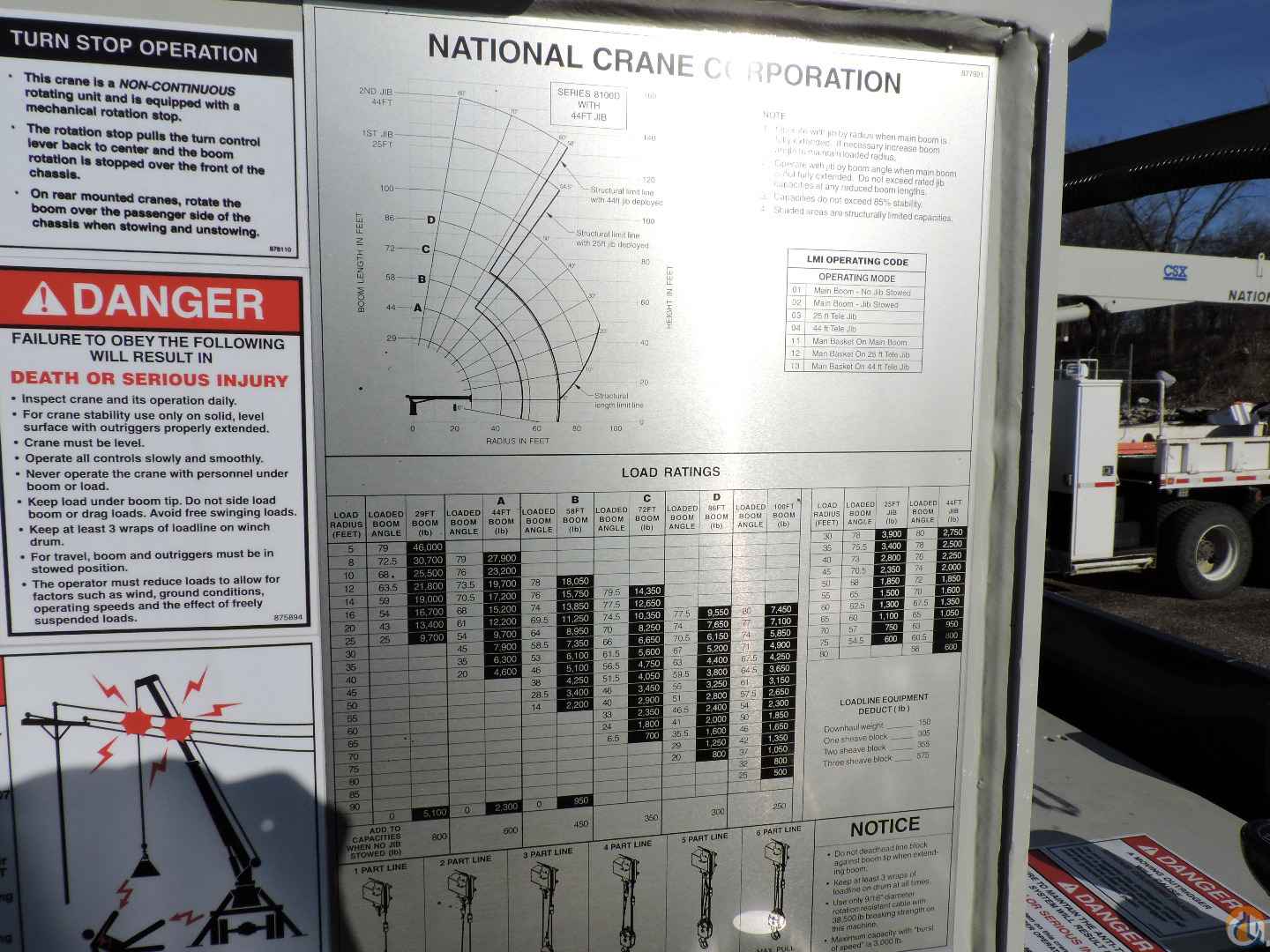

-          Rated Capacity Limiter System (RCL) computer capacity alert system RCL displays boom angle and length, working radius, rated load and total weight being lifted

-          Hi-performance planetary winch with 9/16” spin resistant wire rope

-          7-ton round downhaul style weight with top swivel and hook

-          Burst-O-Speed winch

-          Dual side stand-up operator’s stations, dual engine throttle, horn and engine start/stop.

-          Operator platform 40” above ground for maximum visibility

-          375^o non-continuous rotation, adjustable swing drive

-          Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing and crane functions

-          66-gallon hydraulic tank with return line filter, oil diffuser, sight gauge, and shut off gate valve

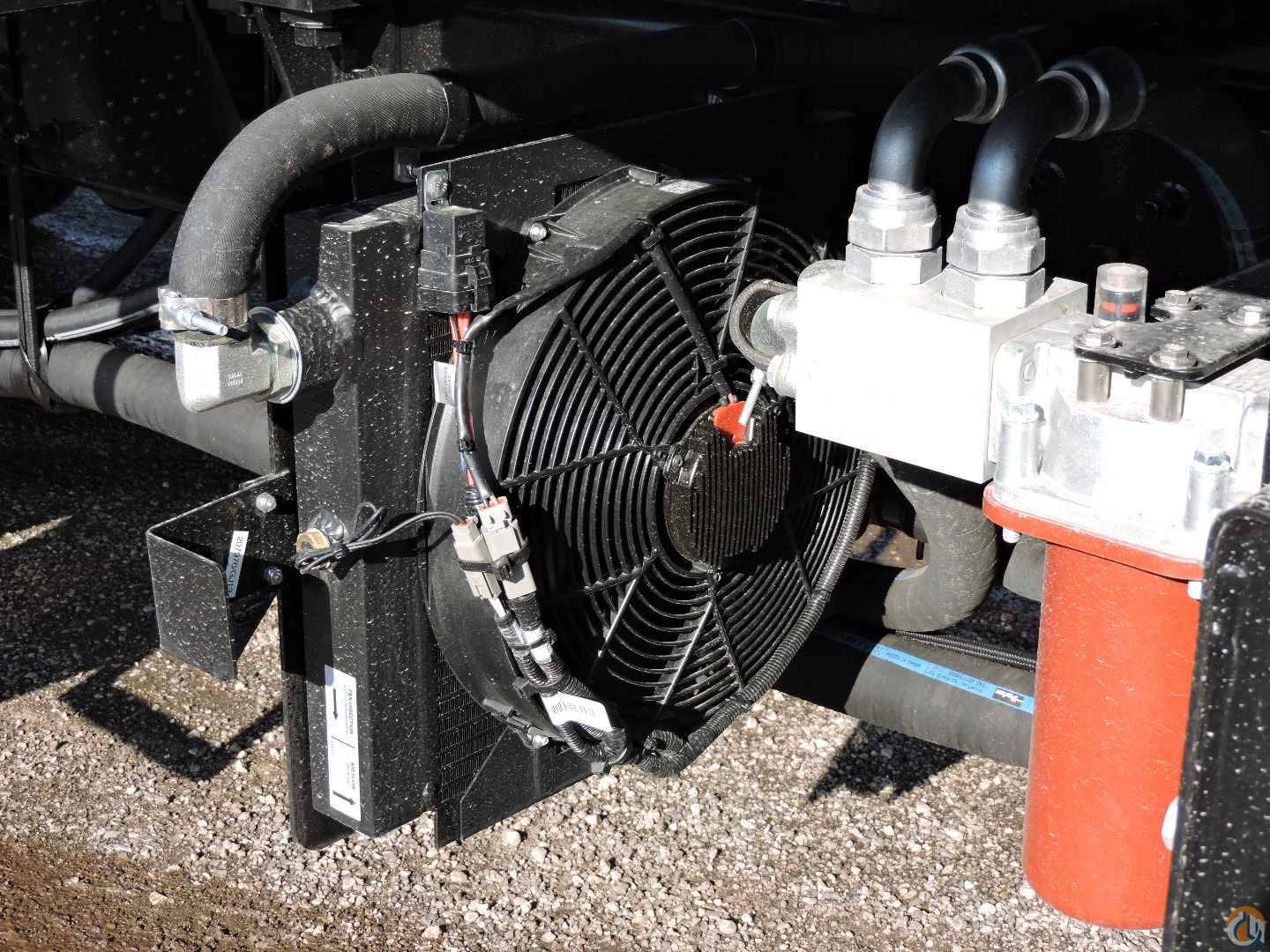

-          Single fan oil cooler

-          Painted National Platinum

-          One removable boom rest

-          Hour meter

-          Back-up alarm

-          Hot shift P.T.O.

-          Rear bumper underride protection

-          One owner’s manual and one CD owner’s manual

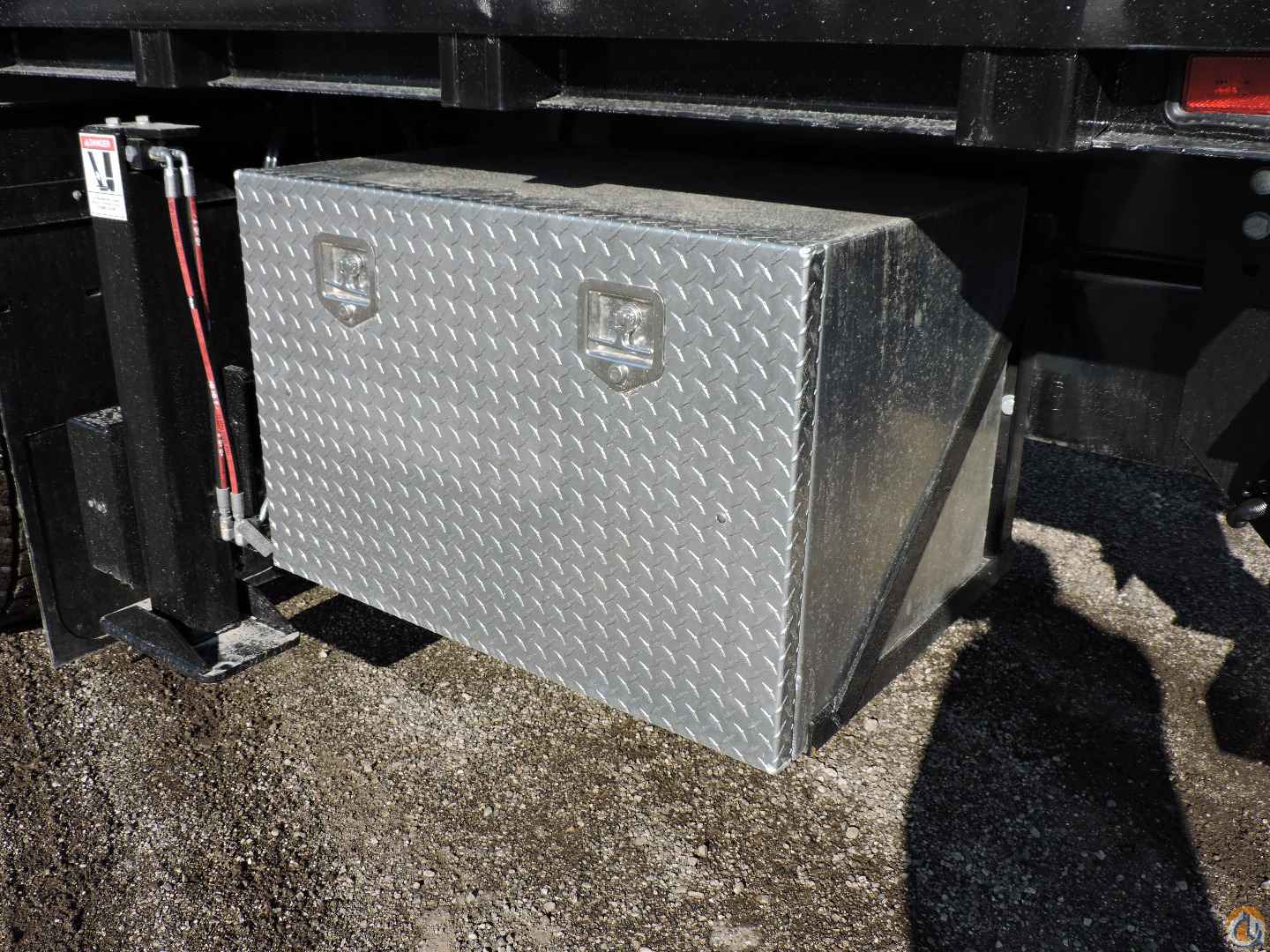

-          36” x 24” x 24” aluminum tool box

MOUNTED ON:

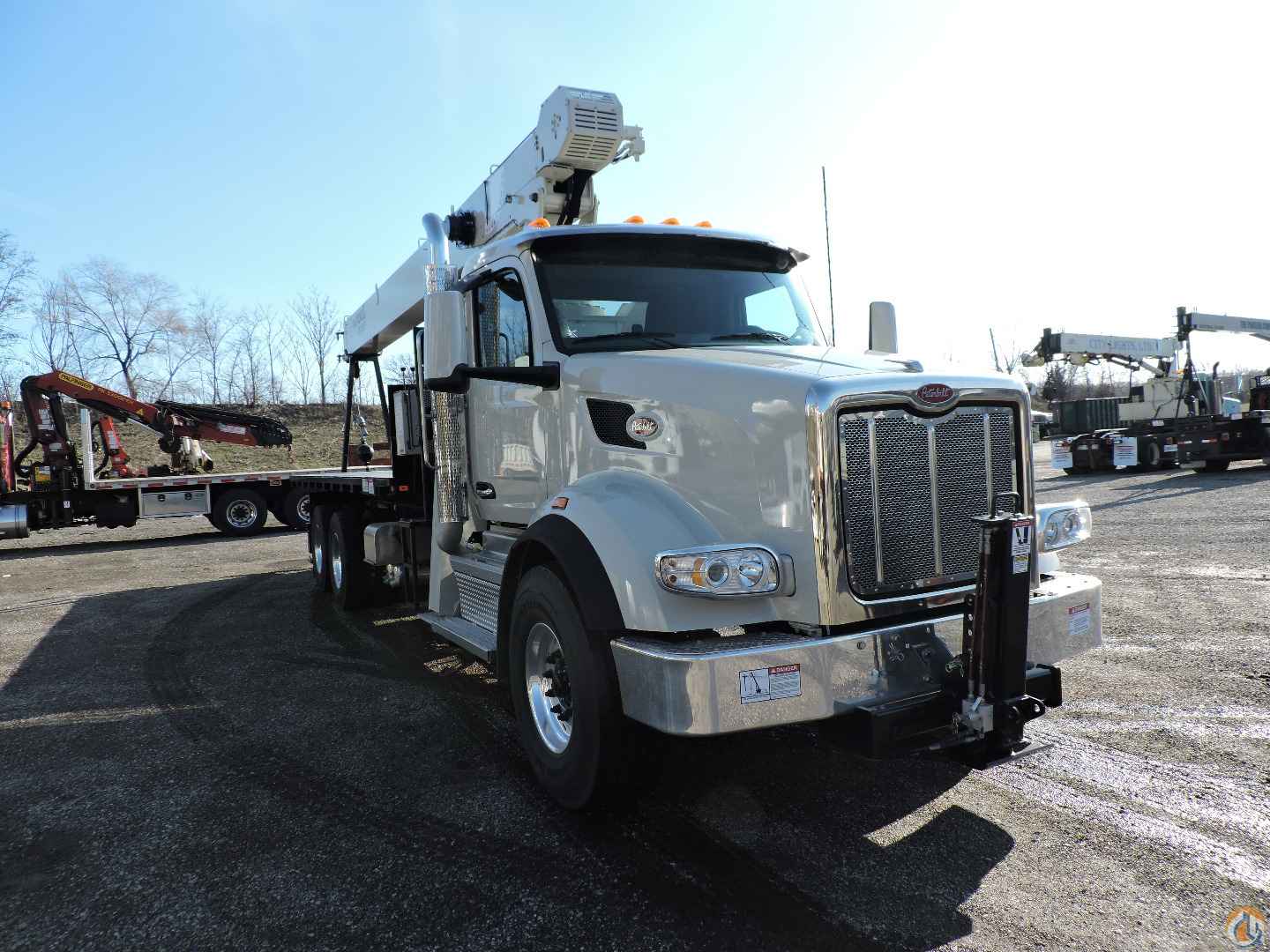

2025 Peterbilt 567 equipped as follows:

-          Cummins X15 450 hp @1900 rpm, GOV@2000, 1650 ft/lb @950 rpm

-          Engine block heater 110-120V

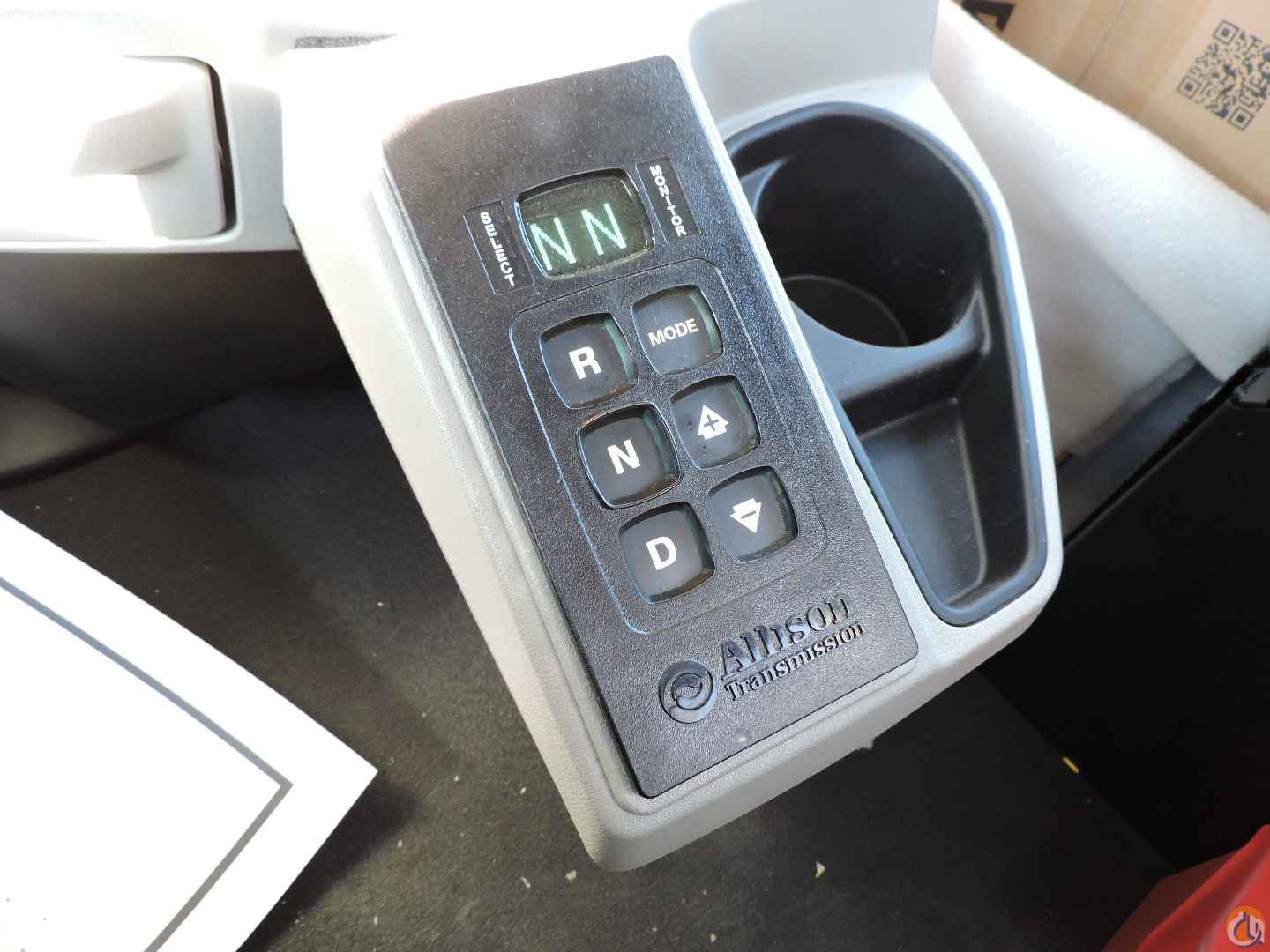

-          Allison 4500 RDS-P Transmission, Gen 6

-          20,000 lb PACCAR front axle

-          20,000 lb front Taper-leaf spring suspension with heavy resistance shocks

-          46,000 lb rear axle with Hendrickson HMX EX 460 46,000# suspension

-          69,000 lb Neway air rear suspension

-          Tires

-          Front – 20 ply 425/65R22.5

-          Rear – 14 ply 11R22.5

-          Aluminum wheels with high polish finish

-          Exhaust single RH side of cab

-          Bendix air dryer with heater

-          Polished aluminum air tanks outside

-          26” aluminum 80-gallon fuel tank

-          Aluminum bumper swept back polished

-          Stainless steel cover for DEF tank

-          Rubber fender lips 4.5” wide

-          Peterbilt high-back driver seat, air ride, Mordura, w/dual arm rests

-          Peterbilt high-back passenger seat, fixed, Mordura

-          Adjustable steering column, tilt/telescope

-          ConcertClass stereo – AM/FM, WB, USB, BT phone

-          Power lift windows

-          Power door locks

-          Outside sunvisor stainless steel

-          Air horn

-          Cab air suspension

-          Triangle reflector kit

-          Fire extinguisher

-          Painted Sand Gray
