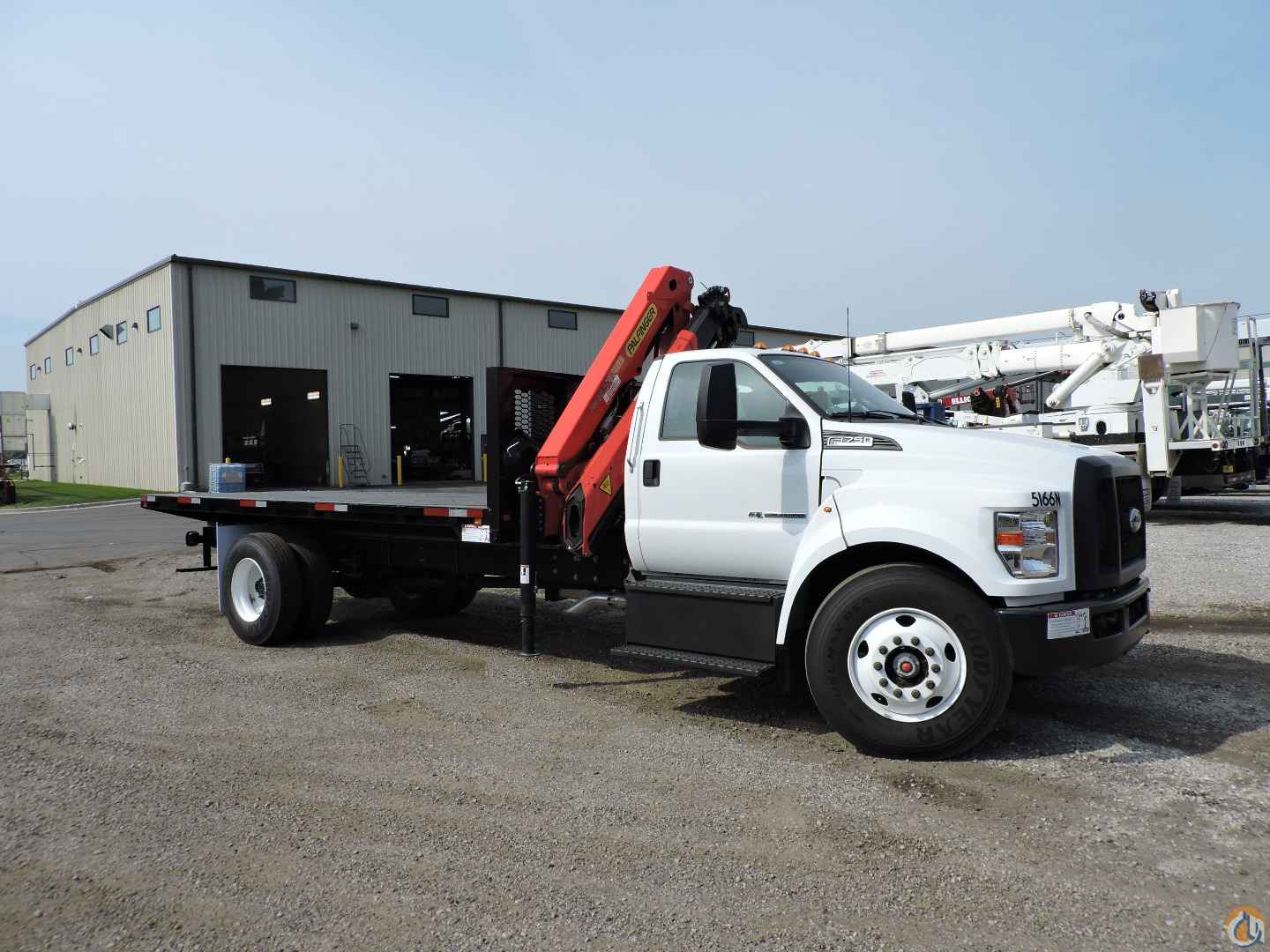

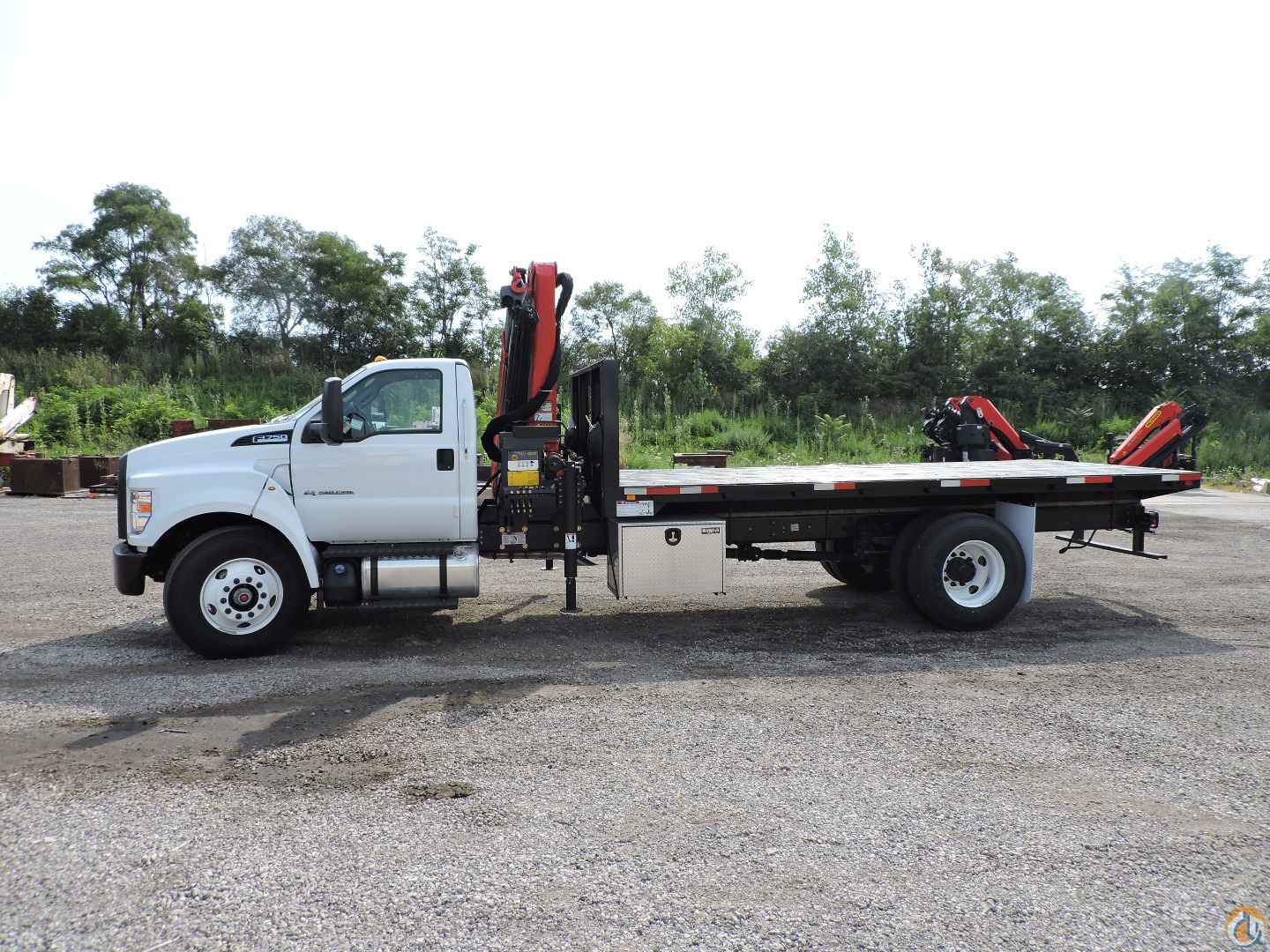

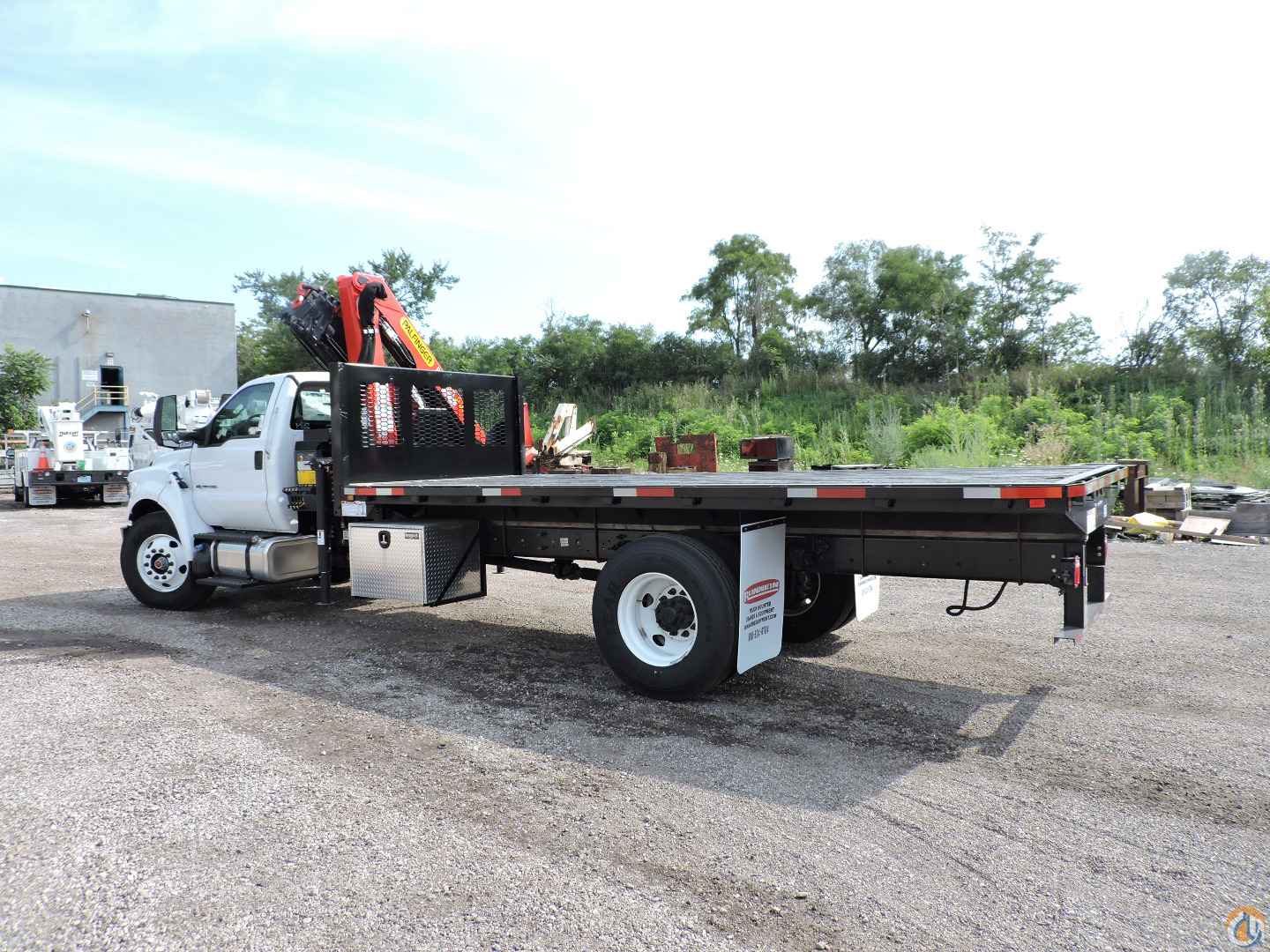

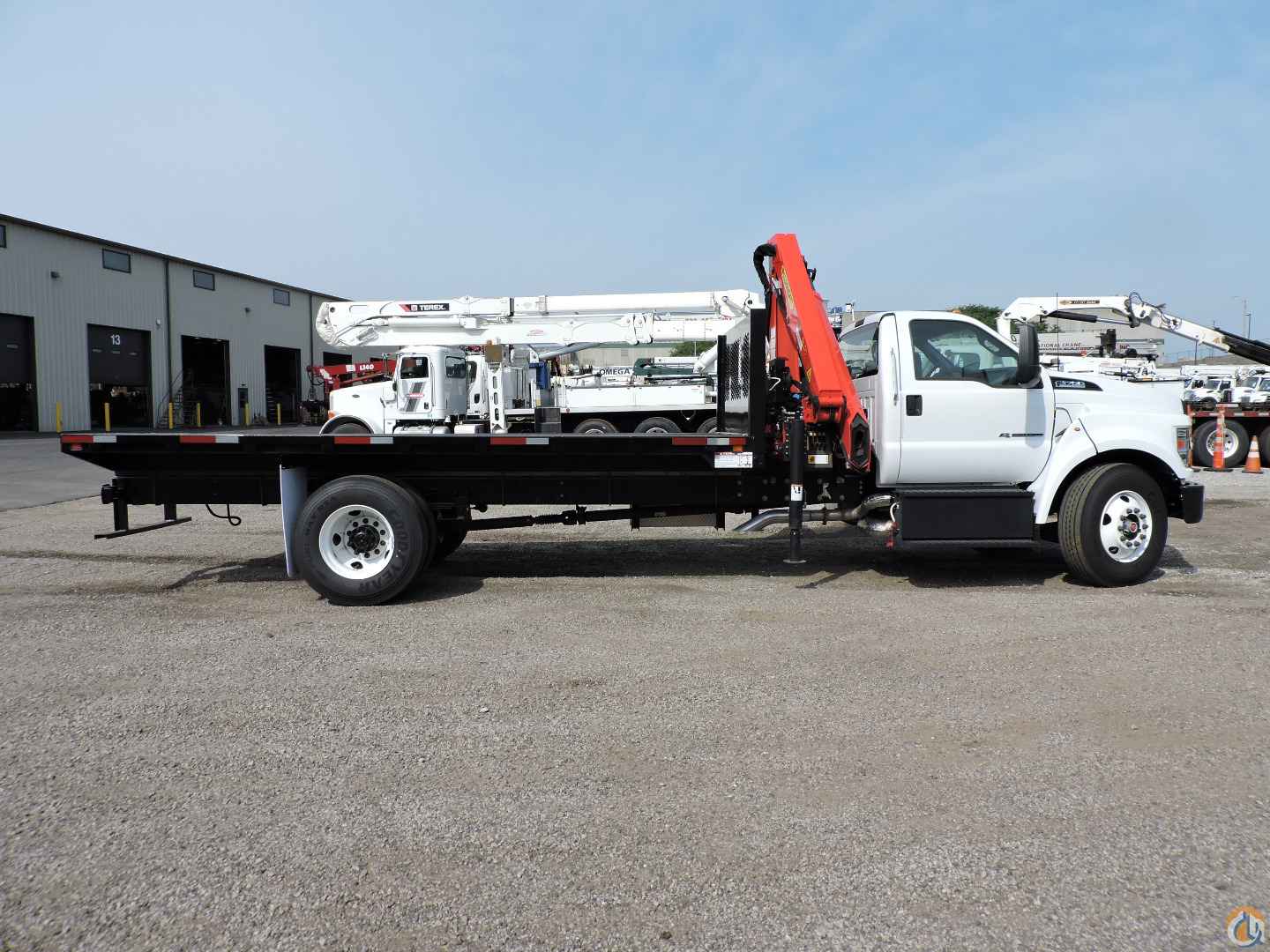

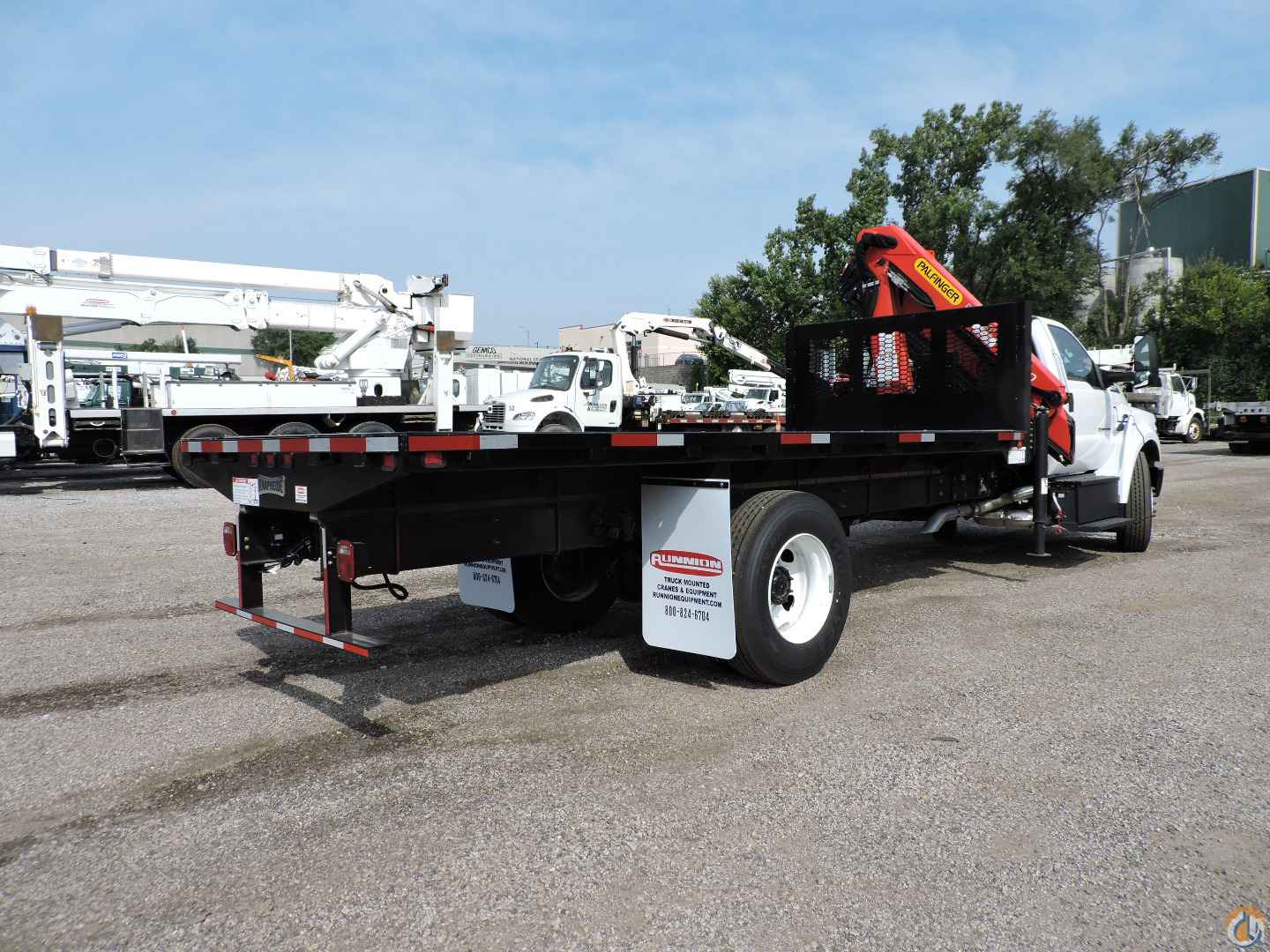

2025 Palfinger PK 12501 Mounted Knuckle Boom Crane
![](https://images.cranenetwork.com/cn/cranes/image/53c9038092ba0267a6843e220.jpg)
Dan Runnion: 708-541-1066
Last Updated: 22 Aug 2024
Capacity: 0.00
Condition: New
Unit #: 5166N

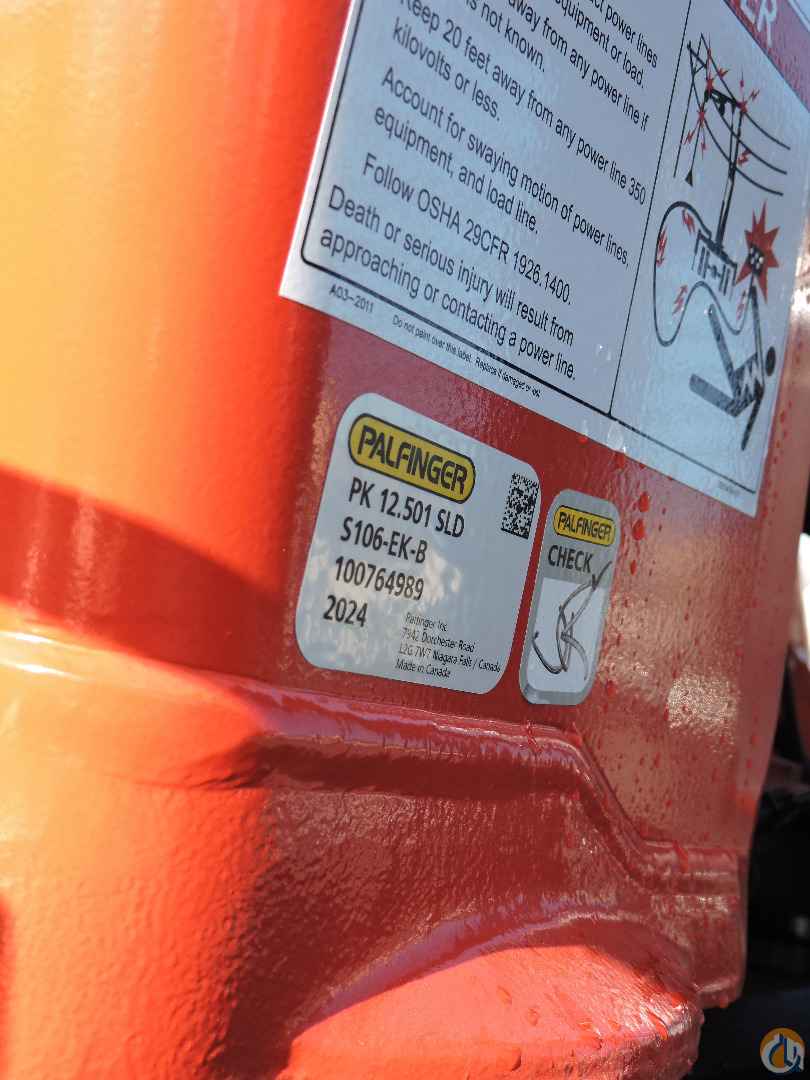

Palfinger PK 12.501 SLD 5 equipped as follows:
- Mounted back of cab
- Maximum lifting moment 11.4 mt (82,160 ft/lb)

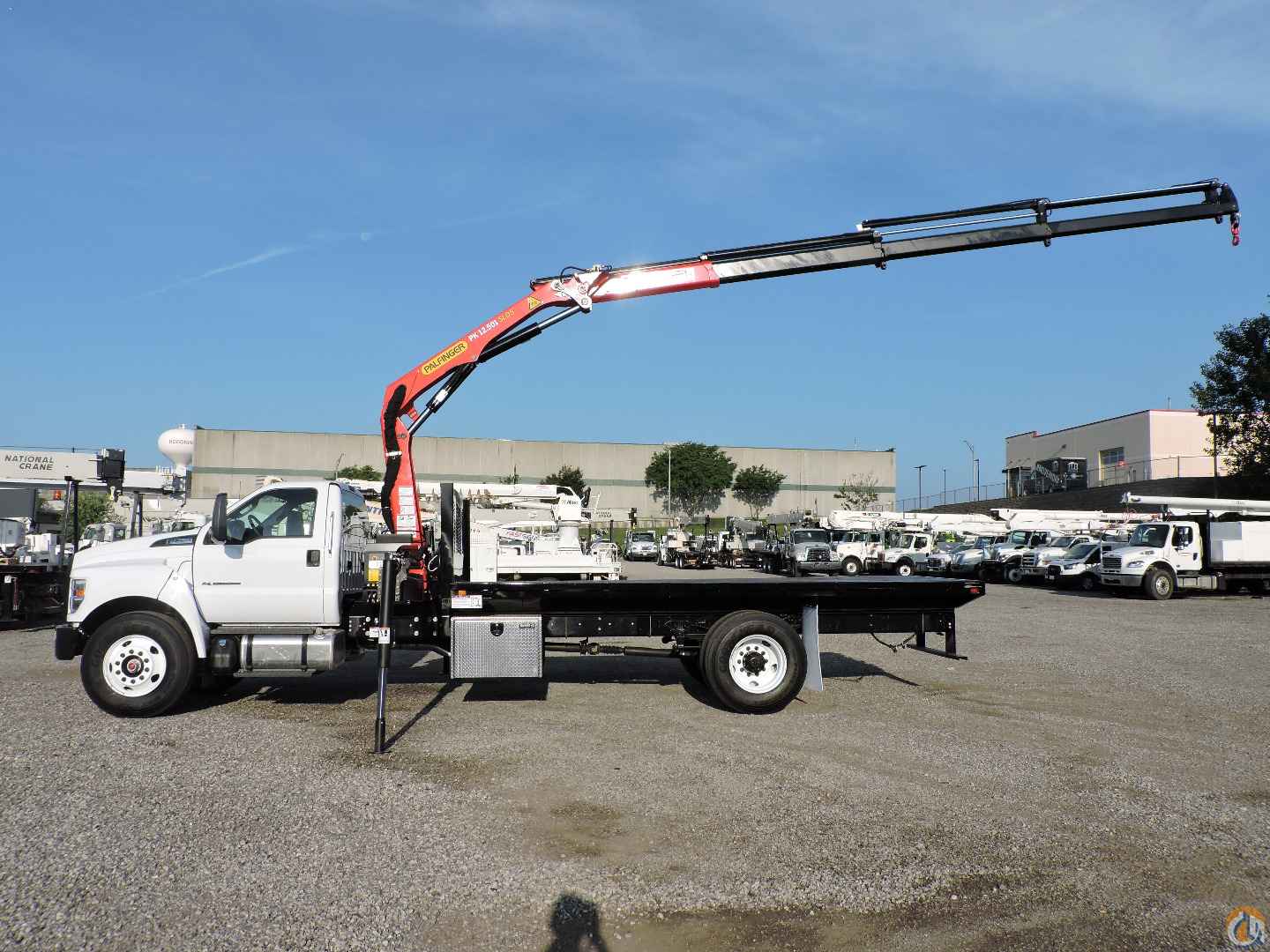

- 4-section hydraulic boom extension to 39’6”

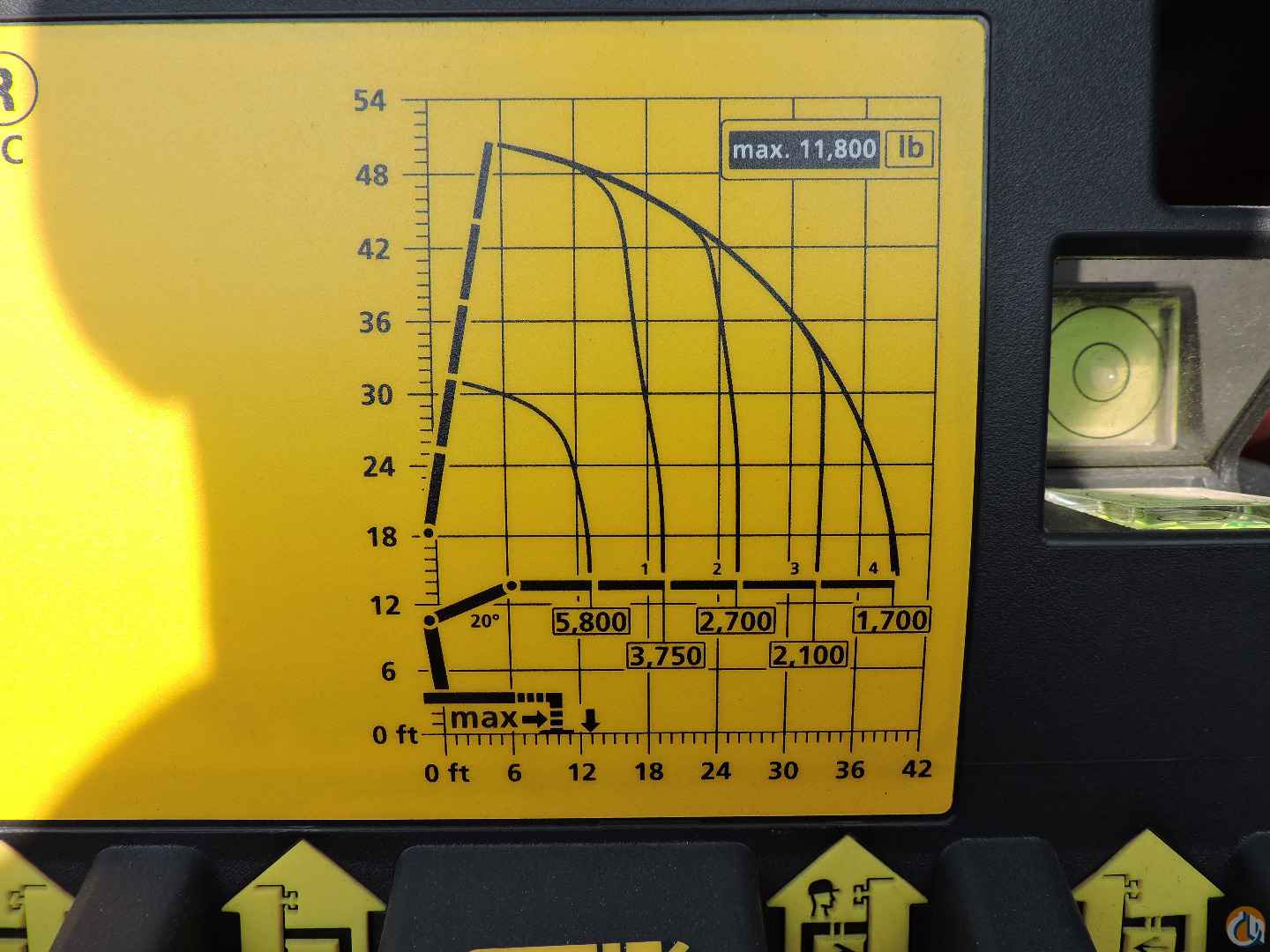

- Maximum lifting capacities:
- 13’ – 5,800#
- 19’ – 3,750#
- 26’ – 2,700#
- 32’ – 2,100#
- 39’ – 1,700#

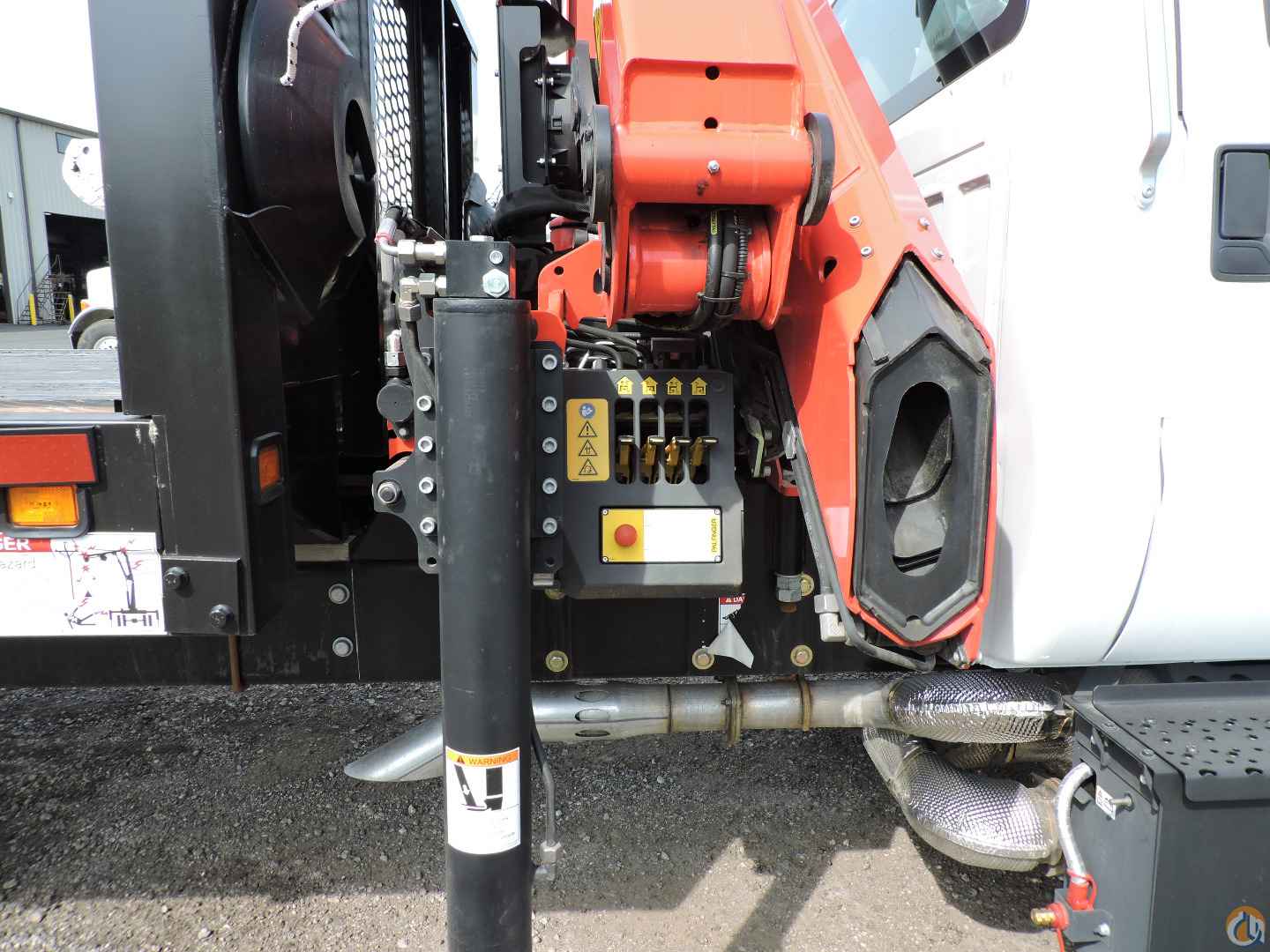

- R3X telescopic outriggers hydraulically extendable to 18’4”
- Two (2) PVC stabilizer shoes 15 3/4” diameter. Slides onto stabilizer plate, with rope handle and storage bracket, installed.
- Paltronic overload protection system
- Single linkage at outer boom with 15 degree Power Link Plus
- Rotation angle 400 degrees

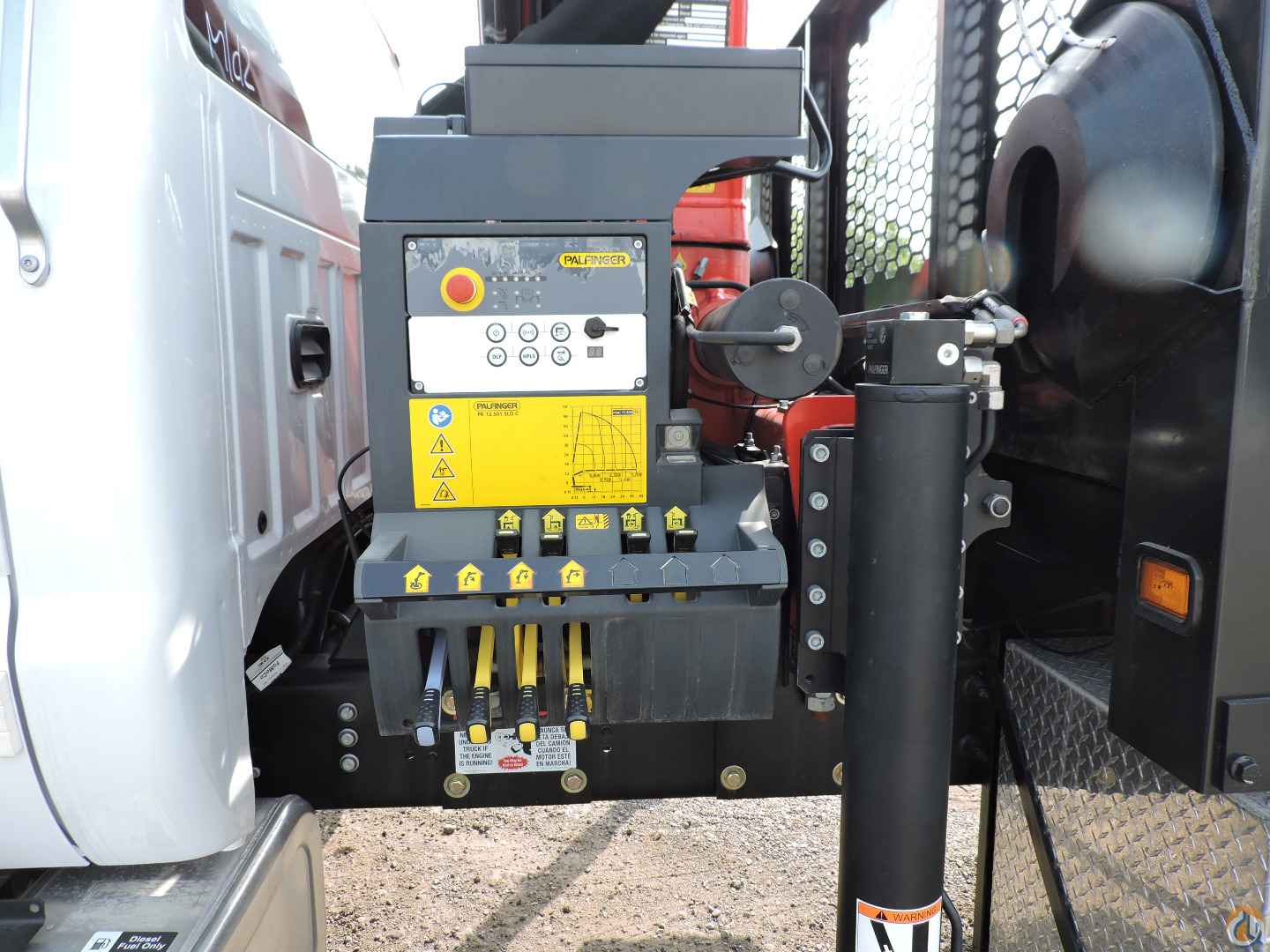

- Single ground control station
- Radio remote control with Paltronic display on handeset
- Bubble level at both outrigger control stations
- Load holding valves on main, outer and extension cylinders
- Return oil utilization
- 17.2-gallon oil tank – mounted on crane base
- 11.5 HP Oil cooler
- 11,900# roller bearing load hook
- 18’ Knapheide Heavy Hauler Jr with rub rails and underbody tie down rails
- 40” HD bulkhead
MOUNTED ON:

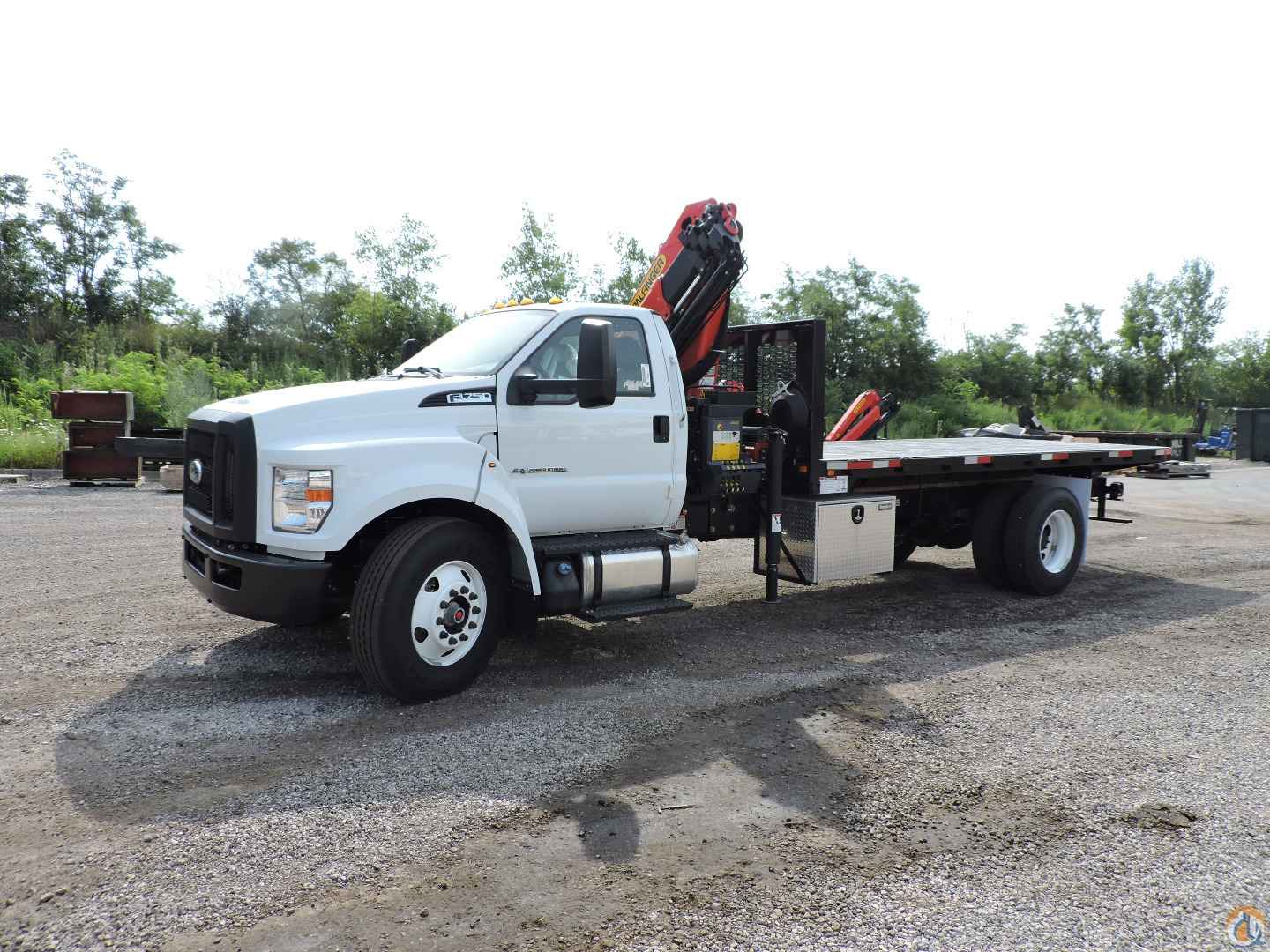

2025 Ford F750 equipped as follows:

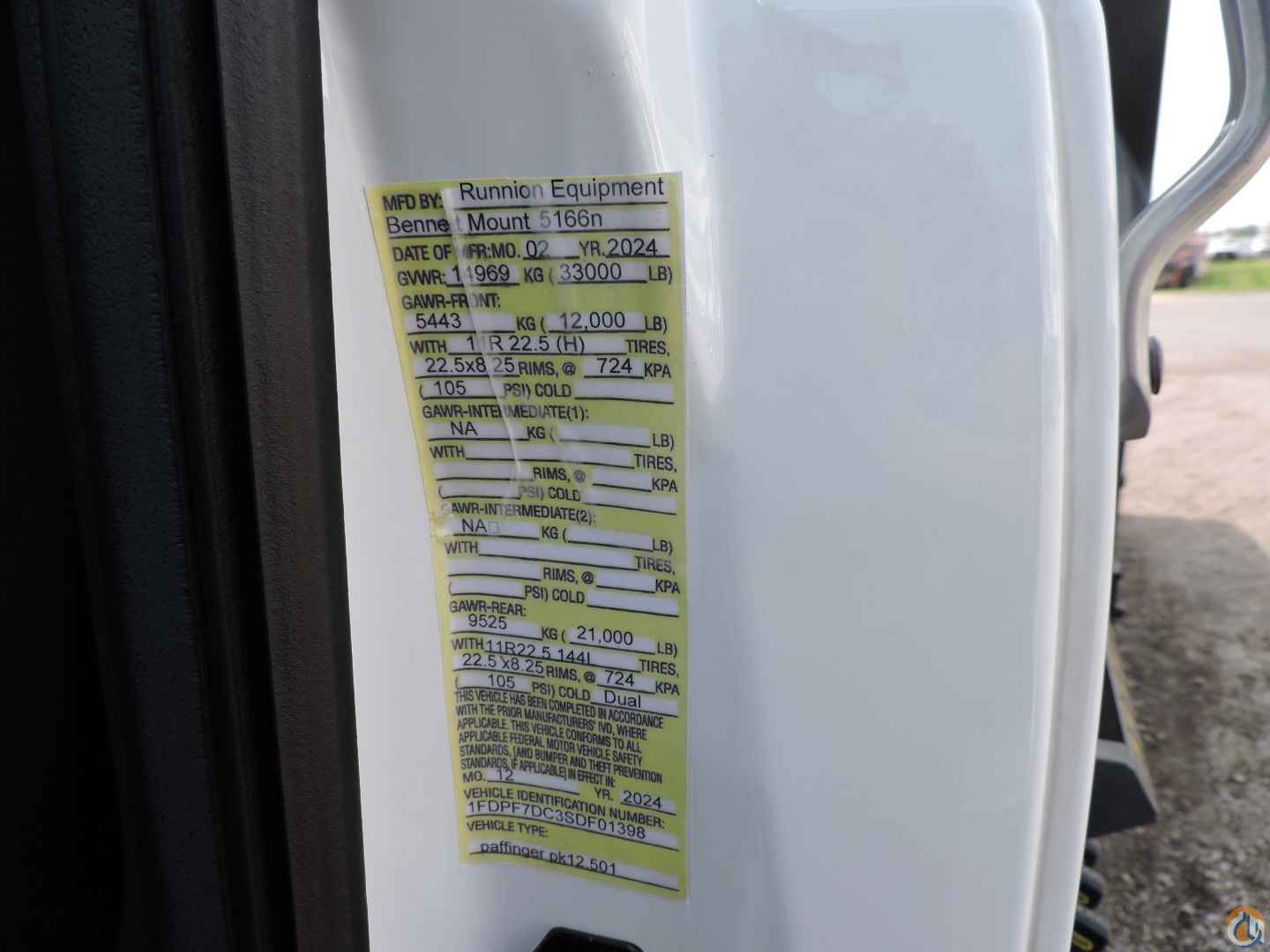

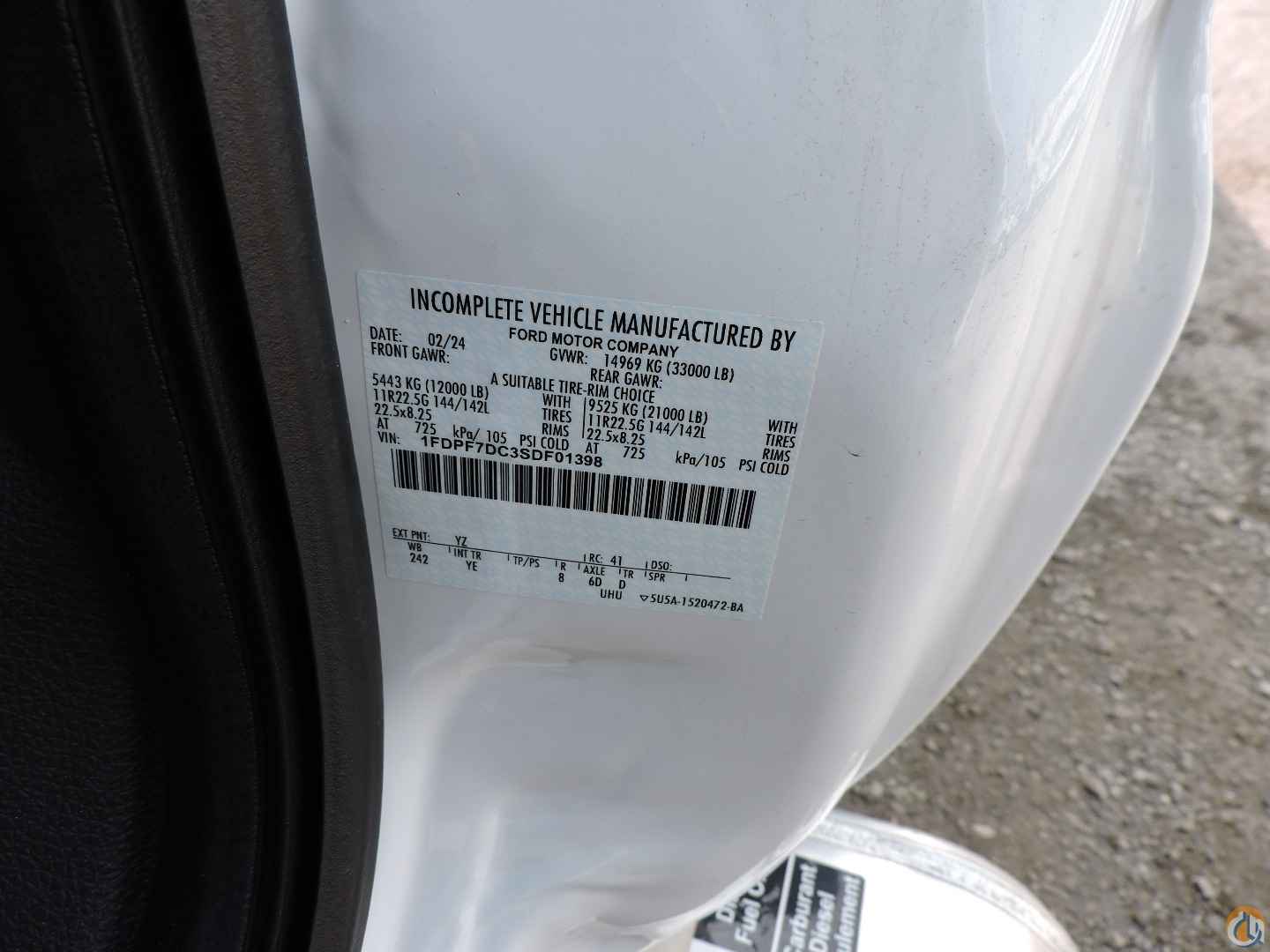

- 33,000 lb GVWR
- 6.7L Power Stroke V8 Turbo Diesel Engine – 270 hp @ 2400 rpm, 700 ft.lbs at 1500 rpm
- Exhaust brake
- Engine block heater
- Ford TorqShift HD 10-speed automatic transmission
- Front Axle – 12,000# with 12,000# Taper Leaf springs
- Rear Axle – 21,000# with 23,000# multi-leaf suspension
- Tires – 11R22.5
- Front wheels – 22.5x8.25 steel wheels
- Rear wheels – 22.5x8.25 steel wheels
- Hydraulic disc brakes
- 50-gallon fuel tank
- 8-gallon DEF tank

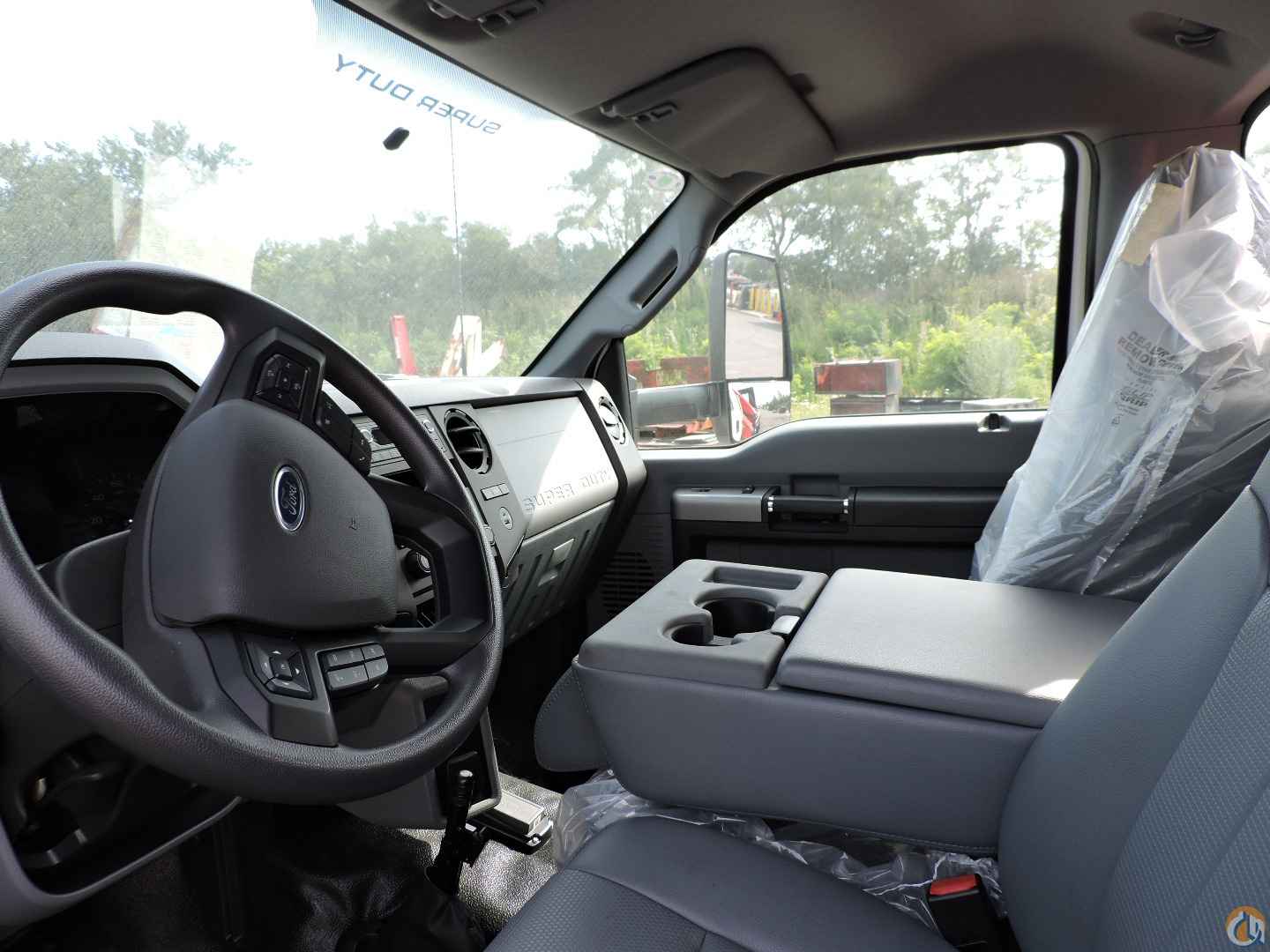

- 40/20/40 bench seat - vinyl
- Adjustable steering column – tilt/telescope
- Power windows and doors
- Mirrors – heated

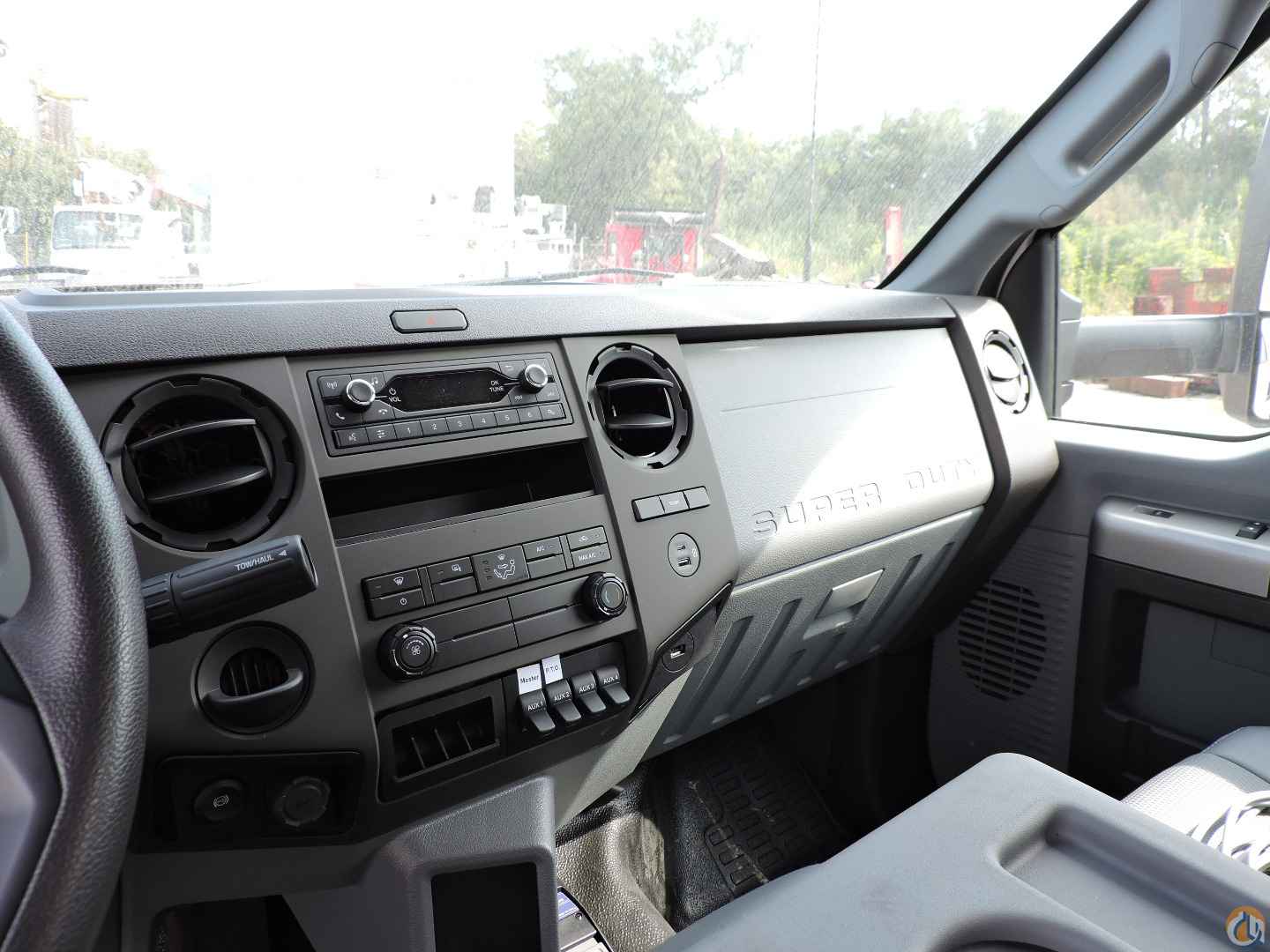

- AM/FM Stereo w speakers, USB input, and BlueTooth
- Painted white
