Stellar TMAX2-11 Aluminum Mechanic Body equipped as follows:

-          Aluminum doors and side packs

-          Torsion box understructure with isolated steel crane compartment

-          Master-Lock system

-          133” long

-          50” loadbed width

-          Six (6) recessed cargo tie-downs

-          Two (2) rear mounted grab handles

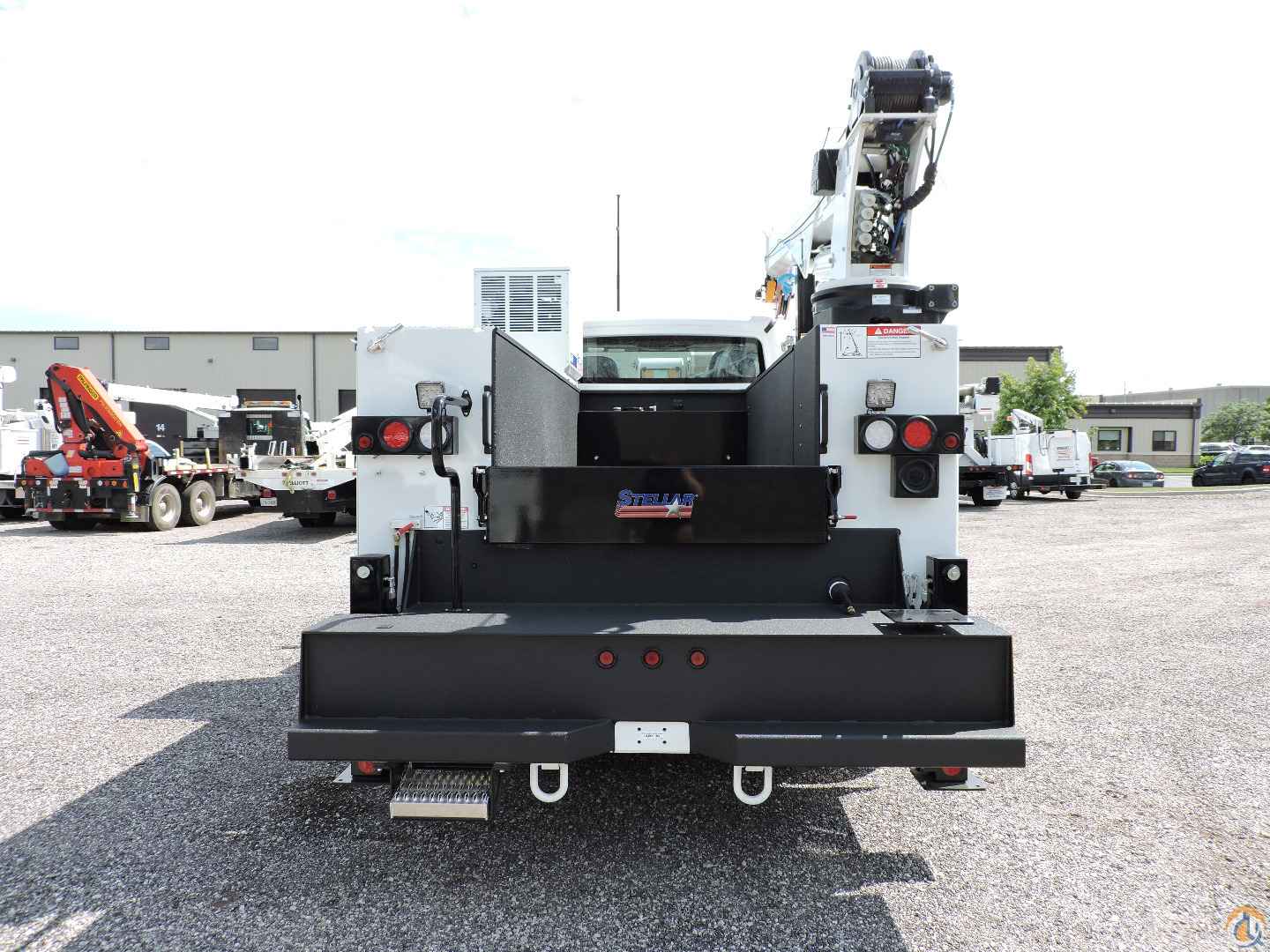

-          12” aluminum fold down tailgate – painted black

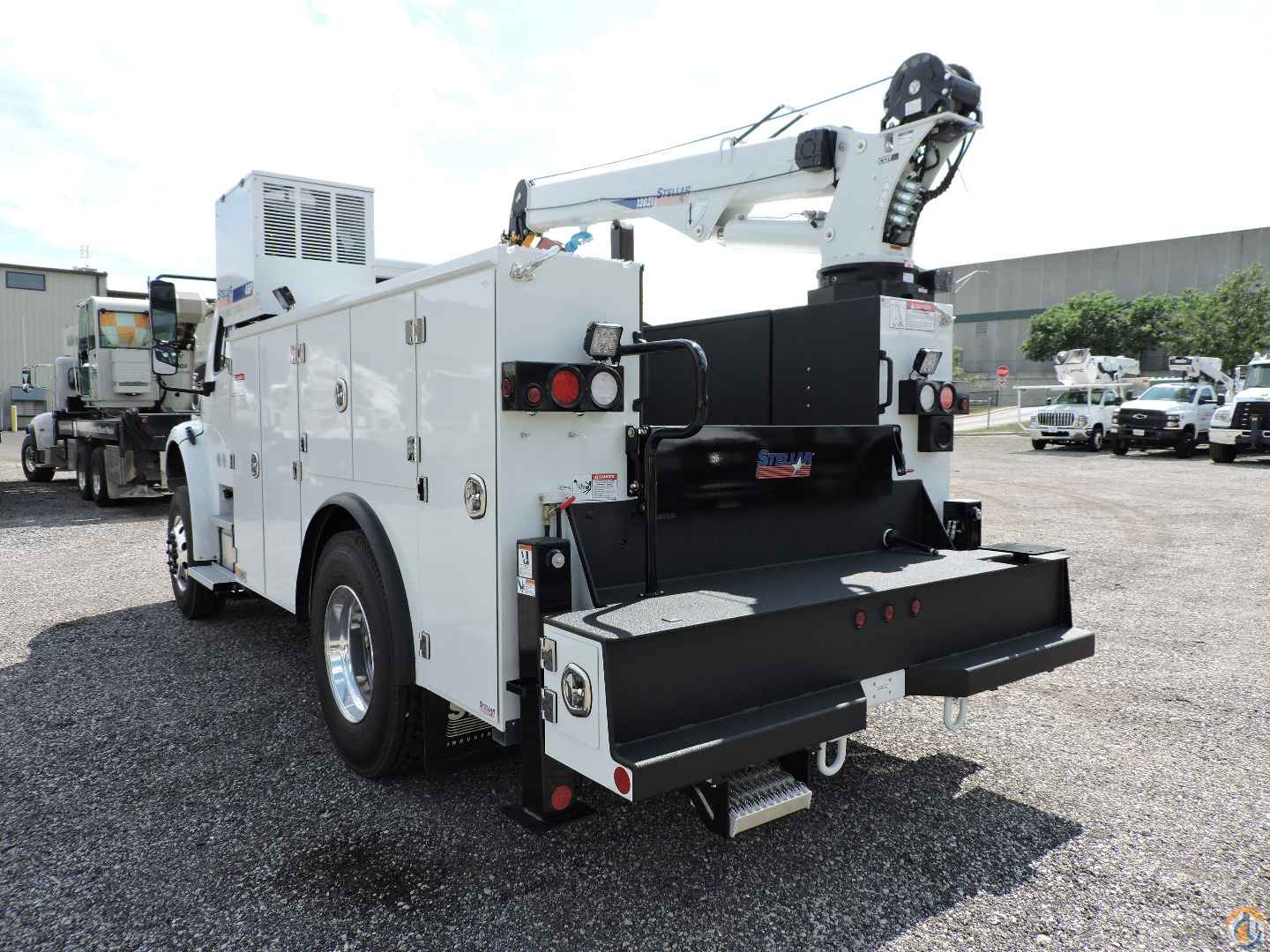

-          21” step bumper with thru compartment

-          Vise mounting plate – receiver workbench mount

-          Step, slide out for TMAX mechanics work bench bumper

-          Rubber fenderettes

-          All compartments raised to 60” H

-          Overlapped doors on SS1V/CS1V and horizontal compartments

-          2- & 3-point stainless steel compression latches

-          Stainless steel “Billet Style” hinges

-          Spring loaded door stops

-          Dual-seal automotive type compartment weather seal

-          LED compartment lights

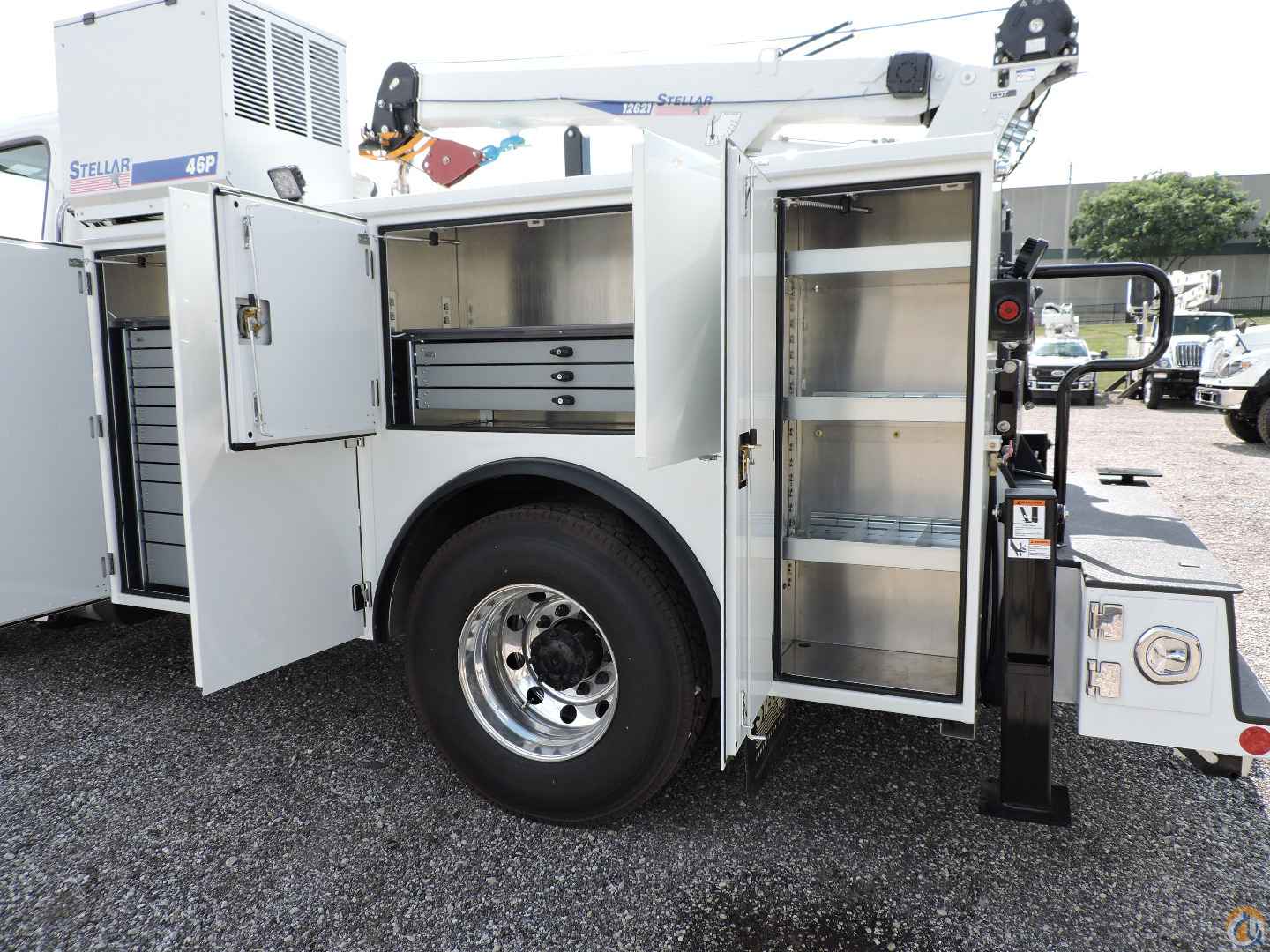

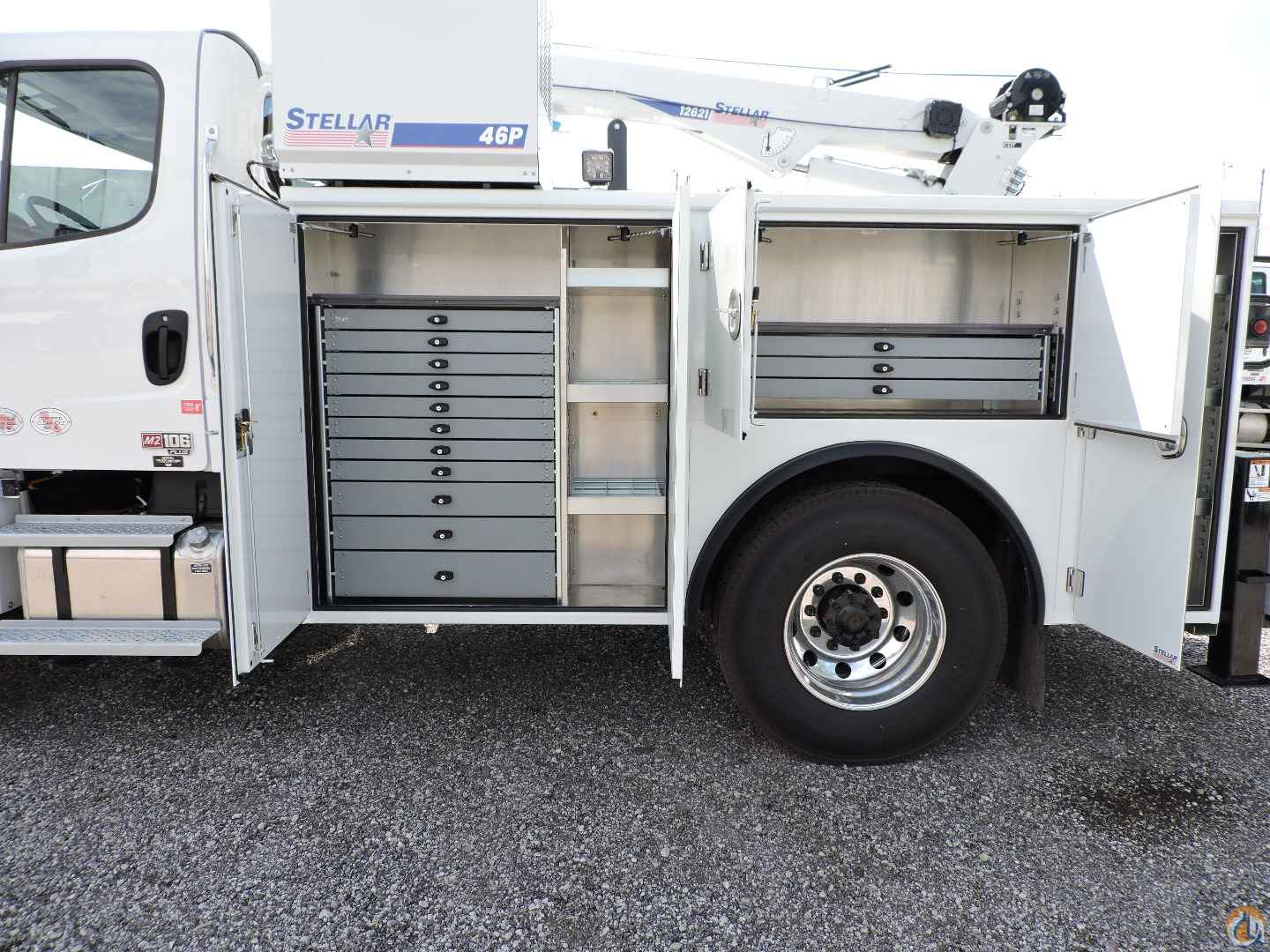

-          SS1VF – Heavy duty aluminum drawer set – 43”H x 34” W x 18” D – 8-3”, 2-5”, 1-7”

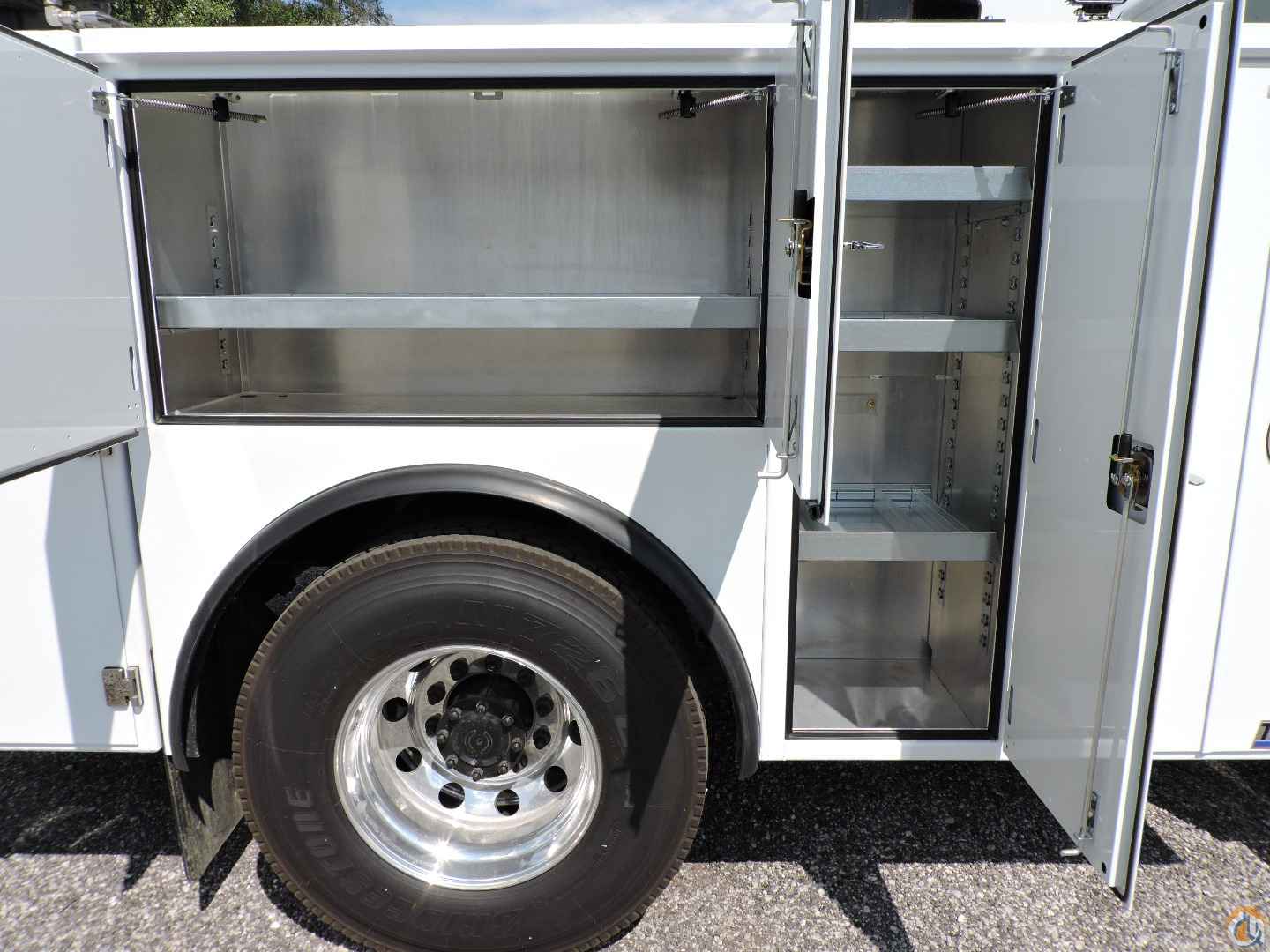

-          SS1VR – Shelf with 3 dividers – 17.63” W x 19” D

-          SS Horizontal – Heavy duty aluminum drawer set, 11” H x 48” W x 18” D, 3-3”

-          SS Rear – Shelf with 3 dividers – 24” W x 19” D

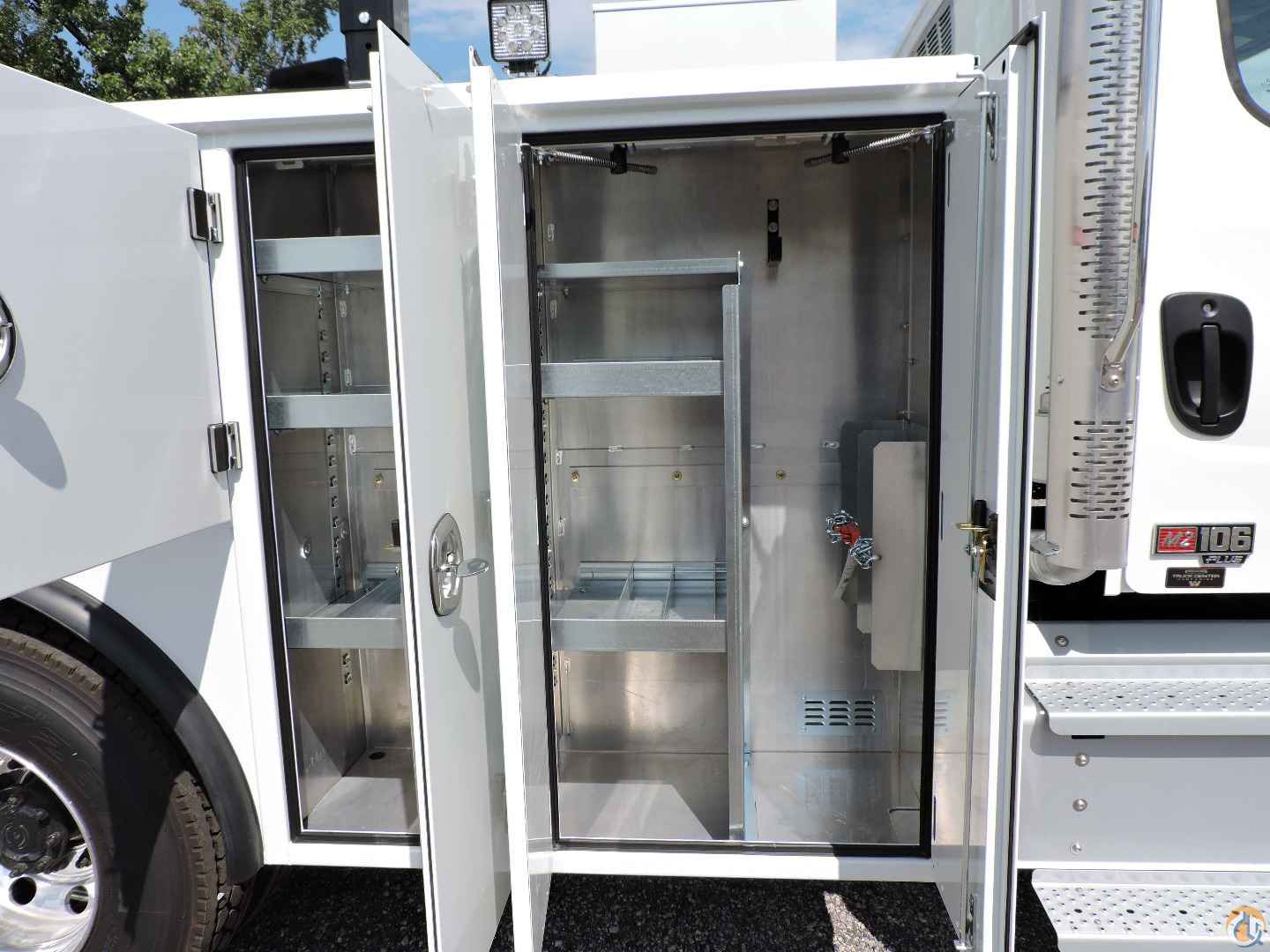

-          CS1V – Divider kit with shelves and Oxy-Acetylene bottle holder holds 2 bottles

-          CS2V – One (1) shelf with (3) dividers – 21” W x 19” D

-          CS Horizontal – Shelf with 3 dividers – 52” W x 19” D

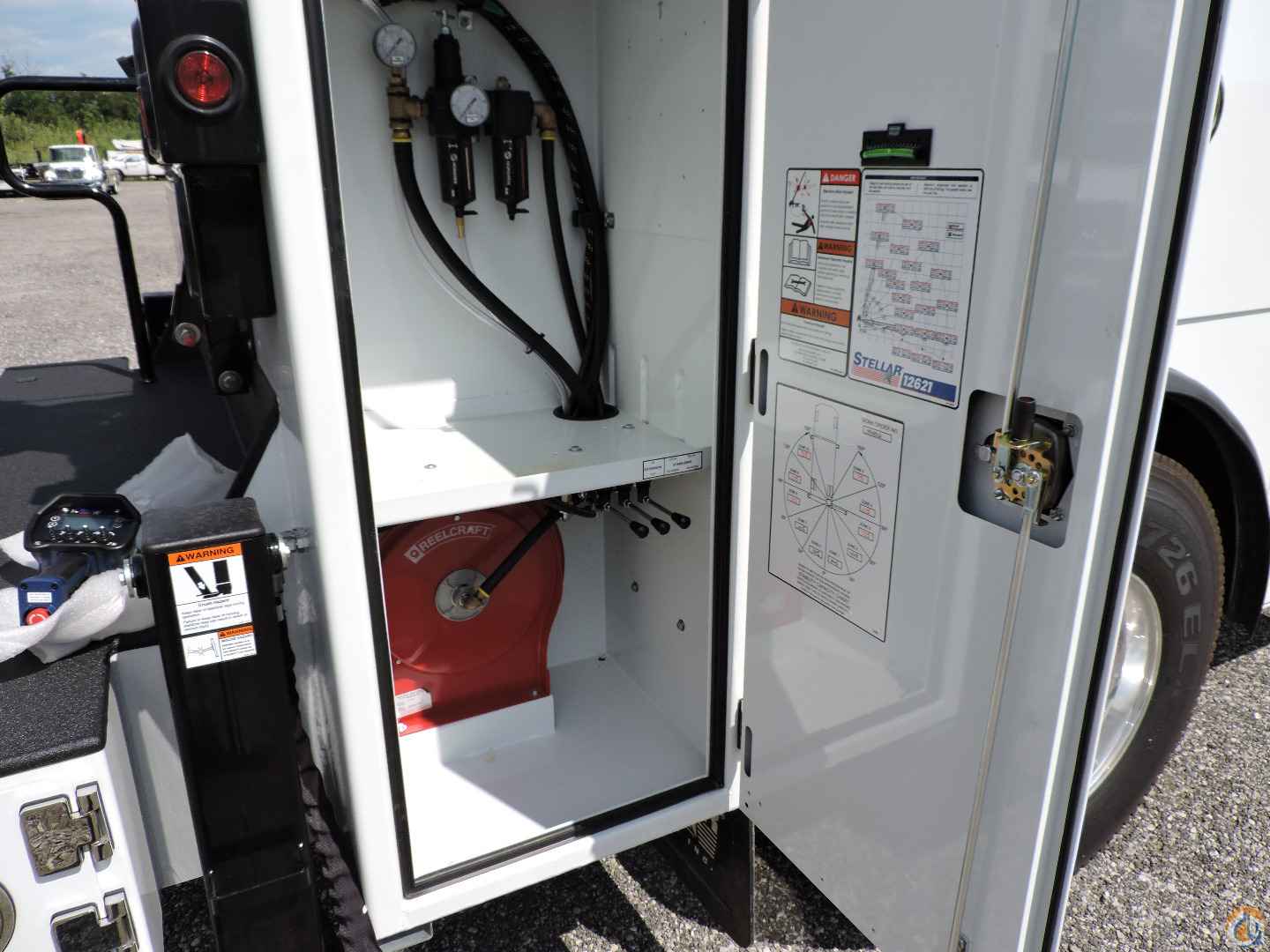

-          CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

-          Cab guard

-          22-gallon air tanks

-          FLR system – 1 outlet for air hose (filter, lubricator, regulator)

-          LED floodlights – Four (4) total. 1 on boom support, 1 SS behind compressor, 1 on each rear taillight box

-          Backup alarm

-          ICC safety kit – 2.5 lb fire extinguisher and reflector kit

-          Adjustable boom support, roller rest

-          Weld-on receiver hitch

-          Spray-on bed liner for load bed walls and floors

-          Undercoated

-          Aluminum rock guard kit

-          Prime painted white

-          Stellar 46P hydraulic driven air compressor – 46 CFM @ 175 PSI, 4 cylinder 2 stage compressor, direct drive coupling, oil cooler, fan, and hydraulic motor

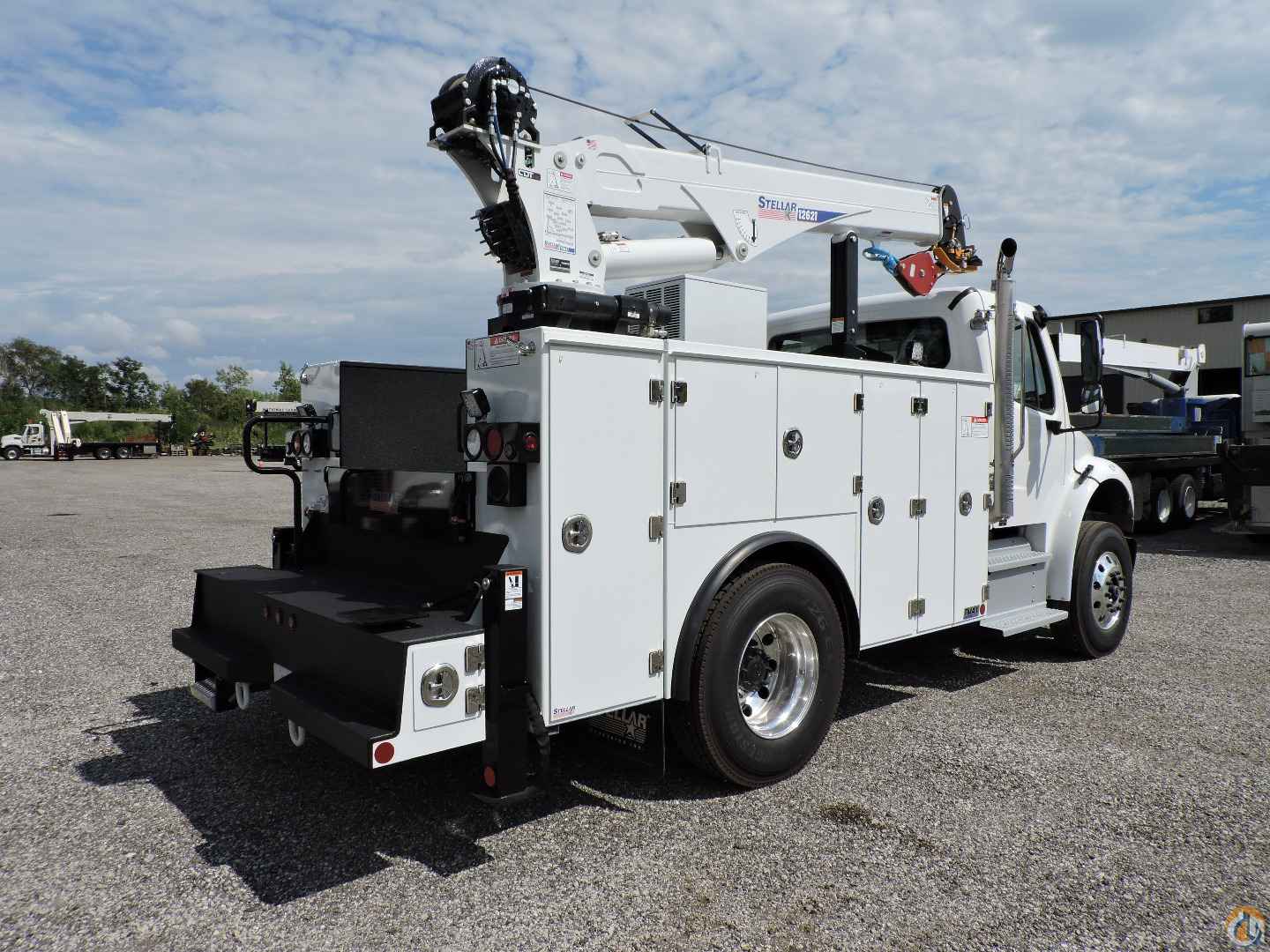

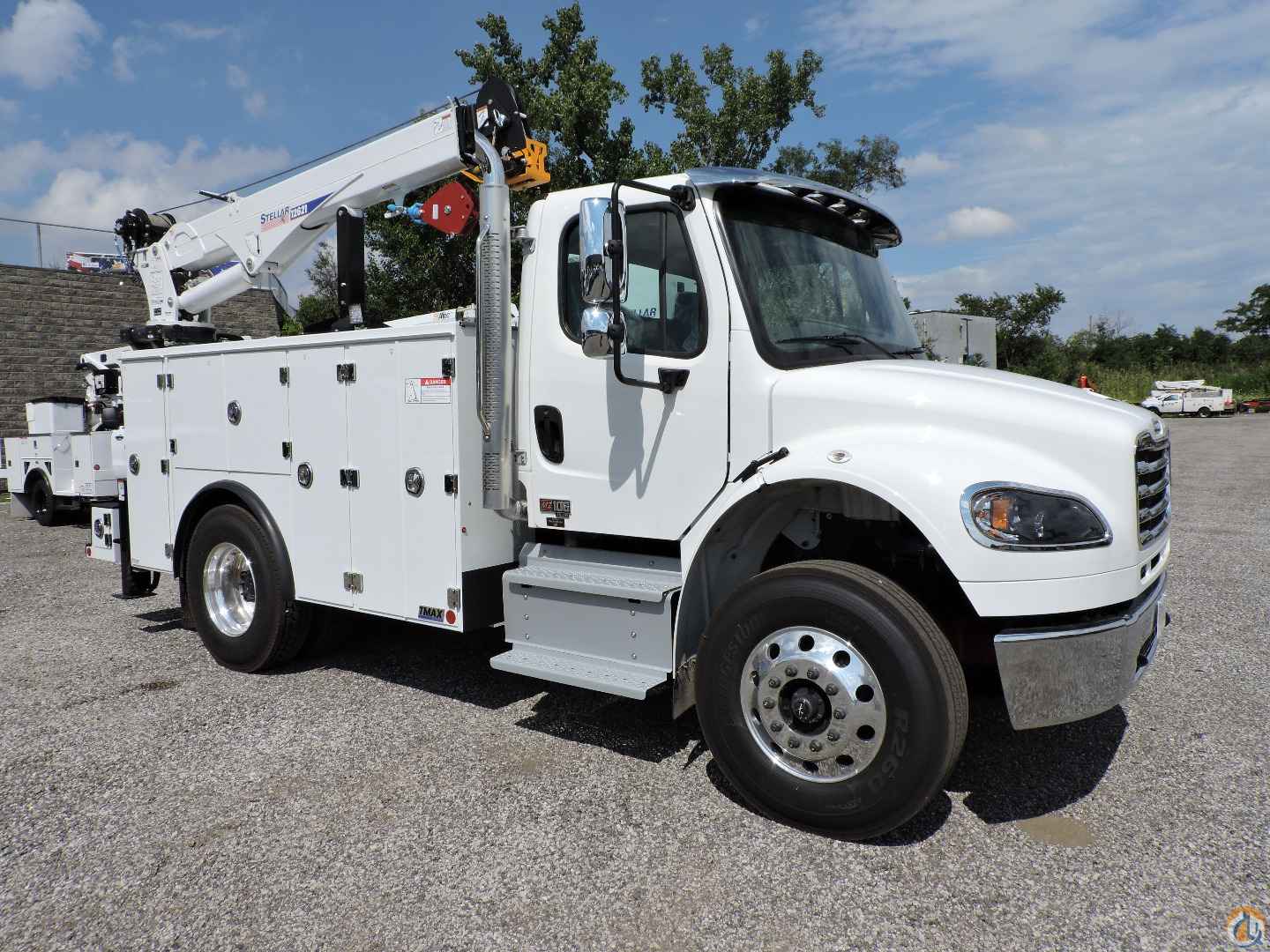

Stellar 12621 telescopic crane equipped as follows:

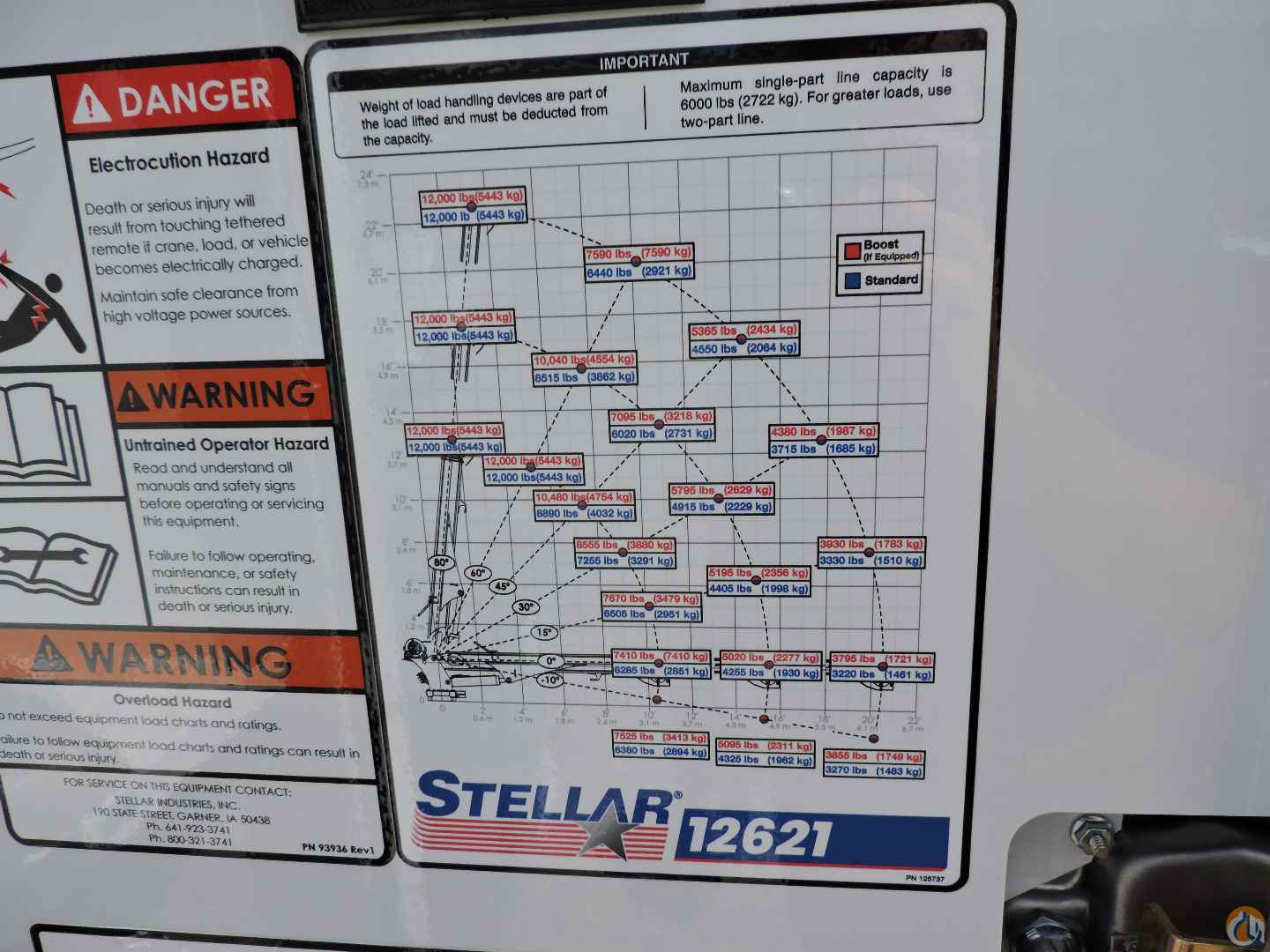

-          77,800 ft/lb rated when in boost mode

-          12,000 lb maximum capacity at 5.5’ radius when in boost mode

-          21’ maximum hydraulic reach

-          Octagonal boom – Same strength as hexagonal boom with less weight

-          Boom elevation: -10° to +80°

-          400° non-continuous rotation – durable enclosed rotation system with a cast iron base and an internal mechanical stop

-          Planetary winch with 100’ of 7/16” wire rope

-          Max line pull speed 55ft/min

-          Quick release stow hook

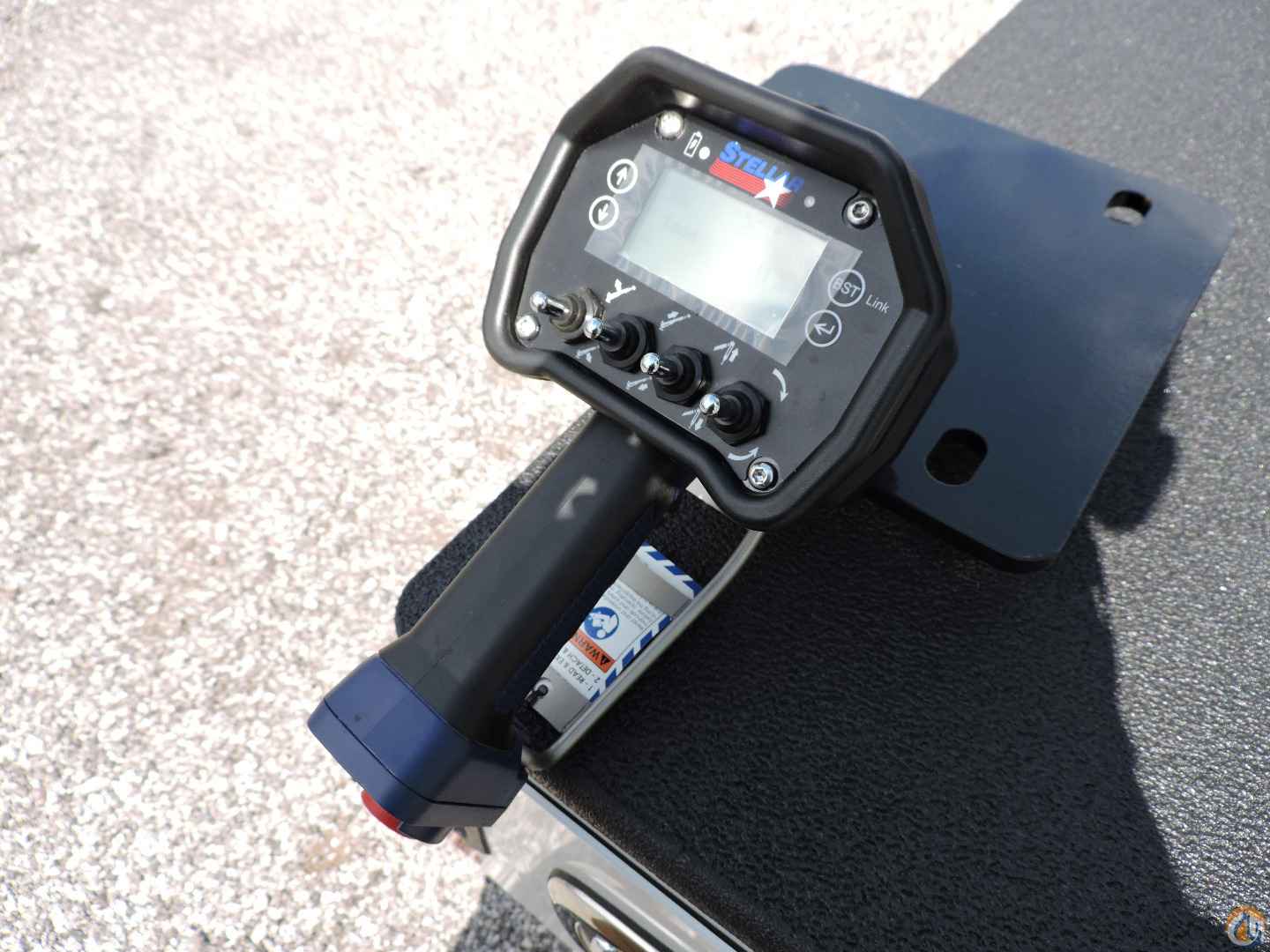

-          Proportional radio remote control – LCD features real time load capacity, maximum distance with the current load, boom angle, and percentage of load

-          CDTpro boost mode allows for a momentary 18% increase in the capacity of the crane, and a Safe Mode to keep the crane and operator safe should a load indicating device fail to operate correctly

-          On-Demand speed control ramps engine RPM up only when the crane is being used. When crane is not used for 5 seconds engine RPM returns to idle. This lowers fuel consumption and reduces noise pollution in the work area

-          Greasable pivot bushings, each pivot pin location includes bushings and grease zerks to provide for years of use

-          Dual LED Trilliant lights - mounted on boom tip – gravity rotating

-          Hydraulic stabilizers

MOUNTED ON:

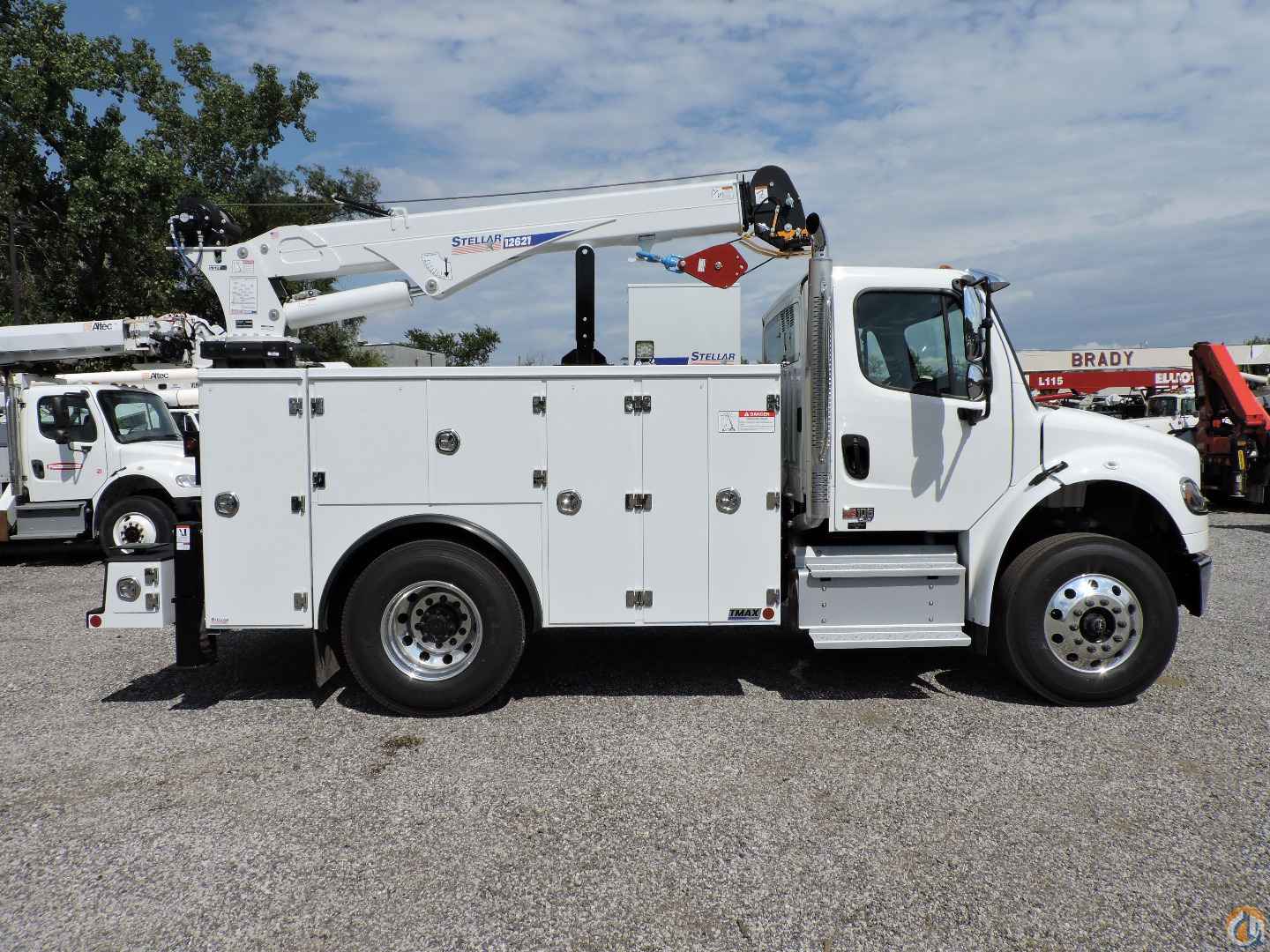

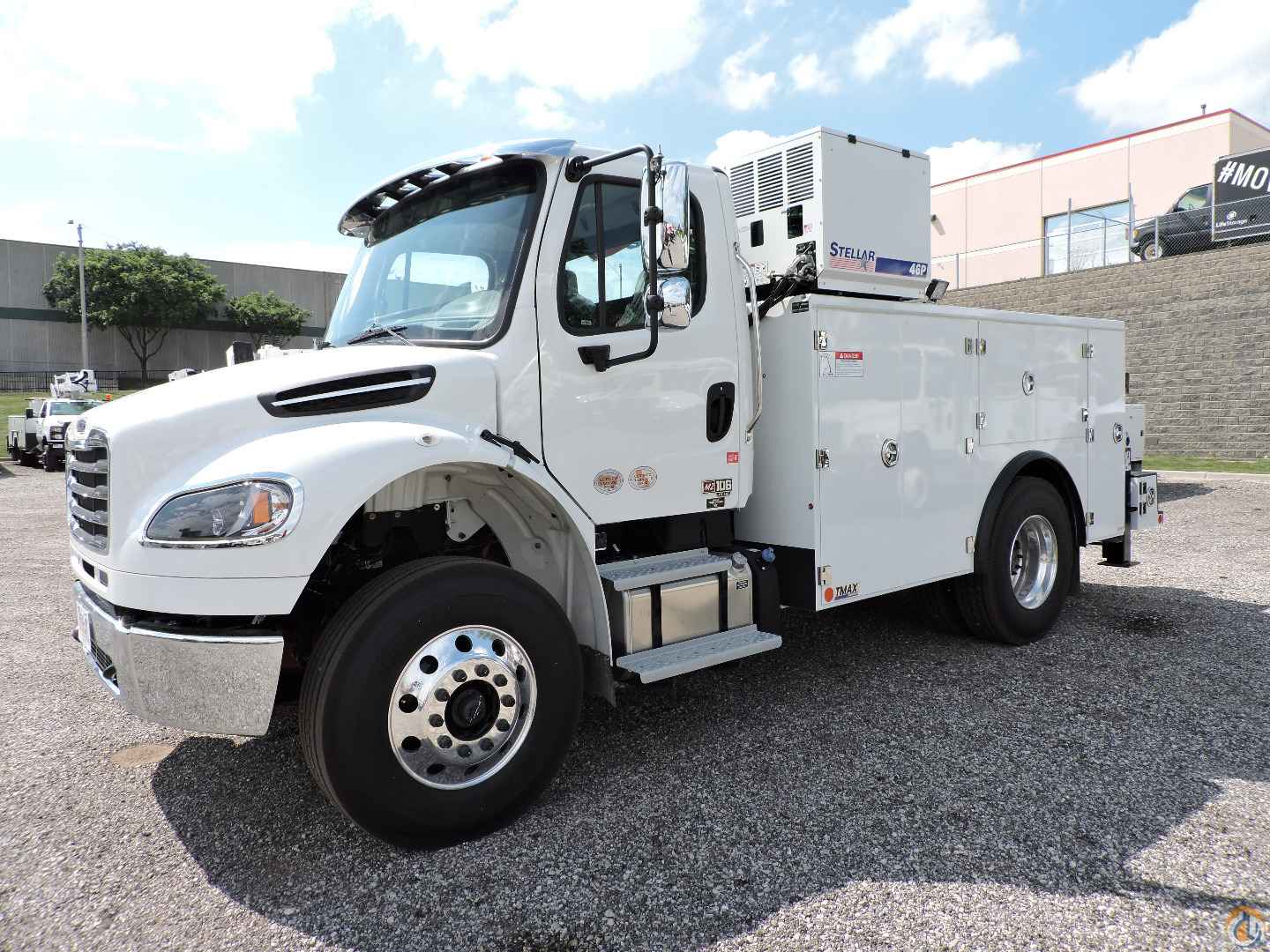

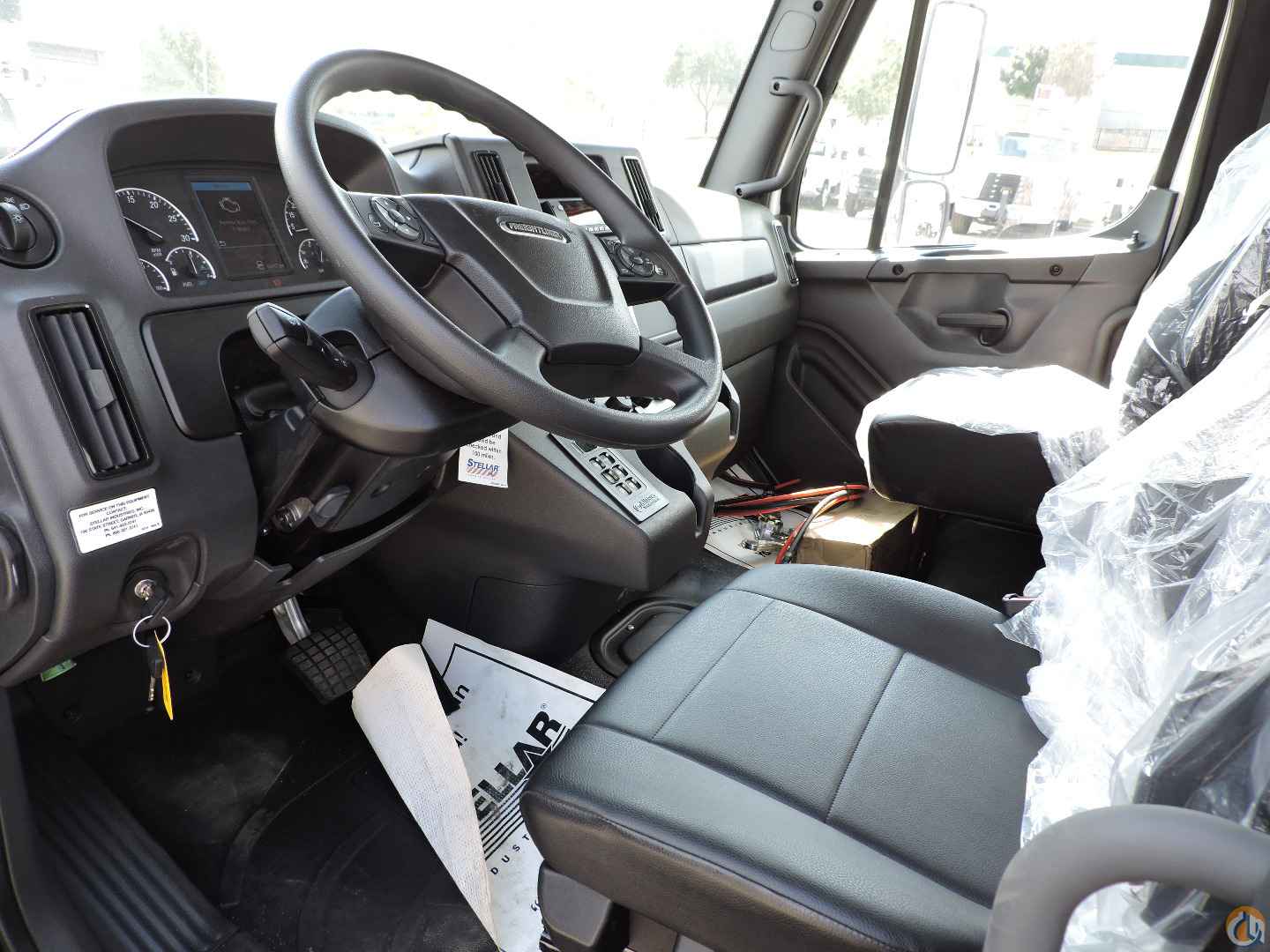

2025 Freightliner M2-106 equipped as follows:

-          26,000# GVW

-          Cummins L9 330 HP

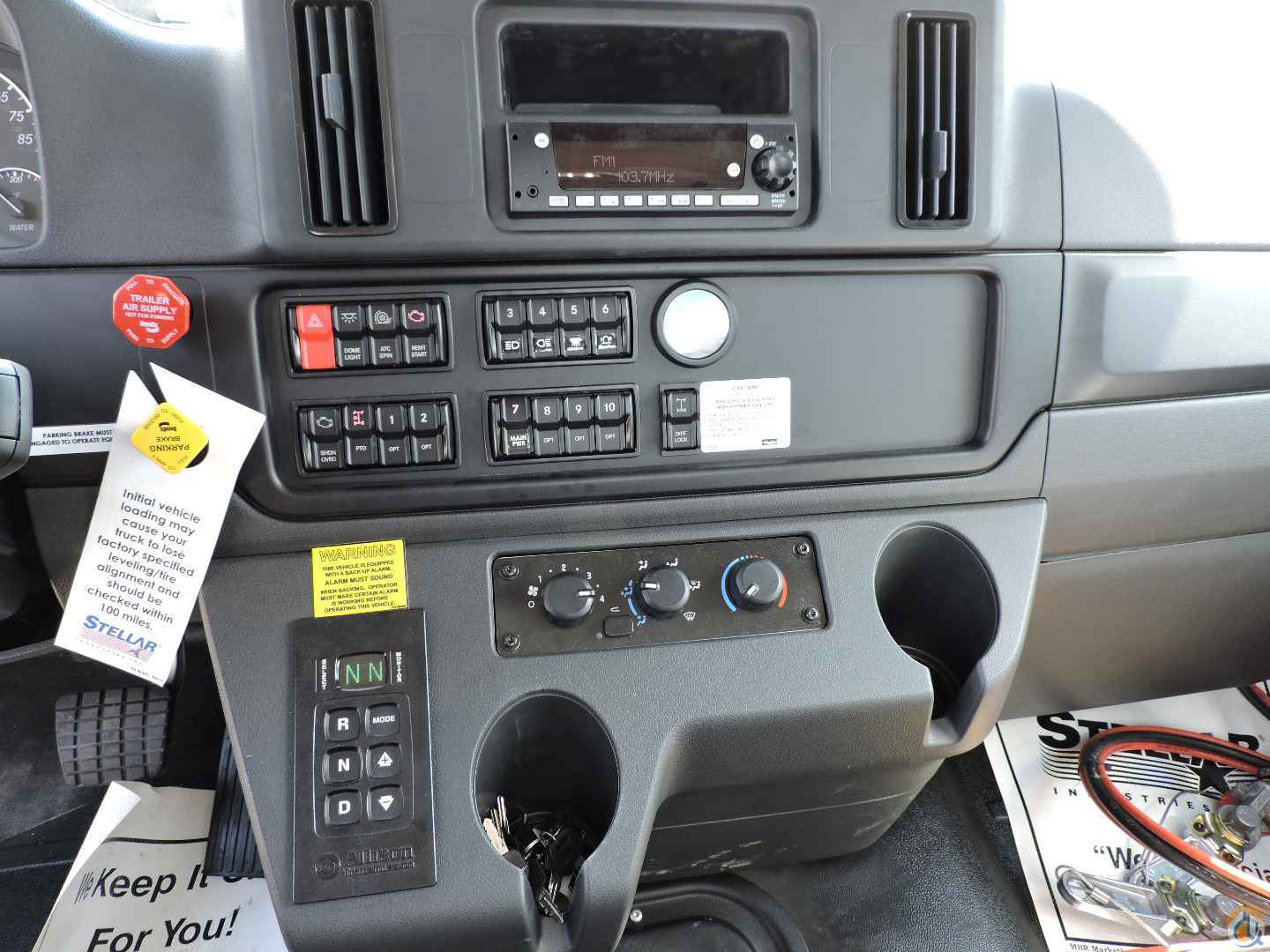

-          Allison 3500 RDS Automatic transmission

-          Front axle: 10,000#

-          Rear axle: 21,000#

-          Air brakes

-          Air suspension

-          Horizontal exhaust

-          50 gallon LH fuel tank

-          22.5 tires
