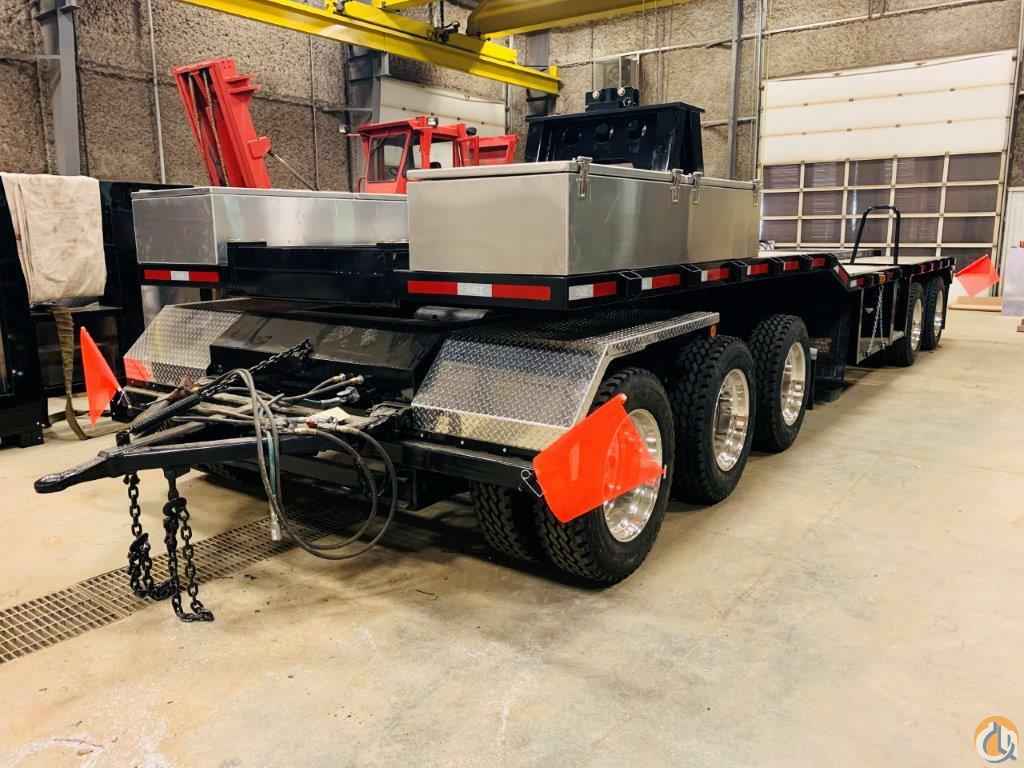

· Main frame fabricated T1 construction

· Main deck 10’ wide

· Tandem steer front with turntable to a fixed tridem rear

· Hinged drawbar with 50mm Rockinger drawbar eye to suit cranes as listed above

· Drop in pin for backup lock on turn table

· Steps on both sides with handrails to rear

· Front and rear lifting lugs

· Outrigger pad holders on both sides

· Rolling tower support to suit cranes a listed above, with greased side support rollers and bottom rollers (Does not include boom connection)

· Full legth aluminum checker plate fenders with ¾ vented diamond back decking.

· Five Ridewell suspensions c/w ride control box, 50” spread on front axles and 60” spread on rear axles and jerk chains

· 94” track axles (25000 lb) with steel 10 stud hubs, 16.5 x 7 brakes, s-cams and 30/30 brake chambers.

· 20 -275 /70R 22.5 Tires on 10 hole uni-mount wheels

· Arctic grade air and electrical wiring. LED lighting package with 2 mid turn lights and 2 rear bumper mounted strobe lights with 24/12 convertor. Dual plugs for 24v or 12 v tow vehicles, 2 abs systems.

• 1” ID flag pockets mounted on all four corners with mesh flags mounted on flexible posts, D-sign on rear bumper.
• Sand blasted and painted one color (TBD) with conspicuity tape
