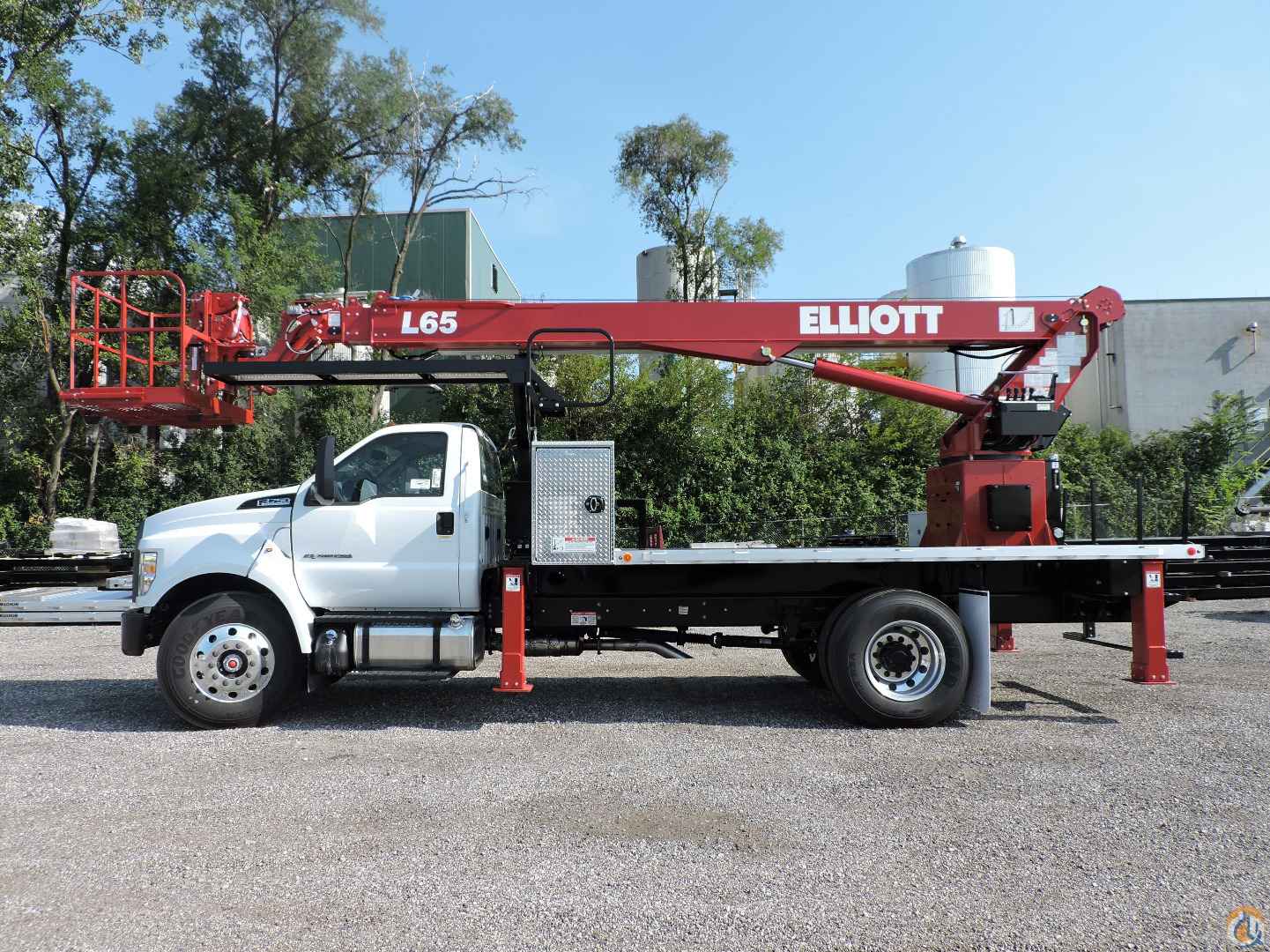

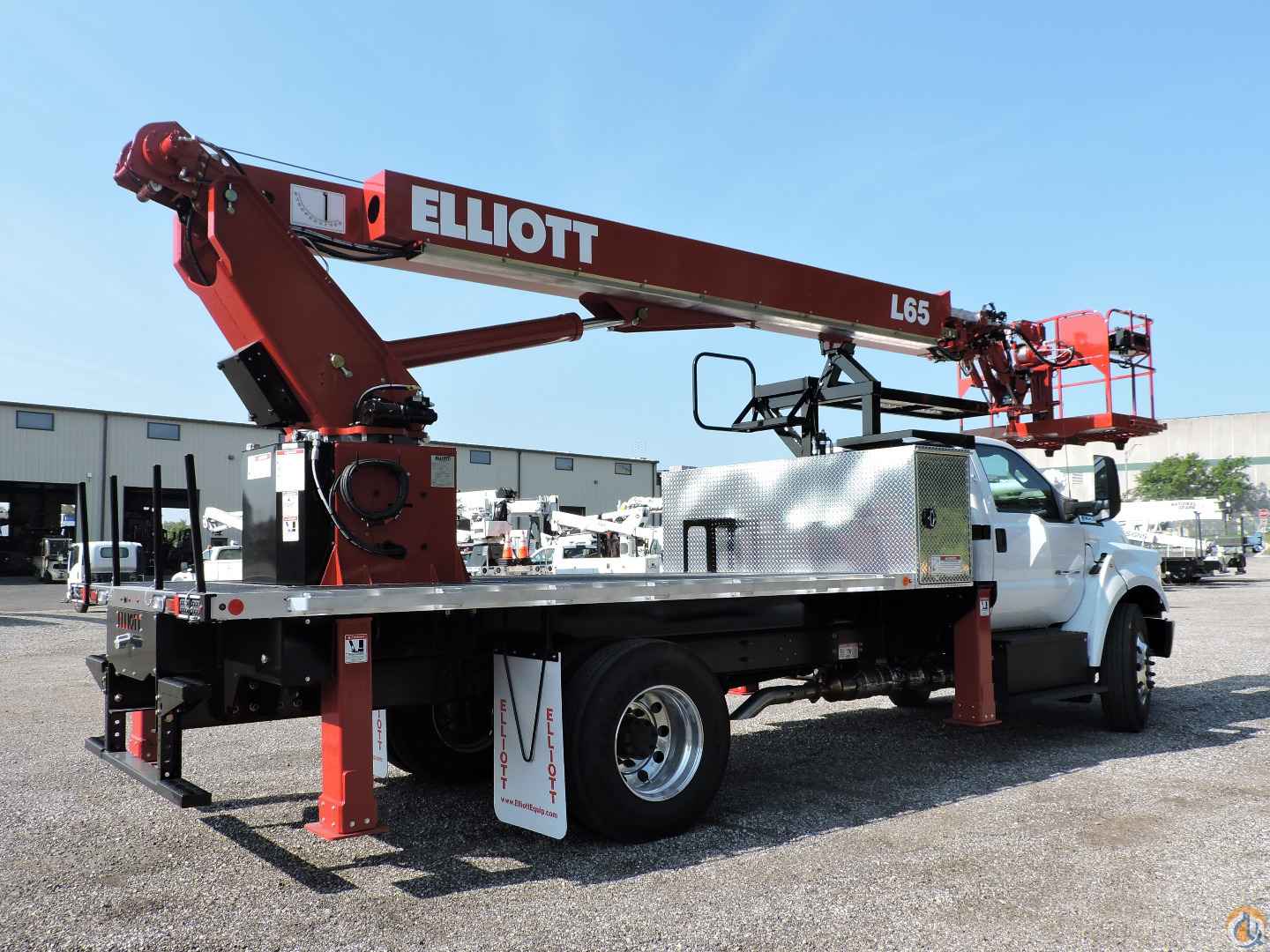

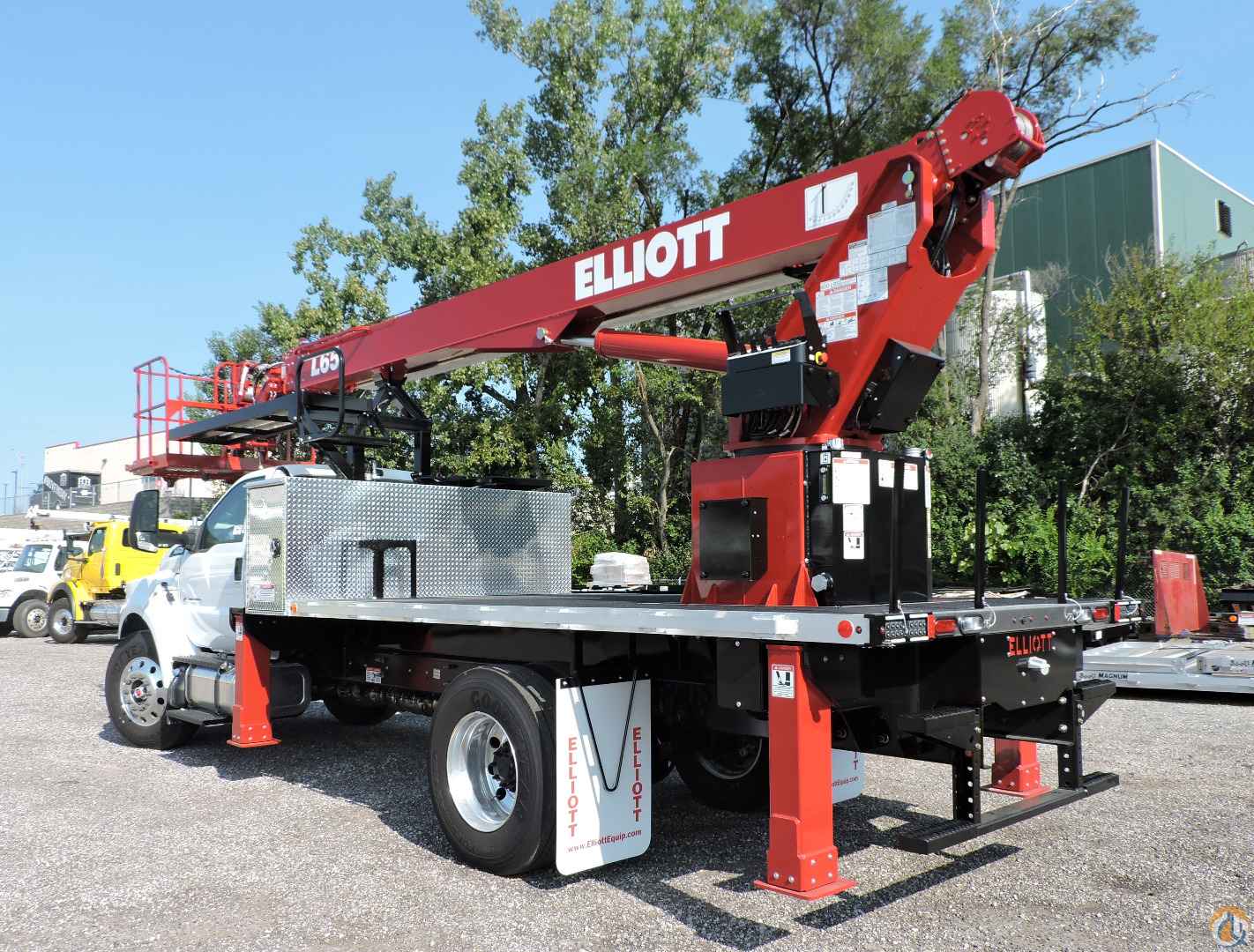

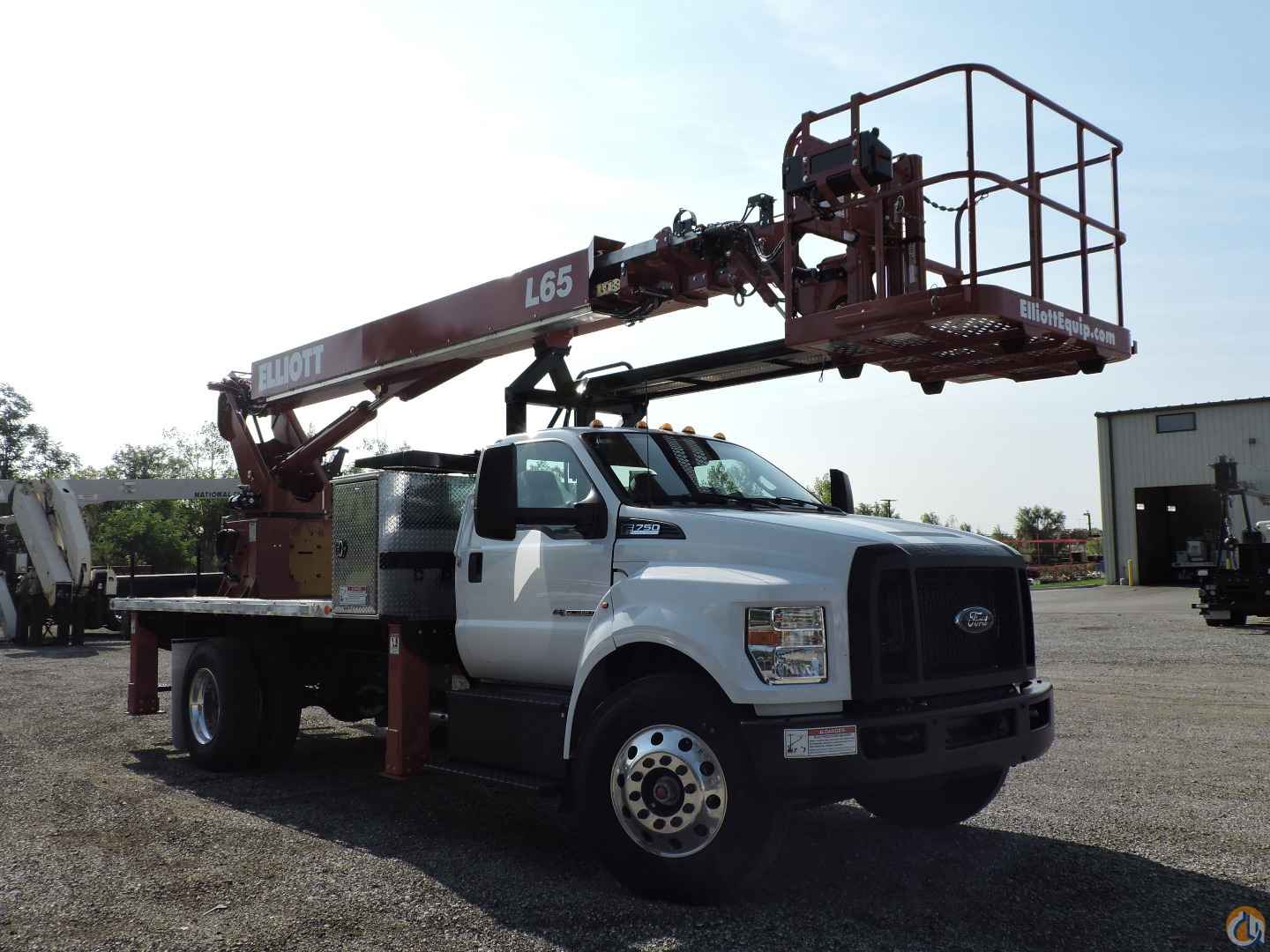

Elliott L65R Aerial Lift equipped as follows:

-          65’ working height

-          56’6” side reach

-          Continuous rotation

-          Automatic rotation lockout

-          Oil reservoir, oil and hydraulic controls mounted to turret

-          17’ out-and-down rear outriggers

-          12’ out-and-down type secondary outriggers behind cab

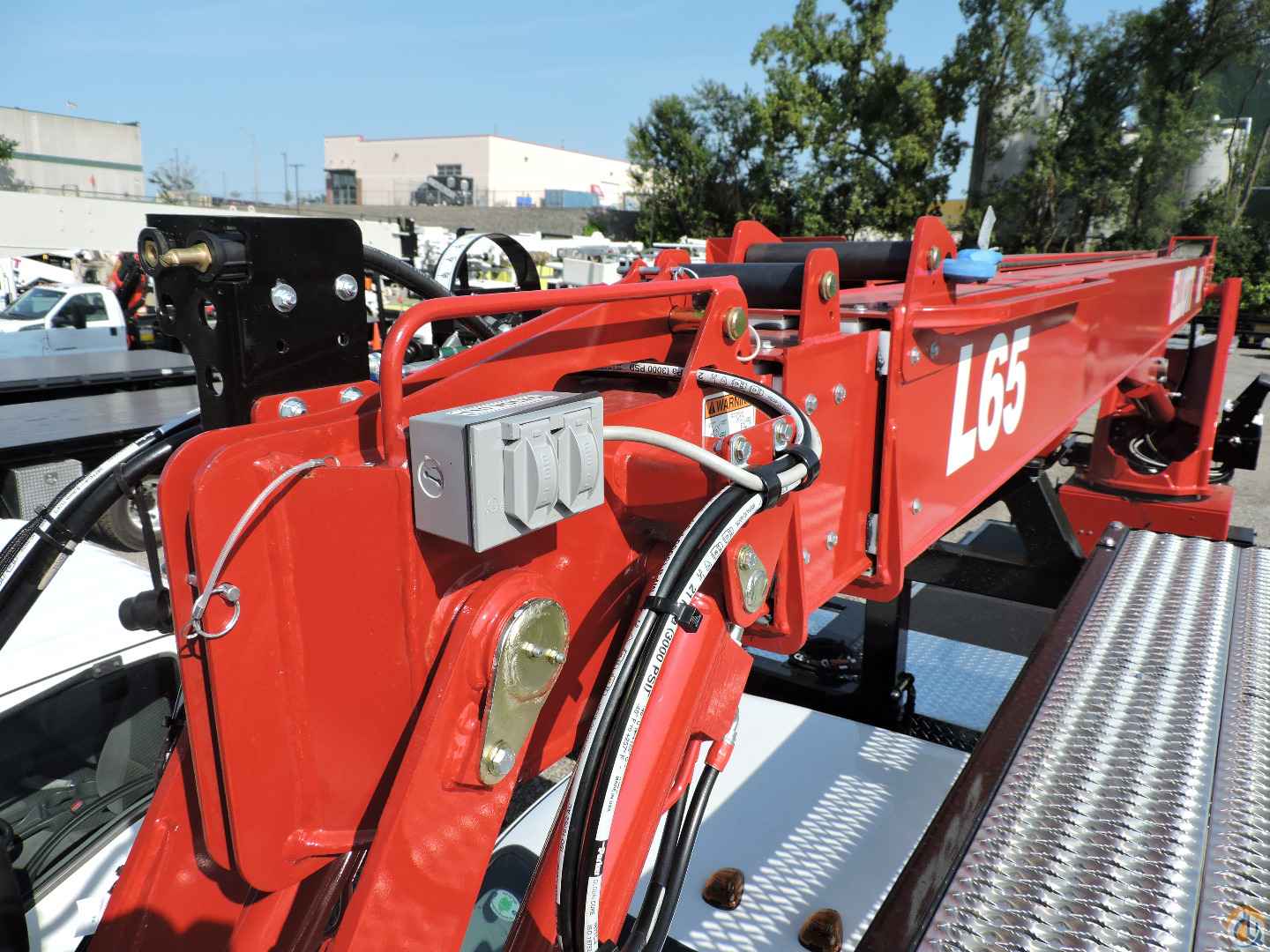

-          Steel three section hydraulically telescoping boom with one double acting 6” lift cylinder

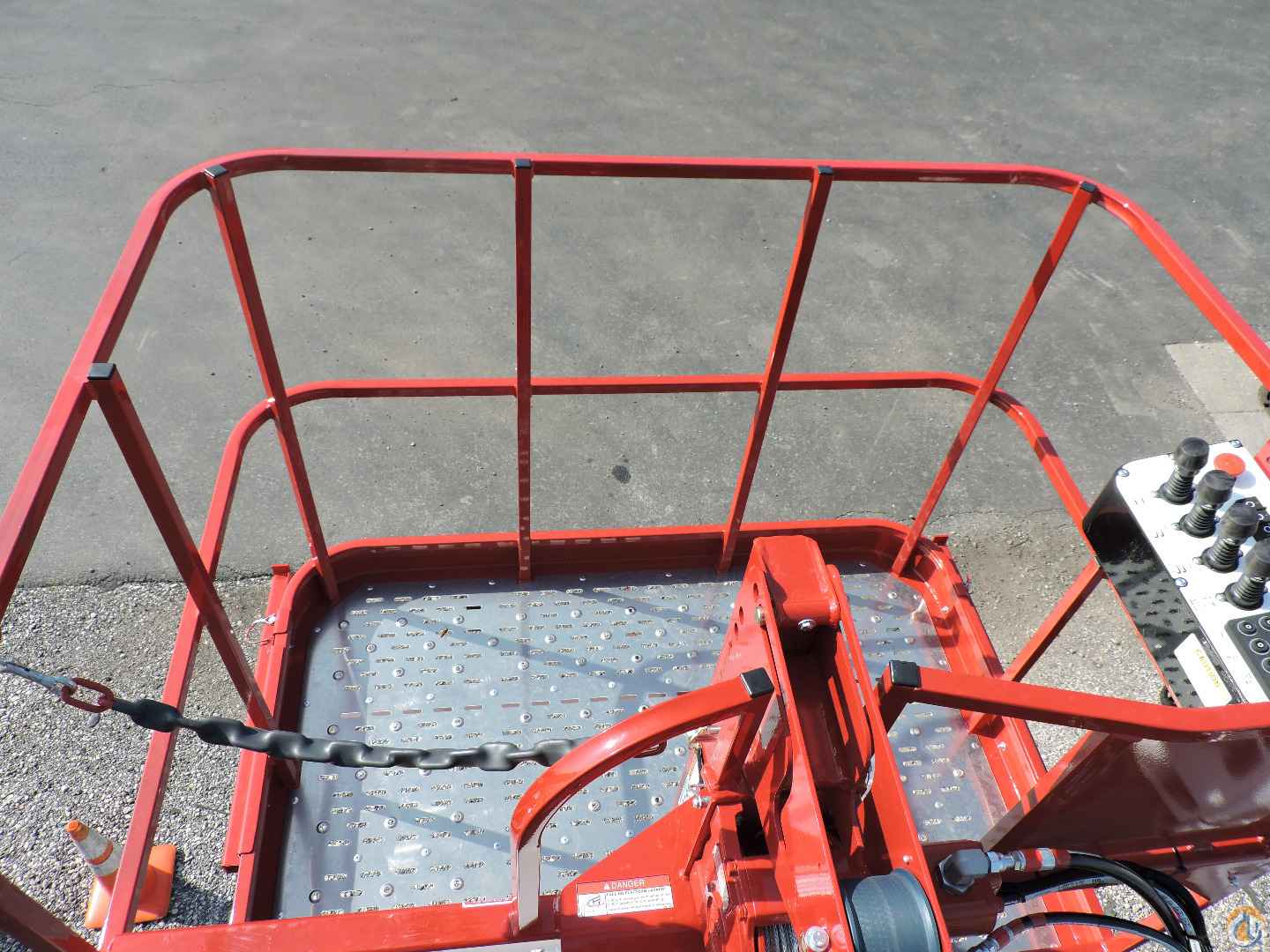

-          Hydraulic self-leveling and rotating 40”x60” EZR work platform with remote level from platform

-          Platform capacity 600 Lbs.

-          110-volt line to platform

-          Remote start/kill switch in platform for customer-supplied & installed welder/generator

-          Mounting bracket above crossbody toolbox for customer-supplied & installed welder/generator

-          Welder leads to platform – two (2) 1-gauge cables

-          Two (2) sign forks on platform

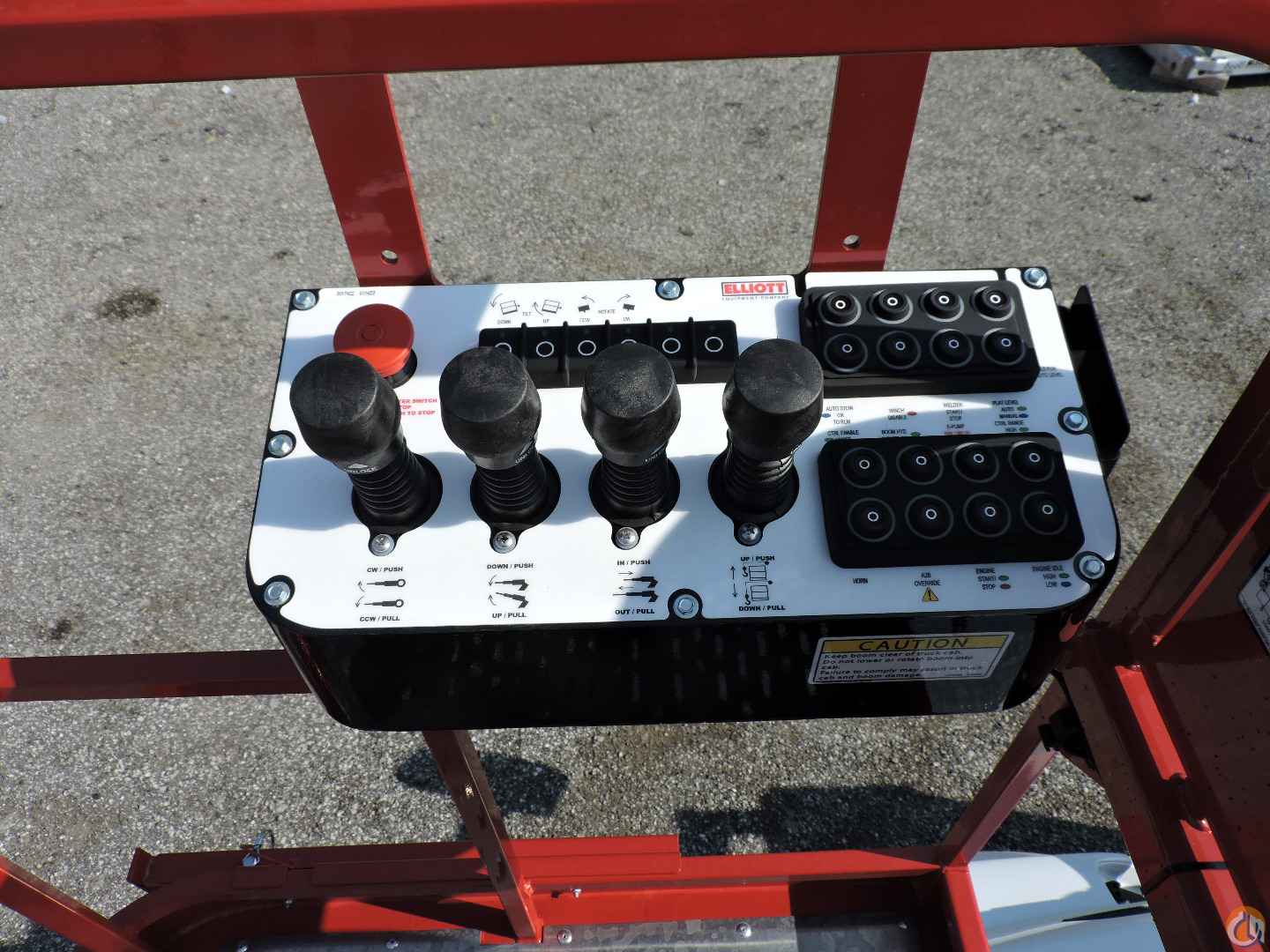

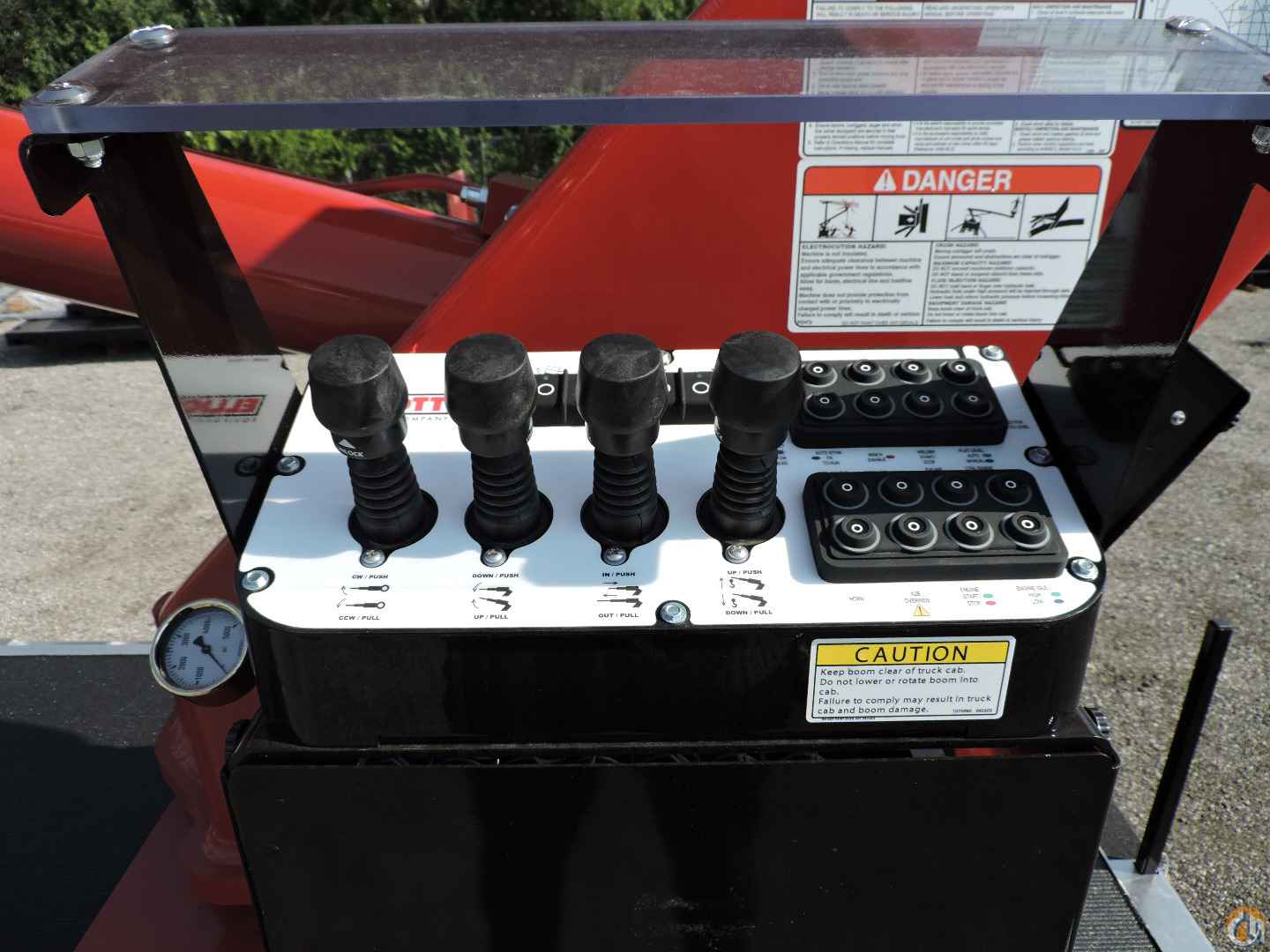

-          Four (4) single-axis joysticks - hardwired

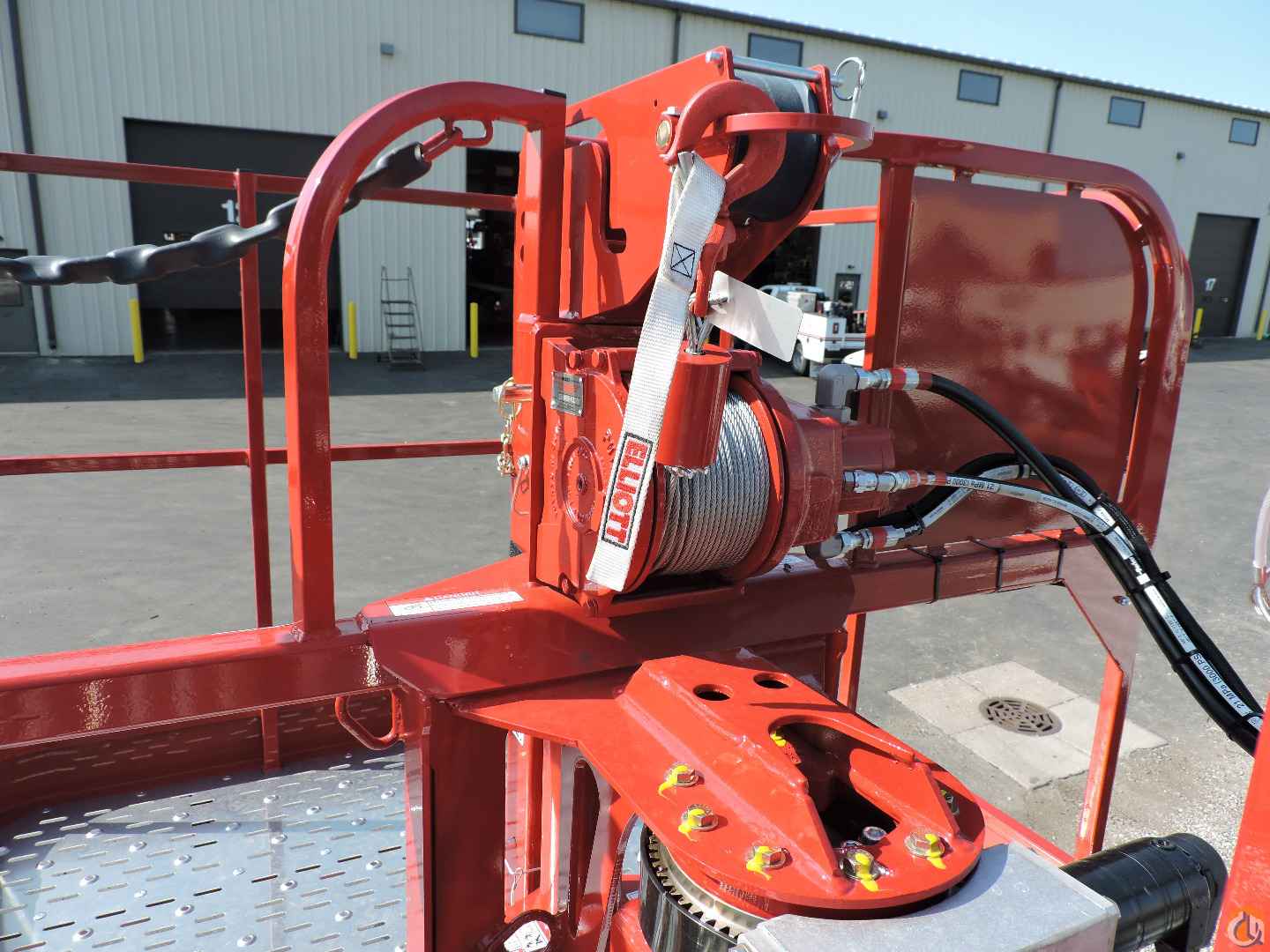

-          Platform mounted jib with hydraulic winch drum in floor with 500# capacity. Jib stows in platform

-          5,900# planetary winch w/anti-two block switch, horn, two-part hook & 3/8” cable & retainer lug

-          Pump and holding valves on all cylinders

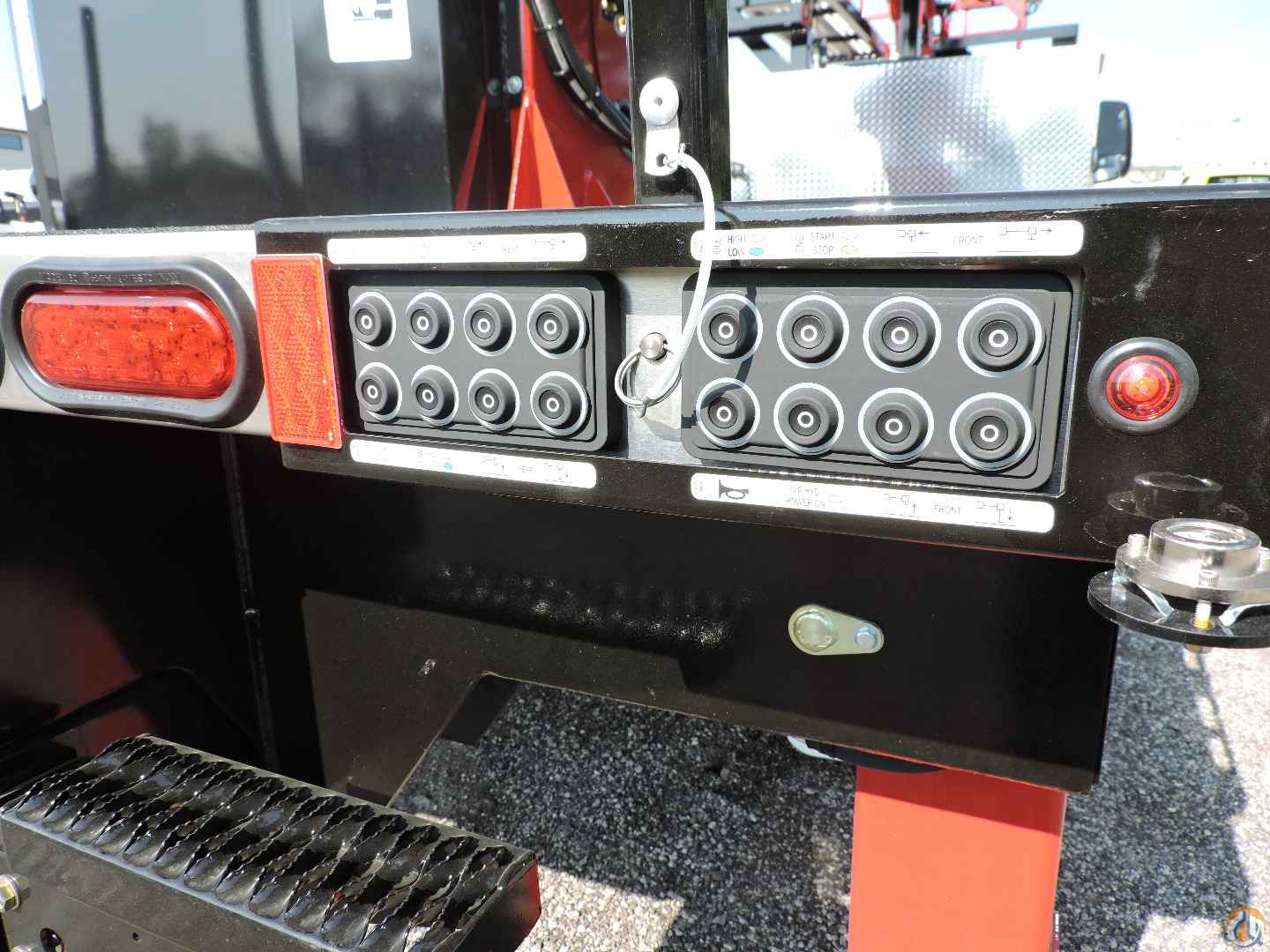

-          Remote start/shutdown at upper and lower controls

-          12-volt emergency pump with switch at upper and lower controls

-          14’6” aluminum bed with grip deck coating

-          Platform walkway

-          LED lights to include all bed marker lights: stop, tail, turn, and reverse

-          ICC rear bumper straight down with 2-steps and grab handles

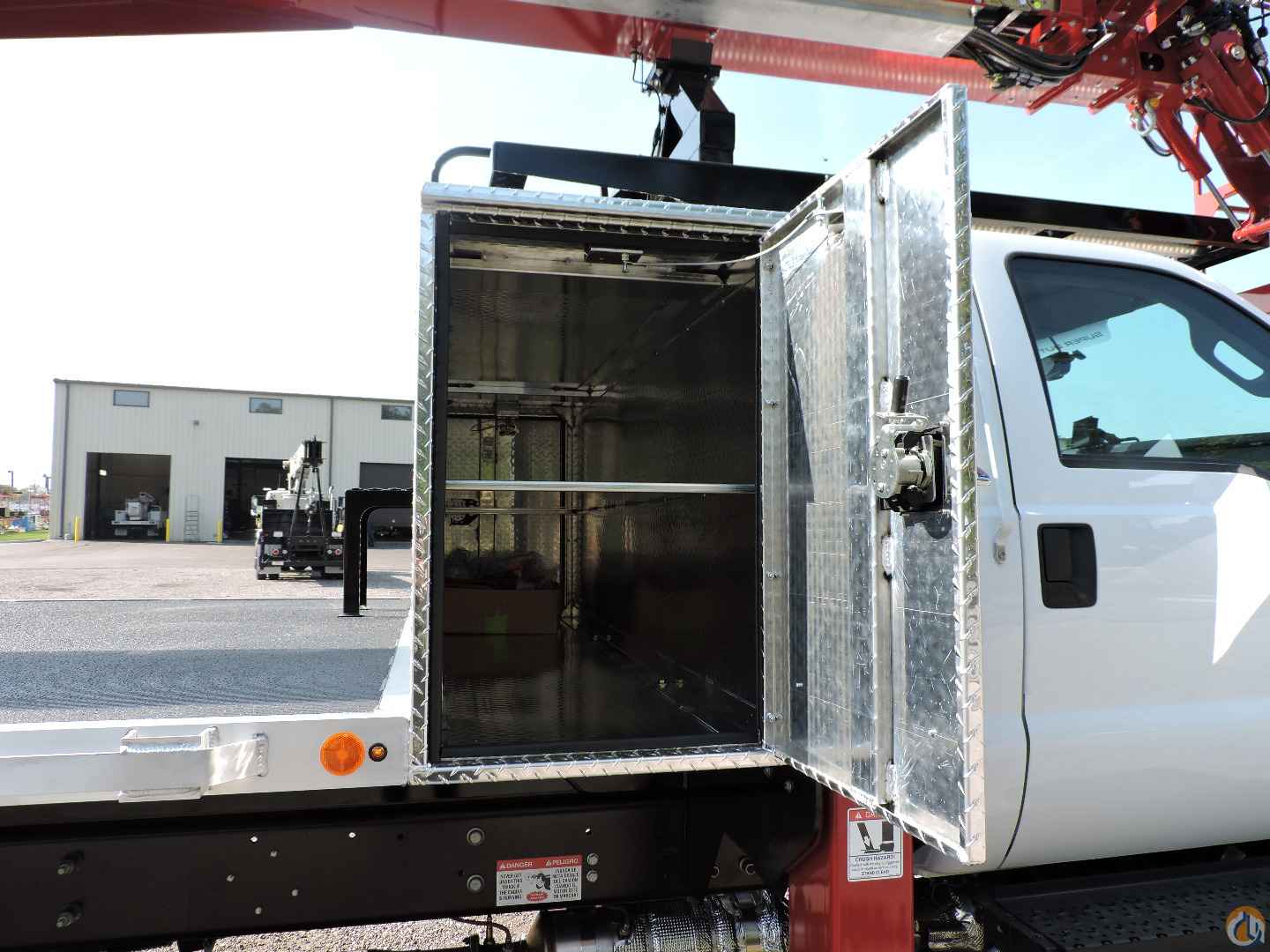

-          98” x 36” x 24” aluminum crossbody box

-          Hot shift PTO

-          PTO hour meter

-          Two body harness and lanyard

-          Safety triangle kit

-          Painted red

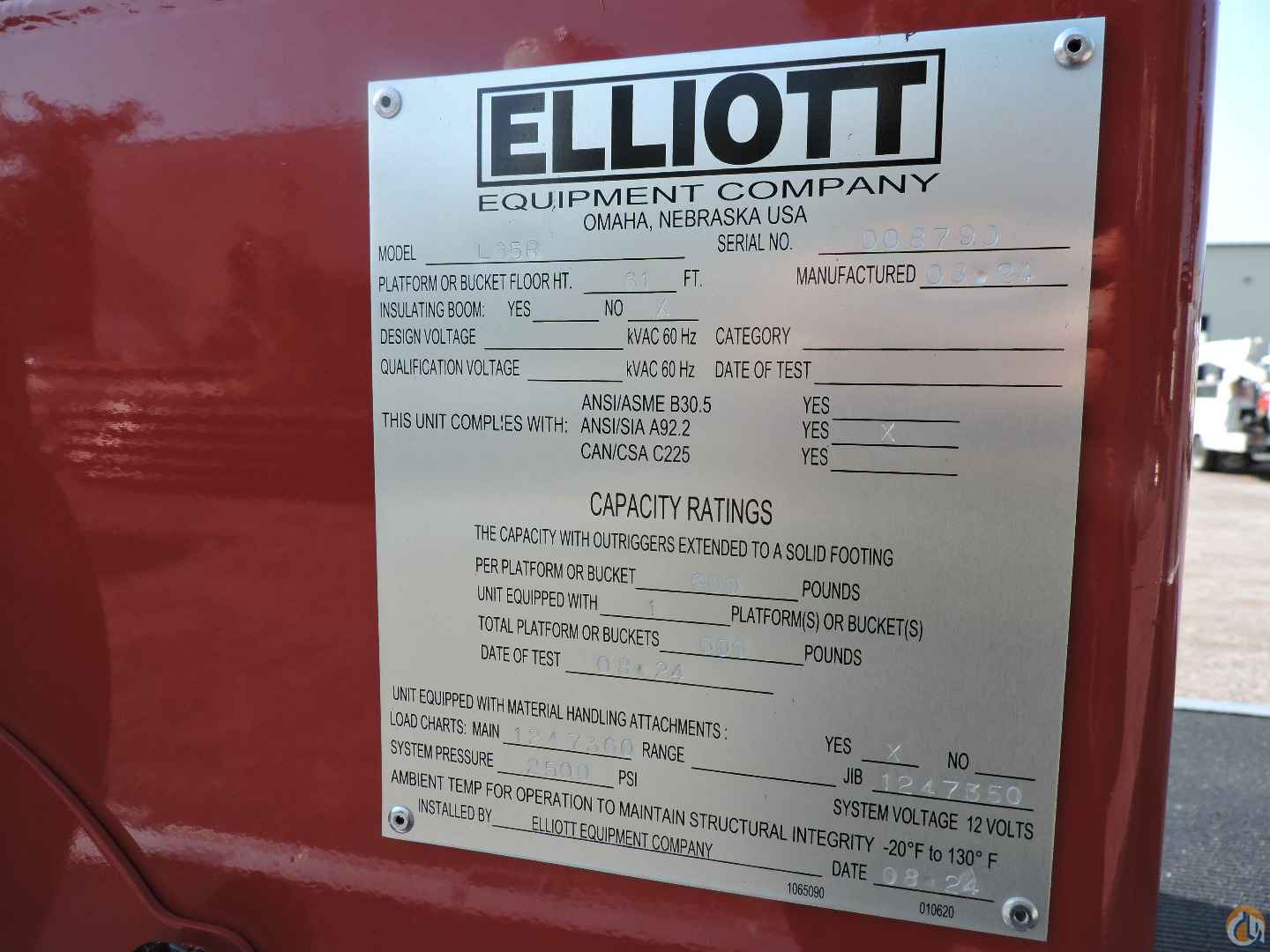

-          Unit certified to ANSI A92.2

MOUNTED ON:

2025 Ford F750 equipped as follows:

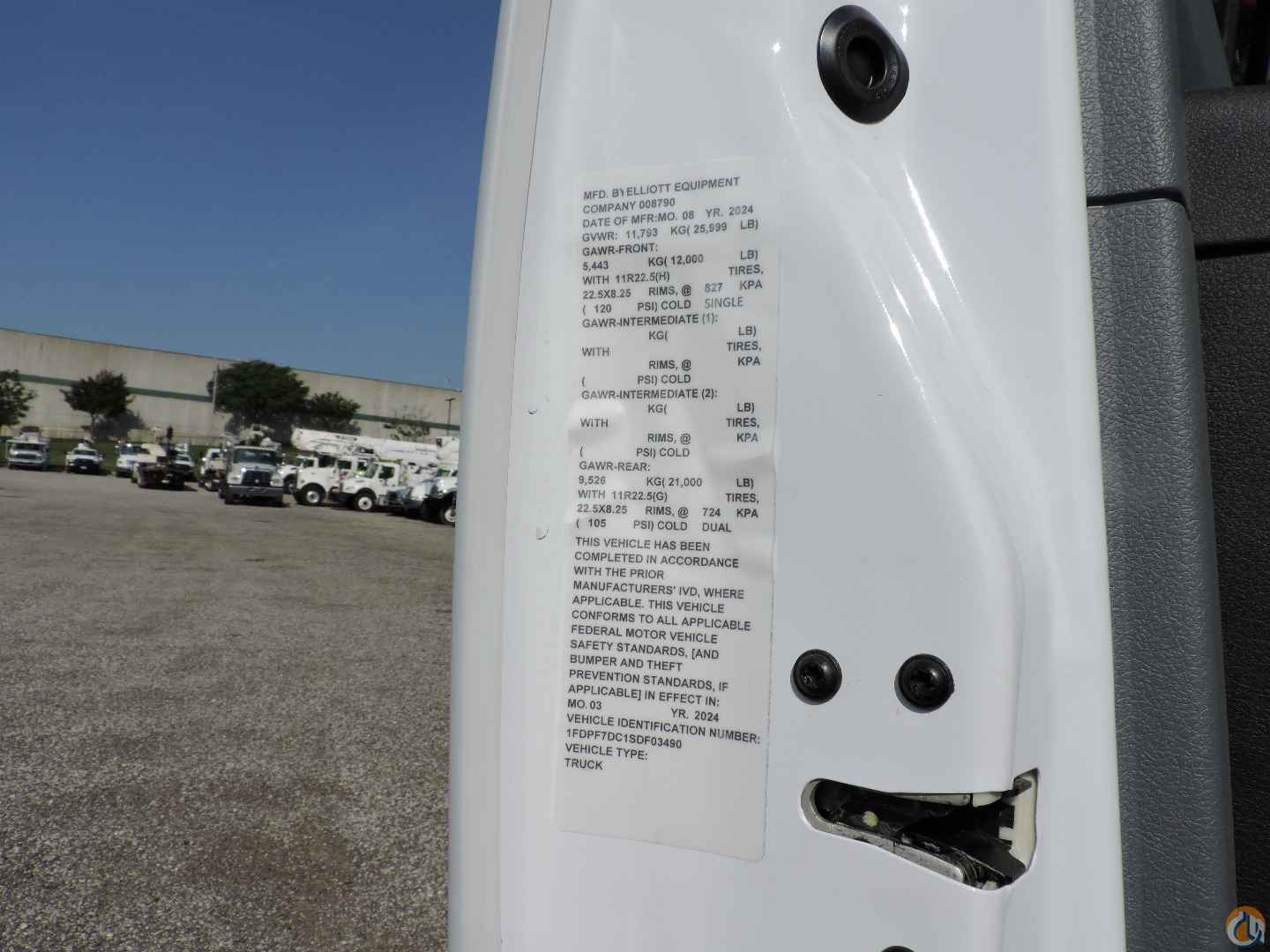

-          25,999# GVWR

-          6.7L Power Stroke V8 turbo diesel engine – 270 hp @ 2,400 rpm 700 lb. /ft. peak torque

-          TorqueShift 10-speed automatic transmission

-          Engine block heater

-          Front and rear 22.5” x 8.25” aluminum wheels, polished with Dura Bright finish

-          Front tires and rear tires 11R22.5H

-          Front axle 12,000lbs with Taper-leaf springs, shocks

-          Rear axles 21,000lbs with Multi-leaf springs, shocks

-          6.50 rear axle ratio

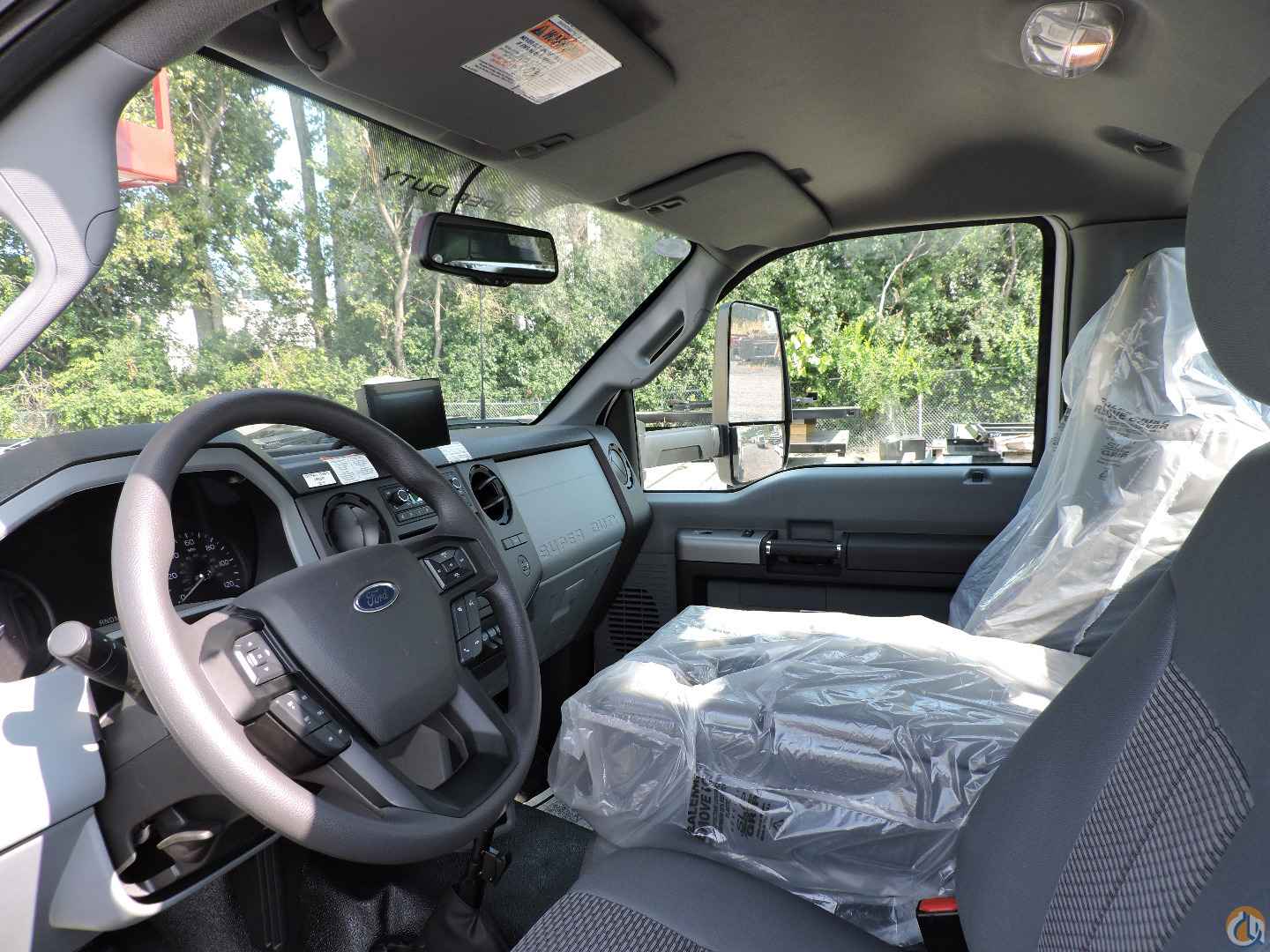

-          40/20/40 mid-back fixed driver & passenger seat with fold-down console, cloth

-          50-gallon aluminum fuel tank

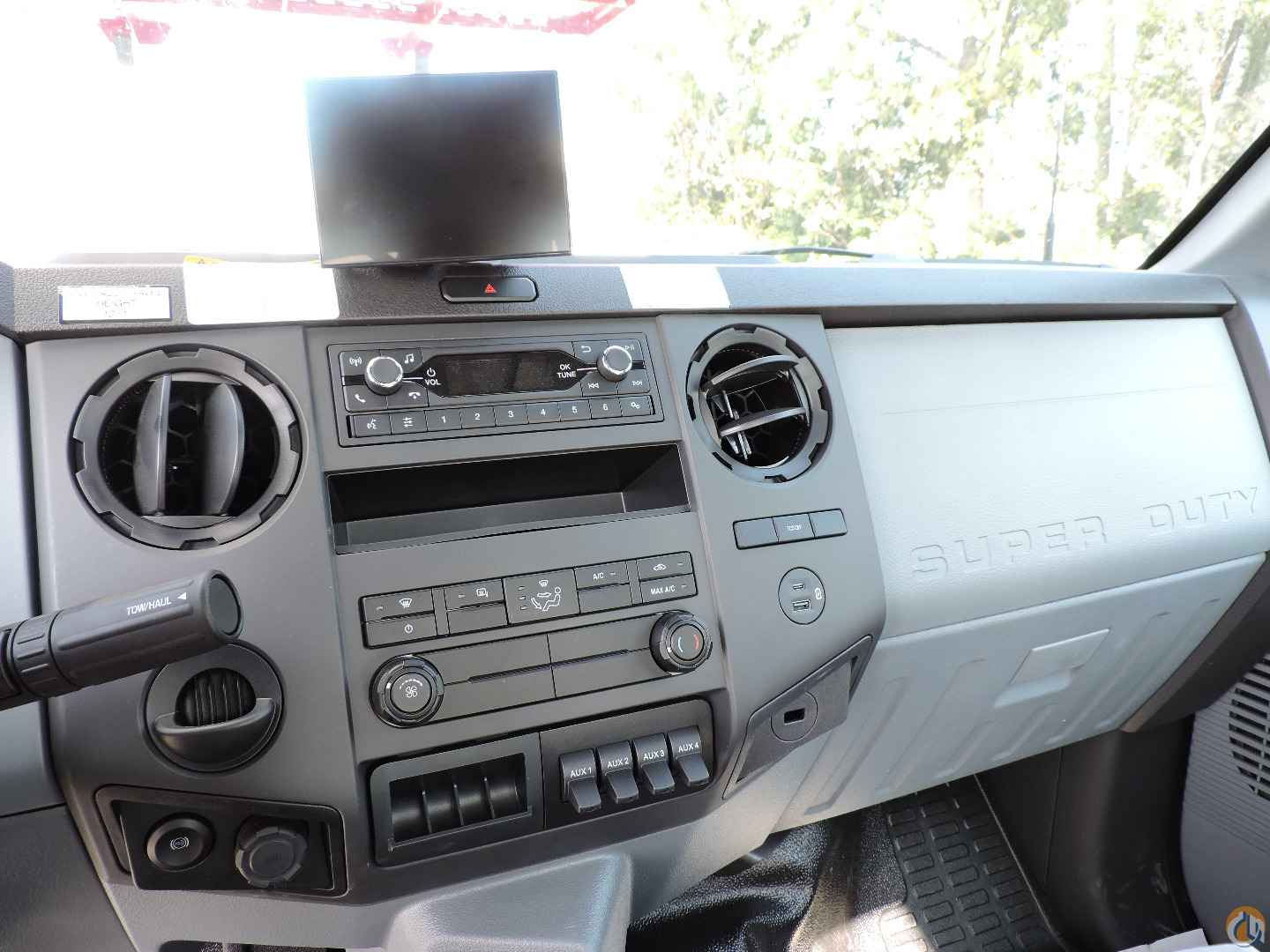

-          AM/FM radio with USB & Bluetooth

-          Hydraulic brakes

-          Air conditioning

-          Power door locks and windows

-          Painted white

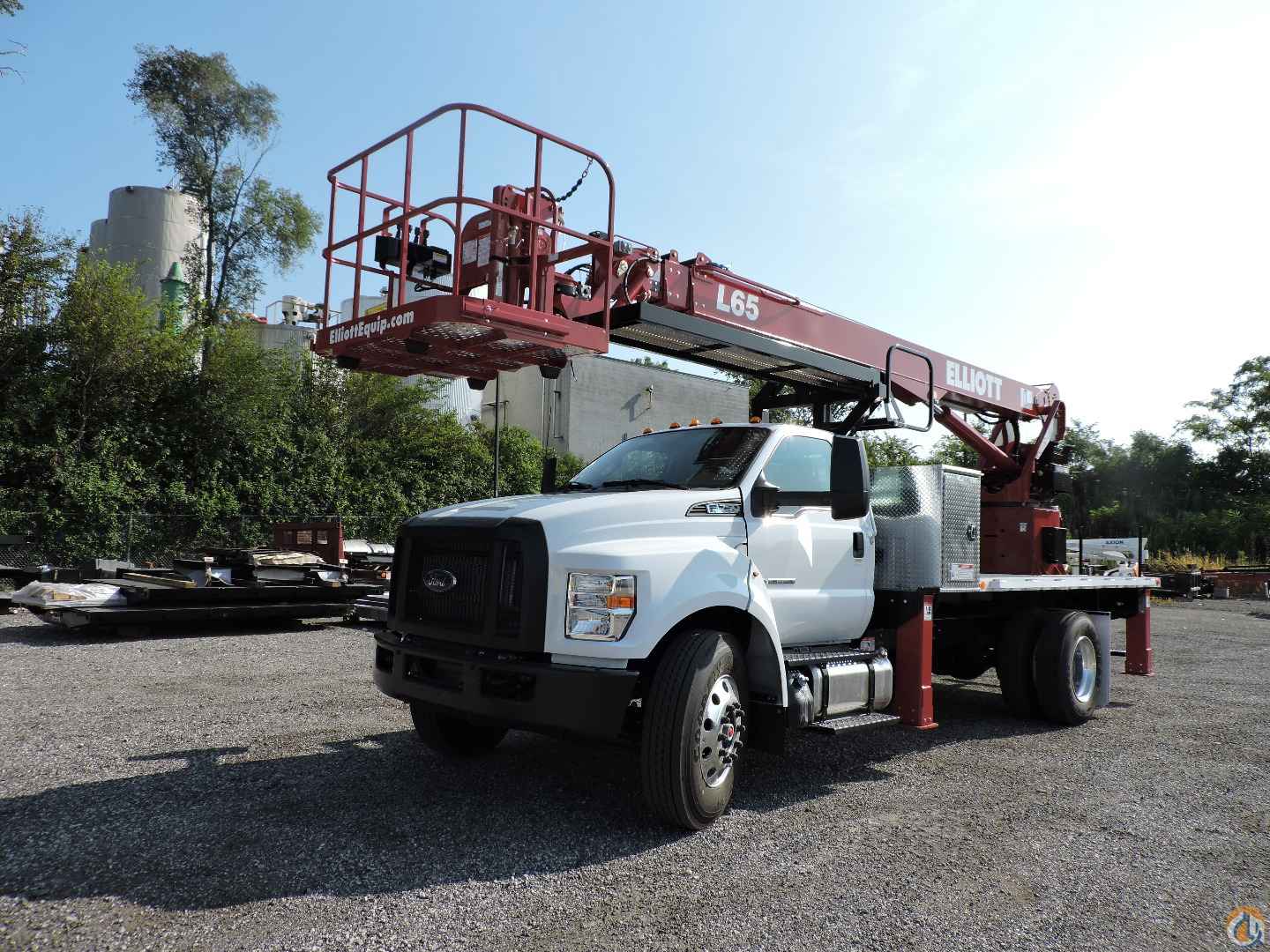

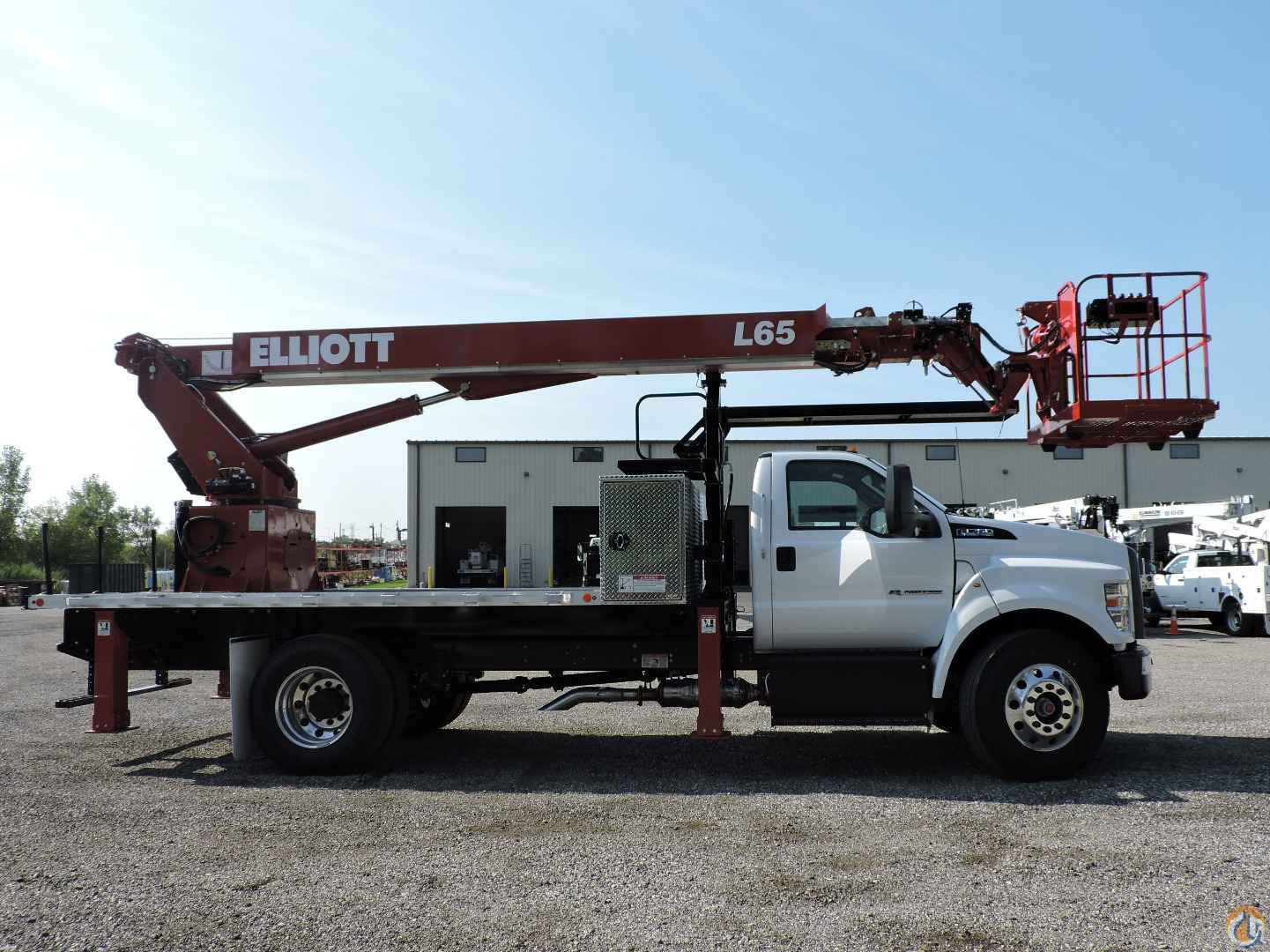

STOCK PHOTOS
