BOOM DETAILS

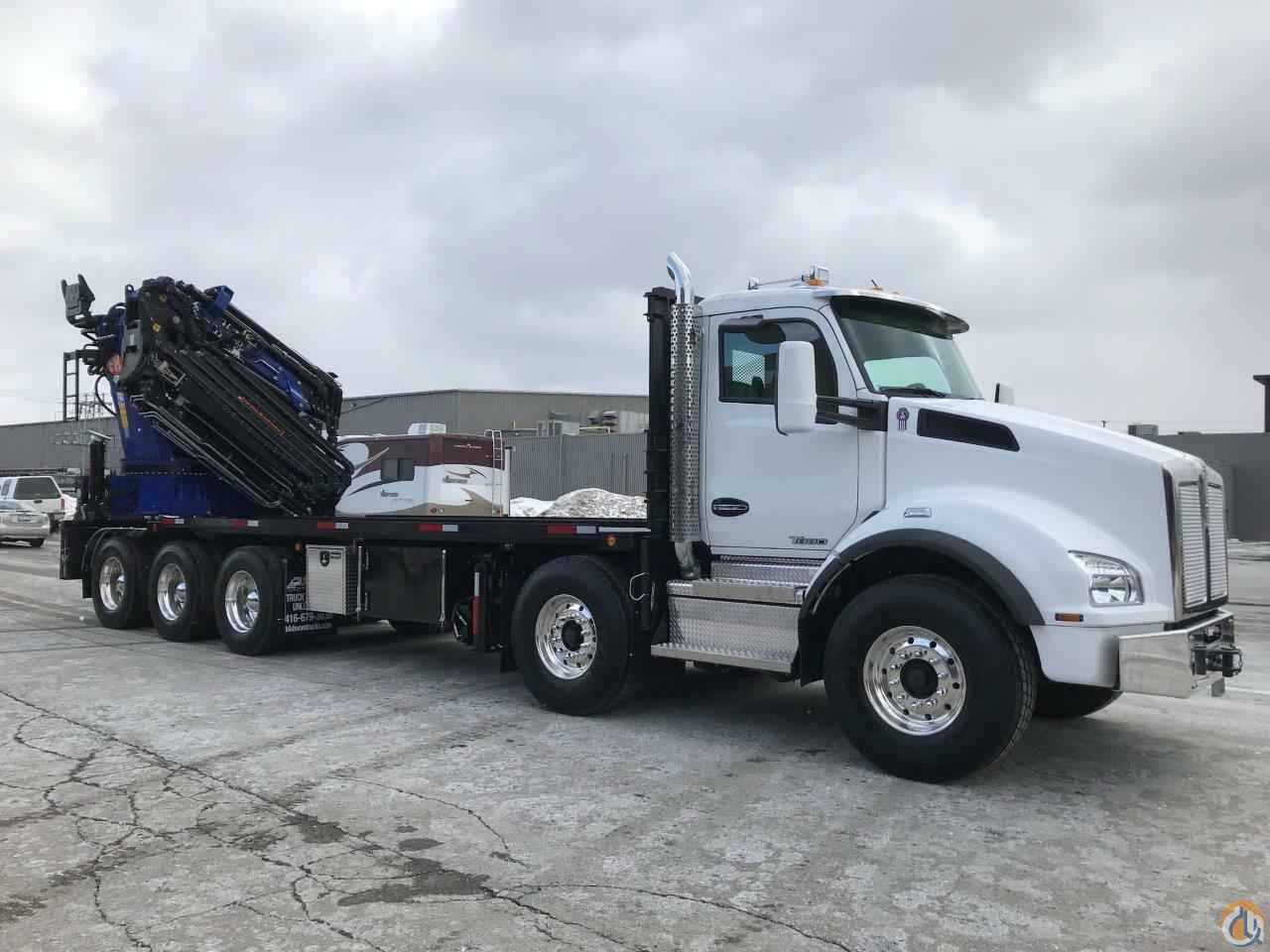

PM 100028-SP Knuckle Boom Folding Hyd 8 ext Knuckle Boom – 65’ Horizontal Reach (77’ vertical)
- Horizontal Capacity:
- 36,800 lb @ 16’
- 20,100 lb @ 27’
- 16,000 lb @ 33’
- 13,000 lb @ 39’
- 9,300 lb @ 52’
- 6,000 lb @ 65’
- PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
- 180-degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 30’ – 7” span – 360-degree full load chart stability
- Hydraulic Oil Cooler, high-pressure return filter and min. 80–gallon hyd oil tank with gate valves mounted at the front under deck
- Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, and backup cord – 5 level turtle (micro) slow-down mode
- Simplified Hydraulic Overload System allowing maximized uptime and ease of maintenance
- Manual Controls – Danfoss valve located on boom column with plastic cover and mechanical hour meter
- Lifting Winch – 4-ton single-line pull winch that can be plumbed for up to 4 part line accessories
- Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified
- Installed at rear, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength
Also Included:
- Auxiliary Extra-Wide hydraulic outriggers 23’ spread front mounted for 360 degree stability
- 1” Drawplate Plate at rear w/pintle hook
- 36” Alum locking checker plate toolbox installed
- (8) PVC stabilizer pads – with holders (4 pcs).,
