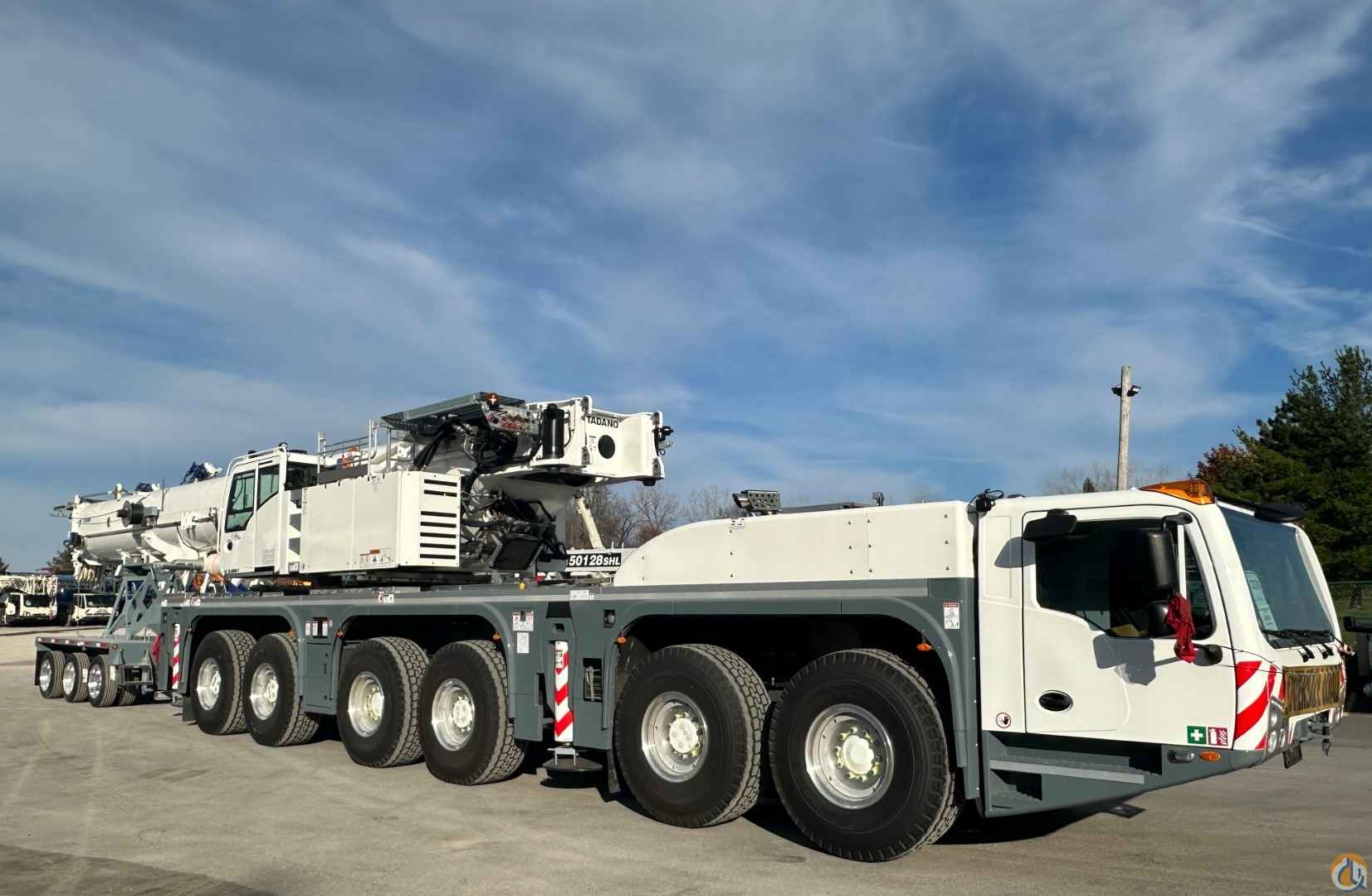

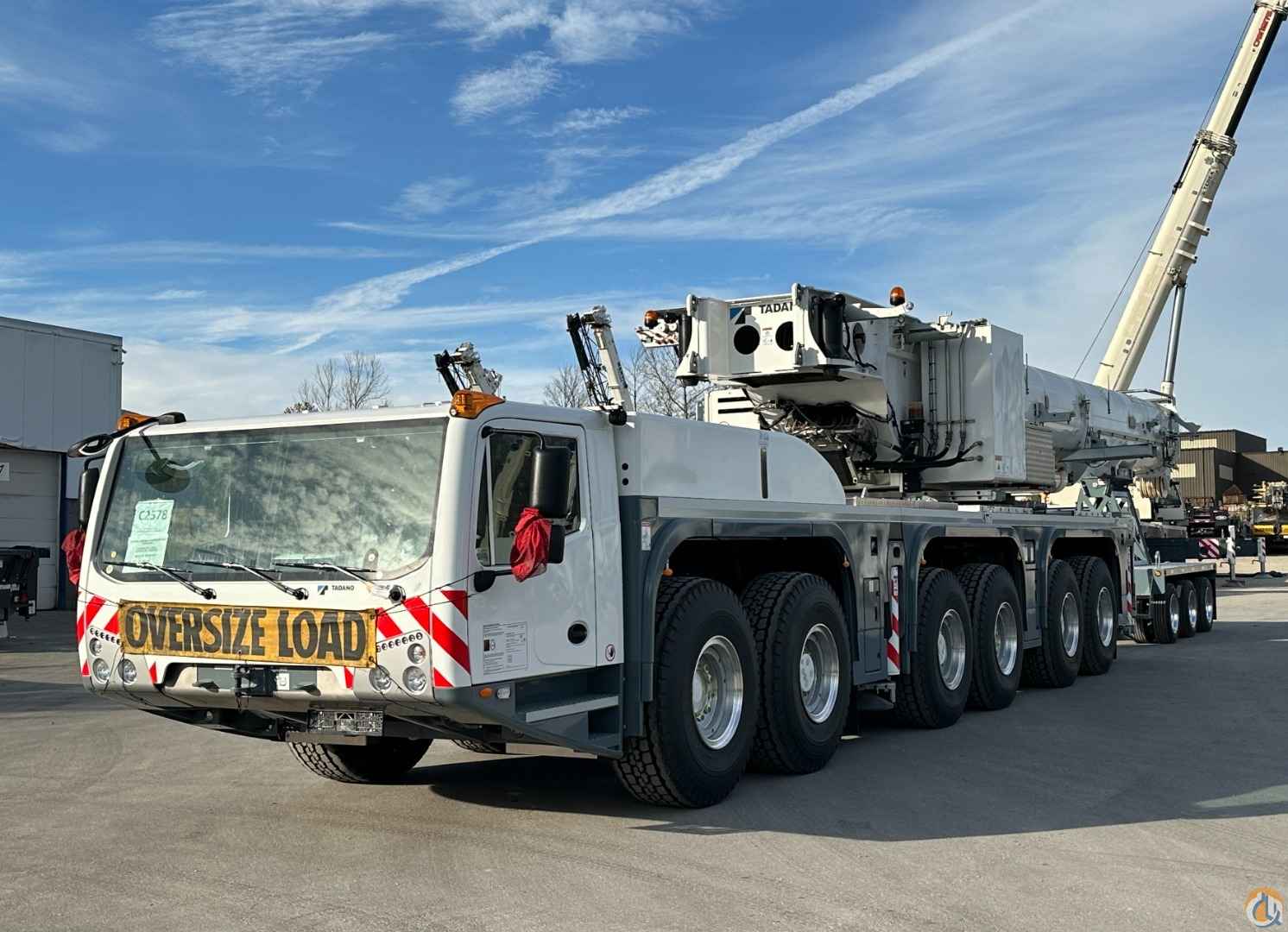

2024 Tadano AC 6.300-1

SC 645

• 350 Ton Capacity

• 47.6-262.5’ Main Boom

• 84’-206.7’ Luffing jib

• Mercedes-Benz OM473; Diesel engine; 460 kW/ 1600 1/min (617 HP), torque 3000 Nm / 1300 1/min; The engine complies with EU Stage V / Tier 4F; Exhaust system. stainless steel with SCR catalyzer

• Transmission G280-16TRC, Mercedes-Benz G280-16TRC ; Automated gearbox with turbo retarder clutch: 16 forward speeds and 4 reverse; 1-stage transfer case

• 12x8x12; 6 axles, axles 2, 3, 5 & 6 are driven

• Hydropneumatic suspension with axle load compensation; hydraulically lockable; Manual or automatic levelling alternatively

• Dual-circuit steering system with independent rear axle steering; axles 1, 2, 3 mechanically connected; axle 5 and 6 electro-hydraulically connected; Active rear axle steering with different steering programs.

• Pneumatic dual circuit service brake, acting on all wheels; Disc brakes; Hydraulic retarder integrated into transmission, sustained-action brake; Additional exhaust brake:

• Wheels 525/80R25 (20.50R25); Aluminum rims

• Heat and Air Condition

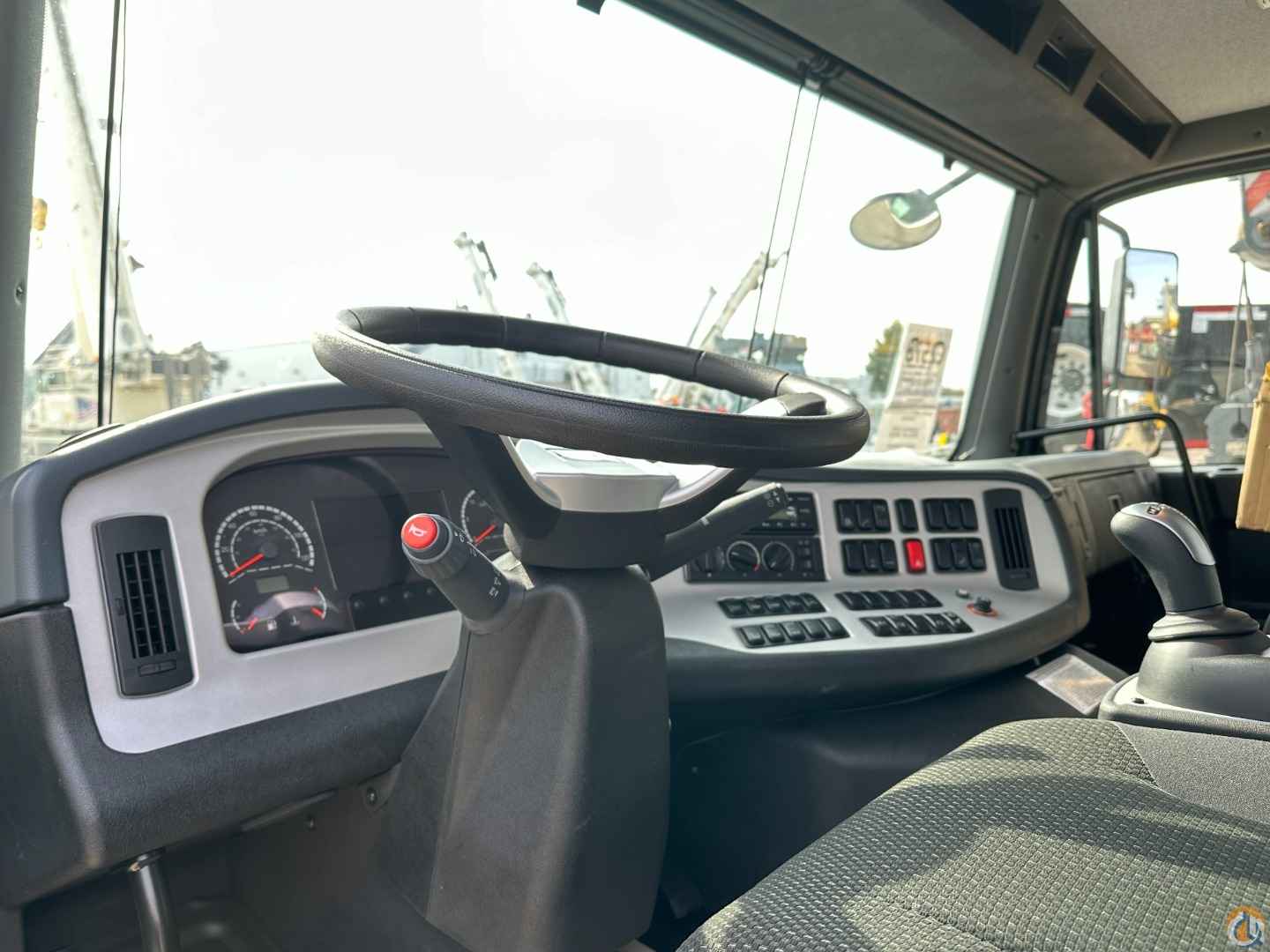

• Rear view camera display in driver's cab

• Cruise Control

• Control of superstructure operations via wireless remote control

• Automatic central lubrication system for the lubricating points on the chassis

• H-4-Point design; Vertical and horizontal movement fully hydraulic; Automatic or manual levelling alternatively on both sides of carrier; 5 outrigger bases of 2,73m, 4,02m, 5,52m, 6,98m and 8,48m

• 4 round outrigger pads A=0,38m“ Polyamide, with transport position at vertical cylinder

• Surveillance of each outrigger beam for detection of horizontal stroke; Warning in case of anomaly in superstructure cab

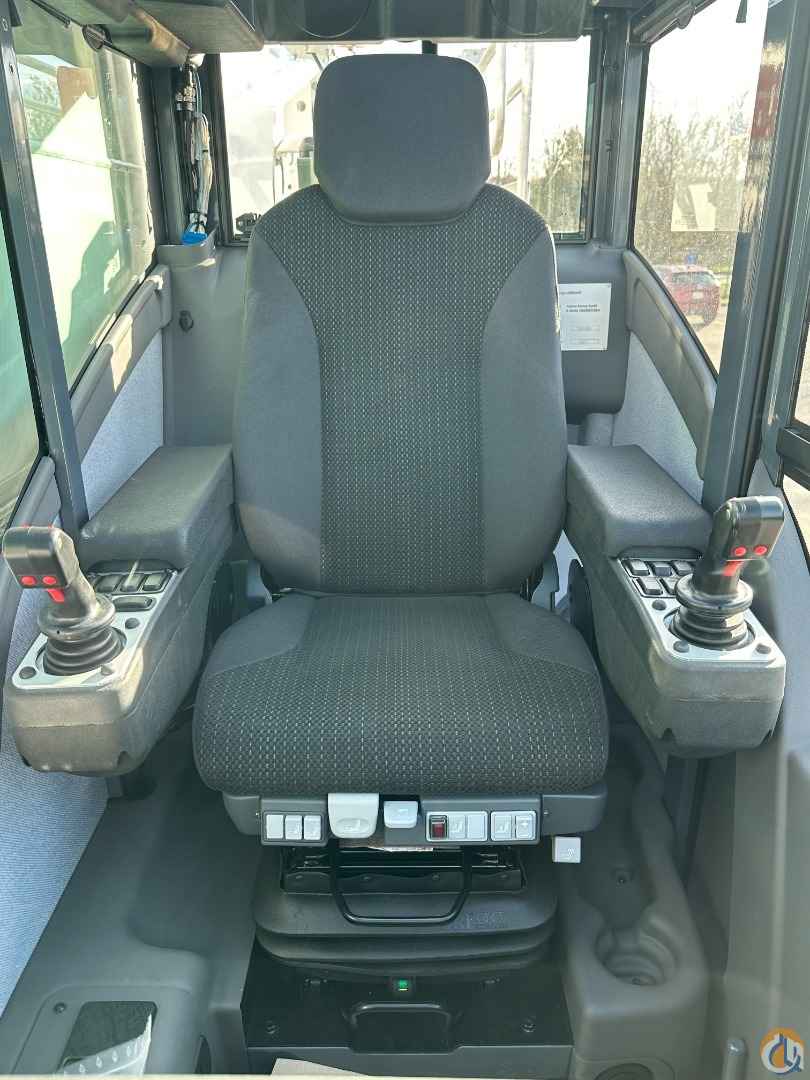

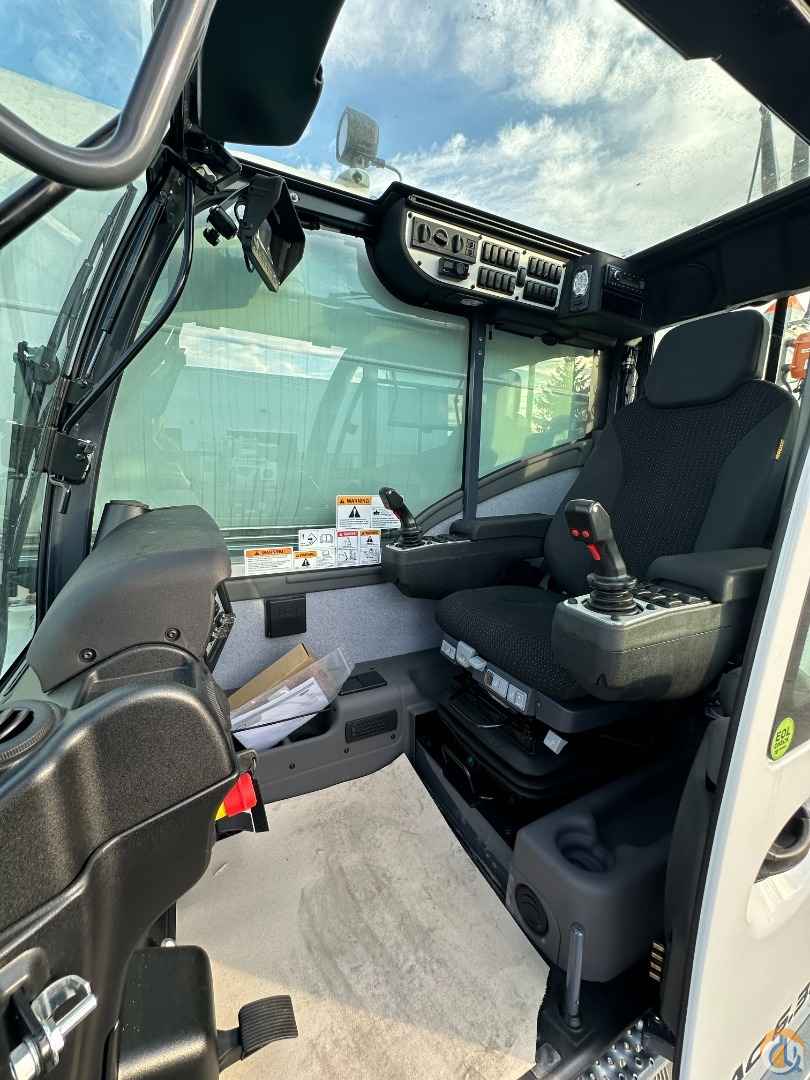

• Electric pilot controls via 2 two-axis joysticks

• IC-1, with integrated load moment indicator, equipped with IC-1 Remote

• 2nd hoist; Spring-loaded multidisc brake; Resolved (hoist rotation indicator),

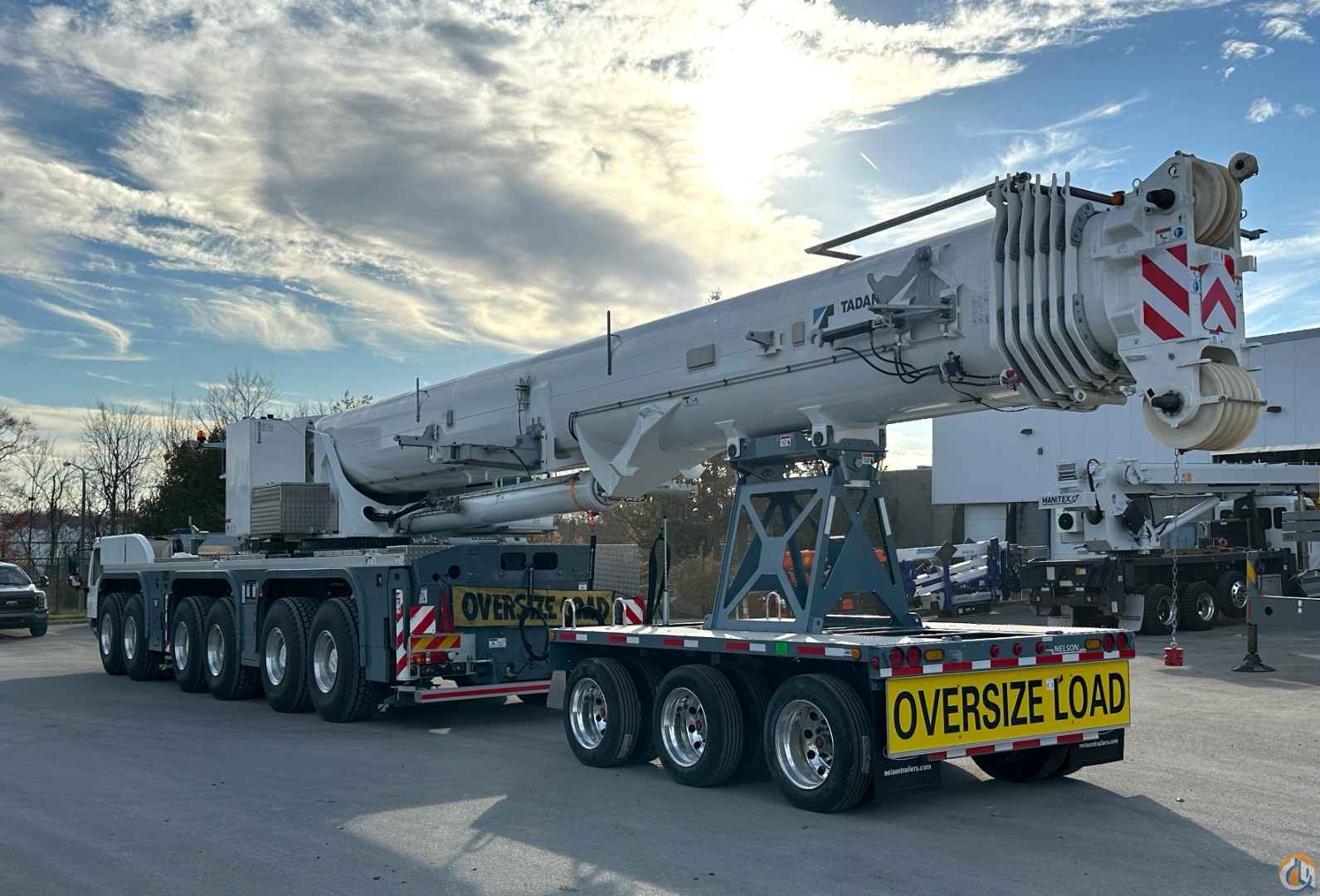

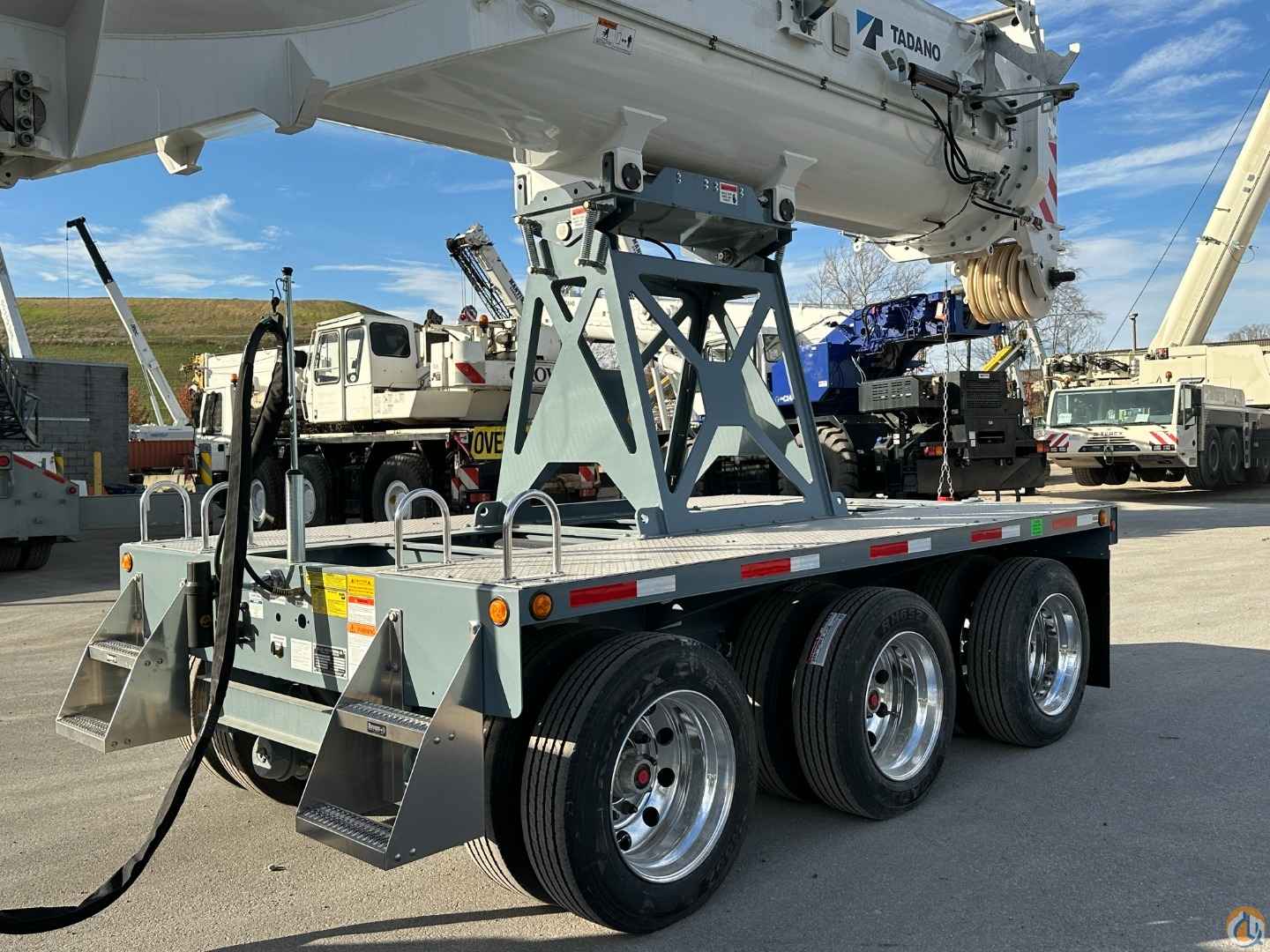

• Dolly Prepped (Dolly Not Included, Available for Separate Purchase)

• Transport optimized CWT; 2x CWT slab 3*4

•       Hook Block

Location: Ohio

Available Immediately
