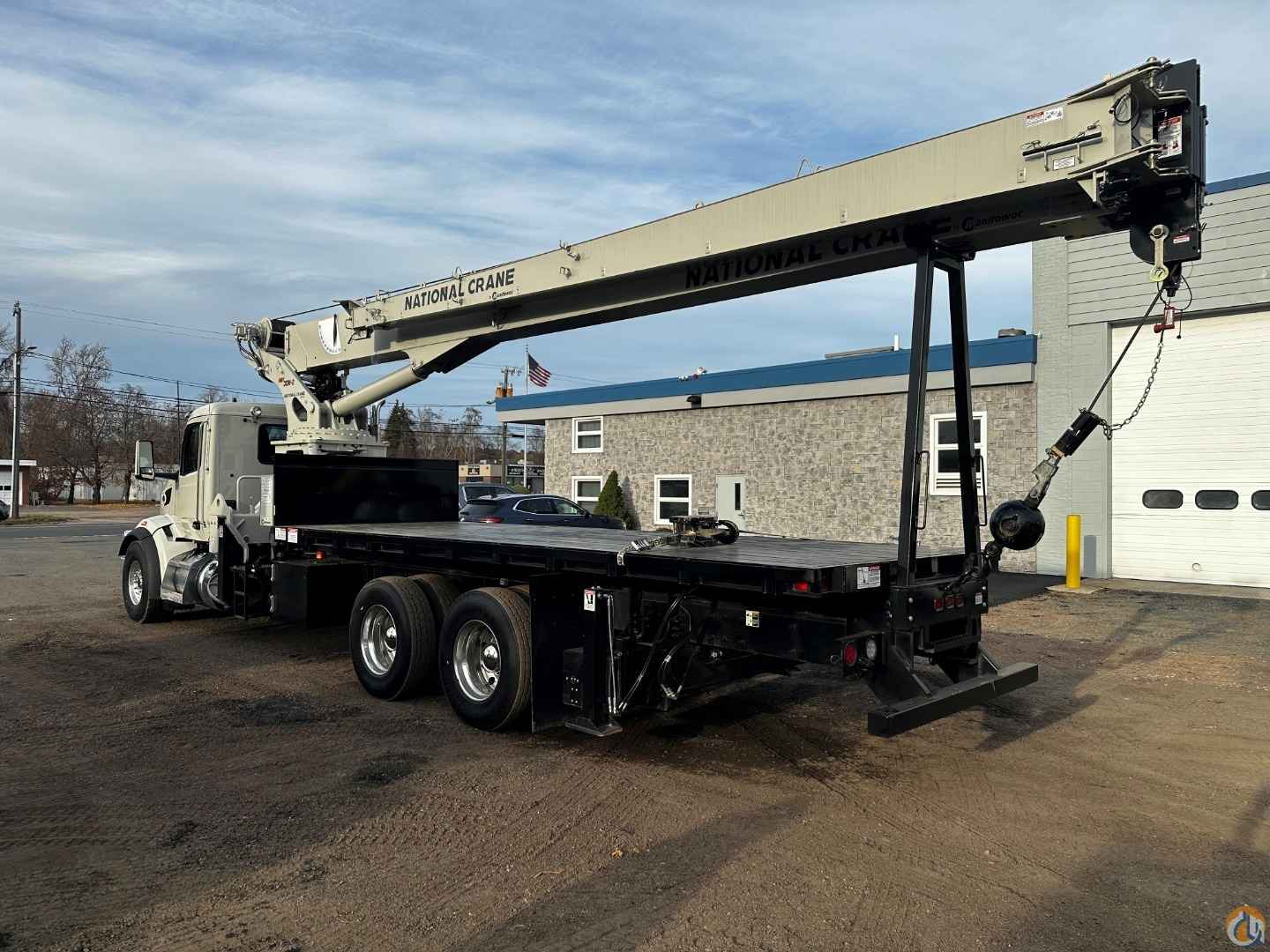

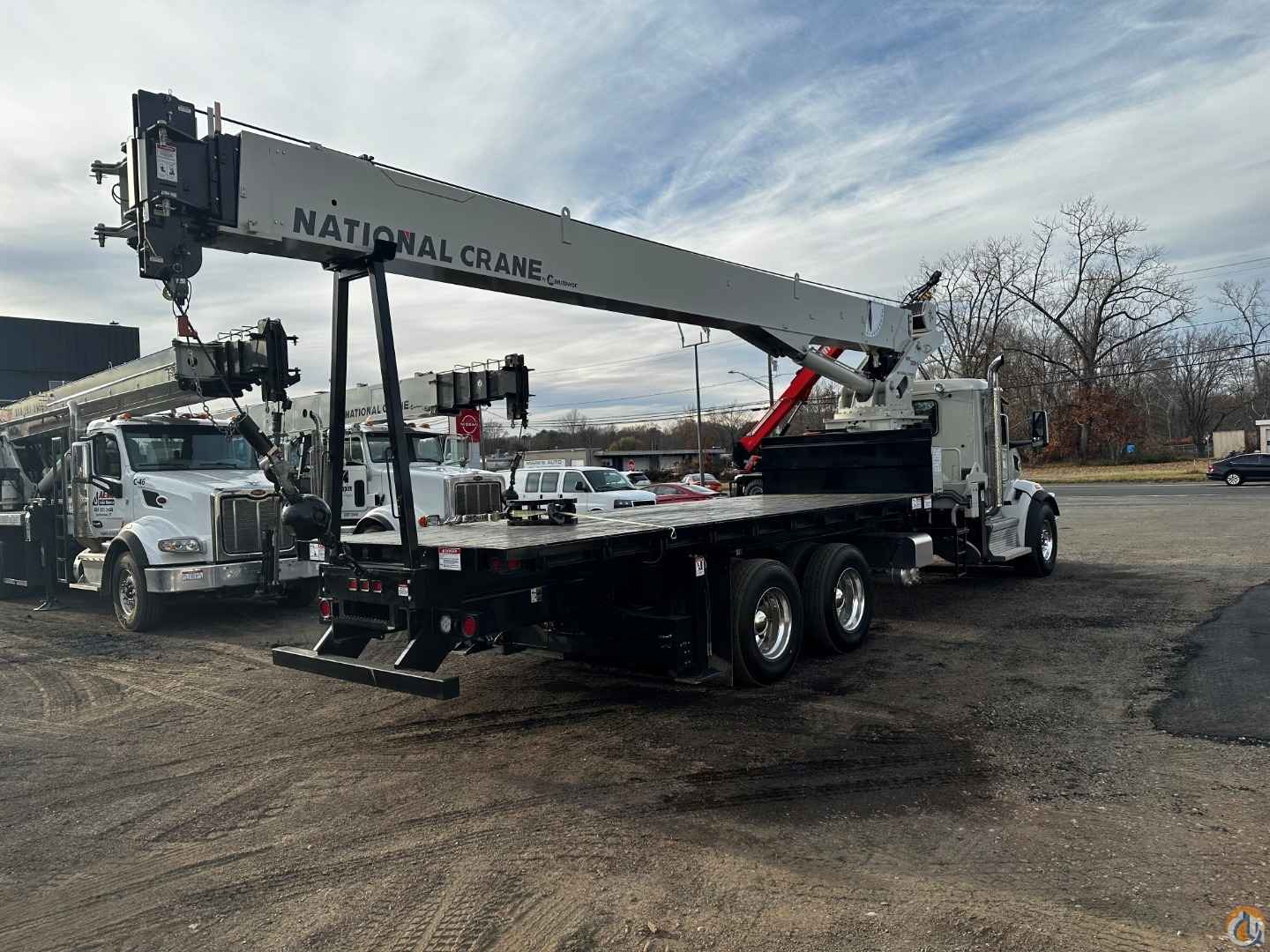

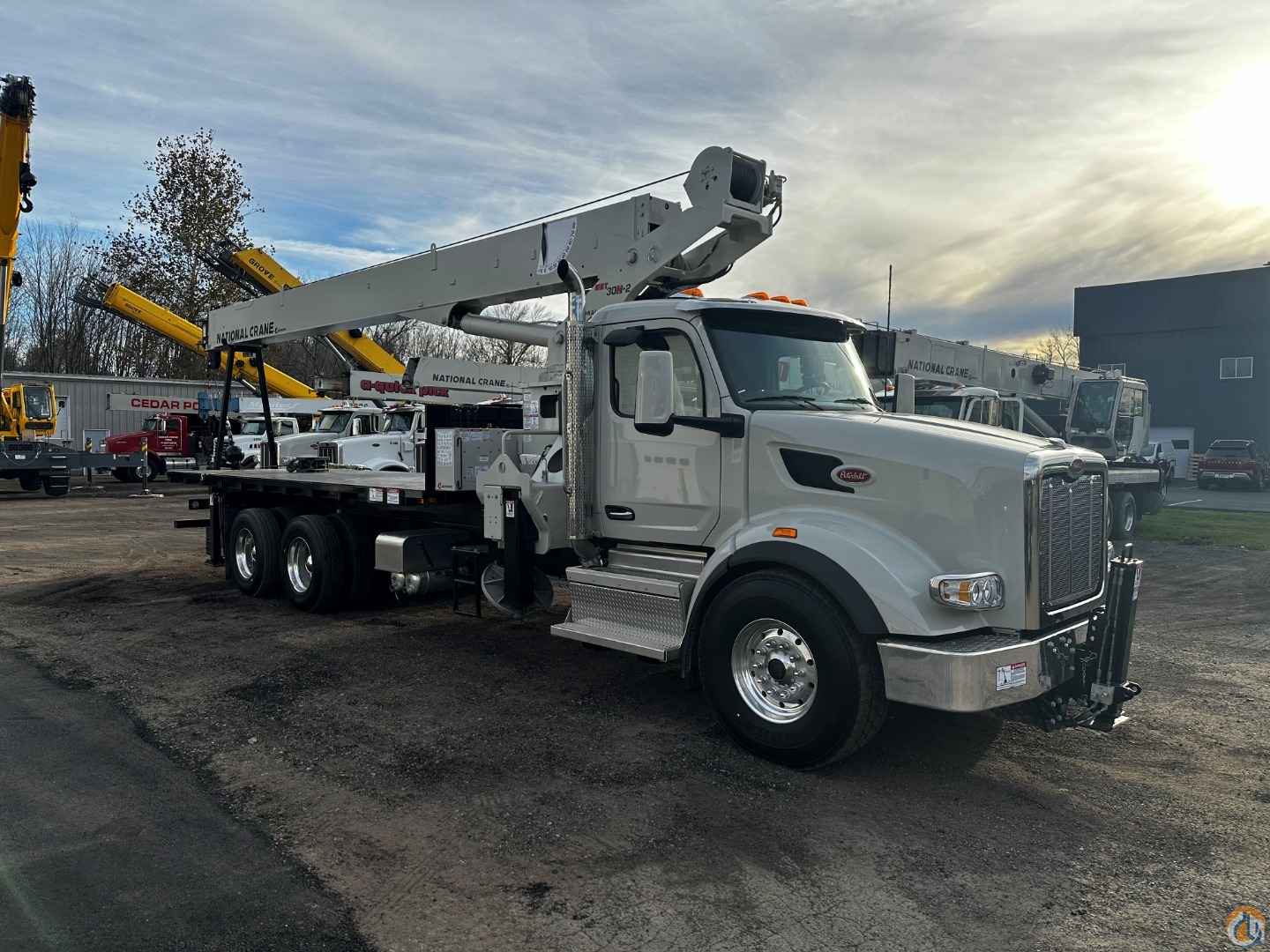

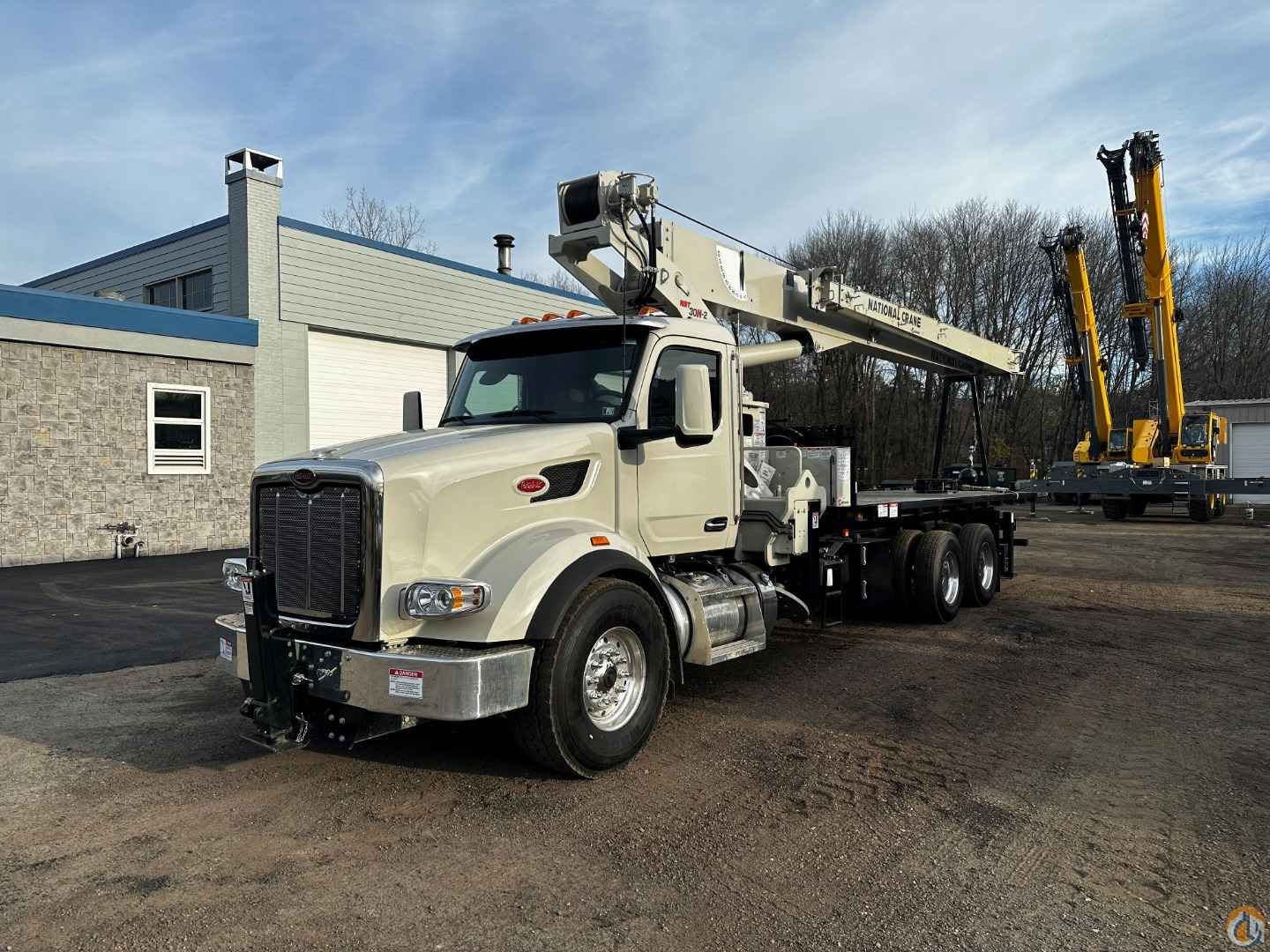

One (1) 2023 NATIONAL NBT30H110-2, S/N: 303054 30 Ton Hydraulic Crane

Crane Specifications

- 33’ to 110' Four-Section Telescoping Main Boom
- 25’ to 44’ Telescoping Boom Extension
- Rated Capacity Limiter (RCL) w/ Anti-Two-Block System
- Dual Side Stand Up Operator’s Stations
- Electronic Hour Meter in Display, Horn & Engine Start / Stop Switch
- Electronic Pendant Outrigger & Stabilizer Controls
- Dual Engine Throttles w/ Electronic Throttle Connections
- 410 Degree Non-Continuous Rotation
- Direct Mount Load Sense Piston Pump Hydraulics
- 73 Gallon Hydraulic Reservoir
- Hydraulic Oil Cooler – Self-Contained
- Planetary Two Speed Main Hoist
- Clockwise Rotation Pump
- ICC Safety Kit
- Hydraulic Oil Cooler
- 390’ (118.8 m) 9/16” (14 mm) Rotation Resistant Wire Rope
- Front Out and Down Cross Frame Outriggers
- Rear Out and Down Stabilizers
- Single Front Outrigger
- 24” Diameter Aluminum Outrigger Pads
- Hoist Jog Switch and Radio Remote Ready
- Torsion Resisting Subbase for 22’ Flatbed
- 22’ Super Duty Wood Floor Bed
- Back Up Alarm
- Outrigger Position Monitoring System / Motion Alarm
- Removable Rear Boom Carrying Rack
- Rear Bumper Underride Protection
- Steel 30” Solid Wall Bulkhead
- Painted National “Platinum” Gray
- 7 Ton Round Downhaul Weight w/ Top Swivel
- 2 & 3 Part 12.5 Ton Single Sheave Hook block

Truck Specifications

- 2023 Peterbilt 567
- Paccar MX-13 455HP Diesel Engine
- Allison 4500 RDS Automatic Transmission
- 20,000 LB. Front Axle Weight Rating
- 46,000 LB. Rear Axle Weight Rating
- 66,000 LB. Gross Vehicle Weight Rating
- Differential Locks on Both Drive Axles
- Aluminum Wheels
- Approximate Crane Hours: 139 (11/8/2023)
- Approximate Engine Hours: 214 (11/8/2023)
- Approximate Miles: 3,305 (11/8/2023)
