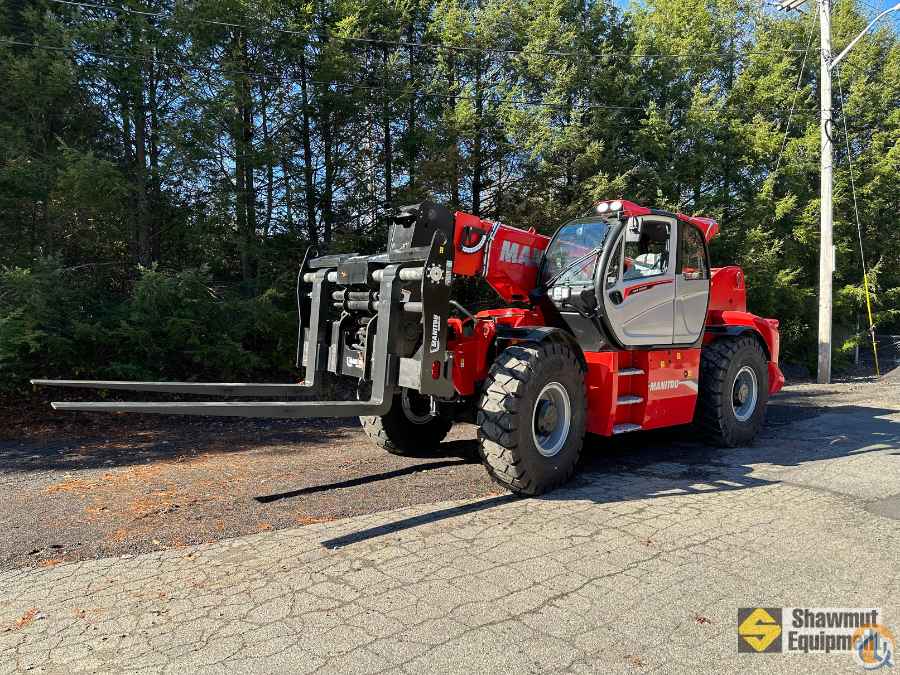

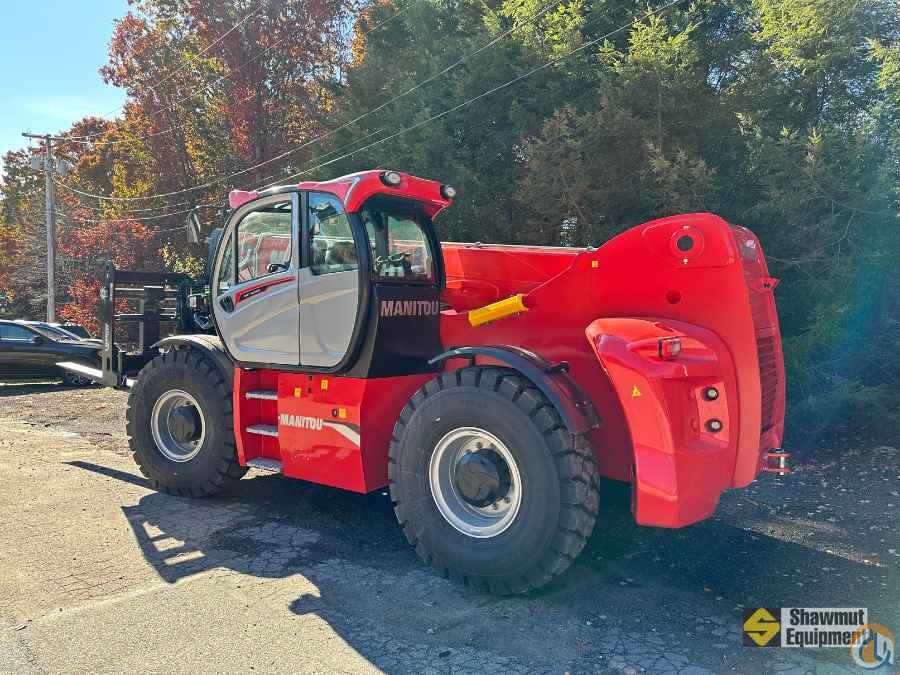

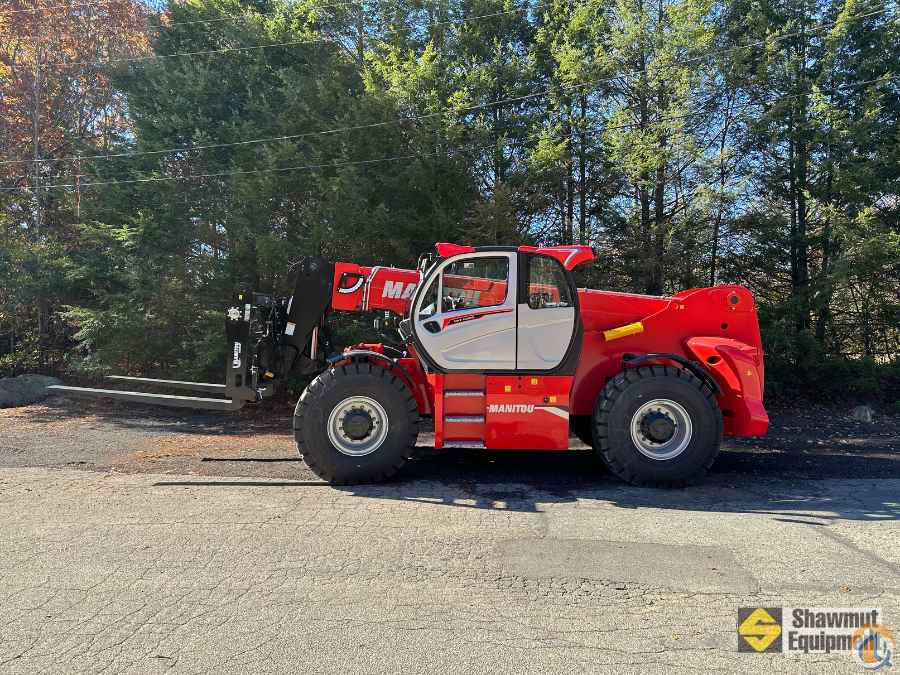

New 2023 Manitou MHT10200, S/N: MAN00000V01102091: 22-Ton Capacity Rough Terrain Construction Telehandler
KEY SPECIFICATIONS
- Capacity: 44,000 lbs. (20,000 kg)
- Lift Height: 31 ft. (9.7m)
- Machine Width: 8 ft. 3 in. (2.52m)
- Machine Height: 9 ft. 9 in. (2.97m)
- Length to FF 22 ft. (6.7m)
- Machine Weight 59,194 lbs. (26,850 kg)
BOOM
- 2-Section Telescopic Boom
- Dual Boom Tip Auxiliary Hydraulic Circuit
- Hyd Locking Quick Attach
ELECTRICAL SYSTEM
- Battery Disconnect
- Lights - Complete LED Road Light Package
- Light - LED Work Front & Rear
- LED Flashing Beacon
DRIVETRAIN / CHASSIS
- 211 HP Yanmar Turbo Diesel Engine
- 2 Forward-2 Reverse Hydrostatic Transmission
- 3 Mode Hydraulic Steering
- Engine Block Heater
- Engine Hours: Approx. 11
- Heavy Duty Battery
- 16.00 R25 Tires
- Frame Leveling (10/10 degrees) and Tow Pin
OPERATORS AREA
- Fully Enclosed Cab with Heater/ Defroster
- Cab Wipers - Front, Rear and Roof
- Air Conditioning
- Backup Alarm
- Deluxe Suspension Seat
- JSM® Joystick Controls
- Three Camera Video System - back, side, boom tip
- Adjustable & Telescopic Steering Column
- 8-inch Digital Display
- Sunshade - windshield and roof
- ECO Stop
INCLUDED EQUIPMENT
- Work Lights – Two Mounted on Boom
- Shaft Type Carriage, SS FP - 98 in. (2500 mm) Wide w/ 3.75 in. x - 8 in. x 94 in. (95 x 200 x 2400 mm) Forks / Rated 33,000 lbs. (15,000 kg)
