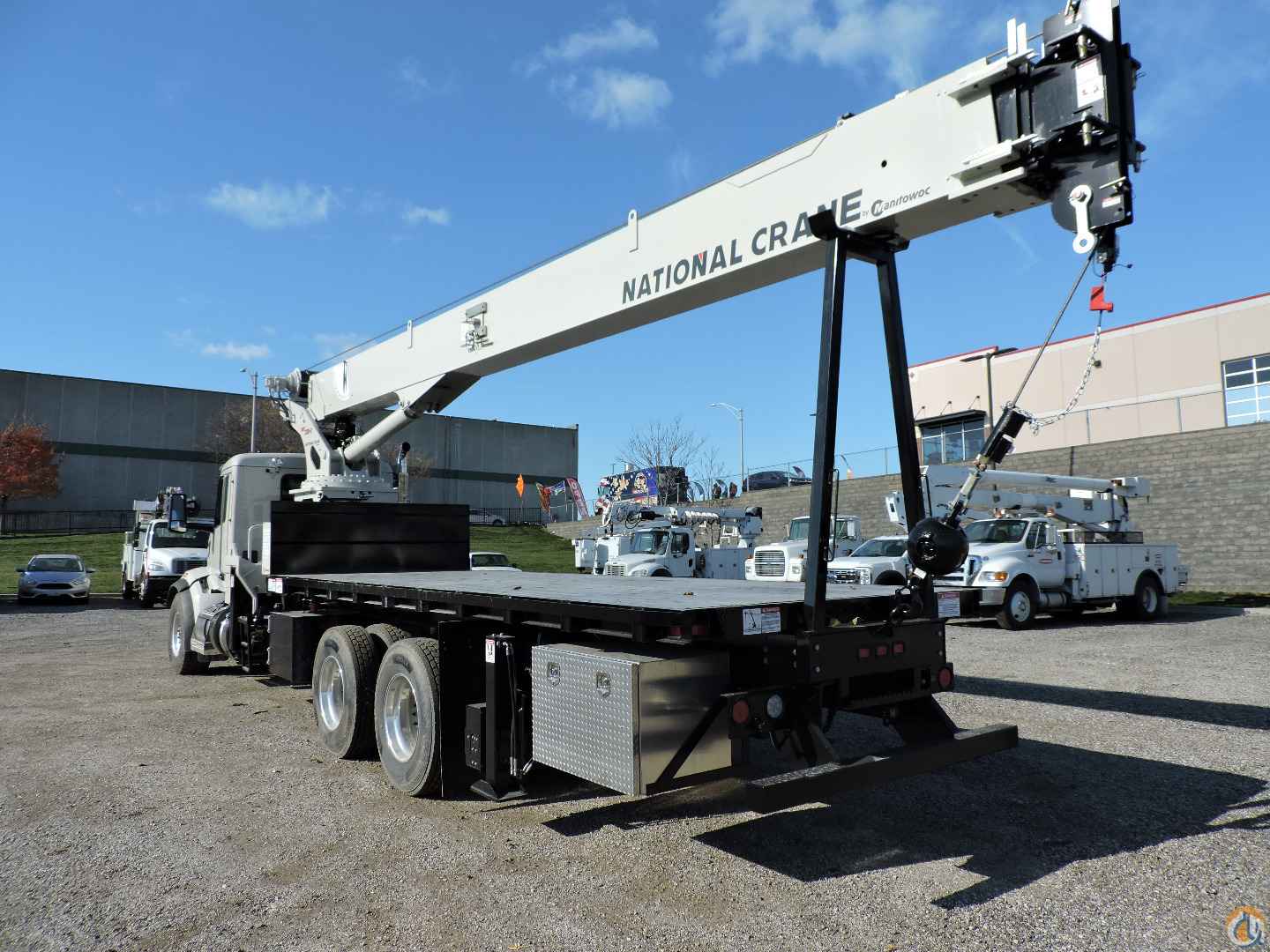

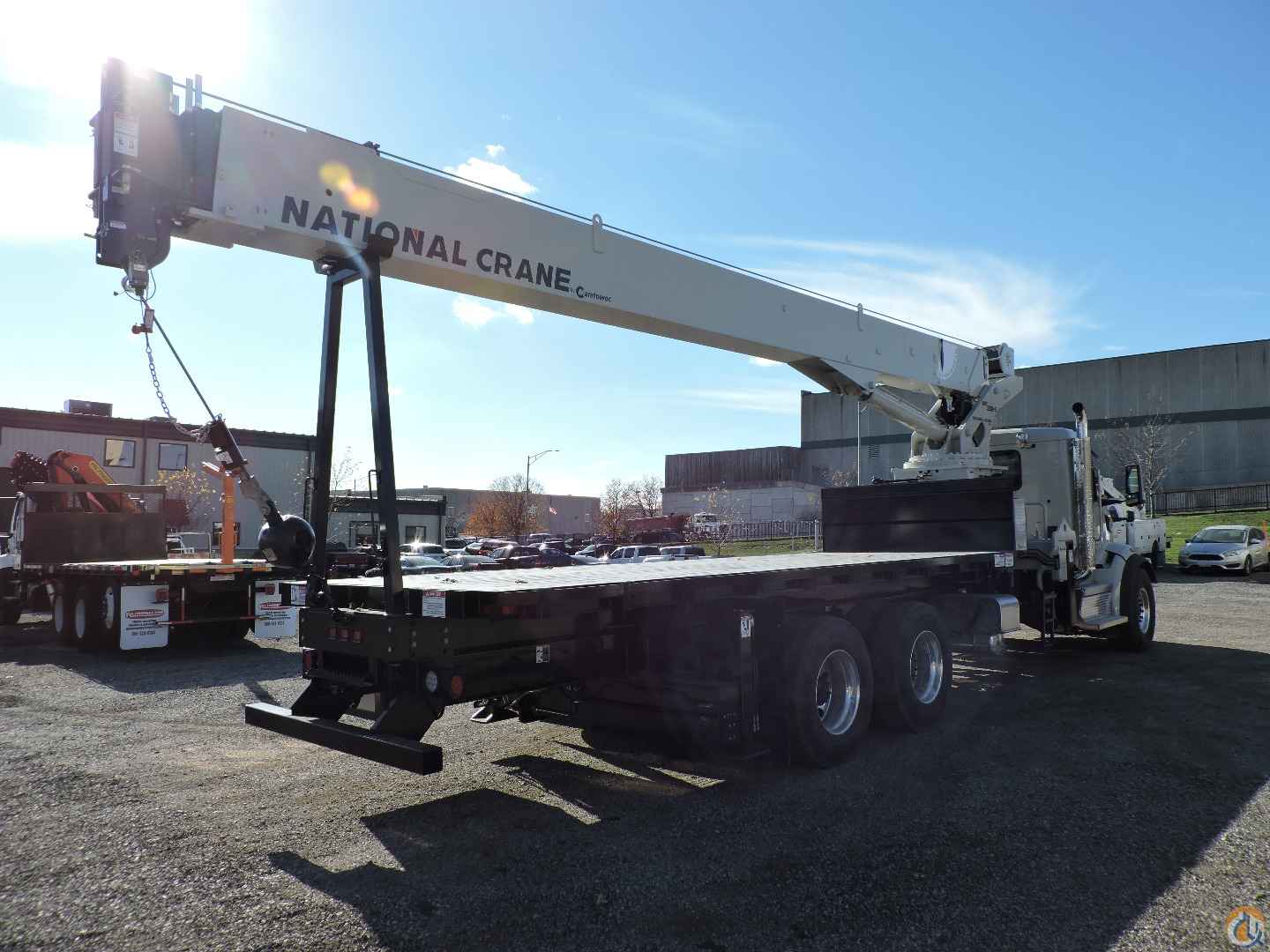

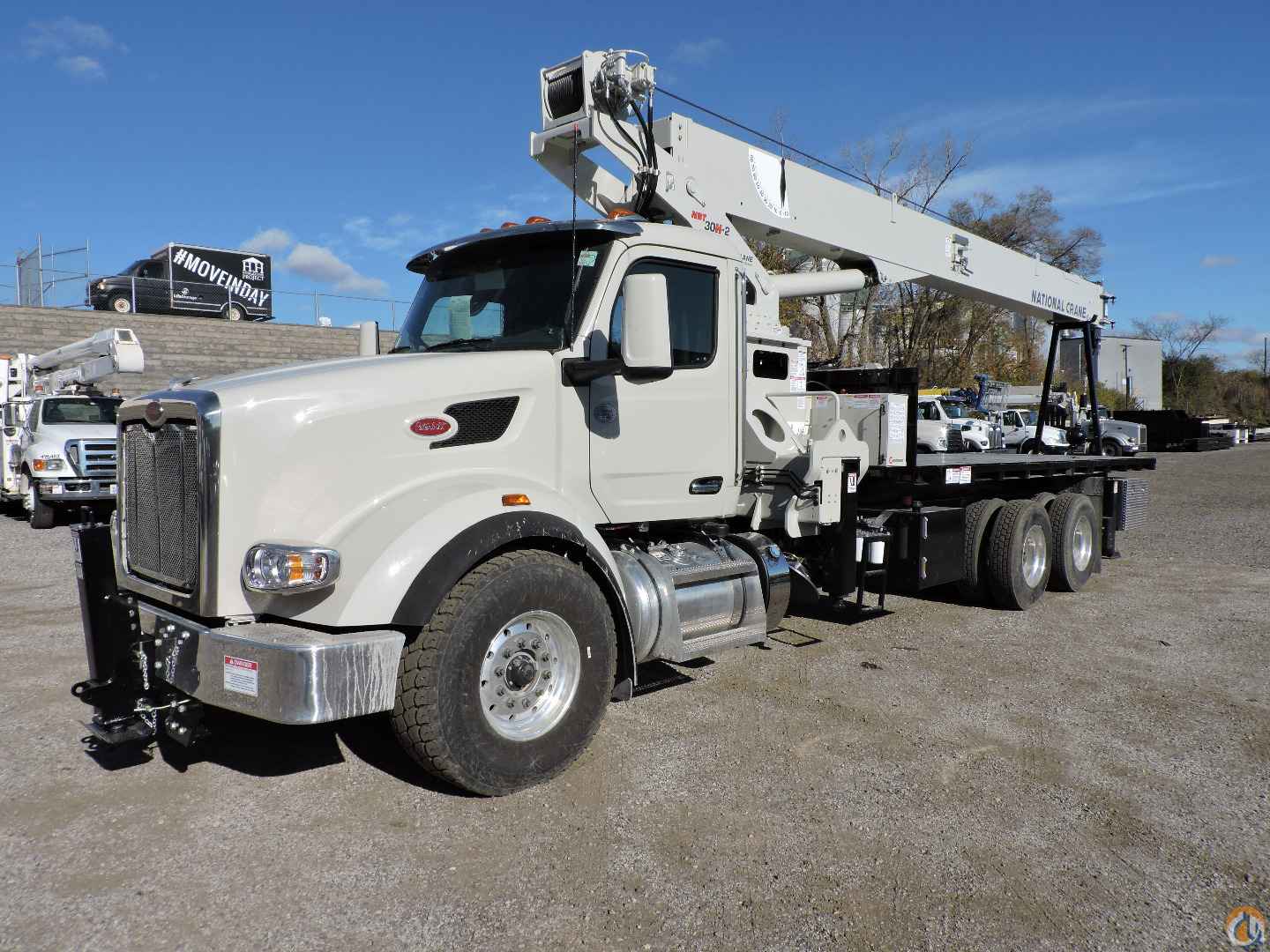

National NBT30H-2 equipped as follows:

- 30-Ton capacity

- 33’ – 110’ four section boom, 120’ tip height

- Calibrated for future jib

- Rated Capacity Limiter System – displays boom angle and length, working radius, rated load and total weight being lifted. Includes WADS

- Anti-two block system with internal wiring

- Front out-and-down outriggers with 20’ full span, 14’ mid span with manual lock pins. Capacity charts provided for full, mid, and fully retracted span

- Rear out and down stabilizers with 18’6” span

- Two (2) 20” diameter polymeric outrigger pads for main outriggers

- Single front outrigger for 360° stability

- Outrigger motion alarm

- Outrigger monitoring system

- 410° non-continuous rotation with adjustable swing drive

- 390’ of 9/16” rotation-resistant wire

- Single line pull – 7,700 lbs

- Round downhaul weight with top swivel, 7-Ton capacity

- Two-speed winch

- Dual-side manual control levers

- Electric outrigger control pendant for outriggers and stabilizers

- Hydraulic system includes load sensing piston pump

- 73-gallon oil reservoir with butterfly valve on suction line

- Oil cooler

- Painted National Platinum

- 22’ super duty wood bed with rub rails

- 30” bulkhead

- 36” x 24” x 24” aluminum tool box

MOUNTED ON:

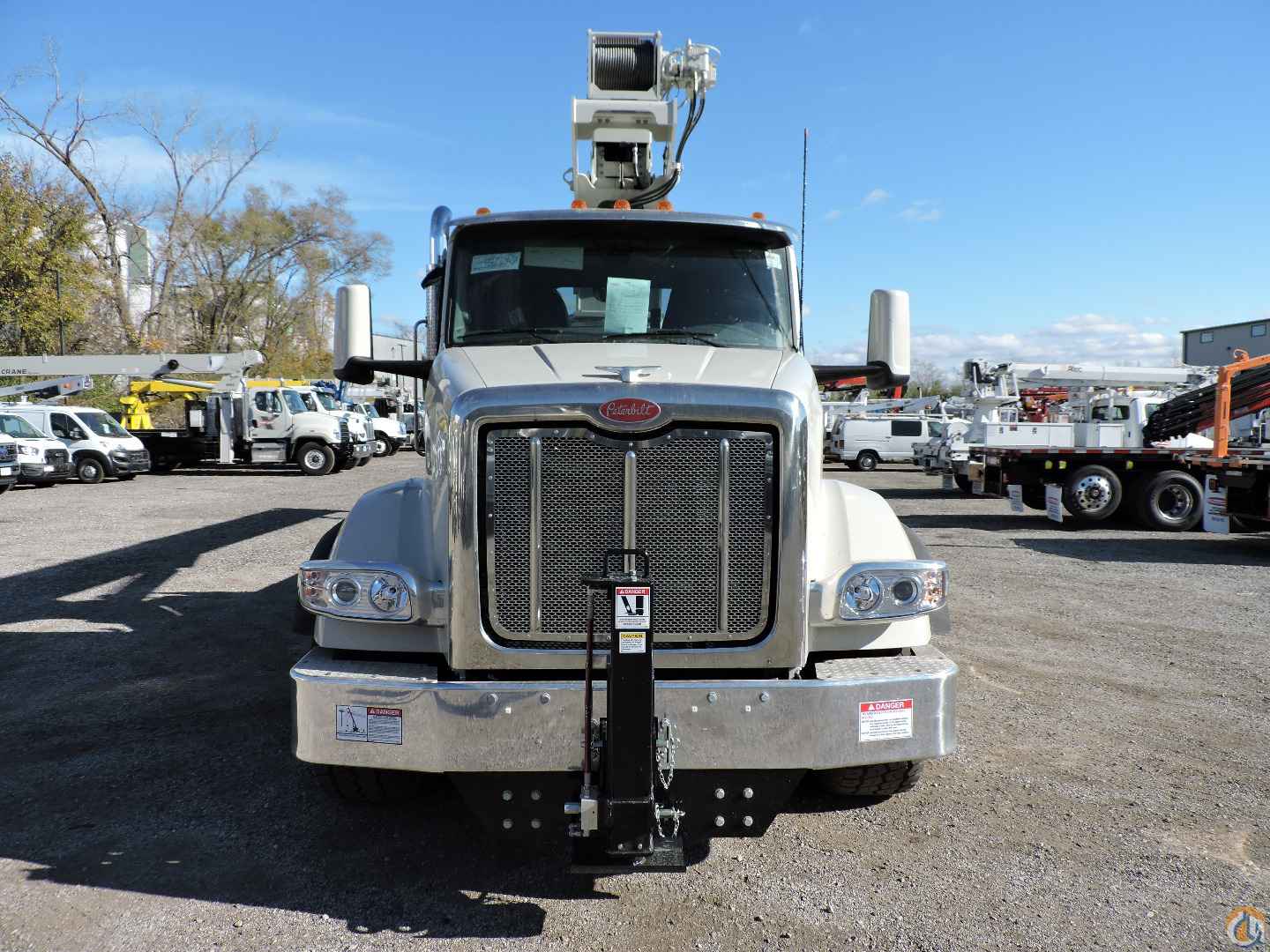

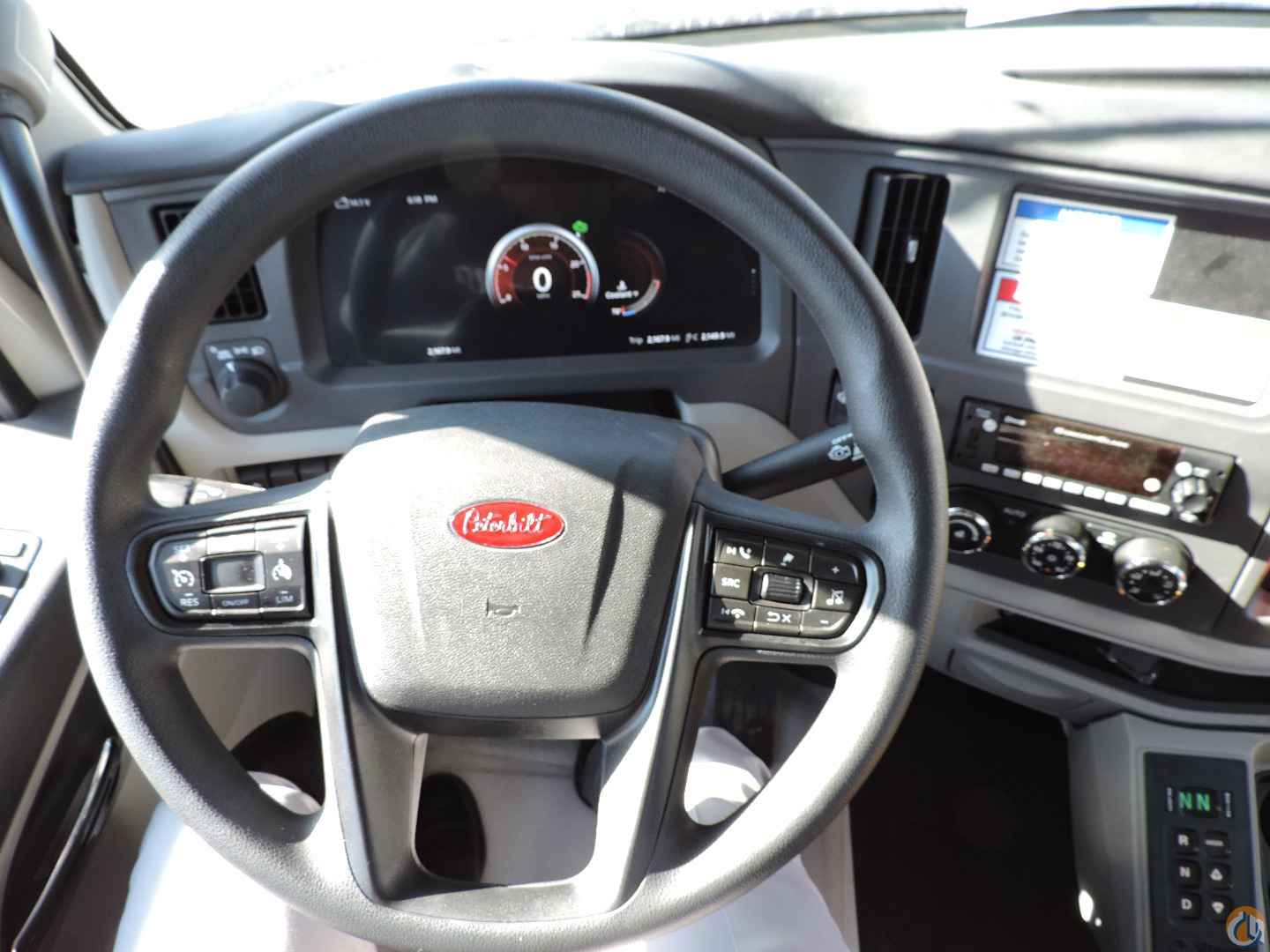

2023 Peterbilt 567 equipped as follows:

- PACCAR MX-13 455hp@1600 rpm, GOV@2200, 1650 ft/lb@900rpm

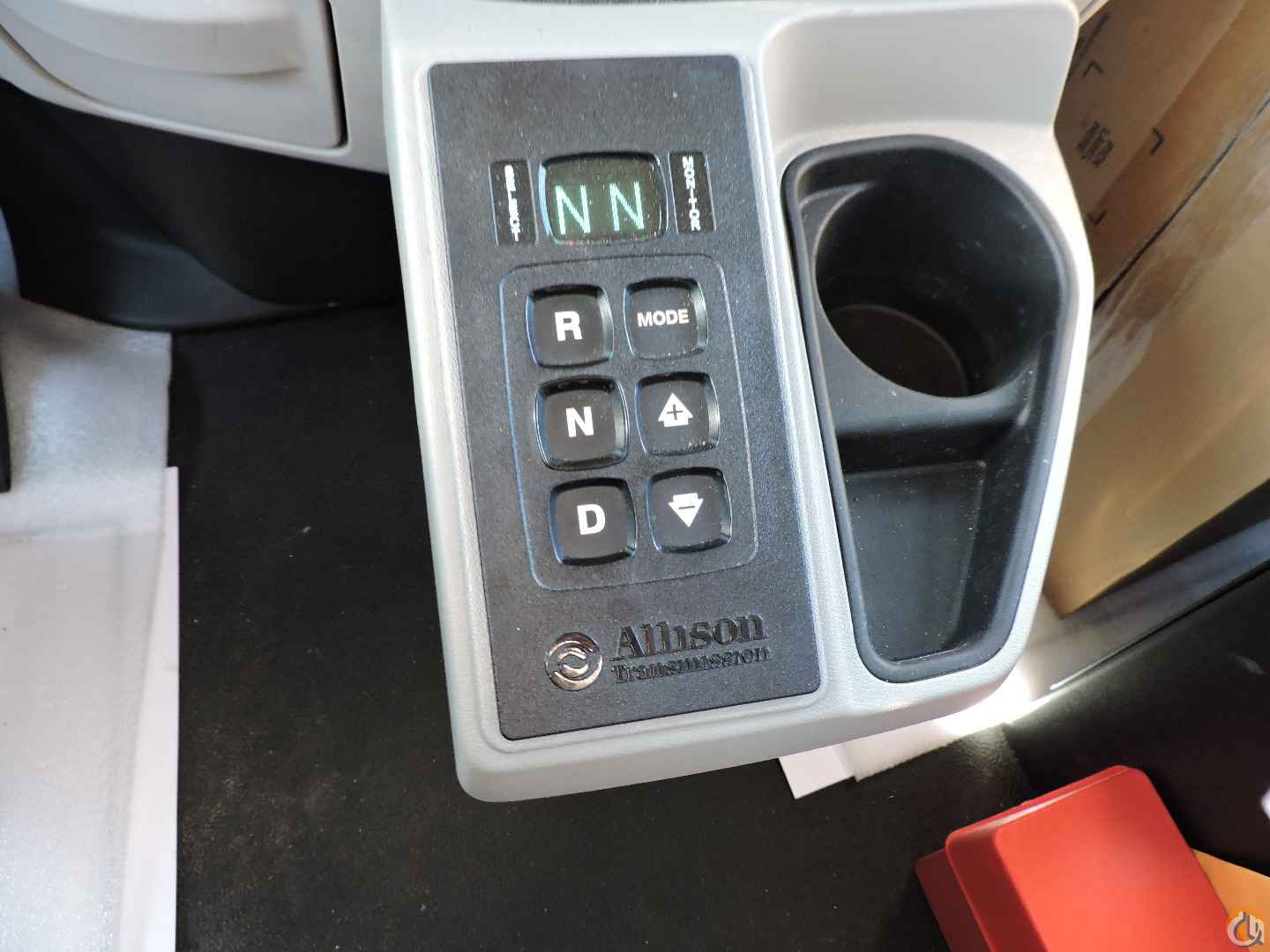

- Automatic transmission

STOCK PHOTOS
