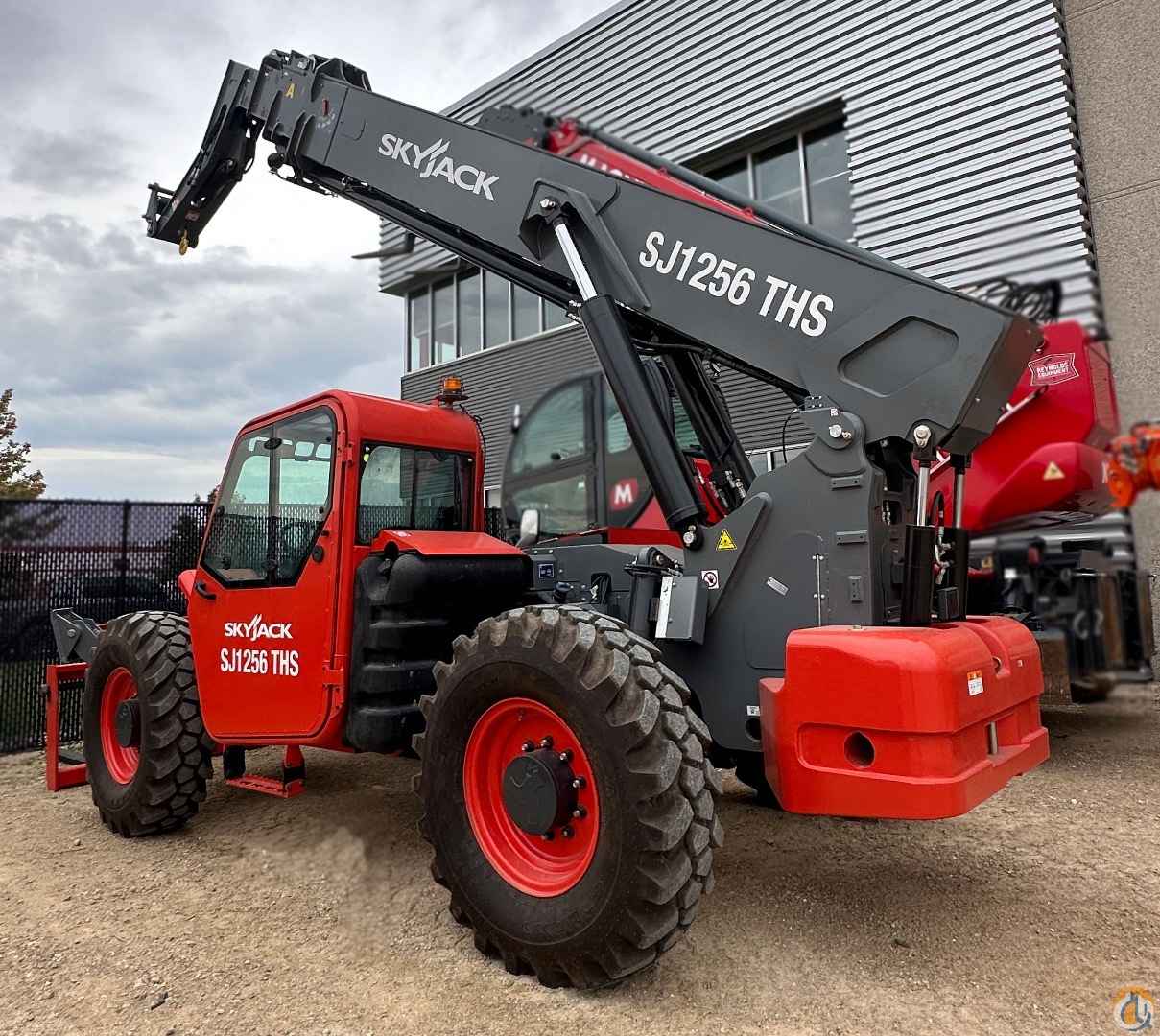

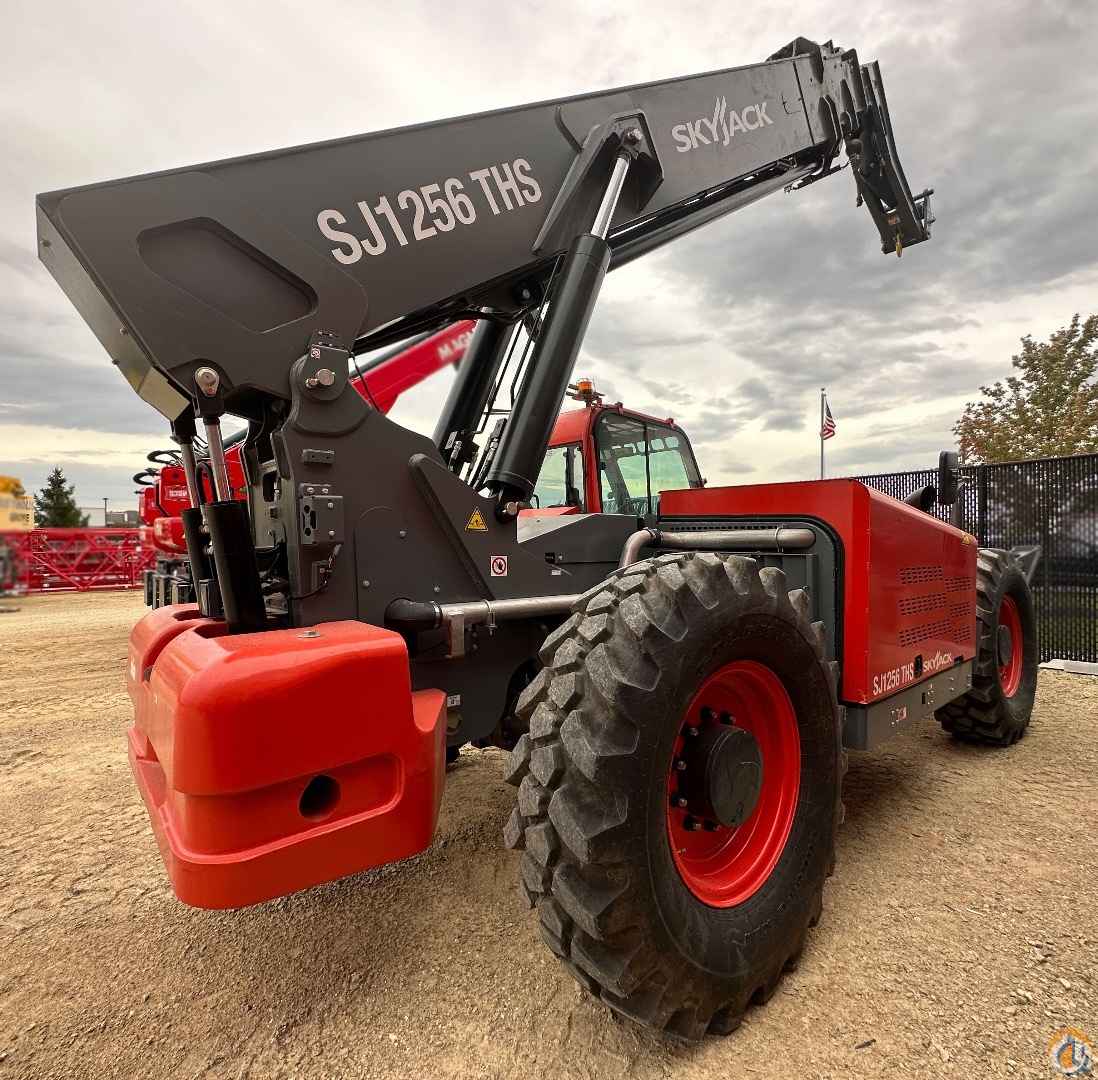

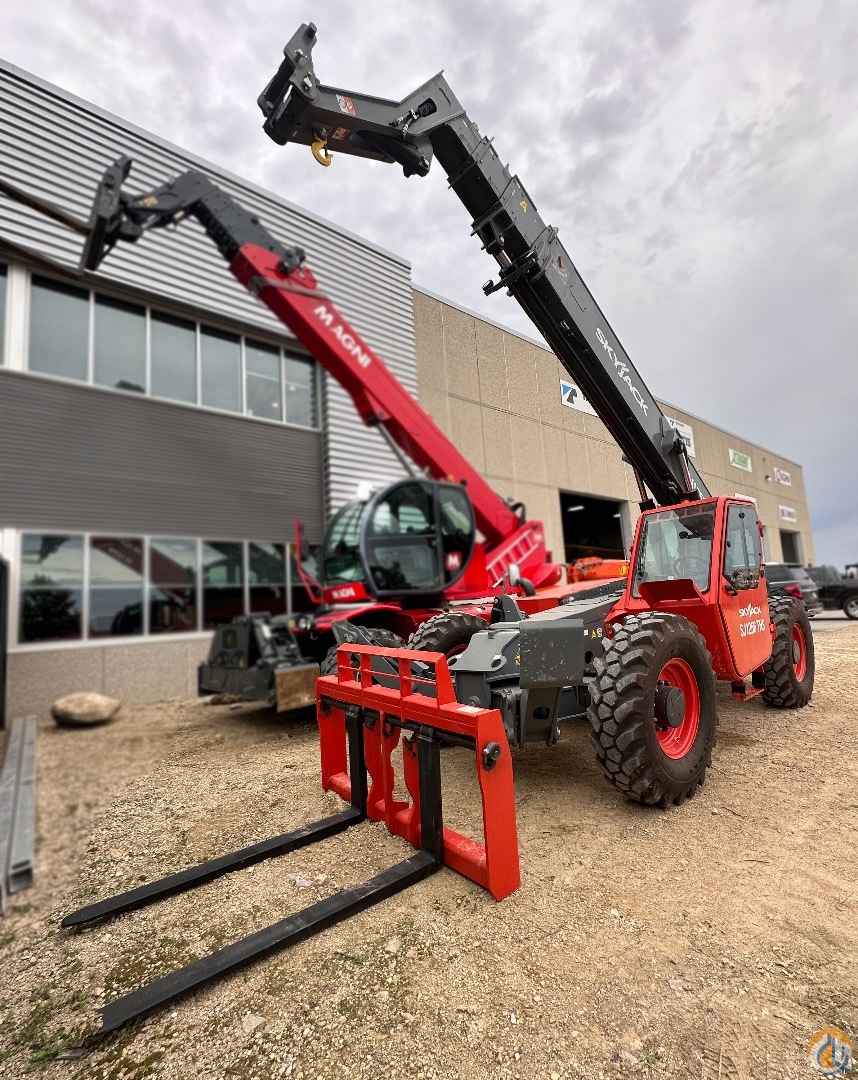

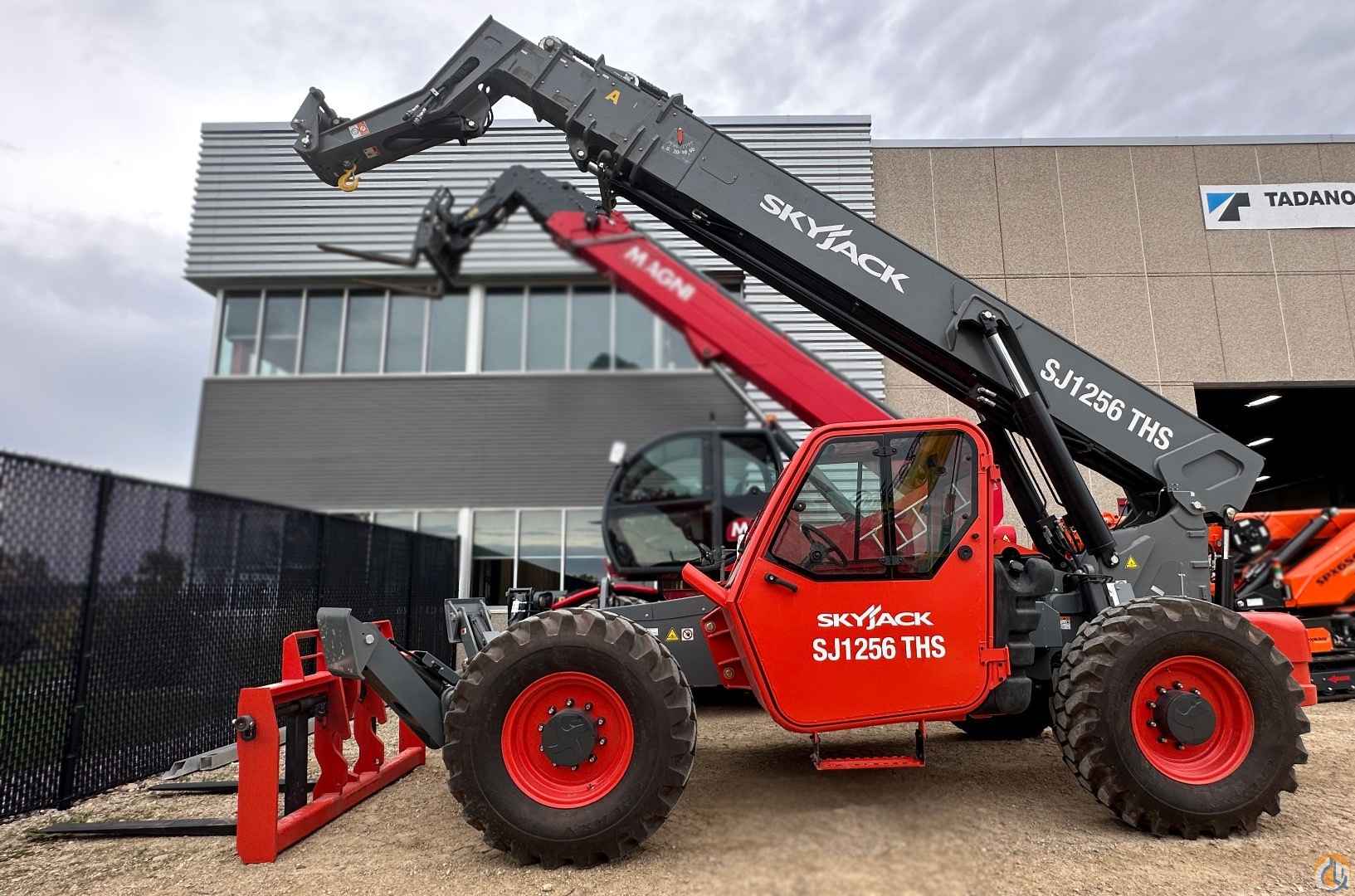

NEW SkyJack SJ1256THS 12,000lb Telehandler - Available and Ready to Work!

Maximum Lift Capacity - 12,000 lbs (5,443 kg)

Maximum Lift Height - 56’ 3” (17.14 m)

Maximum Forward Reach - 42’ 4” (12.90 m)

Rated Lift Capacity @ Maximum Height - 6,000 lbs (2,722 kg)

Rated Lift Capacity @ Maximum Reach - 1,000 lbs (454 kg)

Rated Lift Capacity @ Maximum Height (on outriggers) - 7,000 lbs (3,175 kg)

Rated Lift Capacity @ Maximum Reach (on outriggers) - 3,500 lbs (1,588 kg)

Drawbar Pull - 22,500 lbs

Overall Width - 8’ 5” (2.56 m)

Ground Clearance - 19” (48.26 cm)

Overall Height – Stowed - 8’ 6” (2.59 m)

Operating Weight - 36,625 lbs (16,613 kg)

Turning Radius (Outside) - 173” (4.39 m)  Axles – Dana

O/A Length - Less Forks - 23’ 1” (7.03 m)

Carriage group, 72" standard

2.25 x 5 x 60 std taper fork

Engine - 107hp / 320 lb-ft Deutz TCD 3.6L T4F (quick drain – deutz)

Max Travel Speed – Forward- 15 mph (24 km/h)

Transmission - Dana Powershift, 3 Speeds F/R

Fuel Tank - 35 gal. (132 L)

Hydraulic Reservoir - 43.85 gal. (166 L)

Steering - 3 mode (Front Wheel, 4 Wheel, Crab)

Tires - Foam Filled 14 x 24 16PR Grip Lug - Foam rough terrain, galaxy giraffe (special option added)

Enclosed cab group - 107 hp

·      Premium joystick kit

·      A/c opt, sj1044/1056/1256ths - deutz rad

·      Backup camera & sensor group

Additional Features:

·      Alarm asm, white noise option

·      Cold weather package group

·      Boom light group

·      Rotating beacon light, flashing - amber

·      Remote axles grease group

·

Reynolds Equipment offers full lifecycle support of this telehandler with a trained service technician team and stocked parts in DeForest, WI. Please reach out to Darren Reddekopp at 612-382-2847 or Dreddekopp@reynoldscrane.com to learn more! We appreciate your business and partnership.
